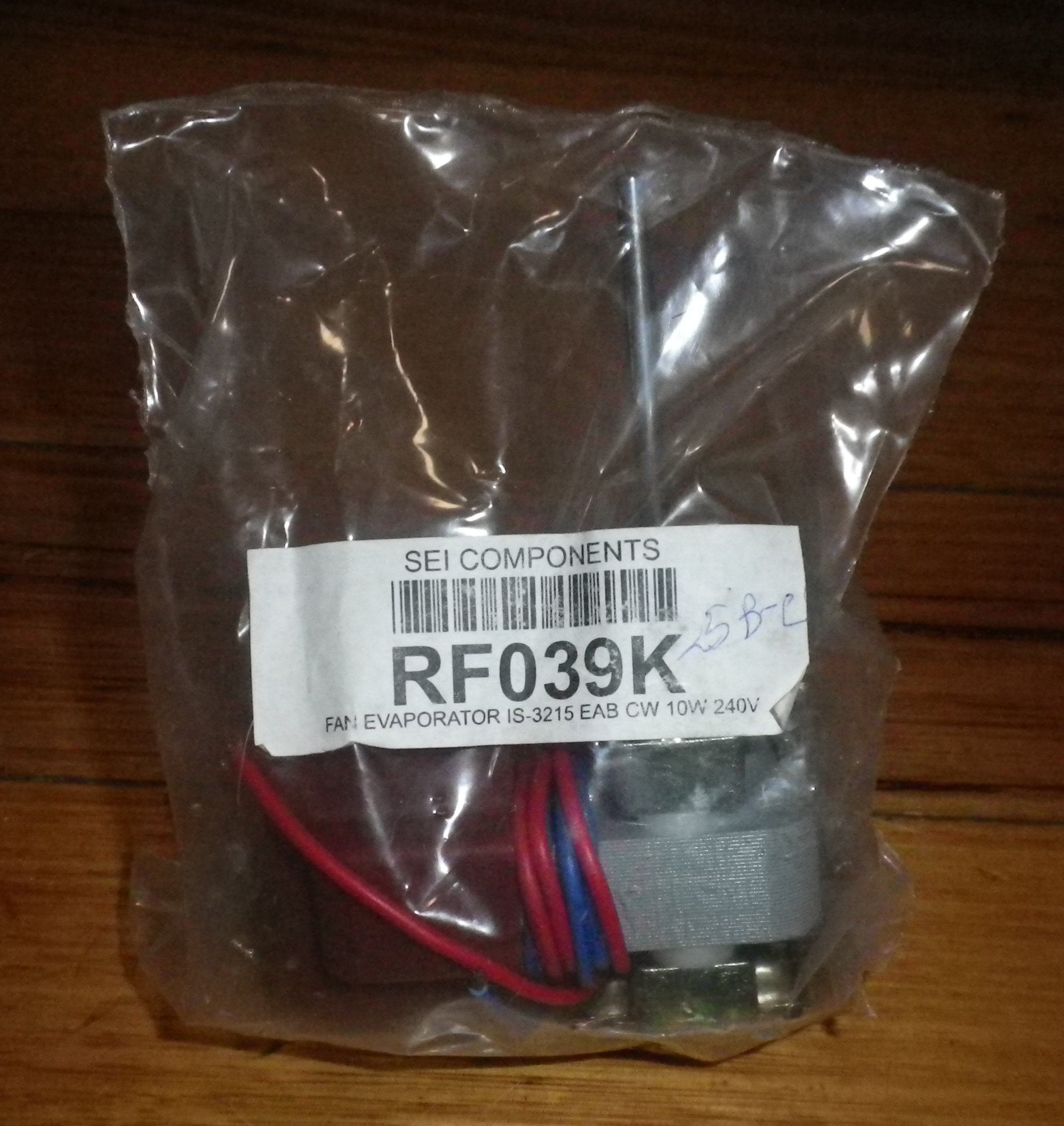

Universal Reversible 10Watt Evaporator Fan Motor - Part # RF039K, IS-3215EAB

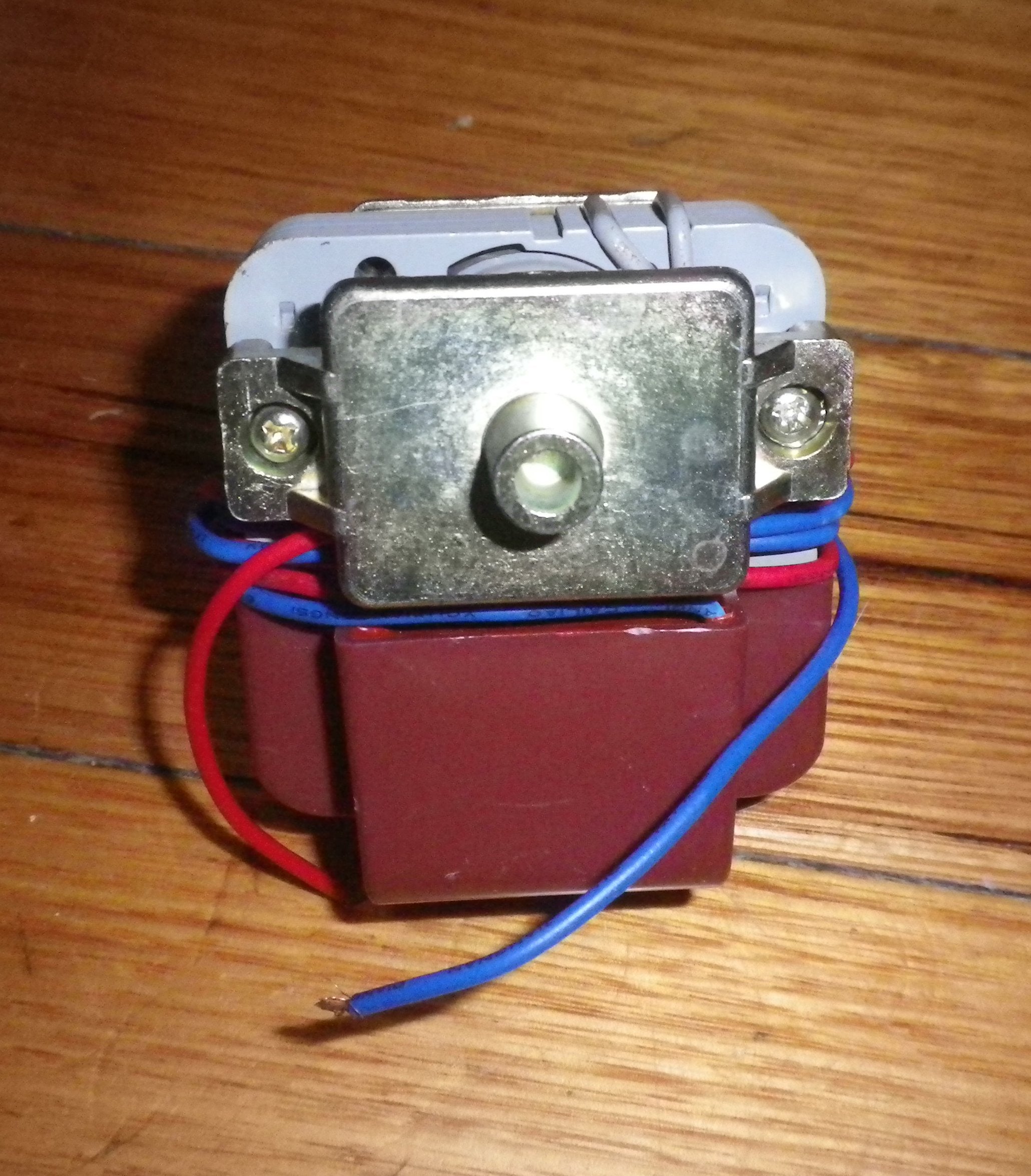

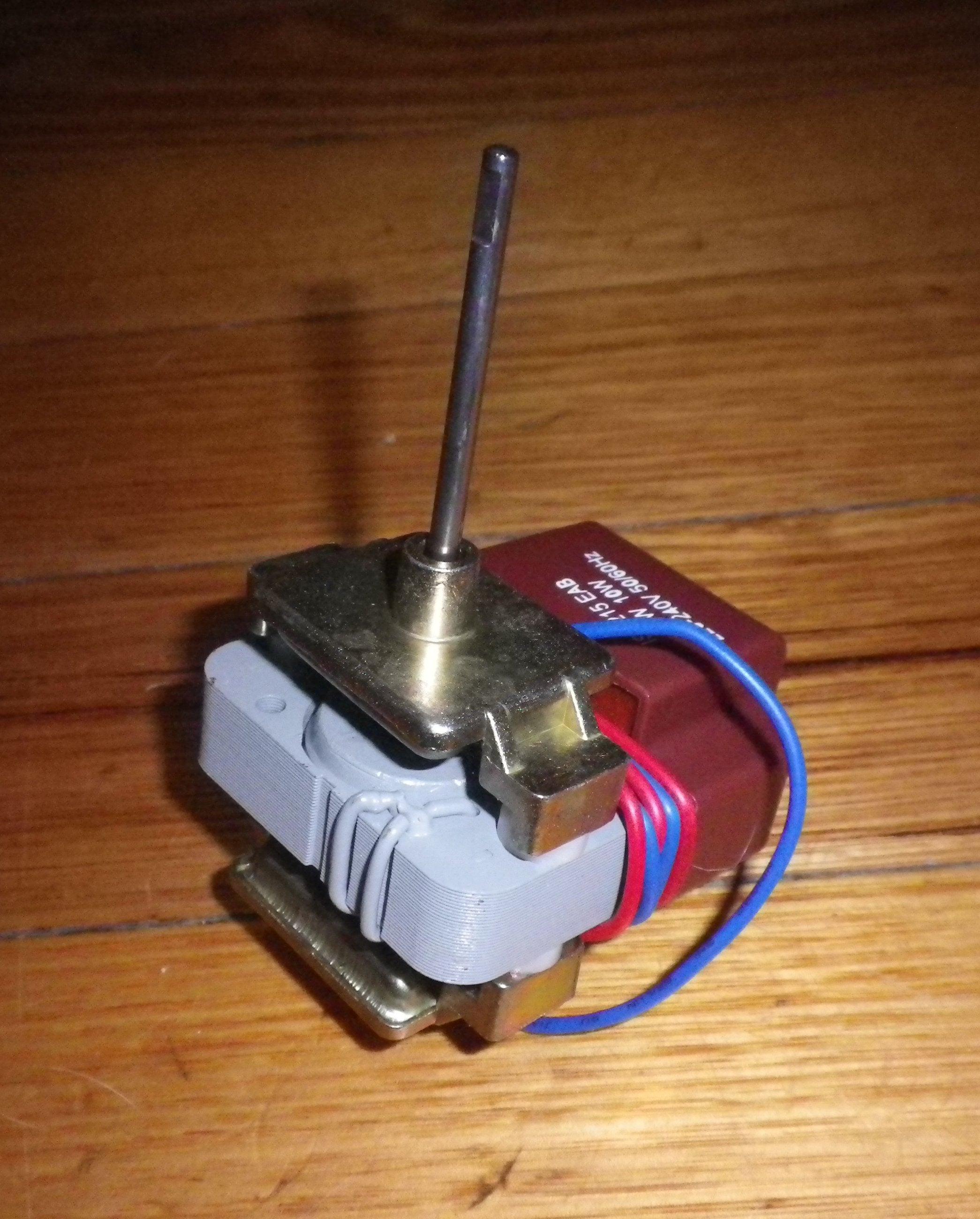

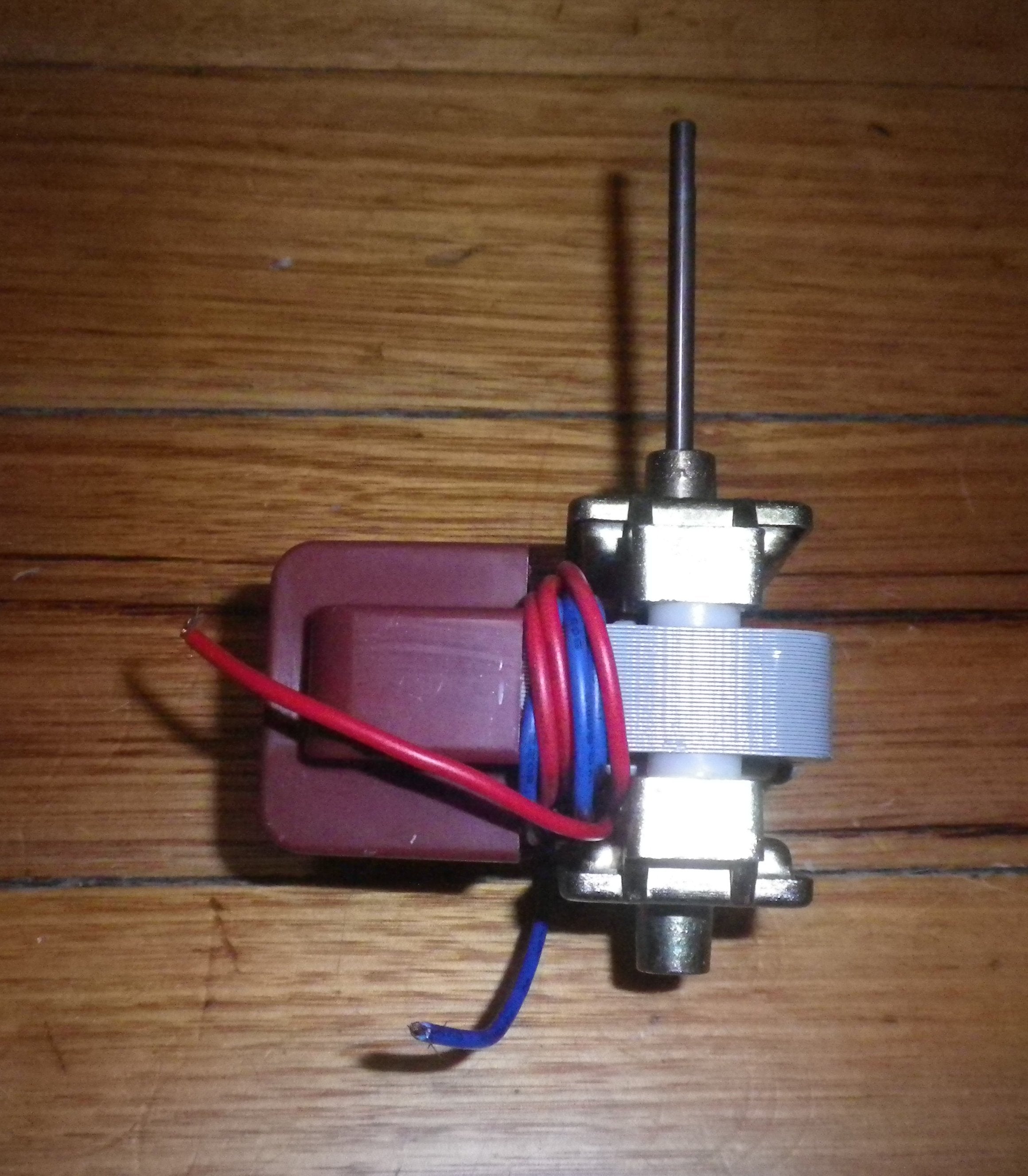

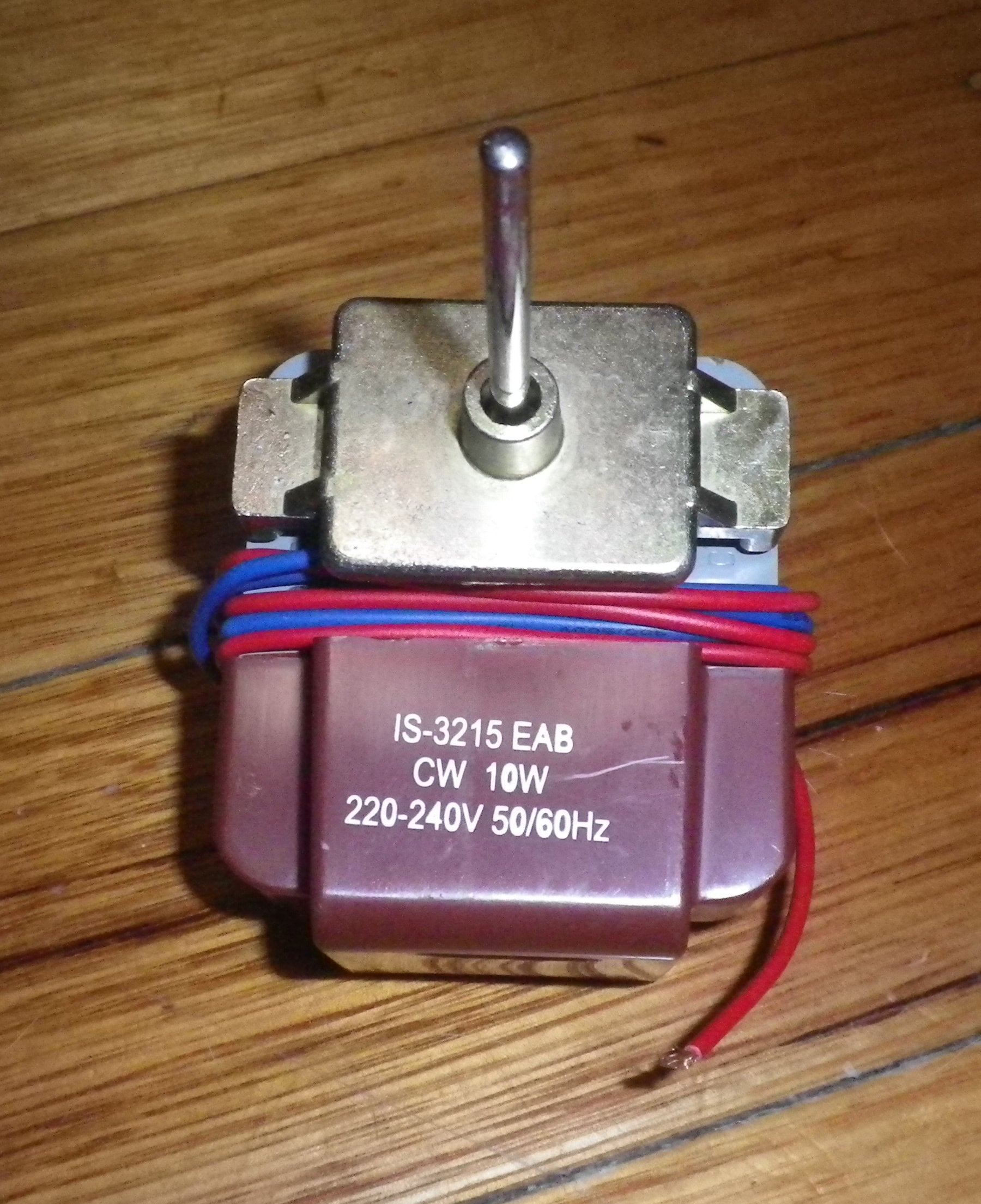

This universal reversible evaporator fan motor is perfect for some no-frost fridges. Part numbers are RF039K and IS-3215EAB. It's suitable for numerous frost-free refrigerators. Operating at 240 Volts AC, 10 Watts, and 50/60 Hz, it comes set for clockwise (CW) rotation, but you can easily switch it to counterclockwise (CCW) by removing the bearing covers and repositioning the rotor. The motor is equipped with 55 cm connecting wires with bare ends. The shaft is 50 mm long and 3.9 mm in diameter. The total depth from the shaft tip to the back of the mounting knob is 121 mm, and the motor's thickness (excluding mounting knobs) is 51.5 mm. There's a small flat section near the shaft end for a grub screw. It's fully guaranteed, easy to install, and designed to be clamped into a metal or plastic bracket with rubber grommets at the front and back. We've been supplying appliance parts to the trade and retail for over 25 years, so you can buy with confidence.

Using this evaporator fan motor is quite straightforward. First, make sure your fridge is unplugged for safety. Then, remove the old fan motor and install this new one by clamping it into the metal or plastic bracket with the rubber grommets at the front and back. Connect the 55 cm wires to the appropriate terminals. If you need to change the rotation direction, undo the bearing covers and fit the rotor the other way around. When using, ensure the fridge is operating at the correct voltage of 240 Volts AC. For maintenance, keep the motor clean and free from dust. Check the connections regularly to make sure they are secure. If you encounter any problems, don't hesitate to contact us as the motor comes with a full guarantee.
