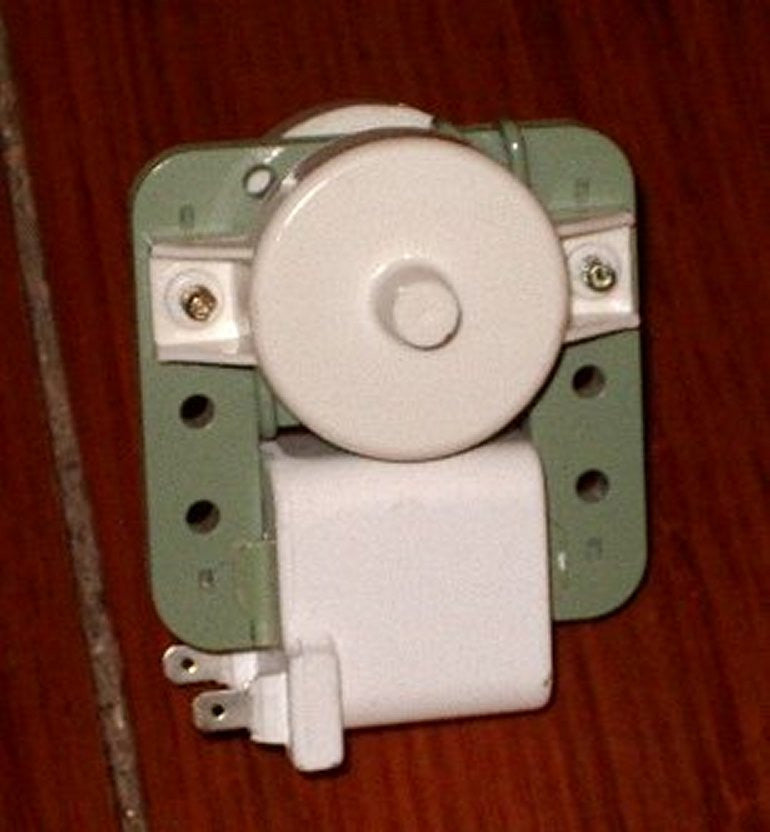

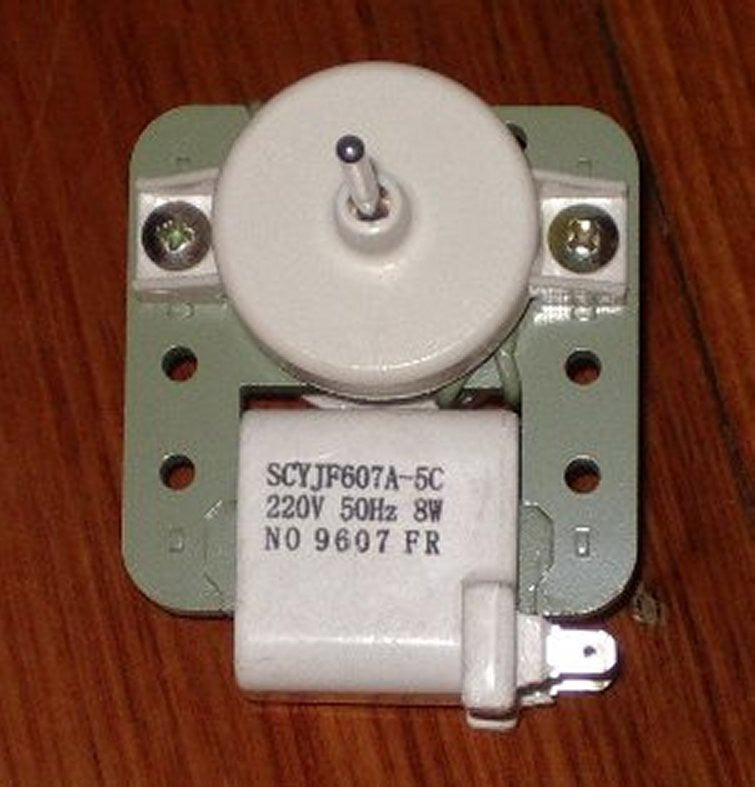

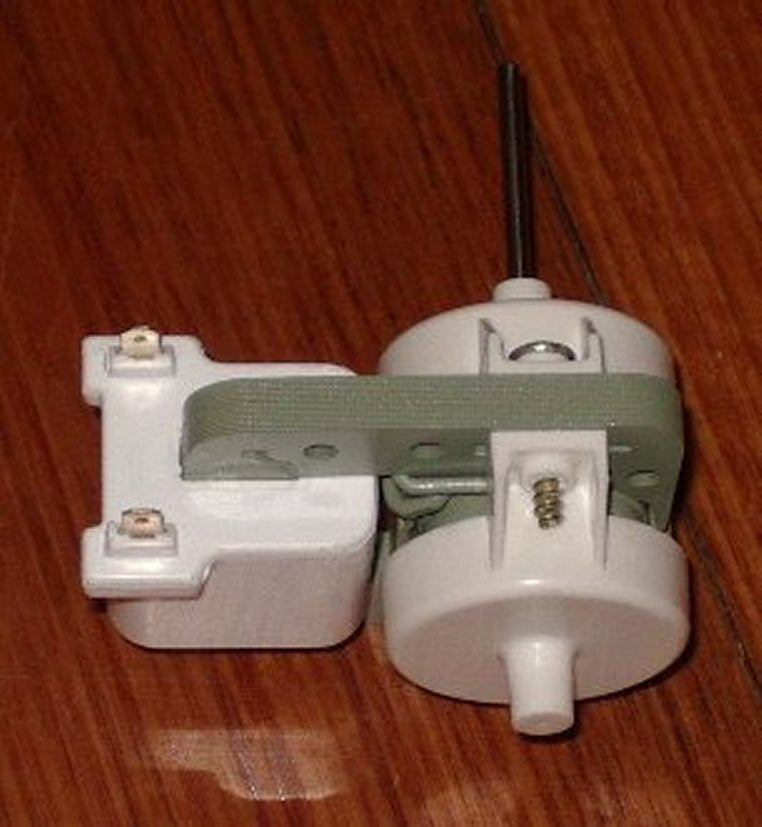

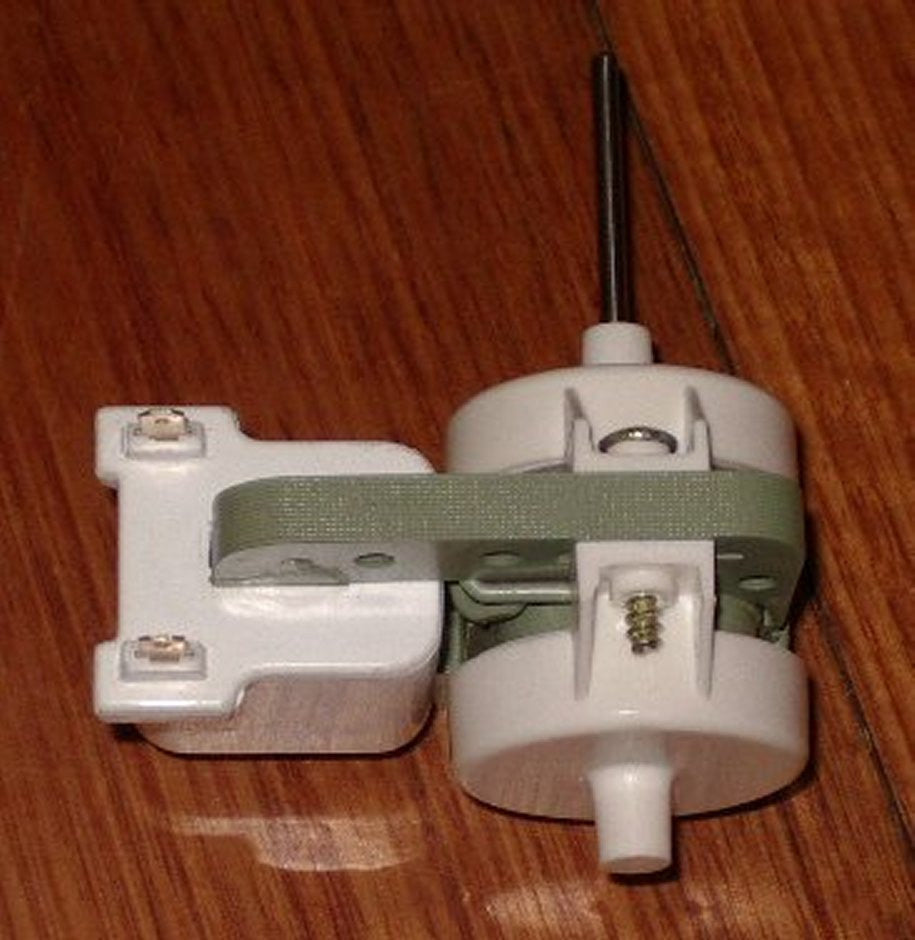

Fisher & Paykel Evaporator Fan Motor - Part # FP877730

This Fisher & Paykel Evaporator Fan Motor is specifically designed to fit the 635 Series Freezer. It's a small yet powerful fan motor that works great for many Fisher & Paykel frost free freezers, including some model N388 units. You should check the shaft length as certain models here use a shorter - shaft motor. It runs on 220 Volts AC, consumes only 0.8 Watt of power, and operates at 50Hz. The motor comes with 4.8mm male spade terminals for easy connection. The shaft is 34mm long with a 3mm diameter. The total depth from the tip of the shaft to the back of the mounting knob is 95mm, and the motor's thickness (excluding mounting knobs) is 40mm. It comes with a full guarantee and is super easy to install. It's designed to be clamped into a metal or plastic bracket using rubber grommets on both the front and back. With over 25 years of experience supplying appliance parts to both the trade and retail sectors, you can buy this product with full confidence.

Using this Fisher & Paykel Evaporator Fan Motor is straightforward. First, make sure your freezer is unplugged to avoid any electrical hazards. Check the shaft length of your old motor and compare it with the new one. If they match, you're good to go. Connect the 4.8mm male spade terminals to the appropriate electrical connections in your freezer. Then, use the rubber grommets to clamp the motor into the metal or plastic bracket in your freezer. Once it's securely in place, plug your freezer back in. As for maintenance, keep the motor clean from dust and debris. You can use a soft brush or compressed air to gently clean it every few months. If you notice any unusual noises or performance issues, turn off the freezer and check the motor connections. Also, make sure to always operate the freezer within the specified 220 Volts AC, 0.8 Watt, 50Hz electrical parameters.
