Fisher & Paykel Short Shaft N308, N388 Freezer Fan Motor Kit - Part # FP322543P

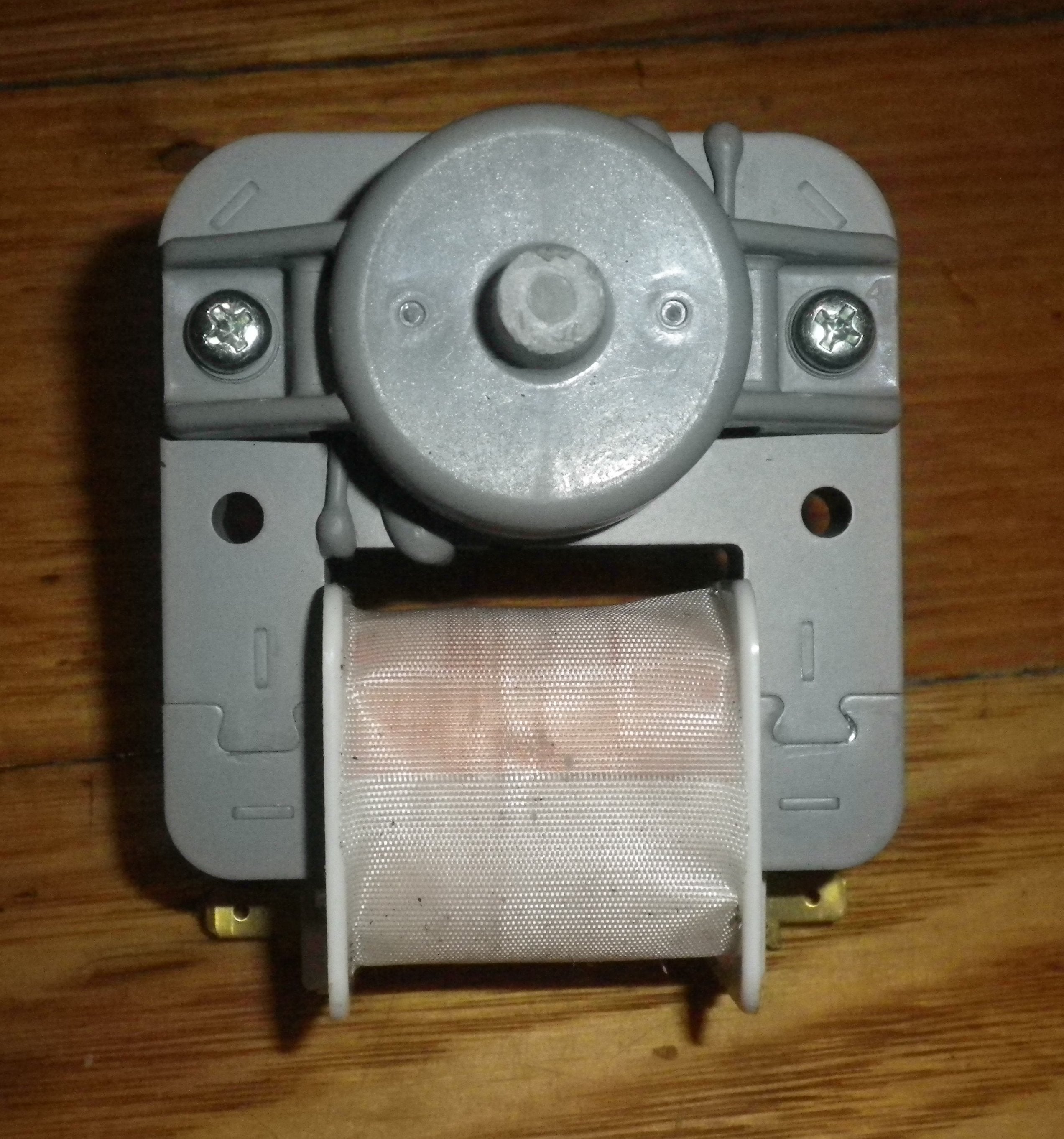

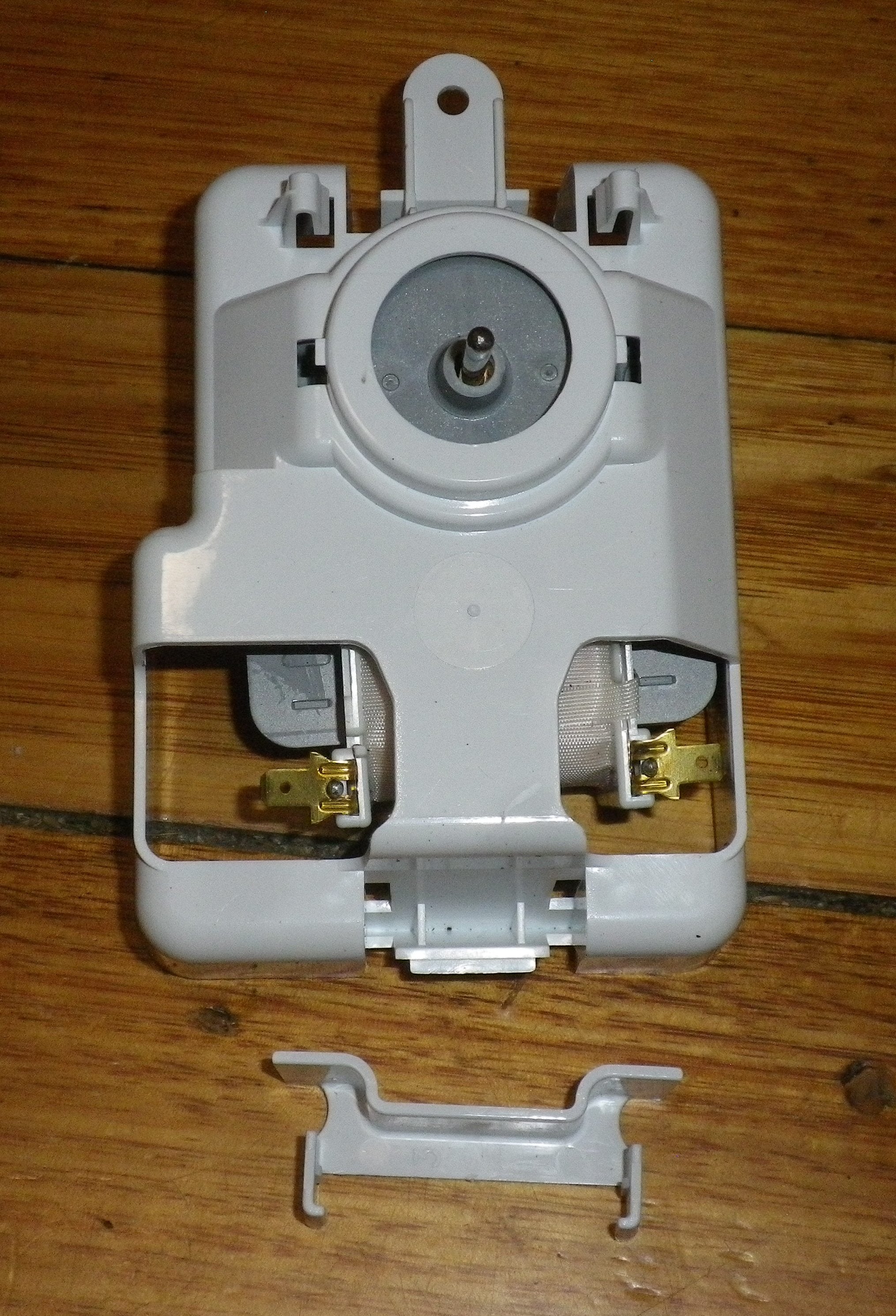

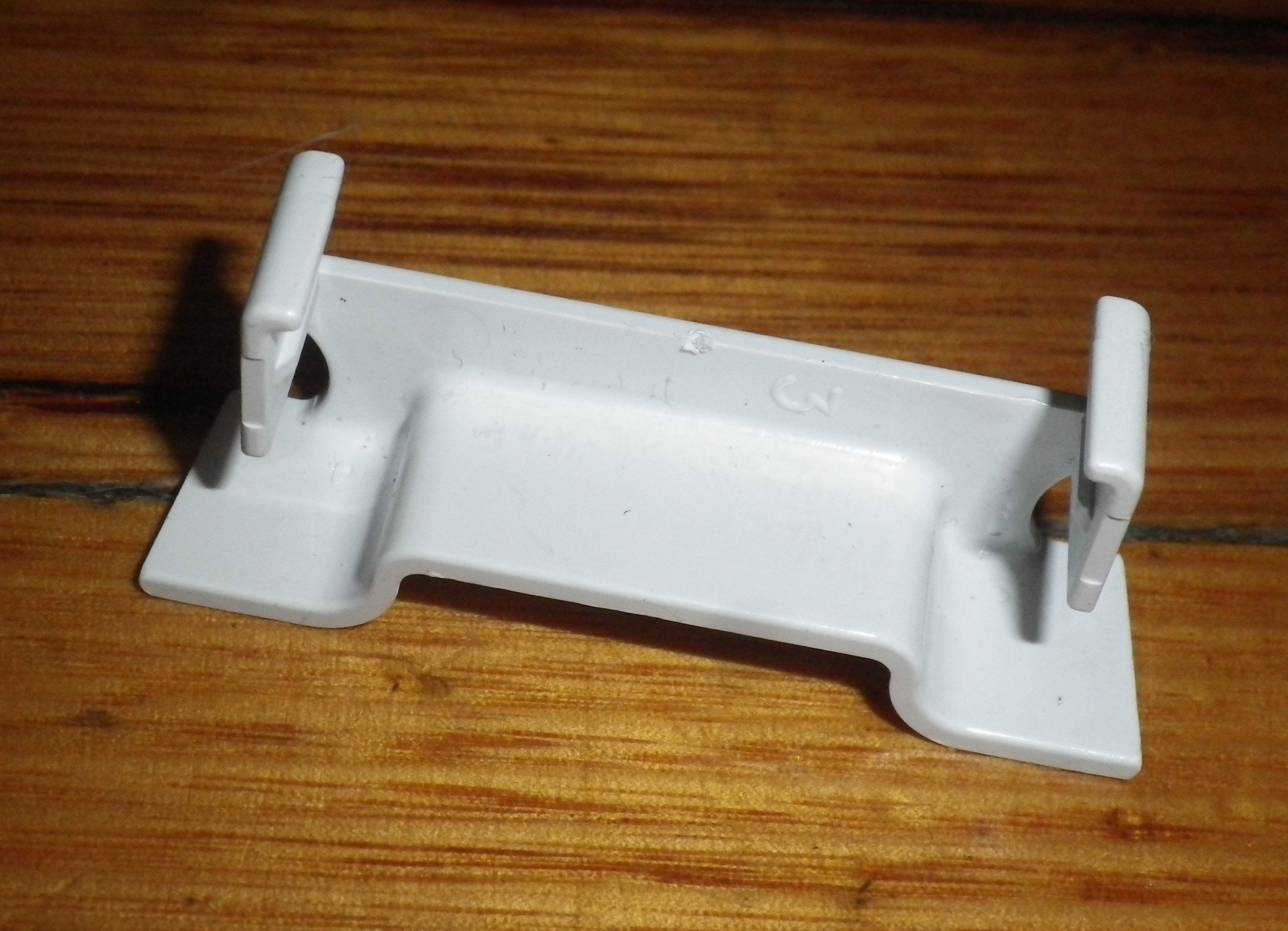

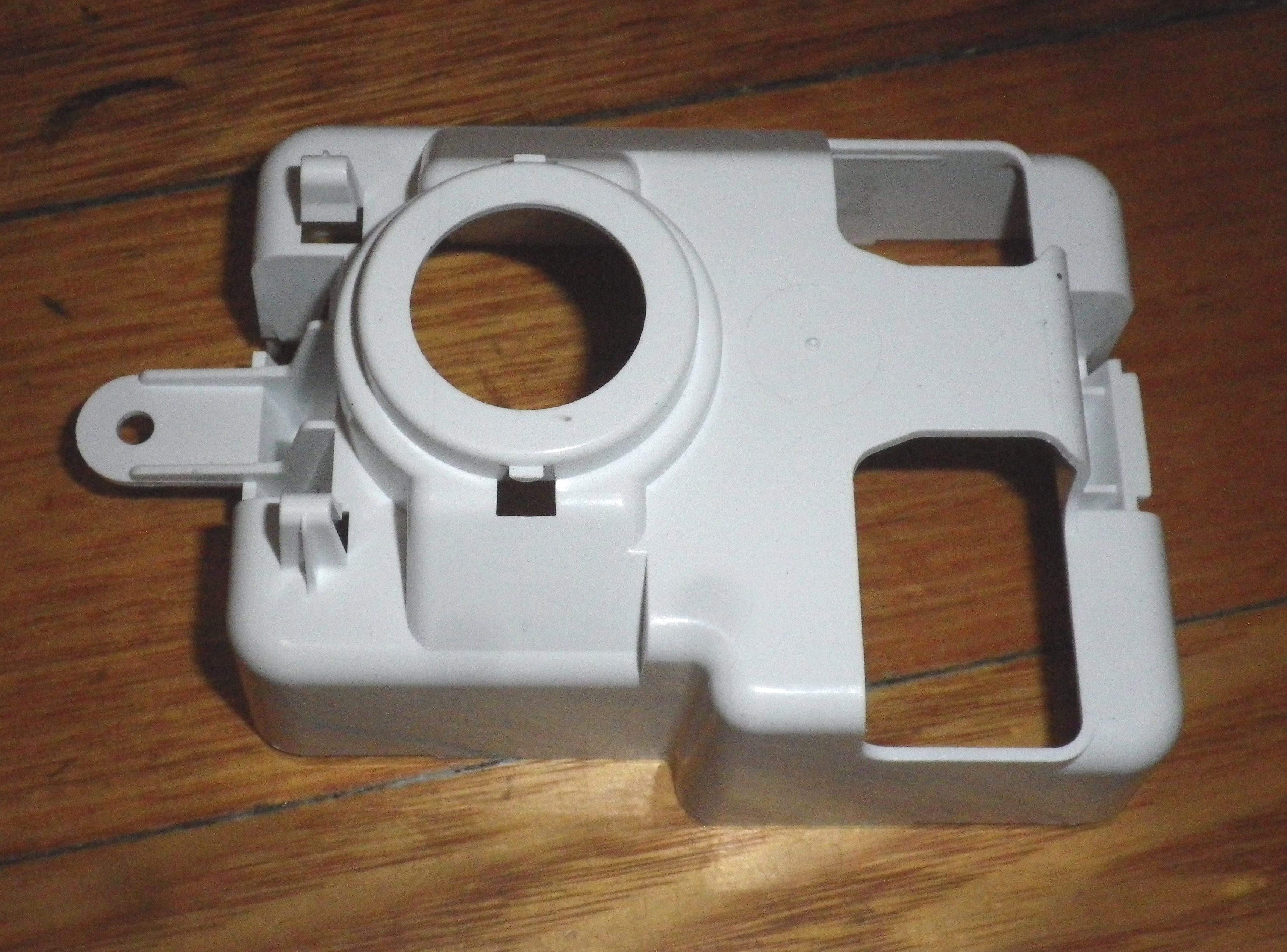

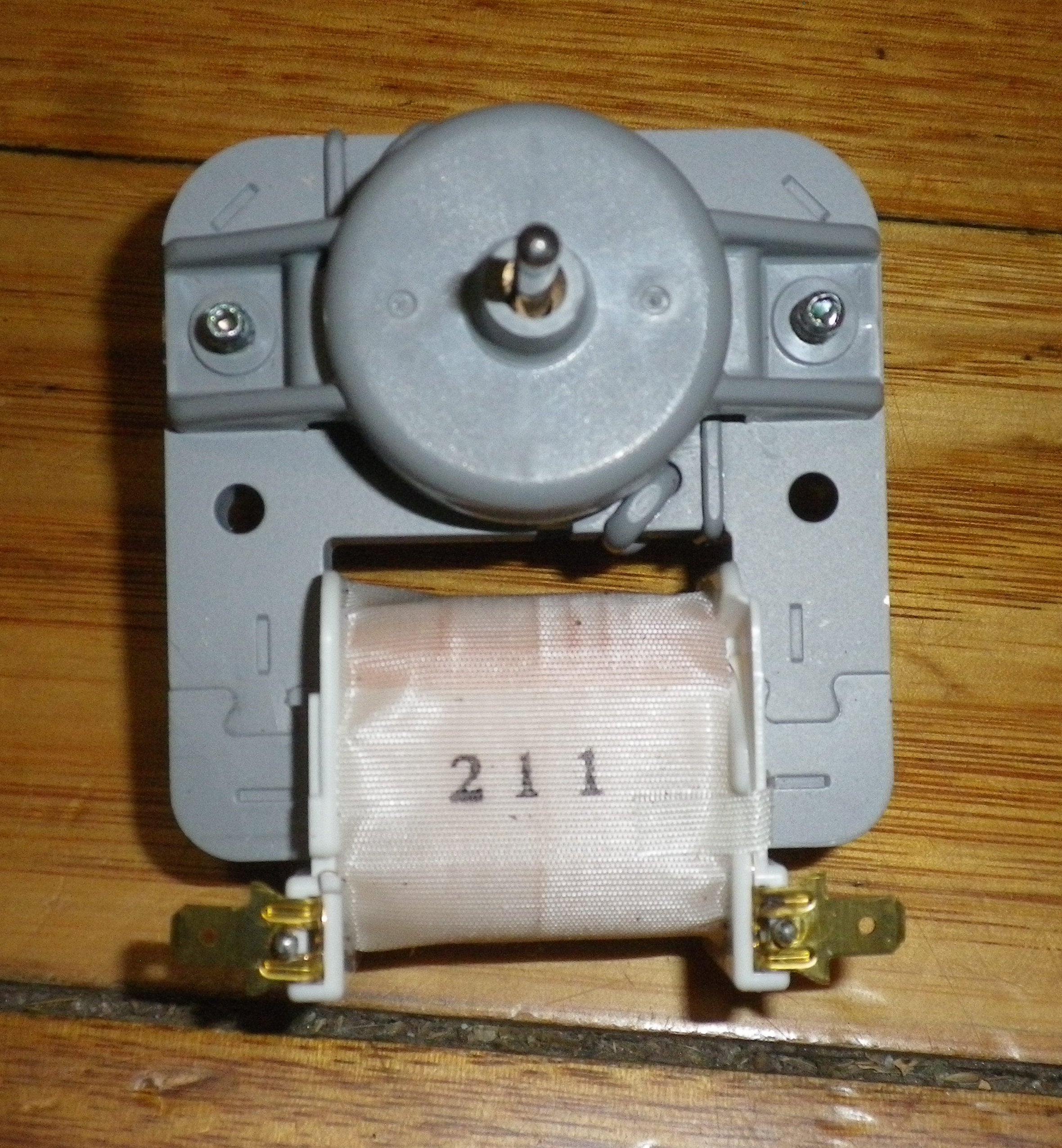

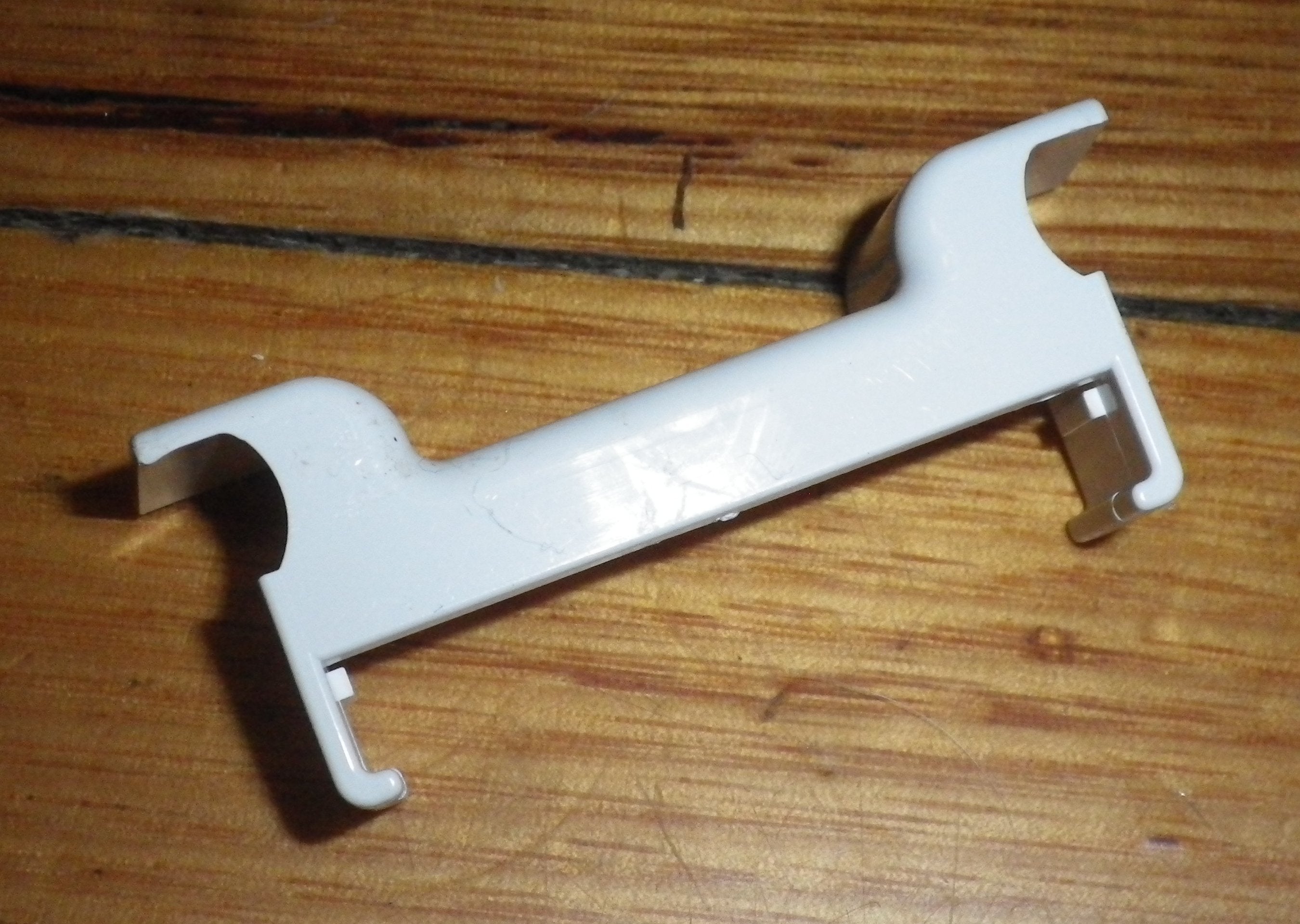

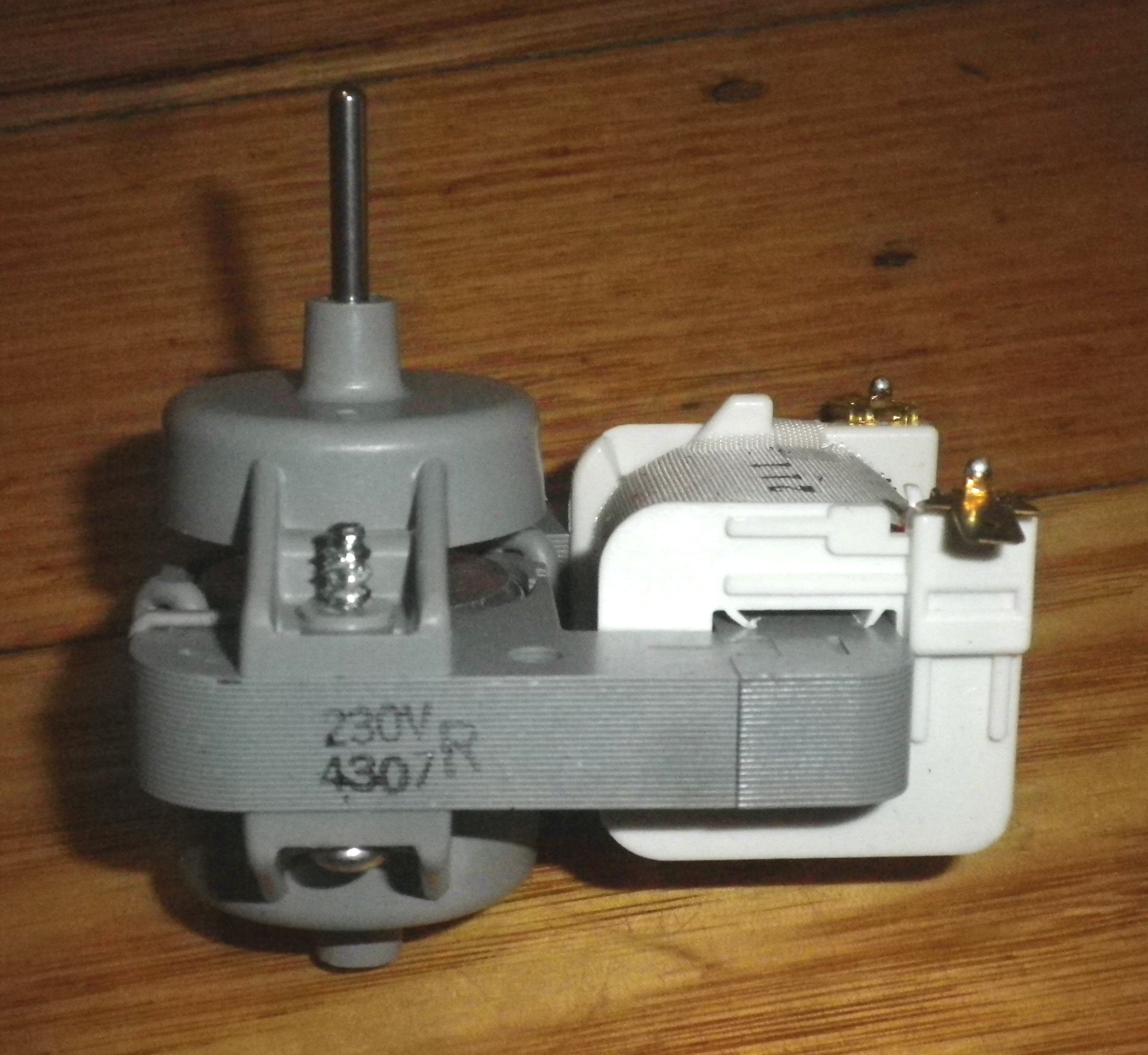

This is a high - quality Fisher & Paykel freezer evaporator fan motor with a short shaft and a cover. It's a genuine part, numbered FP322543P or 322543P. This small fan motor and cover kit is a great fit for many Fisher & Paykel frost - free freezers, including models N308, N388, and perhaps some others. It operates on 230 Volts AC at 50Hz and comes with 4.8mm male spade terminals. The shaft has a length of 18mm and a diameter of 3mm. The total depth from the tip of the shaft to the back of the mounting knob is 77mm. The motor's thickness (excluding mounting knobs) is 44mm, and the metal laminations are 10.5mm thick. It includes both a plastic cover and a terminal cover. This product comes with a full guarantee and is easy to install. It's designed to be clamped using rubber grommets (not included). With over 25 years of experience in supplying appliance parts to the trade and retail, you can buy this product with confidence.

Using this Fisher & Paykel freezer fan motor kit is straightforward. First, make sure your freezer is unplugged to avoid any electrical hazards. Locate the old fan motor in your freezer. Remove it carefully, taking note of how the wires are connected. Then, connect the new motor using the 4.8mm male spade terminals. Place the motor in the correct position and use rubber grommets (which you need to get separately) to clamp it securely. After that, put on the plastic cover and terminal cover. Plug your freezer back in and check if the motor is working properly. When it comes to maintenance, keep the motor clean. You can use a soft, dry cloth to wipe away any dust or debris. If you notice any unusual noises or the motor isn't working as it should, turn off the freezer and consult a professional. Also, always store the motor in a dry place when not in use to prevent damage.
