Universal Reversible Evaporator Fan Motor - Part # RF039EB

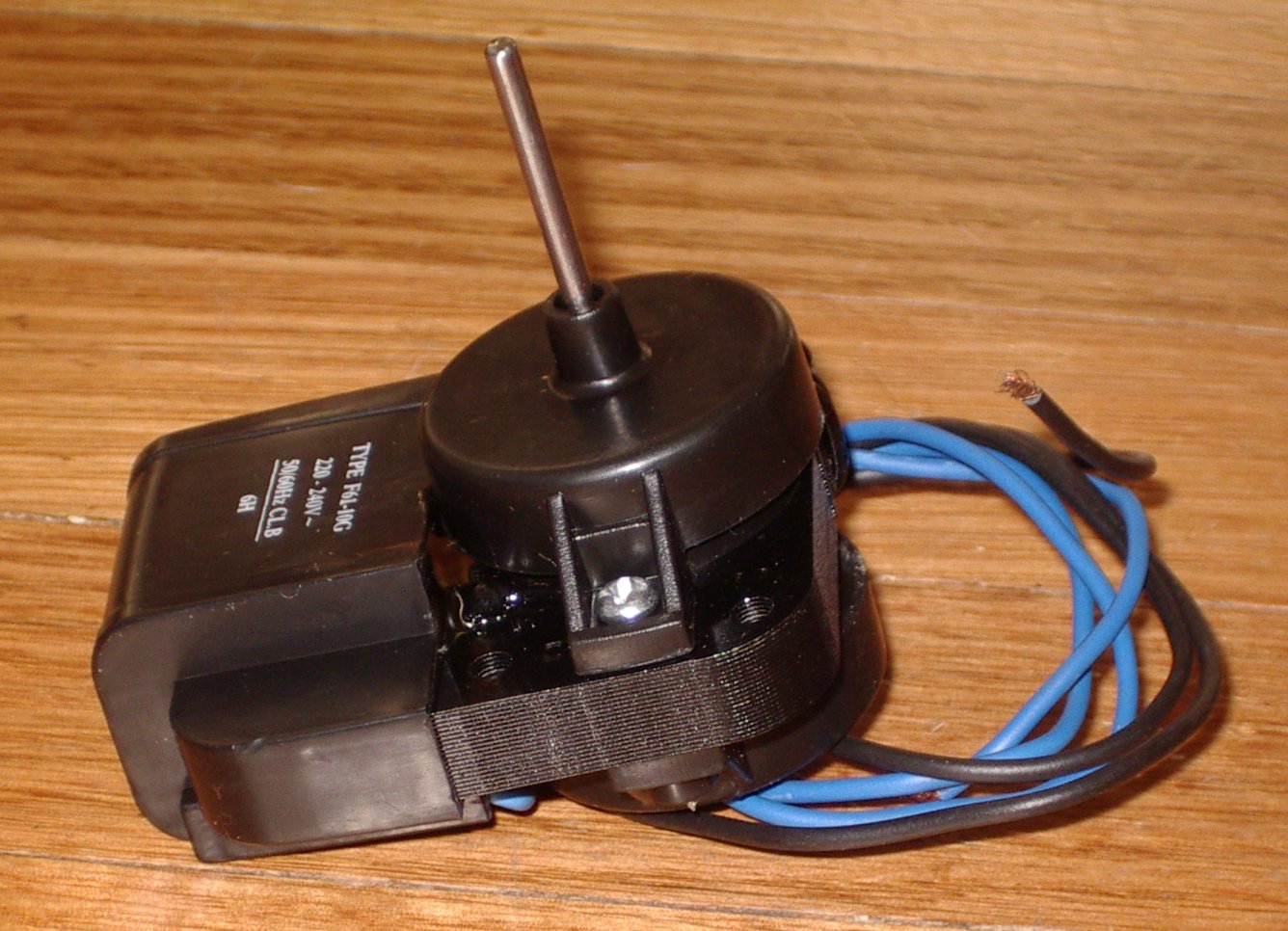

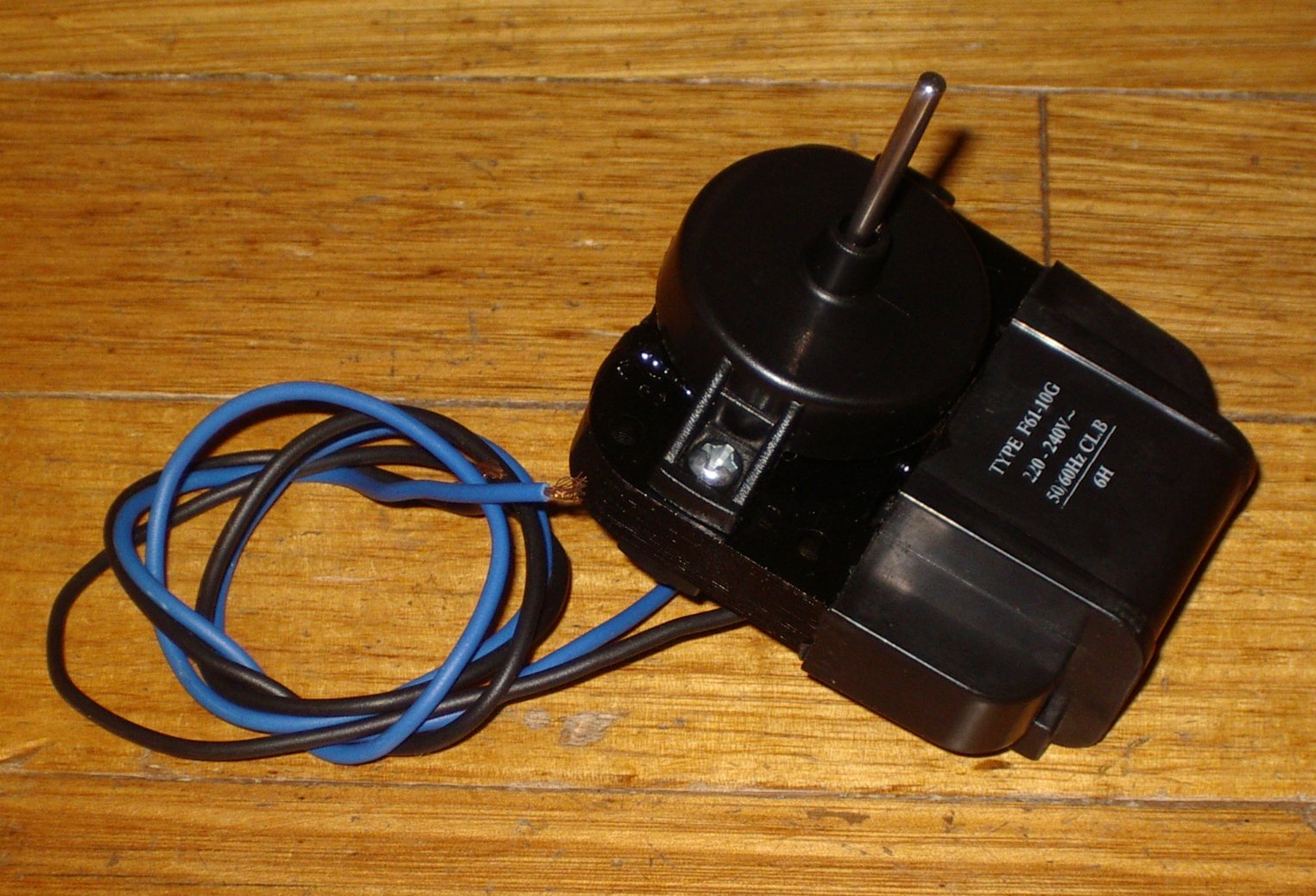

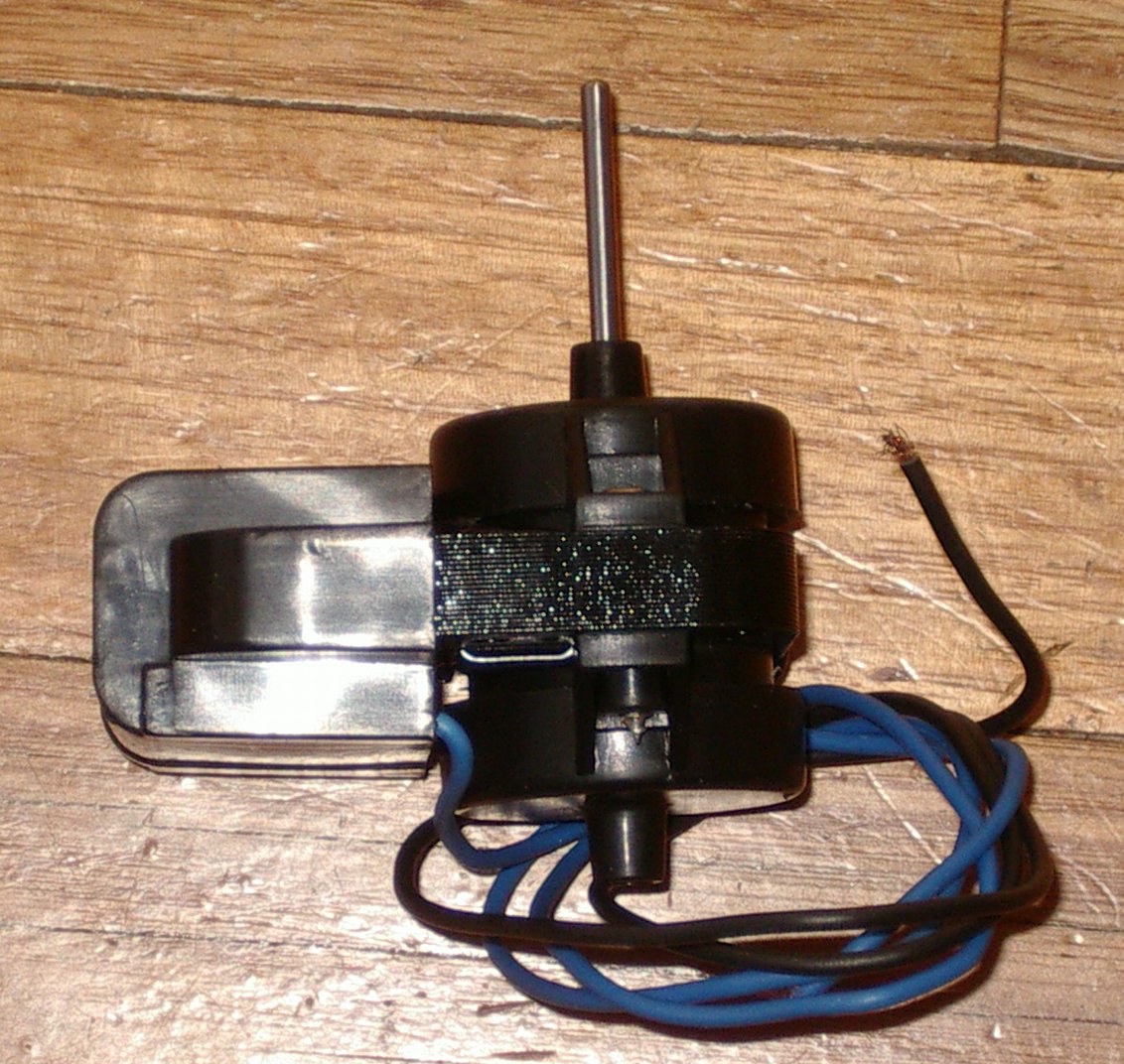

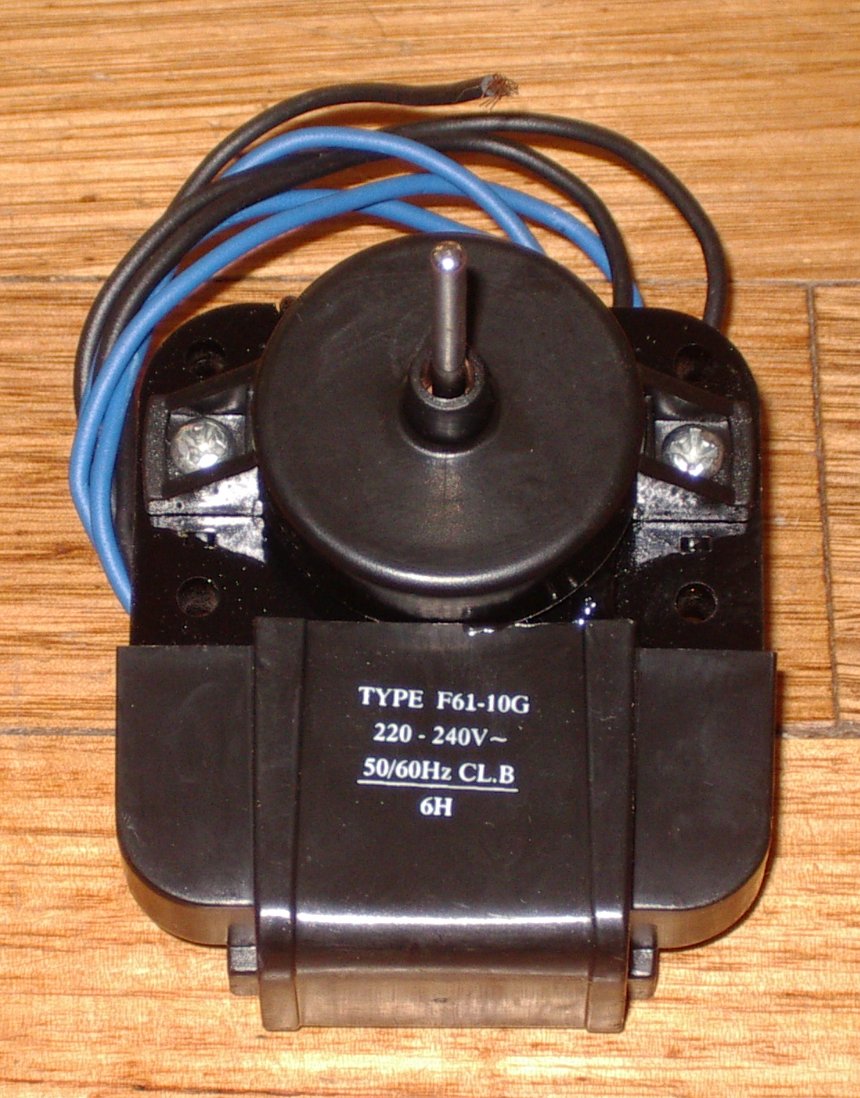

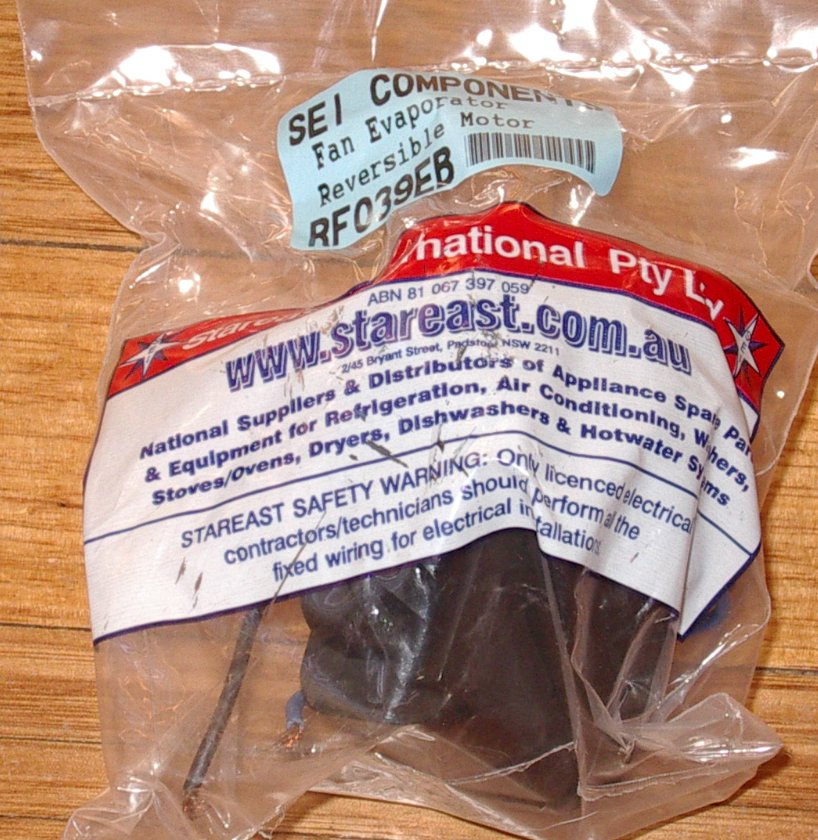

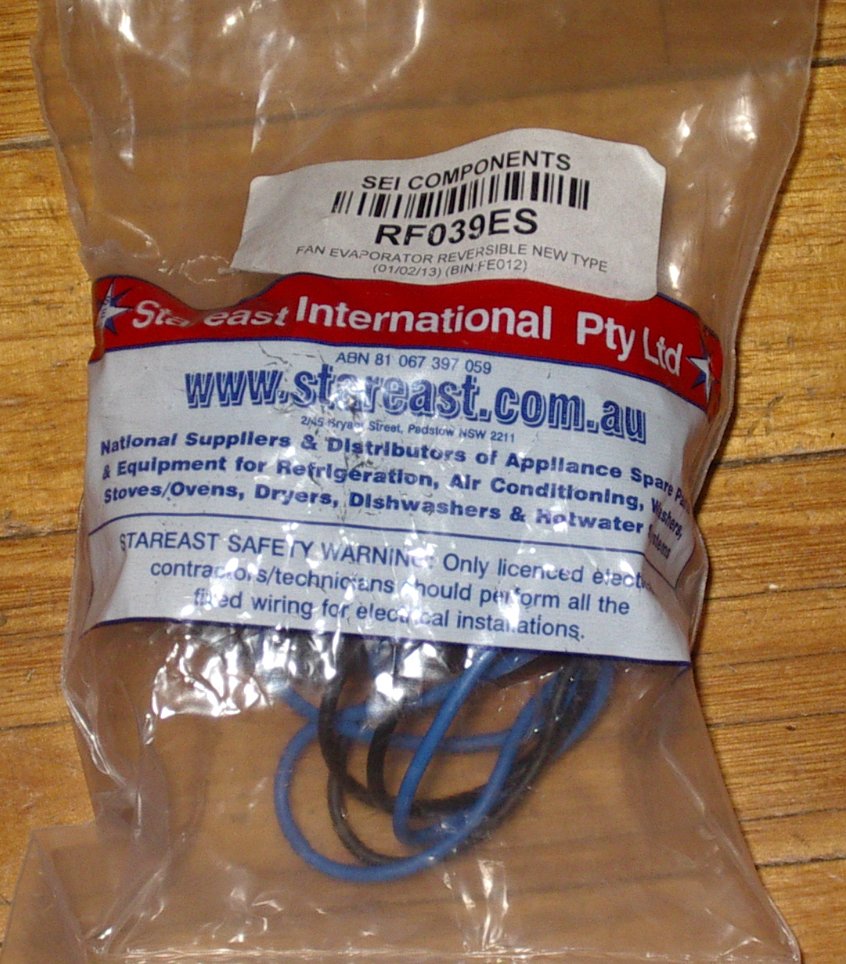

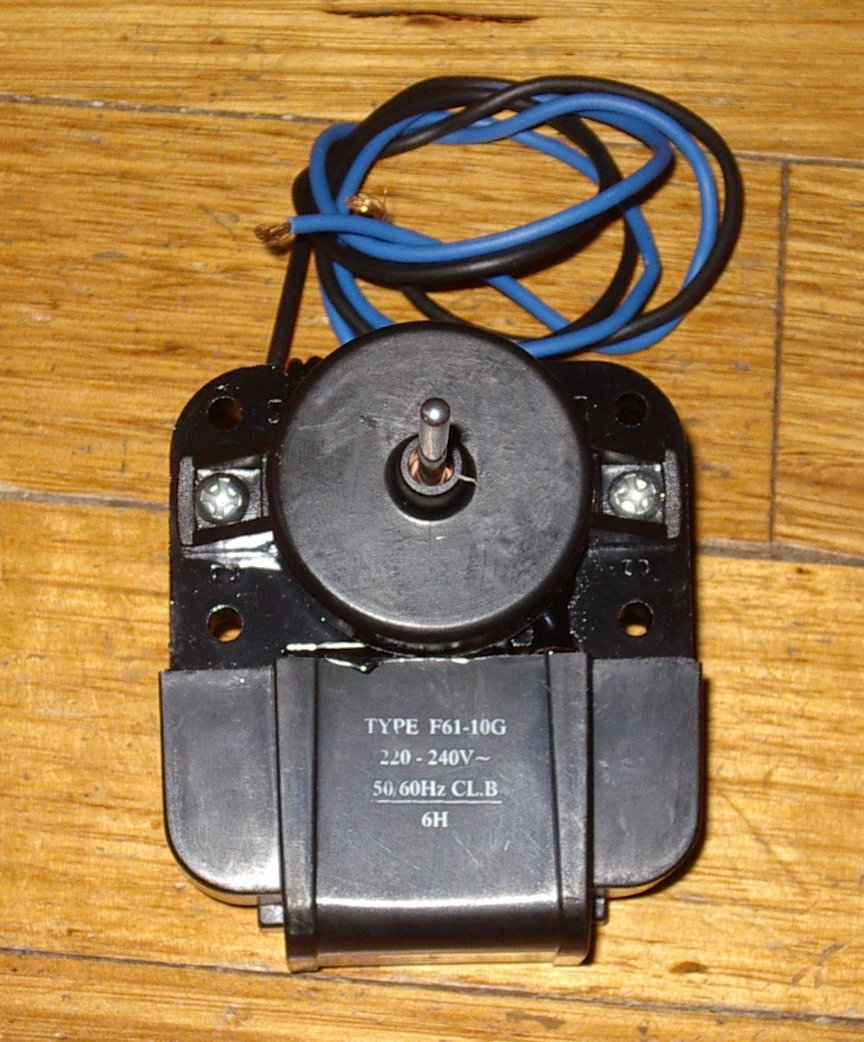

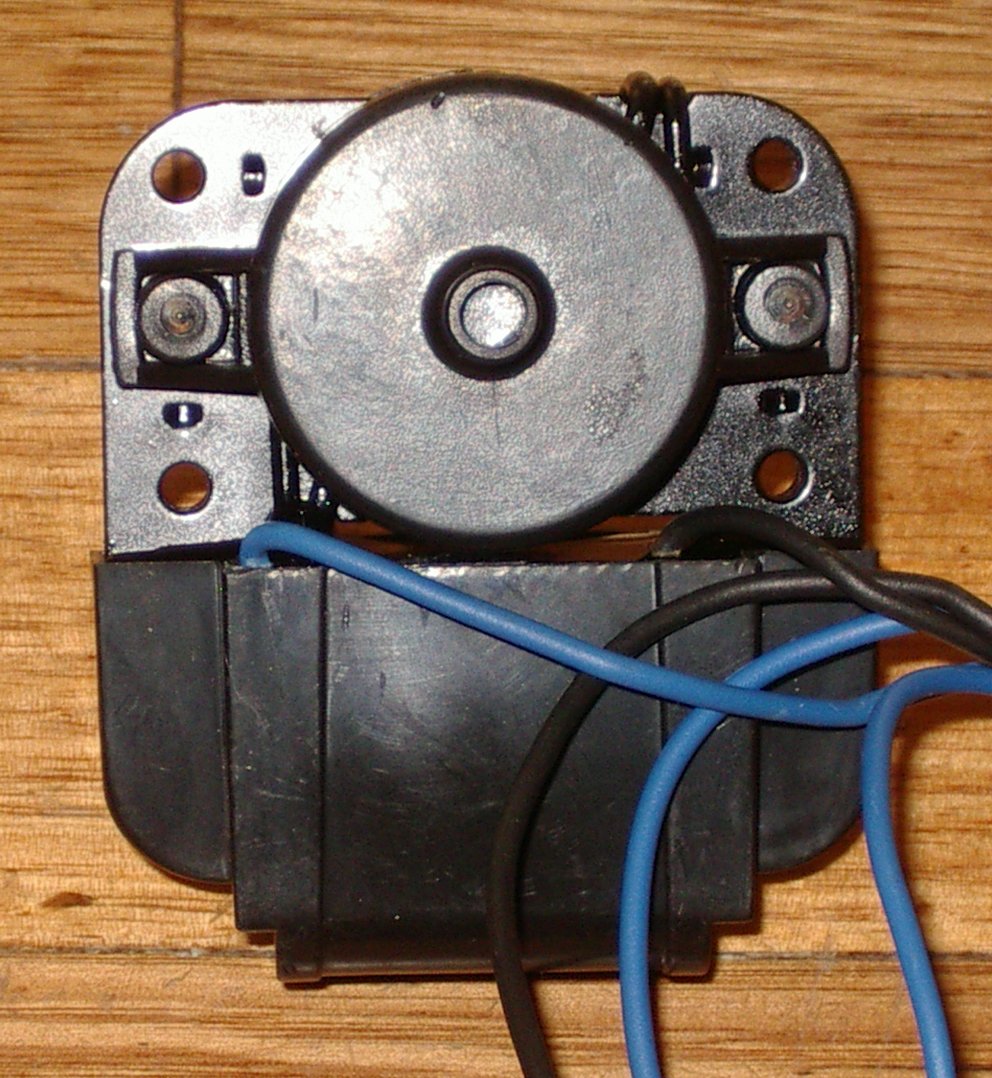

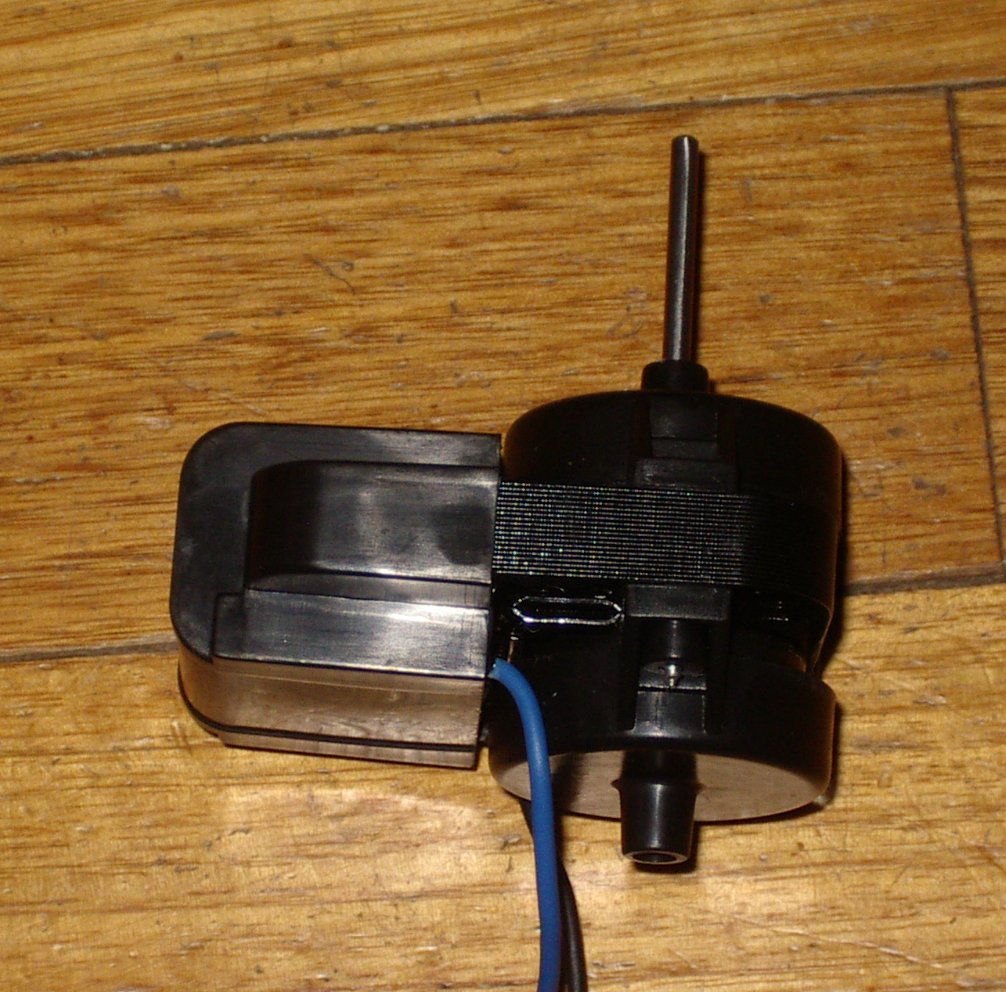

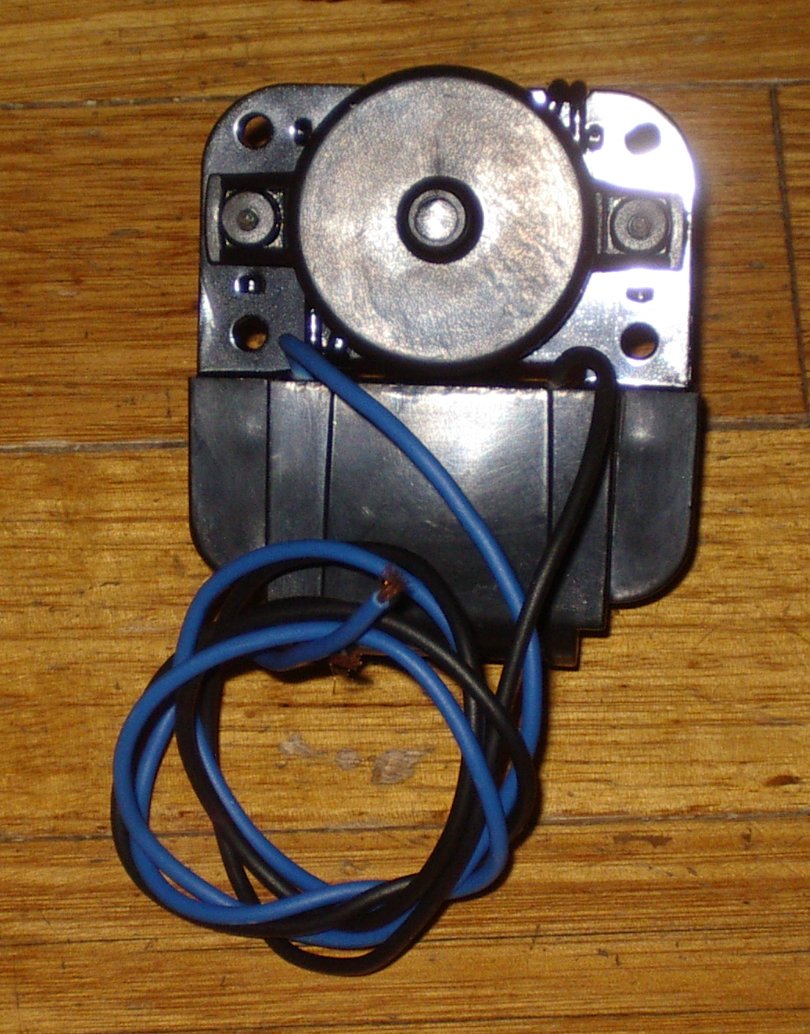

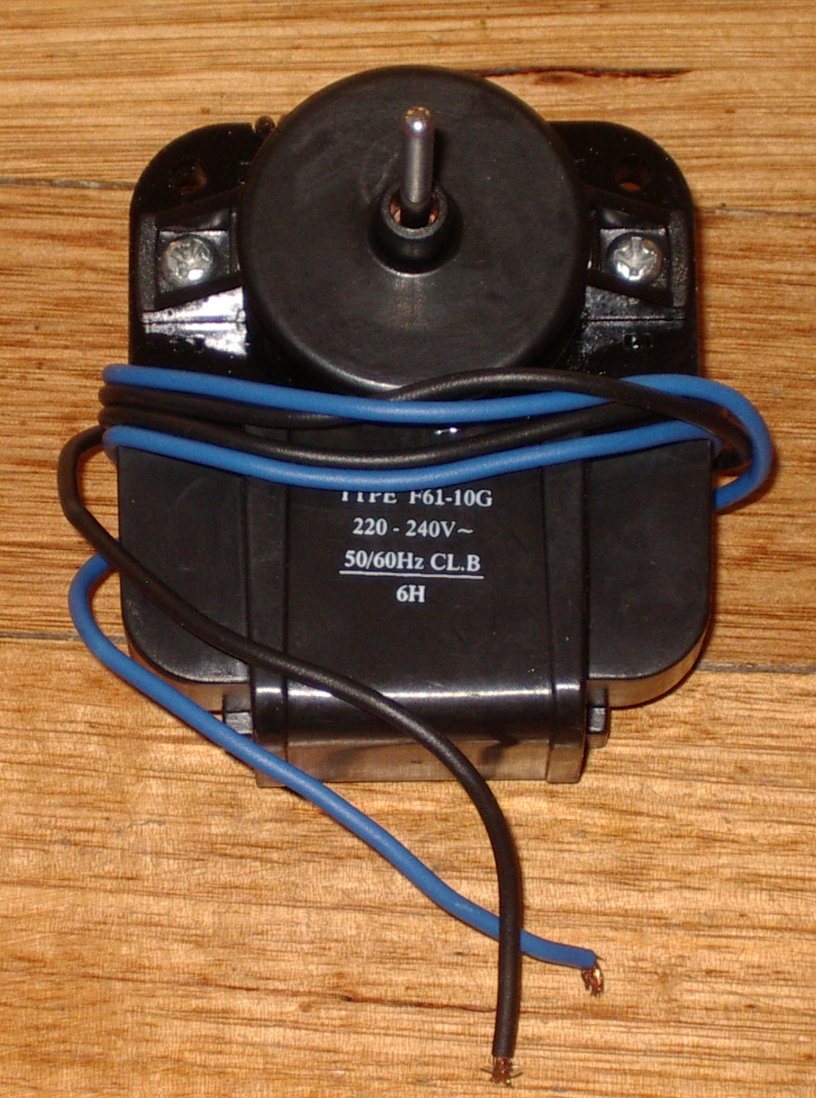

This small universal reversible evaporator fan motor is a perfect fit for no frost fridges. It comes with part numbers RF039EB, RF039ES, and F61 - 10G. It's suitable for many frost - free refrigerators, including some Westinghouse models. Operating at 220 - 240 Volts AC and 50/60Hz, it's supplied with a clockwise (CW) rotation, but you can easily change the direction to counter - clockwise (CCW) by removing the bearing covers and re - fitting the rotor. The motor has 45cm connecting wires with bare ends. The shaft is 30mm long and 3mm in diameter. The total depth from the shaft tip to the back of the mounting knob is 84mm, and the motor's thickness (excluding mounting knobs) is 40mm. It can replace many late - model Westinghouse fan motors. It's fully guaranteed, easy to install, and designed to be clamped into a metal or plastic bracket with rubber grommets at the front and back. With over 25 years of experience in supplying appliance parts to the trade and retail, you can buy with confidence.

Using this evaporator fan motor is quite simple. First, make sure your fridge is unplugged for safety. Locate the old fan motor in your no - frost fridge. Remove it carefully and note how it was connected. Then, connect the new motor using the 45cm connecting wires with bare ends. You can adjust the rotation direction (CW or CCW) if needed by taking off the bearing covers and re - positioning the rotor. Fit the motor into the metal or plastic bracket using the rubber grommets at the front and back. Finally, plug your fridge back in. As for maintenance, keep the motor clean from dust and debris. Check the wires regularly for any signs of wear. If you notice any strange noises or performance issues, stop using the fridge and get in touch with a professional. And remember, this motor comes with a full guarantee, so you're covered.
