Universal Reversible Evaporator Fan Motor - Part # RF039M

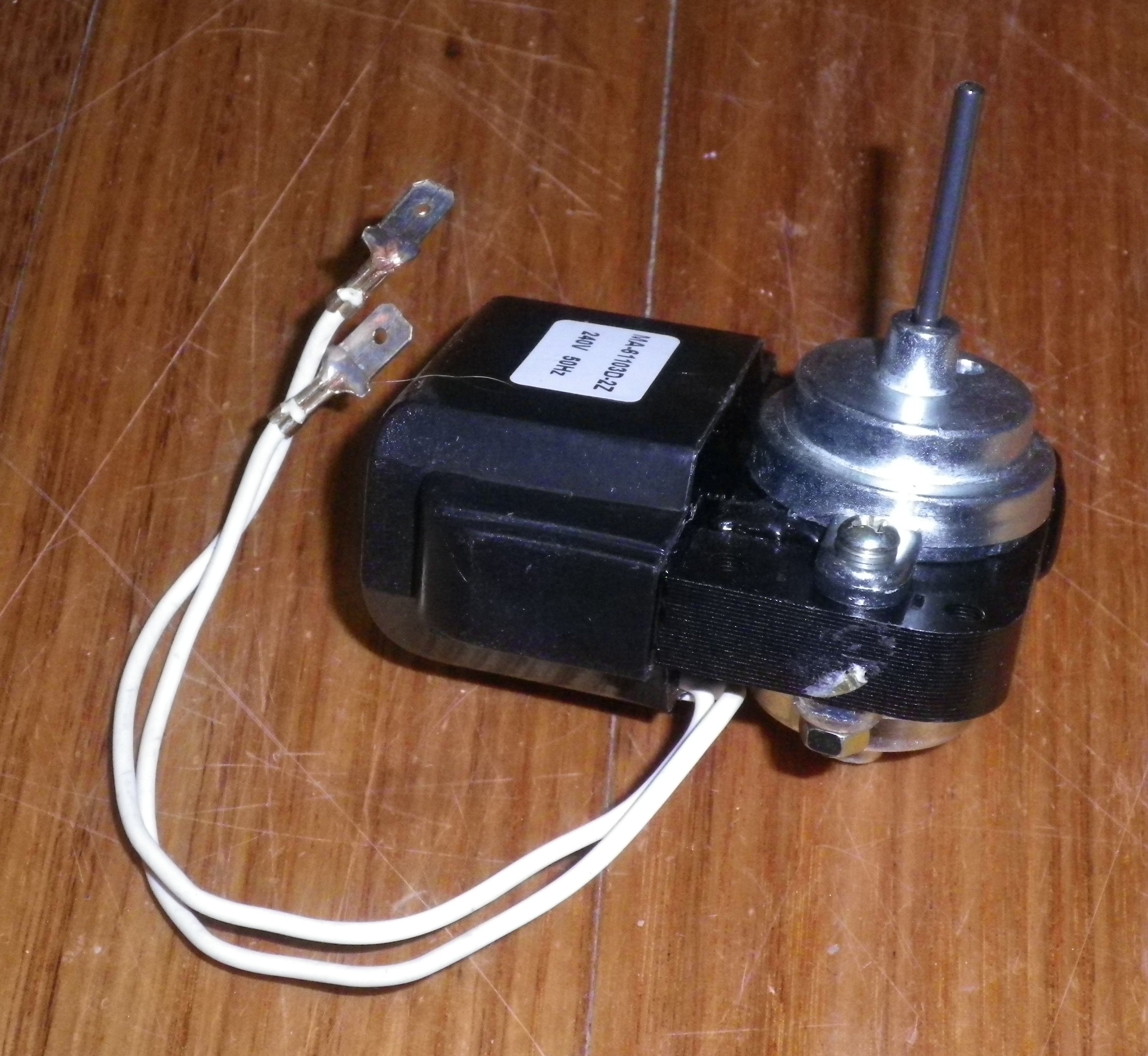

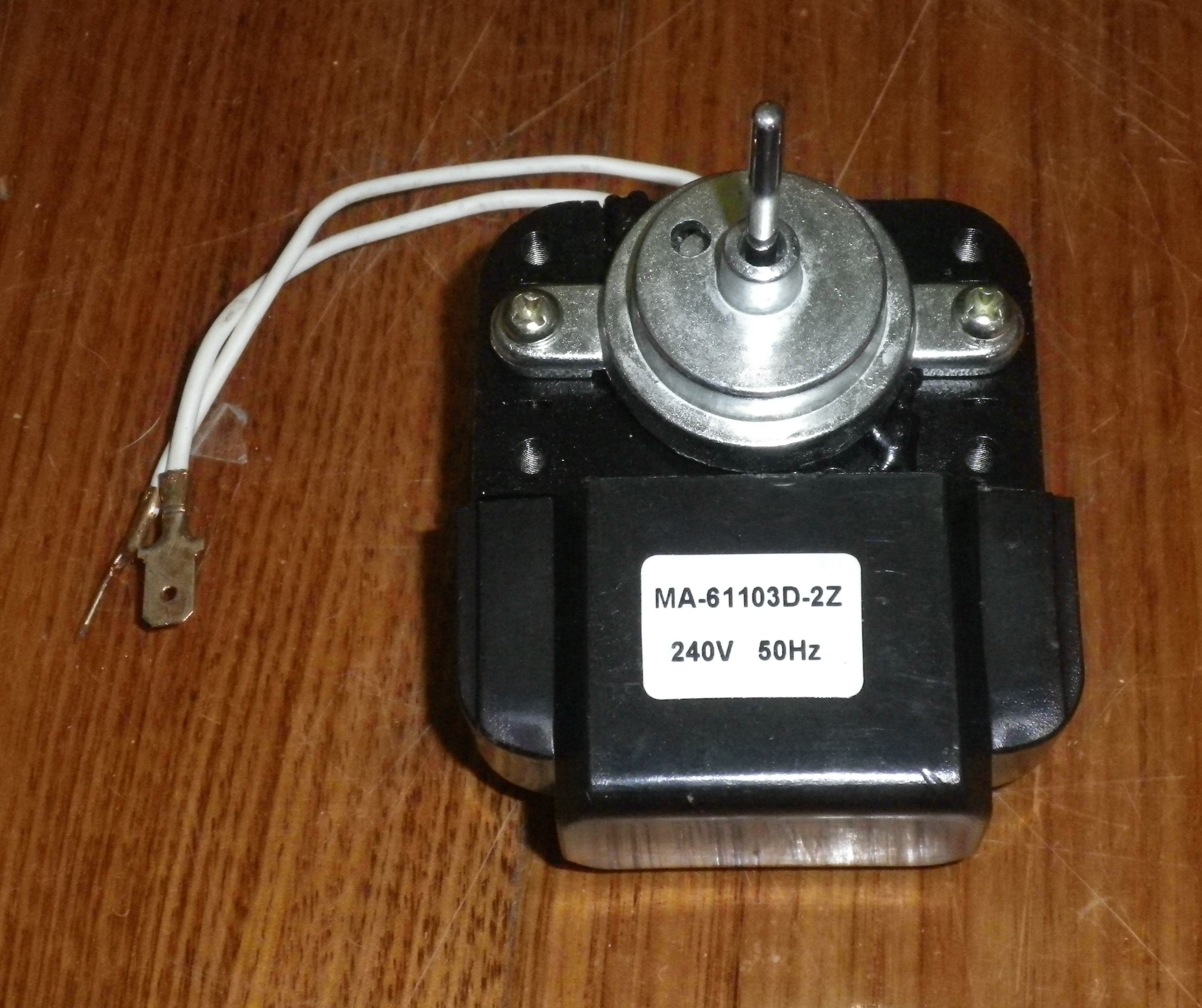

This small universal reversible evaporator fan motor is perfect for no - frost fridges. It has a Part No. of RF039M and a motor type of MA - 61103D - 2Z. Suitable for numerous frost - free refrigerators, it runs on 240 Volts AC, 0.11 Amp, 50Hz and can rotate in either CW or CCW direction. The motor comes with 140mm connecting wires having 6.4mm male spade terminals. Its shaft is 34mm long (including the mounting knob), with a 3mm diameter. The total depth from the shaft tip to the back of the mounting knob is 81mm, and the motor's thickness (excluding mounting knobs) is 40mm. It's fully guaranteed and easy to install. Designed to be clamped into a metal or plastic bracket with rubber grommets at the front and back, it can replace Westinghouse part numbers 1444850, 1444939, 1449376. We'll add more cross - references as they become available. With over 25 years of experience supplying appliance parts to trade and retail, you can buy with confidence.

Using this evaporator fan motor is easy. First, make sure your fridge is unplugged for safety. Then, locate the old fan motor in your frost - free fridge. Remove the old motor by unclamping it from the bracket. Take your new fan motor and carefully clamp it into the metal or plastic bracket using the rubber grommets at the front and back. Connect the 140mm wires with 6.4mm male spade terminals to the appropriate places. Plug your fridge back in, and you're good to go. When using, keep an eye on the rotation direction. It can rotate either clockwise or counter - clockwise, so make sure it's set as needed. For maintenance, clean the motor regularly to keep it dust - free. If you notice any unusual noises or problems, turn off the fridge and check the motor. We offer a full guarantee, so if you have any issues, contact us with confidence.
