Universal Reversible Evaporator Fan Motor 4mm Shaft - Part # RF039G, RE-01WT52

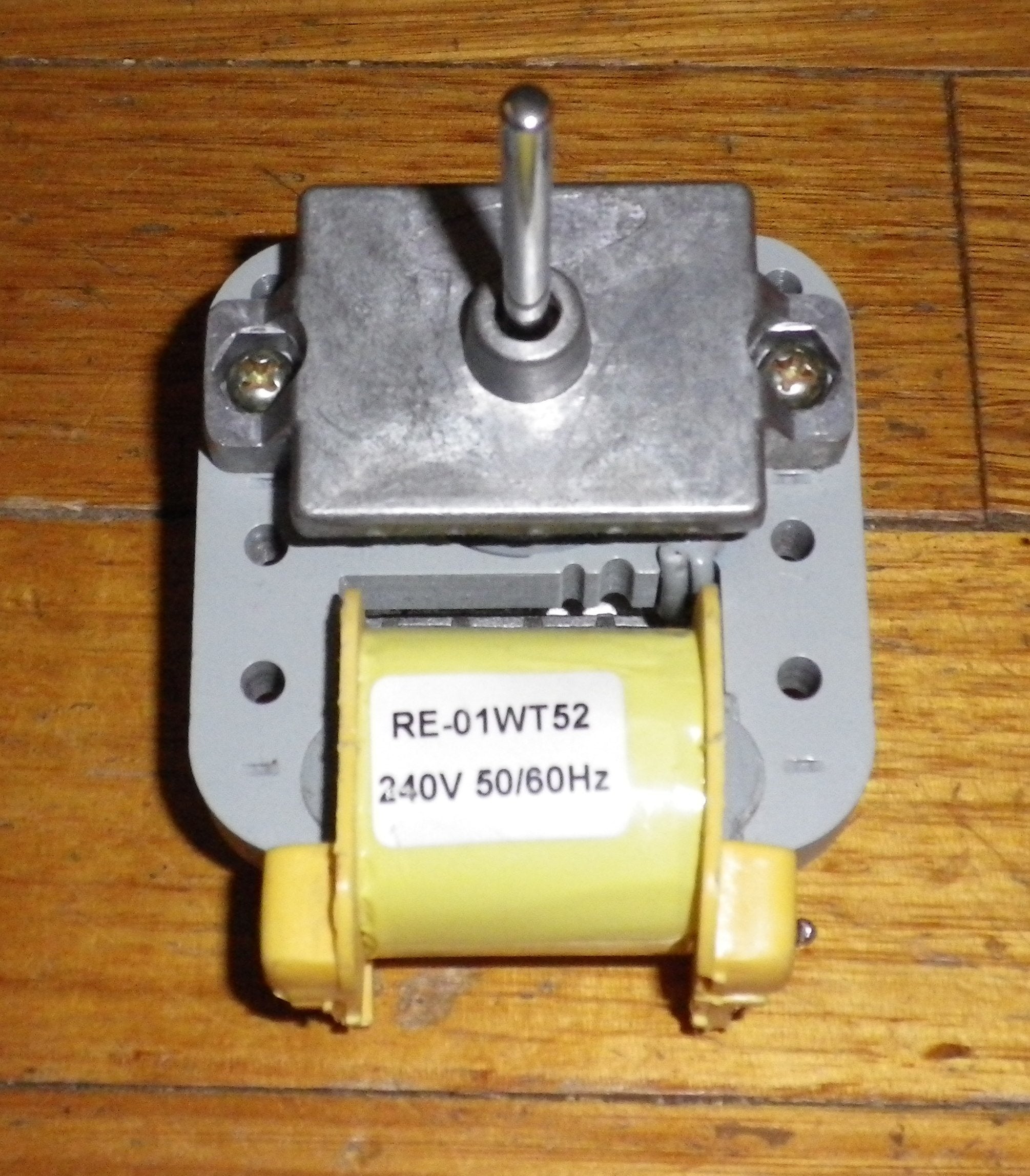

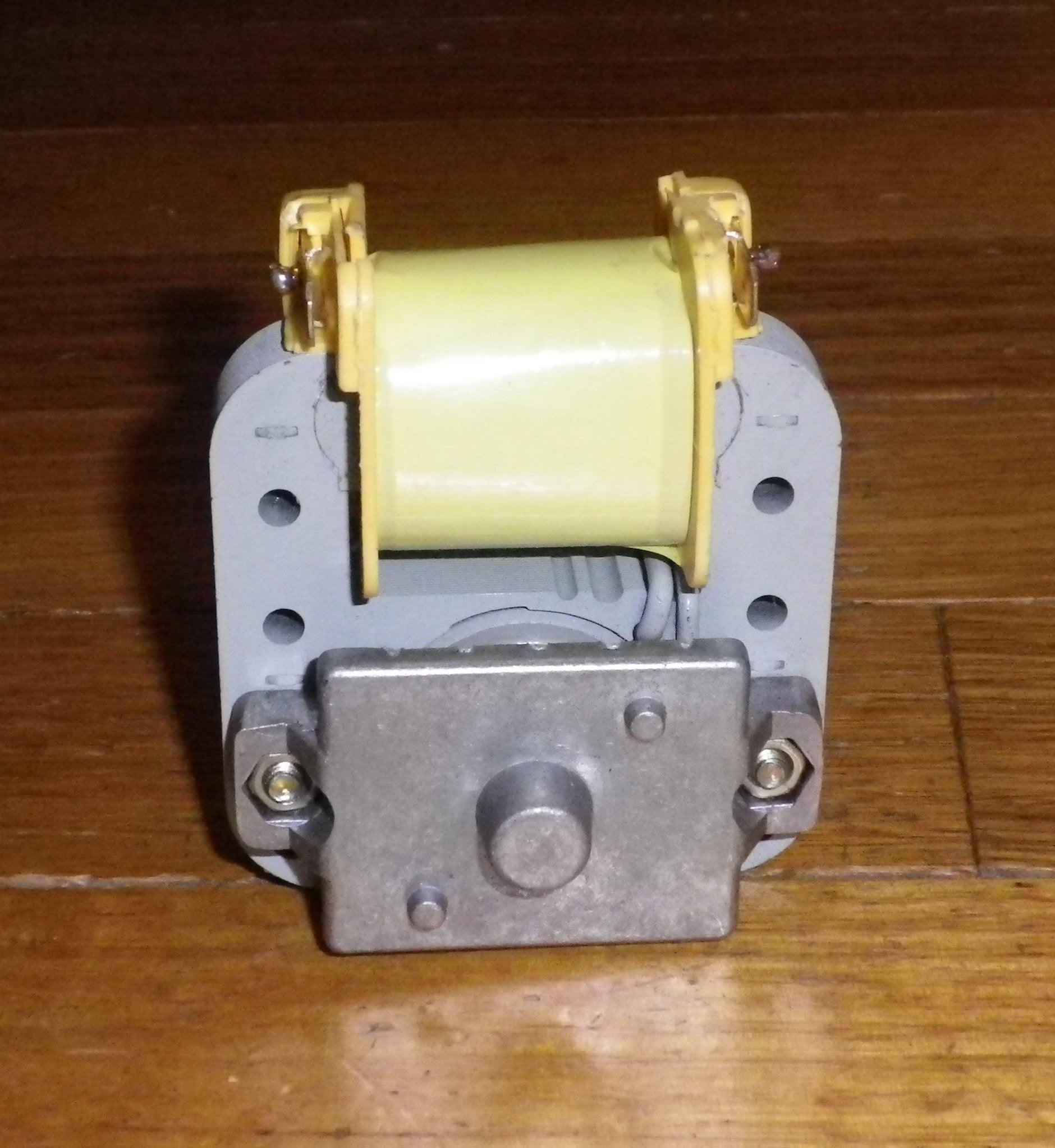

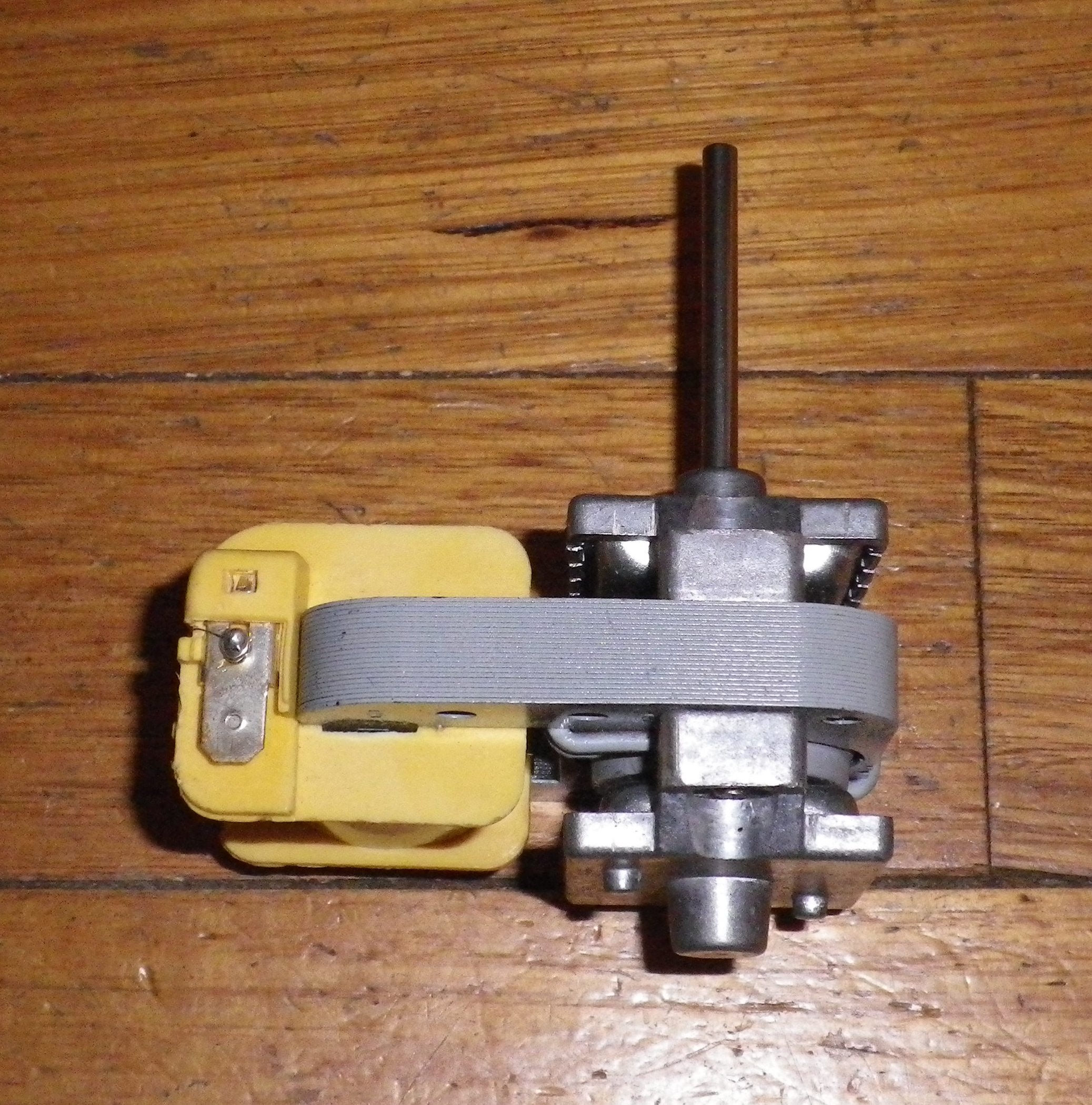

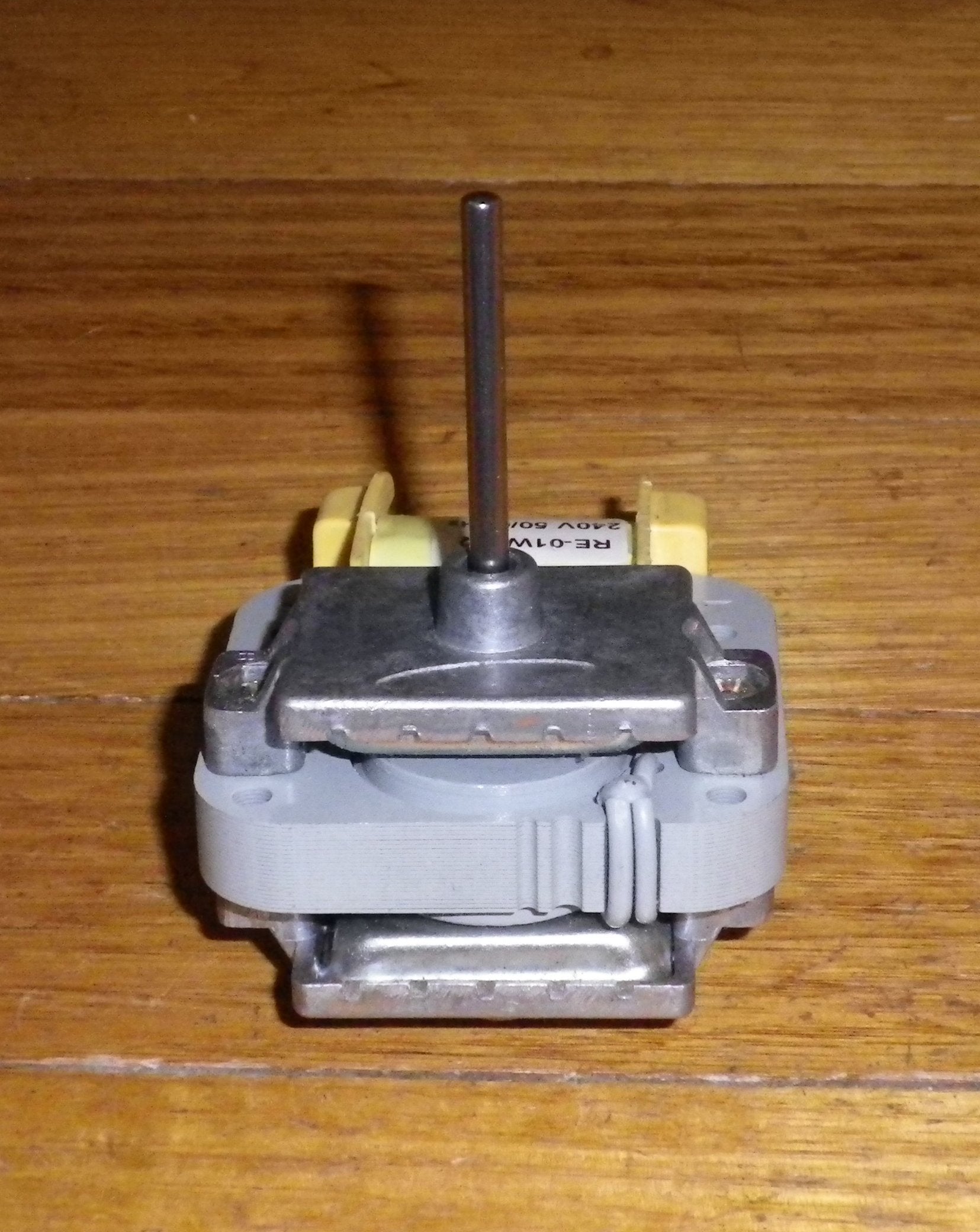

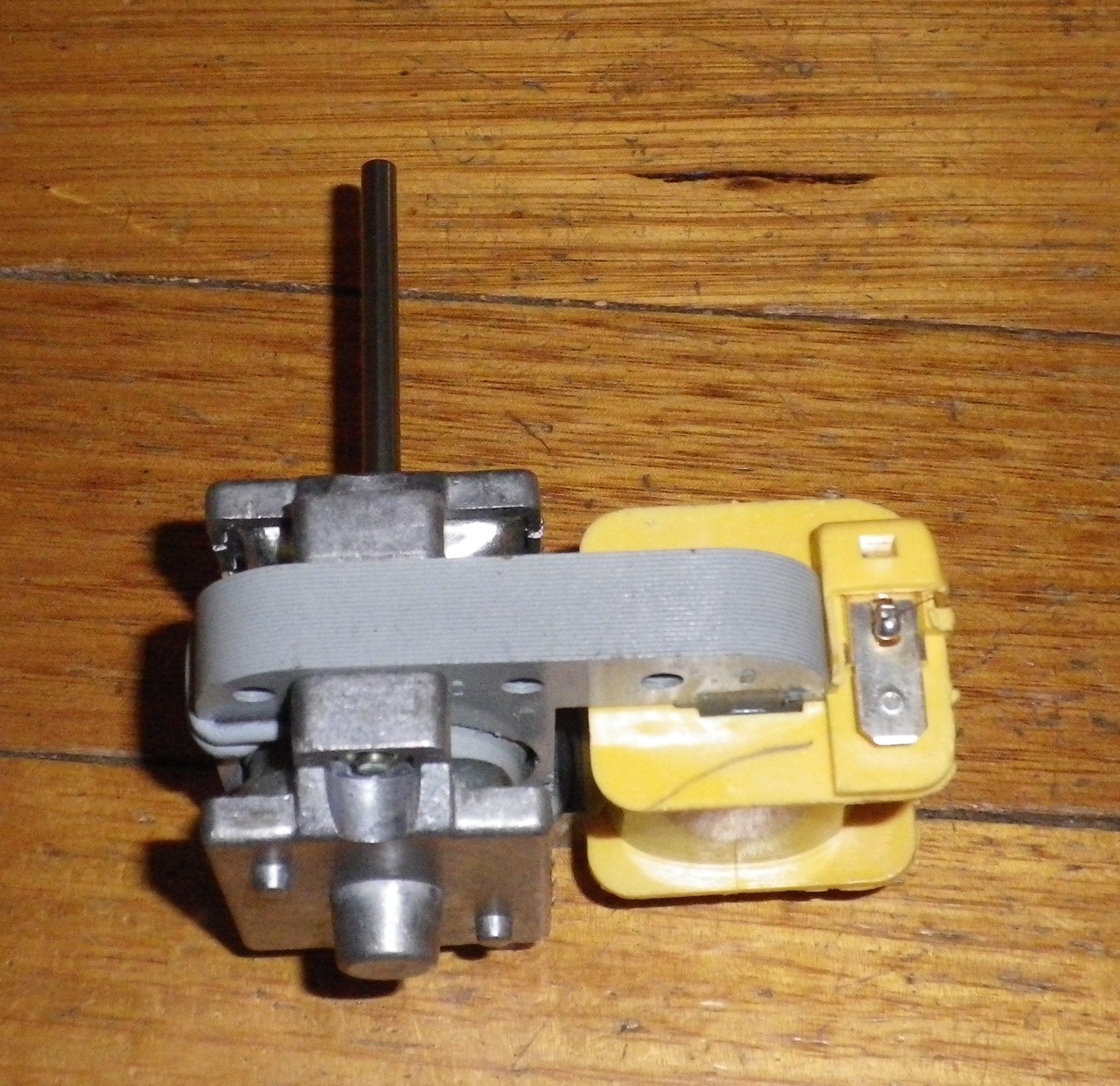

This is a reversible evaporator fan motor designed for Samsung no frost fridges. Part numbers are RF039G and RE-01WT52, equivalent to HY-YZF-B5 and SZH-035. It's a small yet powerful fan motor suitable for certain Samsung frost free refrigerator/freezers. Operating at 240Volts AC, 0.09Amp, and 8watts, with a frequency of 50/60Hz, it comes in a CW direction initially, but you can easily change it to CCW by removing the bearing covers and re - fitting the rotor. It features 6.4mm male spade terminals. The shaft is 39mm long and 4mm in diameter. The total depth from the shaft tip to the back of the mounting knob is 90.6mm, and the motor's thickness (excluding mounting knobs) is 37.2mm. It comes with a full guarantee and is easy to install. It's designed to be clamped into a metal or plastic bracket using rubber grommets on both sides. With over 25 years of experience in supplying appliance parts to both trade and retail, you can buy with confidence.

Using this evaporator fan motor is quite simple. First, make sure your fridge is unplugged for safety. Then, remove the old fan motor carefully. Take your new motor and check the direction. If you need to change it from CW to CCW, just undo the bearing covers and fit the rotor the other way around. Next, attach the motor to a metal or plastic bracket using the rubber grommets provided at the front and back. Connect the 6.4mm male spade terminals properly. Once everything is set, plug your fridge back in. When it comes to maintenance, keep the motor clean from dust and debris. Check the connections regularly to ensure they are tight. If you notice any unusual noises or performance issues, it's a good idea to consult a professional. Remember, this motor comes with a full guarantee, so you can use it worry - free.
