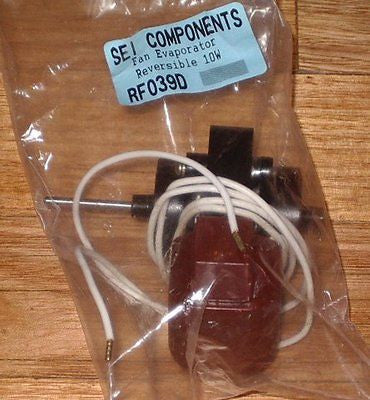

Universal Reversible Evaporator Fan Motor - Part # RF039D, PSF614A-501

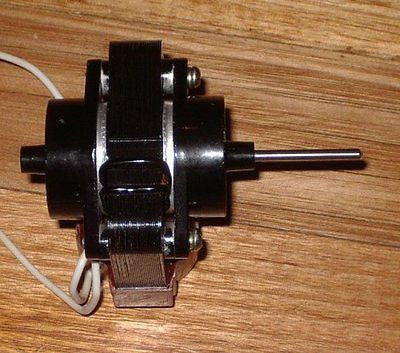

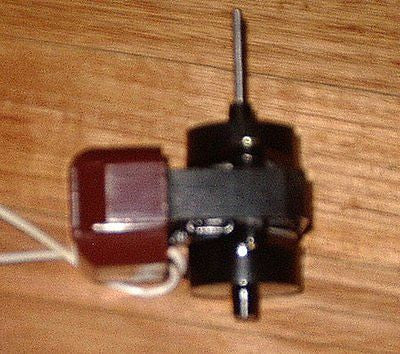

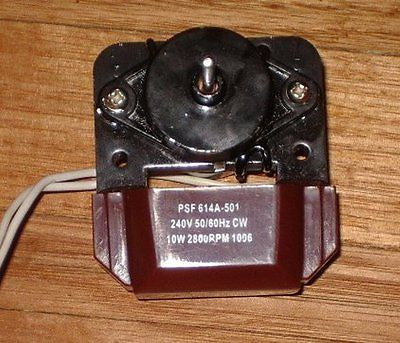

This small universal reversible evaporator fan motor is a perfect fit for no frost fridges. With part numbers RF039D and PSF614A-501, it's suitable for numerous frost free refrigerators, including some Westinghouse models. Operating at 240 Volts AC, 10 Watts, and 50/60 Hz with a speed of 2800 RPM, this motor is quite efficient. It comes with 55 cm connecting wires having bare ends. The shaft length is 38 mm, and the shaft diameter is 3 mm. The total depth from the tip of the shaft to the back of the mounting knob is 95 mm, and the motor's thickness (excluding mounting knobs) is 48 mm. It's supplied in a clockwise (CW) direction, but you can change it to counter - clockwise (CCW) by undoing the bearing covers and re - fitting the rotor. It's fully guaranteed and very easy to install. Designed to be clamped into a metal or plastic bracket with rubber grommets at the front and back. We've been in the business of supplying appliance parts to both the trade and retail sectors for over 25 years, so you can buy with confidence.

Using this evaporator fan motor is a breeze. First, make sure your fridge is unplugged. Then, find the location where the old motor was installed in your no frost fridge. Clamp the new motor into the metal or plastic bracket using the rubber grommets at the front and back. Connect the 55 cm wires with bare ends to the appropriate terminals in your fridge. You can leave it in the default clockwise direction or change it to counter - clockwise by taking off the bearing covers and re - fitting the rotor. When using, keep your fridge plugged into a stable 240 - Volt AC power source. Avoid overloading the fridge as it might put extra strain on the motor. For maintenance, check the motor periodically for any signs of wear and tear. Clean the motor gently with a dry cloth to remove dust. If you notice any unusual noises or performance issues, don't hesitate to contact us. With our 25 - year experience in supplying appliance parts, we're here to support you.
