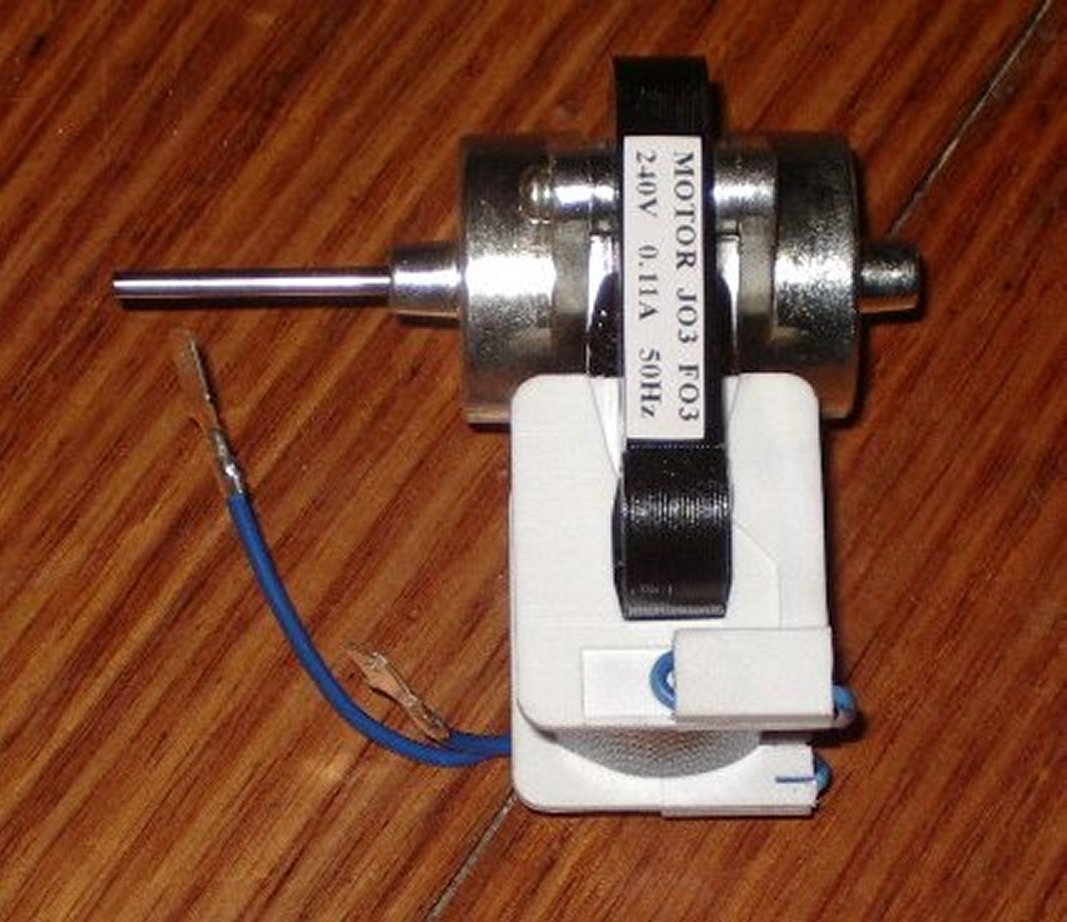

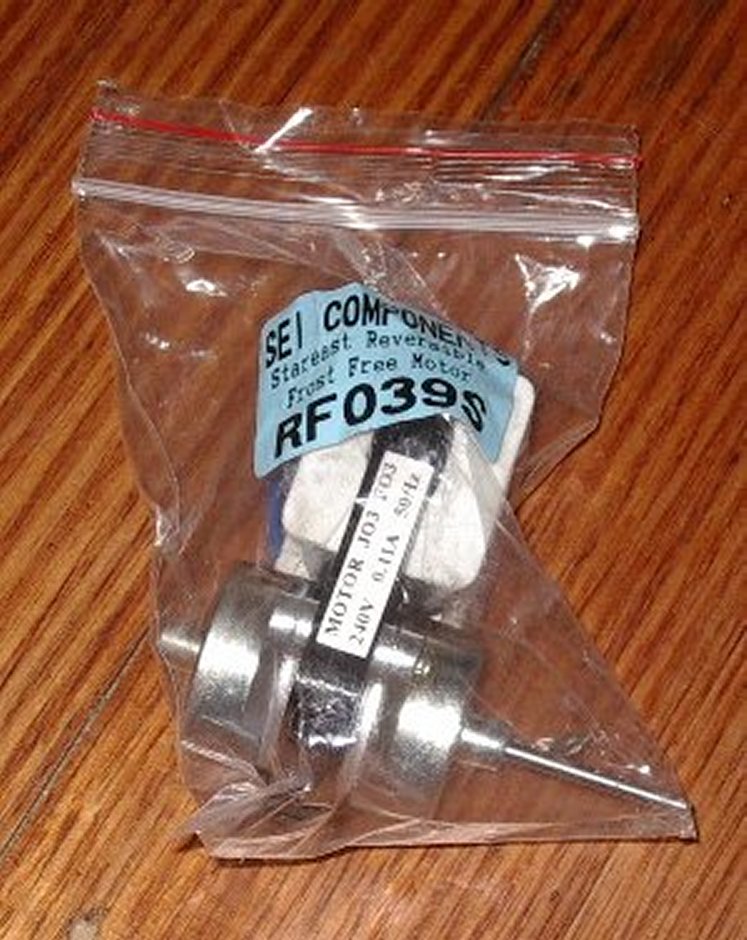

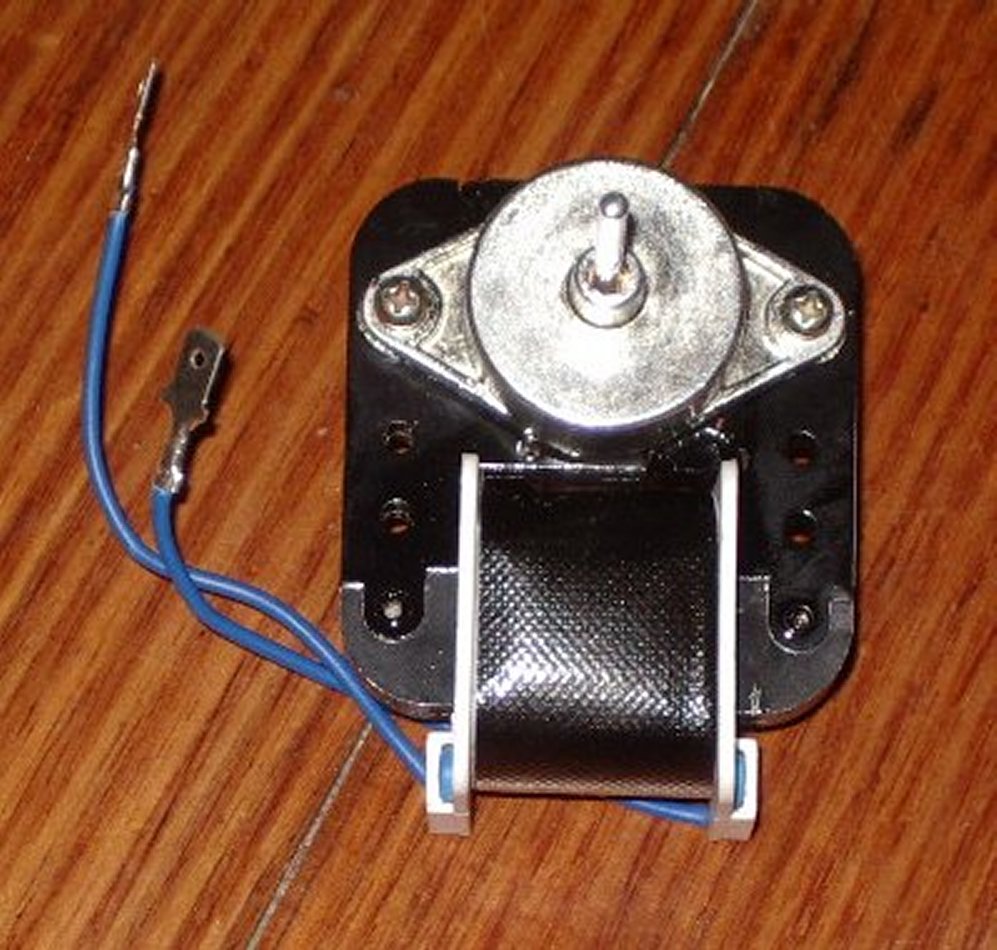

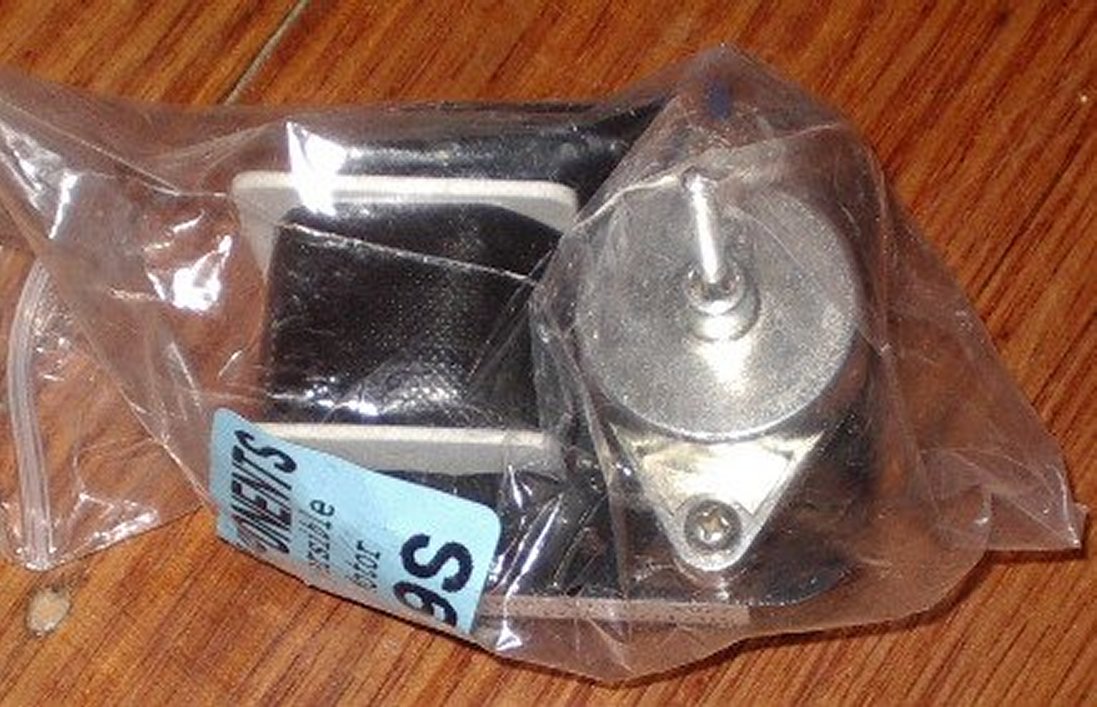

Universal Reversible Evaporator Fan Motor - Part # RF039S

This small universal reversible evaporator fan motor is perfect for no frost fridges. With part number RF039S, it's a great fit for numerous frost free refrigerators. It runs on 240Volts AC, with 0.11Amp and 50Hz frequency. You can choose either clockwise (CW) or counter - clockwise (CCW) rotation direction. The motor comes with 100mm connecting wires and 6.4mm male spade terminals. The shaft is 38mm long (including the mounting knob), has a 3mm diameter. The total depth from the shaft tip to the back of the mounting knob is 91mm, and the motor's thickness (excluding mounting knobs) is 45mm. It's fully guaranteed and easy to install. It's designed to be clamped into a metal or plastic bracket with rubber grommets on both sides. This motor can replace Westinghouse part numbers 1444850, 1444939, 1449376, and we'll keep adding more cross - references as available. We've been in the appliance parts business for over 25 years, so you can buy with confidence.

Using this fan motor is easy. First, make sure your fridge is unplugged to avoid any electrical shock. Find the old fan motor in your no - frost fridge and carefully remove it. Then, take your new fan motor and connect the 100mm wires with 6.4mm male spade terminals to the appropriate connectors. Clamp the motor into the metal or plastic bracket using the rubber grommets on the front and back. Once it's securely in place, plug your fridge back in. When it comes to maintenance, keep the motor clean. You can use a soft, dry cloth to wipe off any dust. If you notice any unusual noises or the motor doesn't seem to be working properly, unplug the fridge right away and contact a professional. Also, make sure the environment around the fridge is well - ventilated to prevent the motor from overheating. And remember, this motor is fully guaranteed, so if you have any problems, you can rely on our support.
