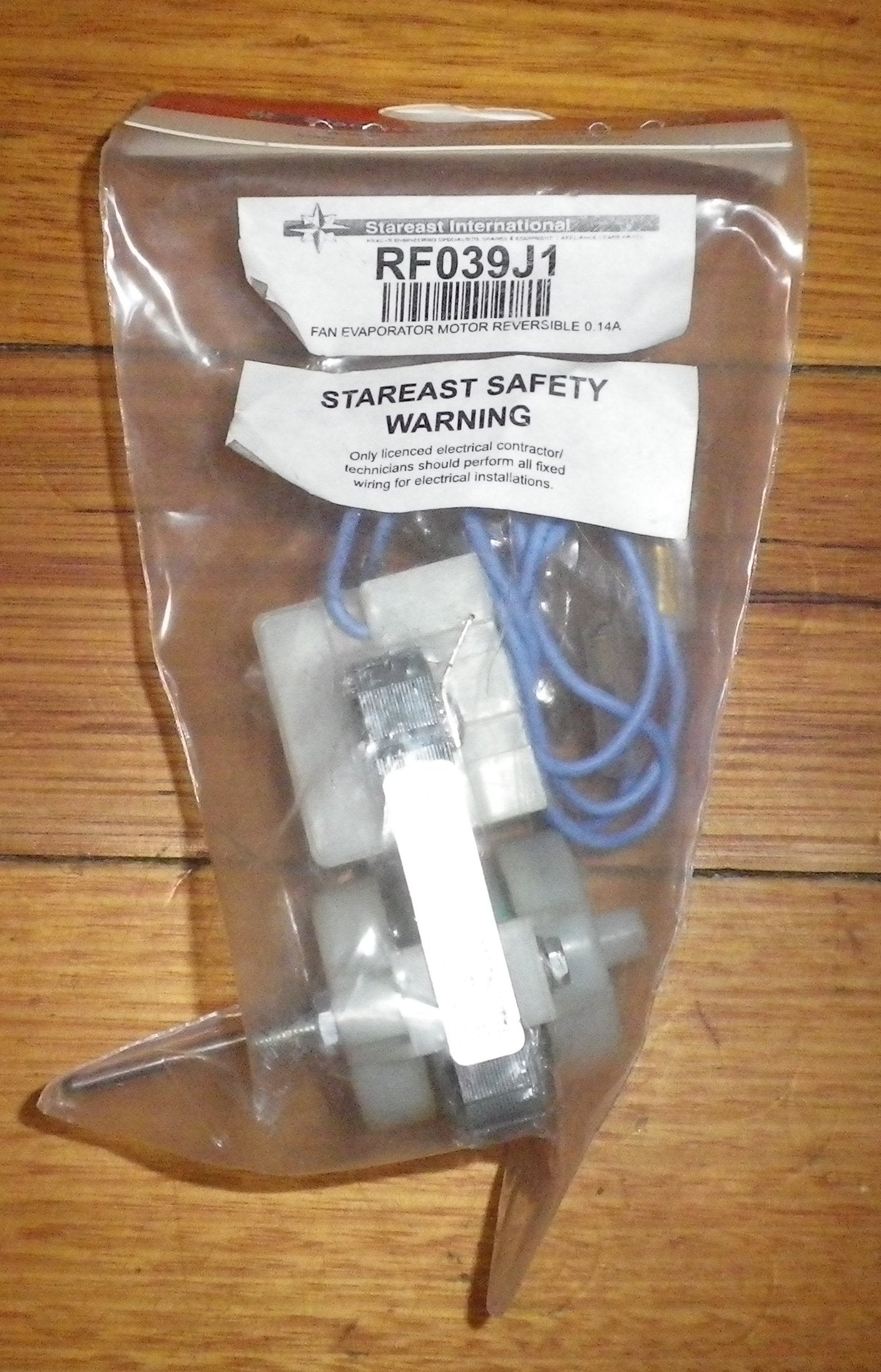

Fasco Universal Reversible Evaporator Fan Motor - Part # RF039J1

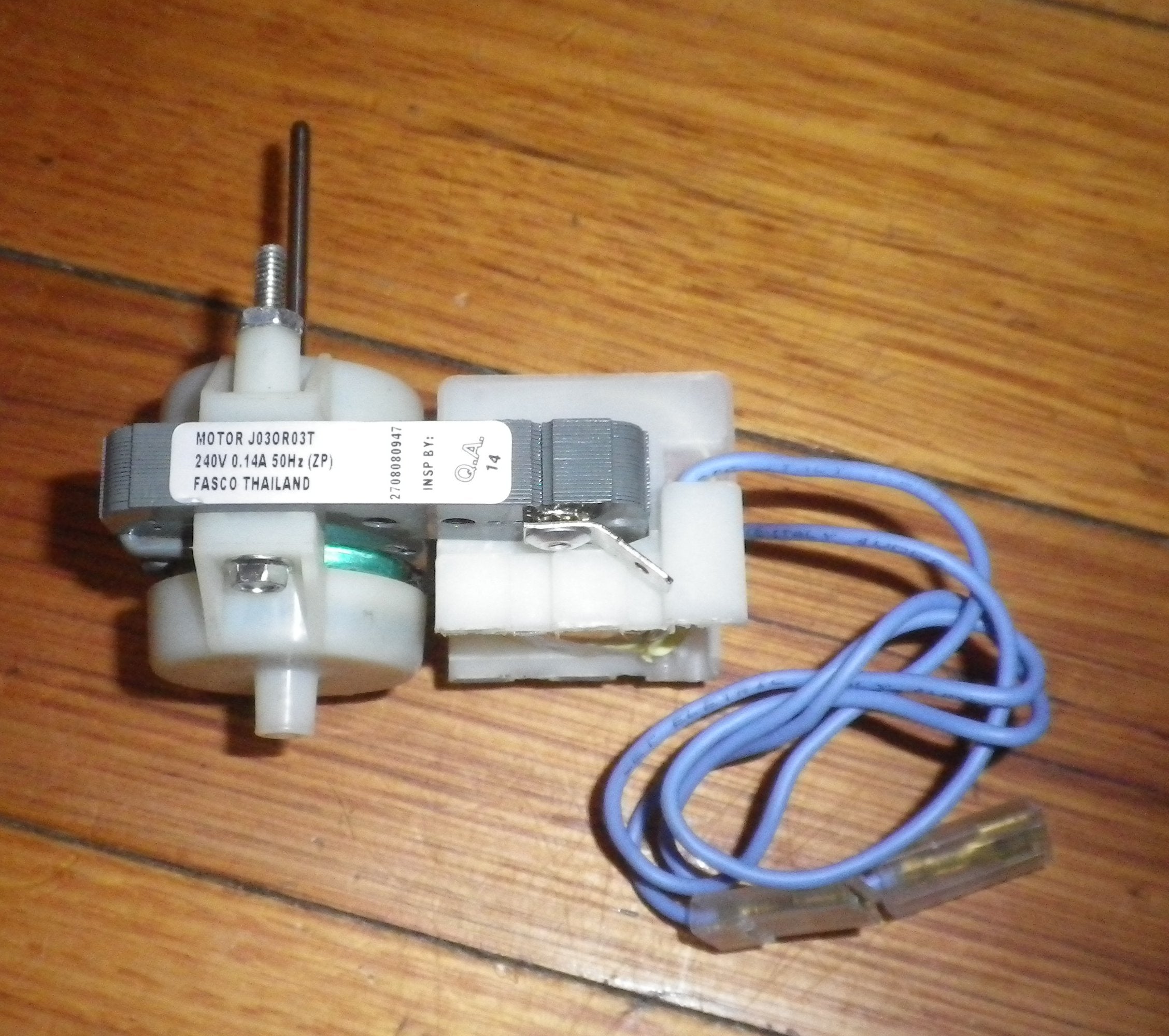

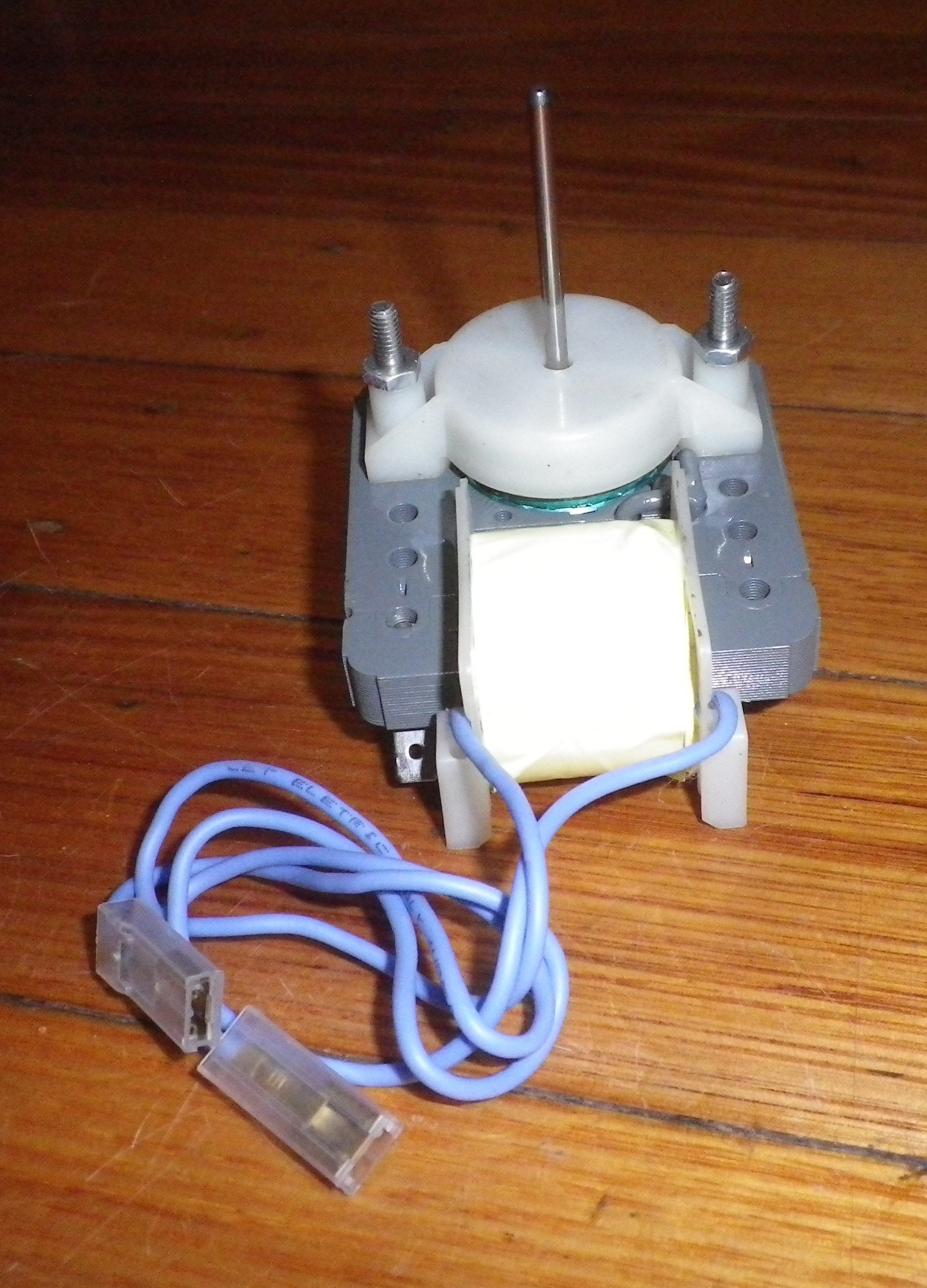

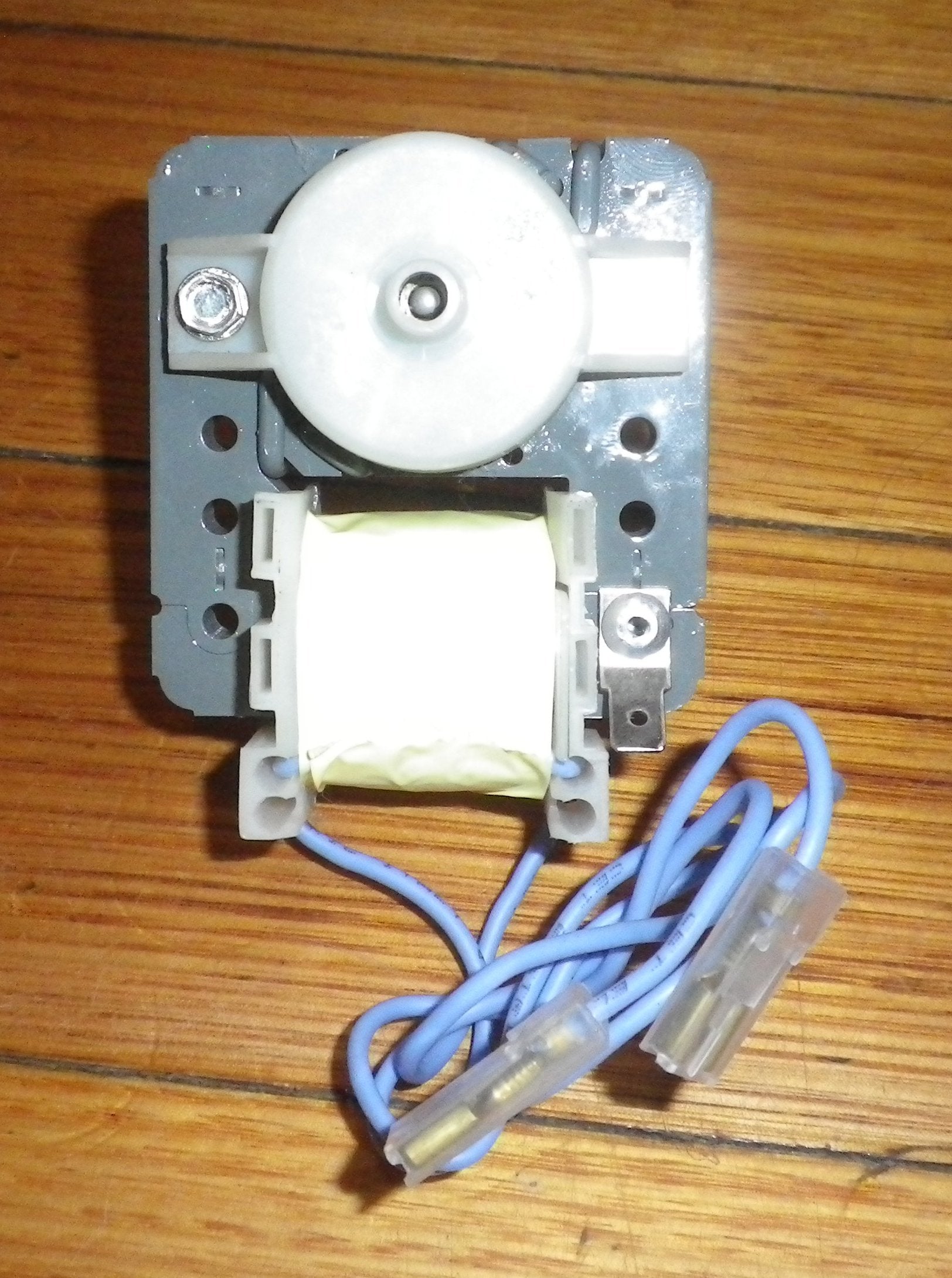

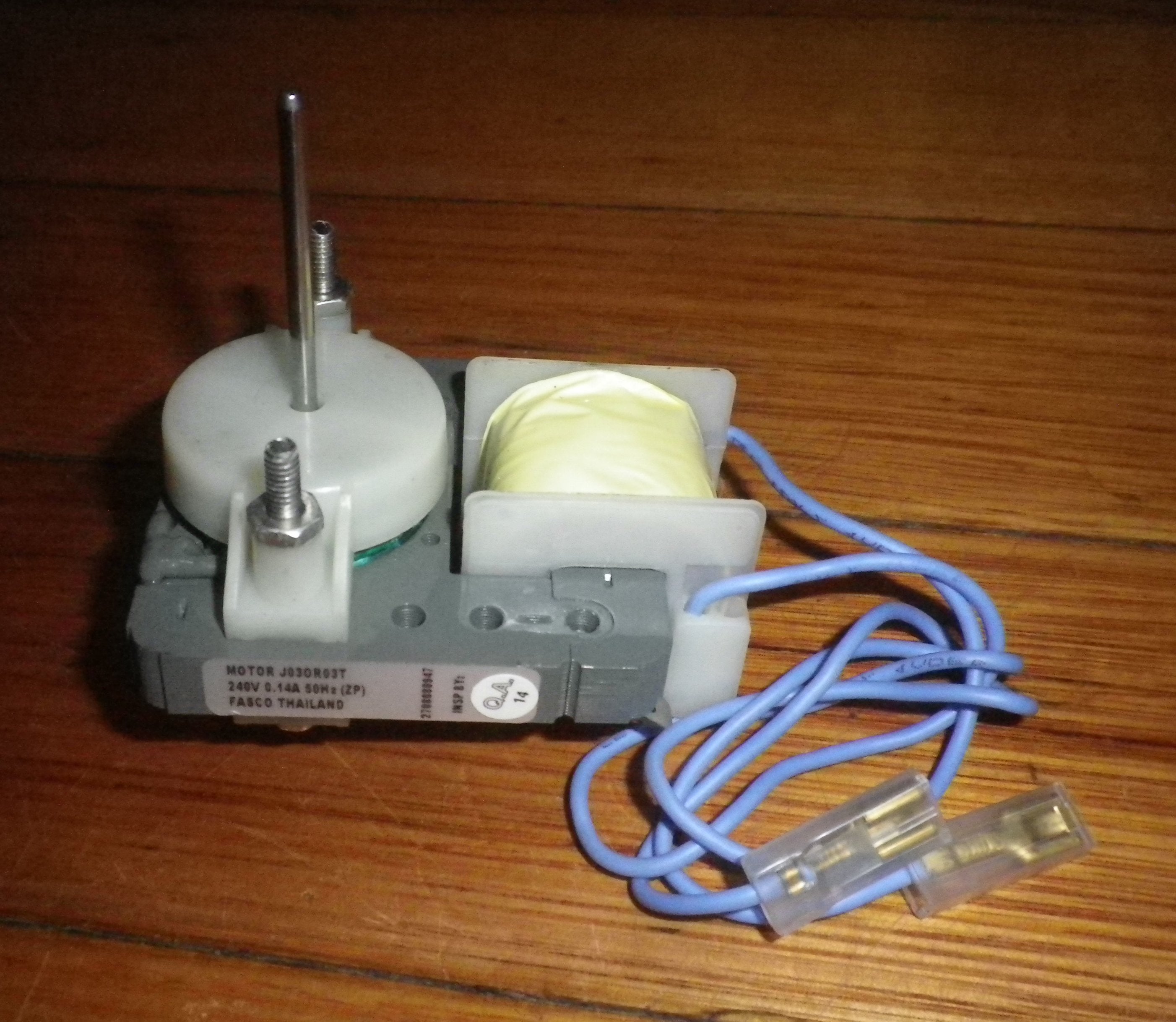

This is a small universal reversible evaporator fan motor, perfect for no frost fridges. Part numbers include RF039J1 and J03OR03T. It's a Fasco fan motor that fits many frost-free refrigerators. Operating at 240 Volts AC, 0.14 Amp, and 50Hz, it comes set to rotate clockwise (CW). However, you can easily change the rotation direction to counter - clockwise (CCW) by removing the bearing covers and re - fitting them and the rotor the other way. It has 30cm connecting wires with 6.4mm female spade terminals for easy connection. The shaft is 42mm long and 3mm in diameter. The total depth from the tip of the shaft to the back of the mounting knob is 88.5mm, and the motor's thickness (excluding mounting knobs) is 38.8mm. The mounting bolt spacing is 47mm. This motor is fully guaranteed, easy to install, and designed to be bolted onto metal or plastic brackets. With over 25 years of experience supplying appliance parts to both the trade and retail sectors, you can buy with confidence.

Using this Fasco fan motor is quite simple. First, find a suitable metal or plastic bracket in your no - frost fridge and bolt the motor onto it using the 47mm mounting bolt spacing. Connect the 30cm wires with 6.4mm female spade terminals to the appropriate electrical connections in your fridge. If you need to change the rotation direction, just take off the bearing covers and re - fit them and the rotor the other way around. When it comes to maintenance, keep the motor clean and free from dust. You can use a soft brush to gently remove any dirt on the surface. Also, make sure the electrical connections are always secure. If you notice any unusual noises or the motor isn't working properly, stop using it immediately and check for loose connections or other possible issues. Since it's fully guaranteed, if you have any problems, you can rely on our support.
