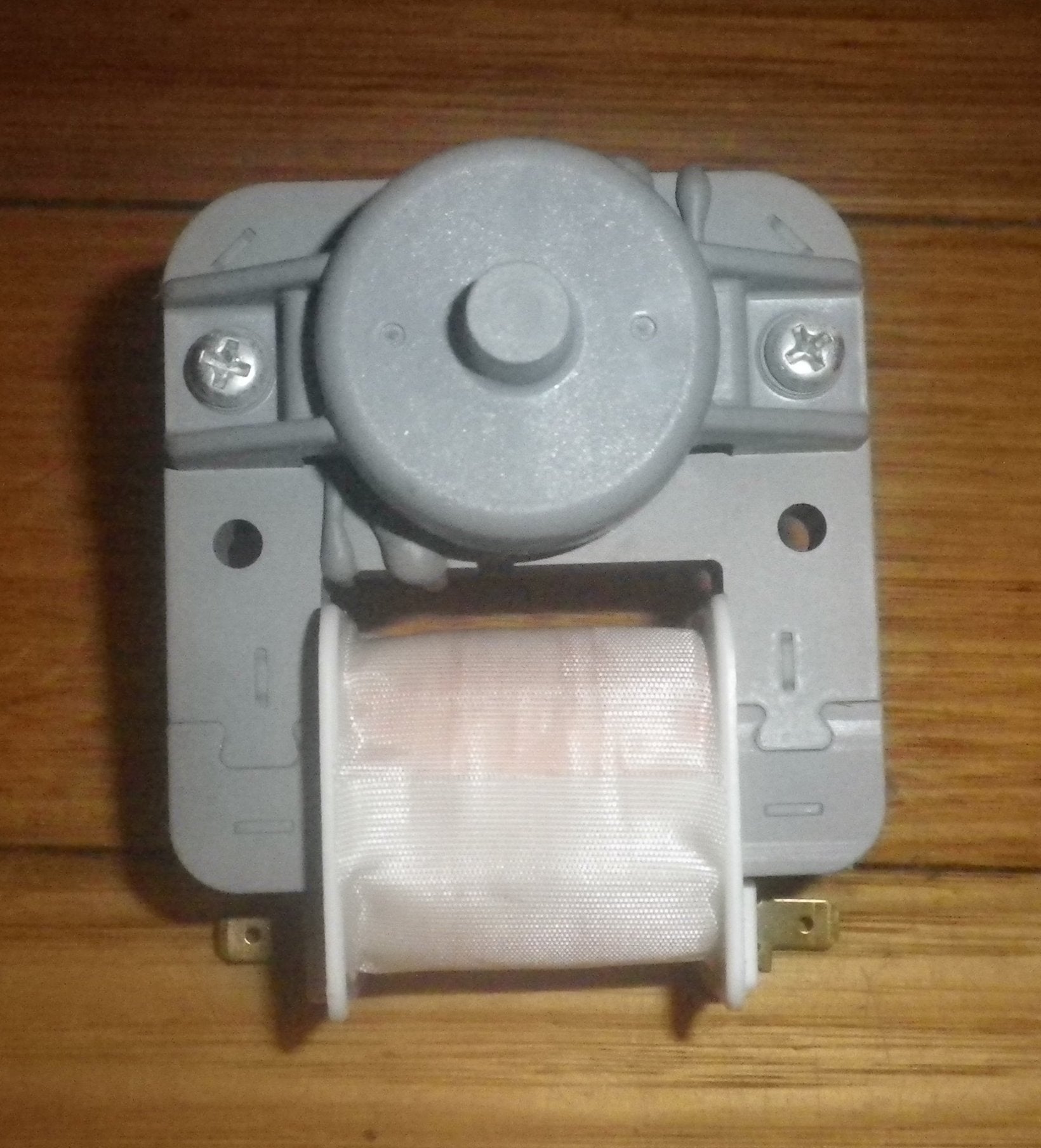

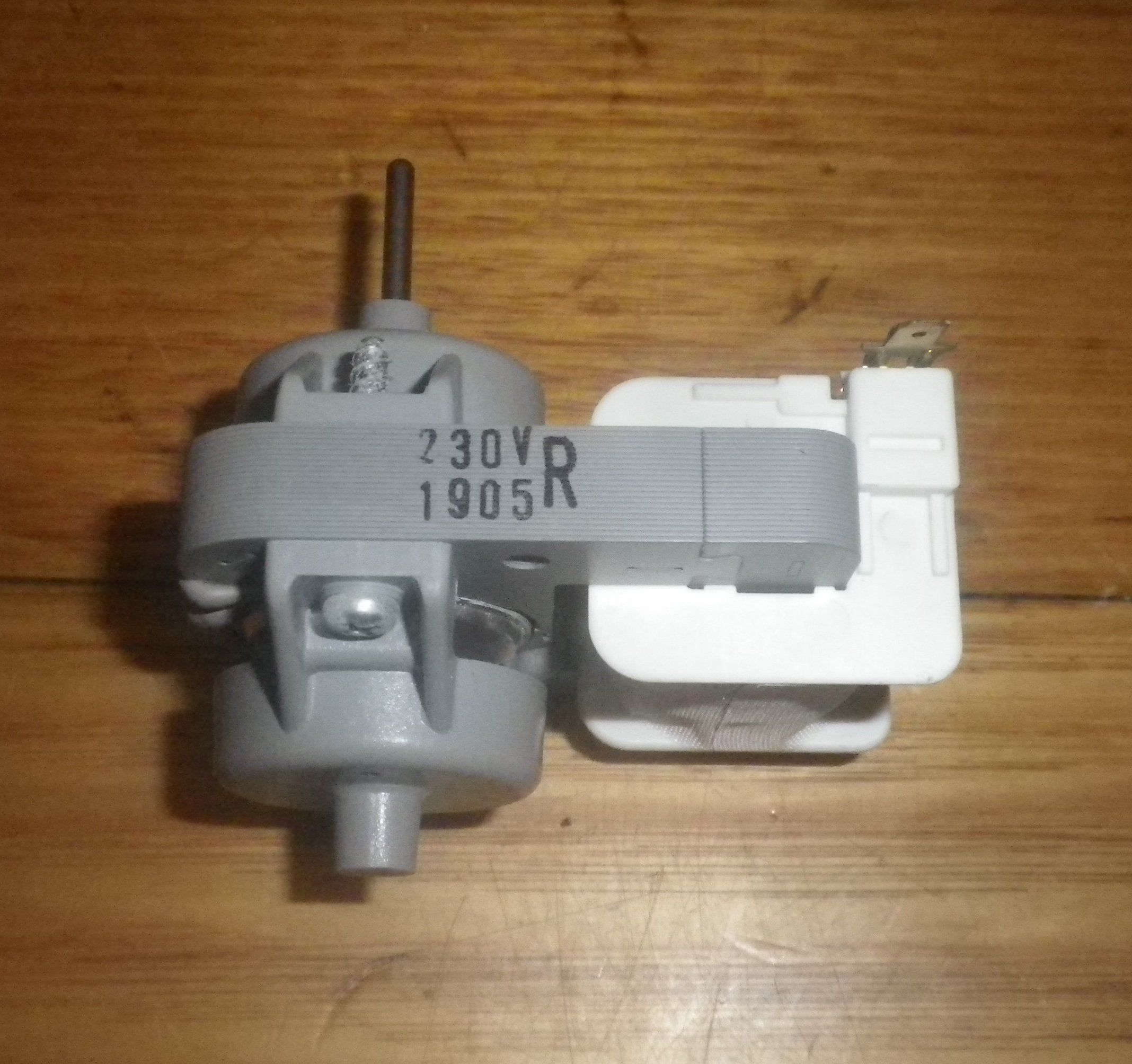

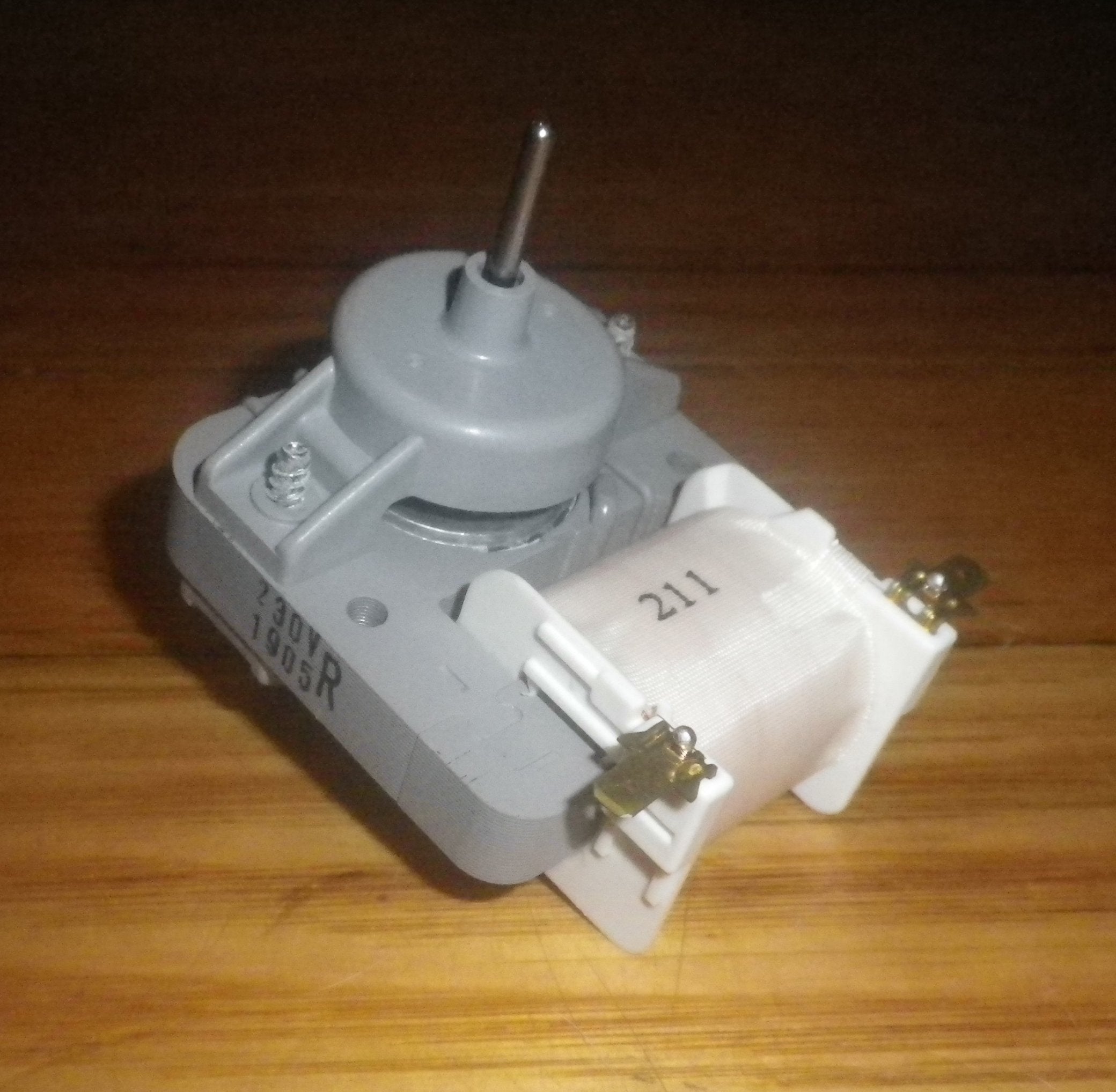

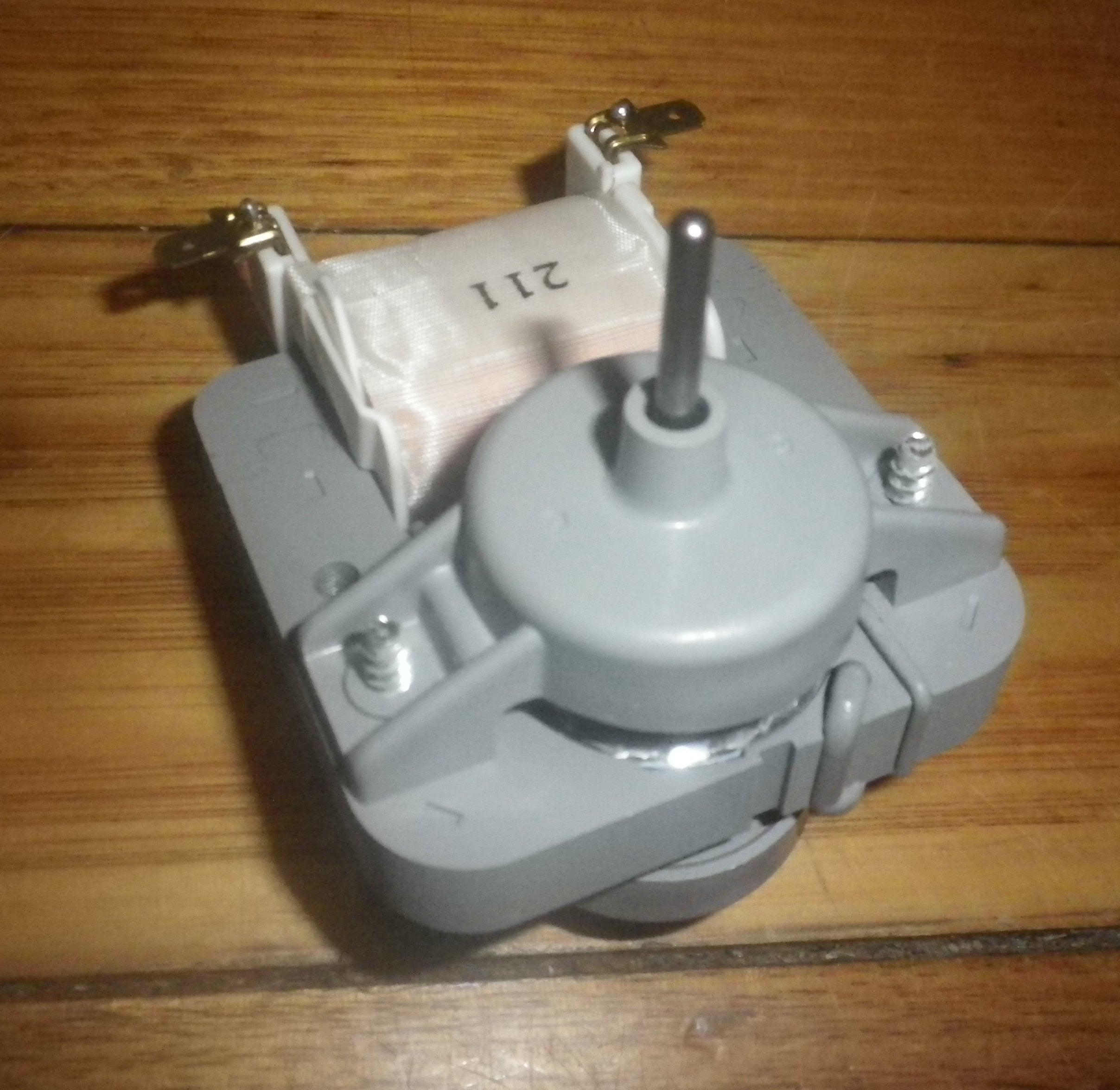

Fisher & Paykel E308 Short Shaft Evaporator Fan Motor Kit - Part # FP315040P

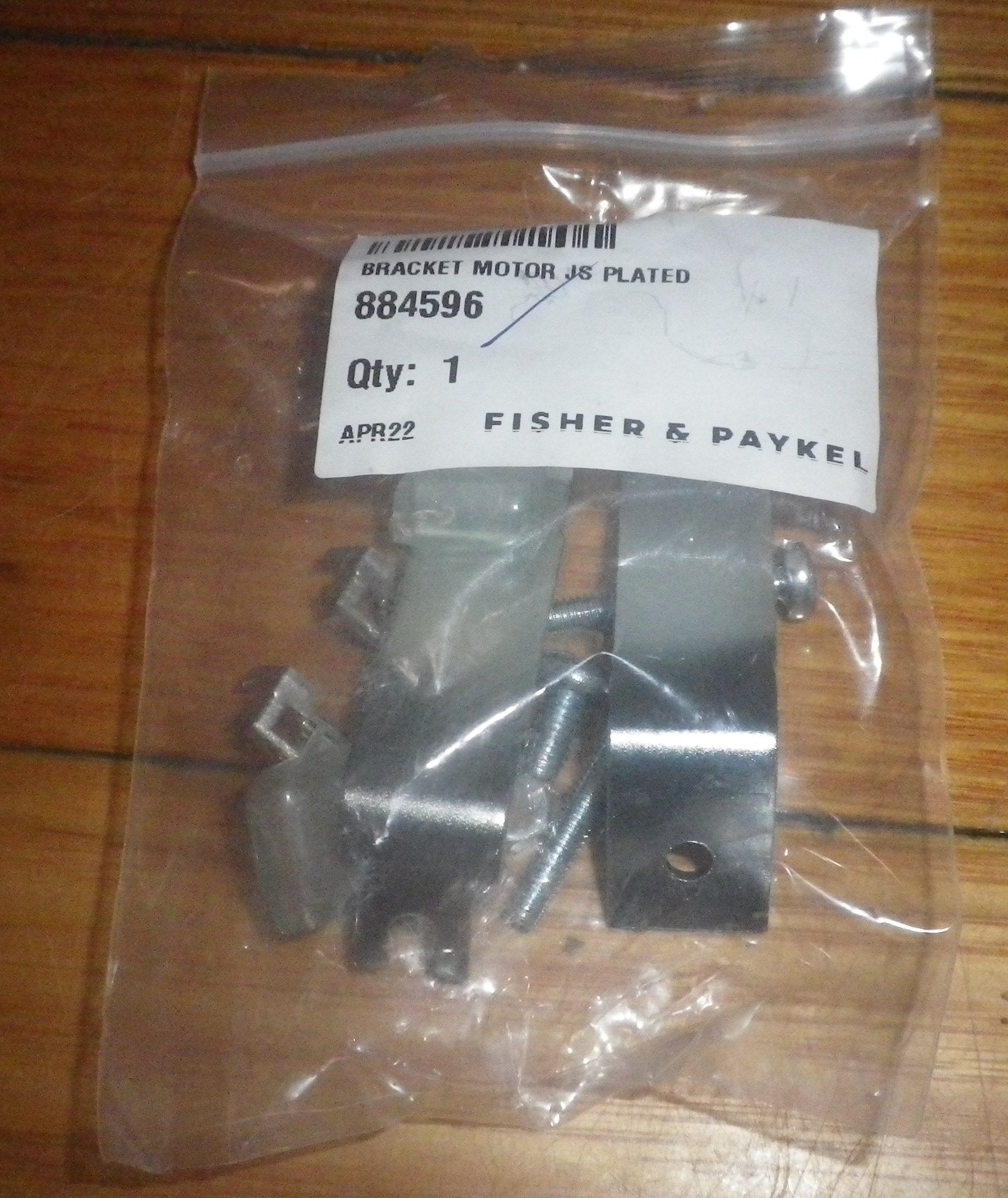

This is a high - quality Fisher & Paykel evaporator fan motor kit with a short shaft. It comes with the genuine part number FP315040P. The kit includes a mounting bracket kit with part numbers FP884596, 884596. This small yet powerful fan motor is perfect for select Fisher & Paykel frost - free freezers. It fits models E308LW1 (24870 - A, 25056 - A), E388RW1 (25053 - A), E388L (22017 - A, 23961 - A) and possibly other models. Operating at 230 Volts AC and 50Hz, it's highly efficient. It features 4.8mm male spade terminals. The shaft has a length of 184mm and a diameter of 2.5mm. The total depth from the tip of the shaft to the back of the mounting knob is 77mm, and the motor's thickness (excluding mounting knobs) is 43mm. The thickness of metal laminations is 10.5mm. It comes with a full guarantee and is incredibly easy to install. You can clamp it into a metal or plastic bracket using rubber grommets at the front and back. Angled brackets that can be screwed to the motor body are also included. With over 25 years of experience in supplying appliance parts to both trade and retail, you can buy this product with complete confidence.

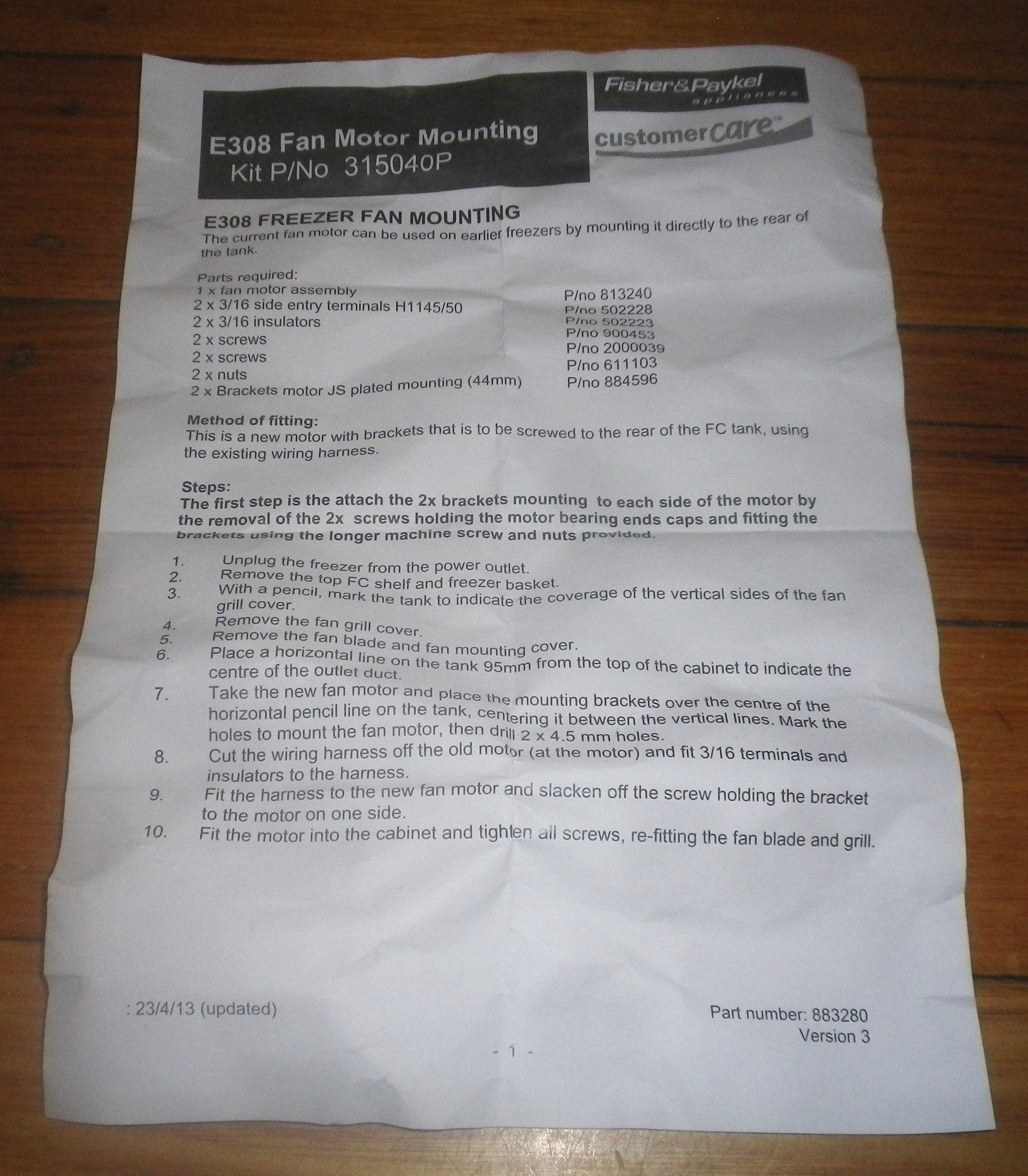

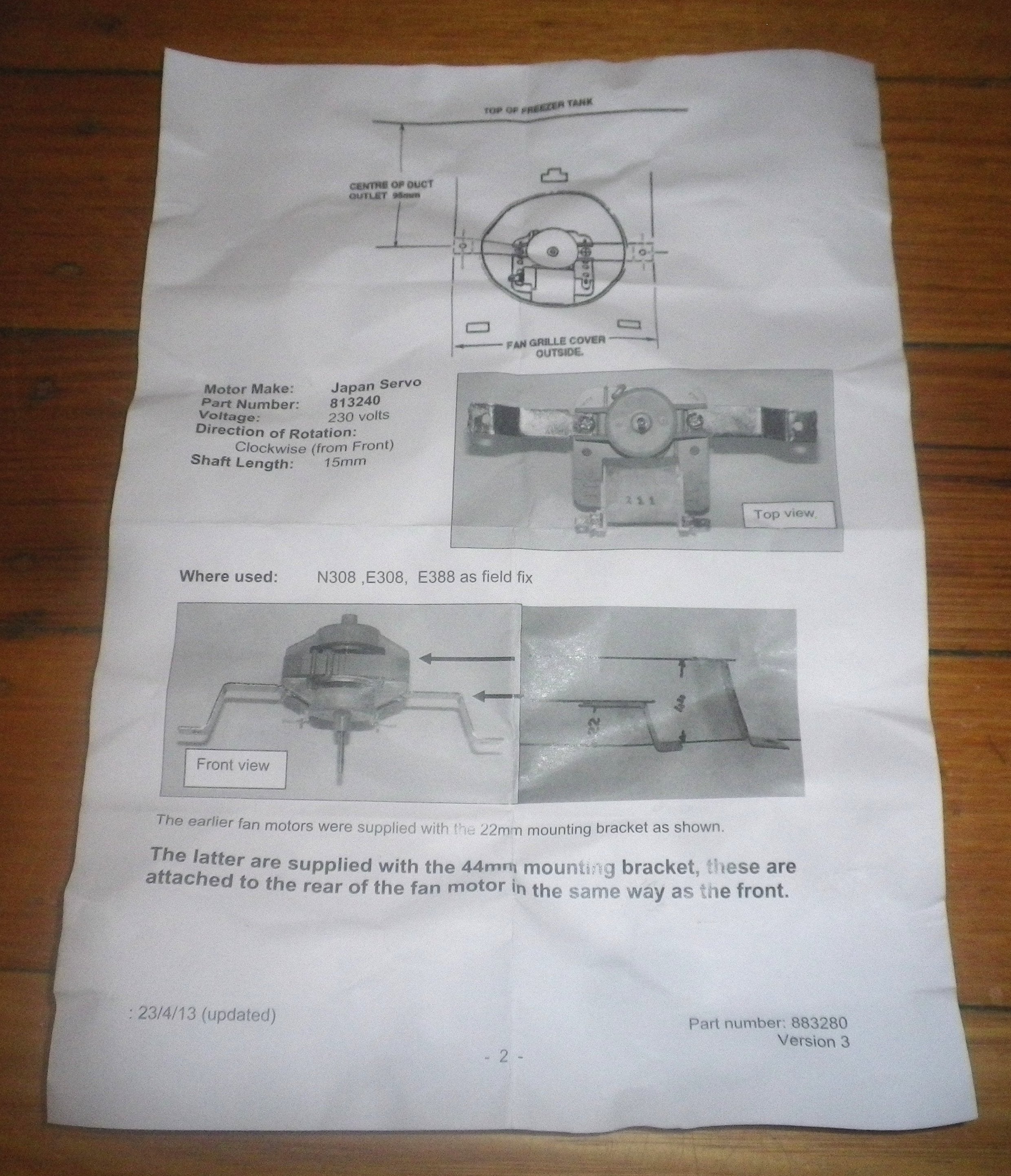

Using this Fisher & Paykel evaporator fan motor kit is a breeze. First, make sure your freezer is unplugged for safety. Take out the old fan motor carefully. Then, use the included mounting bracket kit (FP884596) to attach the new motor. You can either clamp it into a metal or plastic bracket with the rubber grommets provided at the front and back, or use the angled brackets and screw them to the motor body. After installation, plug your freezer back in. When it comes to maintenance, keep the motor clean. You can use a soft, dry cloth to wipe off any dust or debris from time to time. Avoid getting the motor wet as it operates on electricity. If you notice any unusual noises or performance issues, unplug the freezer immediately and check the connections. If the problem persists, contact a professional technician. This product comes with a full guarantee, so you can rely on its quality for a long time.
