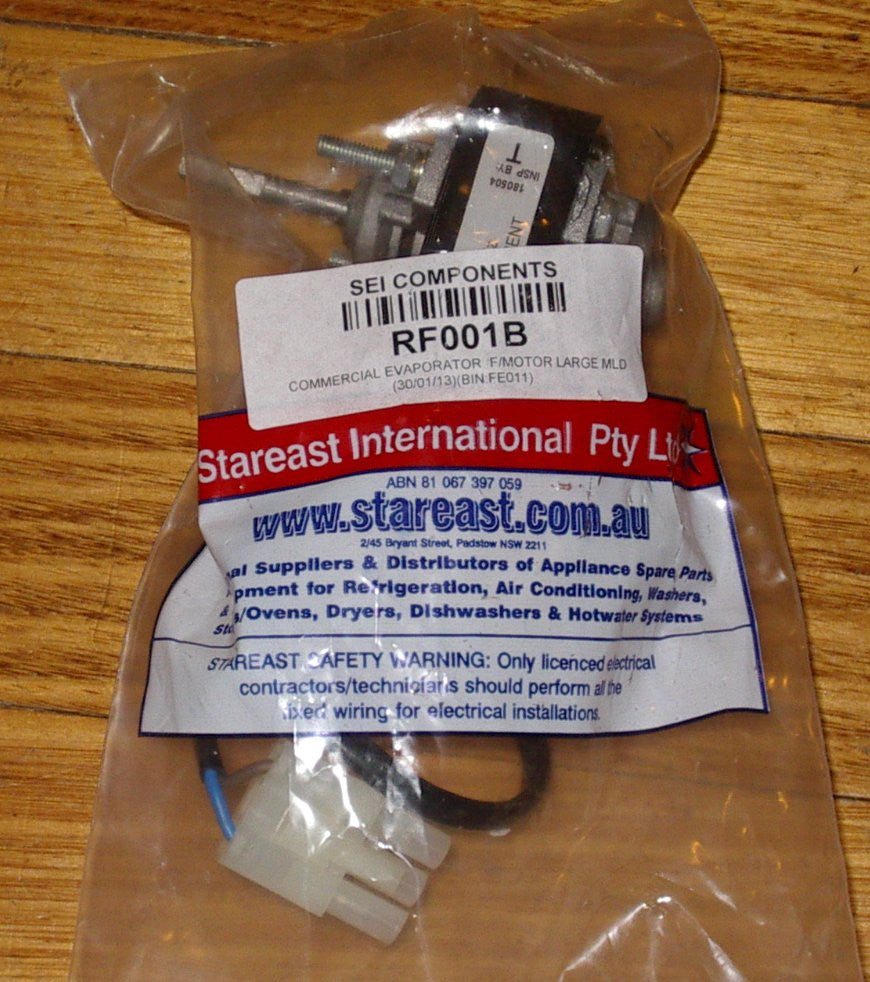

Commercial Evaporator Fan Motor - Part # RF001B

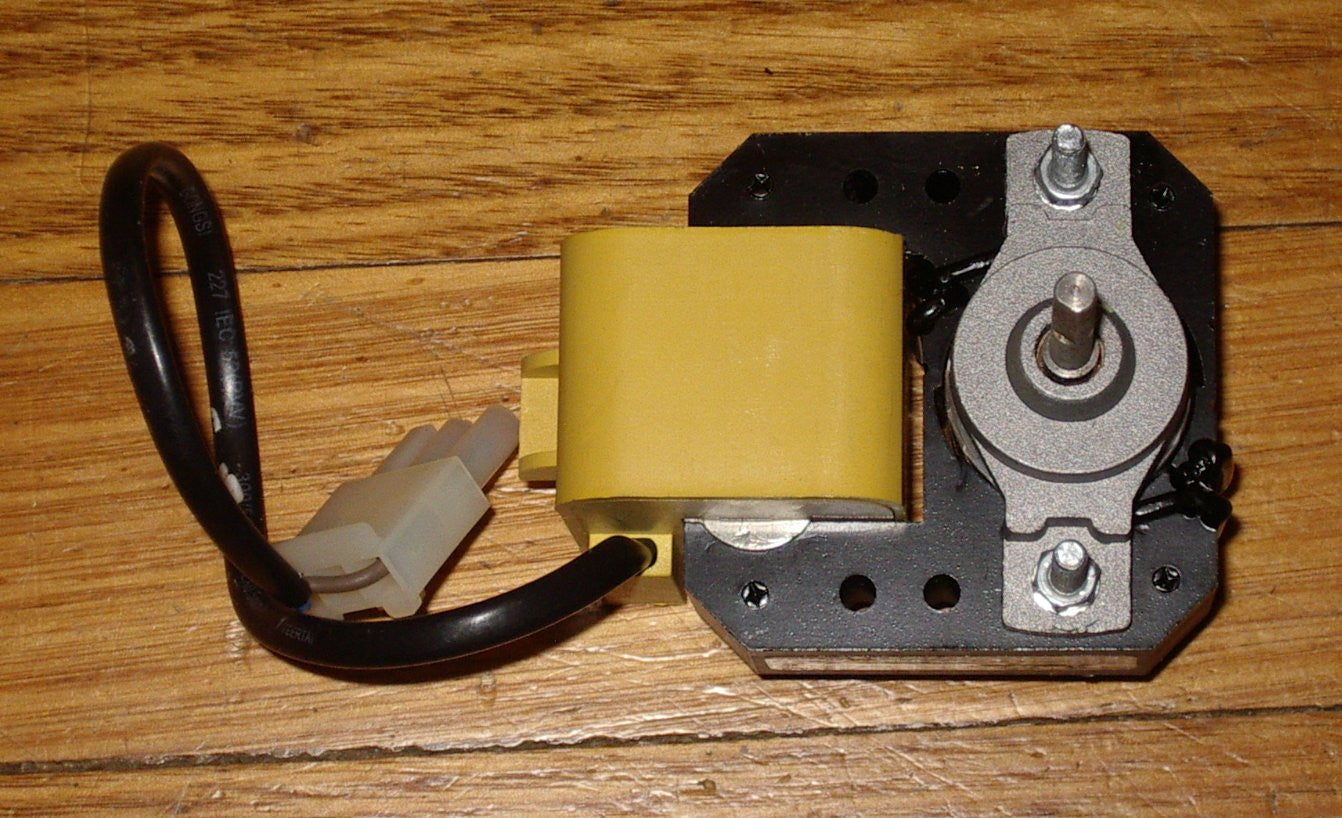

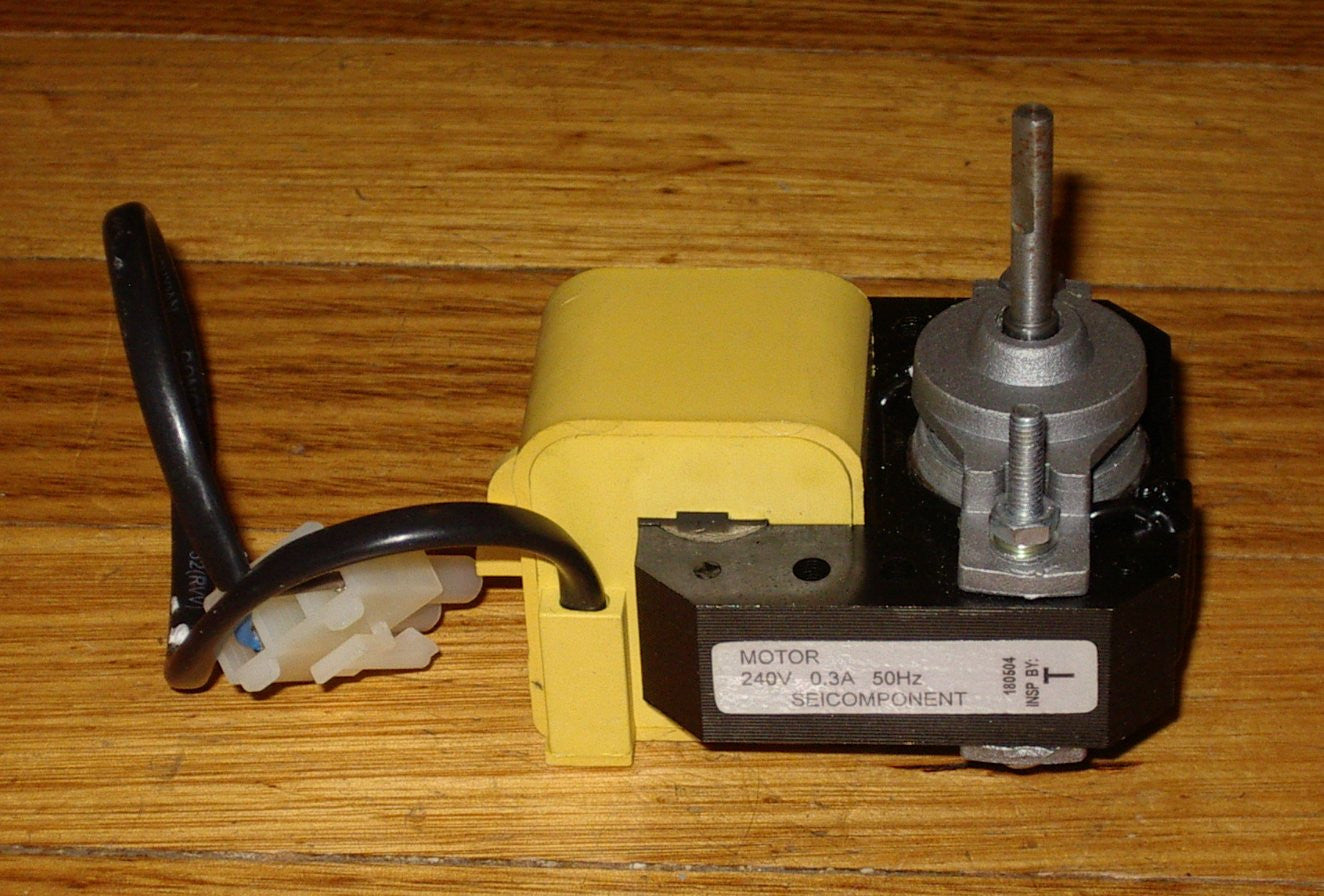

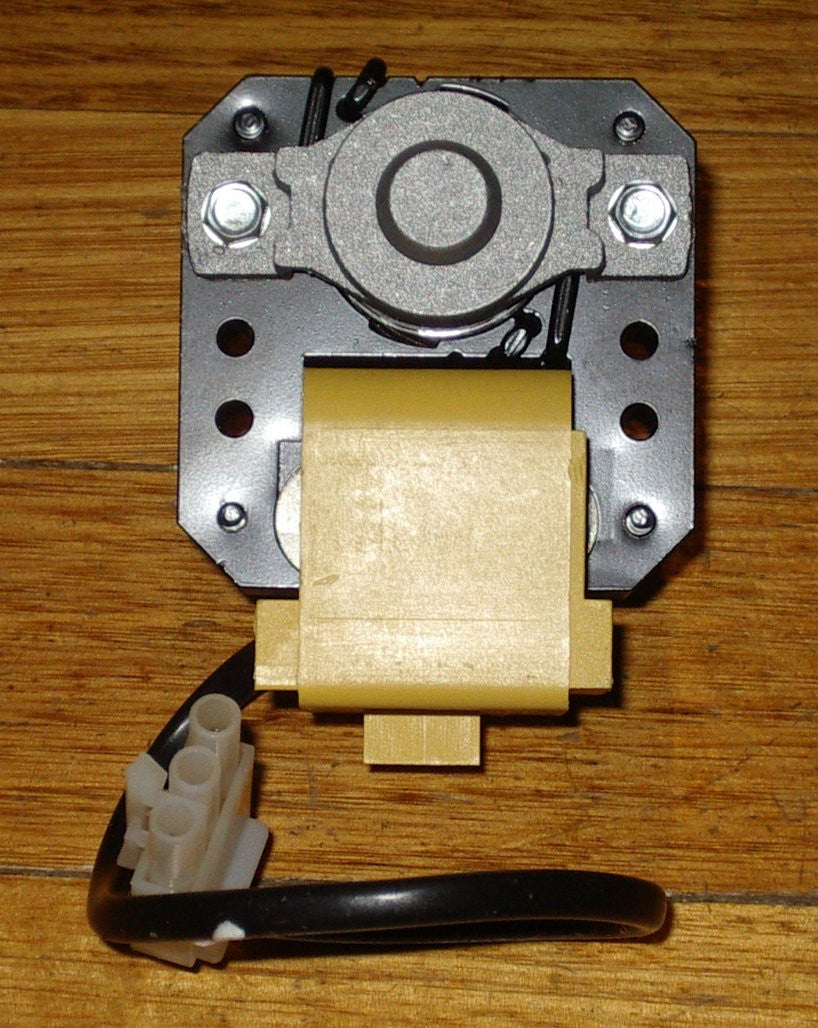

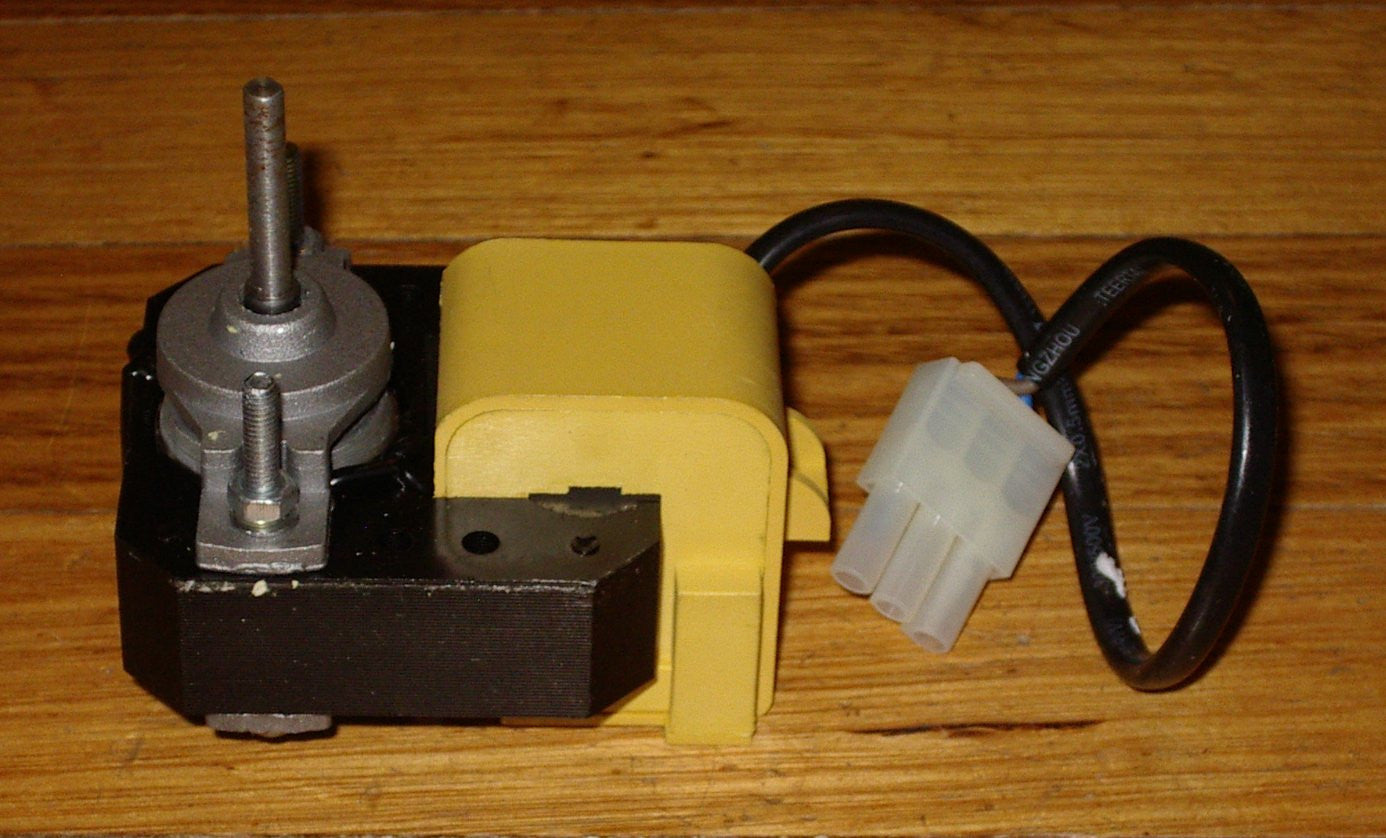

This universal reversible evaporator fan motor is an ideal fit for commercial fridges. Part No. RF001B, similar to Part No. J06BM19T, it's suitable for numerous commercial drink refrigerators and display cabinets. Operating on 220Volts AC, it comes supplied in a CCW direction. However, you can easily change the direction to CW by simply undoing the bearing covers and re - fitting them and the rotor the other way around. It features 22cm connecting wires and a three - way polarised connector. With double insulation, it offers safety and reliability. The shaft is 28.5mm long, 4.6mm in diameter with a D - shape. The total depth from the tip of the shaft to the back of the bearing cover is 81mm, and the motor laminations are 20mm thick. The mounting bolt spacing is 46mm. This motor comes with a full guarantee and is easy to install. It's designed to be mounted on a metal or plastic bracket using the extended bearing cover bolts. With over 25 years of experience supplying appliance parts to both the trade and retail, you can buy with confidence.

Using this evaporator fan motor is a breeze. First, make sure your fridge is turned off and unplugged. Mount the motor onto a metal or plastic bracket using the extended bearing cover bolts. The motor comes with 22cm connecting wires and a three - way polarised connector, so connect it to the appropriate electrical source. If you need to change the rotation direction from CCW to CW, just undo the bearing covers and fit them and the rotor the other way around. When using, always ensure the fridge is operating on 220Volts AC. For maintenance, keep the motor clean and free from dust. Check the wiring regularly for any signs of wear or damage. If you have any issues, don't worry as it comes with a full guarantee. And remember, with our 25 - year experience in the appliance parts business, you can trust this product.
