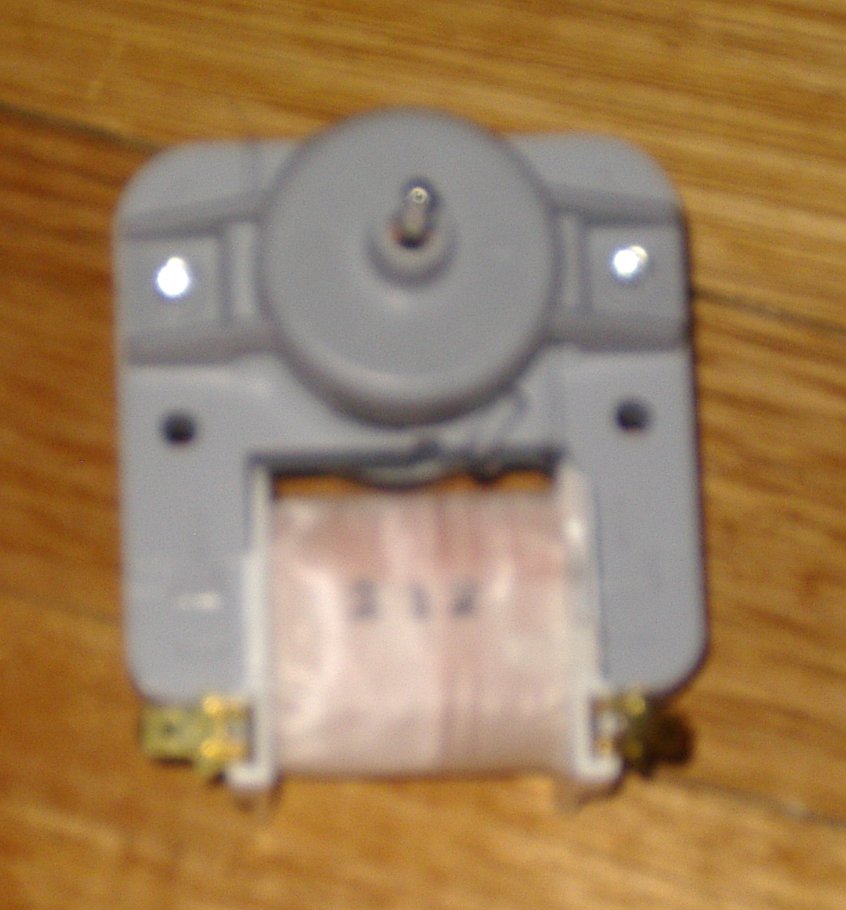

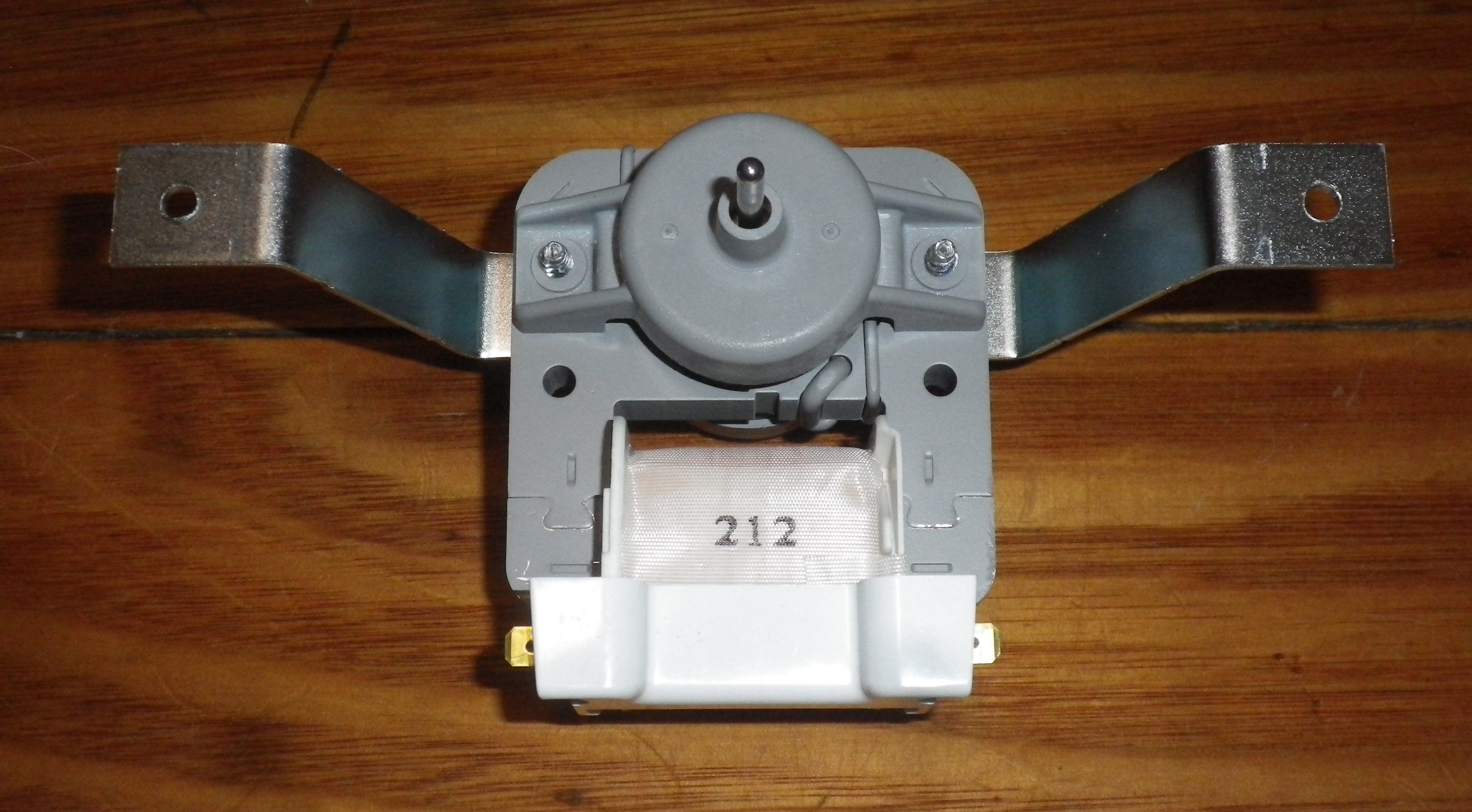

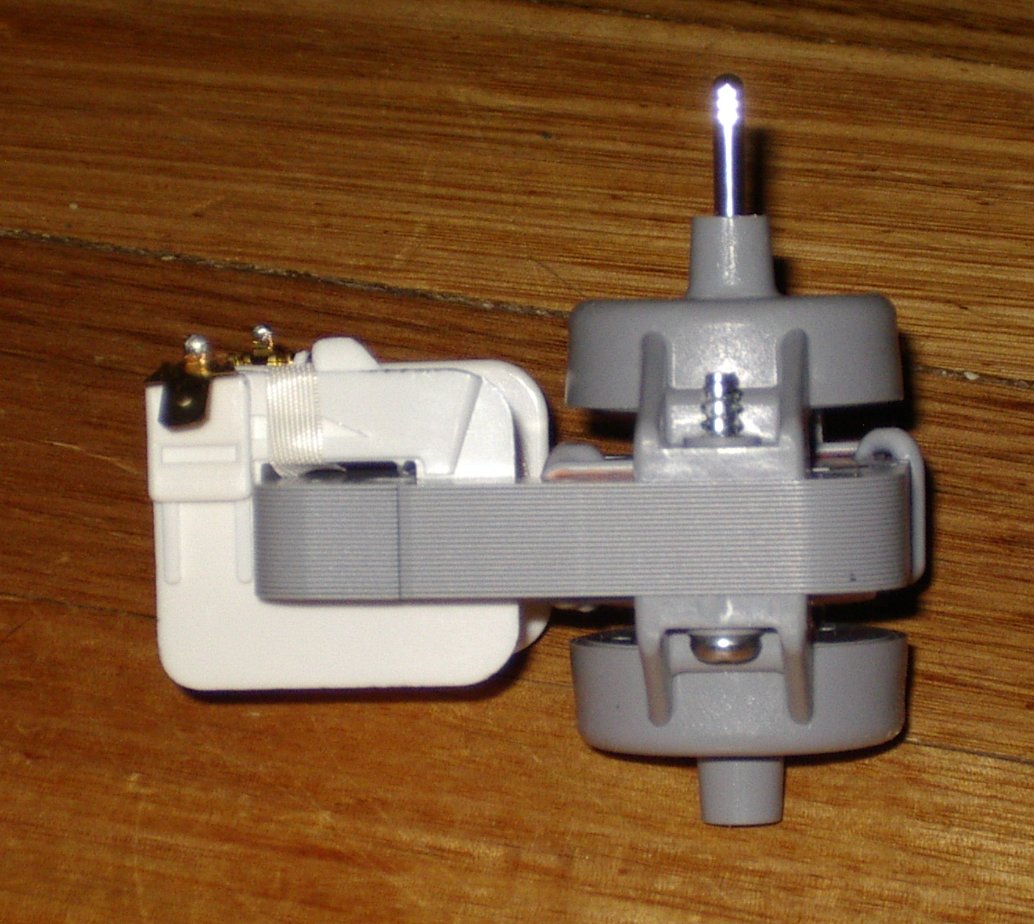

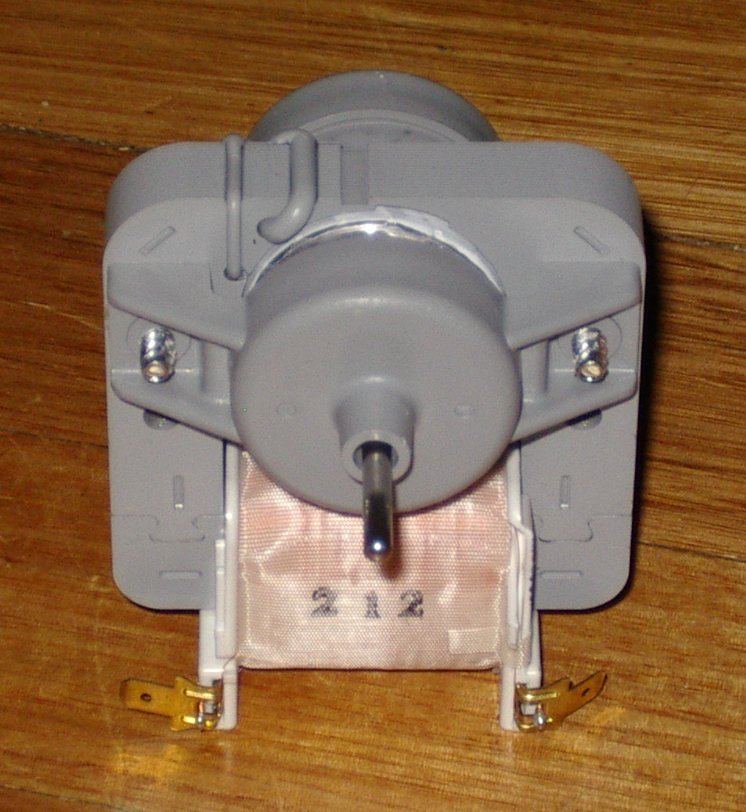

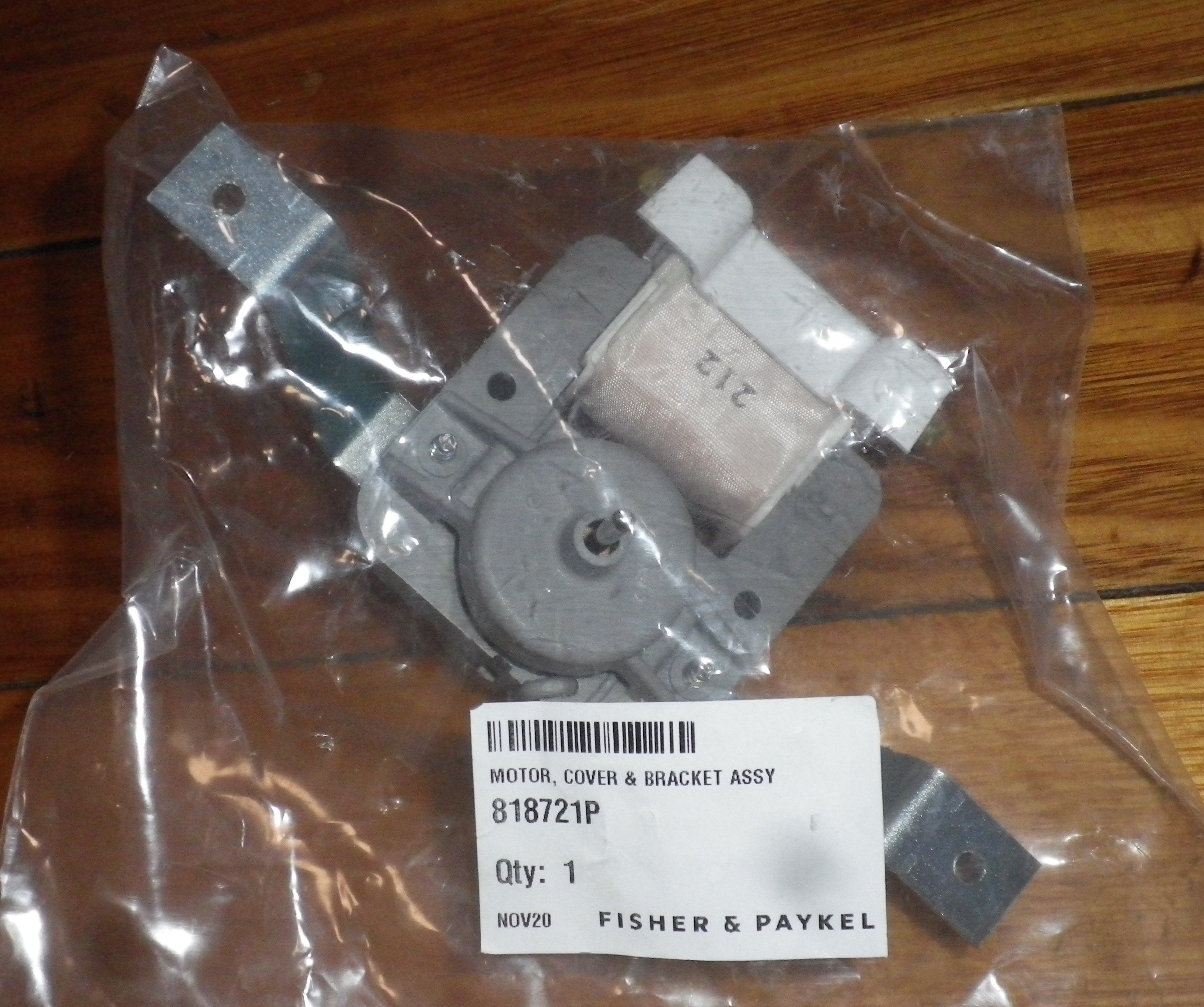

This is a genuine Fisher & Paykel evaporator fan motor with a short shaft. It comes with the part number FP818721P and can replace part numbers FP873115 and 873115. This small yet powerful fan motor is suitable for many Fisher & Paykel frost - free freezers and fridges, including models E373L, E373R, C450, C450L, C450R, E450RXFD, N500B, E510T, N510T, and possibly more. Operating at 230 Volts AC and 50Hz, it's fitted with 4.8mm male spade terminals. The shaft is 14mm long and 2.5mm in diameter. The total depth from the tip of the shaft to the back of the mounting knob is 72mm, and the motor's thickness (excluding mounting knobs) is 43mm, with metal laminations 10.5mm thick. It comes with a full guarantee and is easy to install. You can clamp it into a metal or plastic bracket using rubber grommets on the front and back. Angled brackets that can be screwed to the motor body are also included. With over 25 years of experience supplying appliance parts to both the trade and retail, you can buy with confidence.
Using this Fisher & Paykel evaporator fan motor is a breeze. First, make sure your freezer or fridge is unplugged for safety. If you're replacing an old motor, carefully remove it from the bracket. Then, take your new motor and use the included angled brackets or the rubber grommets to secure it in place. Once it's firmly installed, plug your appliance back in and turn it on. When it comes to maintenance, keep an eye on the motor's performance. If you notice any strange noises or reduced airflow, it might be time to check for debris around the fan. You can use a soft brush to gently clean the fan blades and the motor body. Also, make sure the spade terminals are clean and properly connected. Remember, this motor is fully guaranteed, so if you have any issues, don't hesitate to reach out. And always keep it in a dry place when not in use to prevent any damage.
