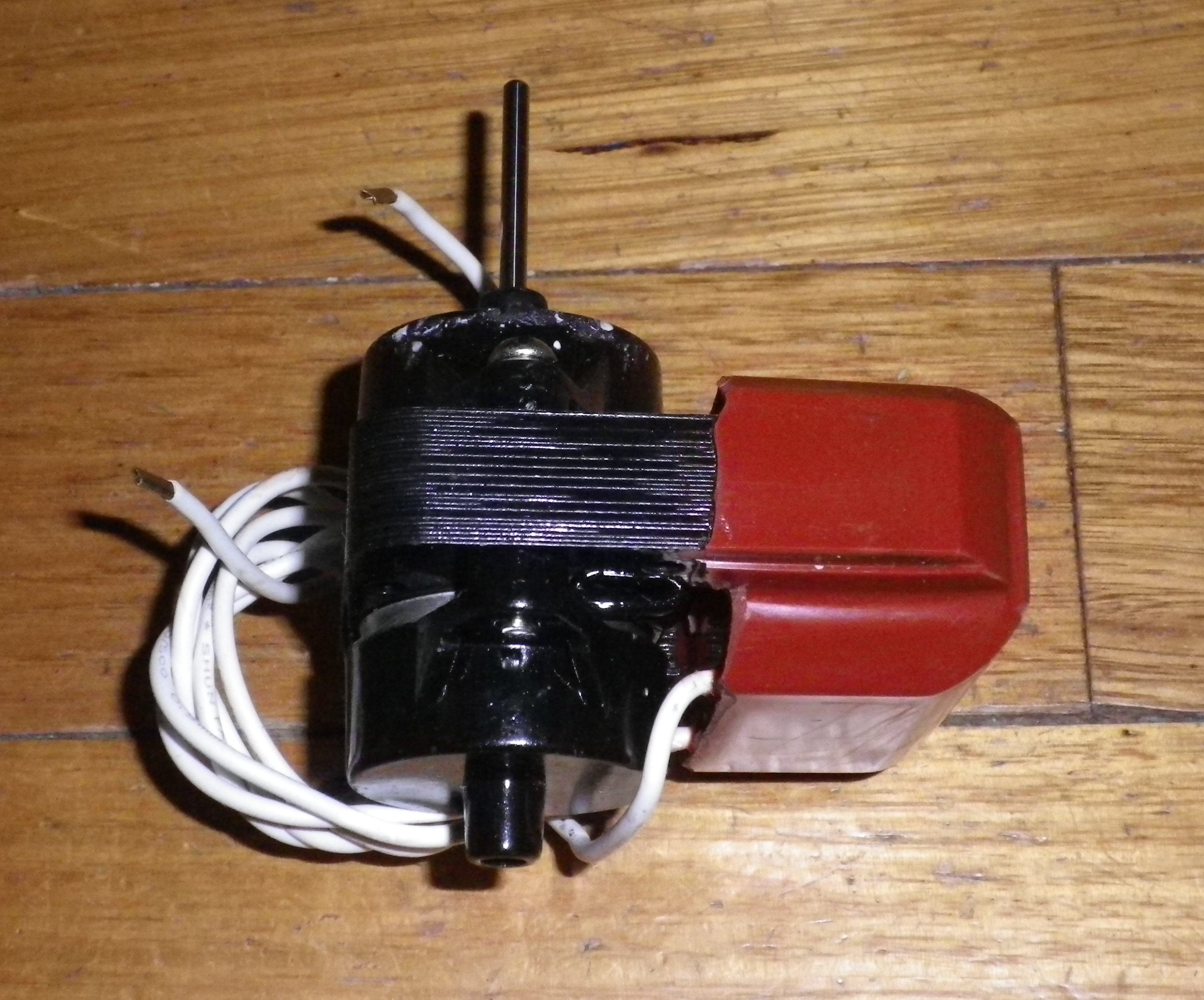

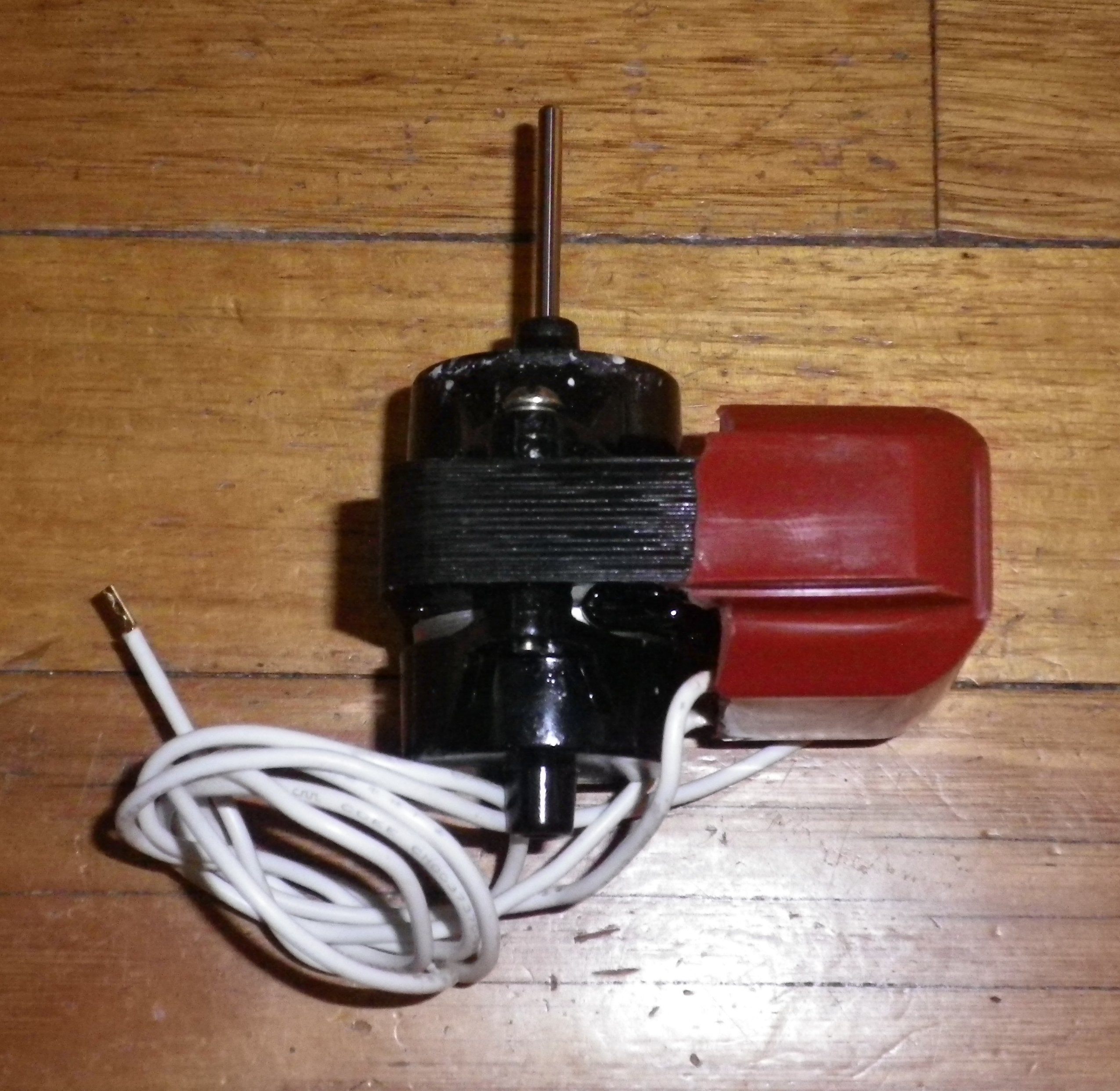

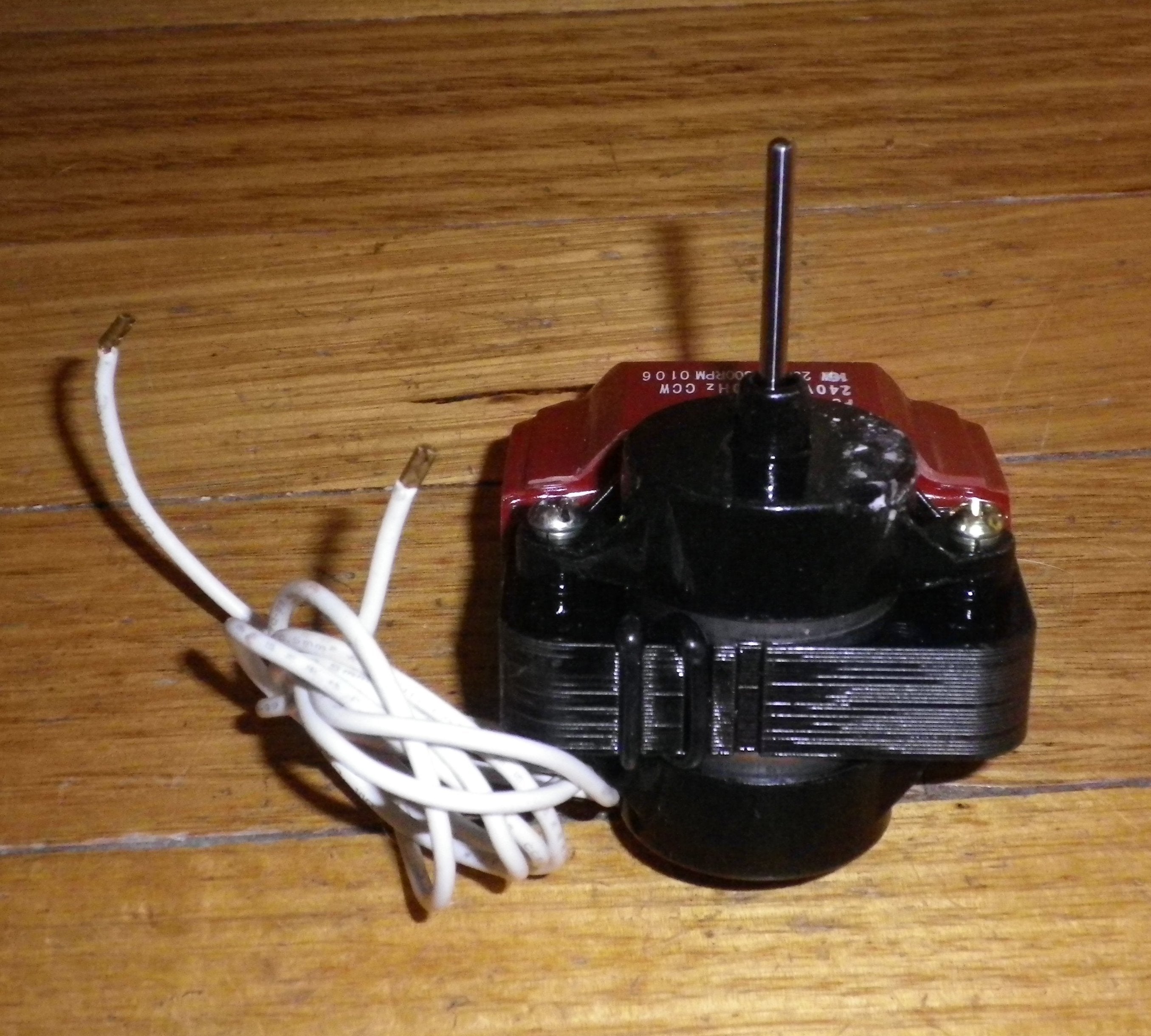

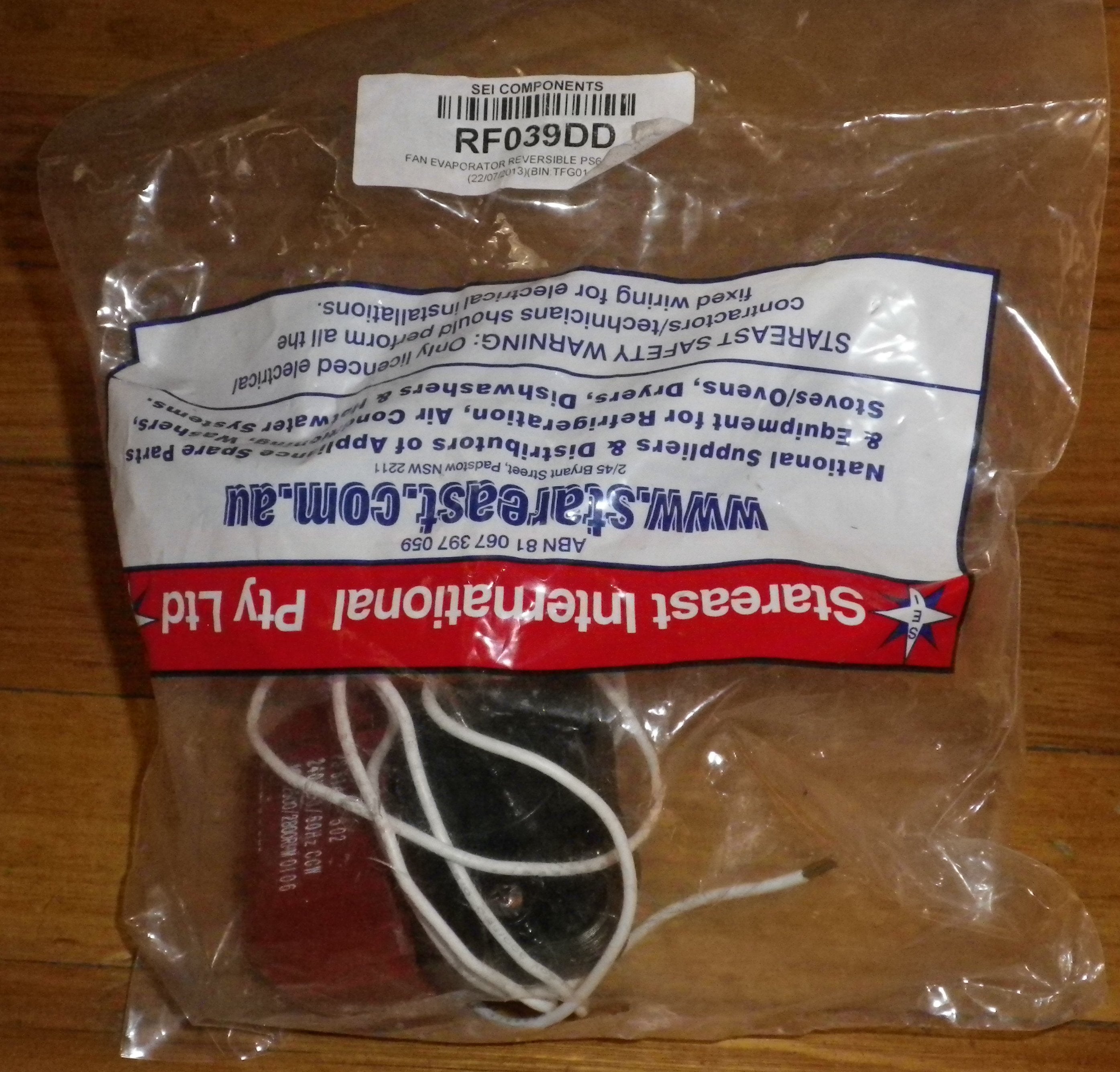

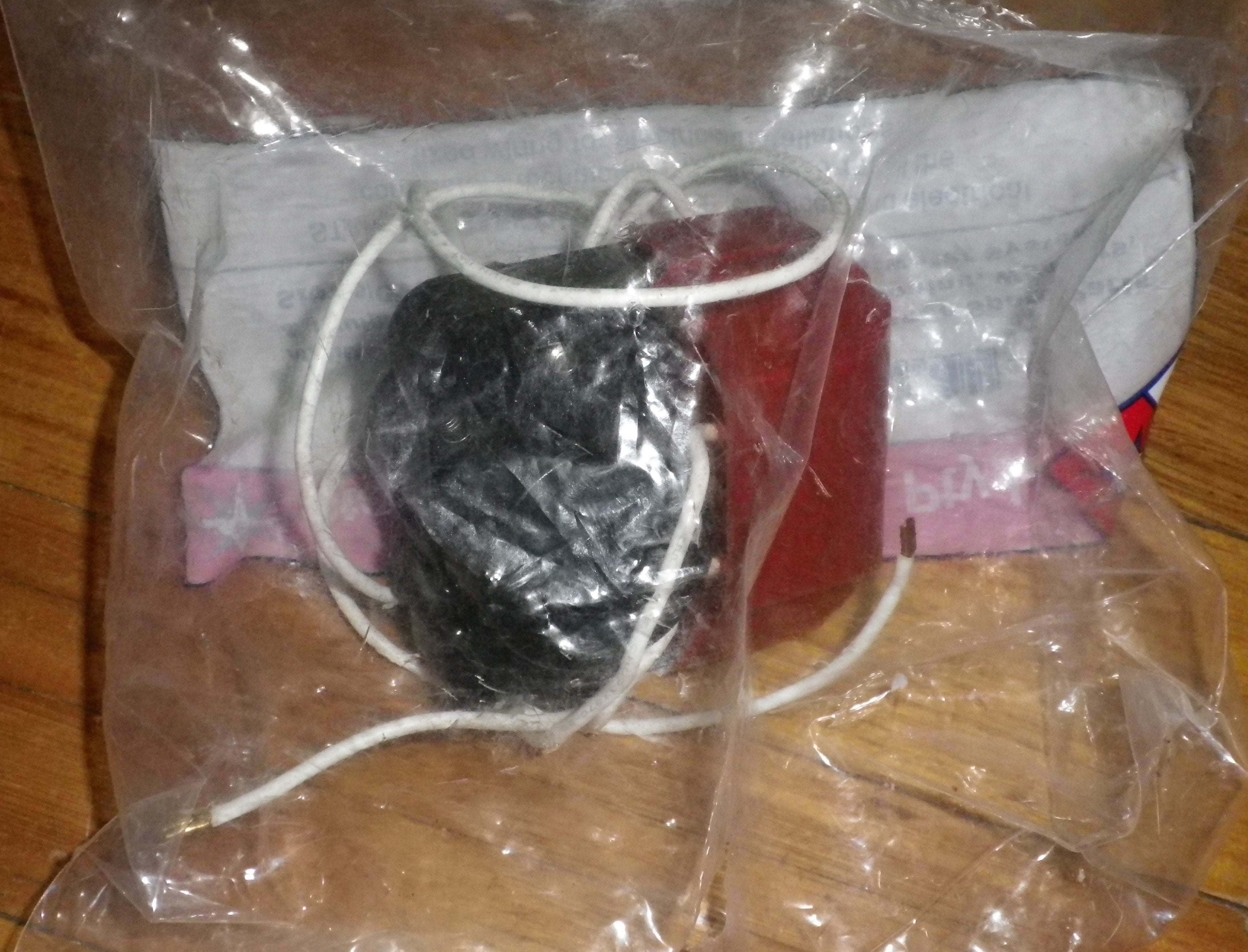

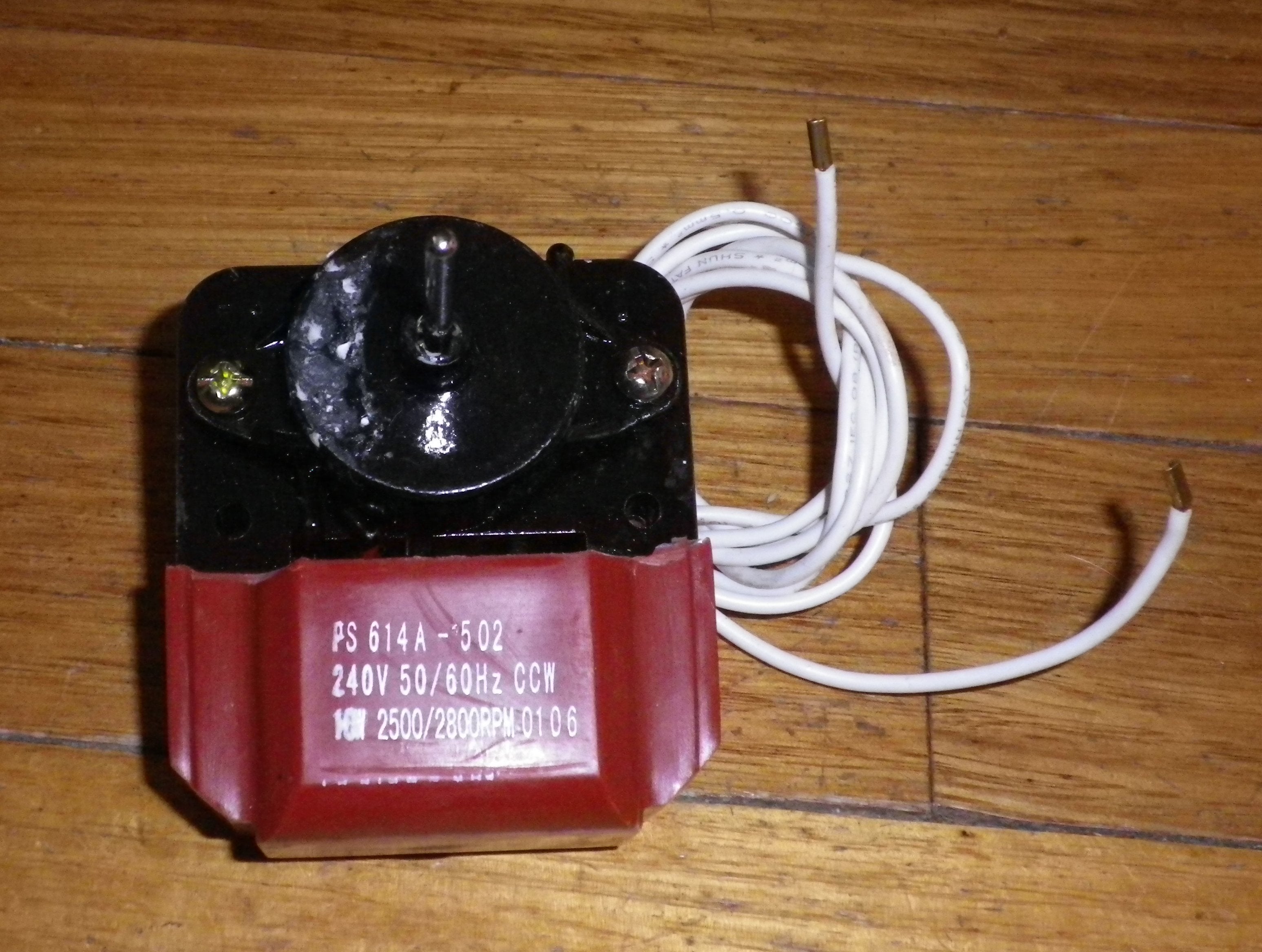

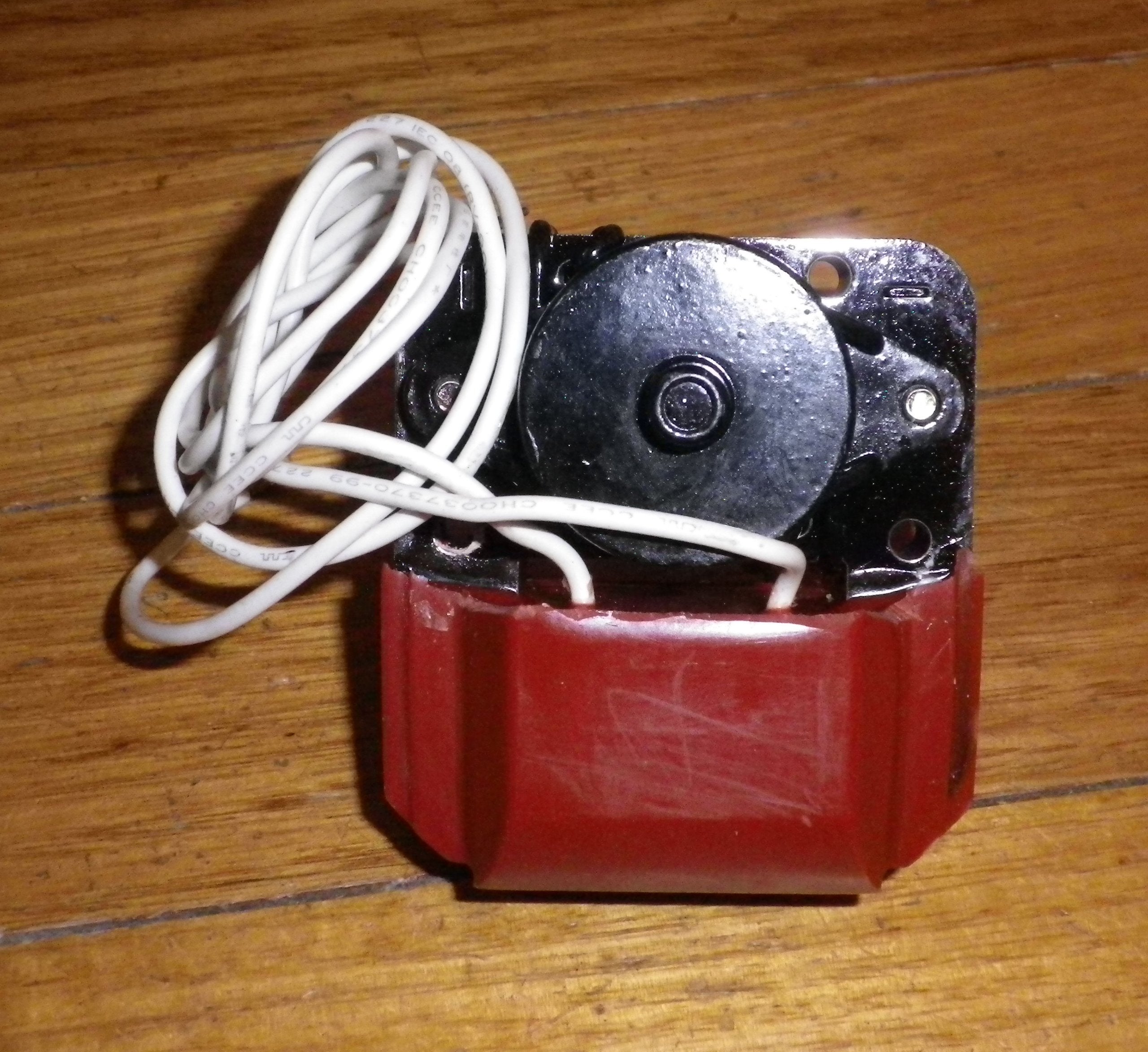

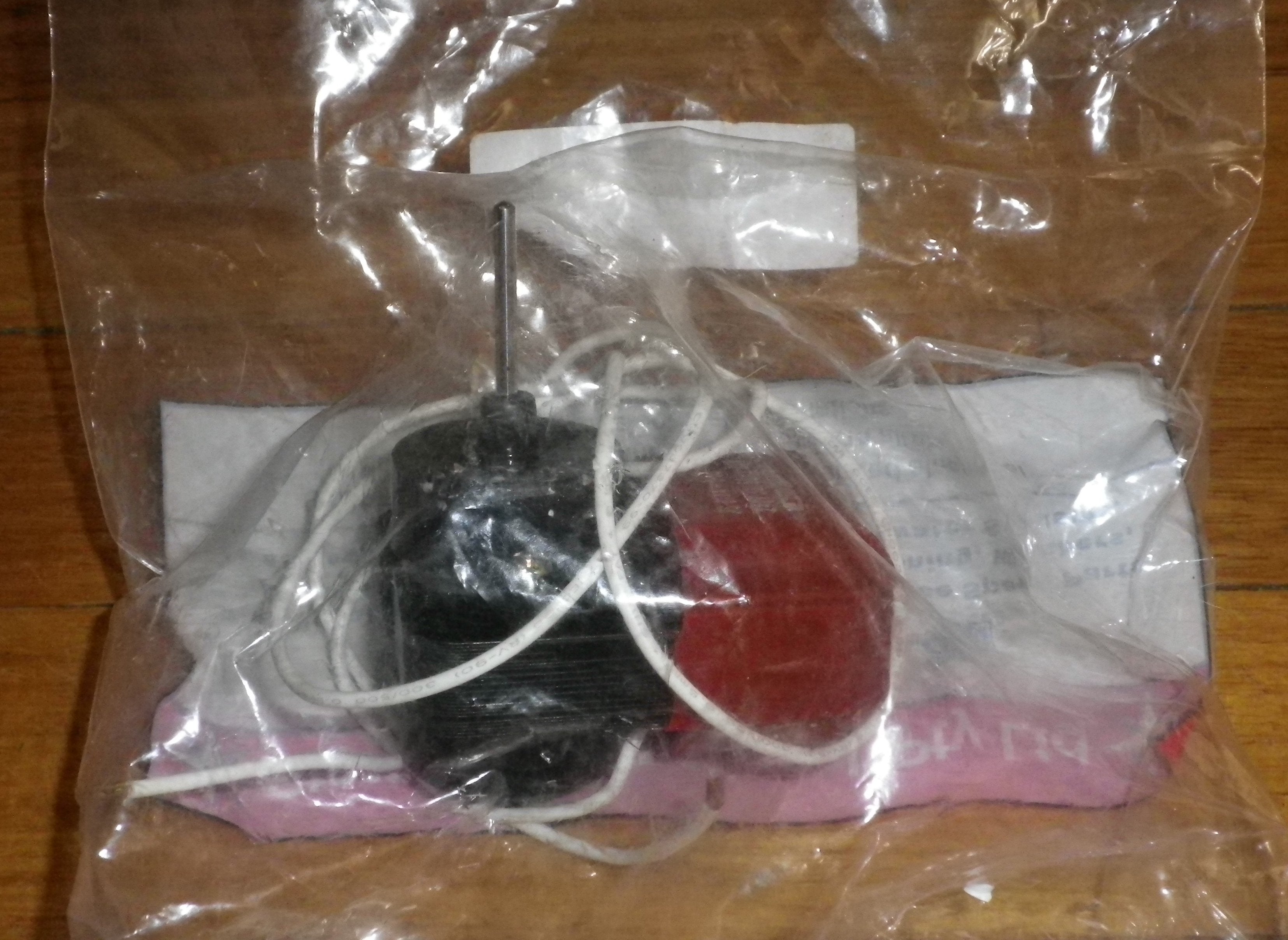

Universal Reversible Evaporator Fan Motor - Part # RF039DD, PS614A-502

This small universal reversible evaporator fan motor is perfect for no frost fridges. It comes with Part No. RF039DD, PS614A-502 and is suitable for many frost free refrigerators, including some Westinghouse models. Operating at 240Volts AC, 10Watt, 50/60Hz, and 2500/2800RPM, it can be easily set to either CW or CCW rotation by simply undoing the bearing covers and re - fitting the rotor. It has 50cm connecting wires with bare ends. The shaft is 28mm long and 3mm in diameter. The total depth from the shaft tip to the back of the mounting knob is 92mm, and the motor's thickness (excluding mounting knobs) is 48.3mm. It comes with a full guarantee and is very easy to fit. Designed to be clamped into metal or plastic brackets with rubber grommets at the front and back. With over 25 years of experience in supplying appliance parts to both trade and retail, you can buy this product with confidence.

Using this evaporator fan motor is quite simple. First, make sure your fridge is unplugged for safety. Then, find the right spot in your fridge to clamp the motor into the metal or plastic bracket using the rubber grommets. Connect the 50cm wires with bare ends to the appropriate terminals in your fridge. You can adjust the rotation direction according to your needs by undoing the bearing covers and re - fitting the rotor. When using, always ensure the fridge is operating at the correct voltage (240Volts AC). As for maintenance, keep the motor clean. You can use a soft brush to gently remove any dust from time to time. If you notice any strange noises or the motor doesn't work properly, it's best to check the connections first. And remember, this motor comes with a full guarantee, so if there are any issues, feel free to contact us.
