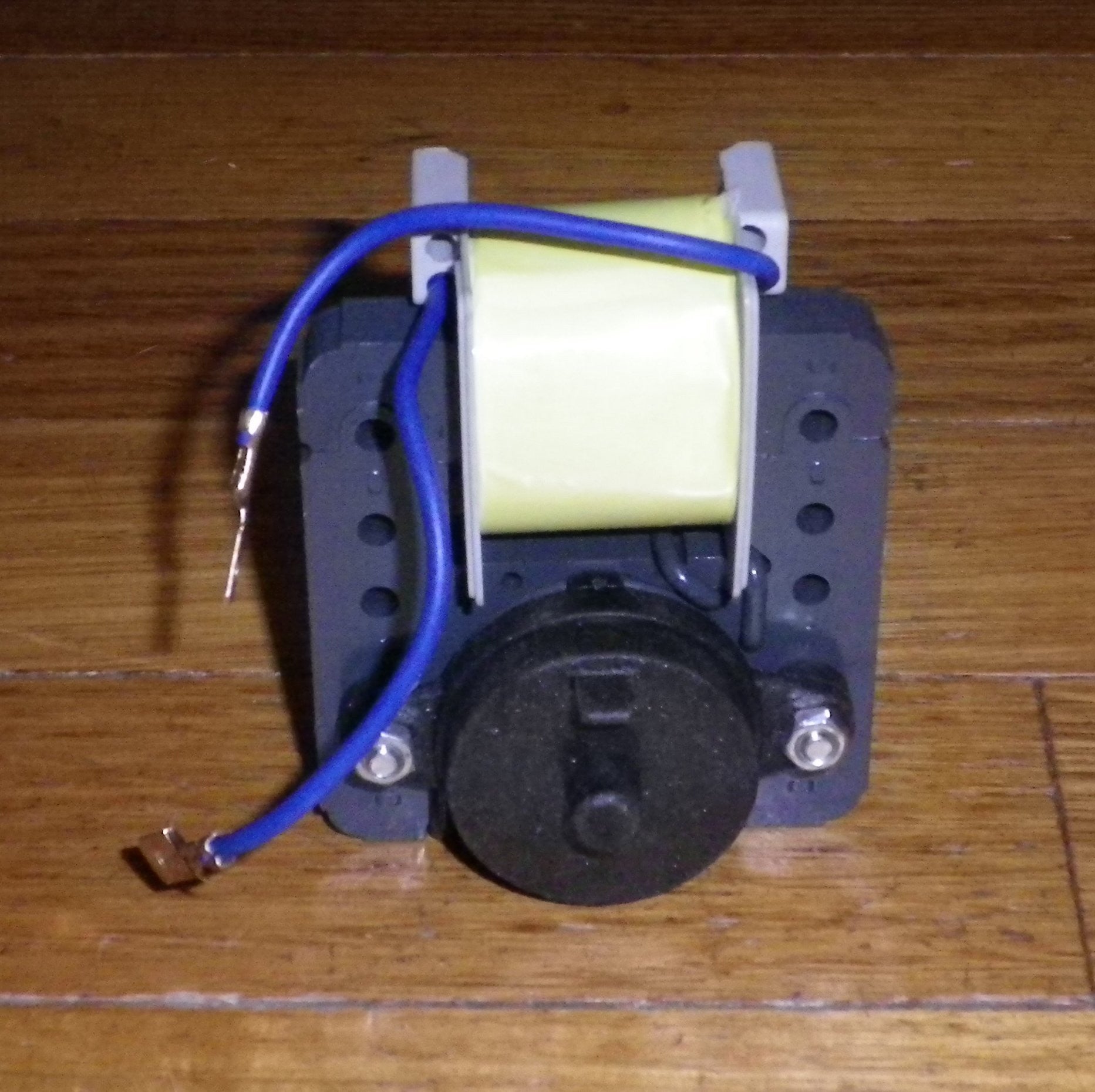

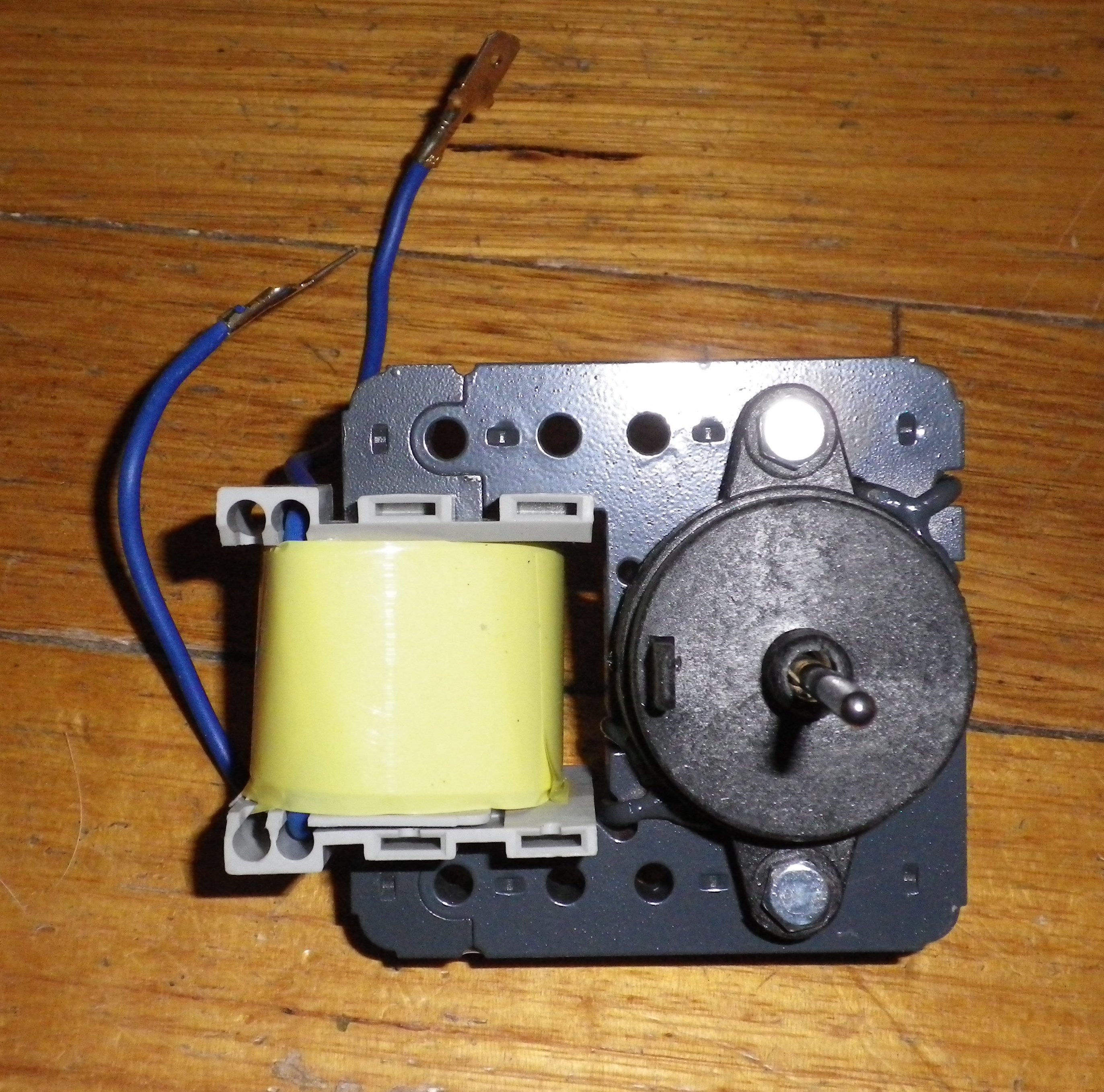

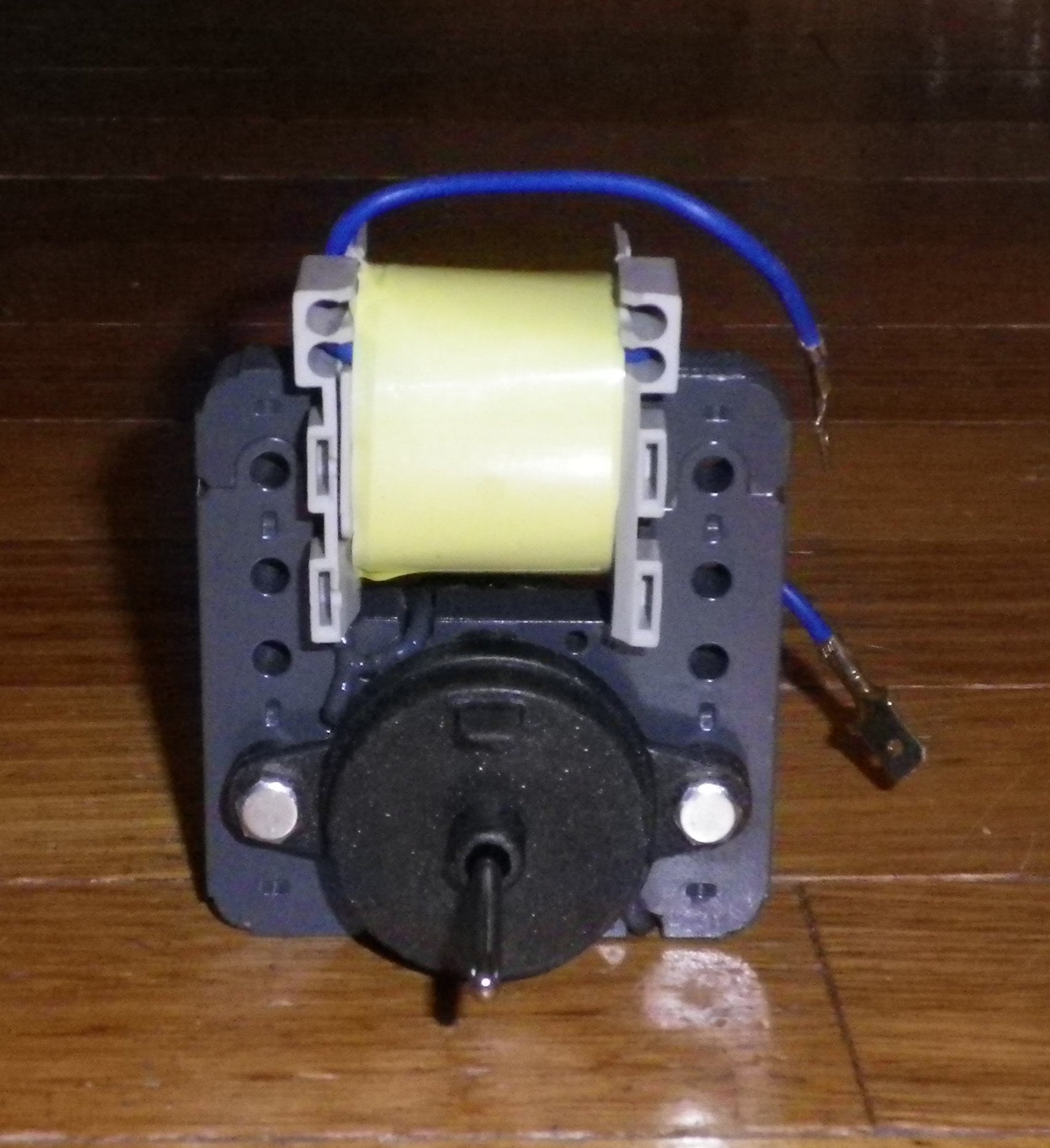

Universal Reversible Evaporator Fan Motor - Part # RF039-1

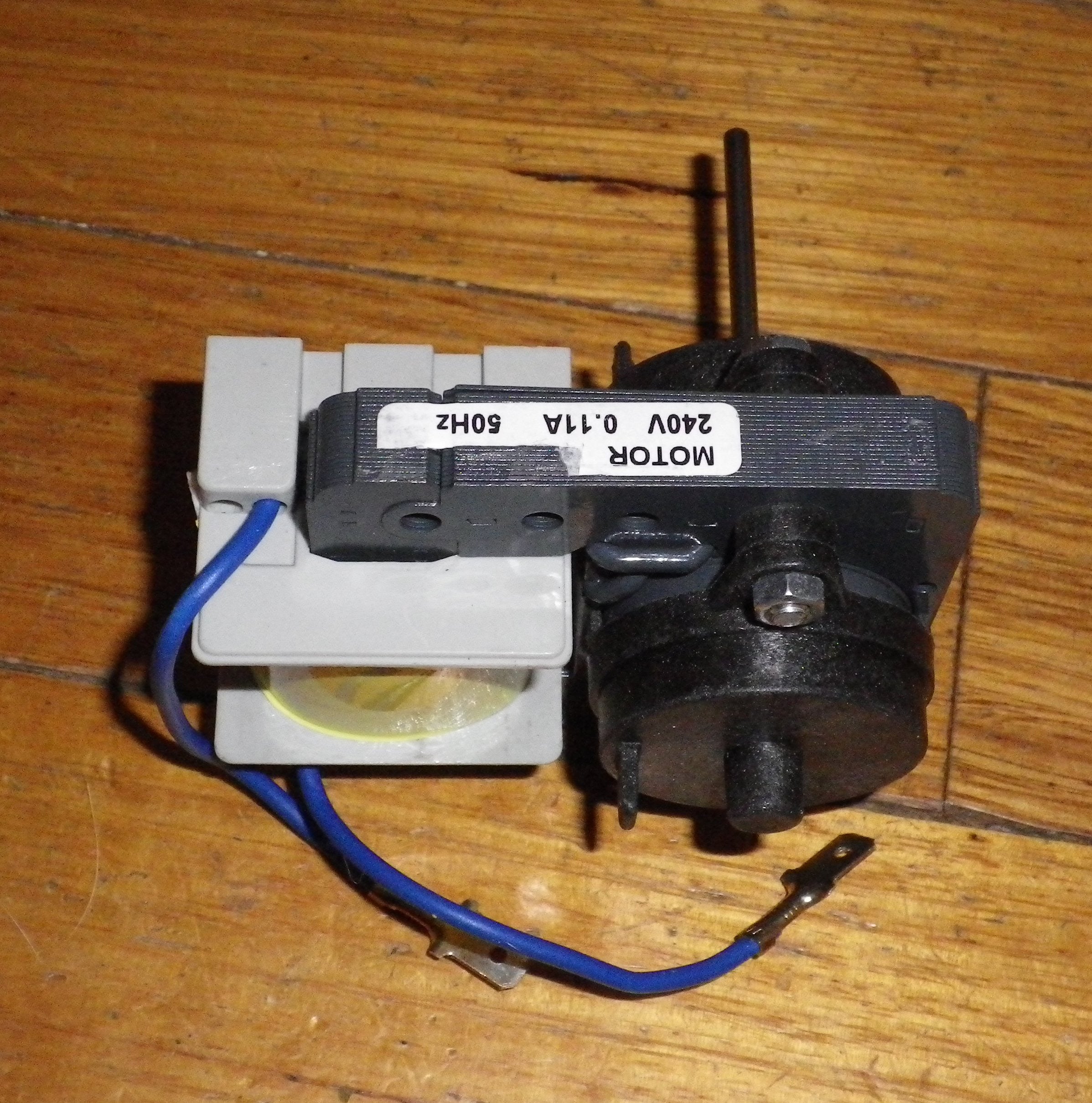

This small, universal reversible evaporator fan motor is an ideal fit for no-frost fridges. Part No. RF039-1, it's a great choice for many frost-free refrigerators and is used in certain Westinghouse models. It operates on 240 Volts AC, with 0.11 Amp at 50Hz. Supplied in a clockwise (CW) direction, you can easily change it to counter-clockwise (CCW) by removing the bearing covers and re - fitting them and the rotor the other way around. It comes with 8.5cm connecting wires and 6.4mm male spade terminals. The shaft is 30mm long with a 3mm diameter. The total depth from the tip of the shaft to the back of the mounting knob is 86.7mm, and the motor's thickness (excluding mounting knobs) is 41.1mm. It can replace many late - model Westinghouse fan motors. This motor comes with a full guarantee and is super easy to install. It's designed to be clamped into a metal or plastic bracket using rubber grommets at the front and back. With over 25 years of experience supplying appliance parts to both the trade and retail, you can buy with confidence.

Using this evaporator fan motor is quite straightforward. First, make sure your fridge is unplugged. Then, find the old fan motor in your frost - free fridge and carefully remove it. Take the new motor and clamp it into the metal or plastic bracket using the rubber grommets provided at the front and back. Connect the 8.5cm wires with the 6.4mm male spade terminals to the appropriate connections. If you need to change the rotation direction from CW to CCW, just undo the bearing covers, re - position the rotor and the covers the other way around. When it comes to maintenance, keep the motor clean and free from dust. Check the connections regularly to ensure they are tight. If you notice any strange noises or performance issues, unplug the fridge and contact a professional. With proper use and care, this motor will serve you well for a long time.
