Product Detail

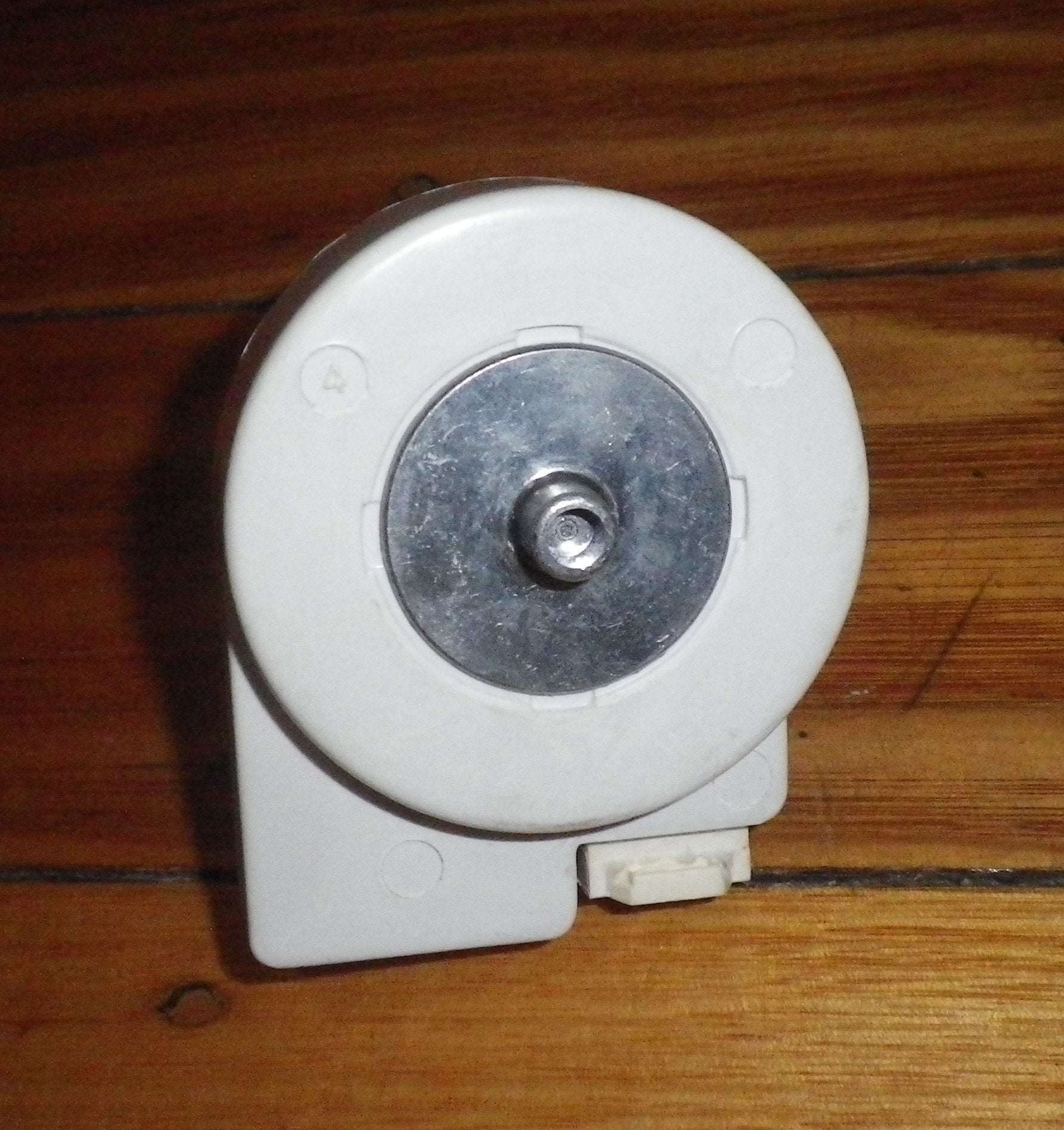

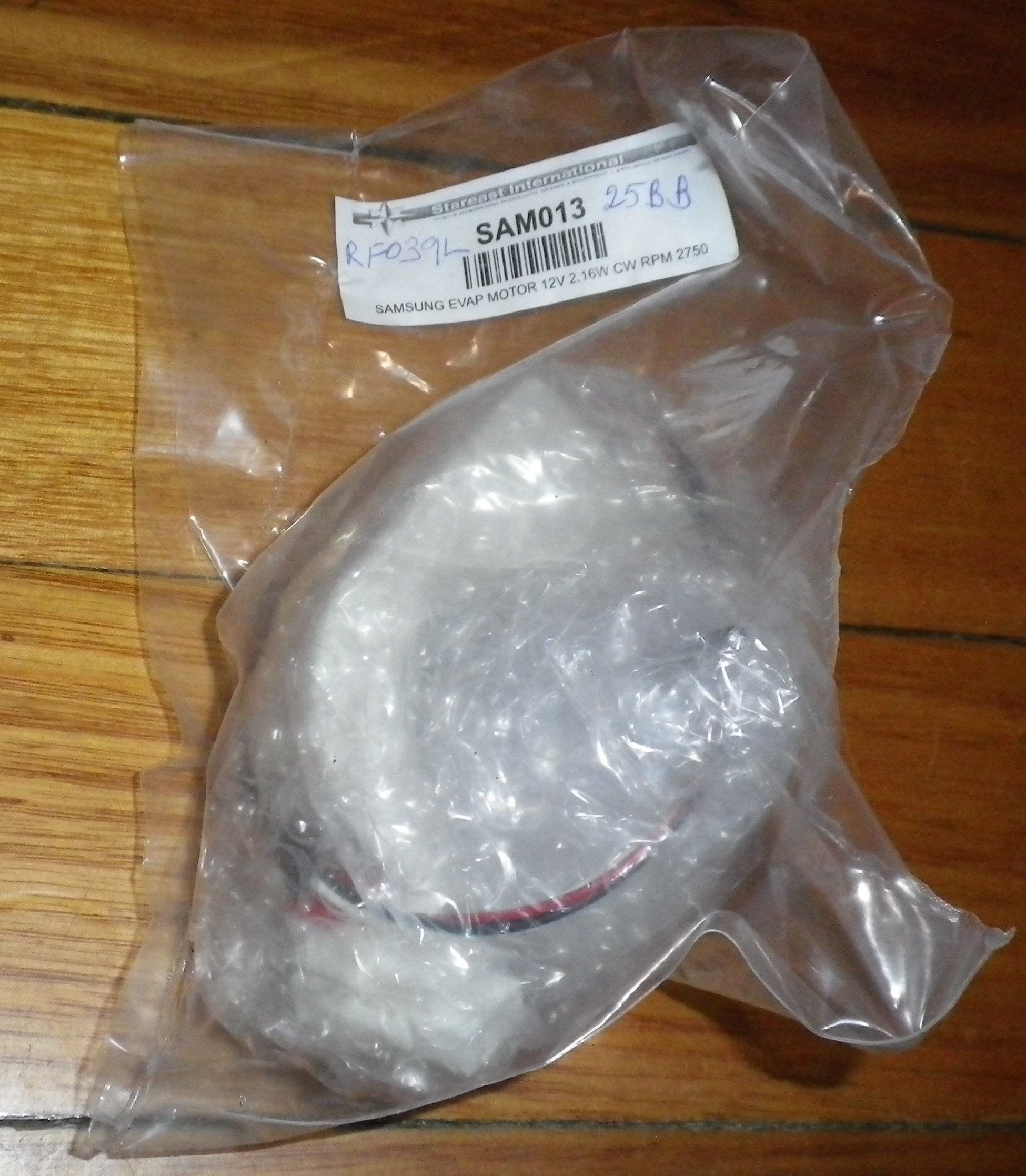

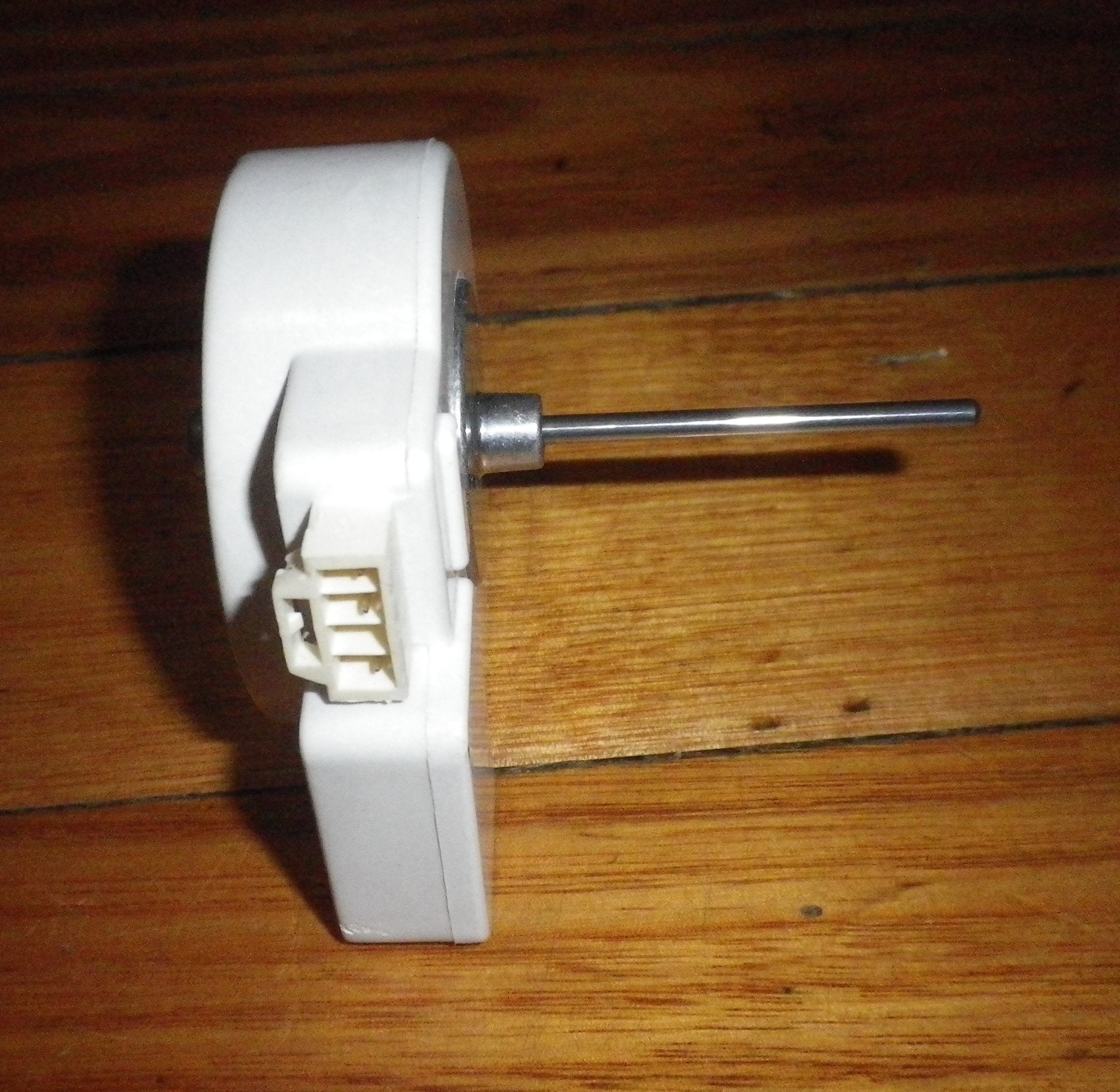

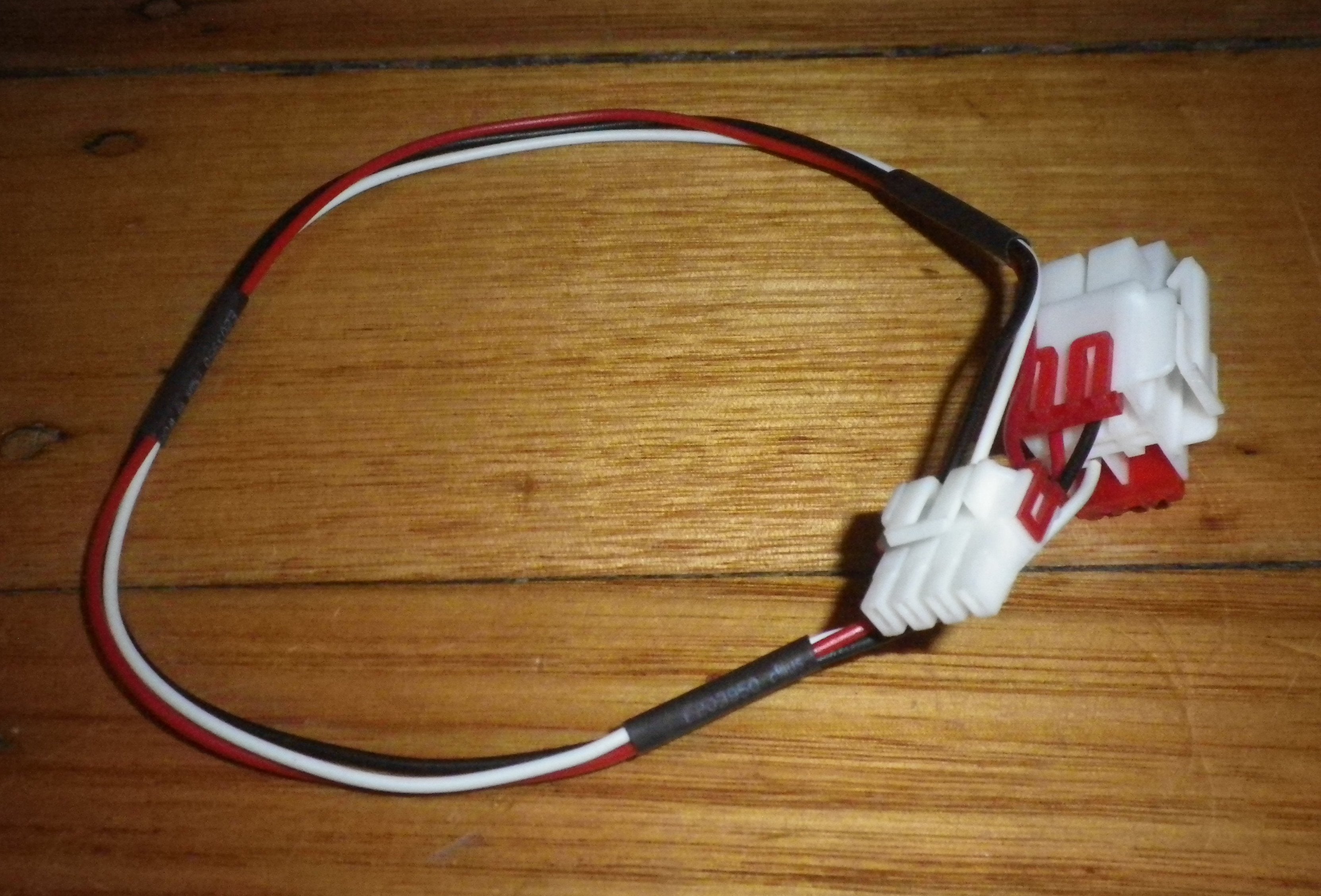

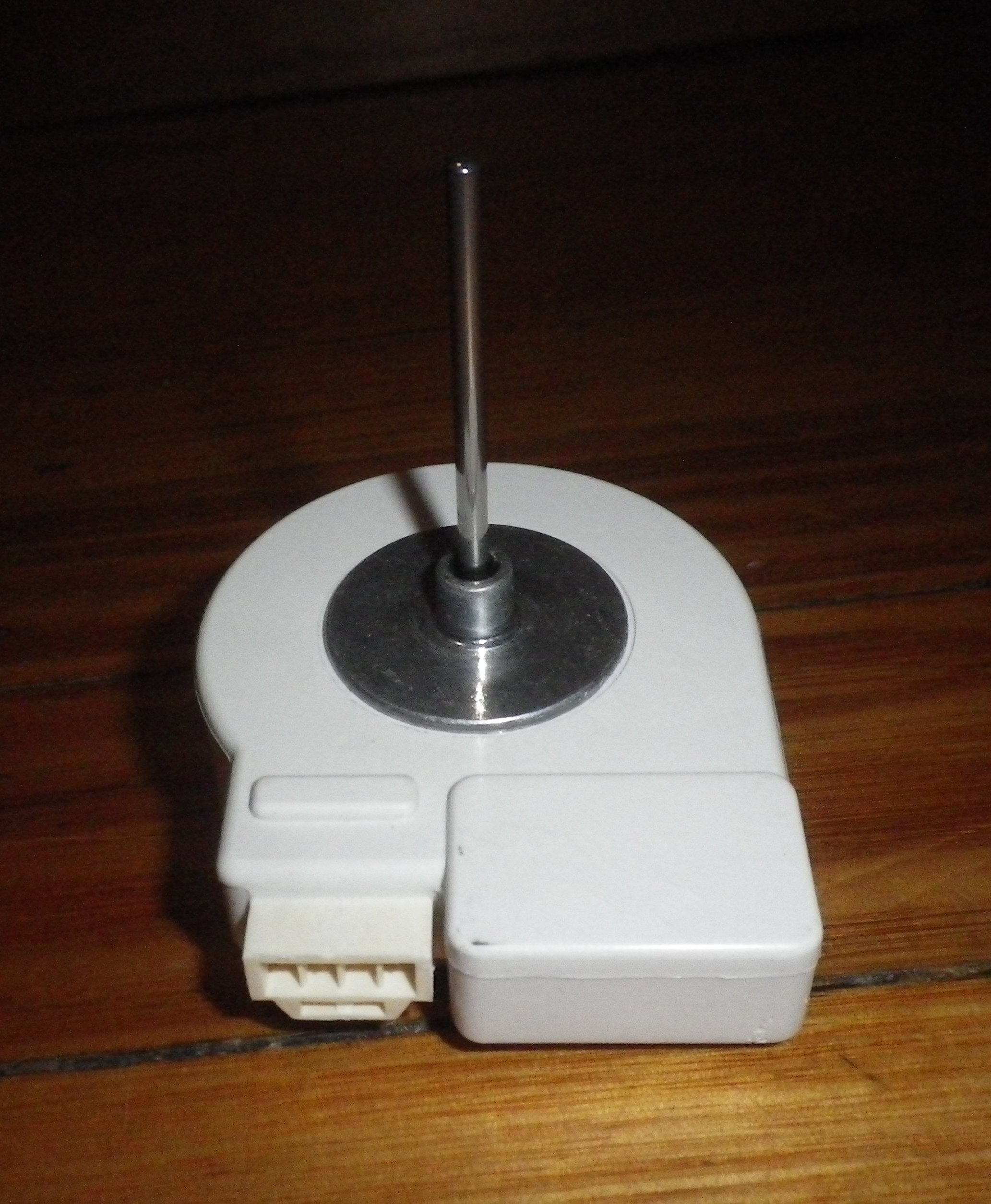

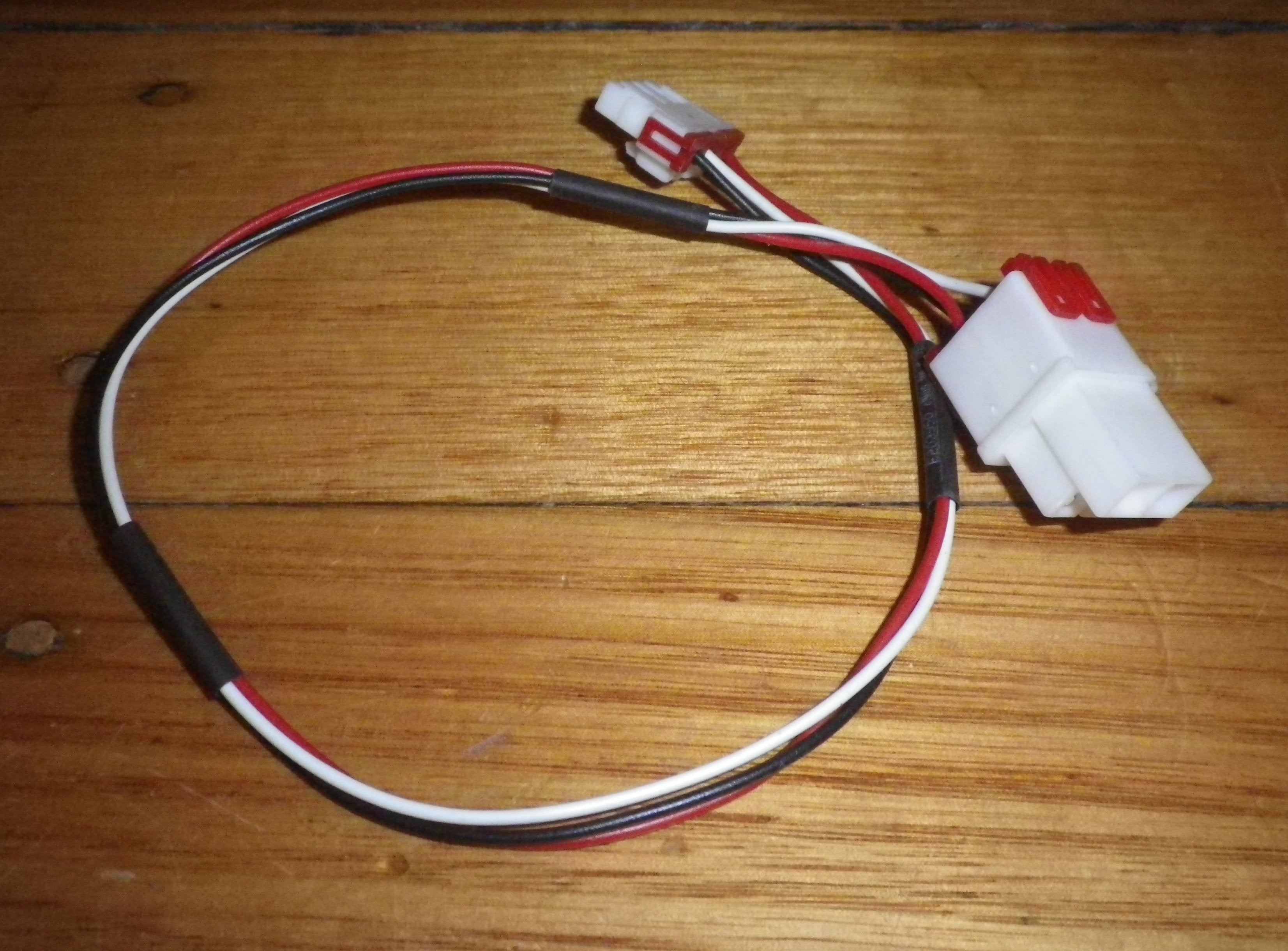

This low voltage evaporator fan motor is designed to fit some no frost fridges. It's a small yet powerful fan motor suitable for certain Samsung and Panasonic frost free refrigerators. Part numbers include SAM013 and BLDC002, and it's similar to RF039L, RFSM002, 2B3YU9141, and 4B3YU6182. Operating at low voltage, it comes with a 4 - way power connector having 3 electrical connections and a 39cm connecting lead. The shaft is 45mm long with a 2.9mm diameter. The total depth from the tip of the shaft to the back of the fan body is 83.5mm, and the motor's front - to - back thickness is 22mm. It runs on DC12V, draws 0.18A, has a power of 2.16W, and spins at 2750 RPM. It comes with a full guarantee and is easy to install. We've been supplying appliance parts to the trade and retail for over 25 years, so you can buy with confidence.
Using this evaporator fan motor is easy. First, make sure your fridge is unplugged for safety. Locate the old fan motor in your no frost fridge and carefully remove it. Then, connect the 4 - way power connector of the new motor to the corresponding socket in your fridge. The 39cm connecting lead gives you some flexibility in positioning. Once connected, plug your fridge back in. The motor will start running at 2750 RPM to keep your fridge cool. When it comes to maintenance, keep the motor clean. You can use a soft, dry cloth to wipe off any dust. Avoid using water or any liquid cleaners directly on the motor. If you notice any unusual noises or if the motor stops working, check the electrical connections first. Since it has a full guarantee, if there are any issues that you can't fix, feel free to contact us.
