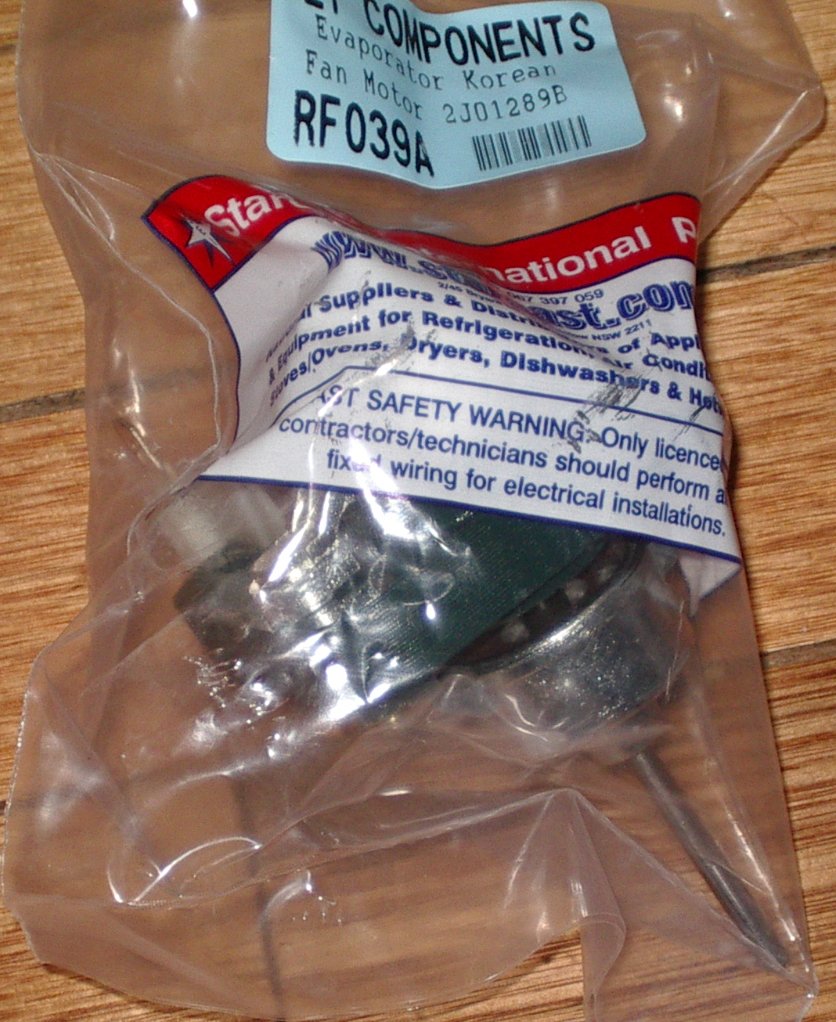

Universal Korean Style Evaporator Fan Motor - Part # RF039A

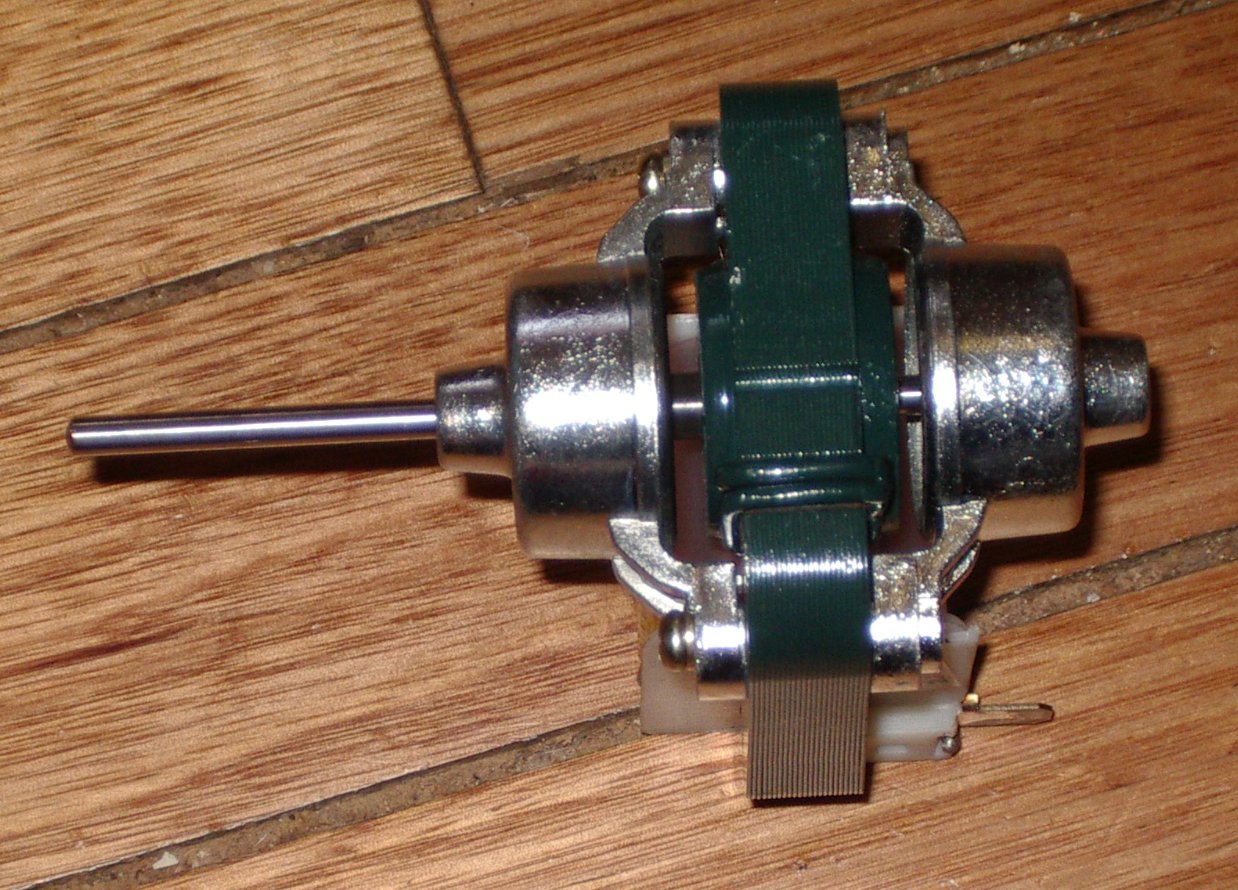

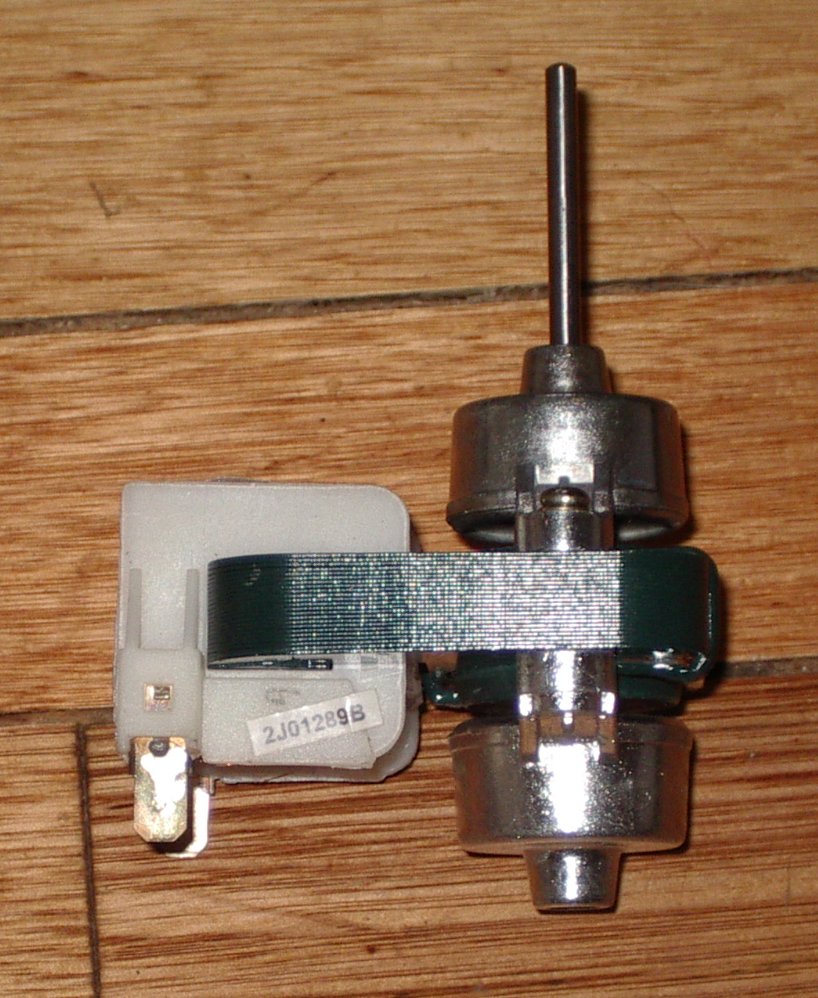

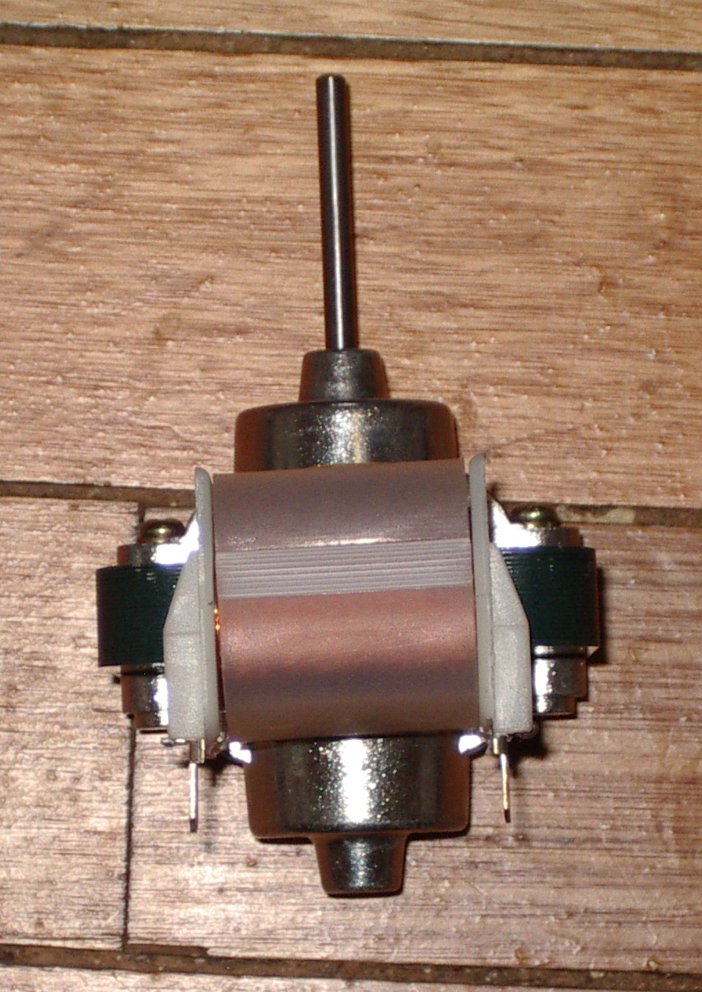

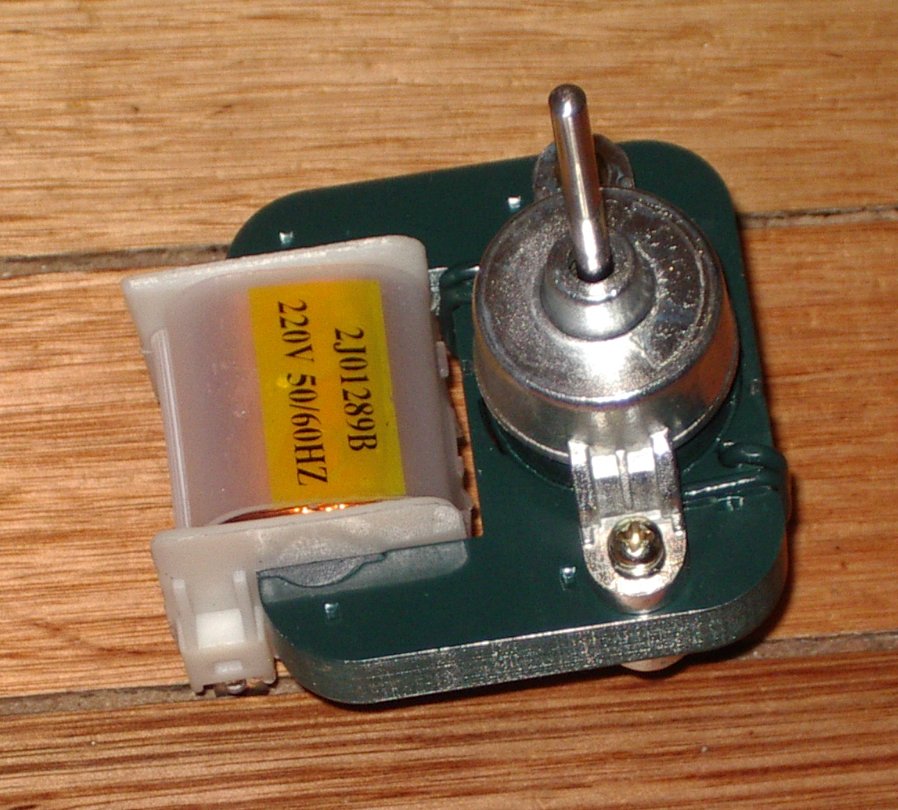

This small, universal Korean-style evaporator fan motor is a great fit for no-frost fridges. It has part numbers RF039A and 2J01289B. Ideal for numerous frost-free refrigerators, this fan motor runs on 220 Volts AC with a counterclockwise (CCW) direction. It comes with 6.4mm male spade terminals. The shaft is 35mm long and 4mm in diameter. The total depth from the shaft tip to the back of the mounting knob is 107.5mm, and the motor's thickness (excluding mounting knobs) is 55mm. It's fully guaranteed and easy to install. Designed to be clamped into a metal or plastic bracket with rubber grommets at the front and back. With over 25 years of experience supplying appliance parts to both trade and retail, you can buy with confidence.

Using this evaporator fan motor is easy. First, make sure your fridge is unplugged to avoid any electrical issues. Then, locate the old fan motor in your no-frost fridge. Remove the old motor carefully by unclamping it from the bracket. Take note of how the wires are connected to the terminals. Now, take your new fan motor and connect the wires to the 6.4mm male spade terminals in the same way as the old one. Place the new motor into the bracket and use the rubber grommets at the front and back to clamp it securely. Once it's installed, plug your fridge back in. As for maintenance, it's a good idea to check the motor regularly for any signs of damage or excessive dirt. If you notice any strange noises or the motor isn't working as well as it should, it might need to be replaced. Always keep in mind that this motor runs on 220 Volts AC, so handle it with care to prevent electrical shock.
