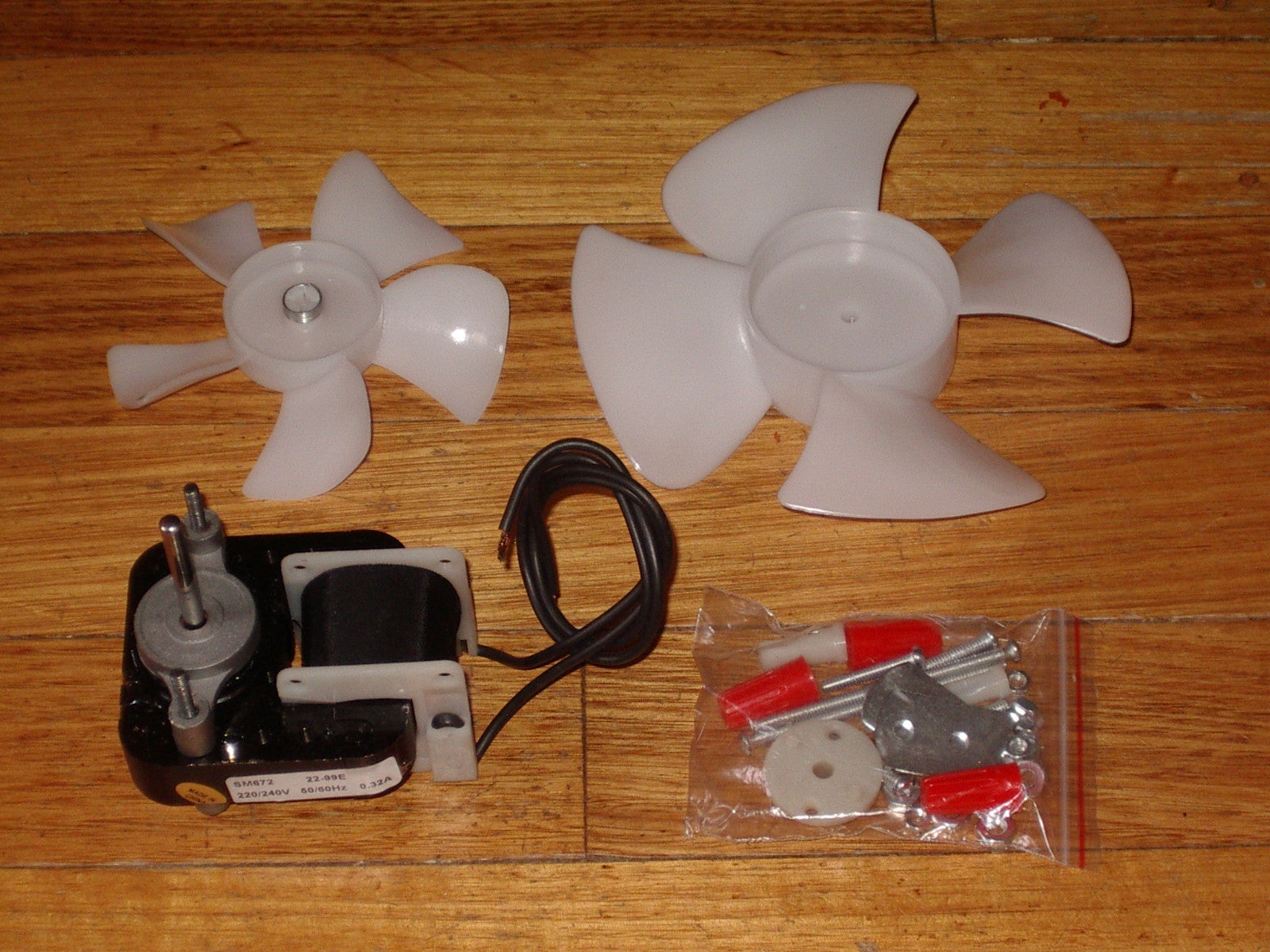

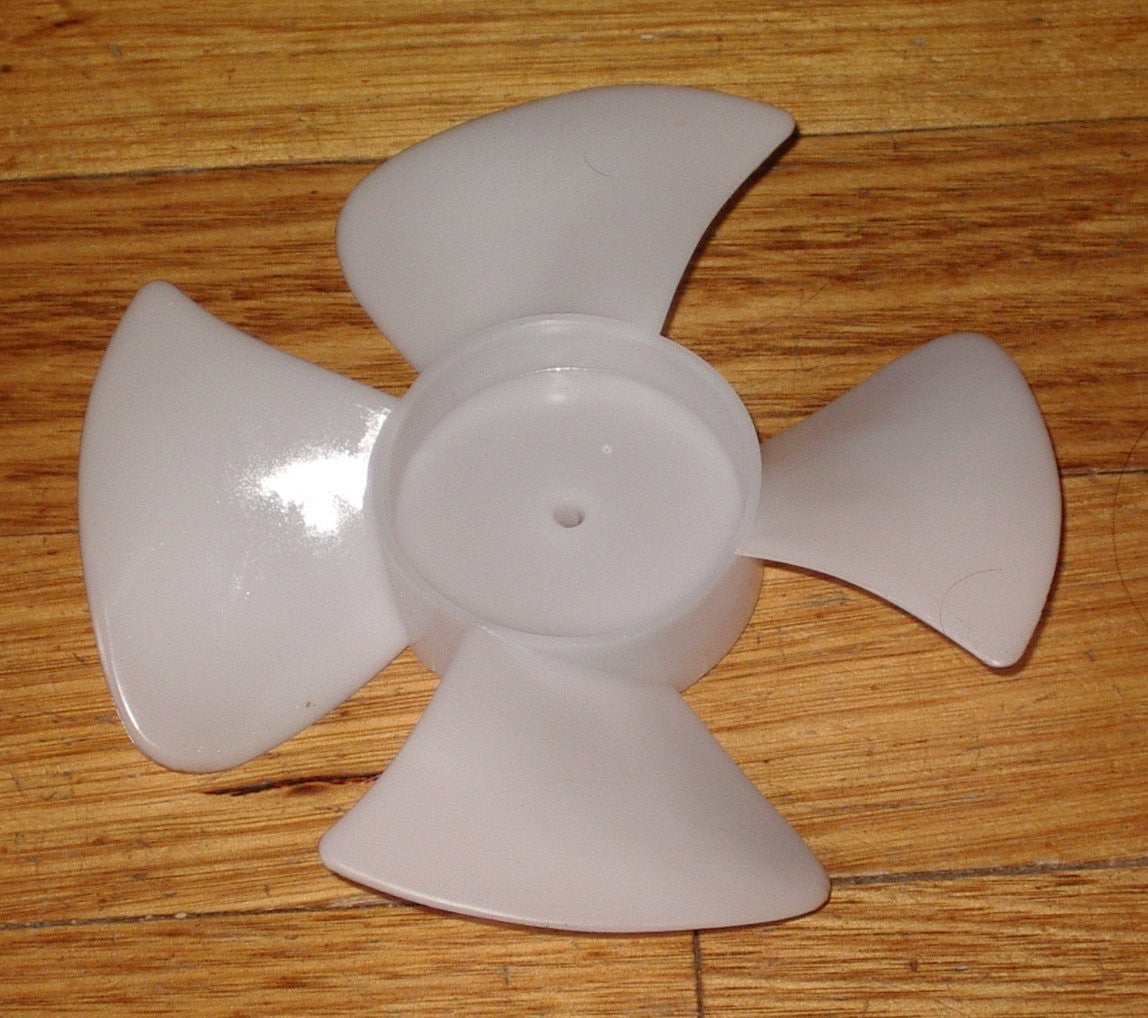

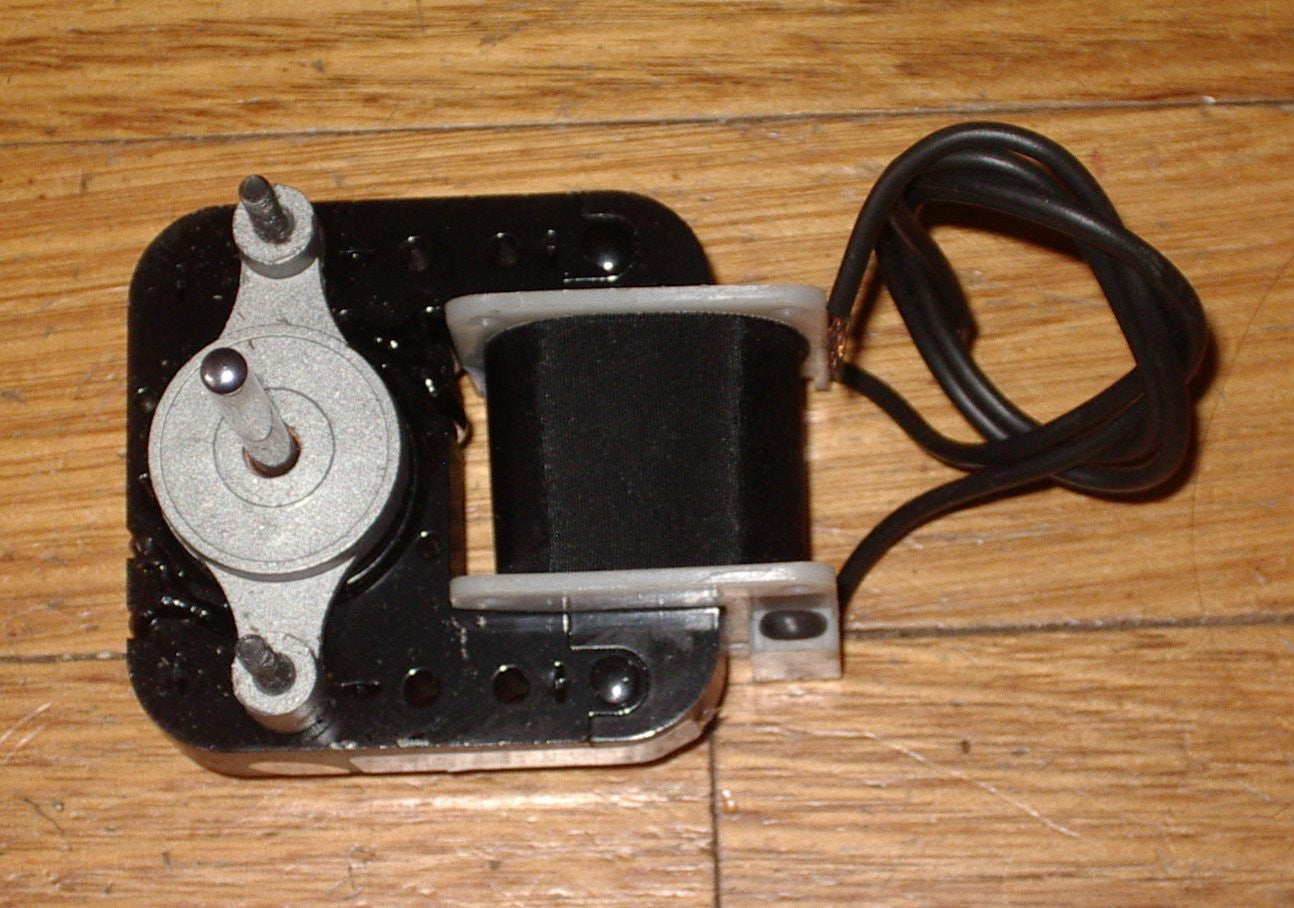

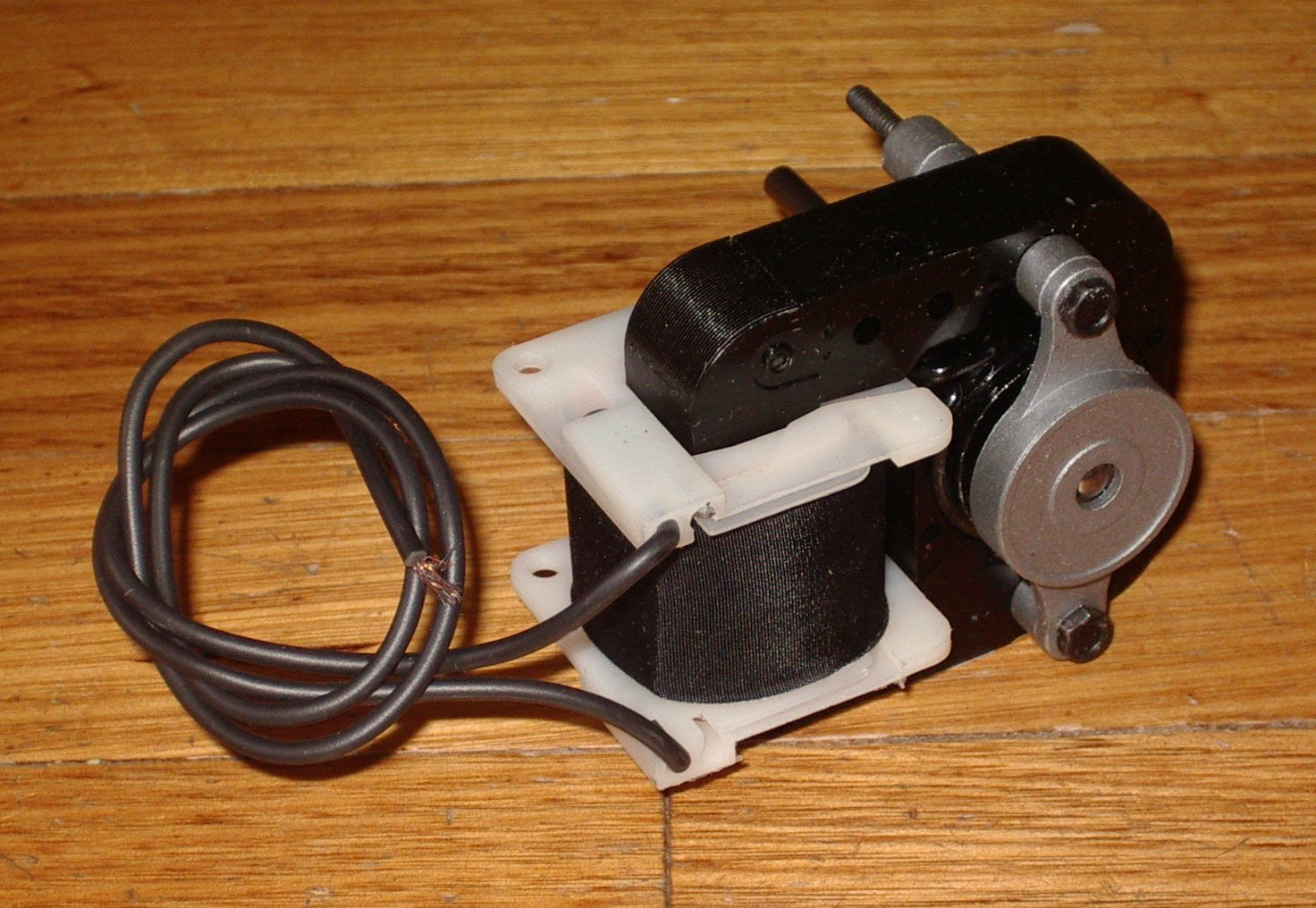

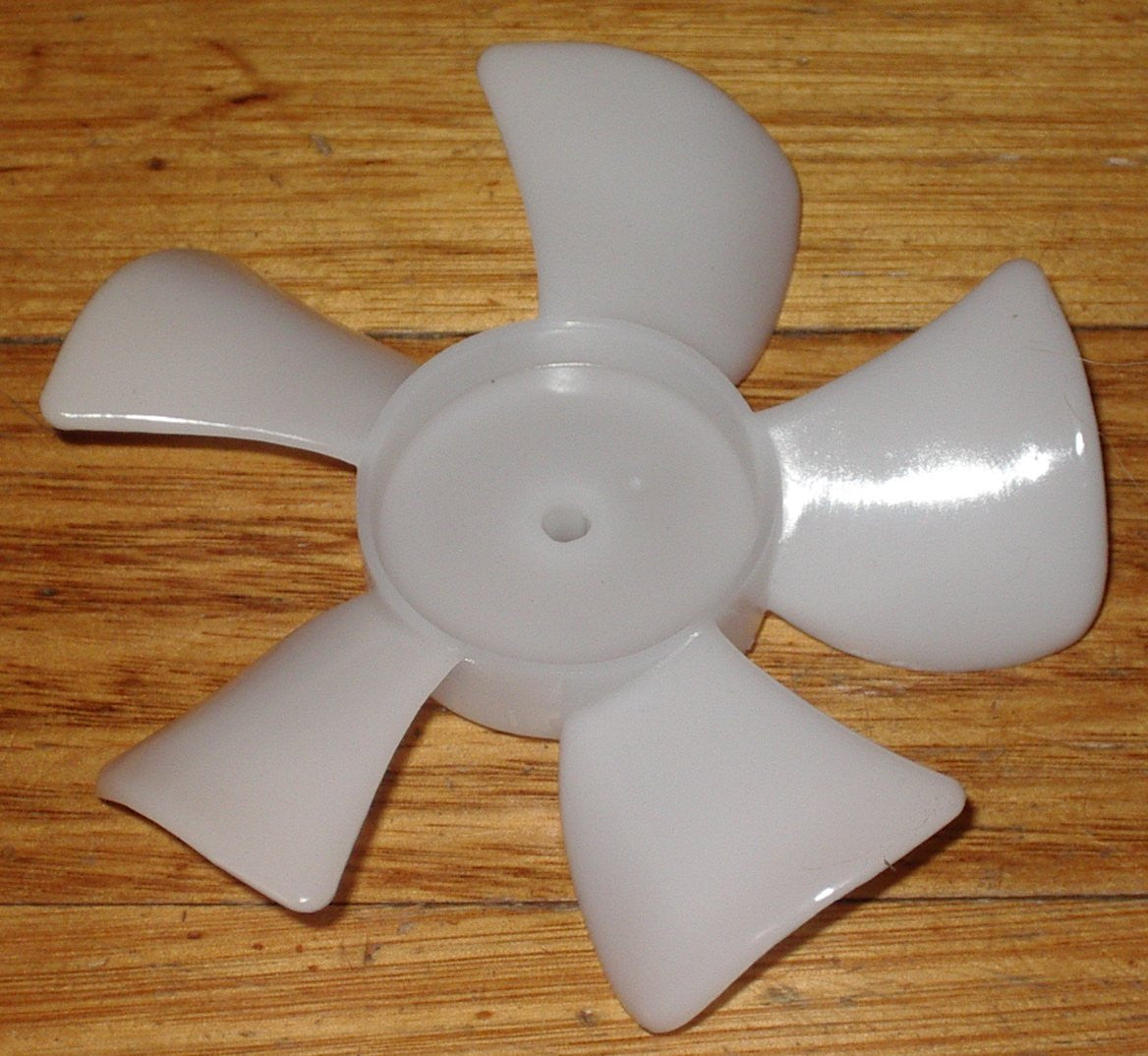

This is a small, universal, reversible utility fan motor perfect for fridges and freezers. It has multiple part numbers including RFSM672, SM-672, and J236 - 062 - 6308. It replaces well - known models like GEM EM672, Acme Miami 602, and Miami 702. This versatile small fan motor fits many refrigerators, freezers, and commercial refrigeration setups. It can be used for condenser cooling, compressor cooling, or evaporator air circulation. Running on 240Volts AC, with 0.32Amp, 50Hz, and 3000RPM, it can rotate in either CW or CCW direction. It comes with 250mm connecting wires having bare ends. The shaft has a length of 35mm and a diameter of 4.5mm round (3/16'). The total depth from the shaft tip to the back of the motor is 75mm, the motor thickness (excluding the shaft) is 40mm, the thickness of motor metal laminations is 16mm, and the mounting bolt spacing is 48mm. The kit includes a utility motor, a 5.5' CCW fan blade, a 4' CW fan blade, a 1/4' shaft adaptor, a 5/16' shaft adaptor, a fan adaptor, assorted nuts and bolts, wire nuts, and mounting brackets. It comes with a full guarantee and is easy to install. You can mount it into a metal or plastic bracket using the bolts that hold it together or use the extra metal brackets provided. With over 25 years of experience in supplying appliance parts to the trade and retail, you can buy with confidence.
Using this fan motor kit is a breeze. First, decide where you want to install it - whether it's for condenser cooling, compressor cooling, or evaporator air circulation in your fridge or freezer. Make sure the power is off before installation. Then, choose the appropriate fan blade (either the 5.5' CCW or 4' CW) based on your needs and attach it to the motor using the shaft adaptor. Use the mounting brackets, nuts, and bolts provided to secure the motor in place. You can use the bolts that hold the motor together or the extra metal brackets. After installation, double - check all connections and turn the power back on. When it comes to maintenance, keep the motor and fan blades clean. Wipe them down regularly to prevent dust and debris buildup. If you notice any strange noises or reduced performance, check the connections and make sure the motor is properly lubricated. And remember, this product comes with a full guarantee, so if you have any issues, don't hesitate to contact us.
