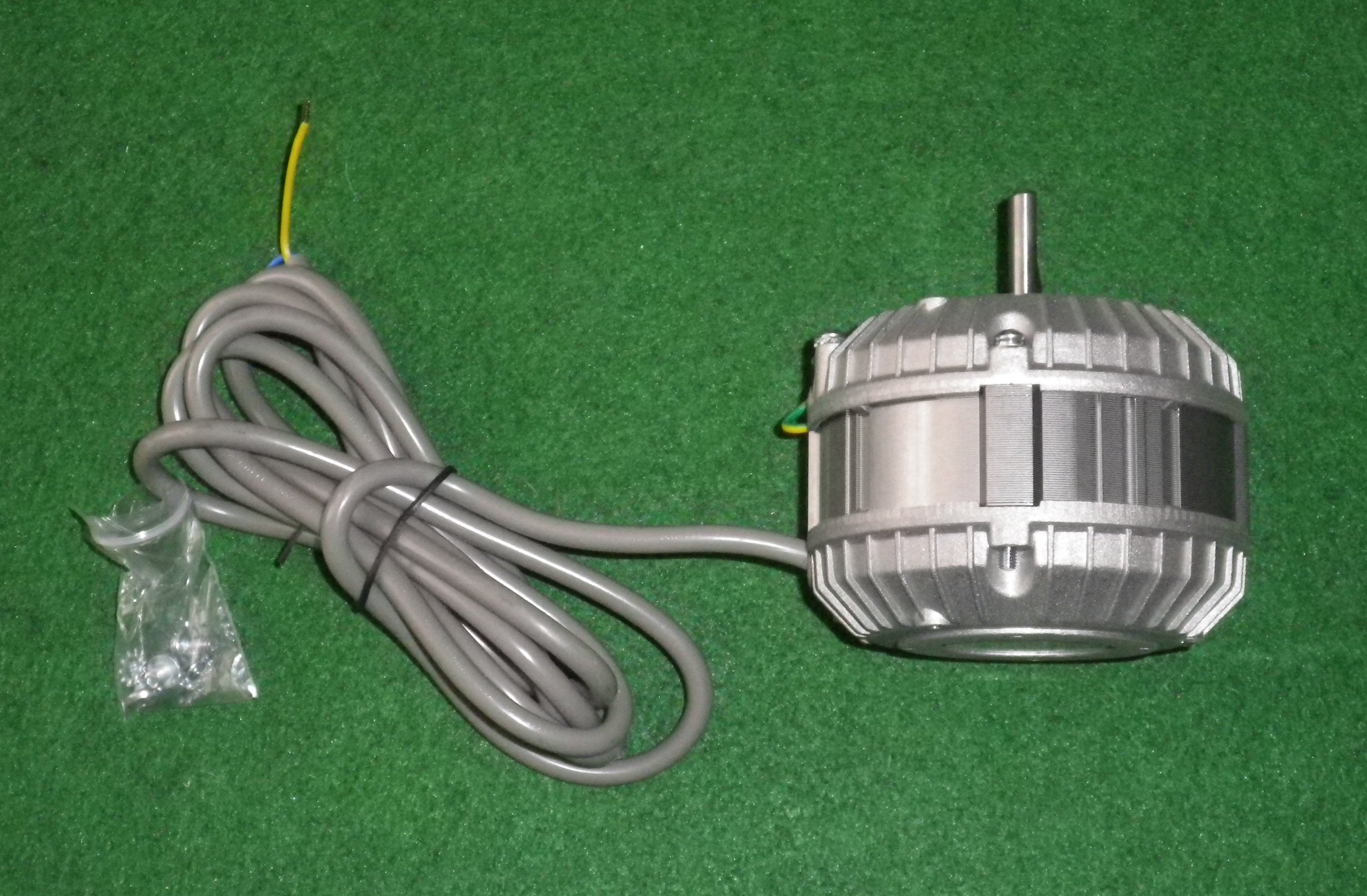

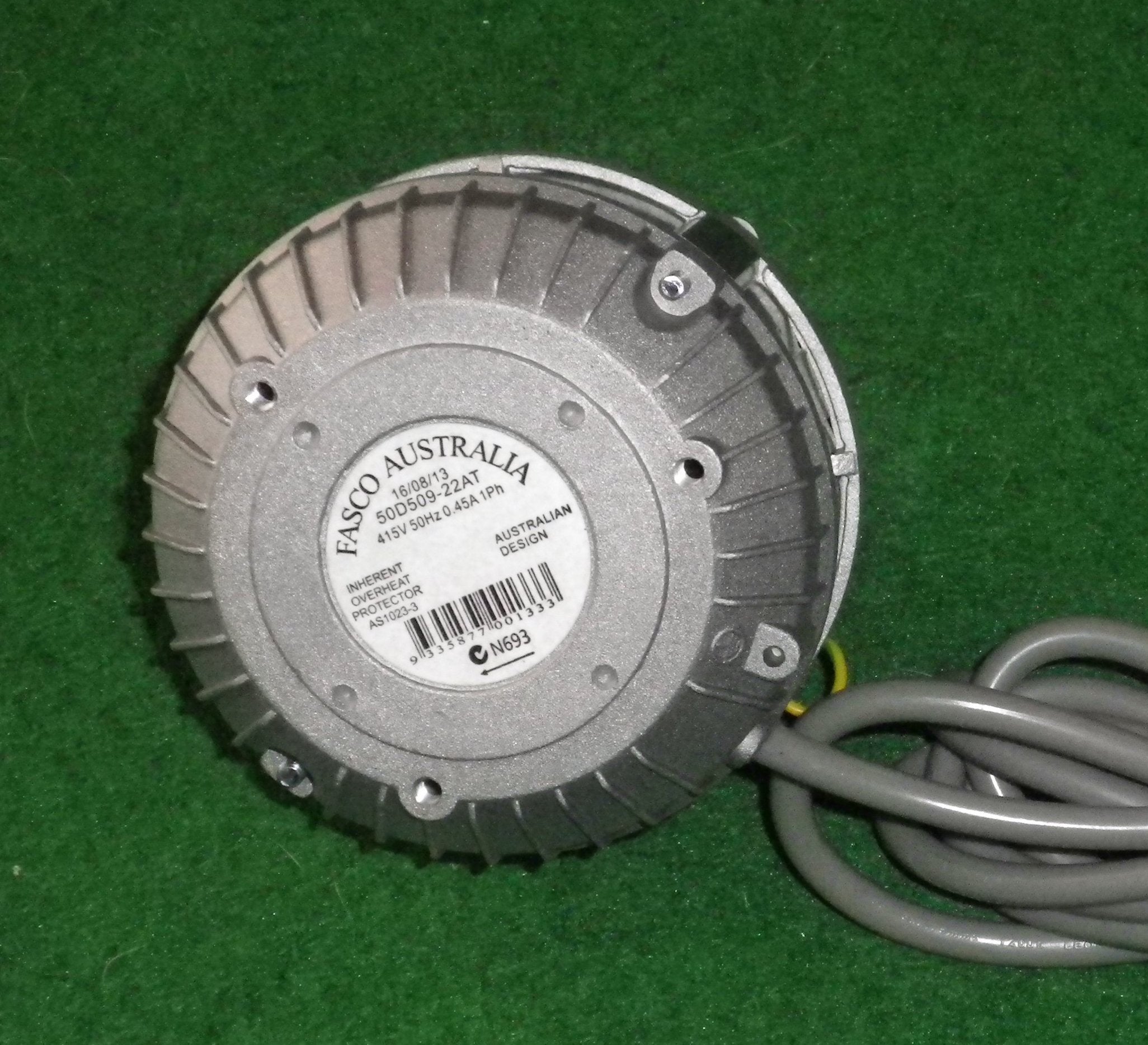

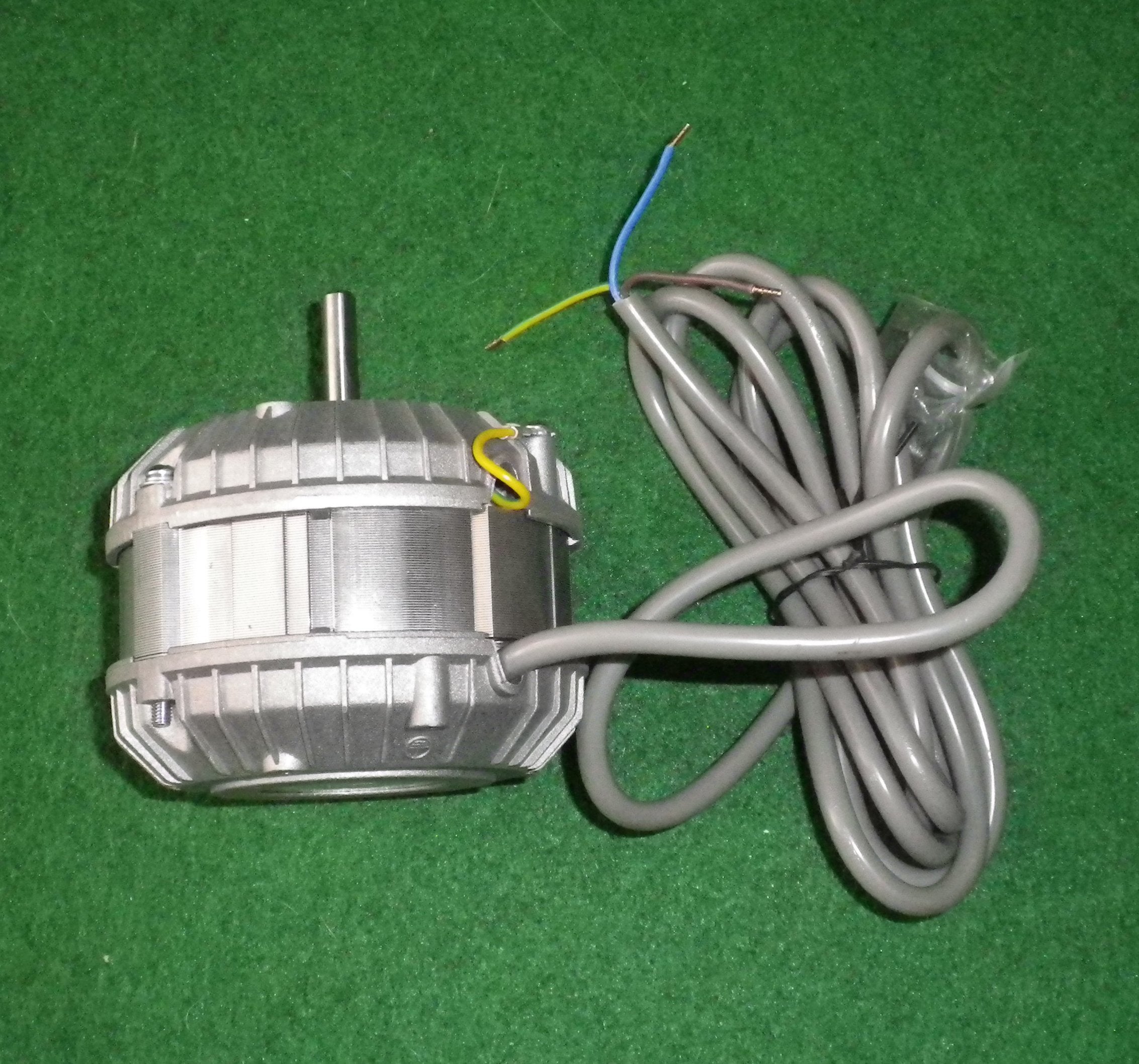

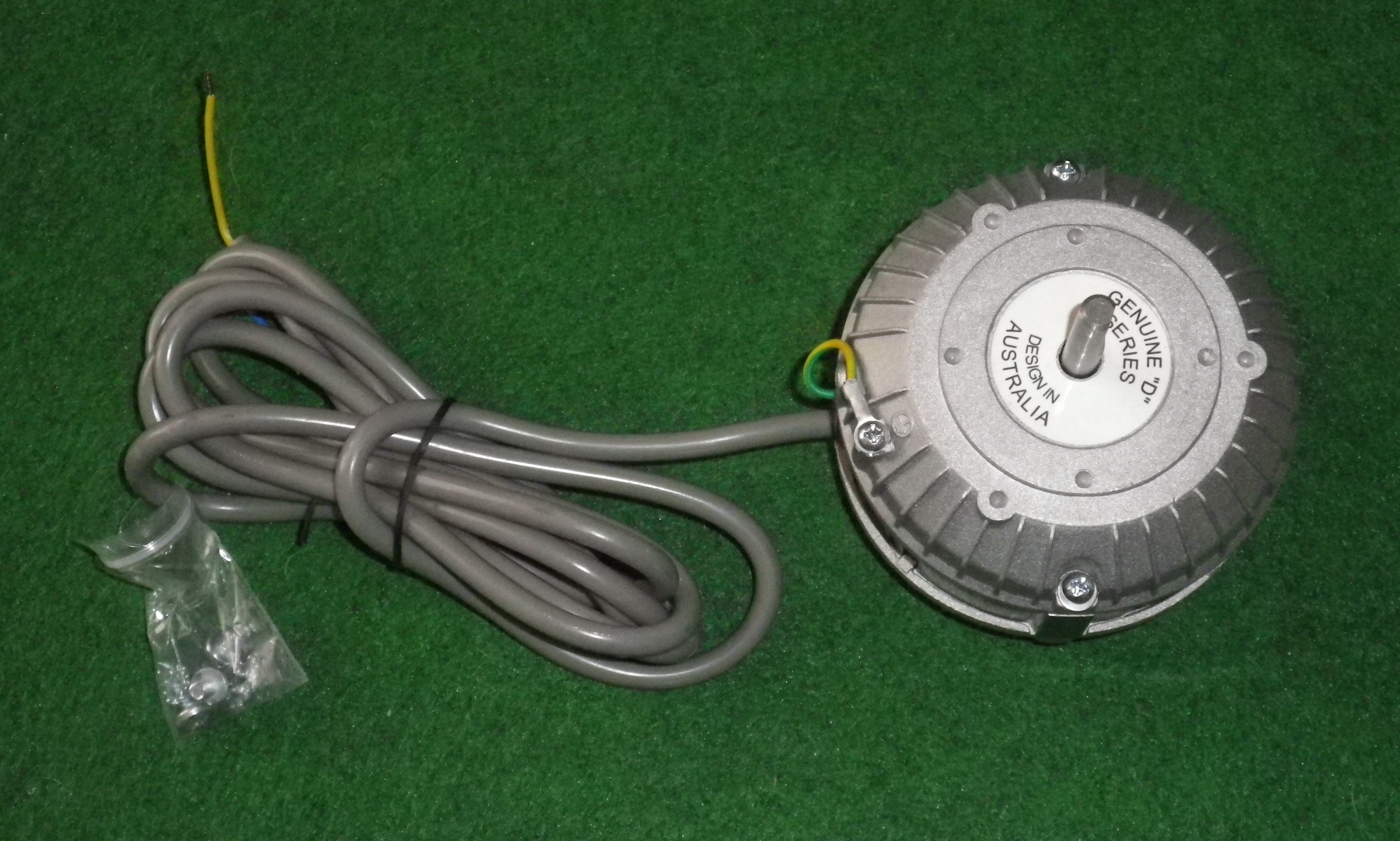

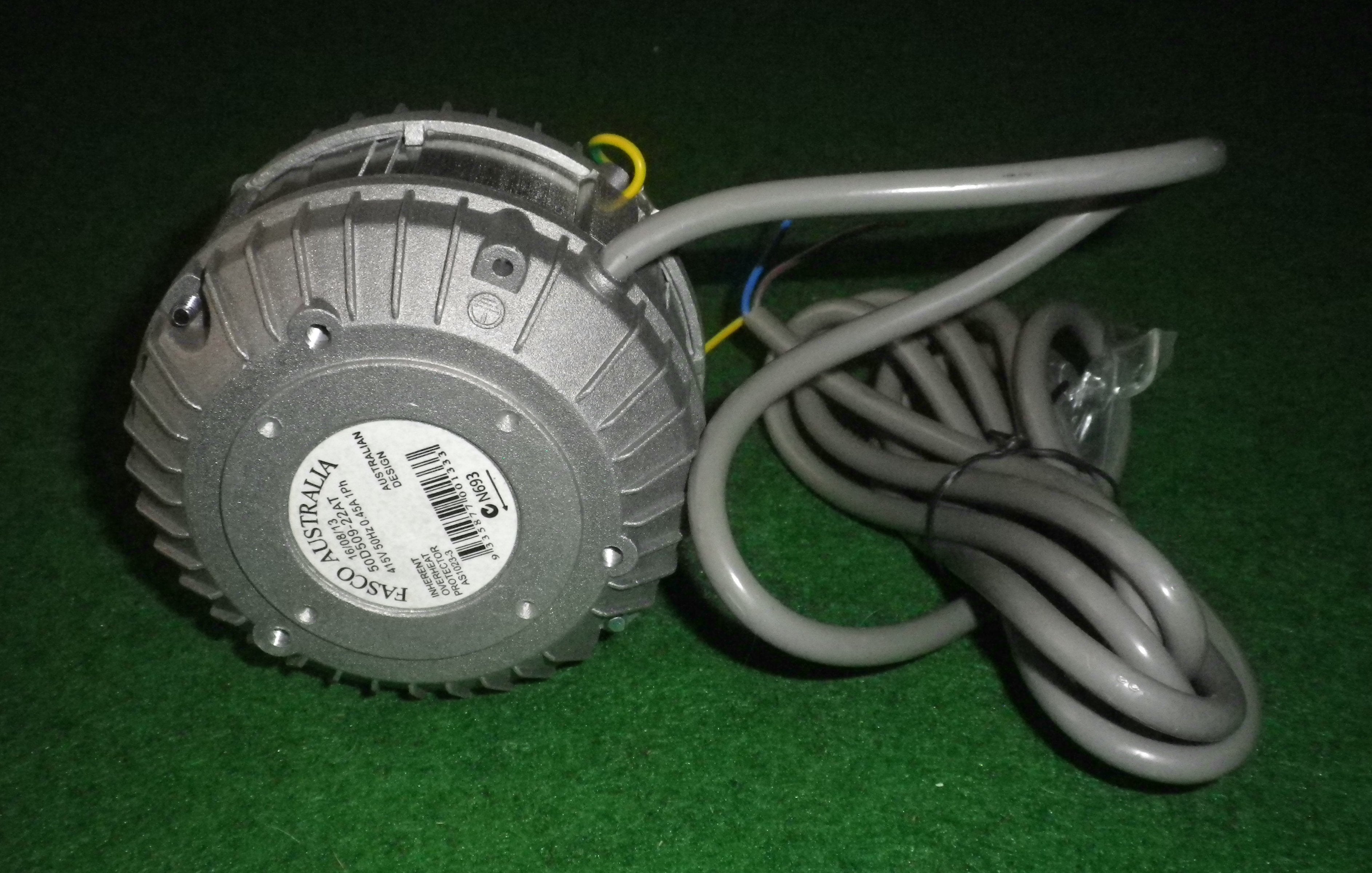

The Fasco Universal 40-Watt Condenser Fan Motor is a top - notch choice for commercial fridges and freezers. With part numbers 50D509 - 22A and 50D509 - 22AT, this 415 - Volt AC motor, rated at 40 Watts, is ideal for a wide range of commercial refrigeration applications. It can be used for condenser cooling or compressor cooling. Operating in an anticlockwise direction with a single shaft, it's reliable and efficient. The motor runs at 415 Volts AC, draws 0.45 Amps, consumes 40 Watts, and has a frequency of 50Hz. It comes with thermal protection for safety. It is fitted with 2 - metre connecting wires having bare end terminals, including three wires with an earth wire. The shaft length is 32mm, and the shaft has a 7.9mm D - shape diameter. The motor's thickness from front to back (excluding shafts) is 77mm, with a diameter of 102mm. The mounting bolt spacing is 38mm X 38mm in a square and 62mm in a triangle. It's fully guaranteed and easy to install. We've been in the business of supplying appliance parts to both trade and retail for over 25 years, so you can buy with confidence.
Using the Fasco 415VAC 40 - Watt Condenser Fan Motor is easy. First, make sure to turn off the power of your commercial fridge or freezer before installation. Locate the area where the old motor was placed and carefully remove it. Then, take this new motor and align it according to the mounting bolt spacing. The square spacing is 38mm X 38mm and the triangular one is 62mm. Connect the 2 - metre wires with bare end terminals to the appropriate connections, including the earth wire for safety. Once everything is connected, turn the power back on. When using, always keep an eye on the power supply to ensure it remains at 415 Volts AC and 50Hz. For maintenance, check the motor regularly for any signs of overheating. Since it has thermal protection, it will shut off if it gets too hot, but it's still good to be cautious. Clean the motor and its surroundings occasionally to prevent dust build - up. If you notice any unusual noises or performance issues, contact us right away. With proper use and maintenance, this motor will serve you well for a long time.
