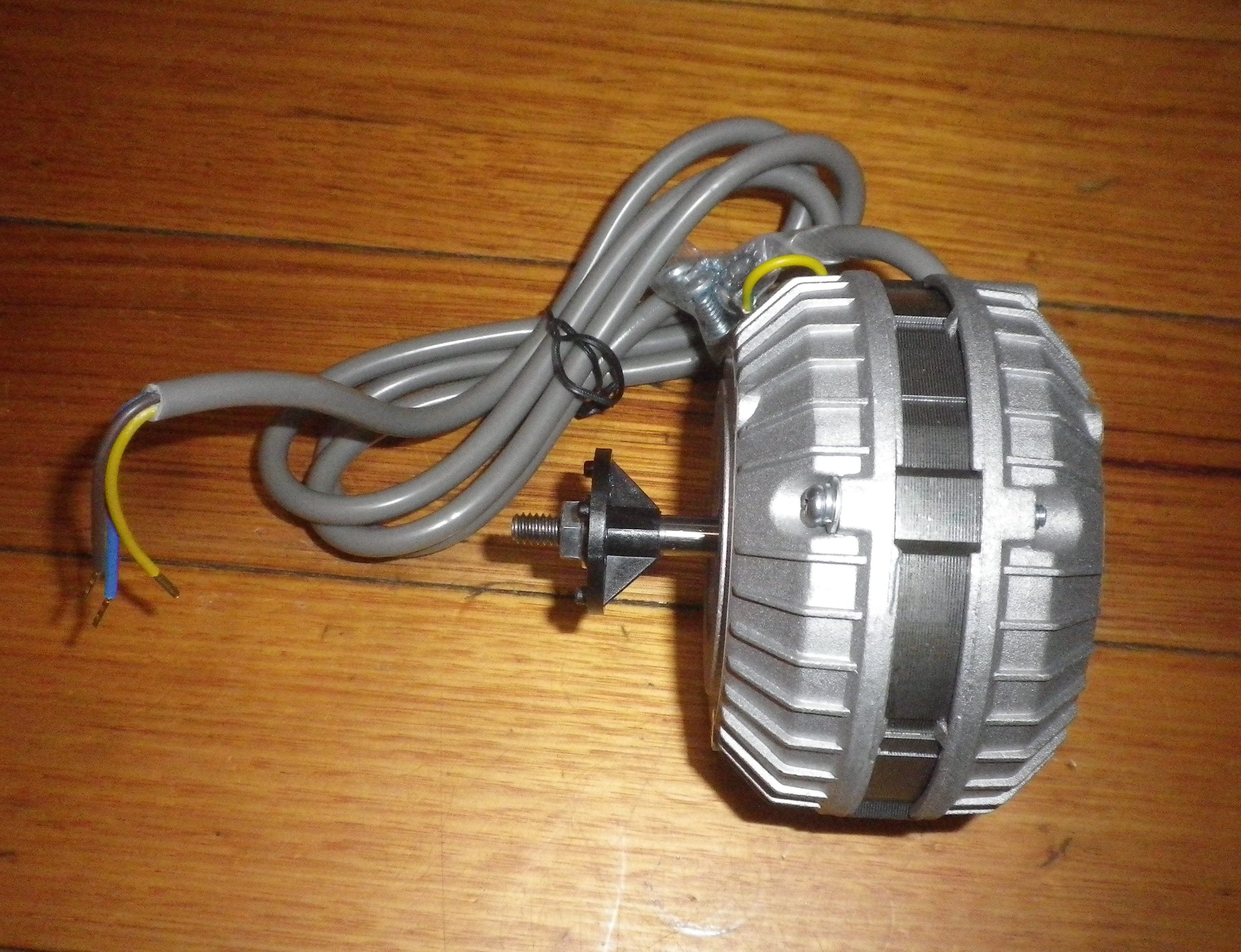

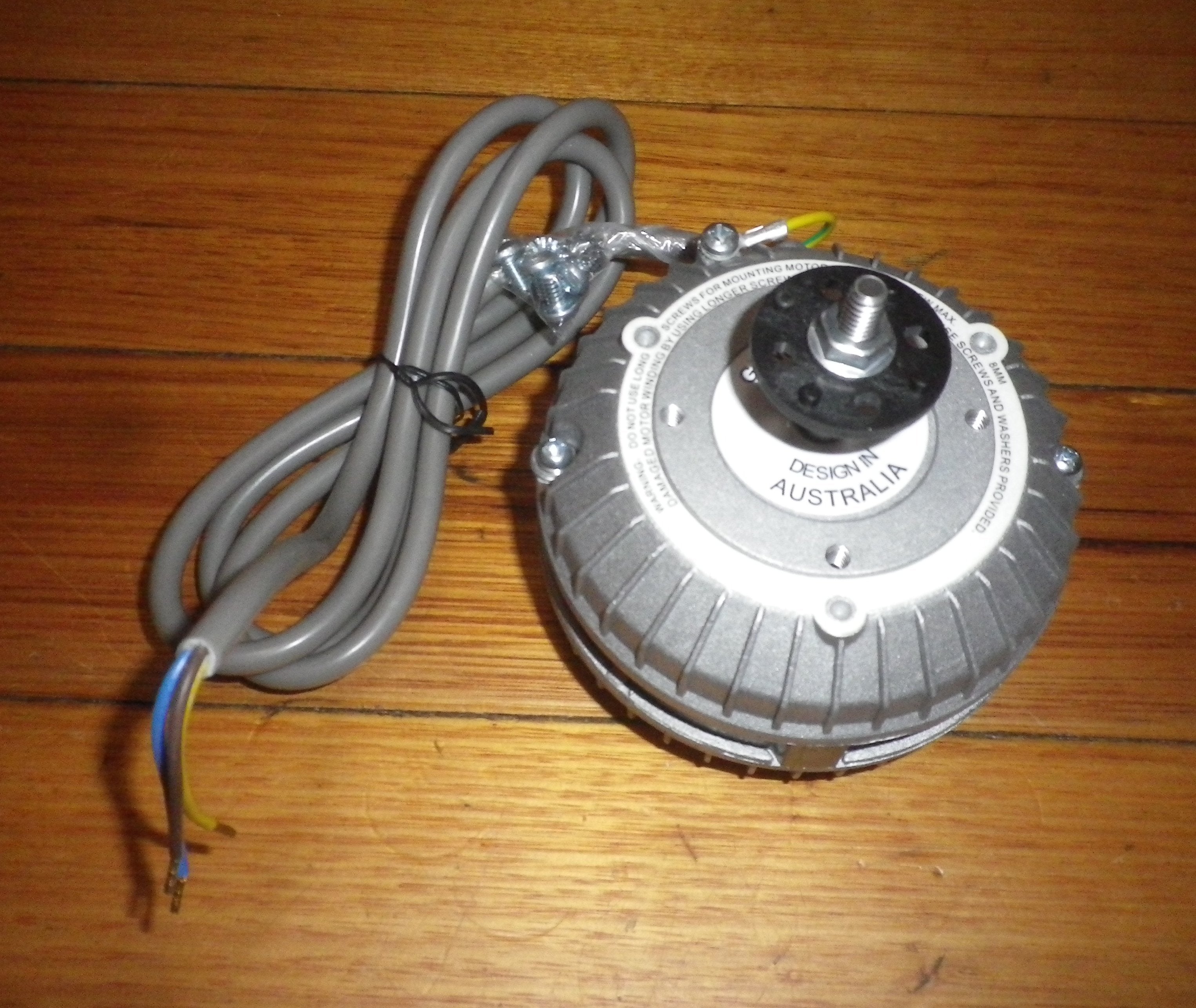

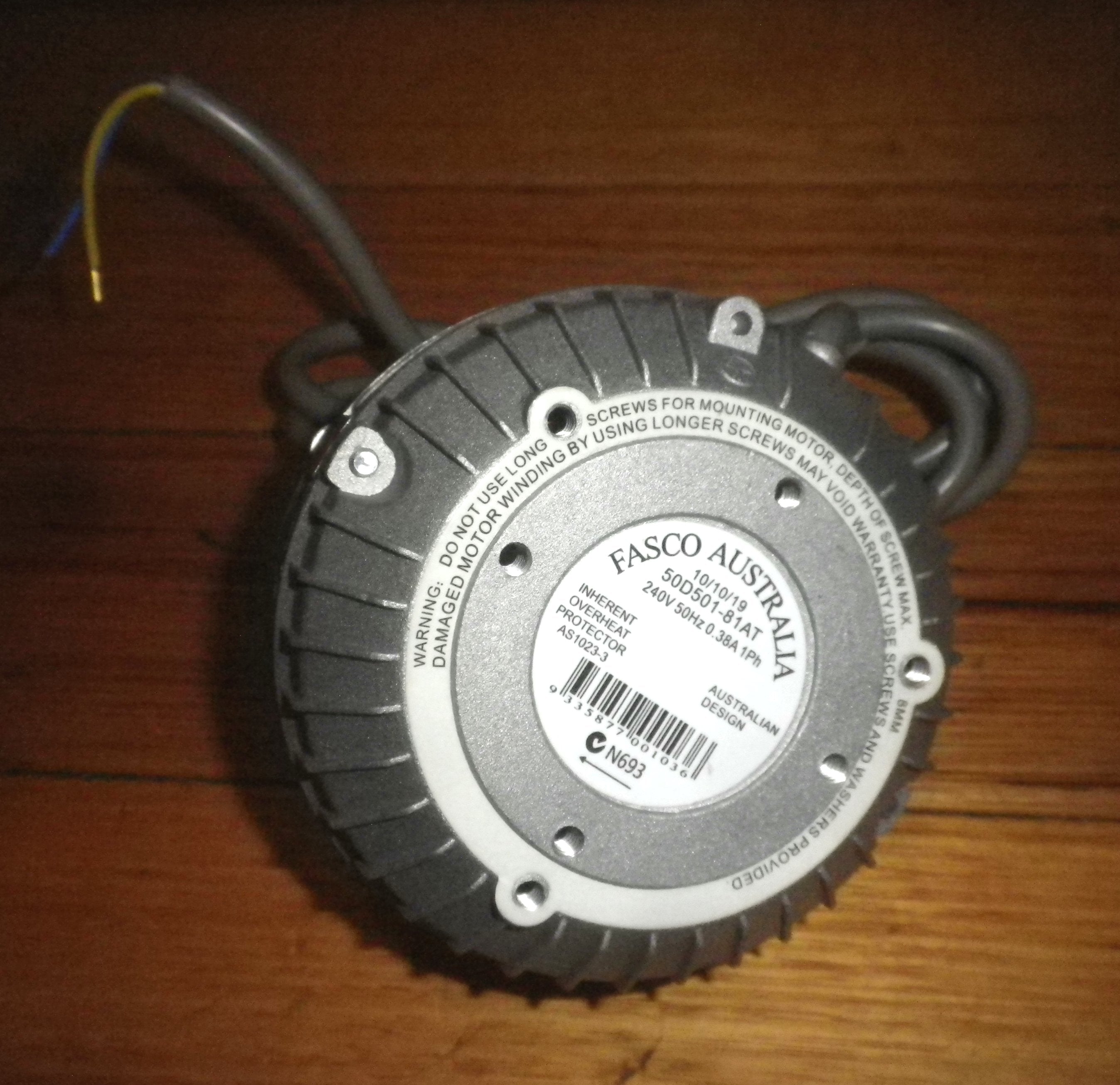

The Fasco 10W anticlockwise condenser fan motor, part number 50D501-81AT, is an ideal fit for commercial fridges and freezers. It's similar to models like 50D501-80A, RF501, RF508, RF508A, and YJ10-4-240. This 10-watt motor works well for various refrigeration applications, including many refrigerators and freezers. It can be used for condenser or compressor cooling. With a single shaft, it operates anticlockwise. It runs on 240Volts AC, 0.38Amp, 10Watts, 50Hz, and is thermally protected. It comes with 750mm connecting wires having bare end terminals, including three wires with an earth wire. The shaft is 38mm long and 7.9mm in diameter. It includes a collet and nut for fan blades with 5 mounting holes. The motor's thickness (excluding the shaft) is 65mm, diameter is 100mm, and the mounting bolt spacing is 38mm X 38mm in a square and 62mm in a triangle. It's fully guaranteed and easy to install. We've been supplying appliance parts for over 25 years, so you can buy with confidence.
Using this Fasco fan motor is quite simple. First, make sure your fridge or freezer is unplugged. Then, locate the old fan motor and remove it carefully. Place the new motor in the same position, using the mounting bolt spacing of 38mm X 38mm square or 62mm triangle as a guide. Connect the 750mm wires to the appropriate terminals, don't forget the earth wire. Plug in your appliance and turn it on. When it comes to maintenance, keep the motor clean and free from dust. Check the wires regularly for any signs of wear or damage. If you notice any strange noises or the motor isn't working properly, unplug the appliance immediately and contact us. This motor is thermally protected, but still, don't expose it to extreme temperatures. With proper use and care, this motor will serve you well for a long time.
