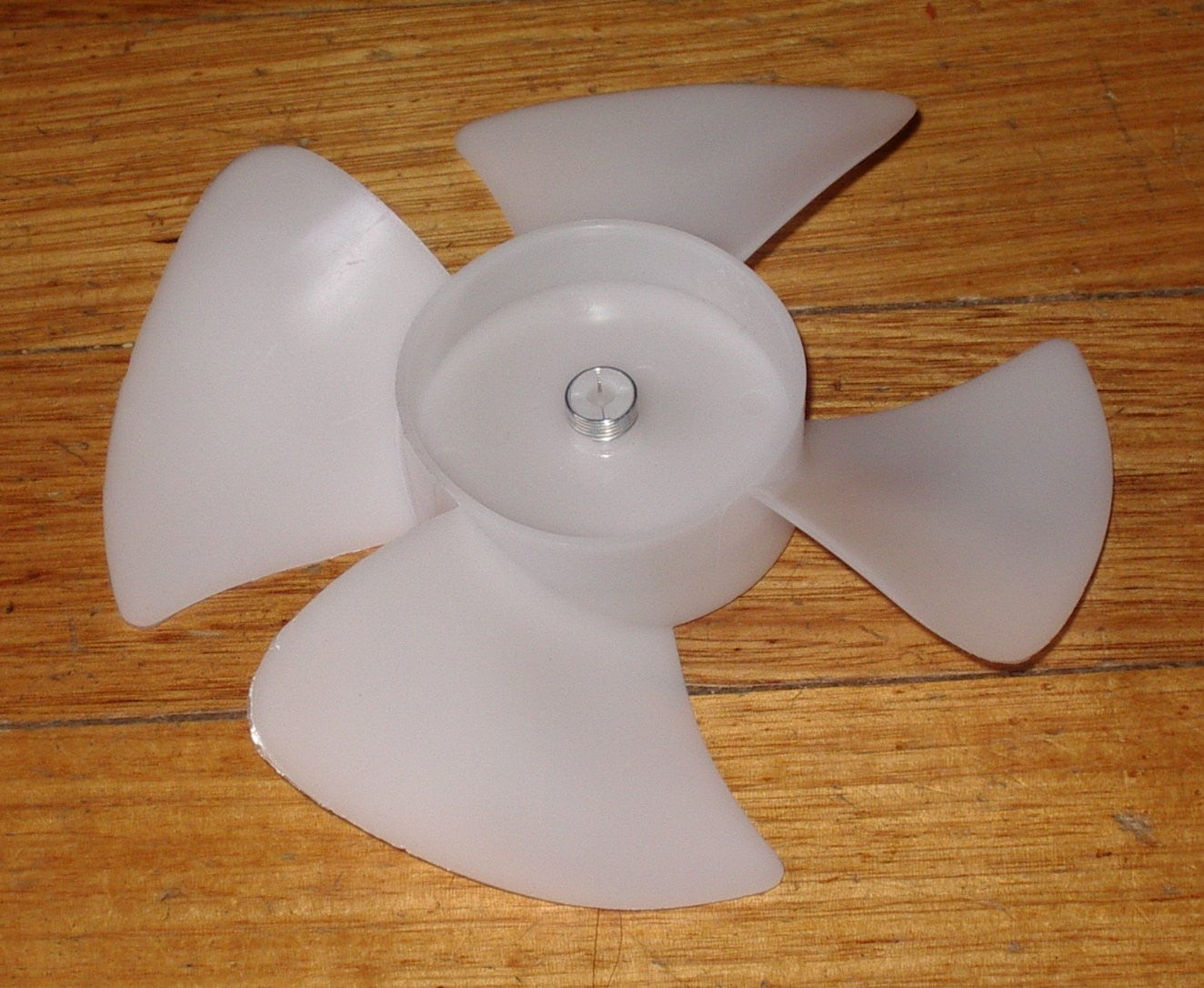

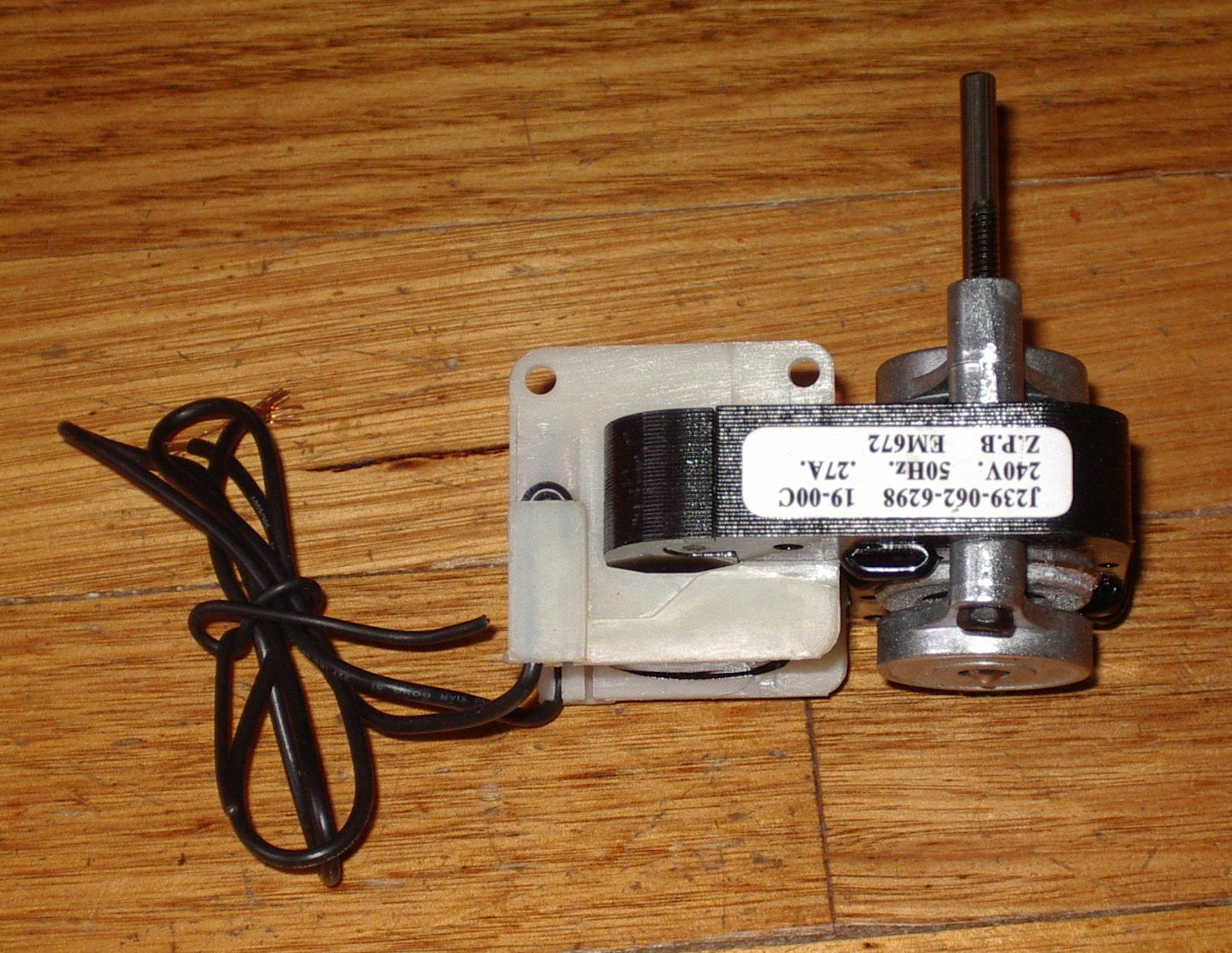

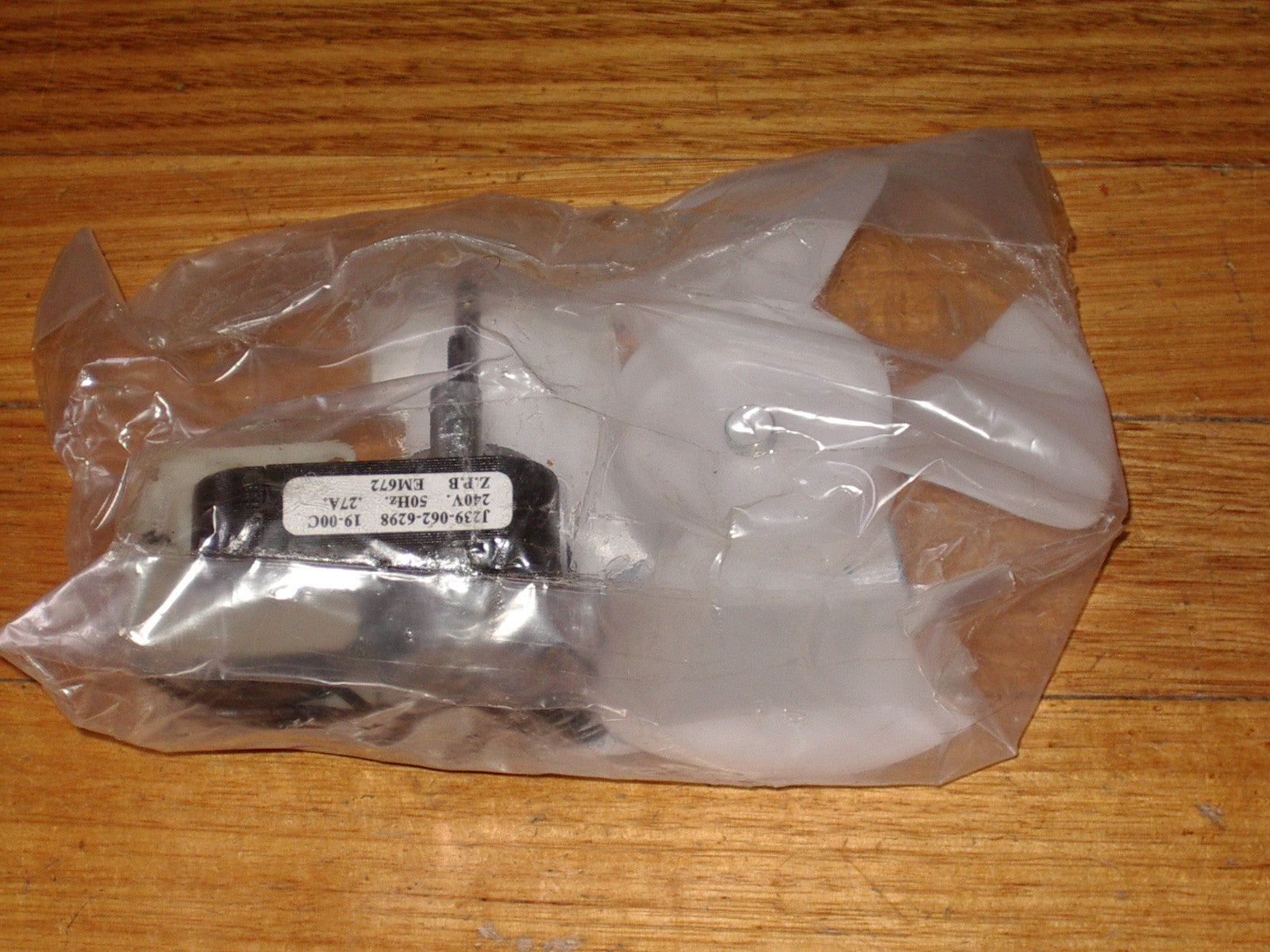

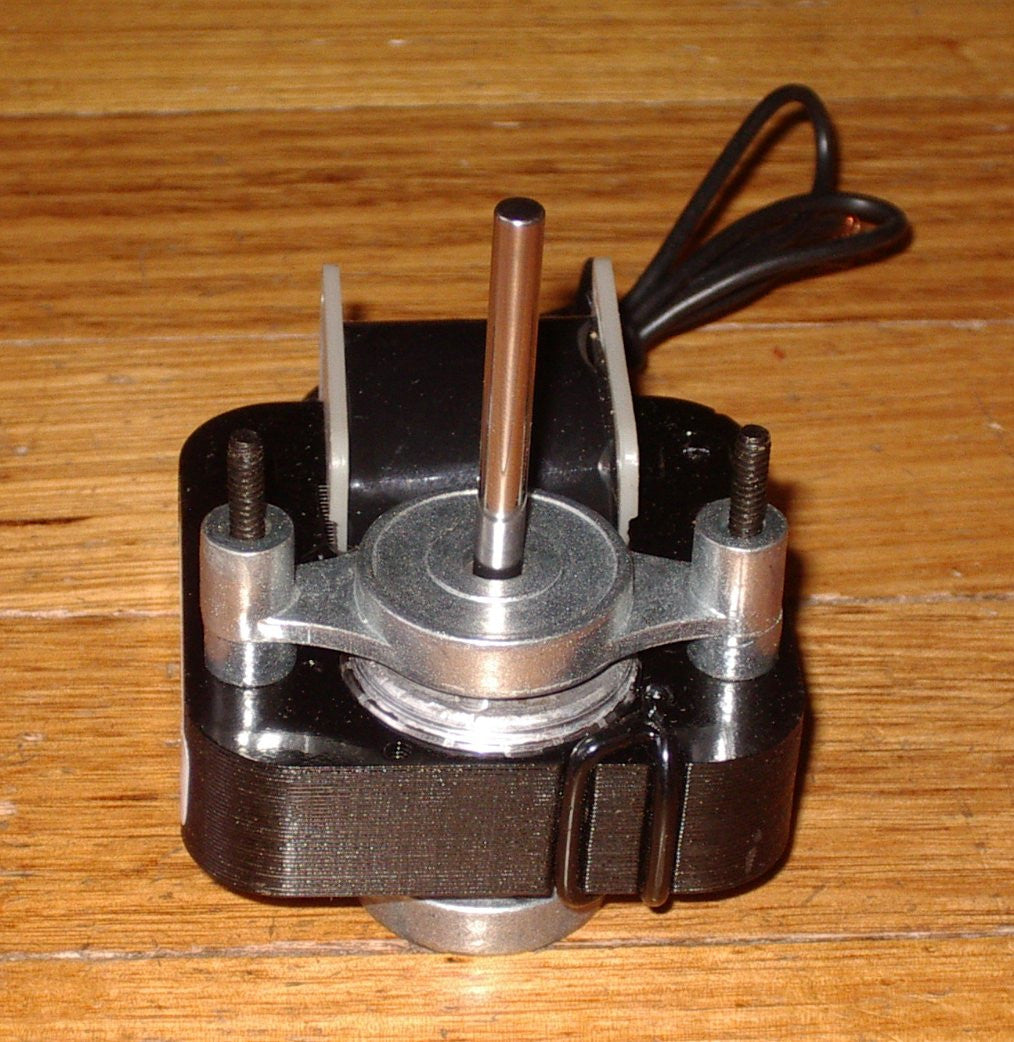

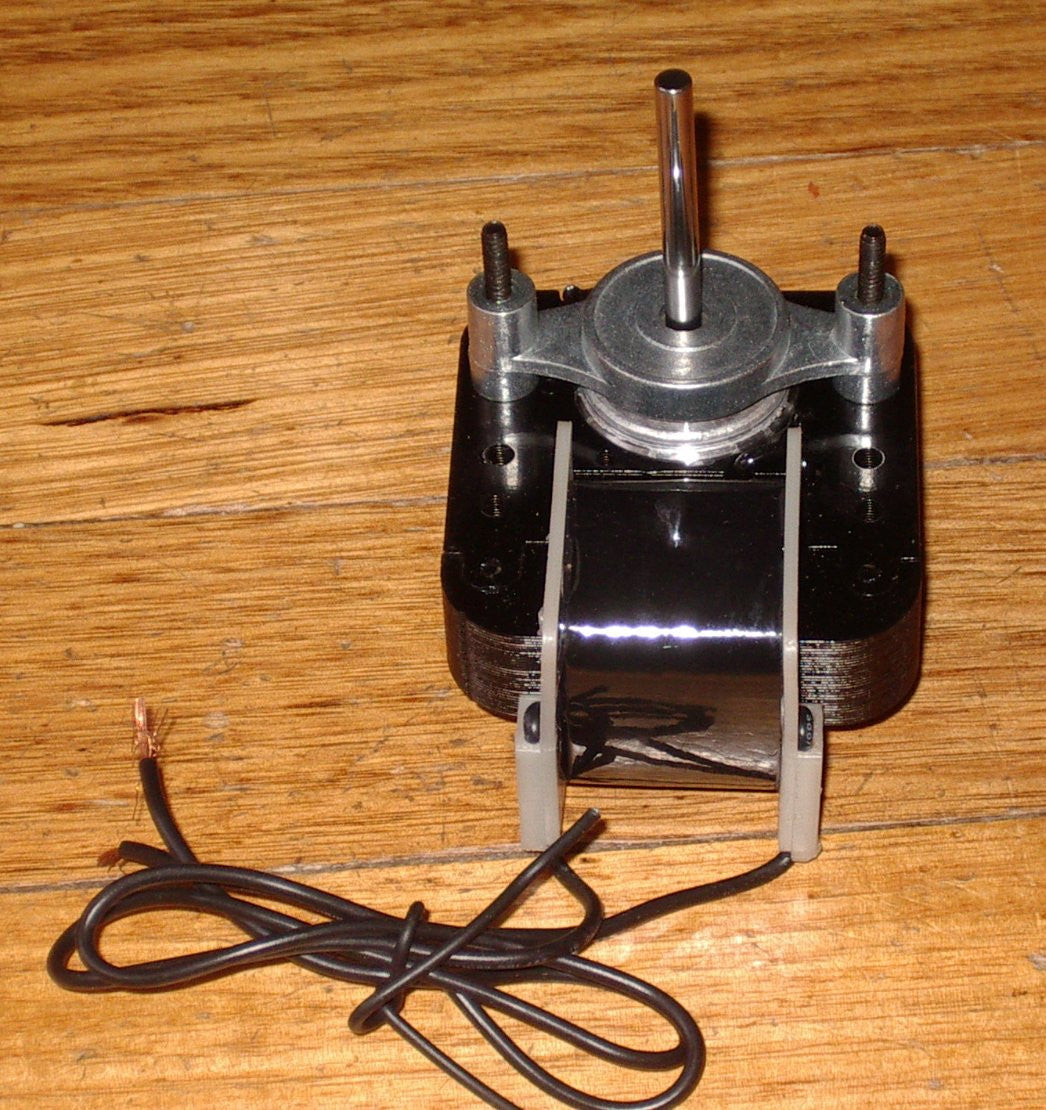

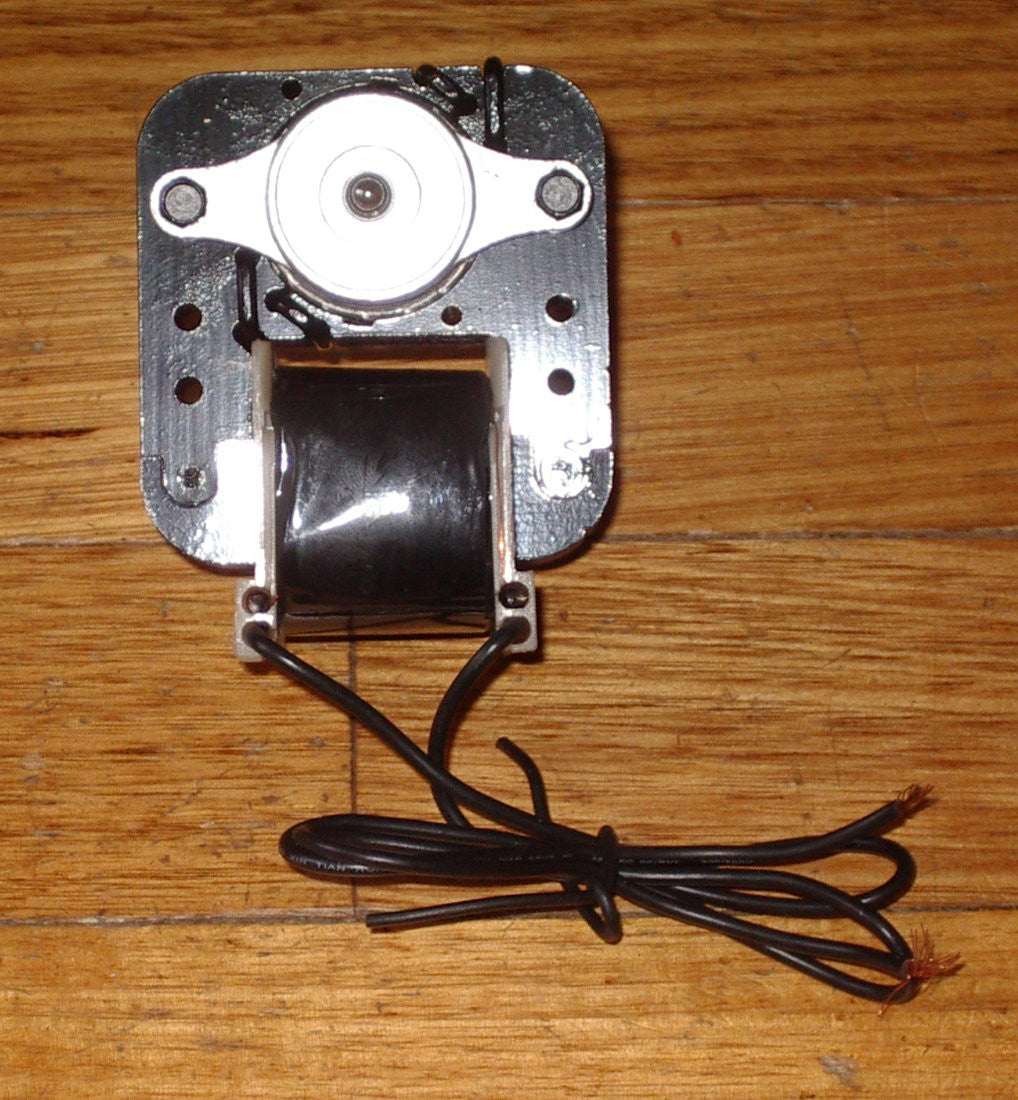

This small, universal reversible utility fan motor is a perfect fit for fridges and freezers. It comes with multiple part numbers including RFSM672A, SM-672A, J239-062-6298, and J236-062-6308. It also includes Part No. RF070H and replaces GEM EM672, Acme Miami 602, and Miami 702. Ideal for various refrigeration applications, such as condensor cooling, compressor cooling, or evaporator air circulation. Operating at 240Volts AC, 0.32Amp, 50Hz, and 3000RPM, it can rotate in either CW or CCW direction. It features 250mm connecting wires with bare ends. The shaft is 35mm long and 4.5mm in diameter (3/16'), with the total depth of 75mm from the shaft tip to the motor back. The motor thickness (excluding the shaft) is 40mm, and the metal laminations are 16mm thick. The mounting bolt spacing is 48mm. The kit includes a utility motor and a 5.5' CCW fan blade. It's fully guaranteed, easy to install, and designed to be mounted on a metal or plastic bracket using the provided bolts. We've been supplying appliance parts for over 25 years, so you can buy with confidence.
Using this fan motor is quite simple. First, make sure your fridge or freezer is unplugged to avoid any electrical shock. Then, find a suitable metal or plastic bracket and use the bolts to mount the motor in place. Connect the 250mm wires with bare ends to the appropriate electrical connections in your appliance. You can set the rotation direction to either CW or CCW according to your needs. When it comes to maintenance, keep the motor clean and free from dust and debris. Check the wires regularly for any signs of damage. If you notice any strange noises or the motor isn't working as it should, stop using it immediately and contact us. Also, remember to always follow the safety instructions provided with your fridge or freezer. With proper use and care, this motor will serve you well for a long time.
