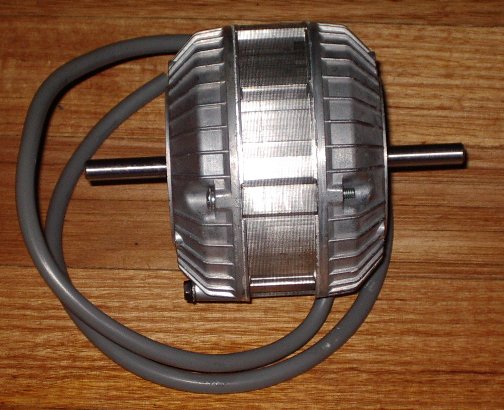

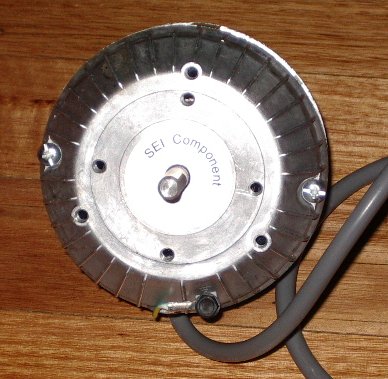

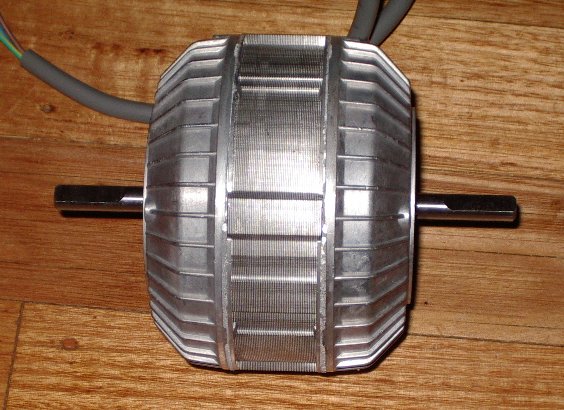

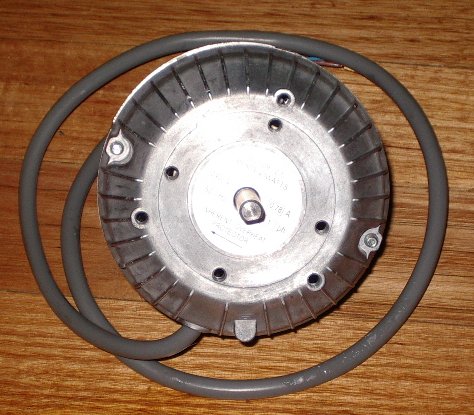

This 40W universal condenser fan motor is a great fit for commercial fridges and freezers. Part number RF503, it's similar to models like 50D503 - 80A, 50D503 - 80AT, RF510, and YJ40 - 4 - 240. Ideal for various refrigerators, freezers, and commercial refrigeration setups, it can be used for condenser or compressor cooling. With dual shafts, it can operate either clockwise or anticlockwise, and you can easily snap off the unused shaft. It runs on 240V AC, 0.75A, 40W, 50Hz, and has thermal protection. Comes with 100mm connecting wires having bare end terminals, including three wires with an earth wire. The shaft is 32mm long, 7.5mm in D - shape diameter. The motor is 75mm thick (excluding shafts) and 100mm in diameter. The mounting bolt spacing is 38mm X 38mm square and 62mm triangular. It's fully guaranteed and easy to install. With over 25 years of experience supplying appliance parts to both trade and retail, you can buy with confidence.
Using this 40W universal condenser fan motor is straightforward. First, make sure your fridge or freezer is unplugged. Then, find the old fan motor and remove it. Next, take this new motor and connect the 100mm wires with bare end terminals to the appropriate spots, following the wiring diagram if needed. The dual shafts allow you to choose clockwise or anticlockwise operation, so select the one that suits your needs and snap off the unused shaft. Once it's connected, plug in your appliance. When it comes to maintenance, keep the motor clean. You can use a soft brush to remove any dust or debris every few months. And always check the wires for any signs of damage. If you notice anything wrong, like strange noises or the motor not running, turn off the appliance immediately and contact a professional. Also, remember that this motor is thermally protected, so it will shut off if it gets too hot, which is a safety feature. Enjoy the reliable performance of this fully - guaranteed motor.
