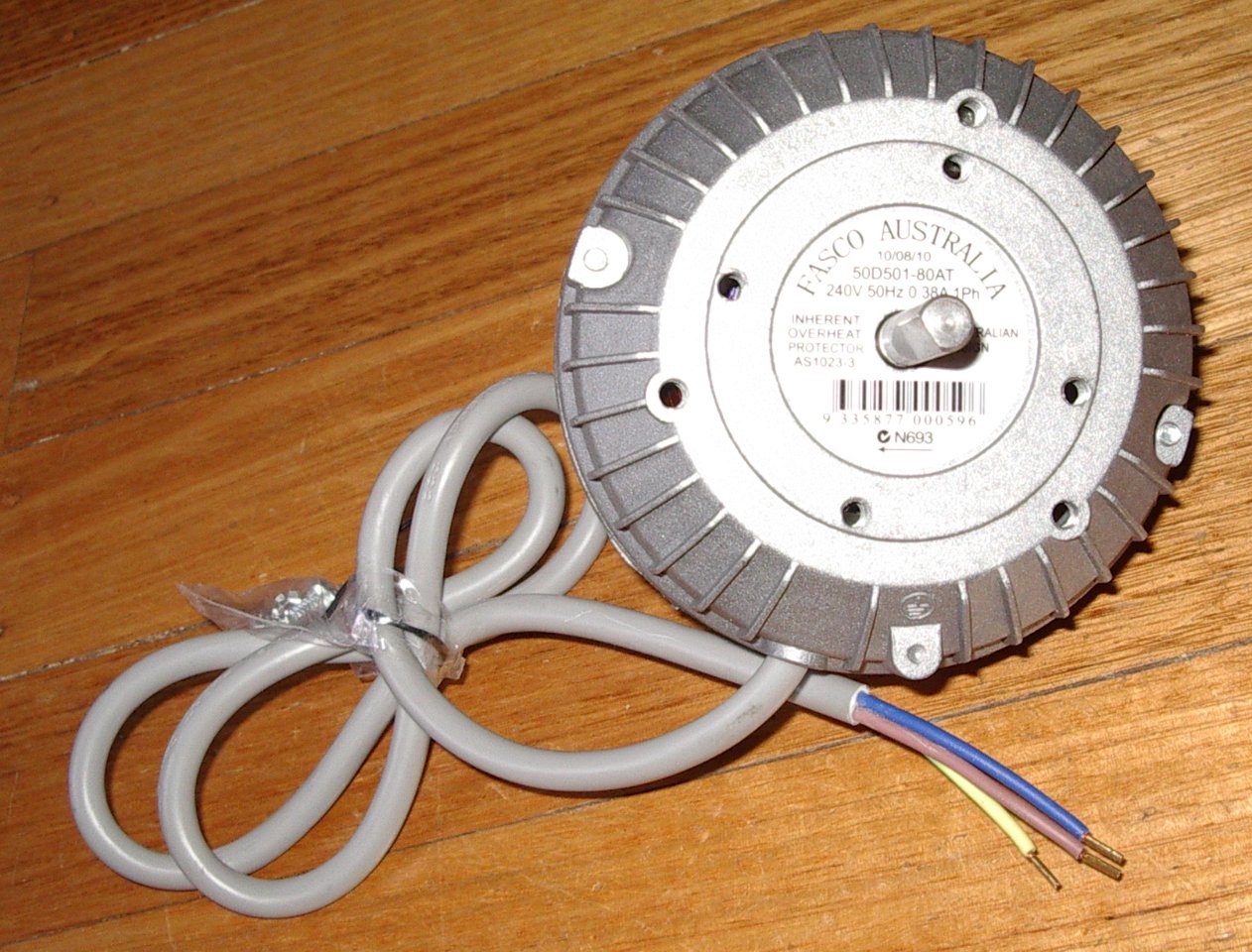

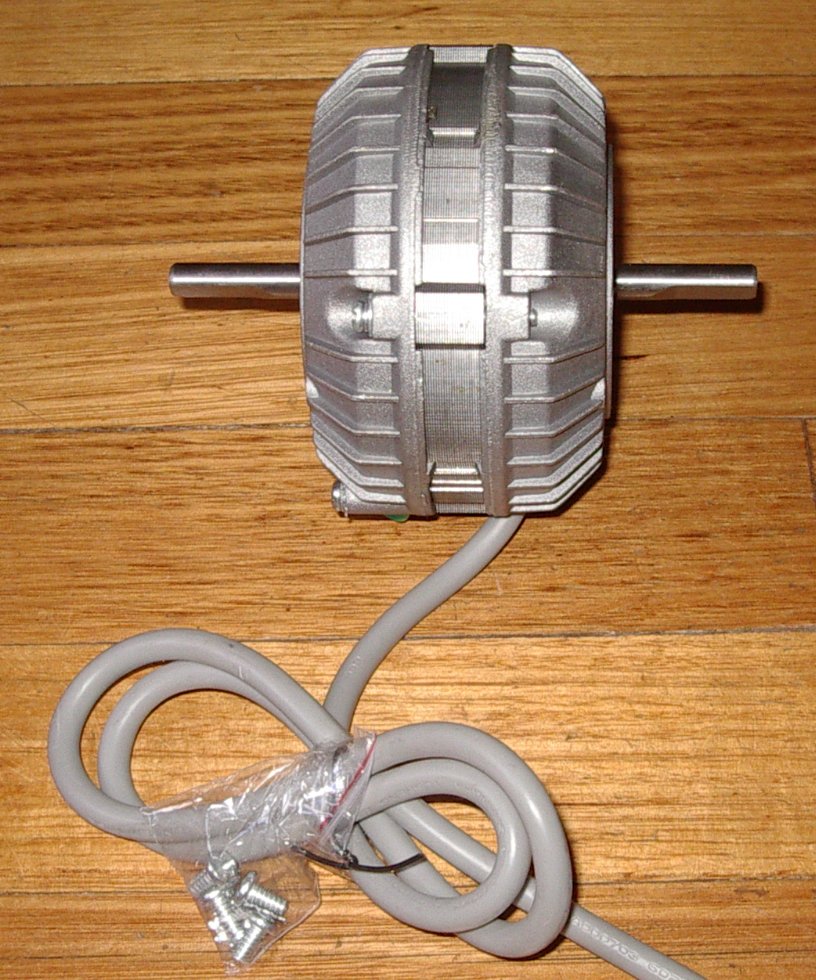

The Fasco Universal 10Watt Condenser Fan Motor is a top - notch choice for commercial fridges and freezers. Part number is 50D501 - 80AT, similar to RF501, RF508, RF508A, YJ10 - 4 - 240. This 10 - watt motor is great for various refrigeration applications, whether it's in regular fridges, freezers, or commercial setups. It can be used for condenser or compressor cooling. With dual shafts, it allows for either clockwise or anticlockwise operation, and you can easily snap off the unused shaft. Operating at 240Volts AC, 0.38Amp, 10Watts, and 50Hz, it comes with thermal protection. It has 750mm connecting wires with bare end terminals, including three wires and an earth wire. The shaft is 32mm long, 7.9mm in D - shape diameter. The motor's thickness (excluding shafts) is 65mm, diameter is 100mm, and the mounting bolt spacing is 38mm X 38mm in a square and 62mm in a triangle. It comes with a full guarantee and is super easy to install. With over 25 years of experience supplying appliance parts to both trade and retail, you can buy with peace of mind.
Using this Fasco condenser fan motor is easy. First, make sure the power is off before installation. Check the mounting bolt spacing on your fridge or freezer to ensure it matches the motor's 38mm X 38mm square or 62mm triangle spacing. Connect the 750mm wires with bare end terminals to the appropriate power source, don't forget the earth wire. You can choose the shaft rotation direction according to your needs and snap off the unused shaft. When the motor is running, keep an eye on it. If you notice any abnormal noises or overheating, turn off the power immediately as it has thermal protection to prevent damage. For maintenance, clean the motor regularly to remove dust and debris. You can use a soft brush to gently clean it. And always store it in a dry place when not in use. If you have any problems, feel free to contact us as it comes with a full guarantee.
