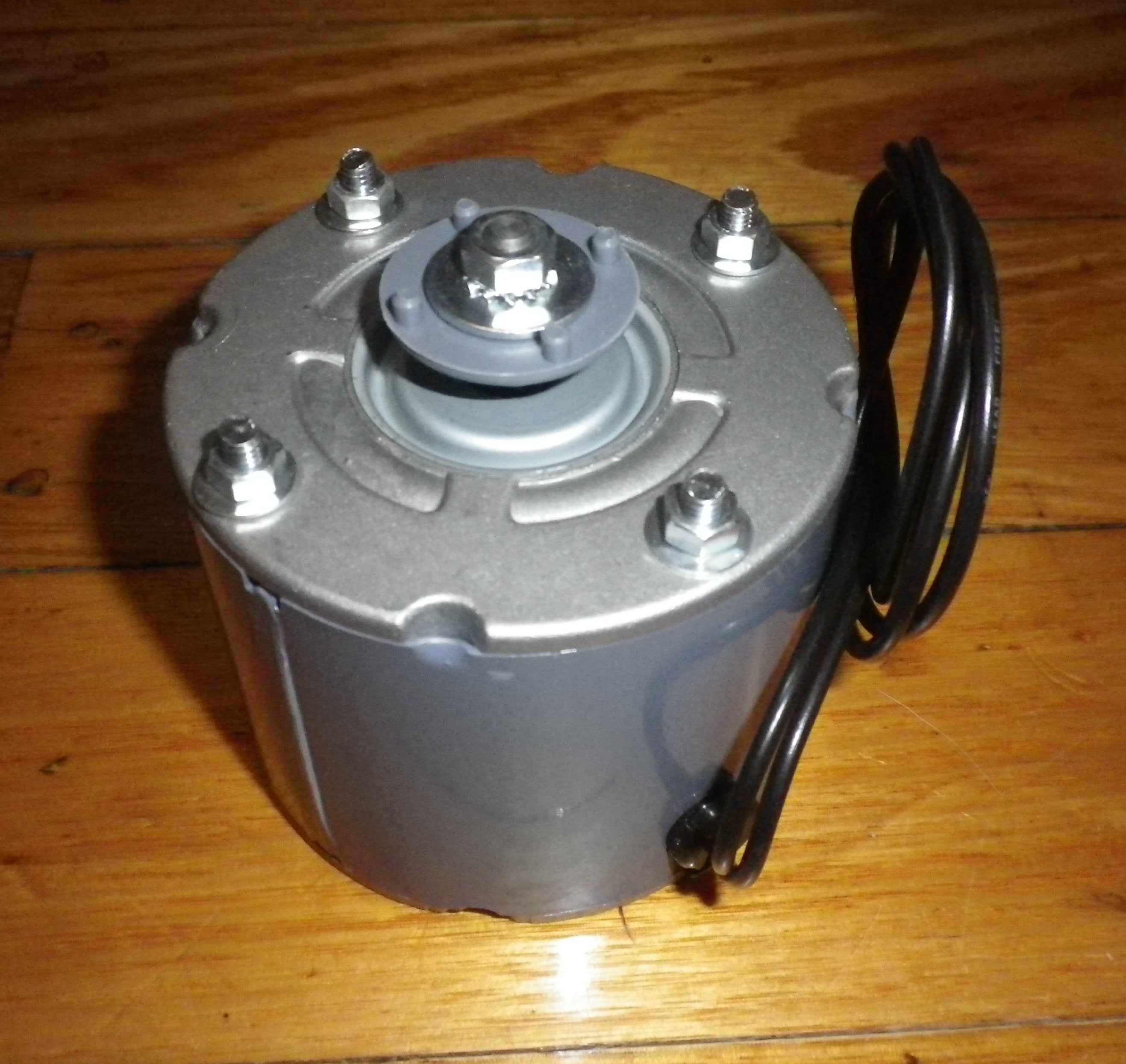

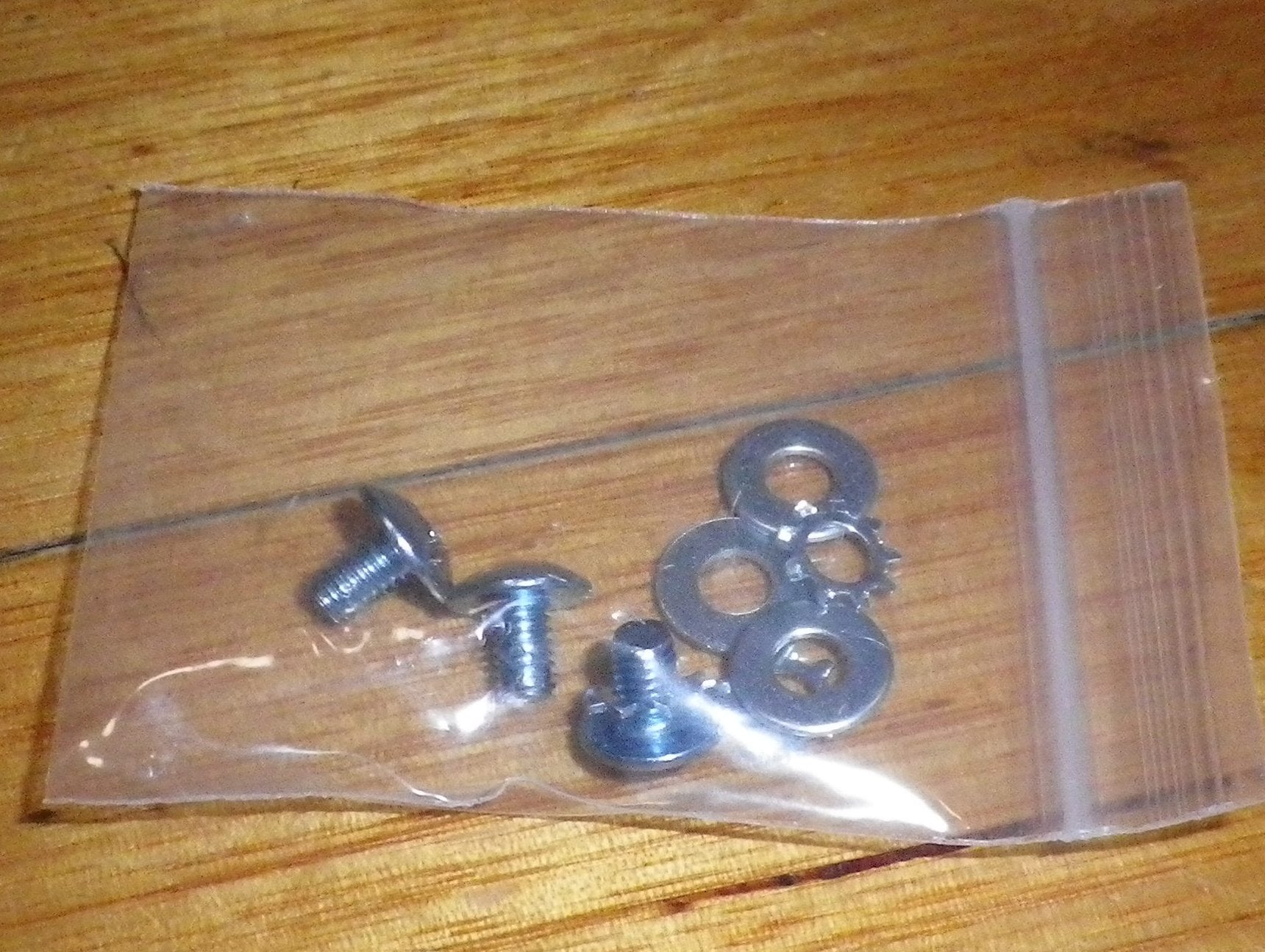

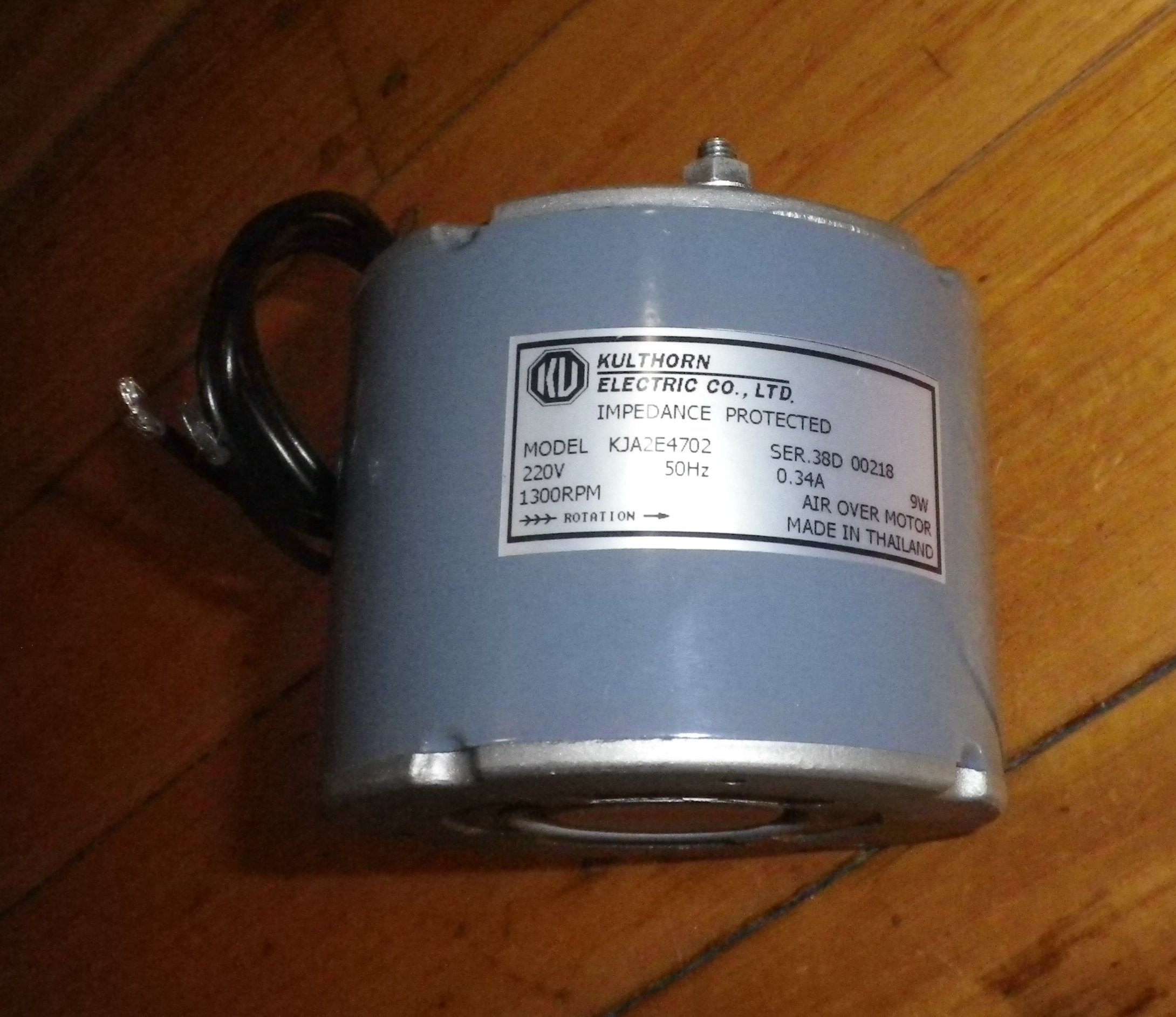

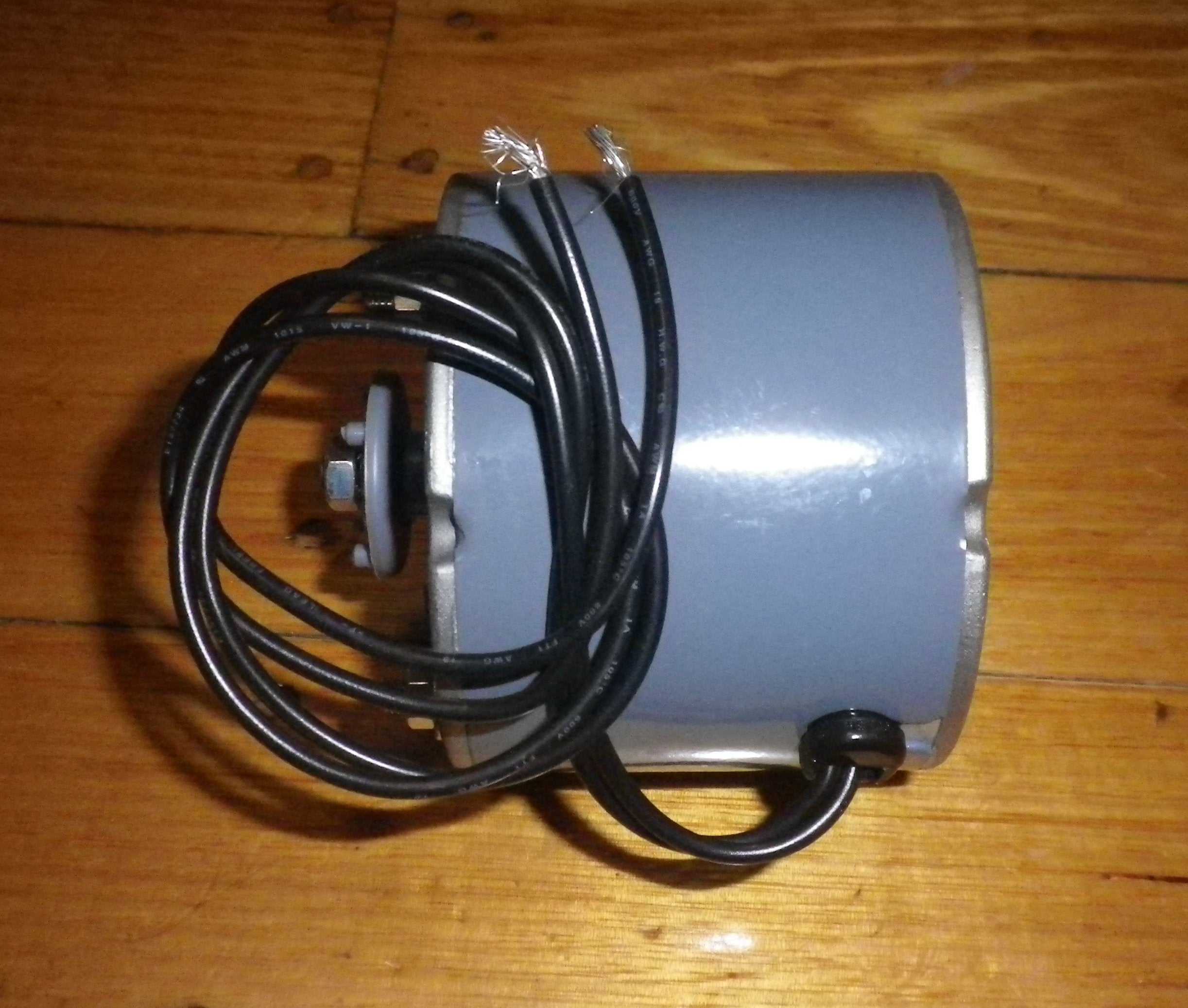

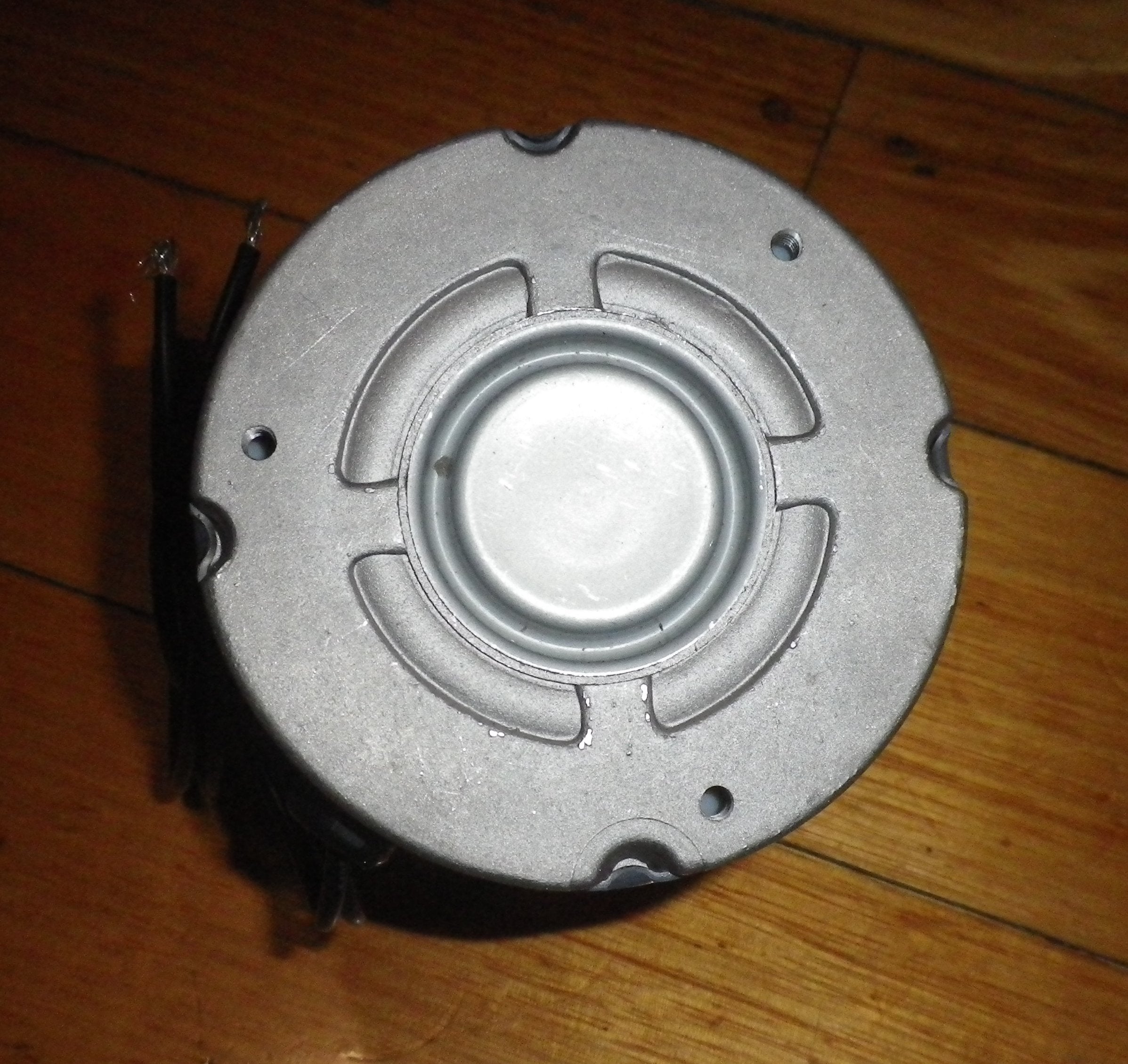

This 9-watt anticlockwise condenser fan motor is a perfect fit for fridges and freezers. Part numbers include RF504 and KJA2E4702, and it can replace similar parts like RF605A and Fasco's D564S1. It's a small yet powerful fan motor suitable for various refrigeration needs, including commercial applications. Ideal for condenser or compressor cooling, it operates at 220 Volts AC, 0.34 Amp, 9 Watts, with a frequency of 50/60Hz and a speed of 1300 RPM. It has a 4-pole design and is impedance protected. Comes with 450mm connecting wires having bare ends. The motor features an 18mm shaft length, 6.5mm shaft diameter with an O-shape screw thread. The total depth from the shaft tip to the back of the motor is 88mm, and the motor's thickness (excluding the shaft) is 6.7mm, with a diameter of 86mm. The rear mounting bolt spacing is 63mm in a triangle. Although the fan blade isn't included, the necessary attachments like a small round clamp, metal washer, and nut are provided, along with one central hole and 4 locating holes. It comes with a full guarantee and is easy to install. With over 25 years of experience in supplying appliance parts, you can buy with confidence.
Using this fan motor is quite simple. First, make sure your fridge or freezer is unplugged. Then, find the old motor and remove it carefully. Next, attach the new motor using the provided mounting hardware and connect the 450mm wires to the appropriate terminals. Remember to check the wiring diagram of your appliance if you're unsure. When it comes to maintenance, keep the motor clean from dust and debris. You can use a soft brush to gently clean it every few months. As for safety, always make sure the power is off before handling the motor. If you notice any unusual noises or performance issues, stop using the motor and contact a professional. With proper use and care, this motor will serve you well for a long time.
