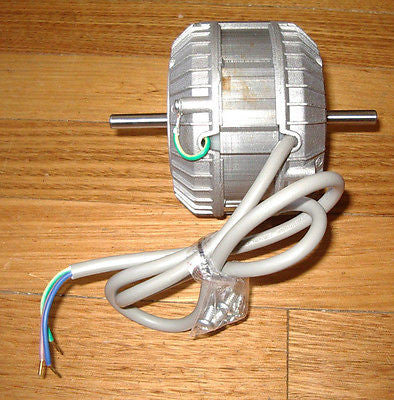

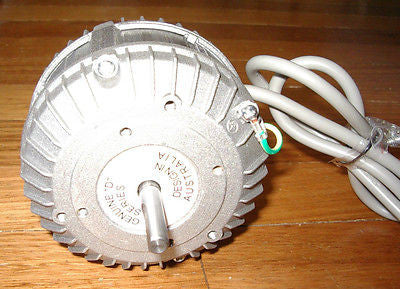

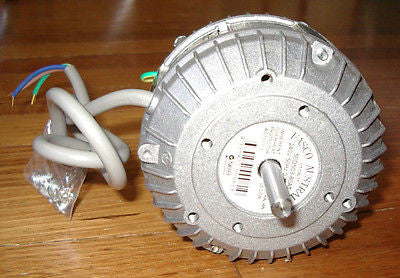

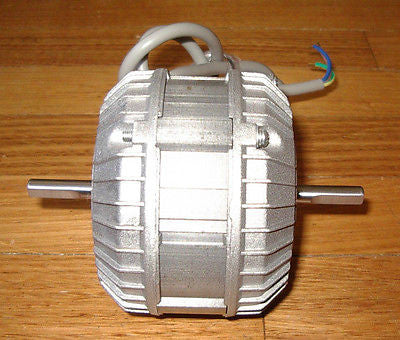

This Fasco 40-watt condenser fan motor is designed for commercial fridges and freezers. Part numbers include 50D503-80A and 50D503-80AT, similar to RF503, RF510, and YJ40-4-240. It's a versatile 40-watt motor perfect for various refrigerators, freezers, and commercial refrigeration uses. It can be used for condenser or compressor cooling. With dual shafts, it supports both clockwise and anticlockwise operation, and you can easily snap off the unused shaft. It operates on 240 Volts AC, 0.70 Amp, 40 Watts, and 50 Hz, and is thermally protected. It comes with 750mm connecting wires having bare end terminals, including three wires with an earth wire. The shaft length is 32mm, and the shaft diameter is 7.5mm in a D-shape. The motor's thickness (excluding shafts) is 75mm, with a diameter of 100mm. The mounting bolt spacing is 38mm X 38mm in a square and 62mm in a triangle. It's fully guaranteed and easy to install. We've been supplying appliance parts for over 25 years, so you can buy with confidence.
Using this Fasco condenser fan motor is straightforward. First, make sure to choose the right shaft for the direction of operation you need. If one shaft isn't needed, just snap it off. Connect the 750mm wires to the appropriate electrical connections, being careful to include the earth wire for safety. When installing, align the motor using the mounting bolt spacing (38mm X 38mm square or 62mm triangle) to secure it in place. As for precautions, always turn off the power before installation or any maintenance work. Also, keep the motor away from water and excessive heat. For maintenance, check the motor regularly for any signs of wear or damage. You can clean the motor gently with a dry cloth to remove dust. If you notice any unusual noises or problems, stop using it immediately and contact a professional.
