Product Detail

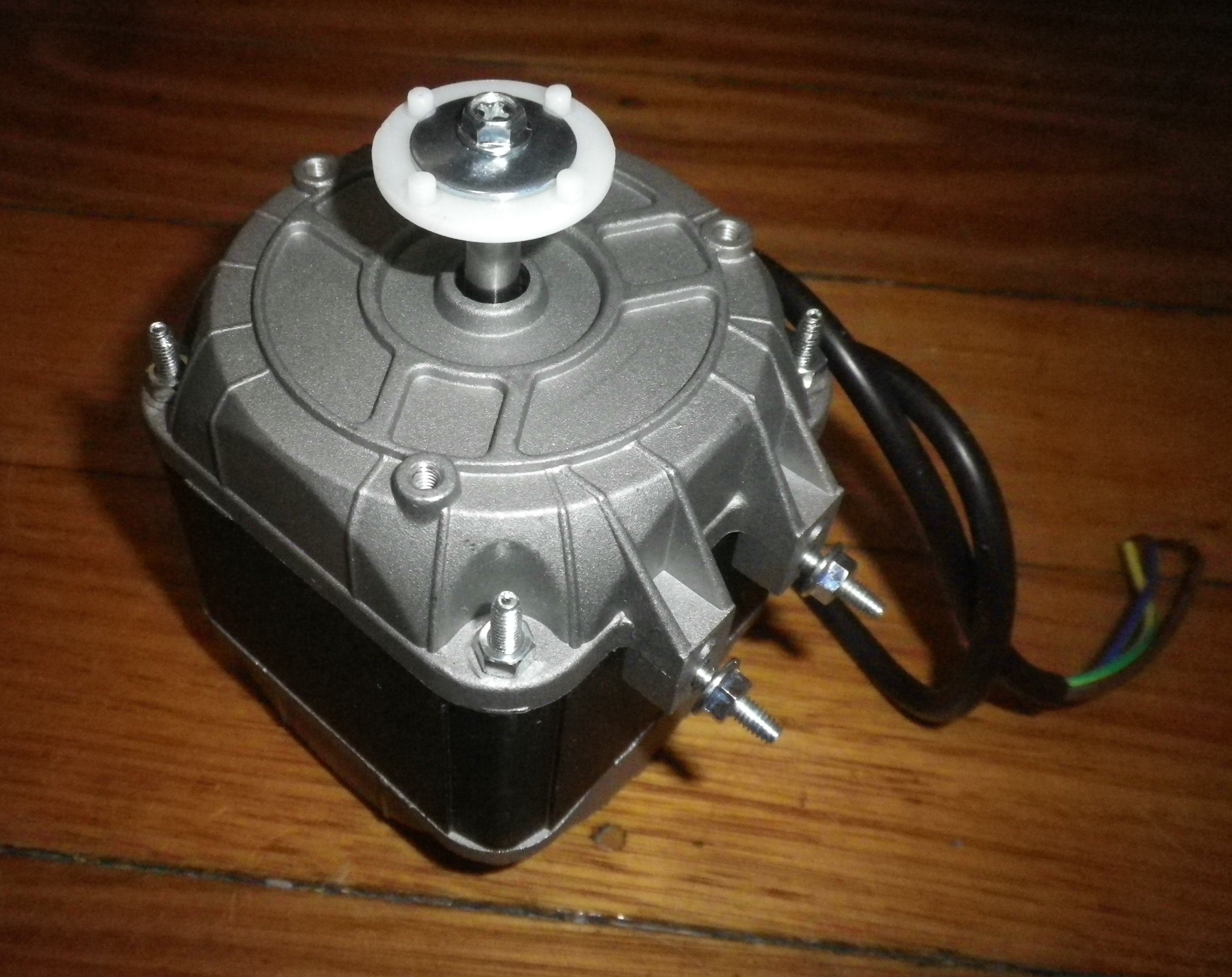

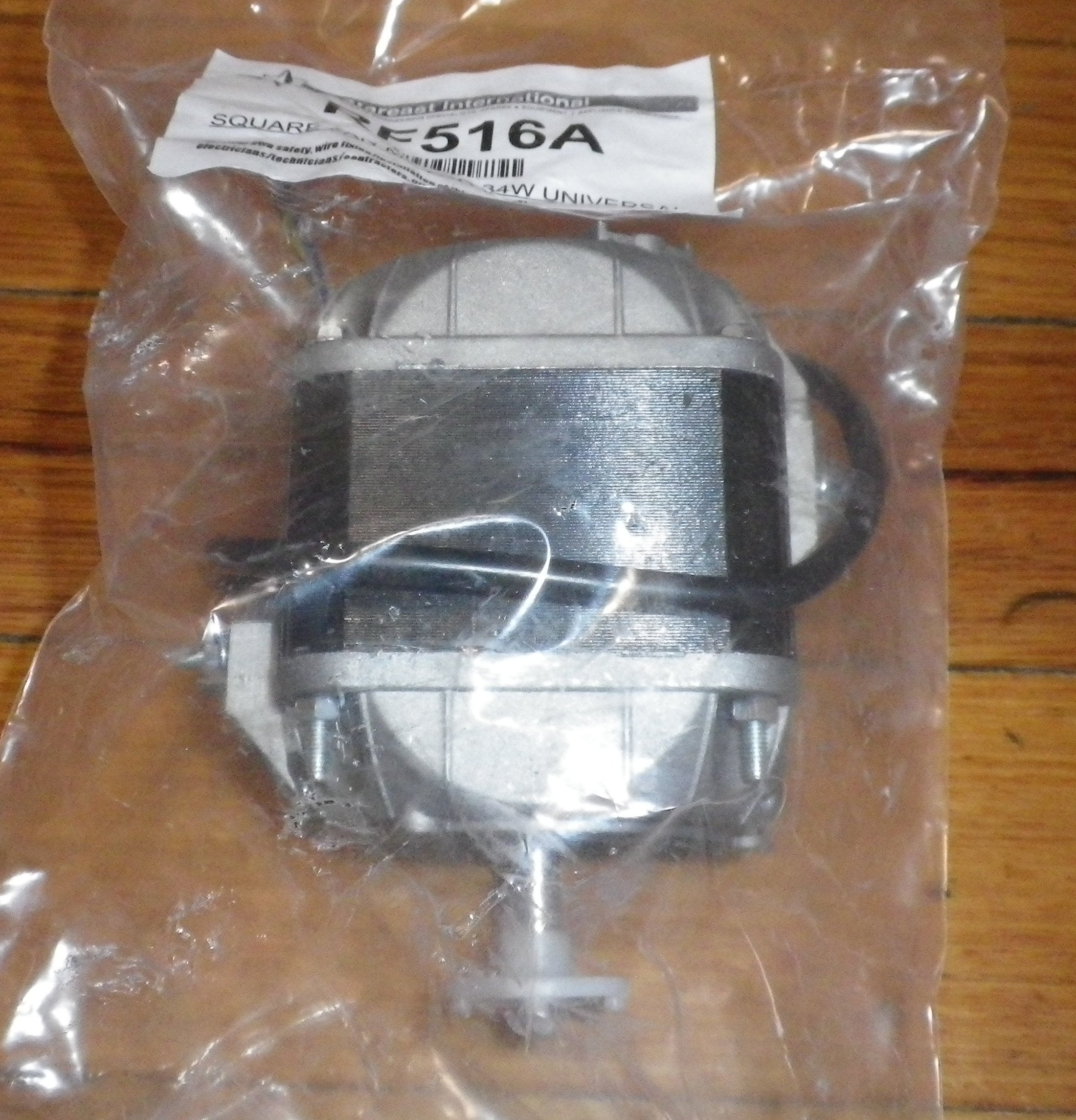

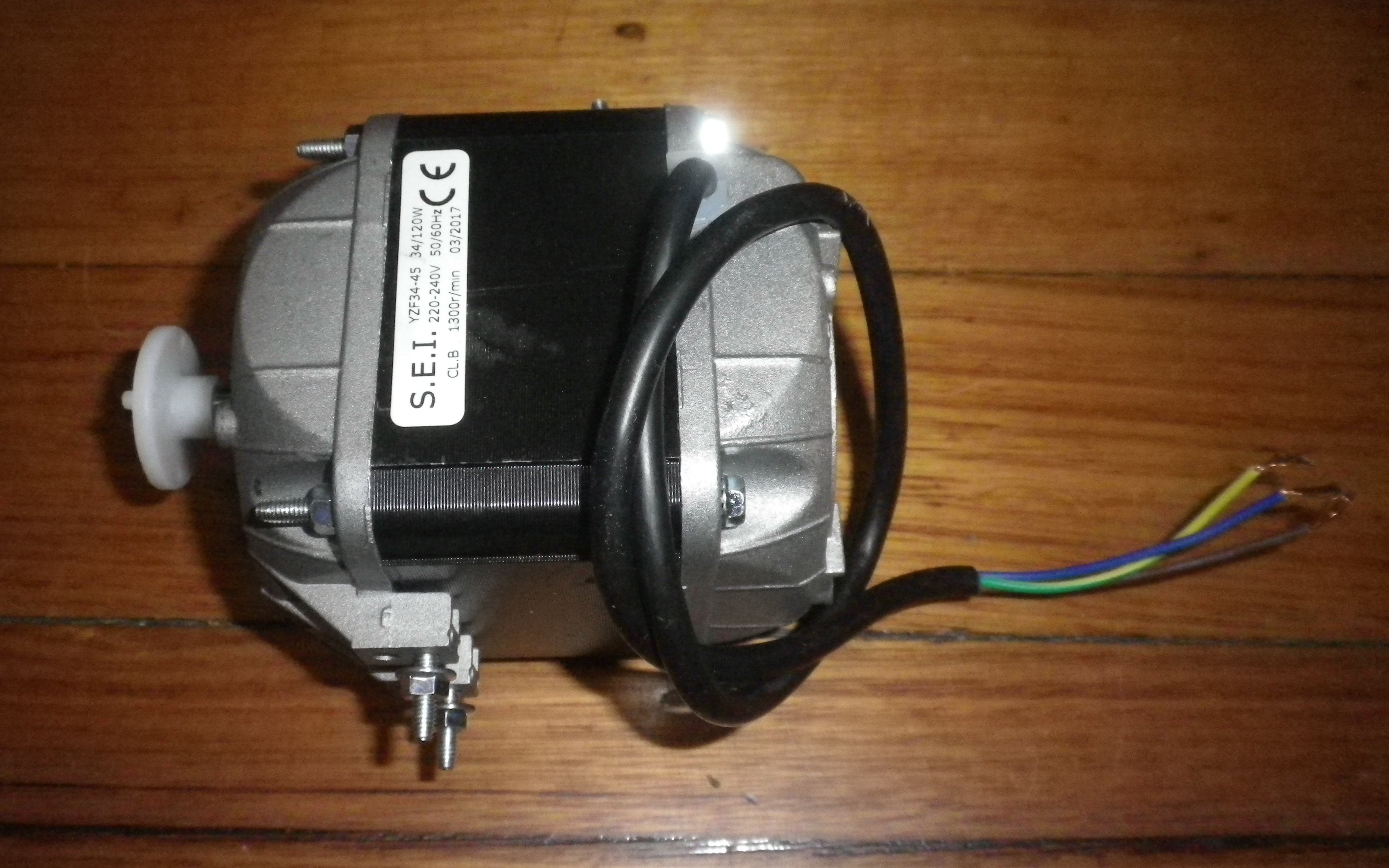

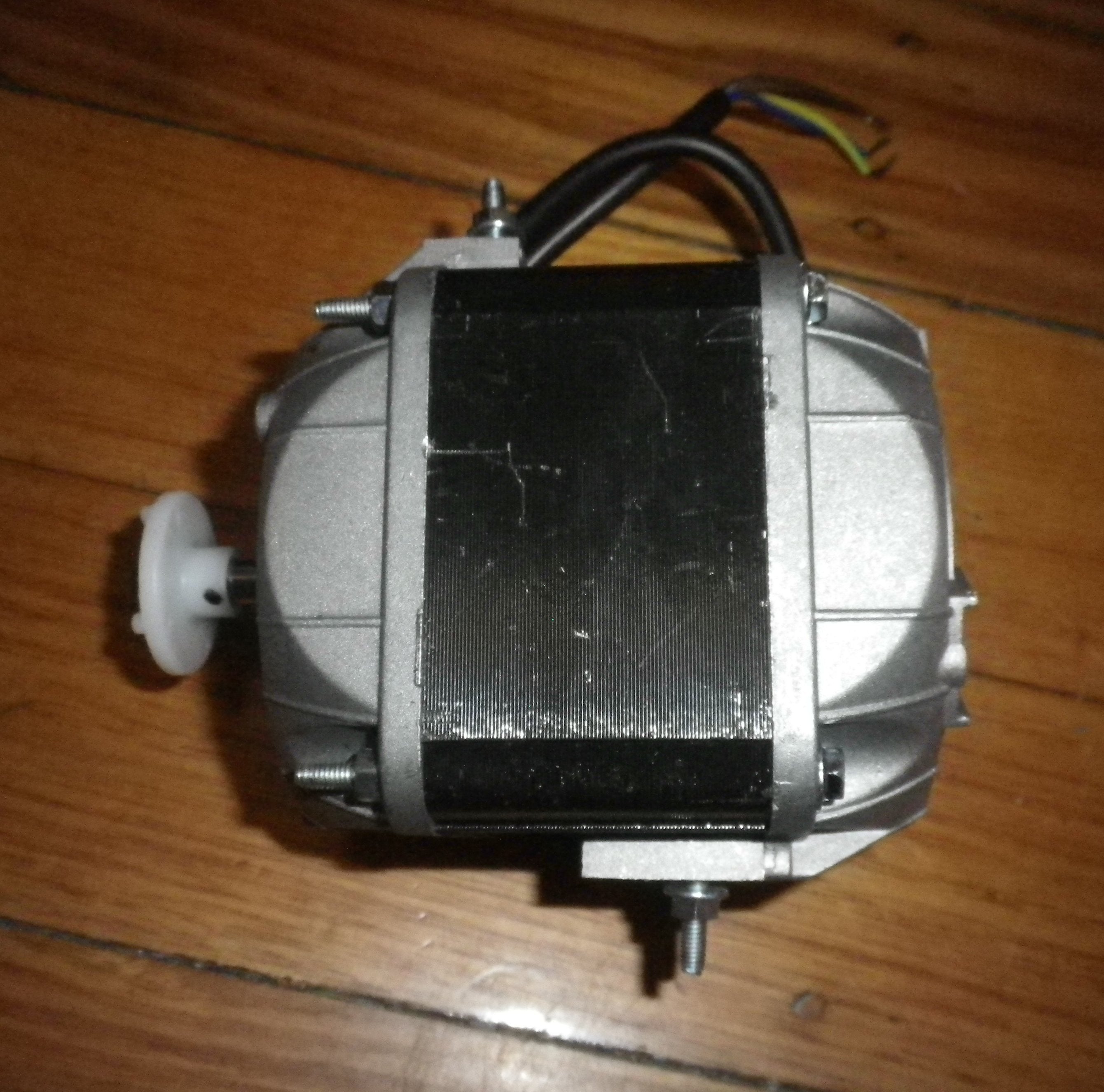

This 34-watt anticlockwise condenser fan motor is a perfect fit for fridges and freezers. It has multiple part numbers including RF516A, RFA210, and SEI's YZF34-45, and is equivalent to Fasco's Part No. 55D534-80AT. This small yet powerful fan motor is suitable for various refrigeration applications, whether it's for your home refrigerator, freezer, or commercial refrigeration units. It can be used for condenser cooling or compressor cooling. Operating at 230/240 Volts AC, with 0.85 Amps, 34/120 Watts, and 50/60 Hz, it runs at 1300/1550 RPM in a counterclockwise direction. It comes with 500mm connecting wires with bare ends. The motor has a shaft length of 24mm, a shaft diameter of 7mm, a total depth of 129mm from the shaft tip to the back, and a thickness of 97.5mm (excluding the shaft). The dimensions are 82.5mm X 82.5mm, and the mounting bolt spacing is 19mm & 27mm. The fan blade, which is not included, attaches using a small round clamp, a metal washer, and a bolt - all of which are provided and have one central hole and 4 locating holes. It comes with a full guarantee and is easy to install. With over 25 years of experience supplying appliance parts to both the trade and retail sectors, you can buy with confidence.
Using this condenser fan motor is straightforward. First, make sure your fridge or freezer is unplugged before installation. Locate the old fan motor and carefully remove it by detaching the connecting wires and any mounting bolts. Then, attach the new motor using the provided mounting bolts with the correct spacing of 19mm and 27mm. Connect the 500mm connecting wires to the appropriate terminals. If you're attaching a fan blade, use the small round clamp, metal washer, and bolt that come with the motor. Once everything is securely in place, plug your appliance back in. As for maintenance, keep the motor clean by gently dusting it every few months. Avoid getting the motor wet. If you notice any unusual noises or performance issues, check the connections first. If the problem persists, it might be time to contact a professional. And remember, this motor comes with a full guarantee, so you can have peace of mind while using it.
