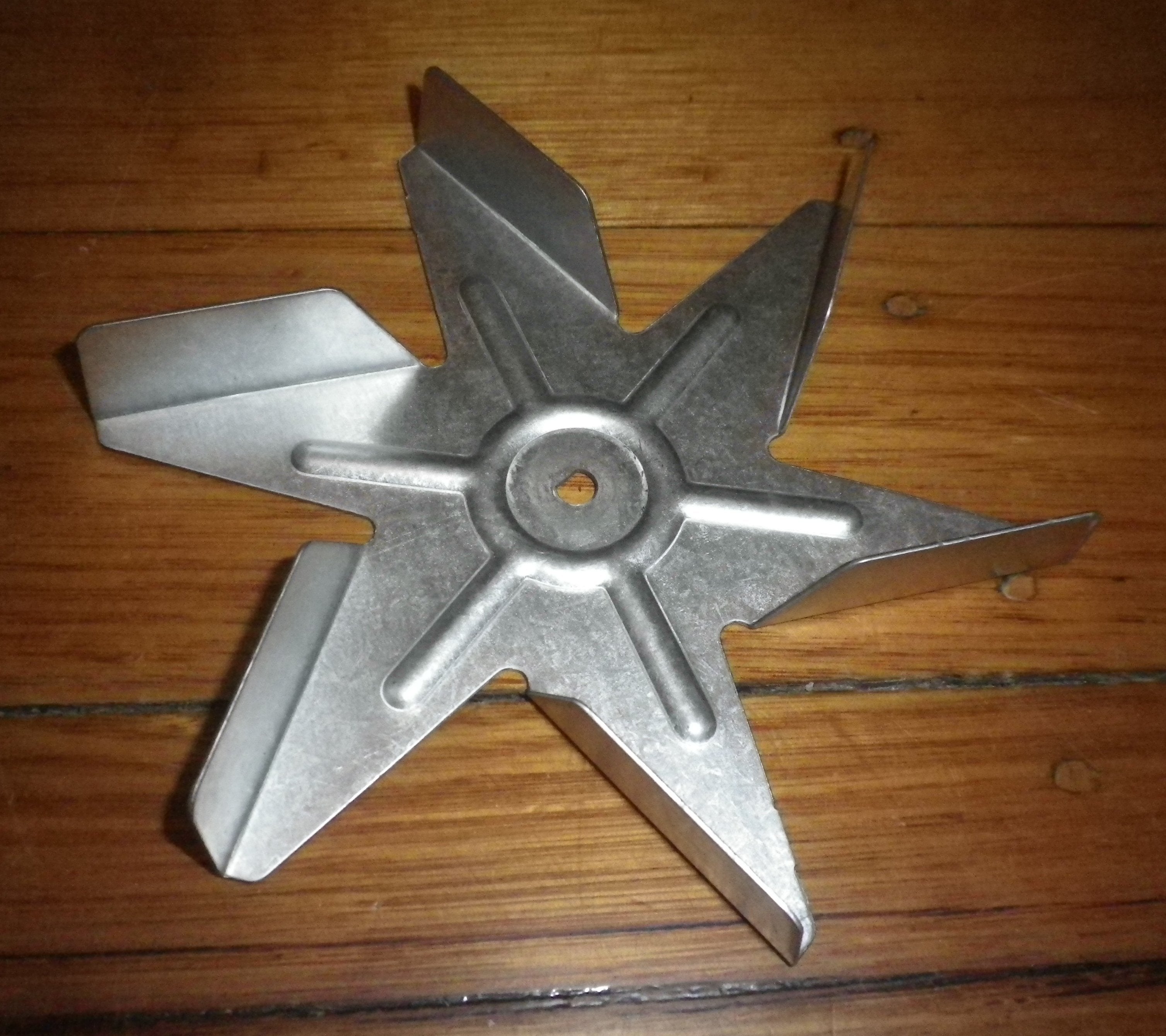

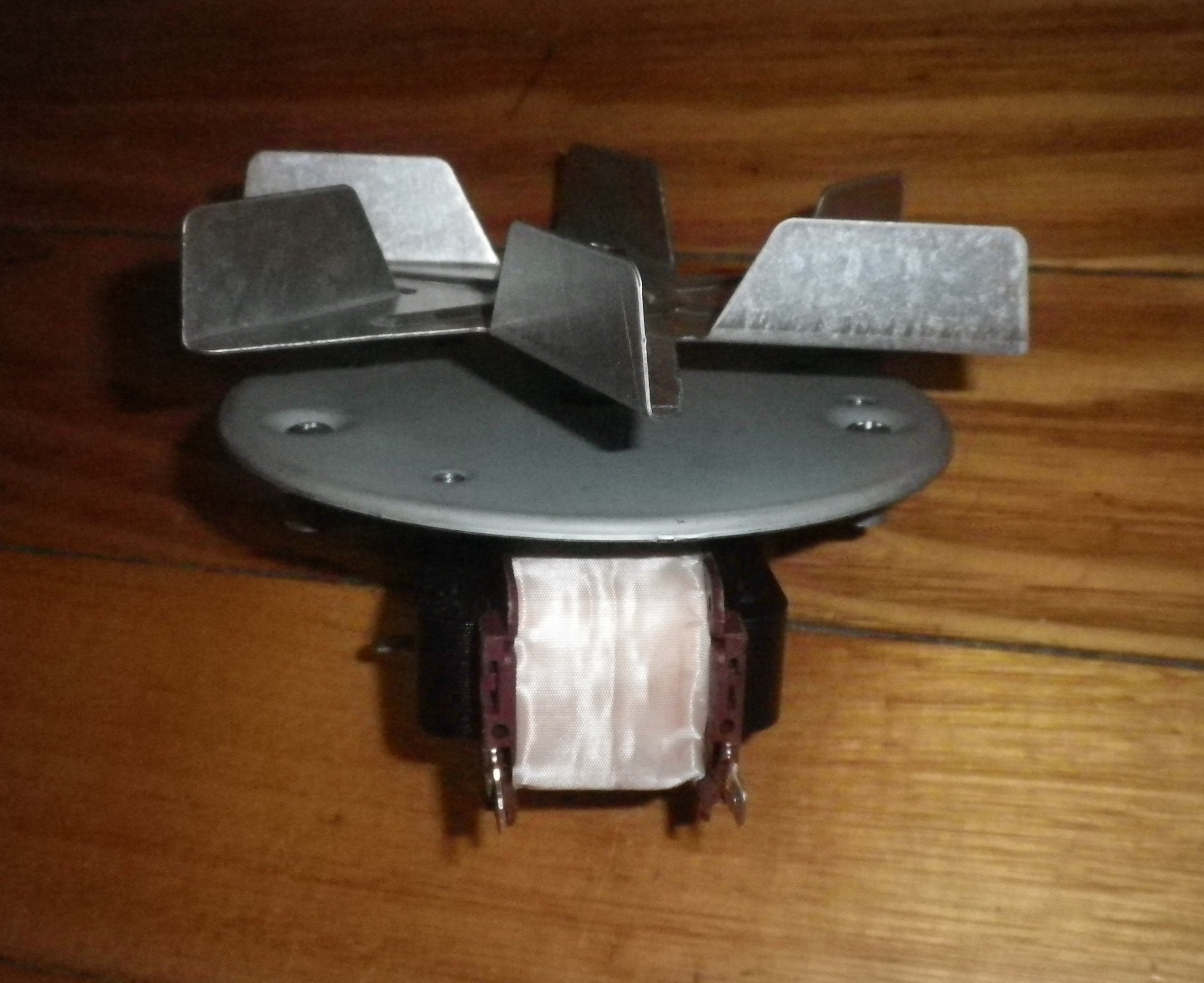

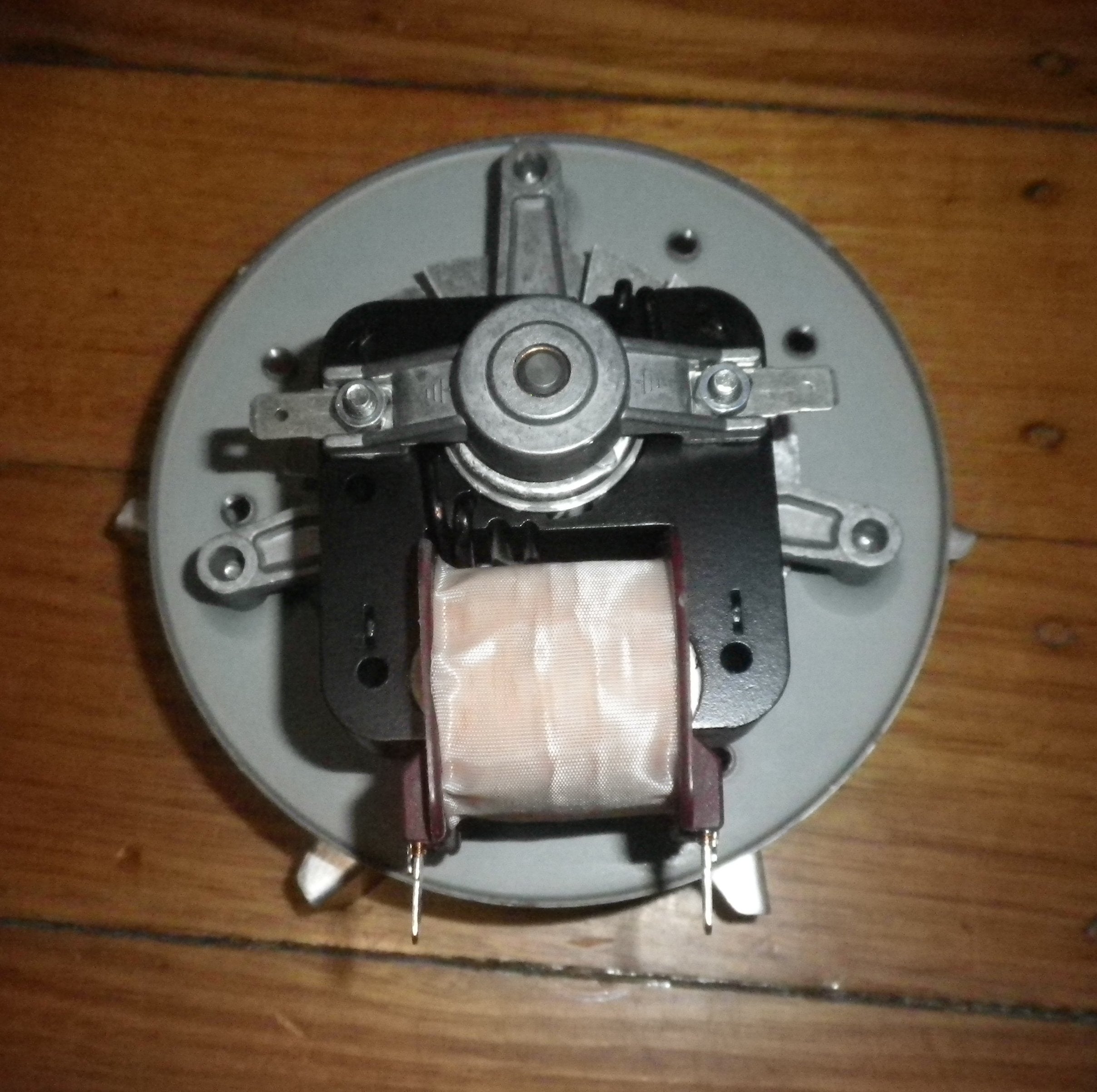

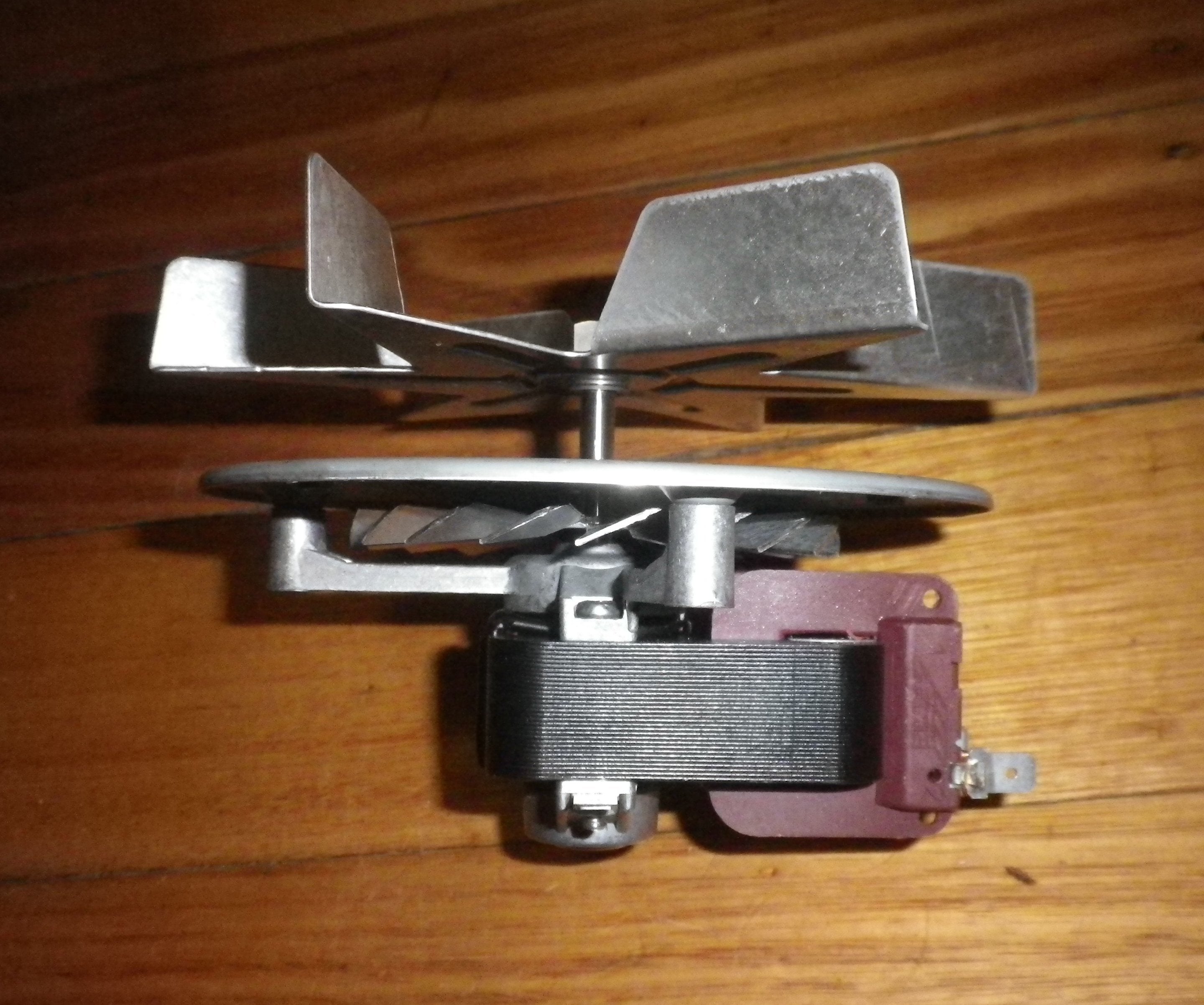

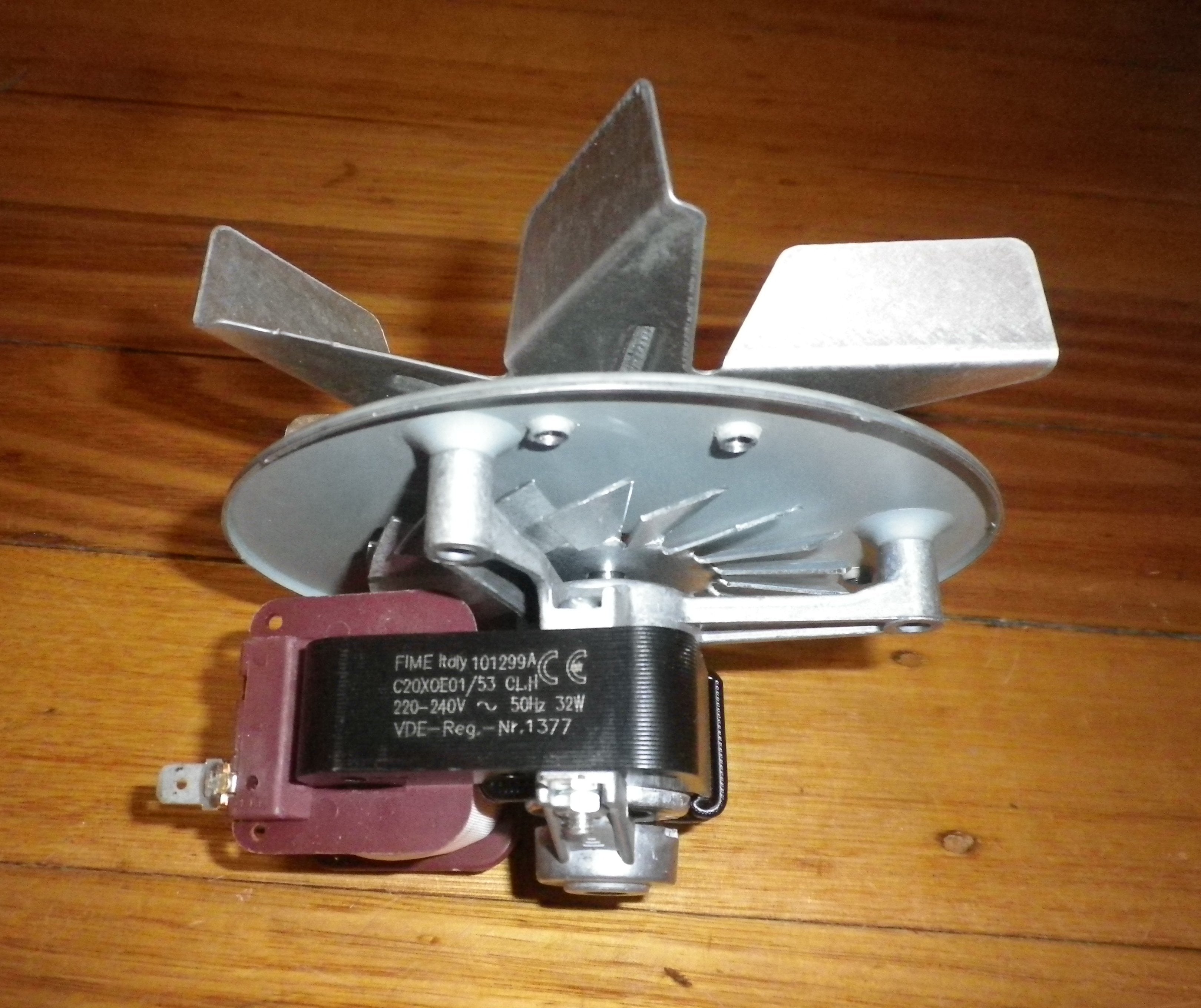

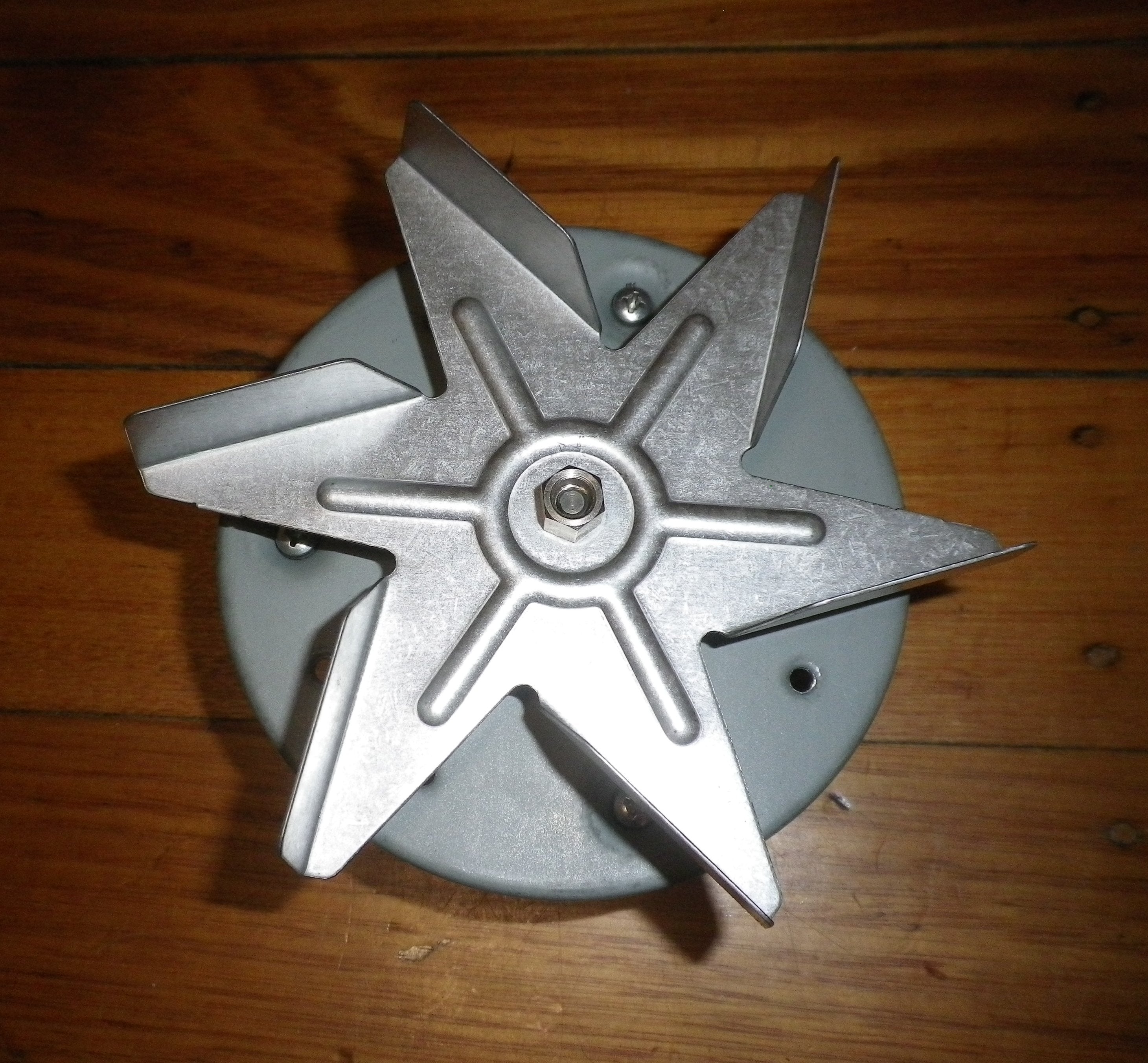

This universal fan motor is a perfect fit for Chef, Simpson, Westinghouse, Technika, Blanco and many other popular stove brands. Part numbers include 9683S, C20X0E01/53, 101299A. It's similar to models like Stokes 9683, Chef 56158 and more. Operating at 240VAC, it has 3 x 6.4mm spade terminals for easy connection and earthing. This motor is suitable as a replacement for many Simpson, Chef, Smeg, Omega and Westinghouse models, though not for St George long shaft motors. It features 3 x 5mm mounting holes in an equal triangle, 87mm apart. The distance between the backing plate and fan blade is 15mm, and 28mm with the spacer fitted. The depth between the backing plate and the rear of the motor is 65mm, and the blade diameter is 150mm. Running at 220 - 240VoltsAC, 32Watts, 50Hz, it's easy to install and fully guaranteed. With over 25 years of experience supplying appliance parts to the trade and retail, you can buy with confidence.
Using this fan motor is straightforward. First, make sure your oven is turned off and unplugged for safety. Then, locate the old motor in your oven. Remove it carefully by disconnecting the terminals and unscrewing the mounting bolts. Take note of how it's installed so you can replicate the process with the new motor. Connect the 3 x 6.4mm spade terminals of the new motor as per the wiring of the old one, and don't forget to connect the earthing. Use the 3 x 5mm mounting holes to secure the motor in place, ensuring they are 87mm apart. If you need to use the spacer, adjust the distance between the backing plate and the fan blade to 28mm; otherwise, it should be 15mm. When it comes to maintenance, keep the motor clean from dust and debris. Check the terminals regularly to make sure they are well - connected. Remember, this motor is not suitable to replace St George long - shaft motors, so always double - check your oven model before installation. And with our full guarantee, you can use it worry - free.
