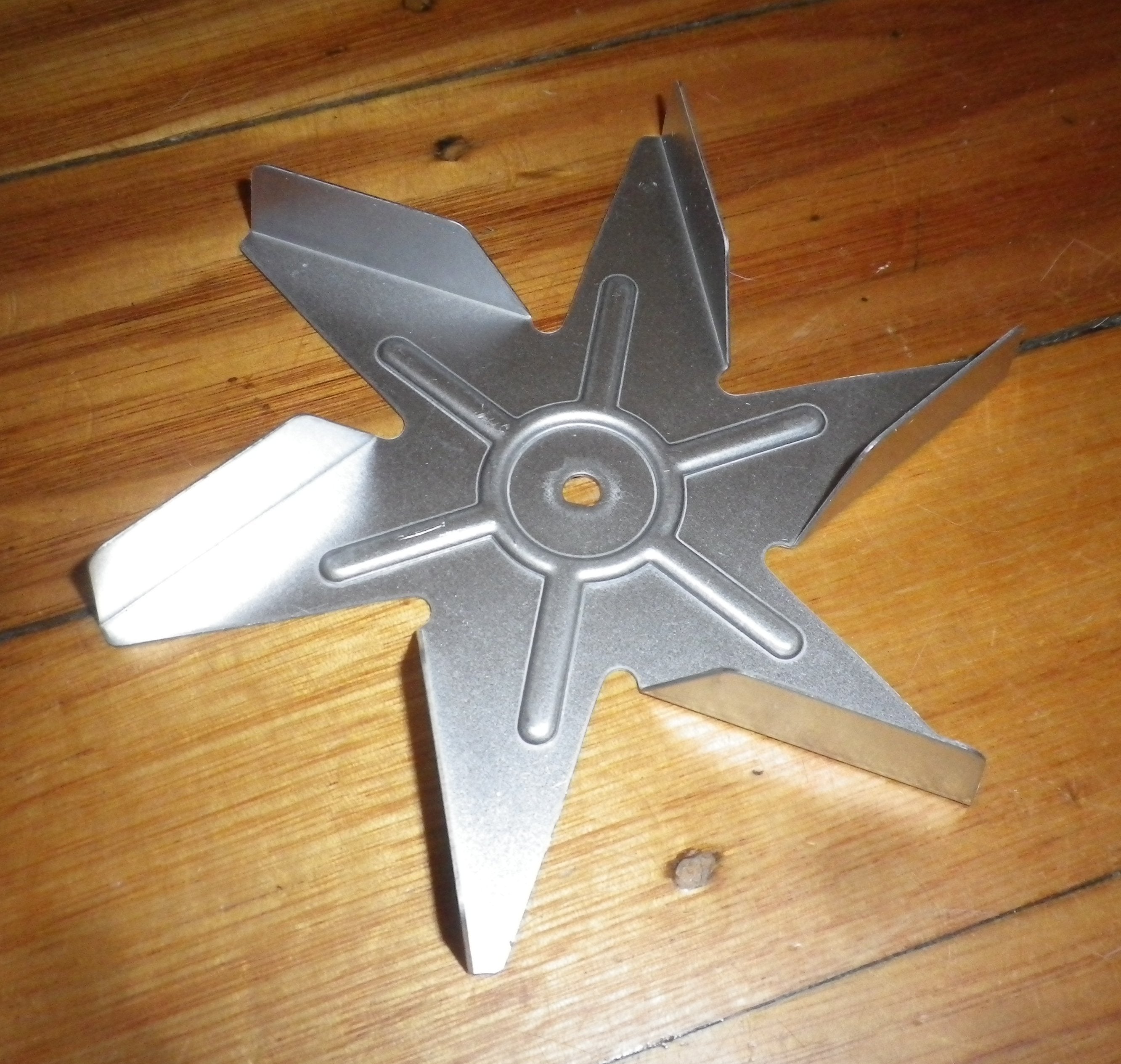

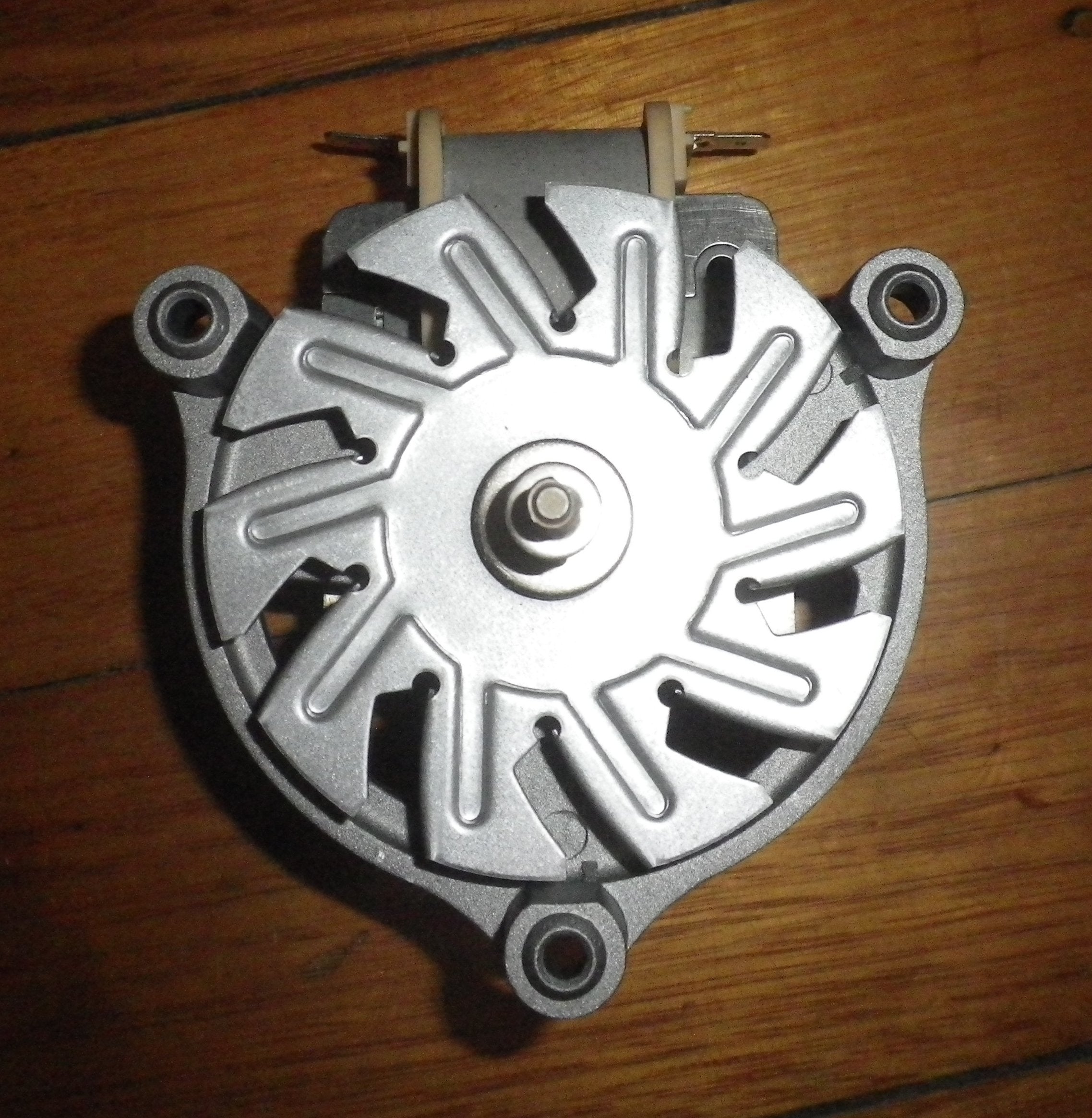

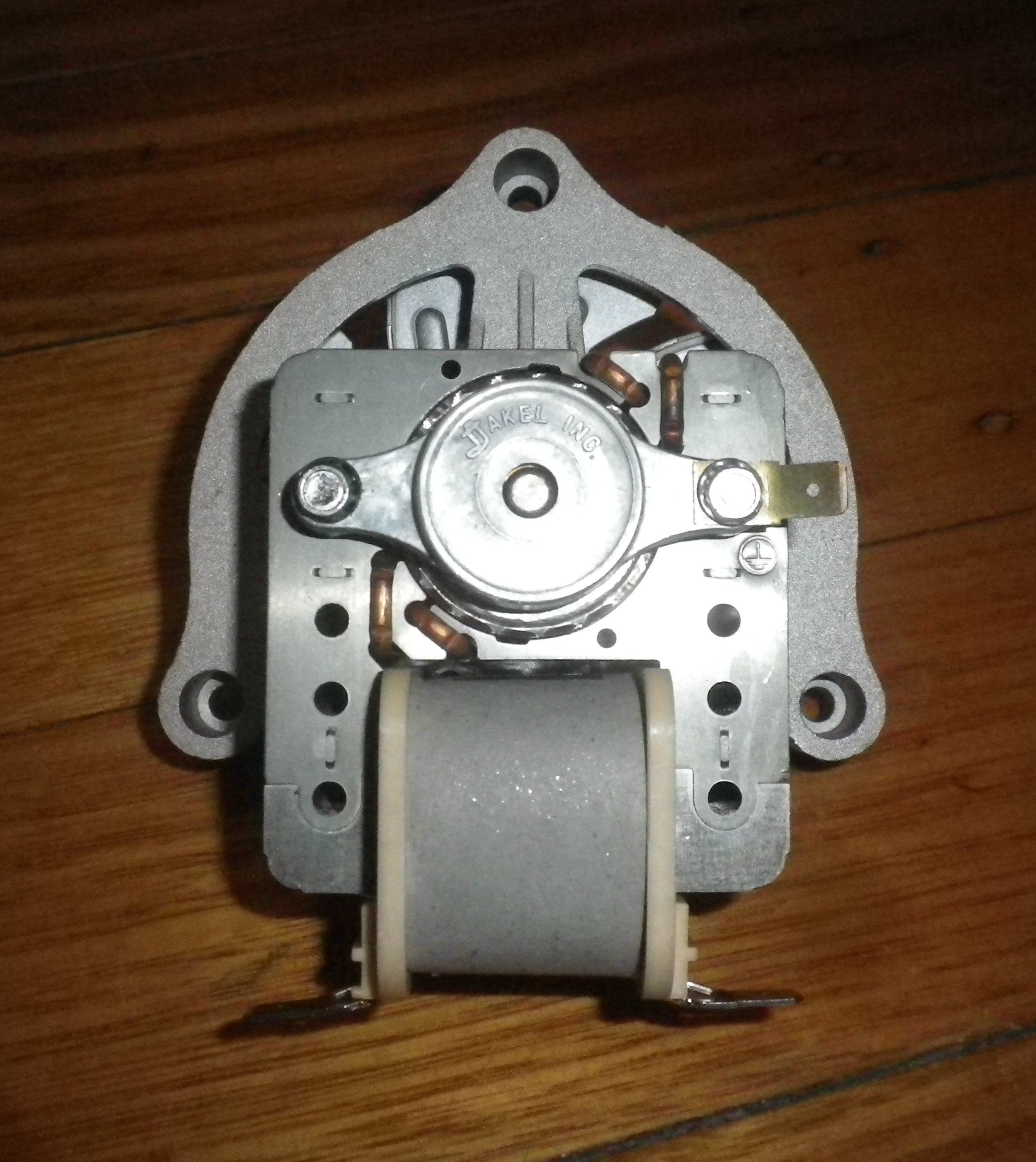

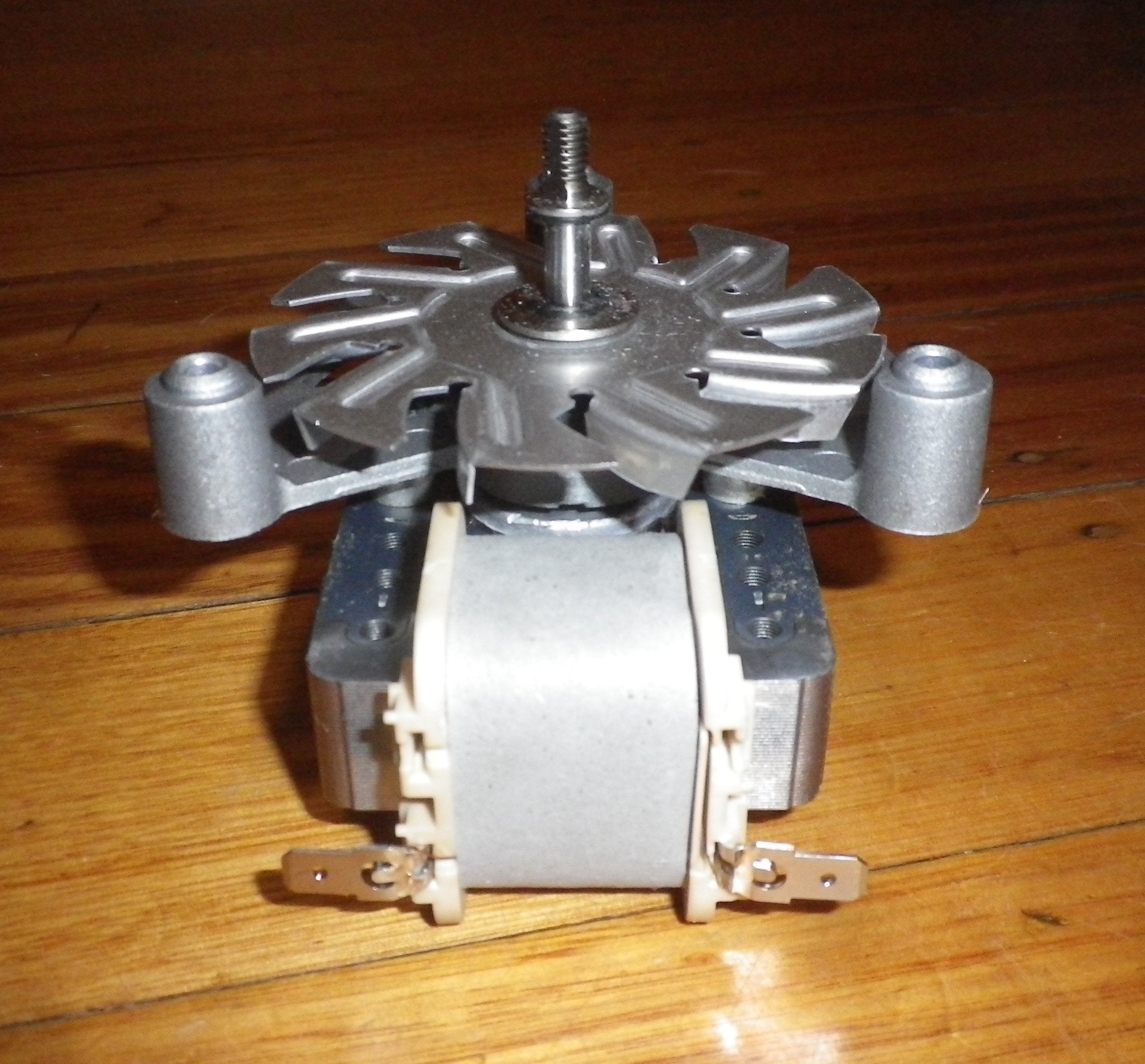

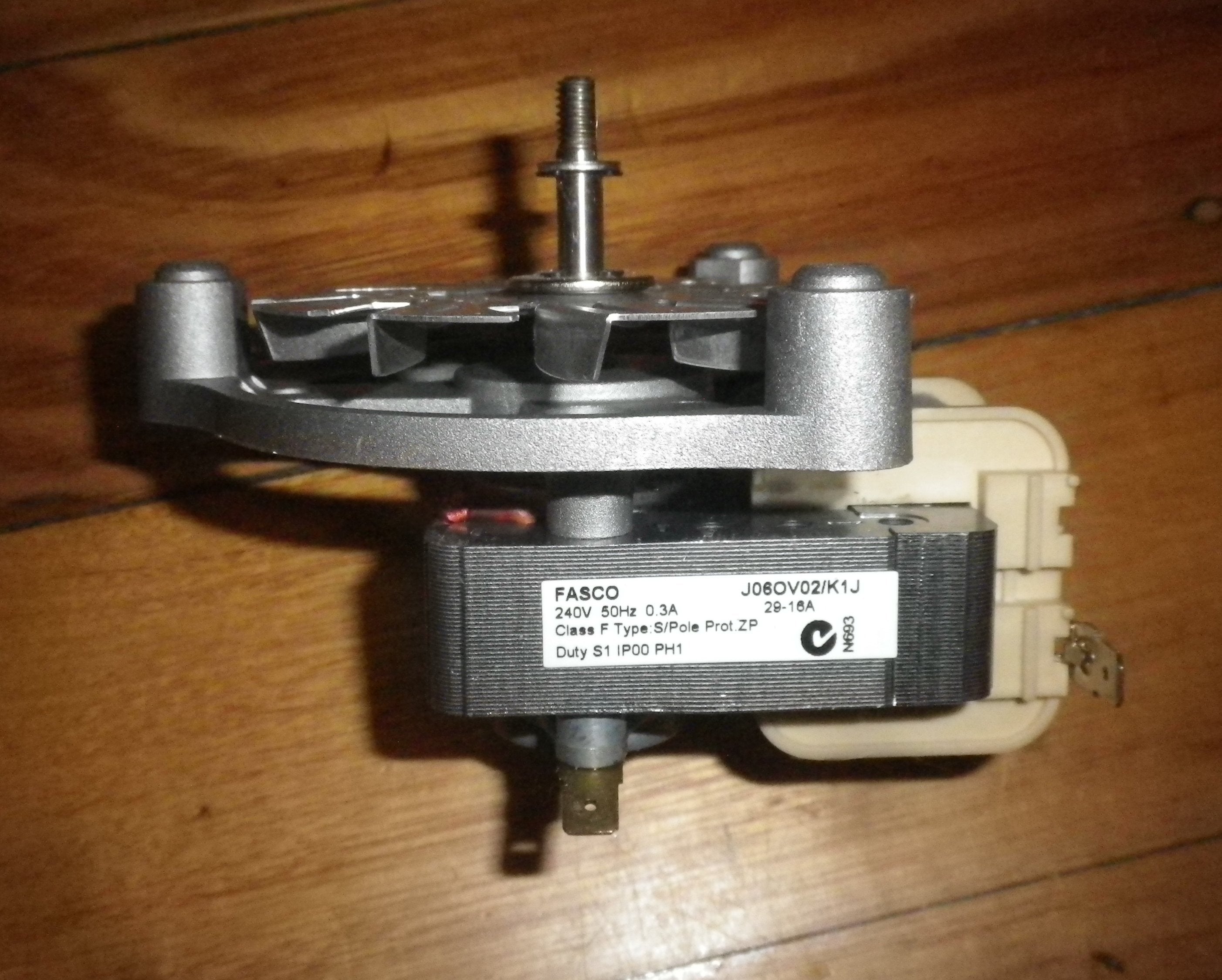

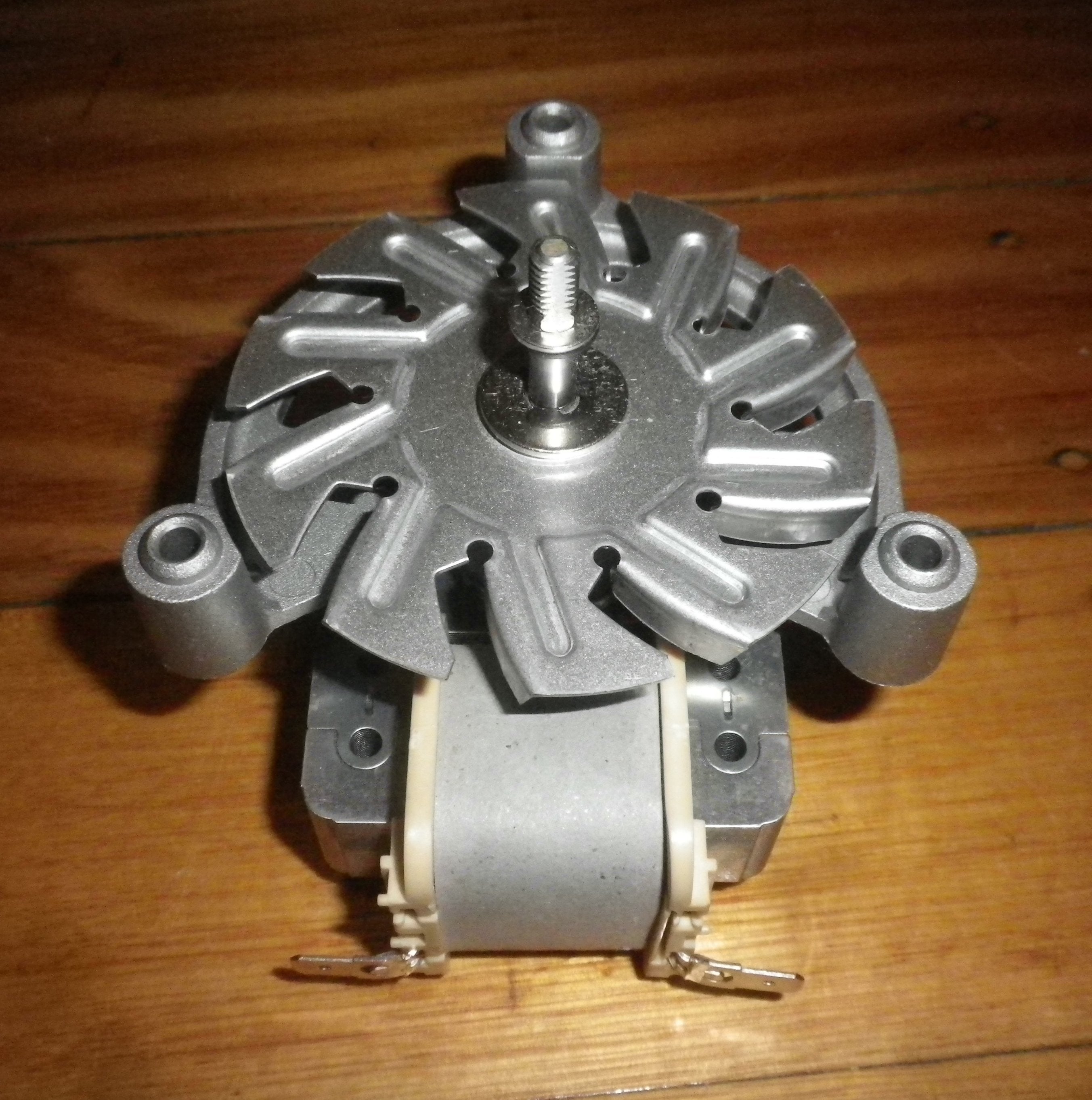

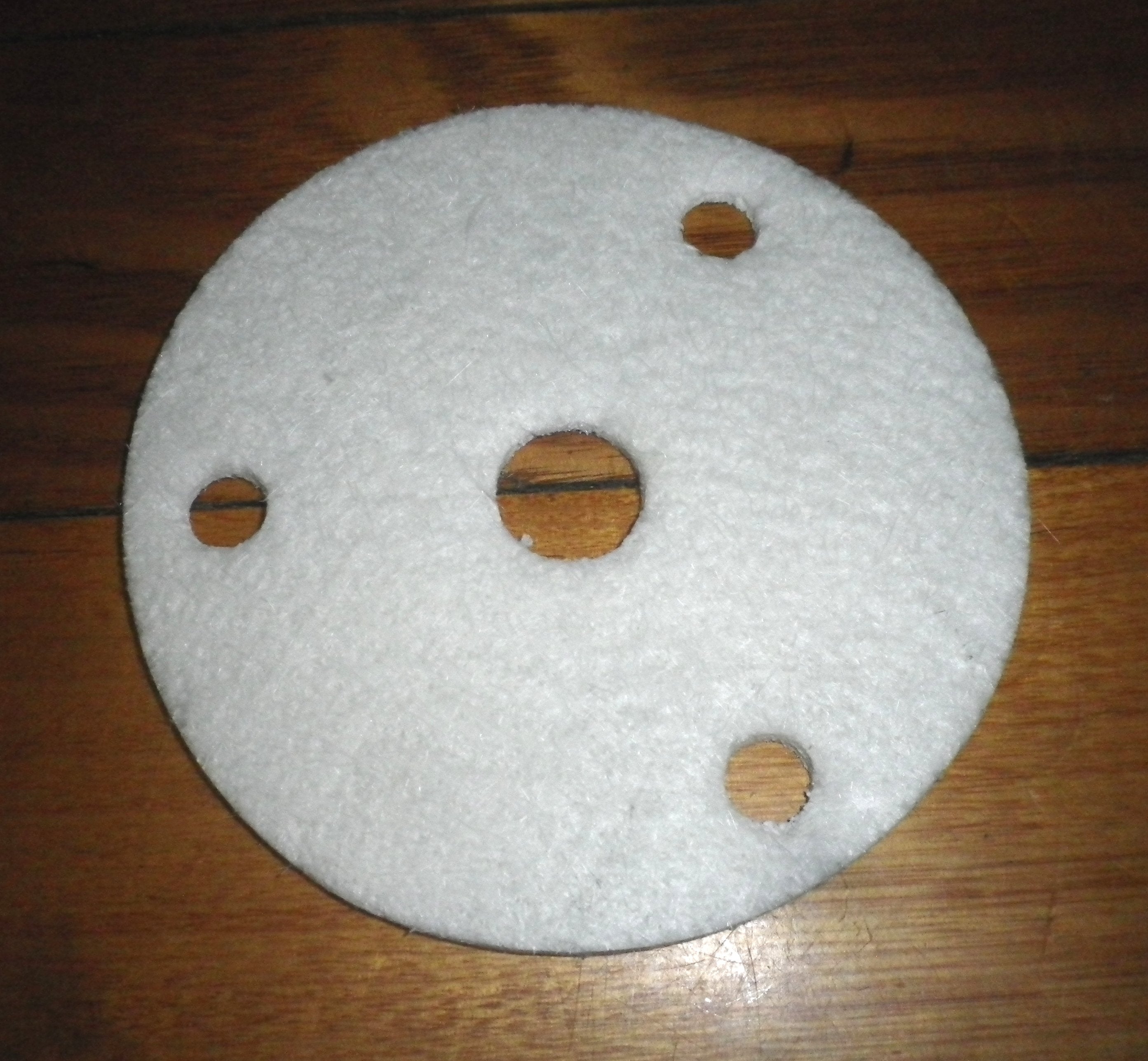

This genuine Fasco fan motor is a great fit for a wide range of stoves including Chef, Simpson, Westinghouse, Technika, Blanco and many others. It's part number 9683GEN, J06OV02/K1J. Similar to models like Stokes 9683, 9683A, 9683S, Chef 56158, FZ - 6020D - 516 and more. Operating at 240VAC, it has 3 x 6.4mm spade terminals for connection and earthing. This universal fan - forced oven fan motor is suitable for many well - known brands. It can replace most models of Simpson, Chef, Smeg, Omega, St George and Westinghouse. The motor has 3 mounting holes in an equal triangle, 87mm apart. The distance between the backing plate and the fan blade is 13mm, and the depth between the front and rear of the motor frame is 65mm. The blade diameter is 150mm. It runs on 220 - 240VoltsAC, 0.3amps, 50Hz. It's easy to install and comes with a full guarantee. We've been supplying appliance parts to trade and retail for over 25 years, so you can buy with confidence.
Using this fan motor is straightforward. First, make sure your oven is unplugged or turned off at the circuit breaker for safety. Then, find the old fan motor in your oven. Carefully remove the old motor by disconnecting the wires from the terminals and unscrewing the mounting bolts. Take note of how the old motor is installed. Next, place the new fan motor in the same position and secure it with the mounting bolts. Connect the wires to the 3 x 6.4mm spade terminals, making sure they are properly attached. Don't forget to connect the earthing wire. Once everything is connected, plug your oven back in or turn on the circuit breaker. When using the oven, keep an eye on the fan motor to make sure it's working smoothly. As for maintenance, it's a good idea to check the motor and blade periodically for any signs of dirt or damage. If you notice any unusual noises or vibrations, turn off the oven and check the motor. If you're unsure, you can always contact us. We've been in the appliance parts business for over 25 years, so we're here to help.
