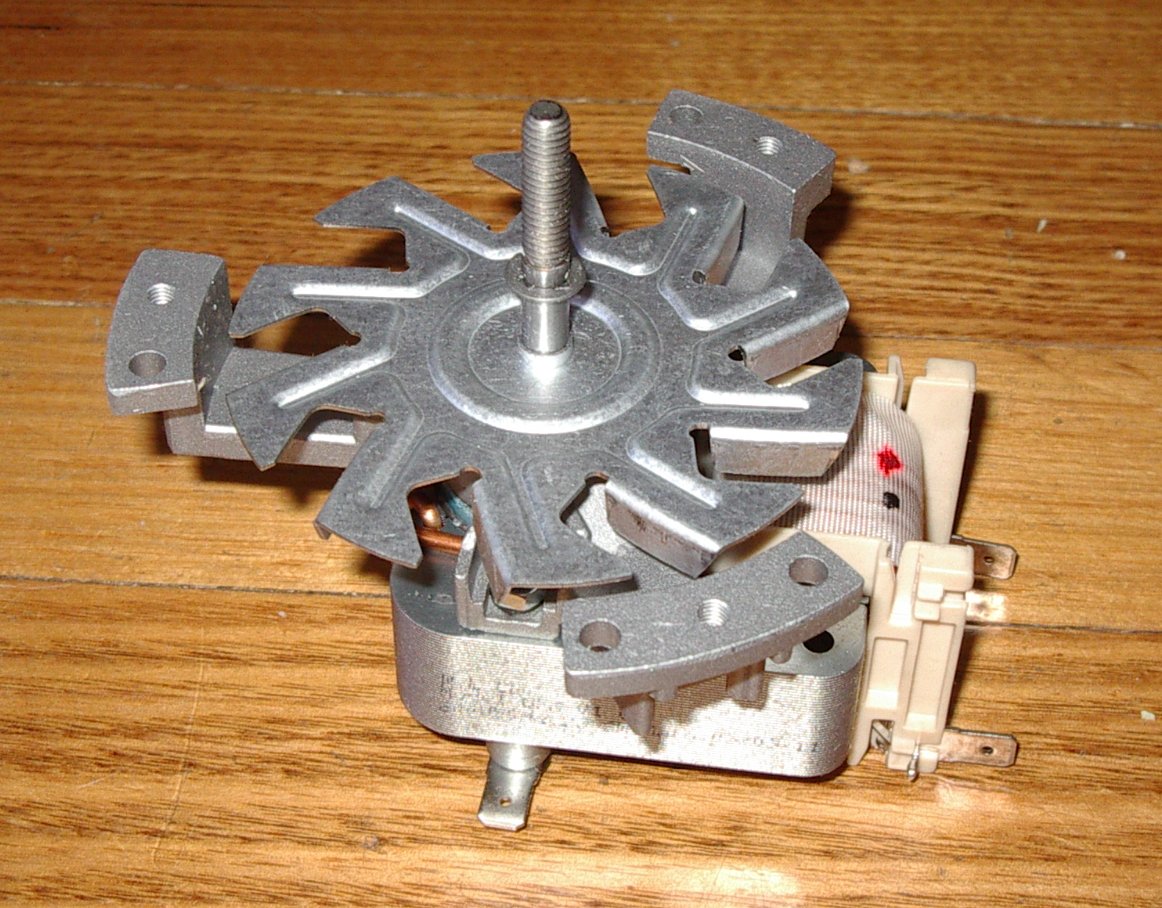

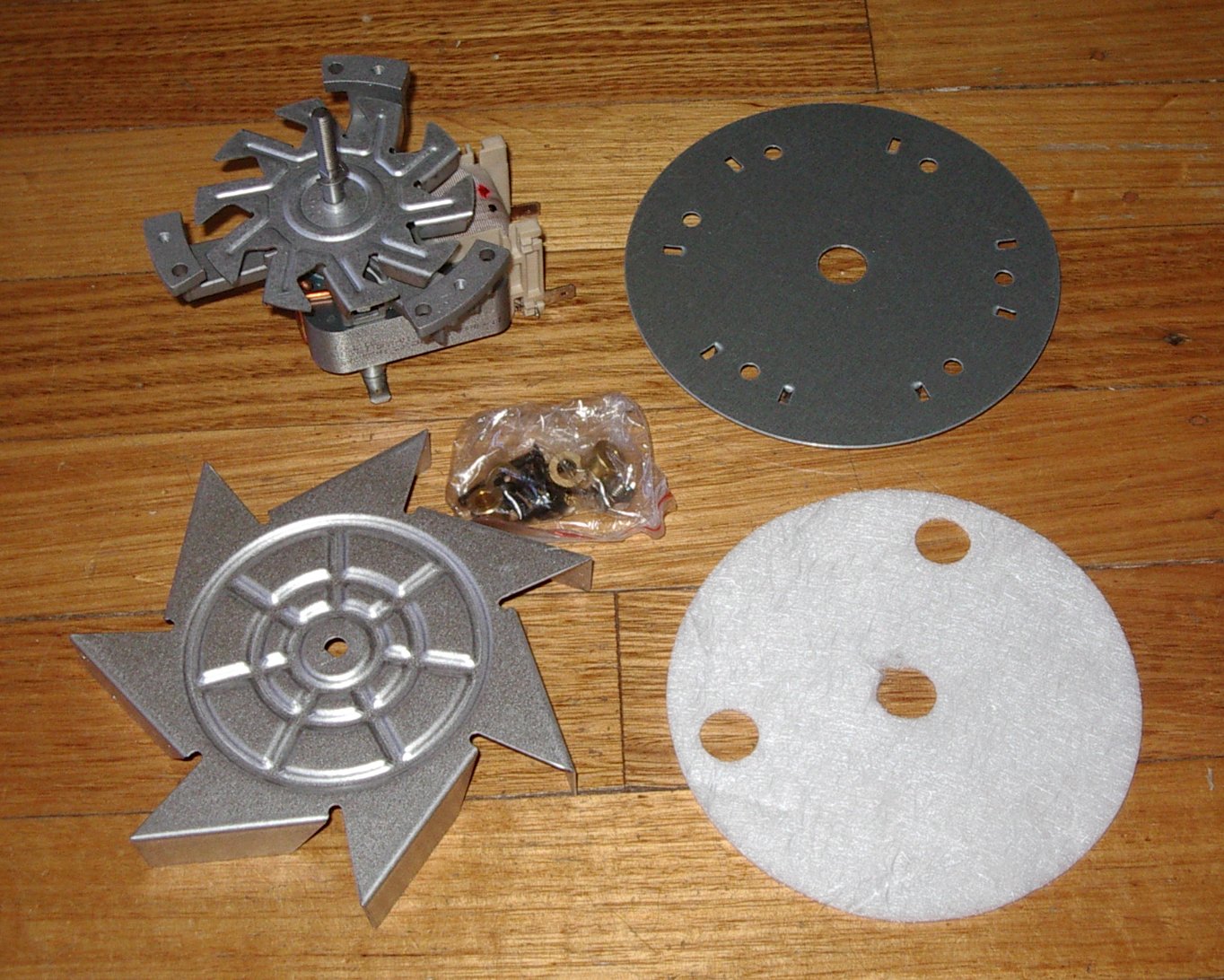

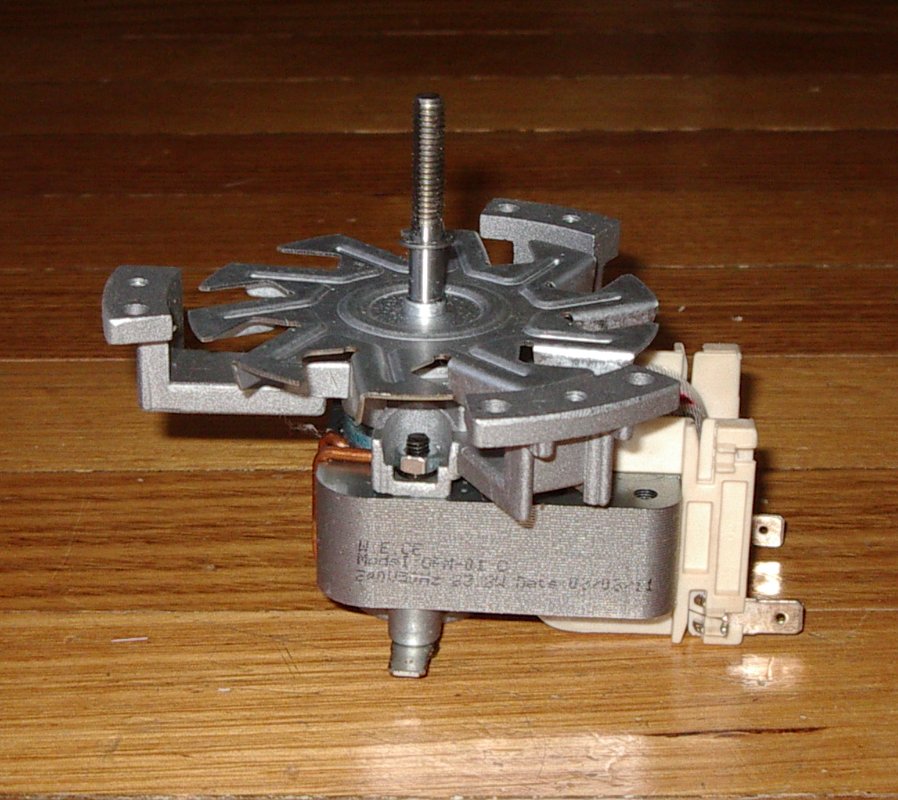

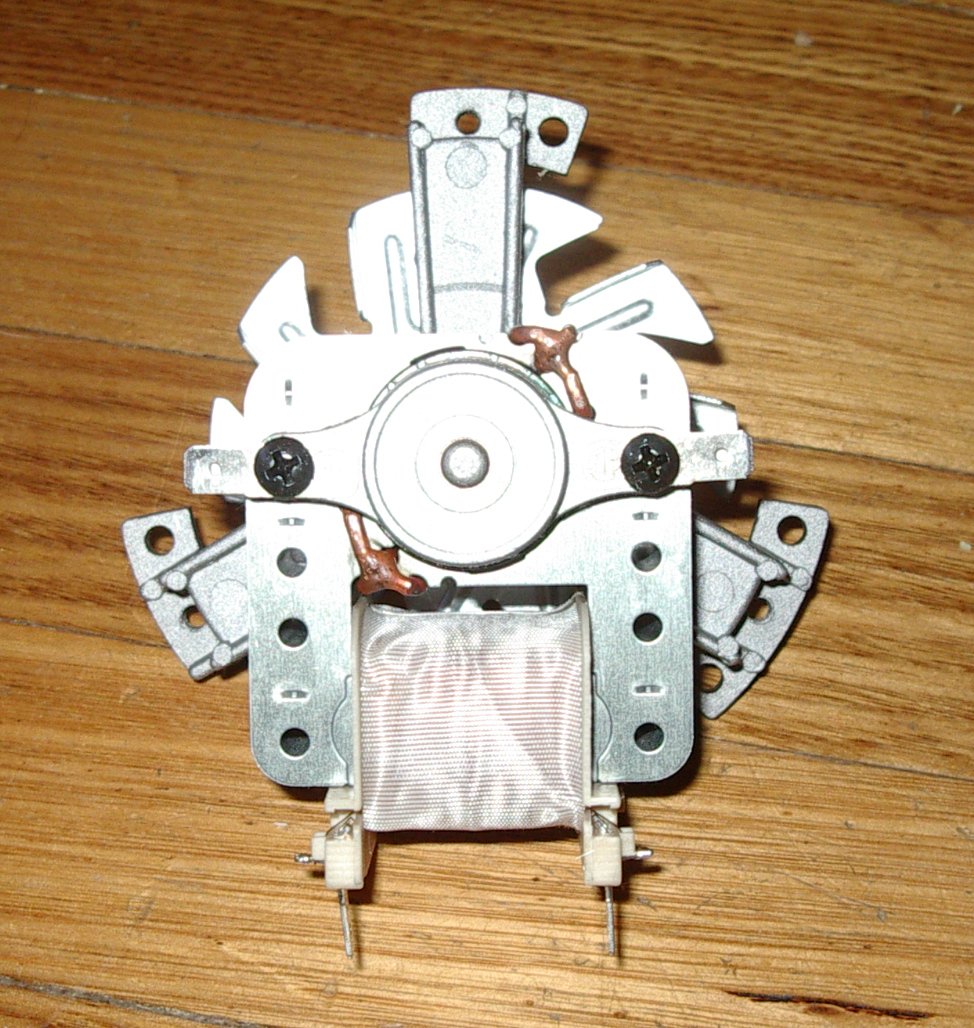

This universal fan motor is a perfect fit for a wide range of popular stove brands such as Chef, Simpson, Westinghouse, Technika, Blanco and many others. With the part number OFM01V3 (also known as 4055918561), it can replace similar models like OFM01, 9683A and more. Operating at 240VAC, it comes with 3 x 6.4mm spade terminals for easy connection and earthing. This motor suits most Simpson, Chef and Westinghouse models, and also works well with Smeg, Omega, Technika and other brands. It features 3 mounting holes in an equal triangle, 87mm apart, and the depth between the backing plate and the rear of the motor is 58mm. The package includes spacers that can adjust the fan distance from the mounting plate from 10mm to 28mm in different steps. The blade diameter is 150mm, and it runs on 220 - 240VoltsAC, 23.2Watts, 50Hz. It's easy to install and fully guaranteed. We've been in the appliance parts business for over 25 years, so you can buy with confidence.
Using this oven fan motor is quite simple. First, make sure the power to your oven is turned off. Then, locate the old fan motor in your oven. Remove the old motor carefully, taking note of how it's connected. Connect the new motor using the 3 x 6.4mm spade terminals, and don't forget to connect the earthing. Adjust the spacers as needed to get the right fan distance from the mounting plate. Once everything is connected, turn the power back on and test the motor. As for maintenance, keep the motor clean and free from dust. If you notice any strange noises or issues, turn off the power immediately and check the connections. Also, make sure to keep the area around the motor well - ventilated. This motor is fully guaranteed, but if you have any problems, you can always contact us as we have over 25 years of experience in supplying appliance parts.
