Universal Fan-Forced Oven Fan Motor with Blade & Long Shaft - Part # 9683LS

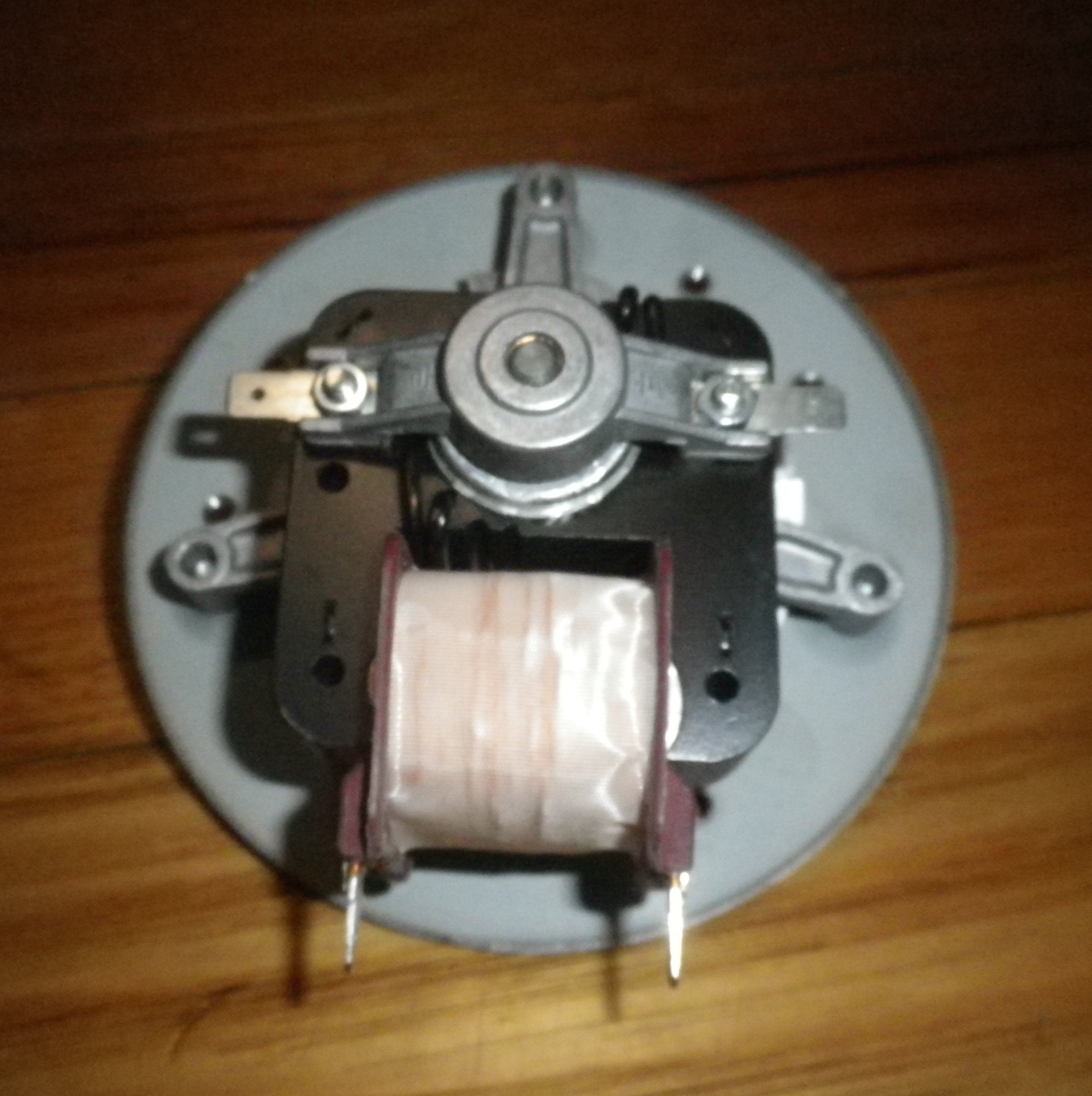

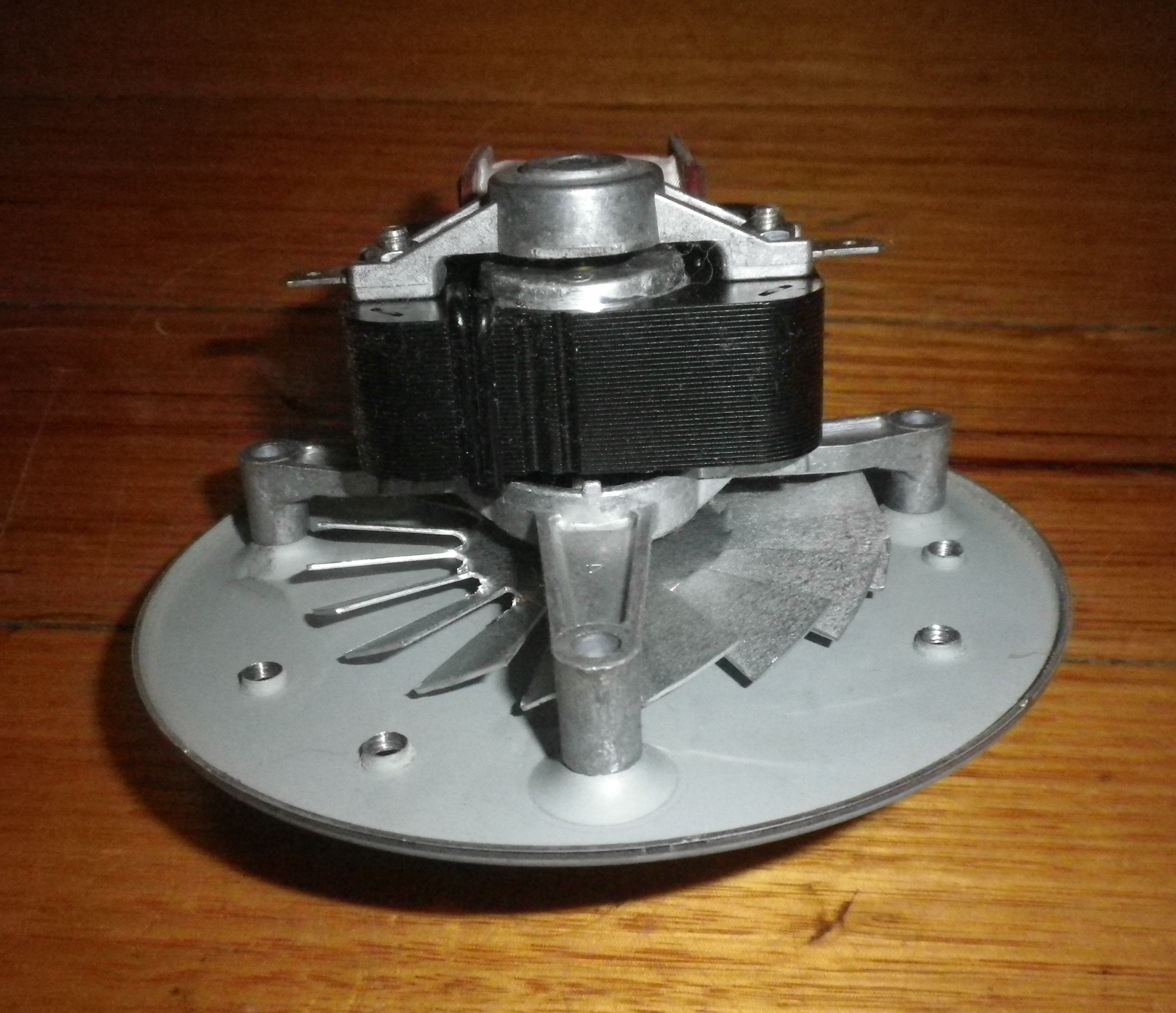

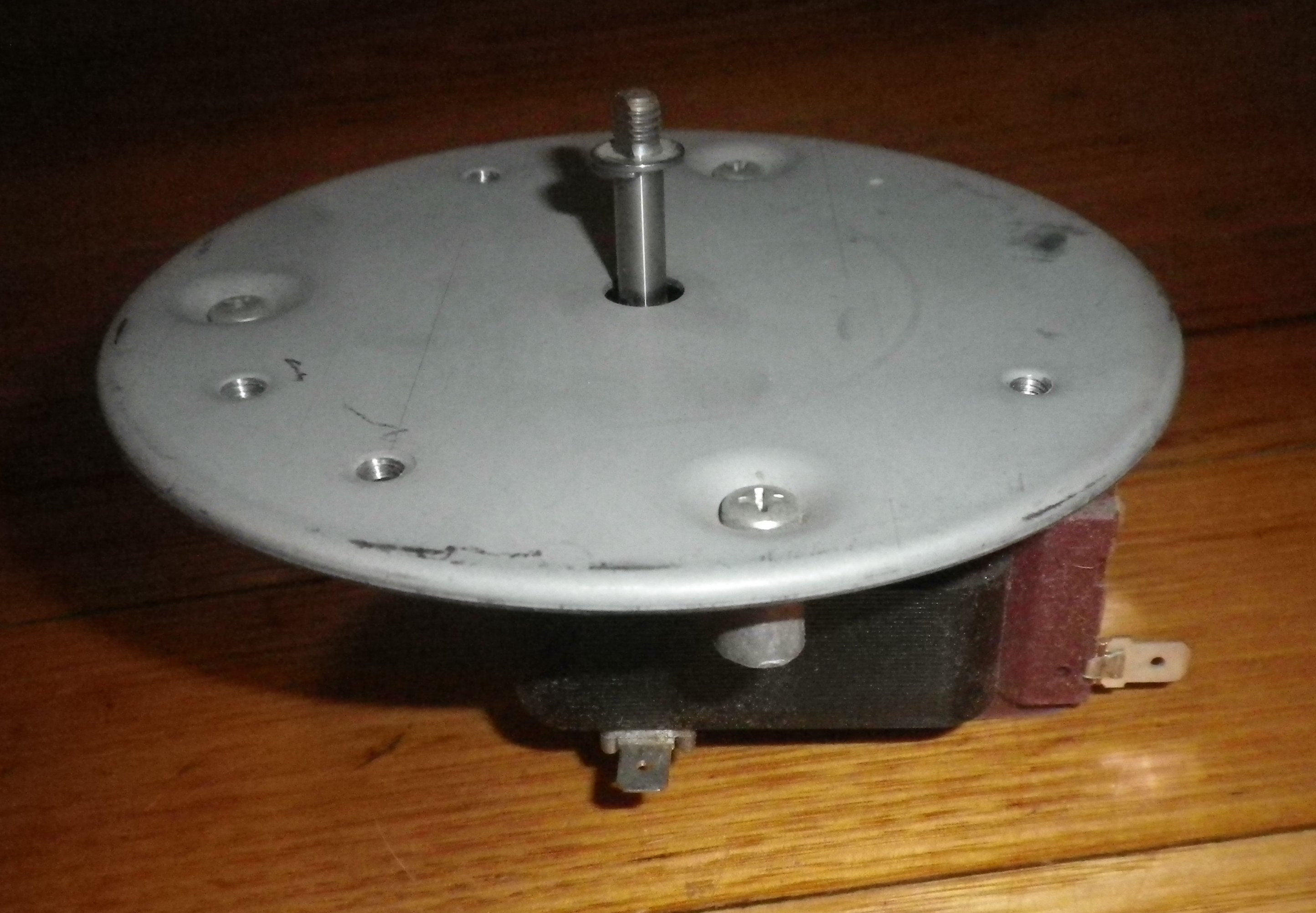

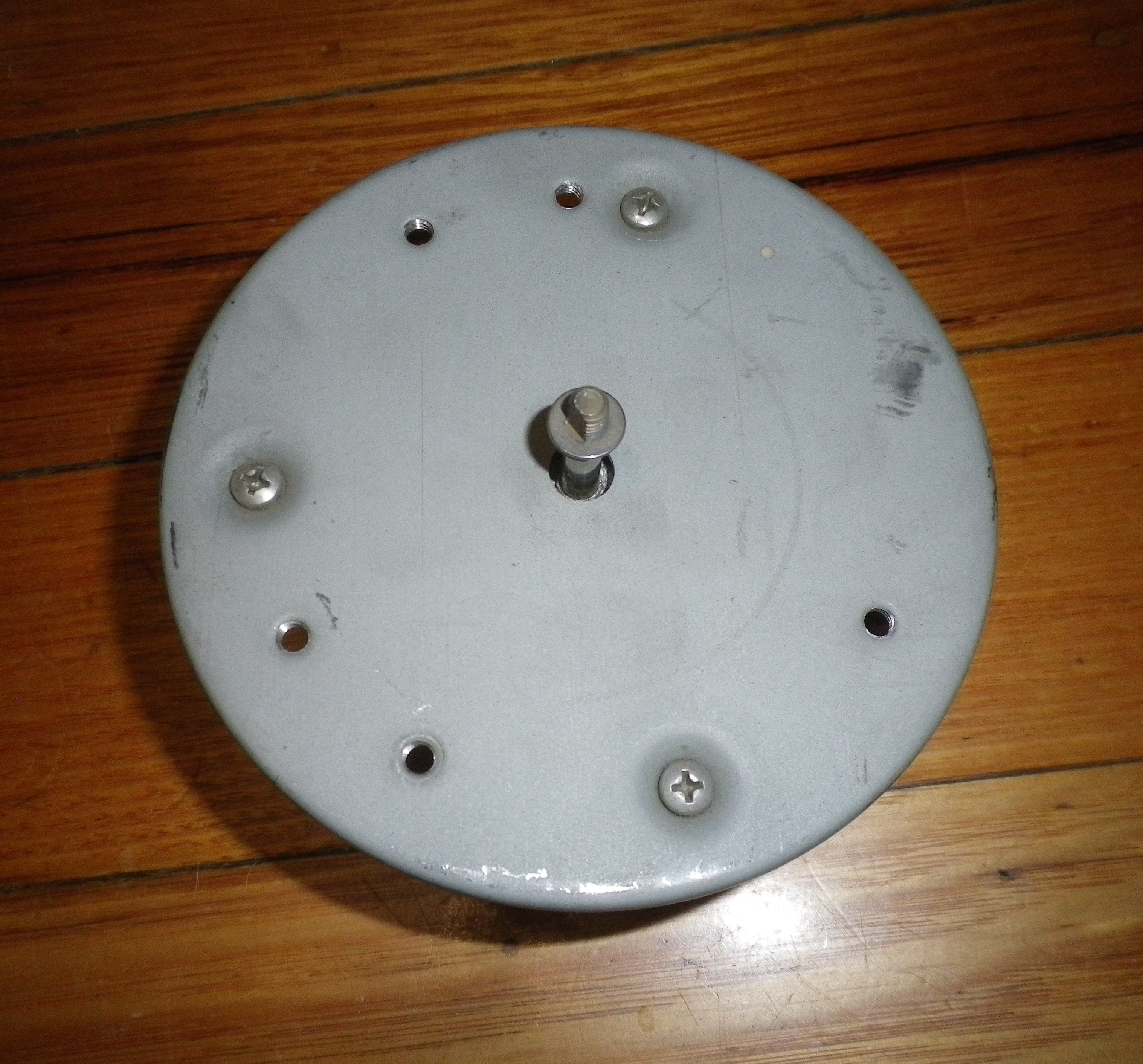

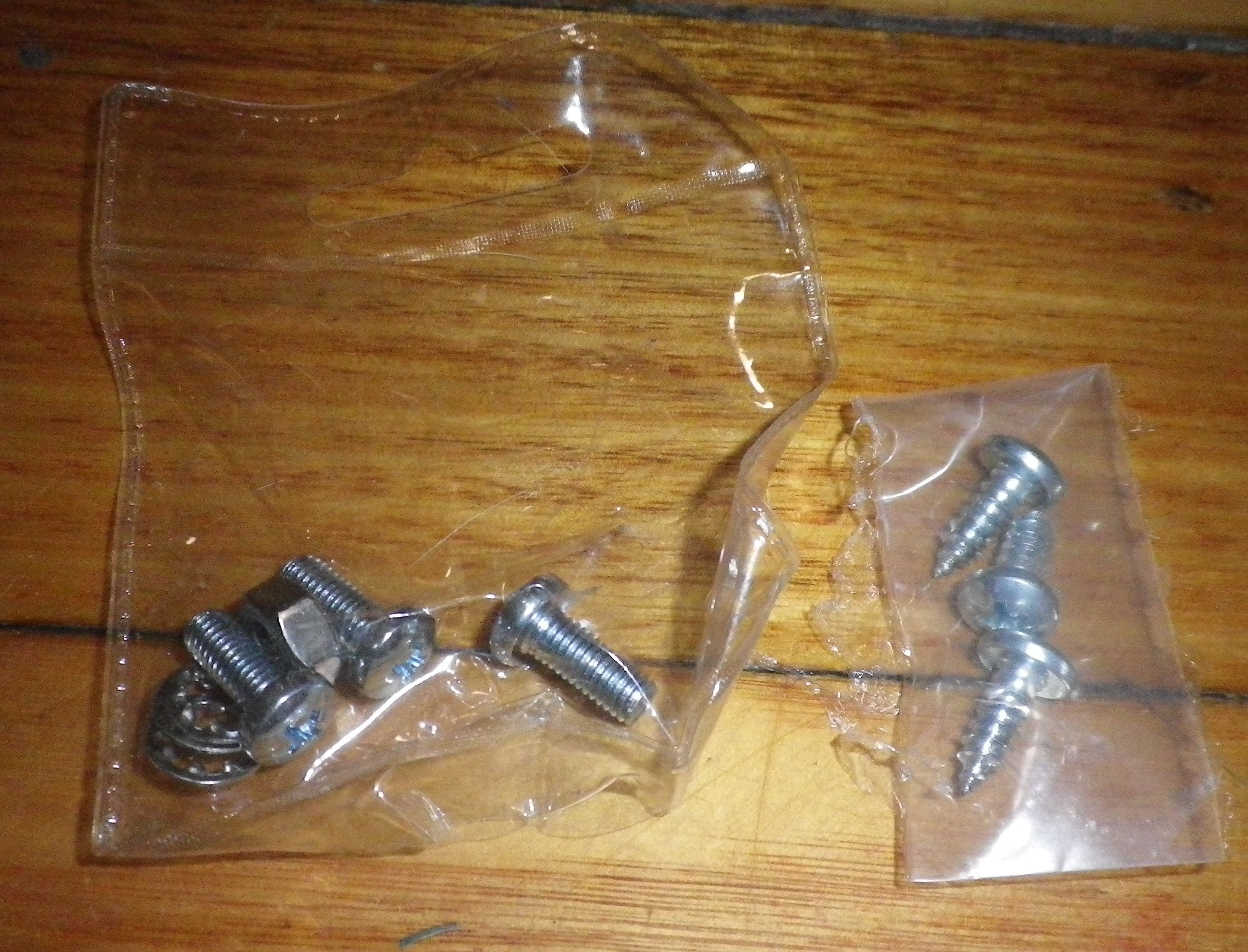

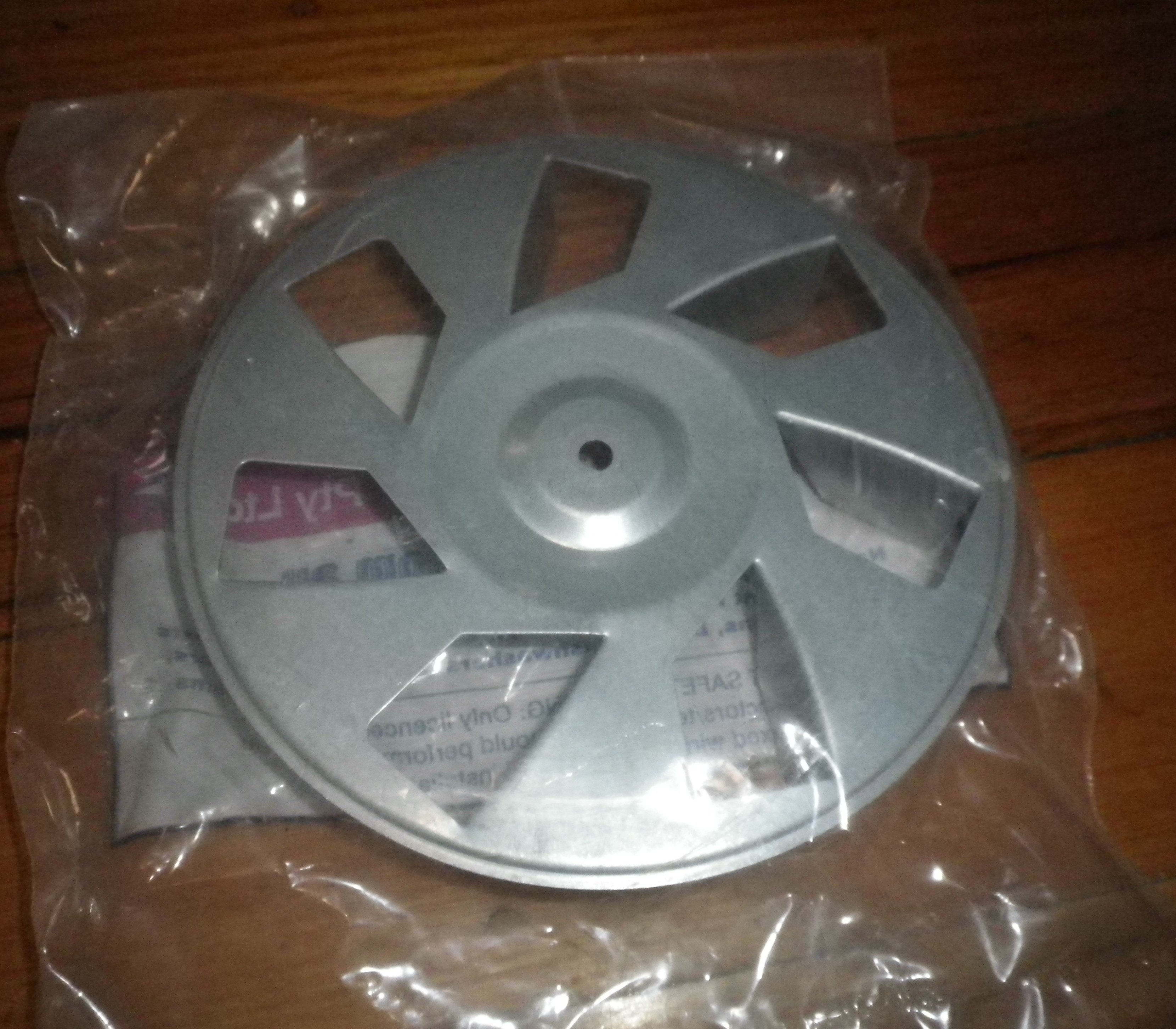

This universal fan motor with a long shaft is a perfect fit for many ovens and stoves. It's part number 9683LS, also known as C20XOE01/53 and 101299A. Operating at 240VAC, it has 4 x 6.4mm spade terminals for easy connection and earthing. The motor has a longer - than - normal shaft and is compatible with many popular oven brands. It features 5 mounting holes: 3 in an equal triangle spaced 87mm apart and 2 at 97mm apart. The distance between the backing plate and the fan blade is 16.7mm, and the depth between the backing plate and the rear of the motor is 57mm. The blade has a diameter of 152mm and comes with mounting screws. It runs on 220 - 240VoltsAC, 32Watts, 50Hz. It's super easy to install and fully guaranteed. With over 25 years of experience supplying appliance parts to both the trade and retail, you can buy with confidence.

Using this fan motor is quite simple. First, make sure your oven is unplugged or turned off at the breaker to avoid any electrical hazards. Then, locate the old fan motor in your oven. You can remove the old motor by unscrewing the mounting screws. Next, take your new fan motor and align it with the mounting holes in your oven. Use the included mounting screws to secure it in place. Connect the 4 x 6.4mm spade terminals to the appropriate electrical connections in your oven, and don't forget to connect the earthing terminal. Once everything is connected, plug your oven back in or turn on the breaker. Your oven should now work with the new fan motor. When it comes to maintenance, keep the motor clean. You can use a soft brush to gently remove any dust or debris from the motor and the fan blade. If you notice any strange noises or the motor isn't working as well as it should, turn off your oven and check the connections. Make sure to handle the motor carefully, and if you're unsure about anything, it's a good idea to consult a professional.
