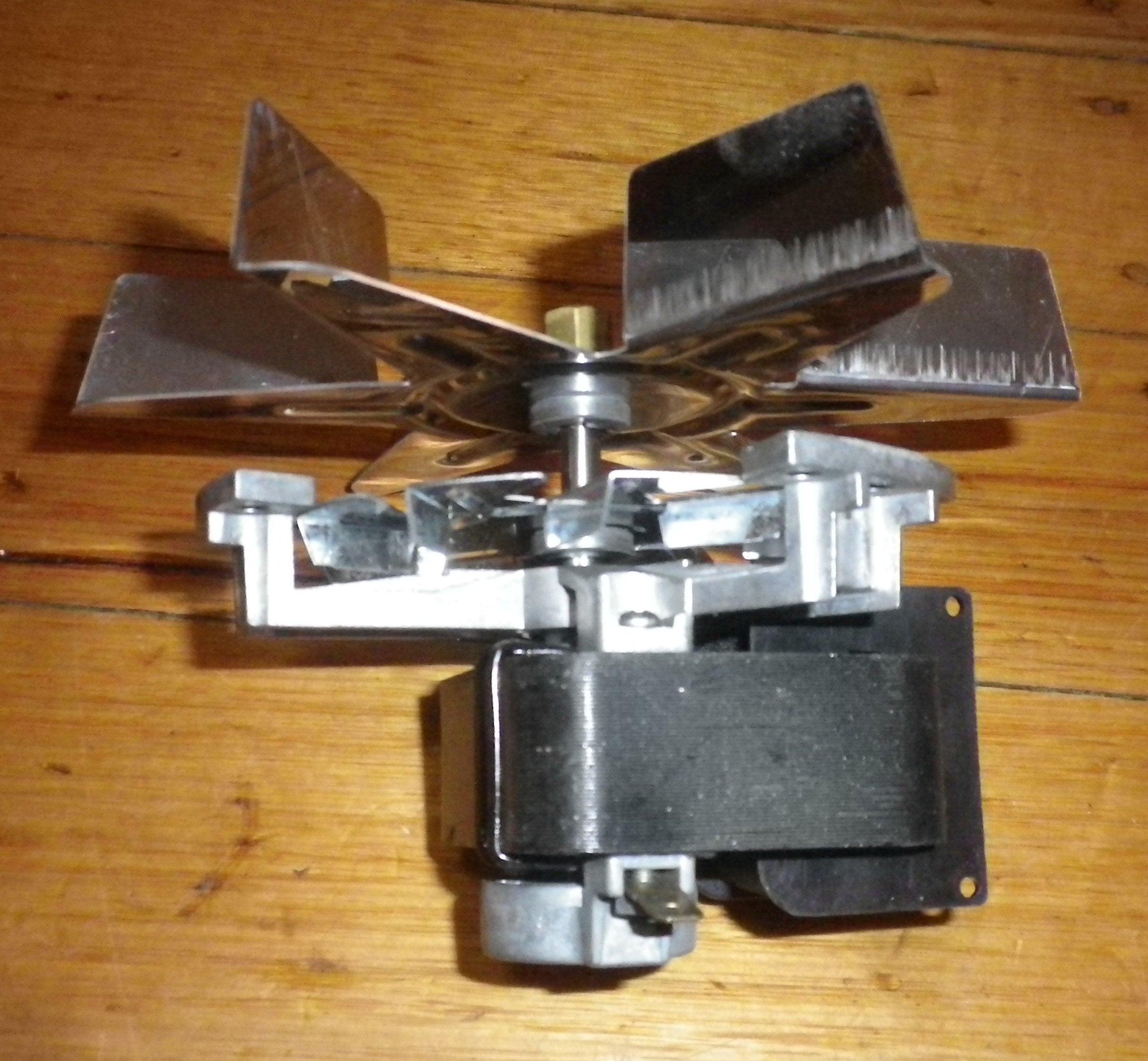

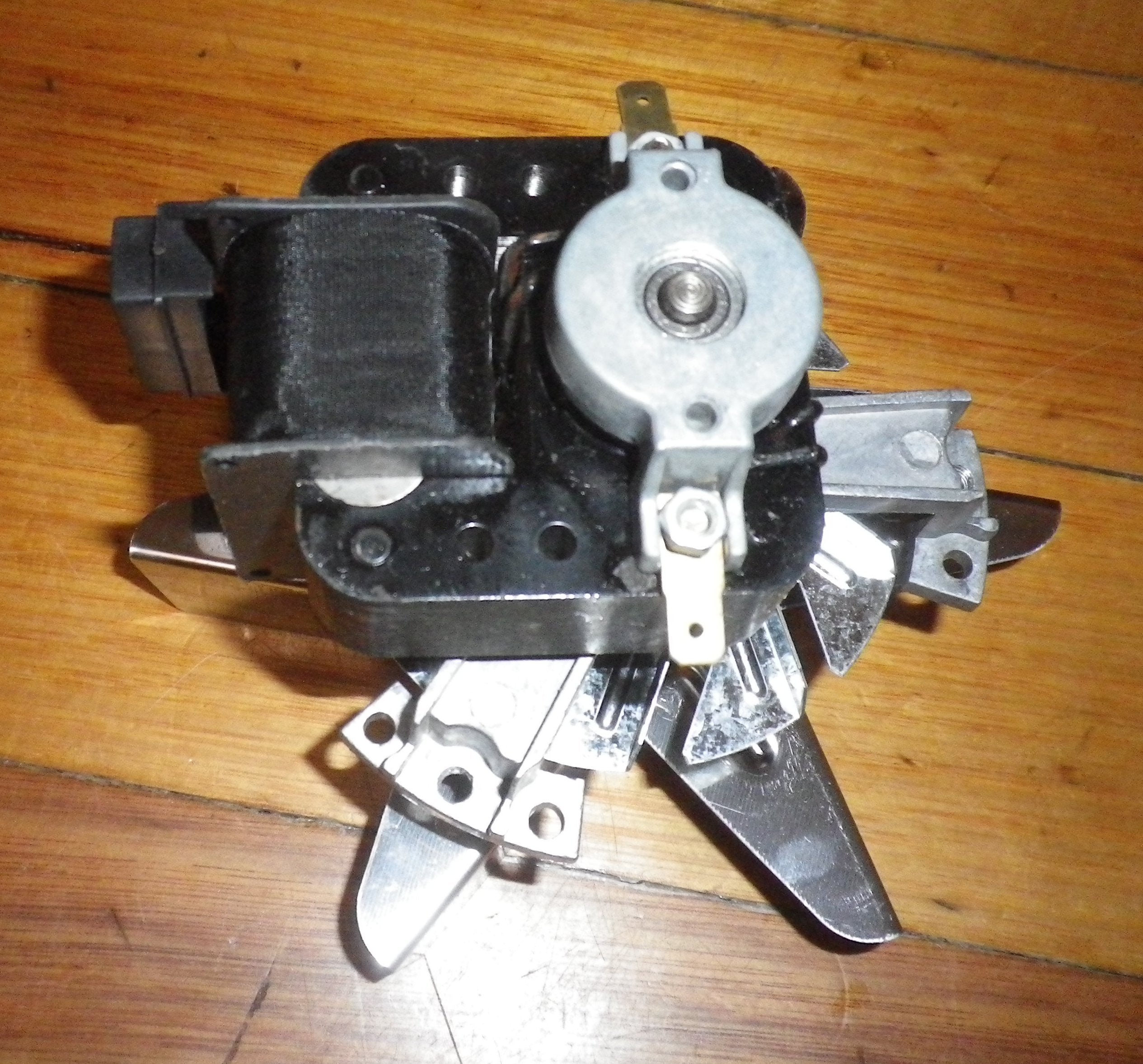

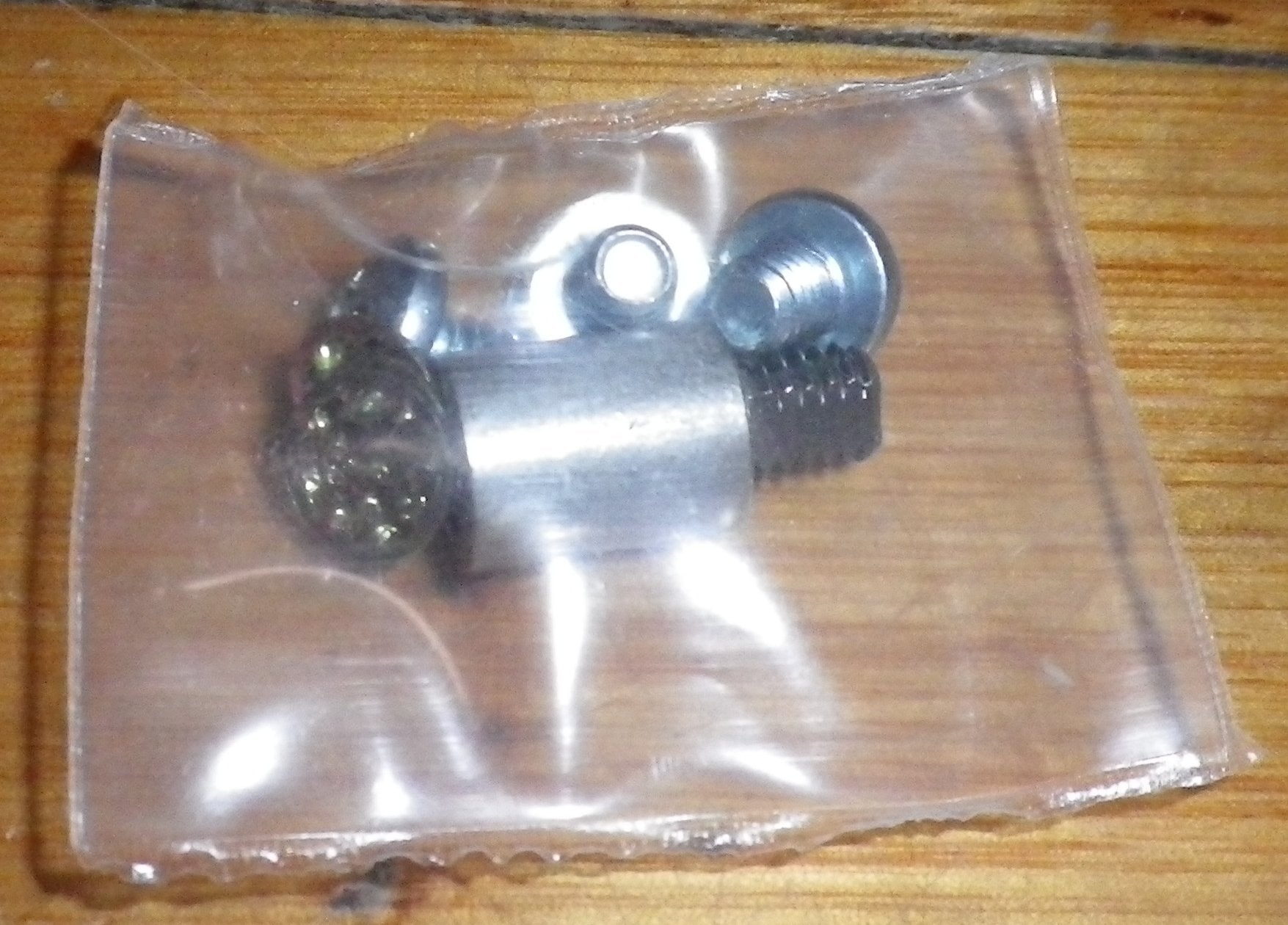

This universal fan motor with an extended shaft is a perfect fit for numerous ovens and stoves. It comes with part number 9683F. Operating at 240VAC, it features 4 X 6.4mm spade terminals for easy connection and earthing. This fan - forced oven fan motor has a longer - than - average shaft, making it compatible with many well - known brands. The motor has 3 mounting holes arranged in an equilateral triangle, 87mm apart. The distance between the mounting bracket and the fan blade is 16.0mm, and with a shaft extender installed, it's 32.0mm. The depth from the front of the mounting bracket to the rear of the motor is 62mm, and the blade diameter is 150mm. It also includes mounting screws. Running on 220 - 240VoltsAC, 32Watts, 50Hz, it's incredibly easy to install and comes with a full guarantee. With over 25 years of experience supplying appliance parts to both the trade and retail sectors, you can buy with confidence.
Using your new universal fan - forced oven fan motor is a breeze. First, make sure your oven is unplugged to avoid any electrical shock. Then, locate the old motor and remove it carefully. Use the included mounting screws to attach the new motor in place. Connect the 4 X 6.4mm spade terminals to the appropriate electrical connections and don't forget the earthing. Once installed, plug in your oven and test the motor. For maintenance, keep the motor clean by gently wiping it down with a dry cloth. Avoid using any abrasive materials as they could damage the motor. If you notice any unusual noises or the motor isn't working properly, unplug the oven immediately and contact our support team. Always follow the safety instructions and keep the motor away from water.
