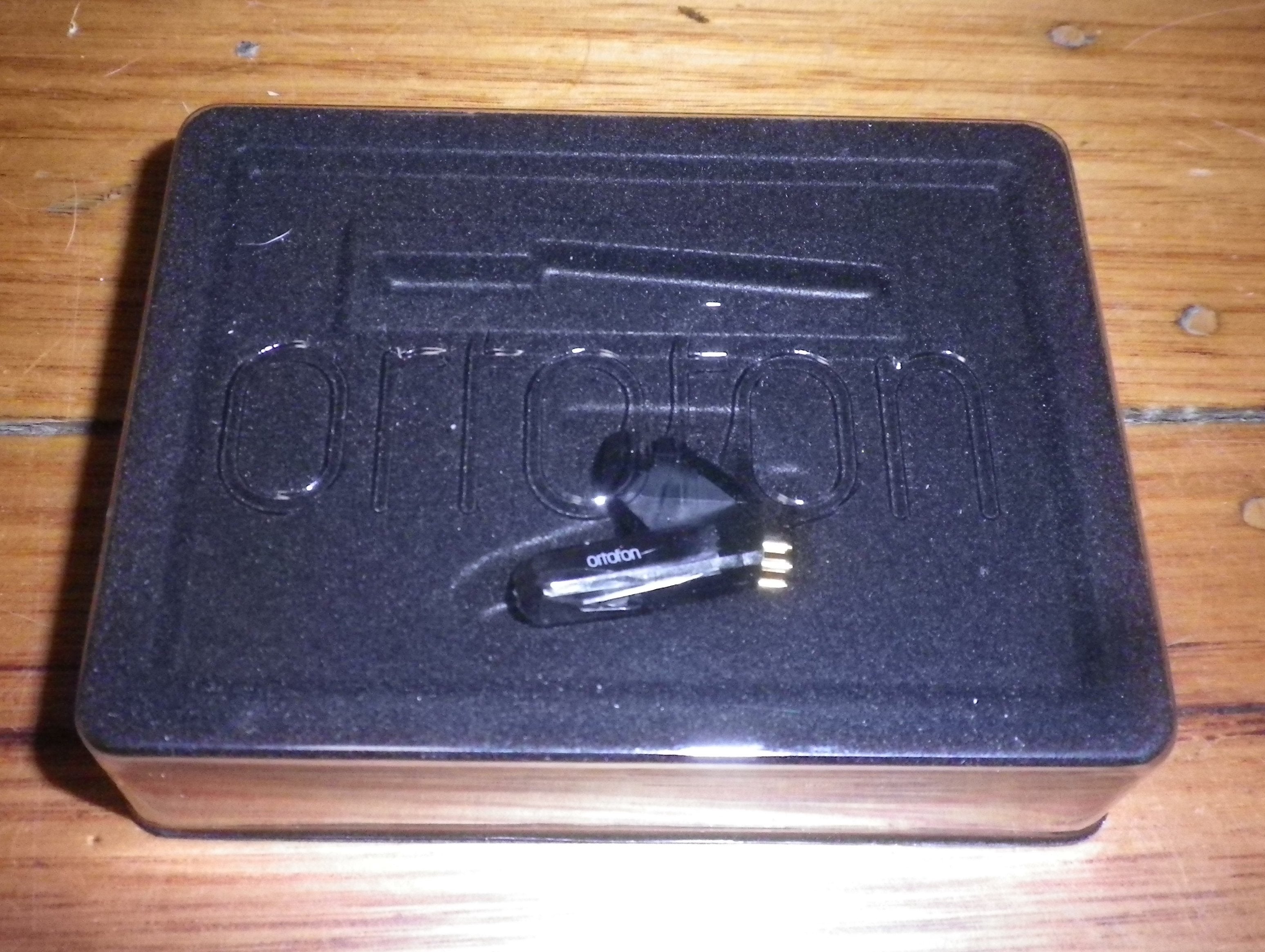

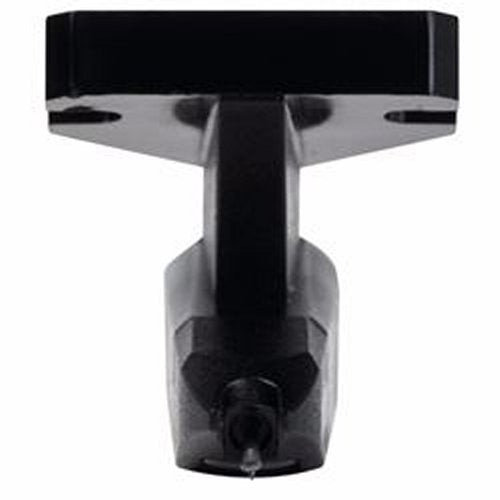

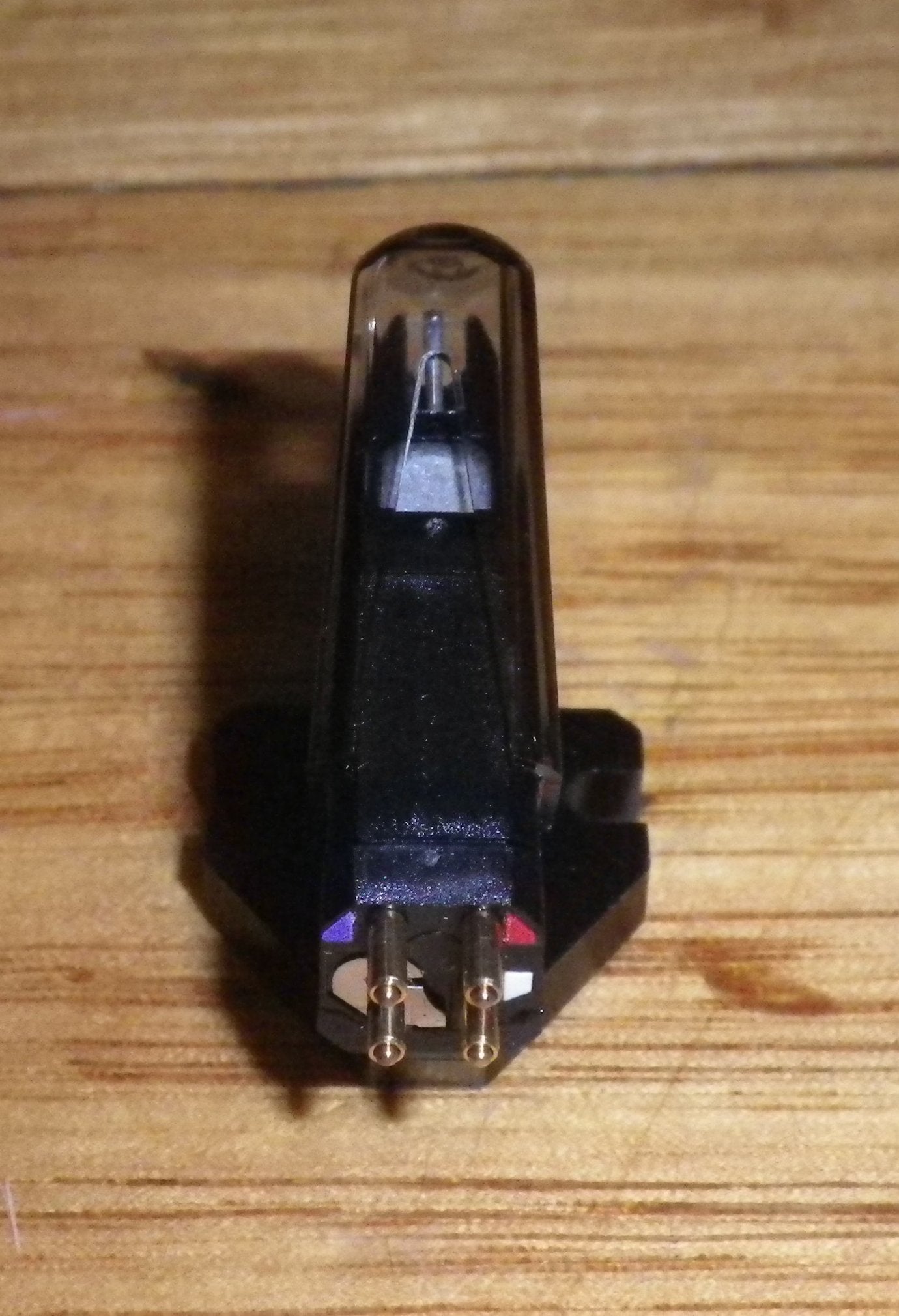

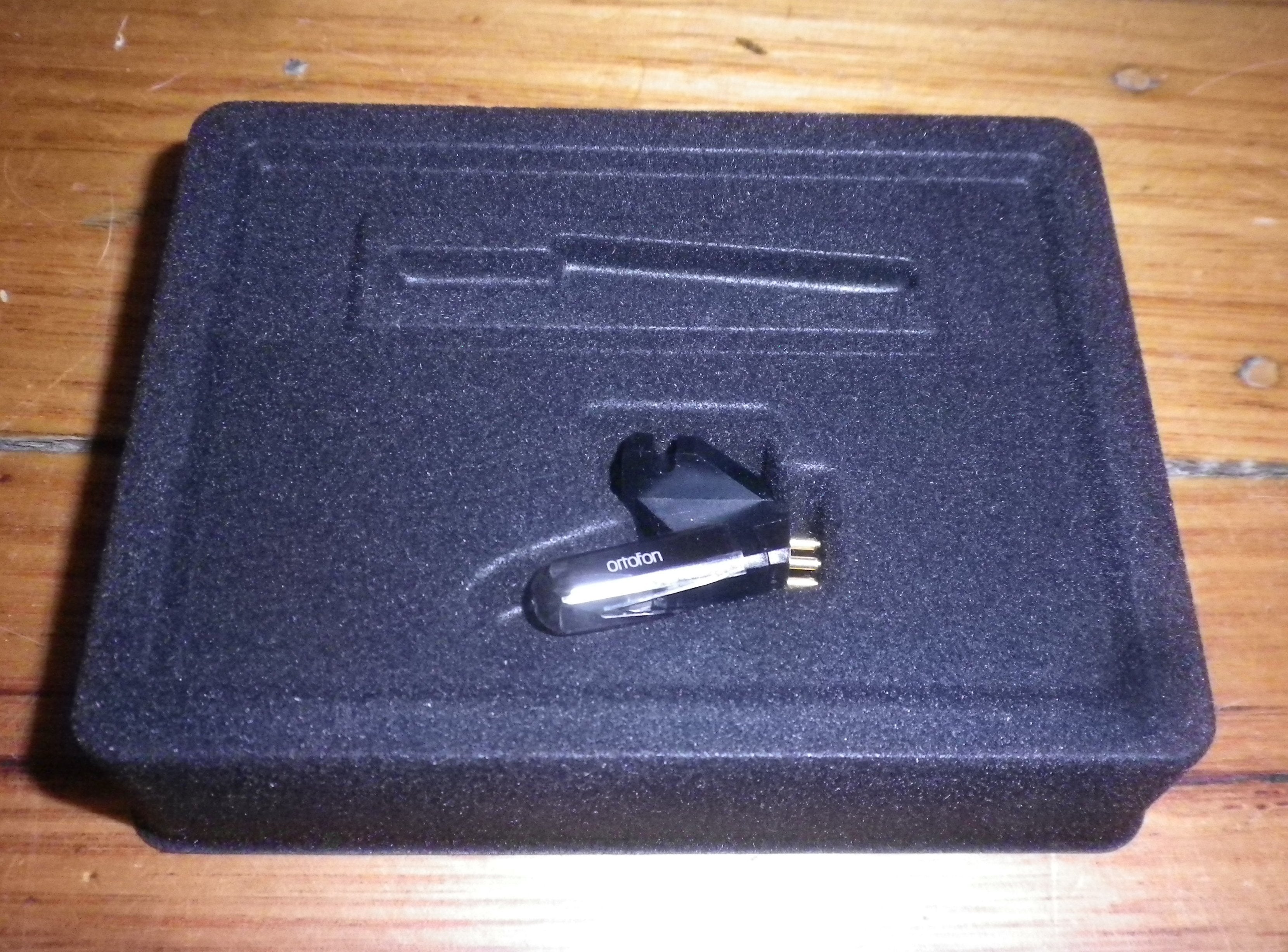

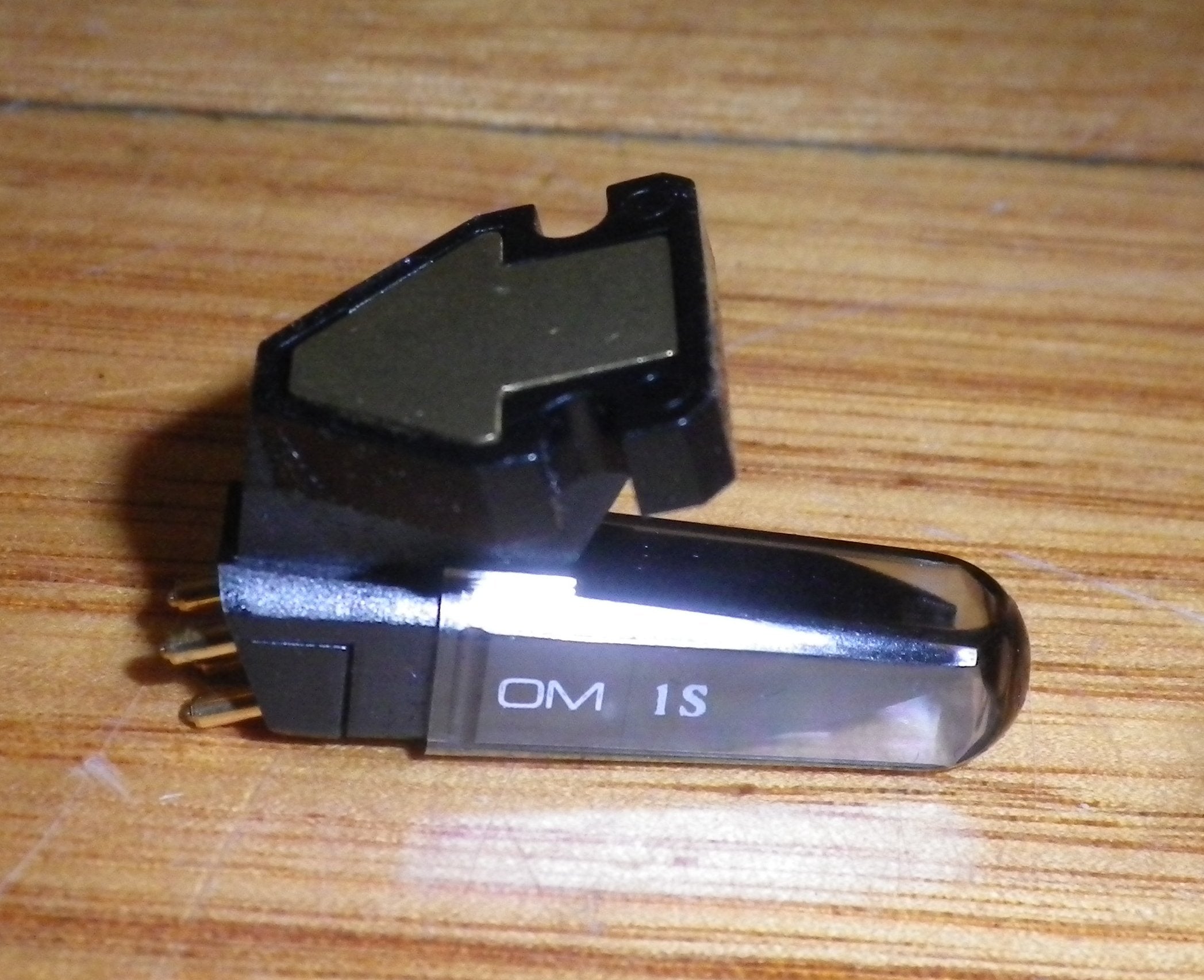

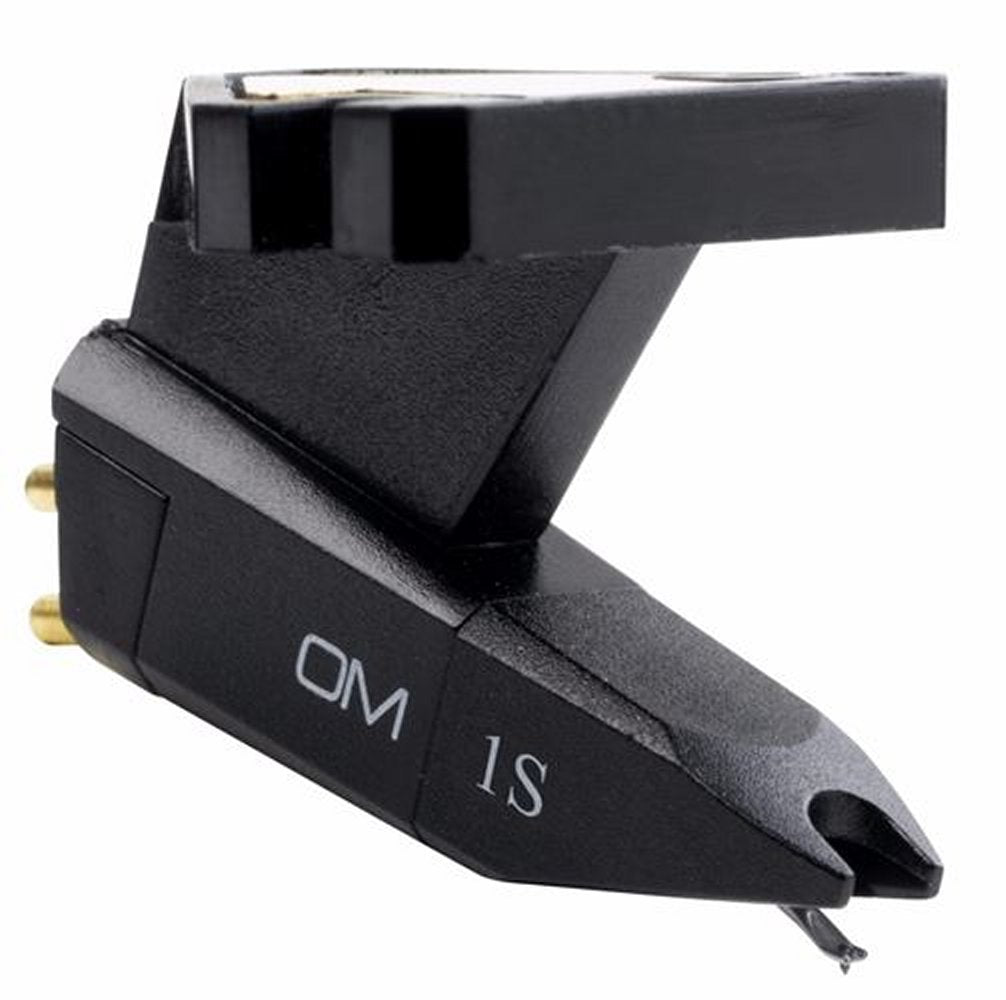

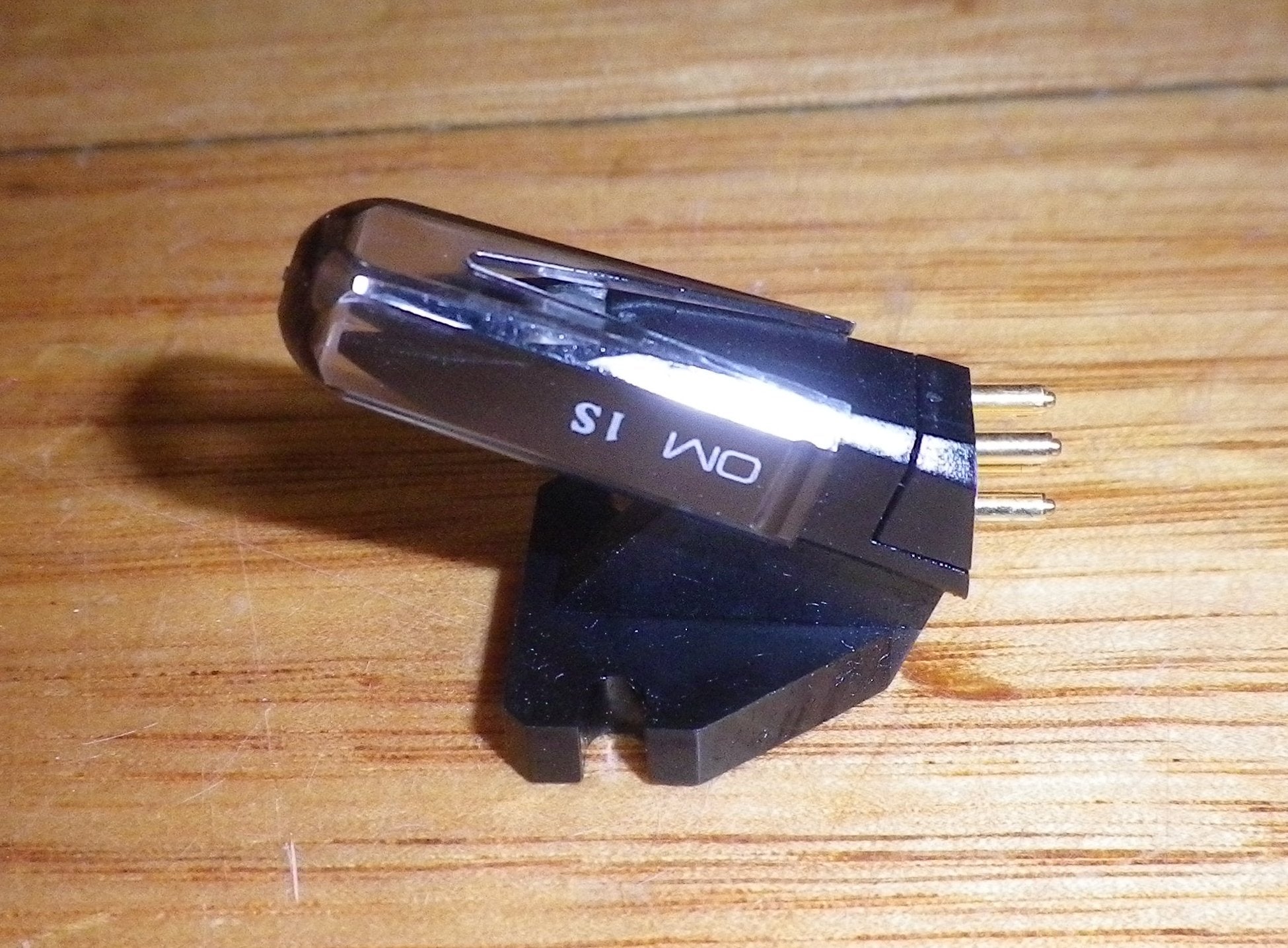

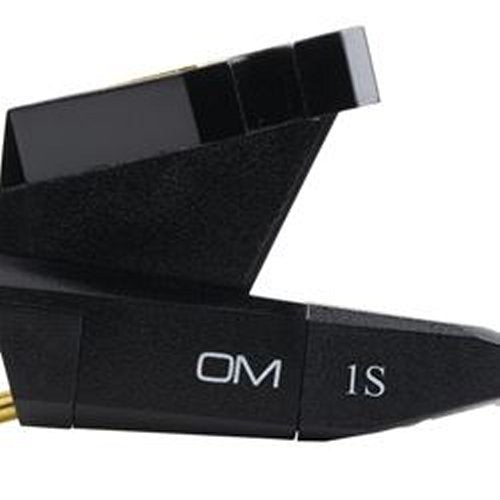

Discover the Ortofon OM1S Magnetic Cartridge with a spherical diamond stylus. Part No. OM1S. Can't find a suitable stylus? Replace the whole cartridge! The OM 1S is a Moving Magnet (MM) cartridge with a spherical stylus, delivering balanced and distortion - free playback for general use. If your tonearm has a standard headshell or cartridge mount, upgrade to optimal sound with the OM series. Ortofon's smart design includes a tiny, removable weight - plate on the mounting bracket. Leave it for a standard tonearm; remove it for a low - mass tonearm, reducing the cartridge mass to just 2.5g. Technical Specs: Output voltage at 1000 Hz, 5cm/sec is 4.5 mV. Channel balance at 1 kHz is 2 dB. Channel separation at 1 kHz is 20 dB and at 15 kHz is 12 dB. Frequency range at - 3dB is 20 - 20,000 Hz and frequency response is 20 - 22,000 Hz. Tracking ability at 315Hz at recommended tracking force is 60 µm. Compliance, dynamic, lateral is 20 µm/mN. Stylus type is spherical with a tip radius of R 18 µm. Tracking force range is 1.5 - 2.0 g (15 - 20 mN), recommended at 1.75 g (17.5 mN). Tracking angle is 20°. Internal impedance (DC resistance) is 750 Ohm, internal inductance is 450 mH. Recommended load resistance is 47 kOhm and load capacitance is 200 - 500 pF. Cartridge colour is black for both body and stylus. Cartridge weight is 5 g with extra weight and 2.5 g without. Replacement stylus unit is Stylus 1S. We've supplied appliance parts for over 25 years. Shop with confidence.
Using the Ortofon OM1S Magnetic Cartridge is quite straightforward. First, check your tonearm. If it's a standard one, leave the weight - plate on the cartridge. But if it's a low - mass tonearm, remove the weight - plate to reduce the cartridge's mass to 2.5g. Then, install the cartridge on your tonearm following the standard mounting procedures. When it comes to setting the tracking force, make sure to set it between 1.5 - 2.0 g (15 - 20 mN), with 1.75 g (17.5 mN) being the recommended value. For the best sound quality, connect it with a load resistance of 47 kOhm and a load capacitance between 200 - 500 pF. As for maintenance, keep the cartridge clean. Use a soft brush to gently clean the stylus after each use. Also, store it in a dry and safe place when not in use. If you need to replace the stylus, use the Stylus 1S replacement unit. And always remember to handle the cartridge with care to avoid any damage.
