Ortofon Magnetic Cartridge with OMB10 Stylus - Part # OMB10

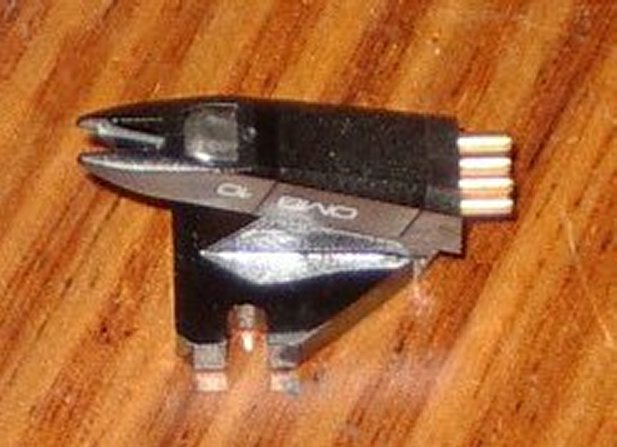

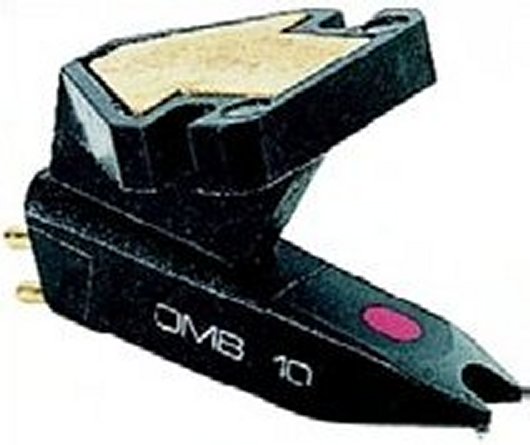

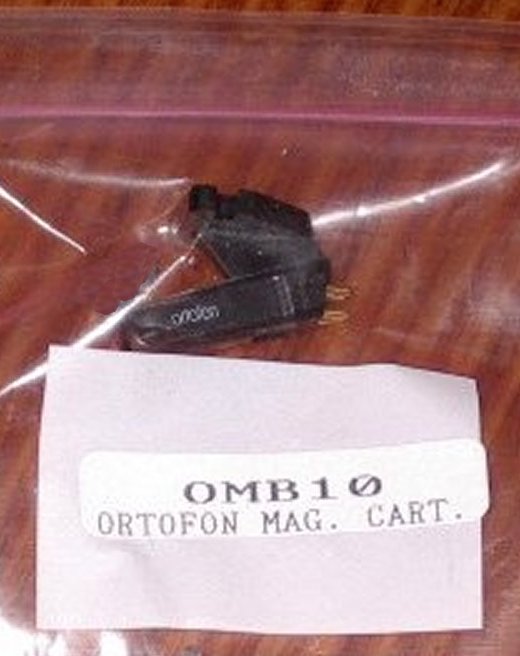

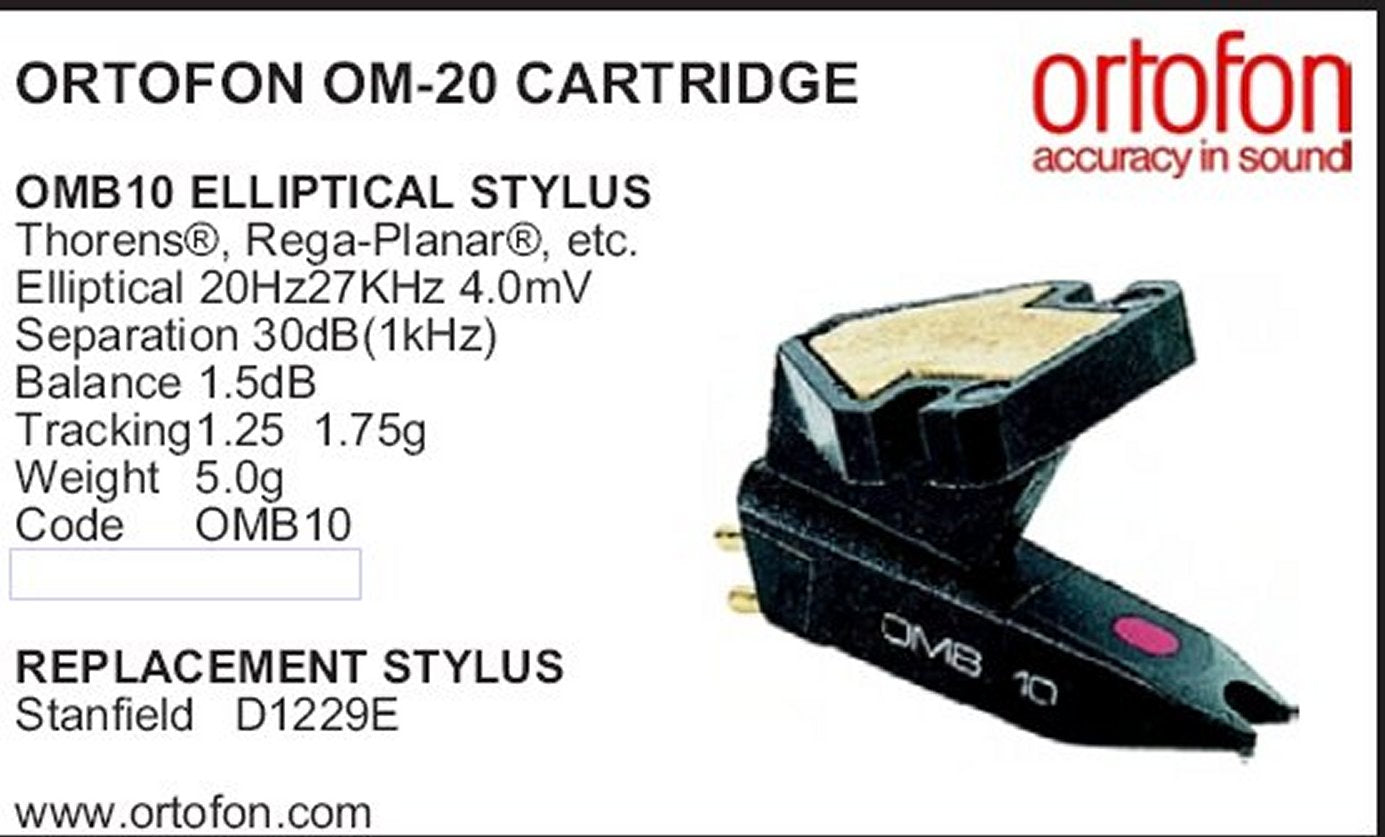

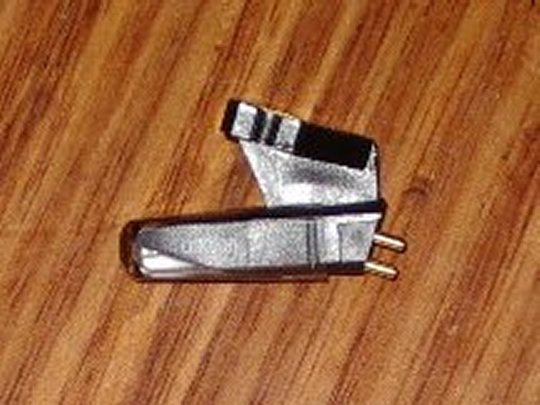

This Ortofon magnetic cartridge comes with a genuine OMB10 elliptical diamond stylus and a stylus cover. Part numbers include OMB10 and OM10. It's a great replacement option if you can't find a suitable stylus. It can replace many high - quality cartridges that mount to a standard 1/2' headshell with two screws and have pin connections for standard loose wire terminals. Used as standard equipment on well - known turntable brands like Rega Planar and Thorens, this high - quality HiFi cartridge offers excellent audio performance. It has a frequency response from 20Hz to 27KHz with a 4.0mV output. The separation is 30dB at 1kHz and balance is 1.5dB. The tracking force ranges from 1.25 - 1.75g, and it weighs 5.0g. A replacement stylus, the Stanfield D1229E elliptical, is also available. With over 25 years of experience supplying appliance parts, you can buy with confidence.

Using this Ortofon magnetic cartridge is easy. First, make sure your turntable has a standard 1/2' headshell with two screw holes and pin connections for standard loose wire terminals. Mount the cartridge onto the headshell, but note that mounting screws are not included, so you'll need to get your own. Once it's installed, set the tracking force between 1.25 - 1.75g according to your turntable's requirements. When using, always handle the stylus gently and put on the stylus cover when it's not in use to protect it. For maintenance, keep the cartridge clean. You can use a soft brush to remove dust from the stylus. If the sound quality starts to decline, you can consider replacing the stylus with the Stanfield D1229E elliptical. Remember, buying from us means you're getting a product from a supplier with over 25 years of experience, so you can trust its quality.
