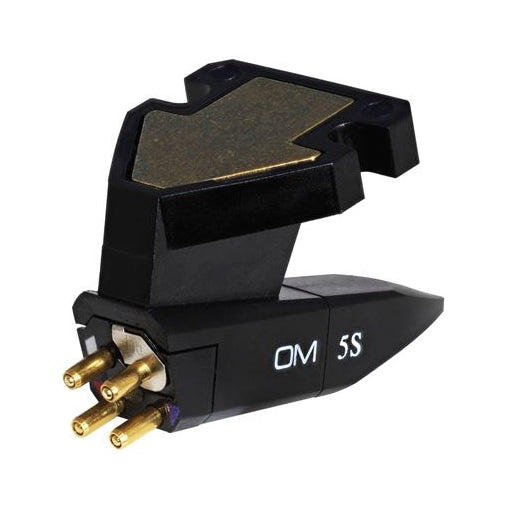

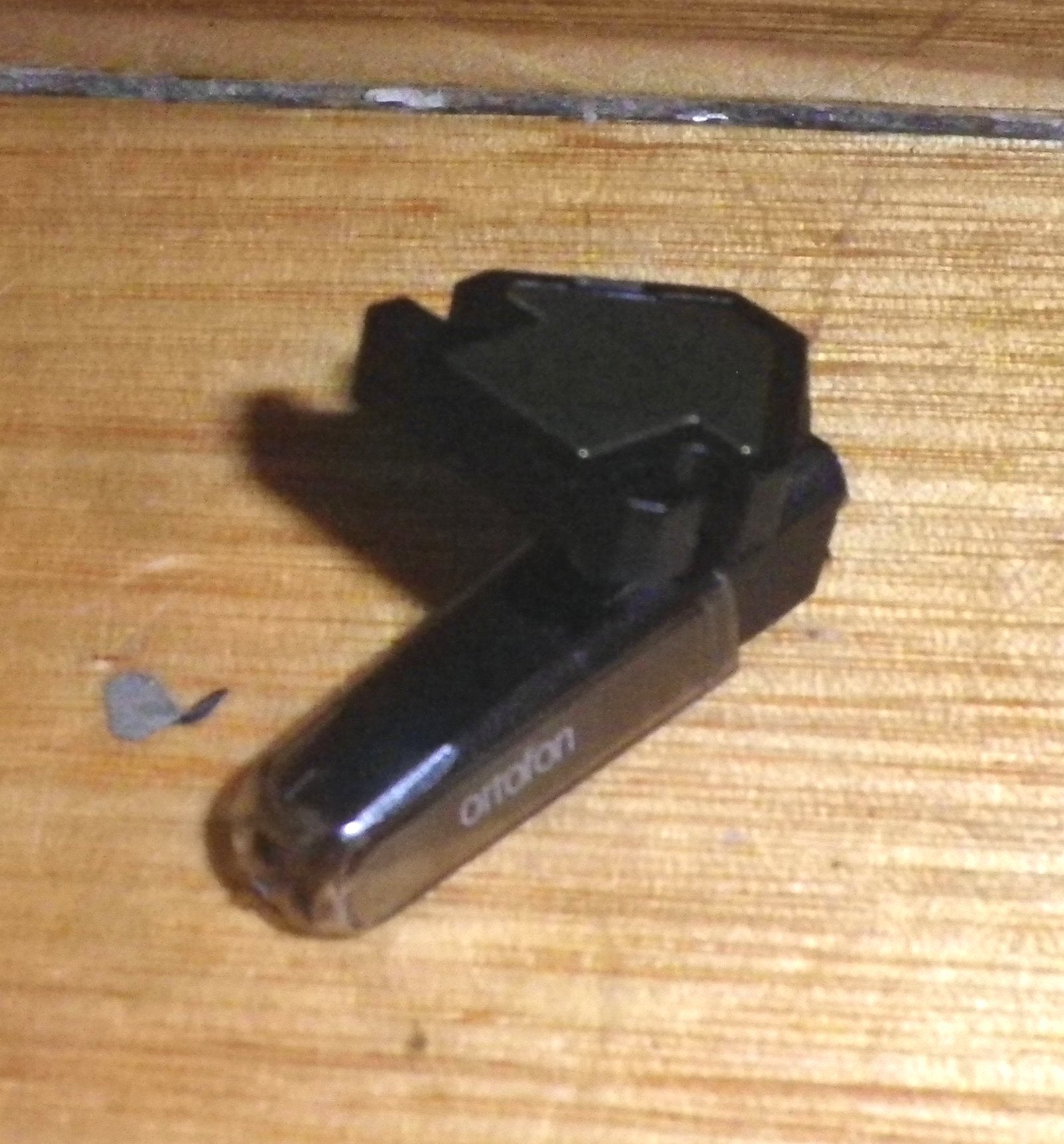

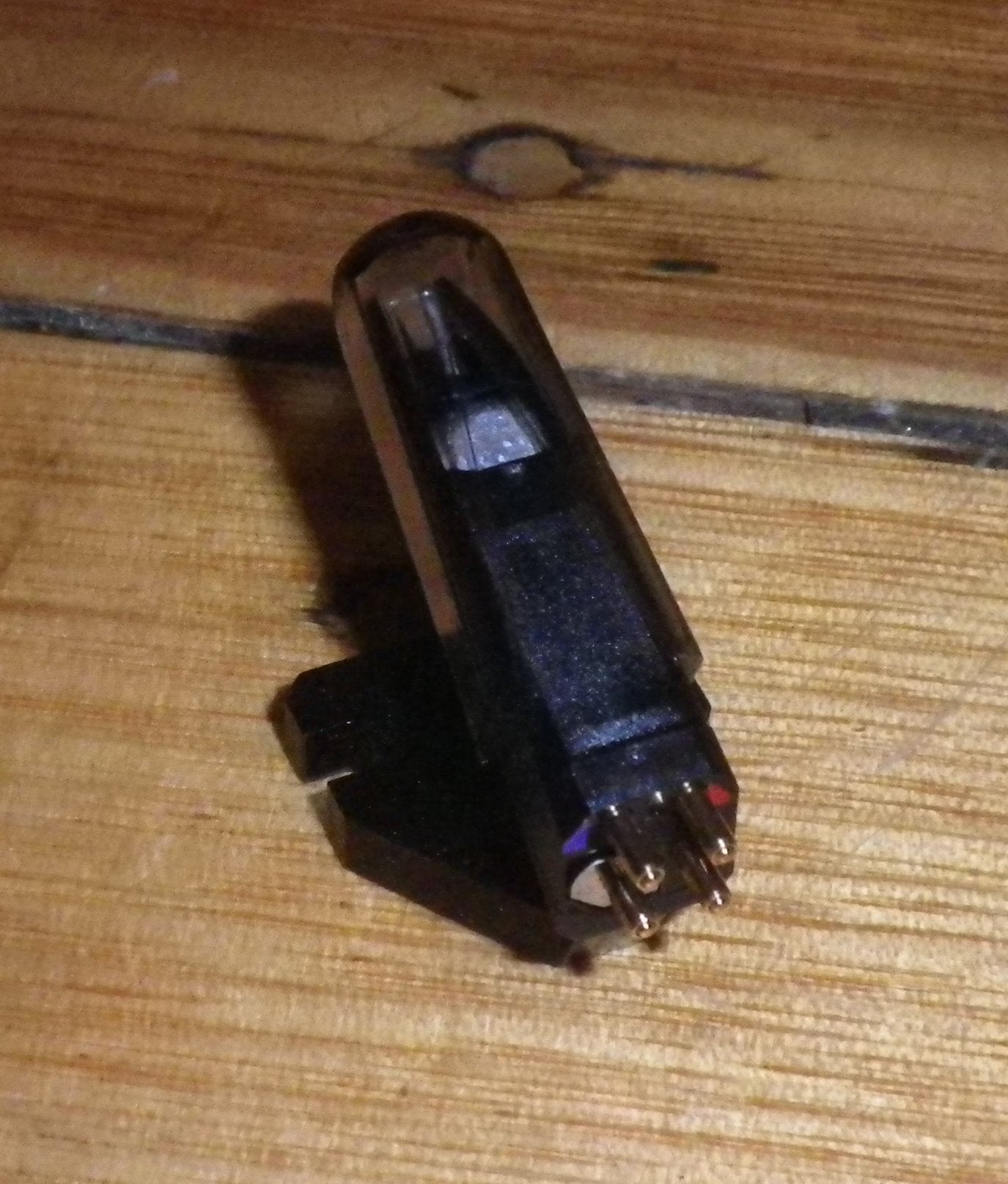

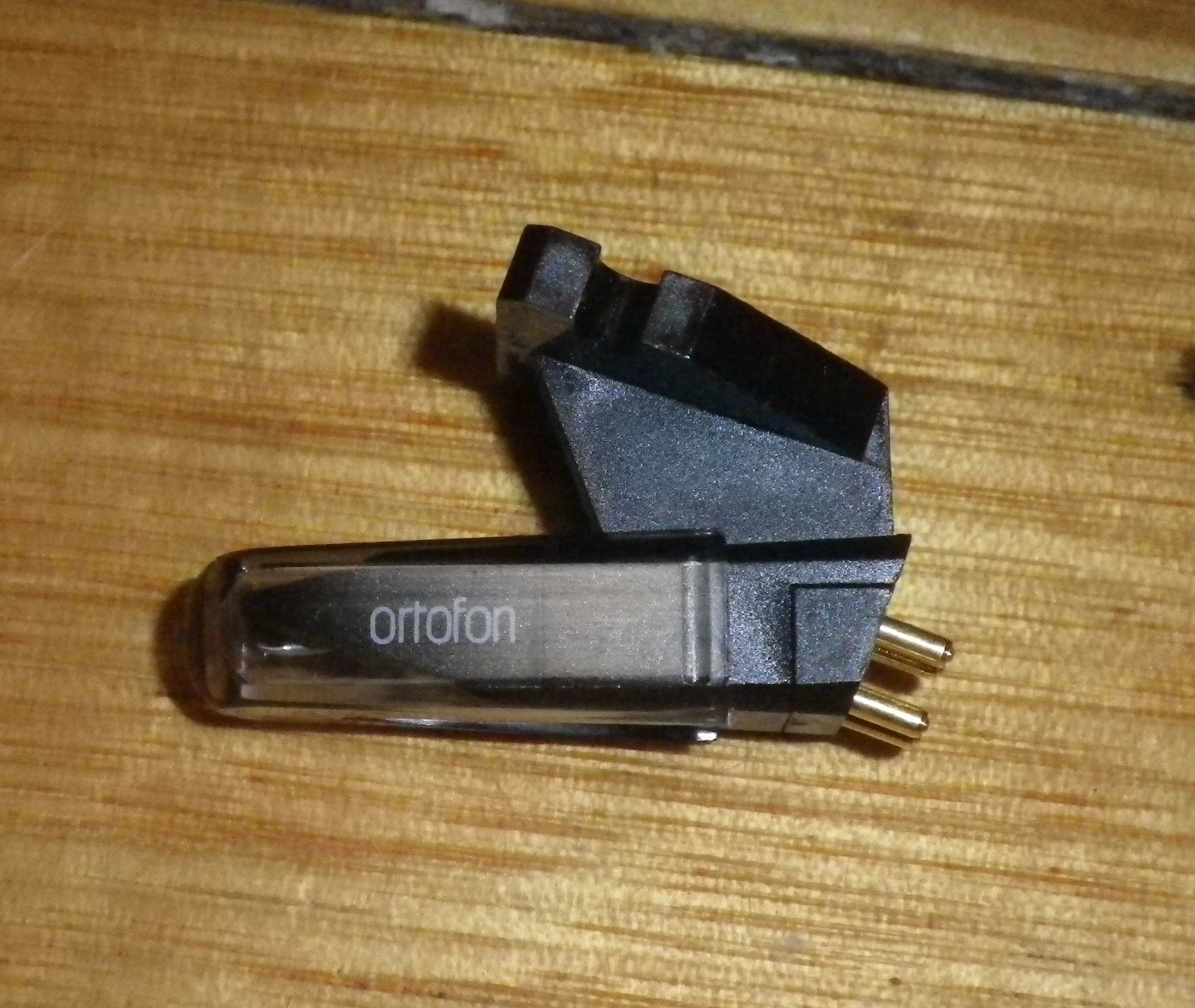

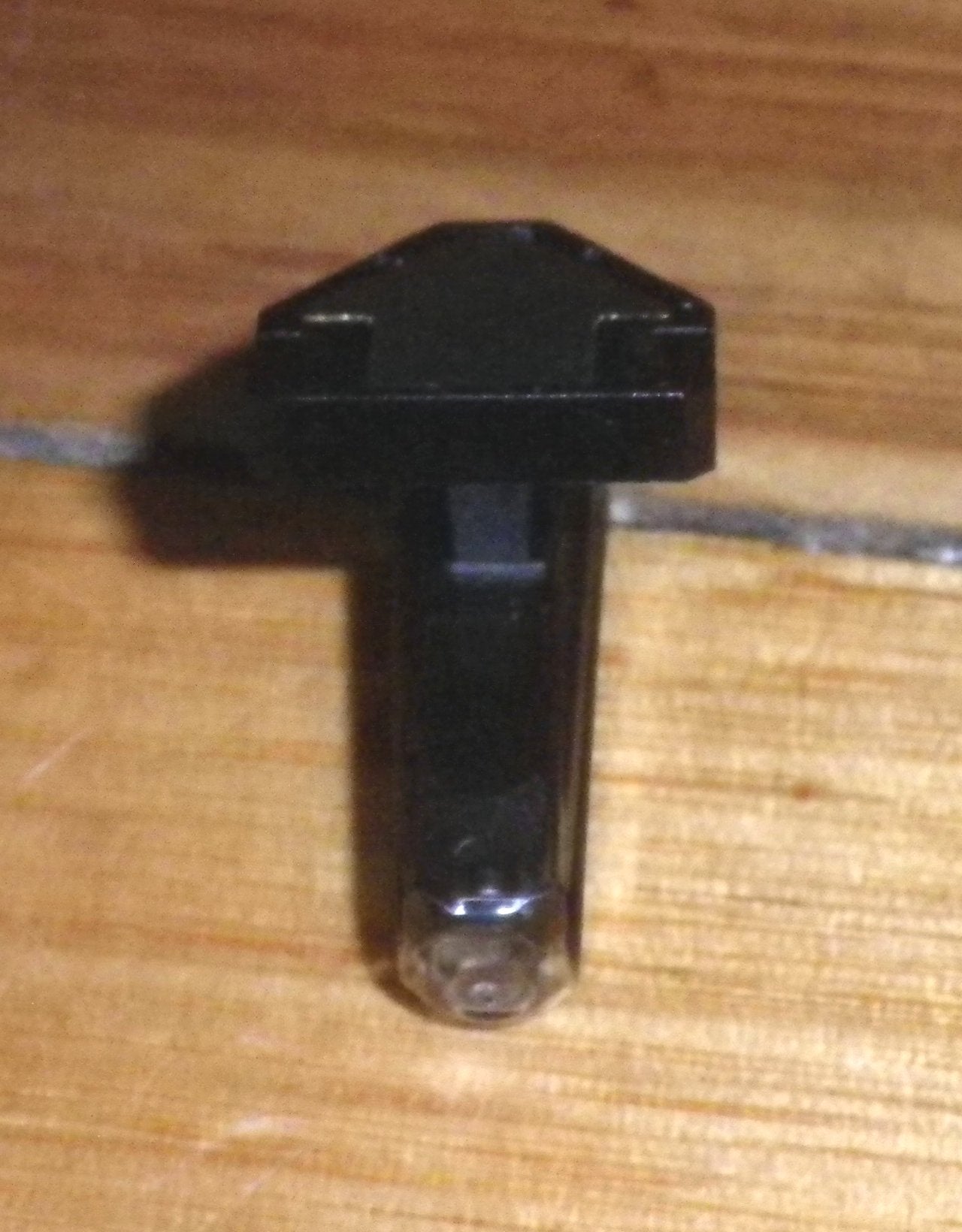

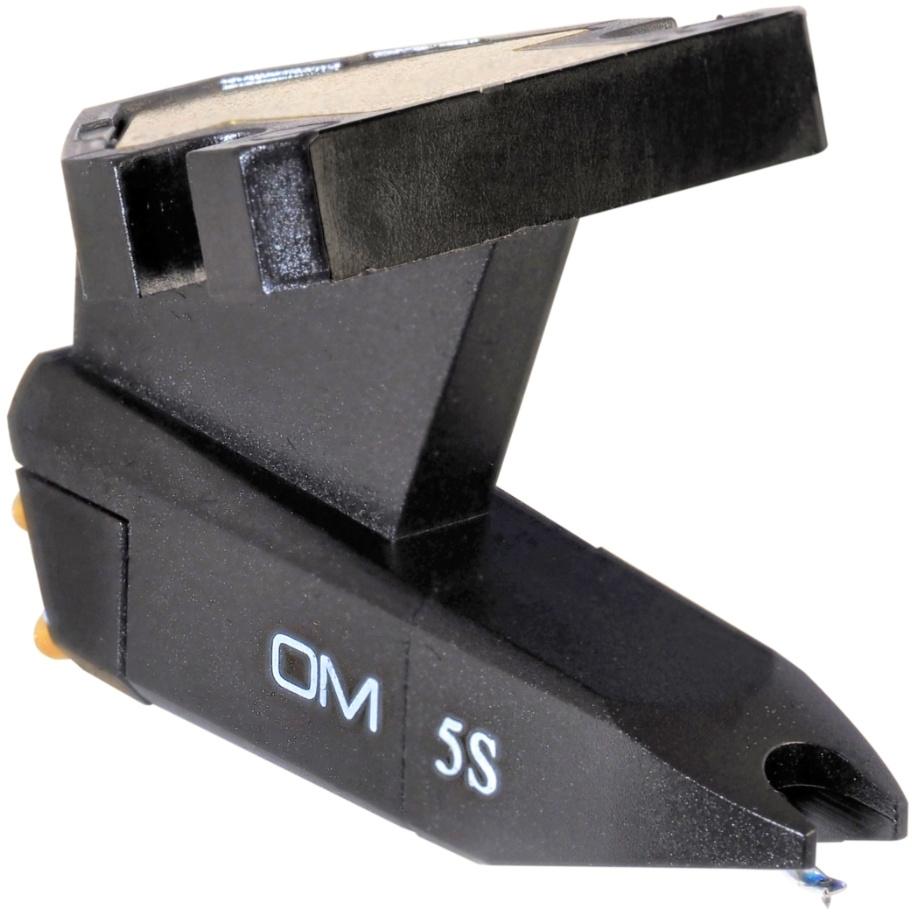

Discover the Ortofon magnetic cartridge equipped with an OM5S spherical diamond stylus. Part No. OM5S. Can't find a proper stylus? Why not swap out the whole cartridge? The OM 5S is a versatile moving magnet cartridge designed for general use. It comes with a spherical stylus, offering a durable and cost - effective way to play vinyl records. If your tonearm has a standard headshell or cartridge mount, upgrade to top - notch sound quality with the OM series. Ortofon has ingeniously designed these cartridges for perfect tonearm matching. There's a small, removable weight - plate at the top of the mounting bracket. For a standard tonearm, just keep the weight - plate. If you have a low - mass tonearm, simply remove the weight, and the cartridge's mass drops to just 2.5g. Technical specs: Output voltage at 1000 Hz, 5cm/sec is 4.0 mV. Channel balance at 1 kHz is 2 dB, and channel separation at 1 kHz is 22 dB. Frequency range at - 3dB is 20 - 25,000 Hz. Tracking force range is 1.5 - 2.0 g (15 - 20 mN), with a recommended tracking force of 1.75 g (17.5 mN). The cartridge is black both in body and stylus. It weighs 5 g with the extra weight and 2.5 g without it. The replacement stylus unit is Stylus 5S. We've been supplying appliance parts to the trade and retail for over 25 years. Shop with confidence.
Using the Ortofon OM5S cartridge is easy. First, check your tonearm. If it's a standard one, leave the weight - plate on the cartridge. For low - mass tonearms, remove the weight. Then, carefully mount the cartridge onto your tonearm's headshell or cartridge mount. Set the tracking force to the recommended 1.75 g (17.5 mN). When playing records, make sure your record player is on a stable surface. After each use, gently lift the tonearm and return it to its rest. To maintain your cartridge, keep it clean. Use a soft, dry brush to remove any dust from the stylus. Avoid touching the stylus with your fingers as the oils can damage it. If you notice a decline in sound quality, it might be time to replace the stylus with the Stylus 5S. Store the cartridge in a dry, cool place when not in use to prevent any damage.
