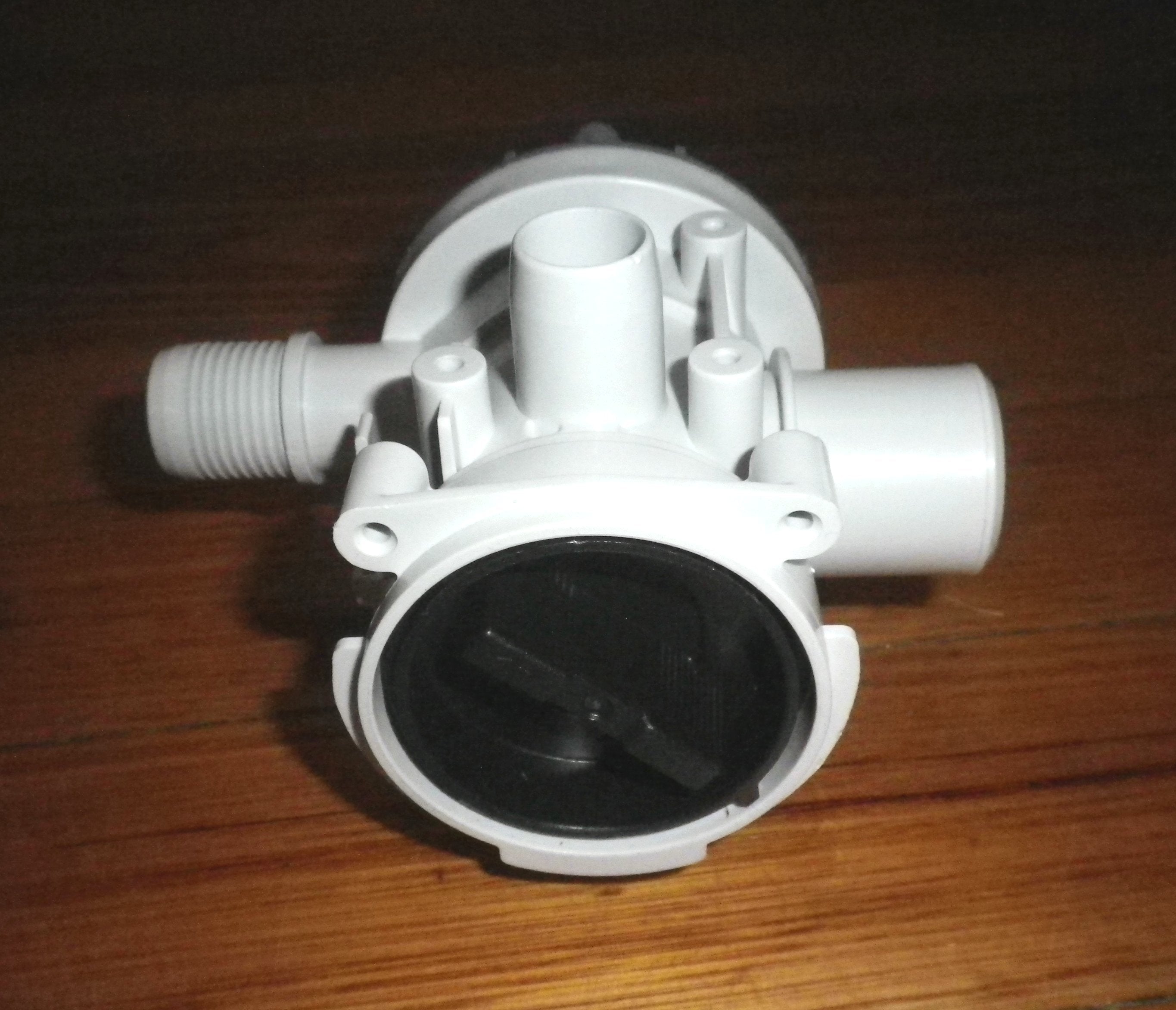

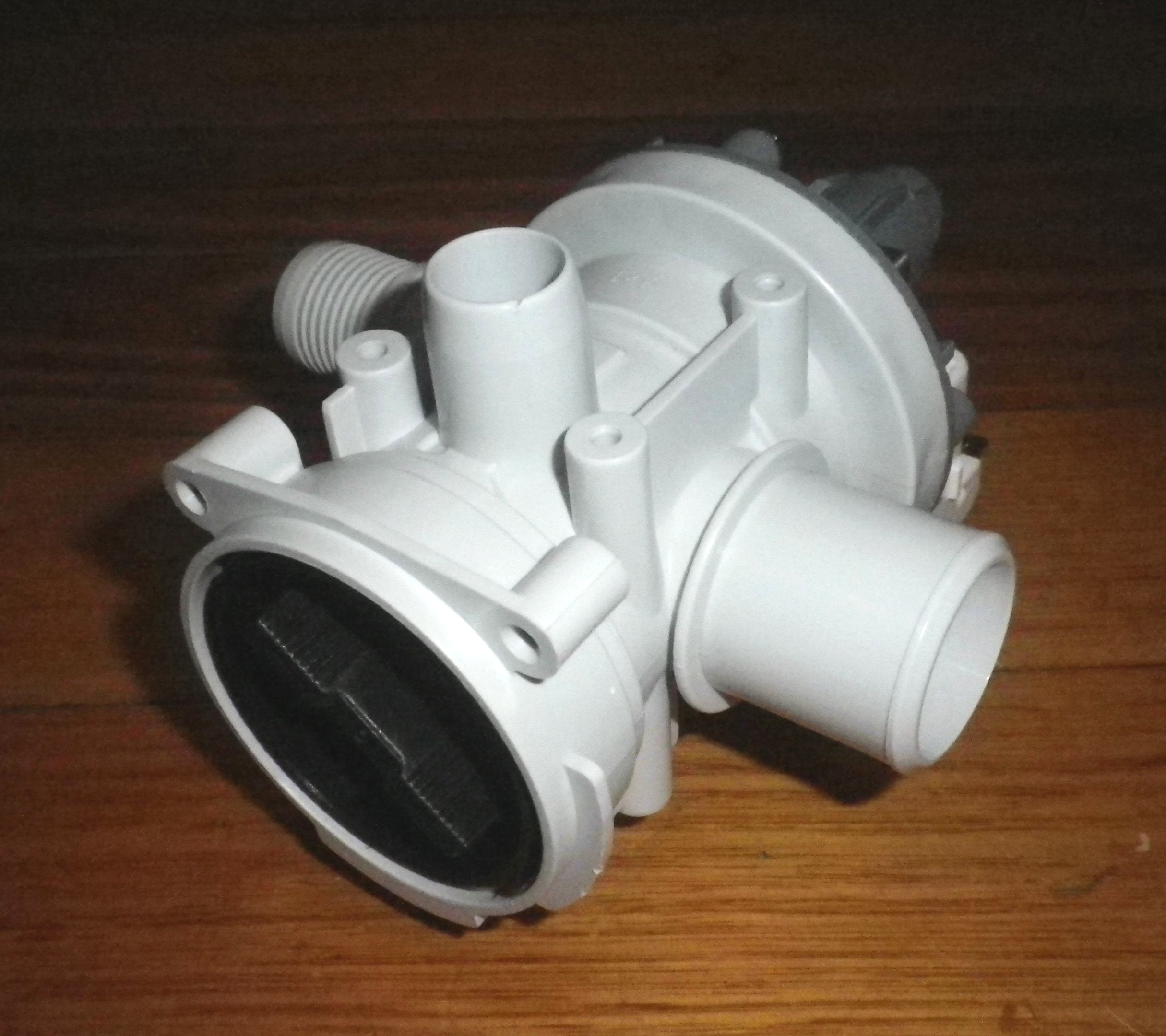

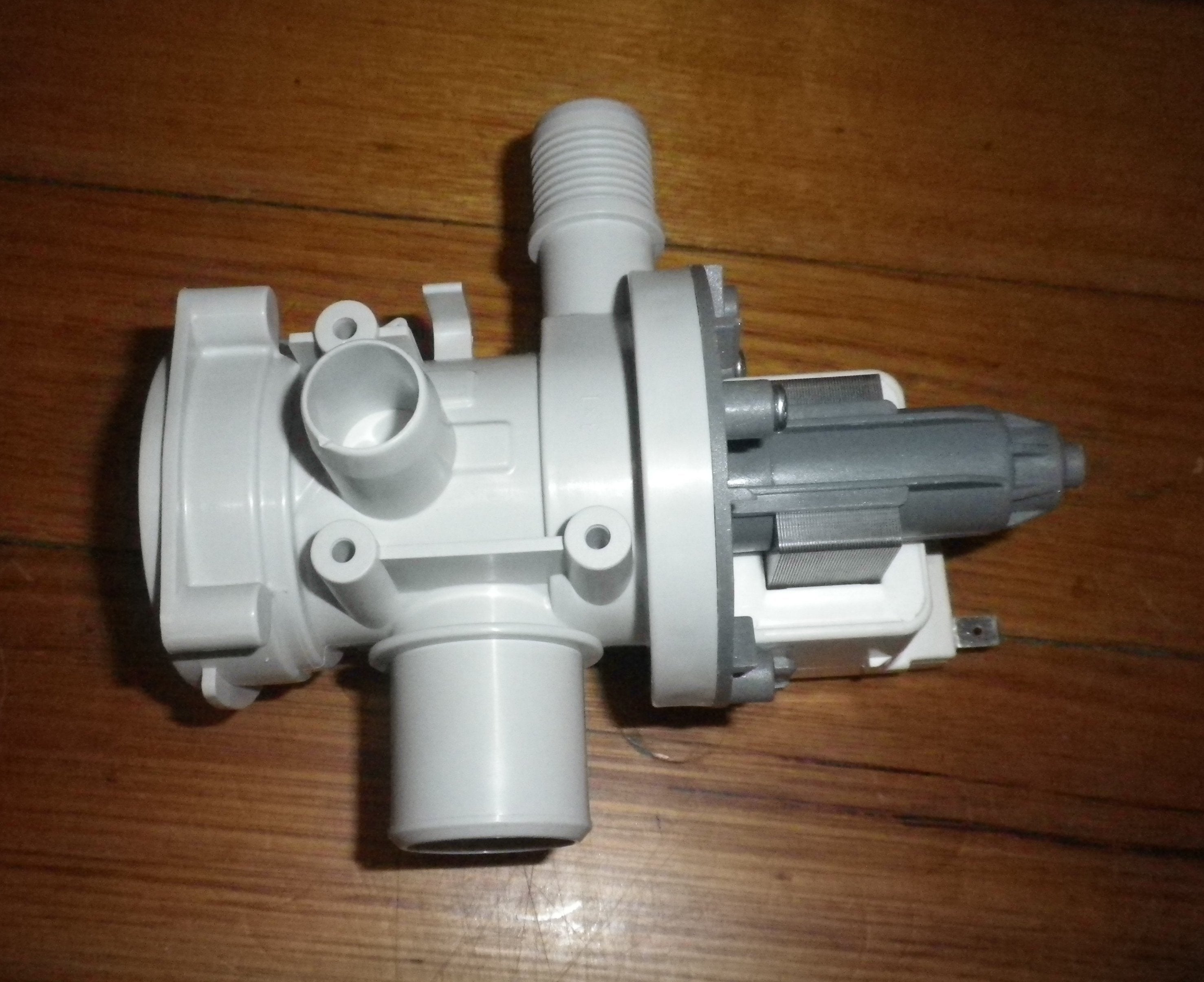

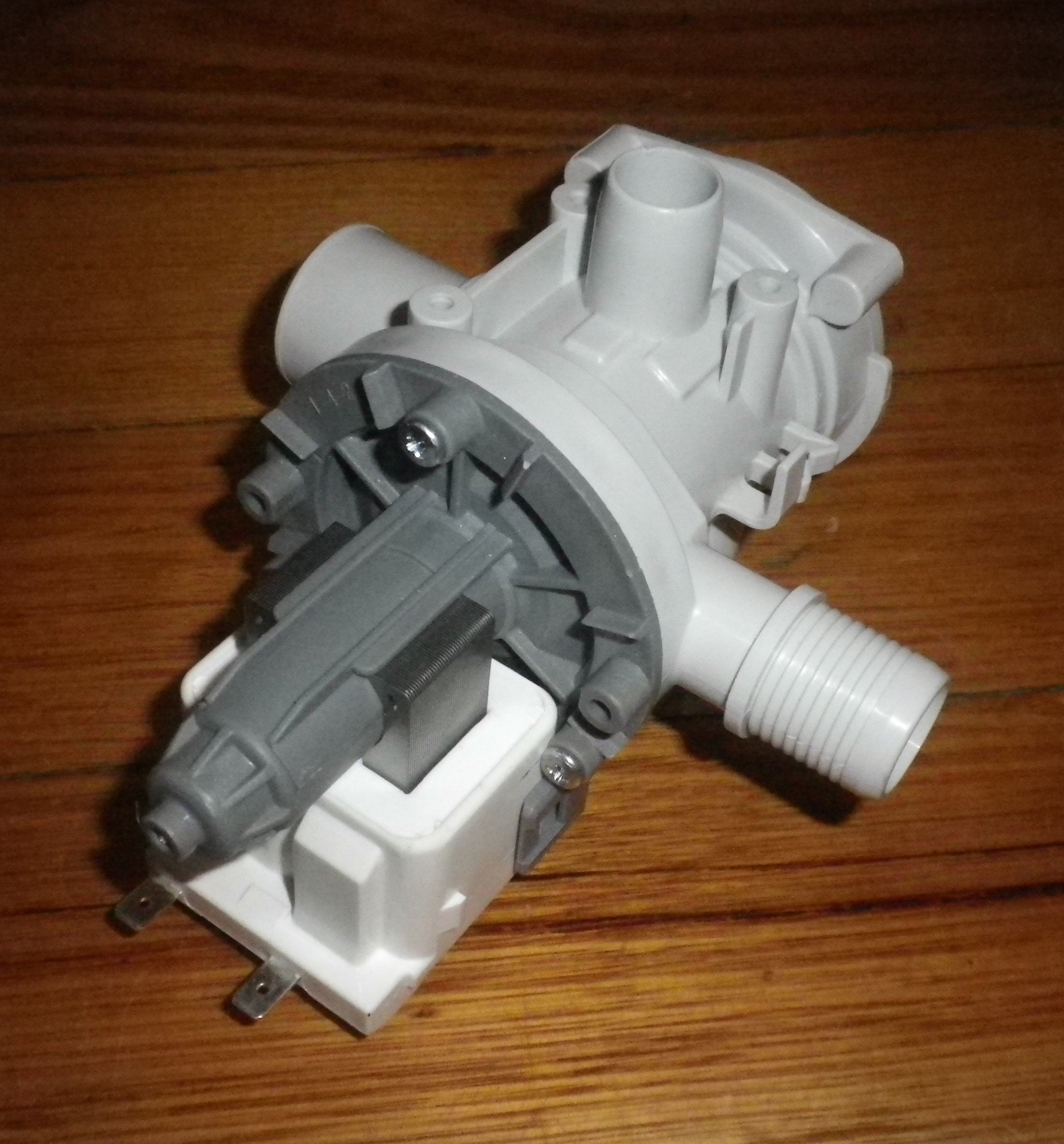

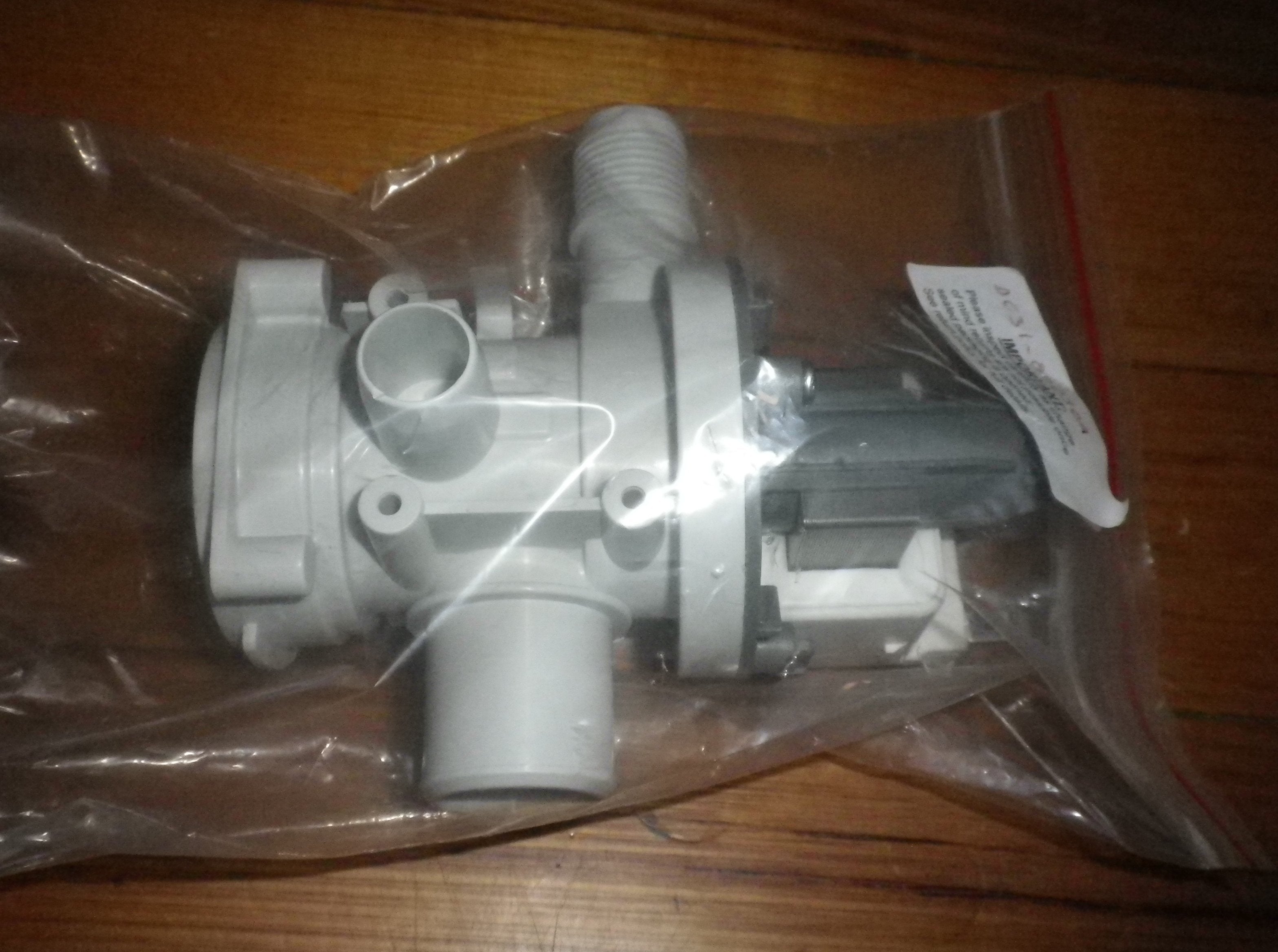

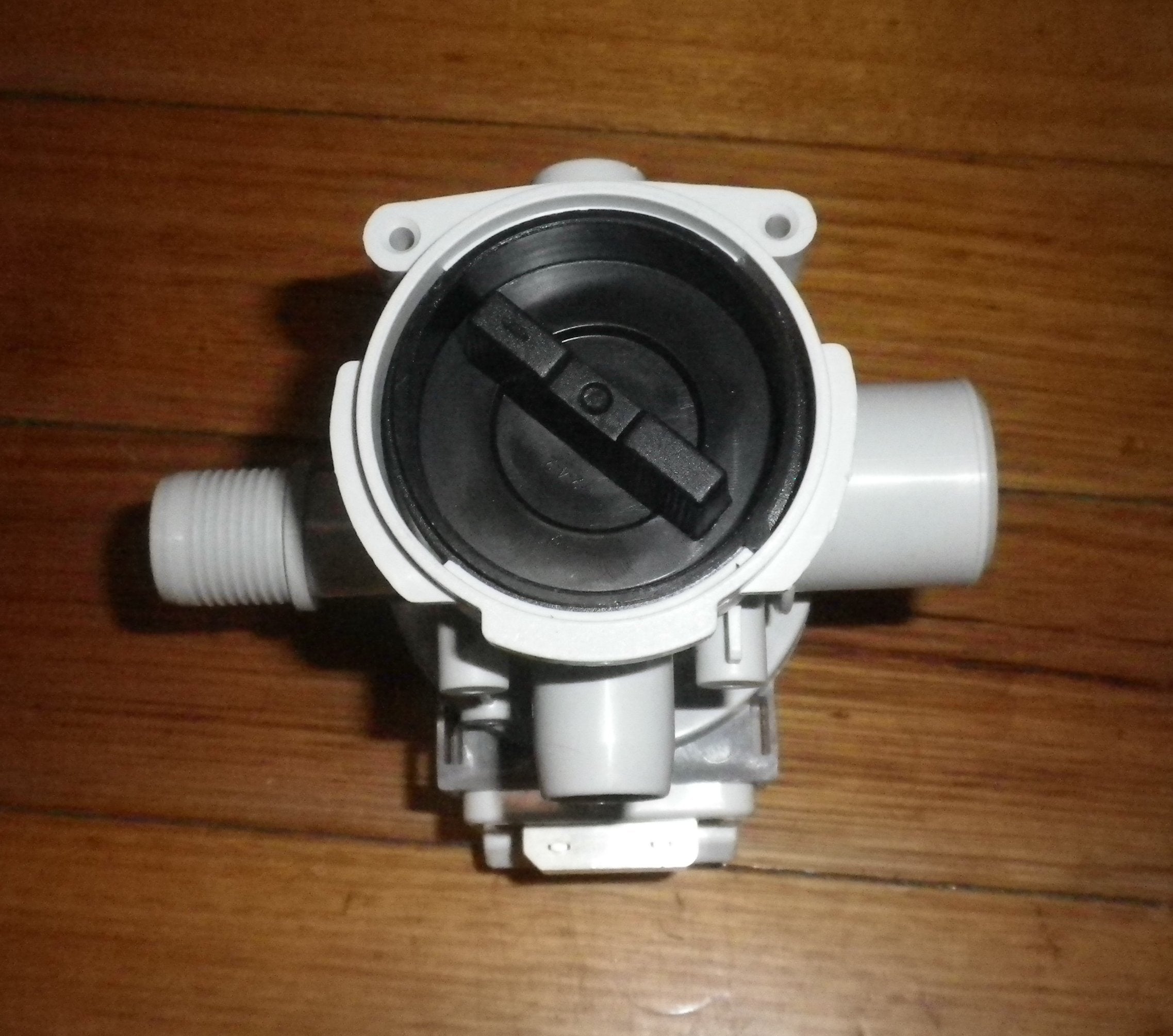

This is a high - quality magnetic pump designed for many Samsung front - loading washing machines. It's a genuine part with Part No. DA31 - 00030A (also known as Hanyu B20 - 5A01). The inlet and outlet are 180 degrees apart, with an inlet diameter of 32.4mm and an outlet diameter of 23.4mm. The button trap diameter is 57.4mm, and there are two mounting holes 51mm apart. It comes with 6.4mm spade terminals, operating at 240VAC, 50Hz, and 0.3A. This pump is compatible with a wide range of Samsung models, including B1045, B1245AV, C1235, and many others. It's easy to install and comes with a full guarantee. We've been in the appliance parts business for over 25 years, so you can shop with confidence.
Using this Samsung front - loader pump is straightforward. First, make sure your washing machine is unplugged to avoid any electrical hazards. Remove the old pump carefully, noting how it's connected. Then, install the new pump in the same position, connecting the inlet, outlet, and spade terminals properly. When it comes to maintenance, it's a good idea to check the pump periodically for any signs of wear or blockages. If you notice any strange noises or reduced performance, it might be time to clean the pump or check the connections. Also, keep the pump area dry to prevent corrosion. Always follow the safety instructions in your washing machine's manual. If you're unsure about any step, it's best to consult a professional.
