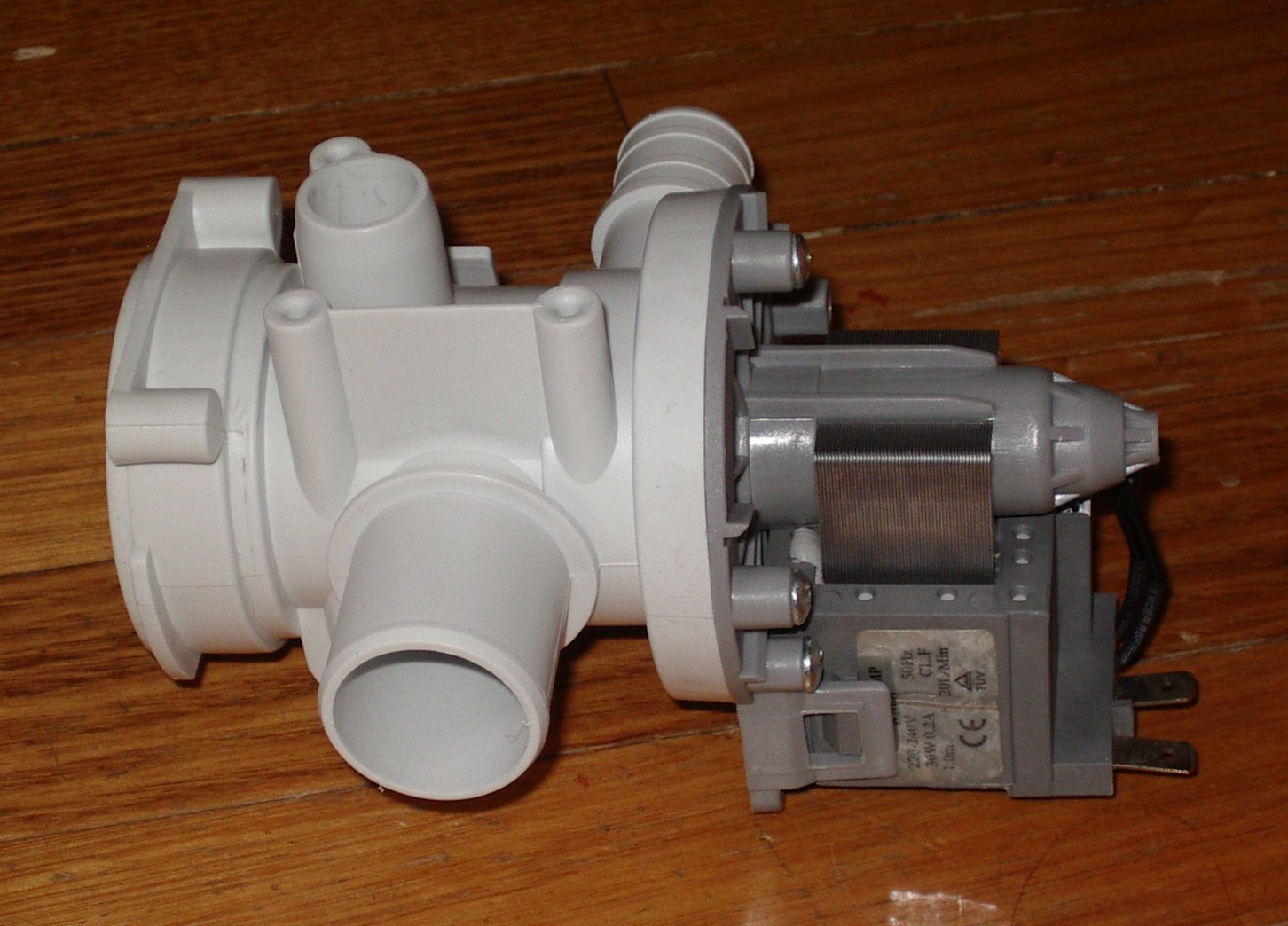

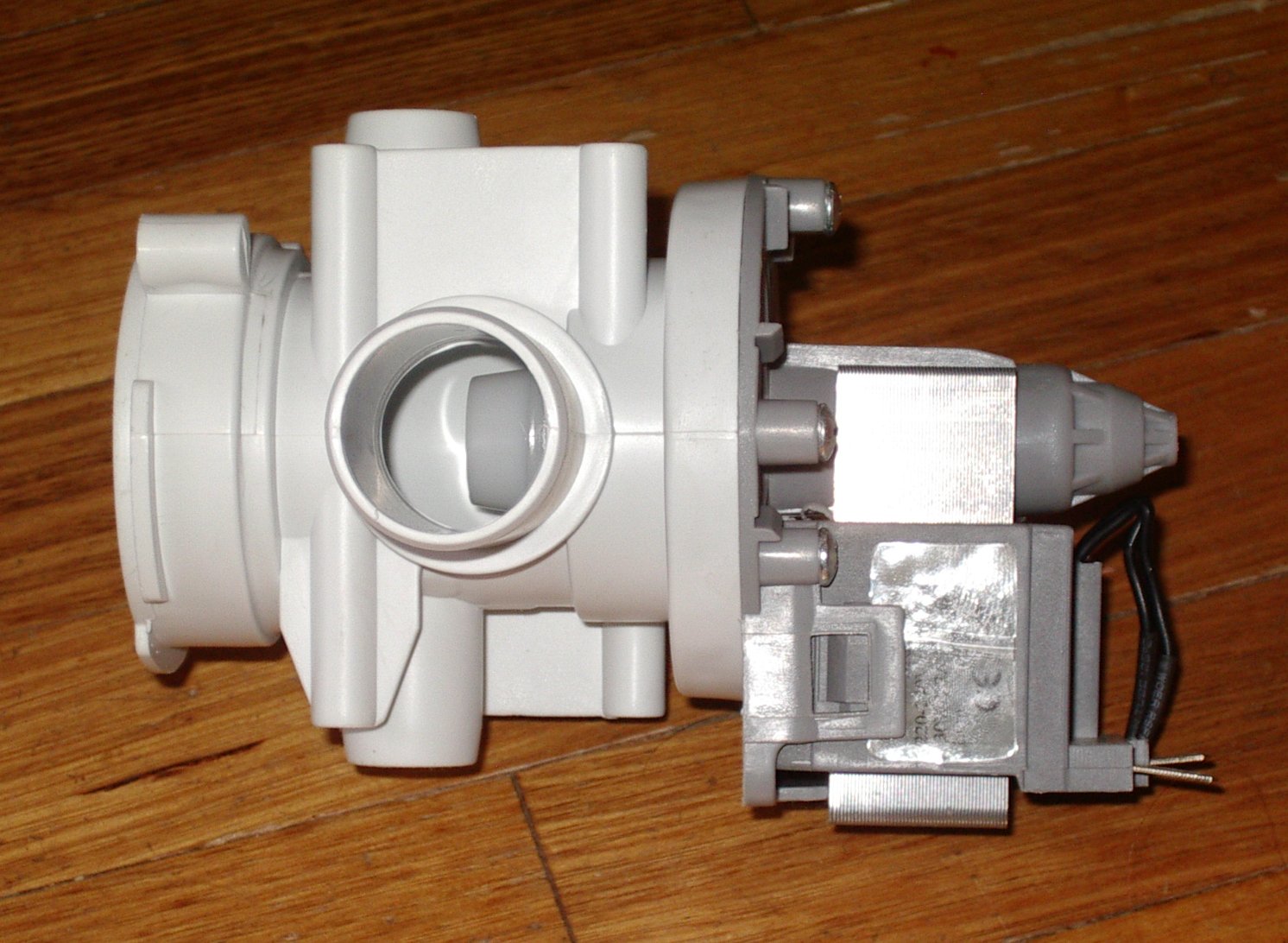

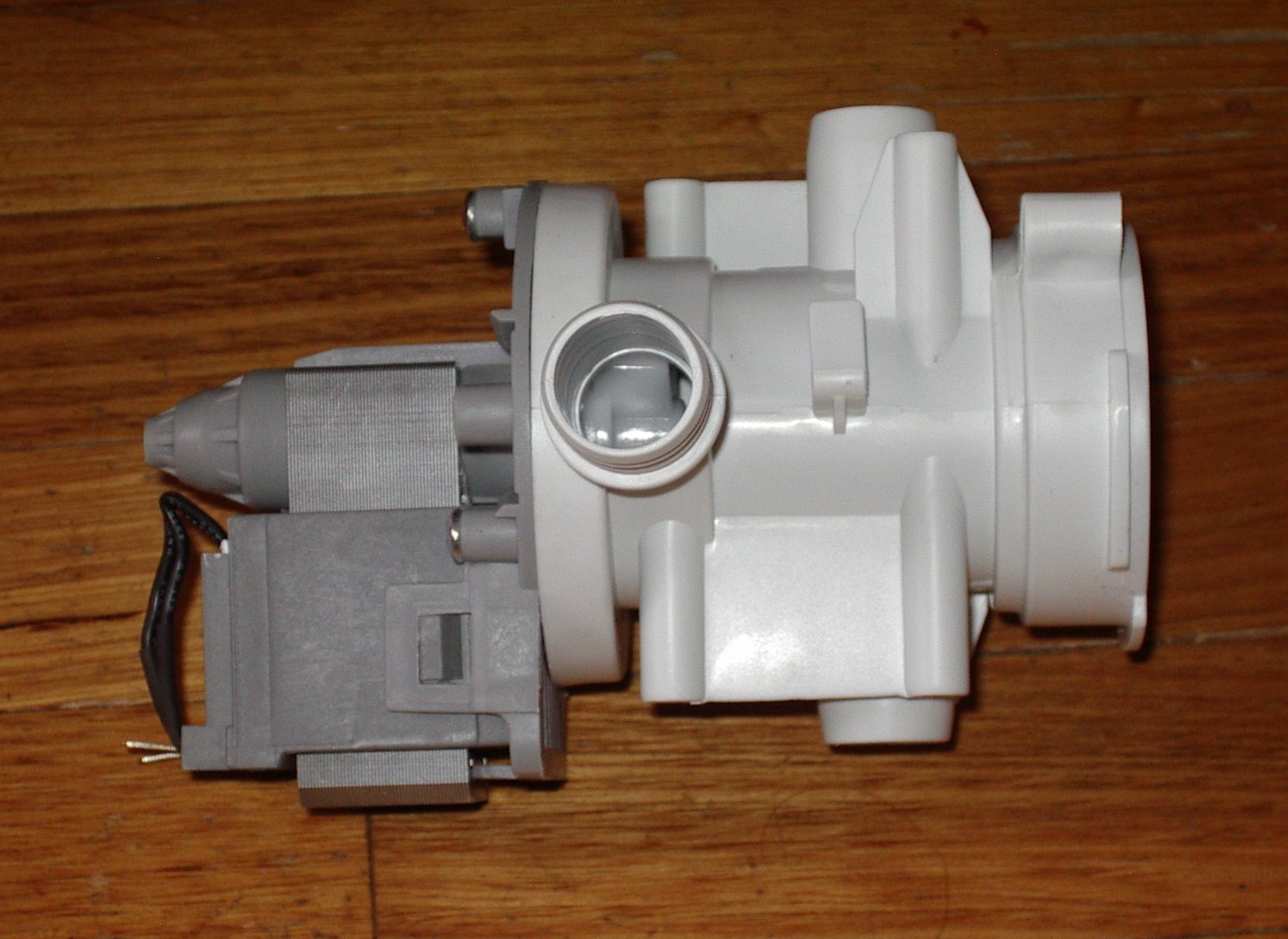

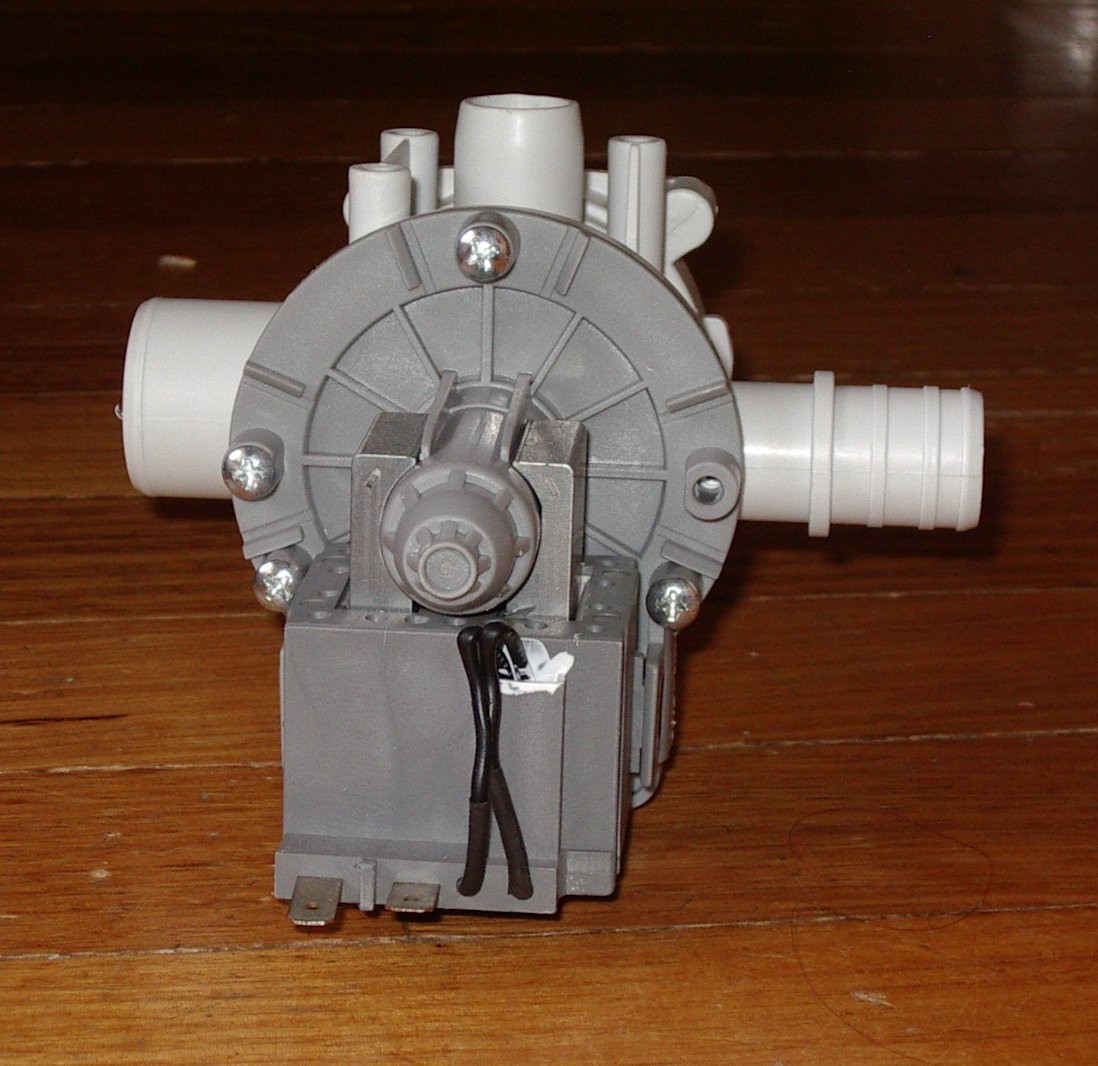

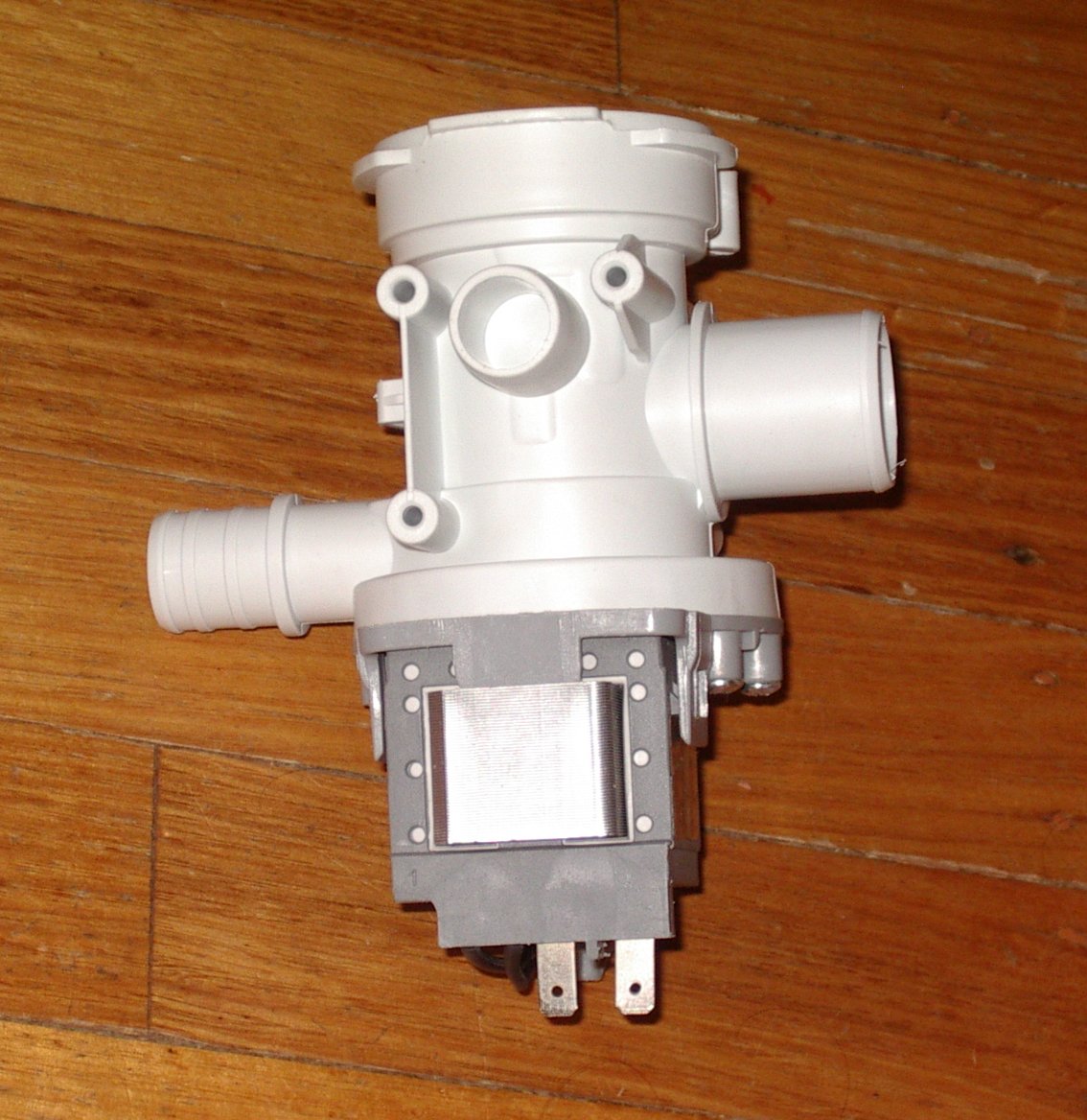

Universal Front Loader Complete Pump with Housing - Part # UNI279

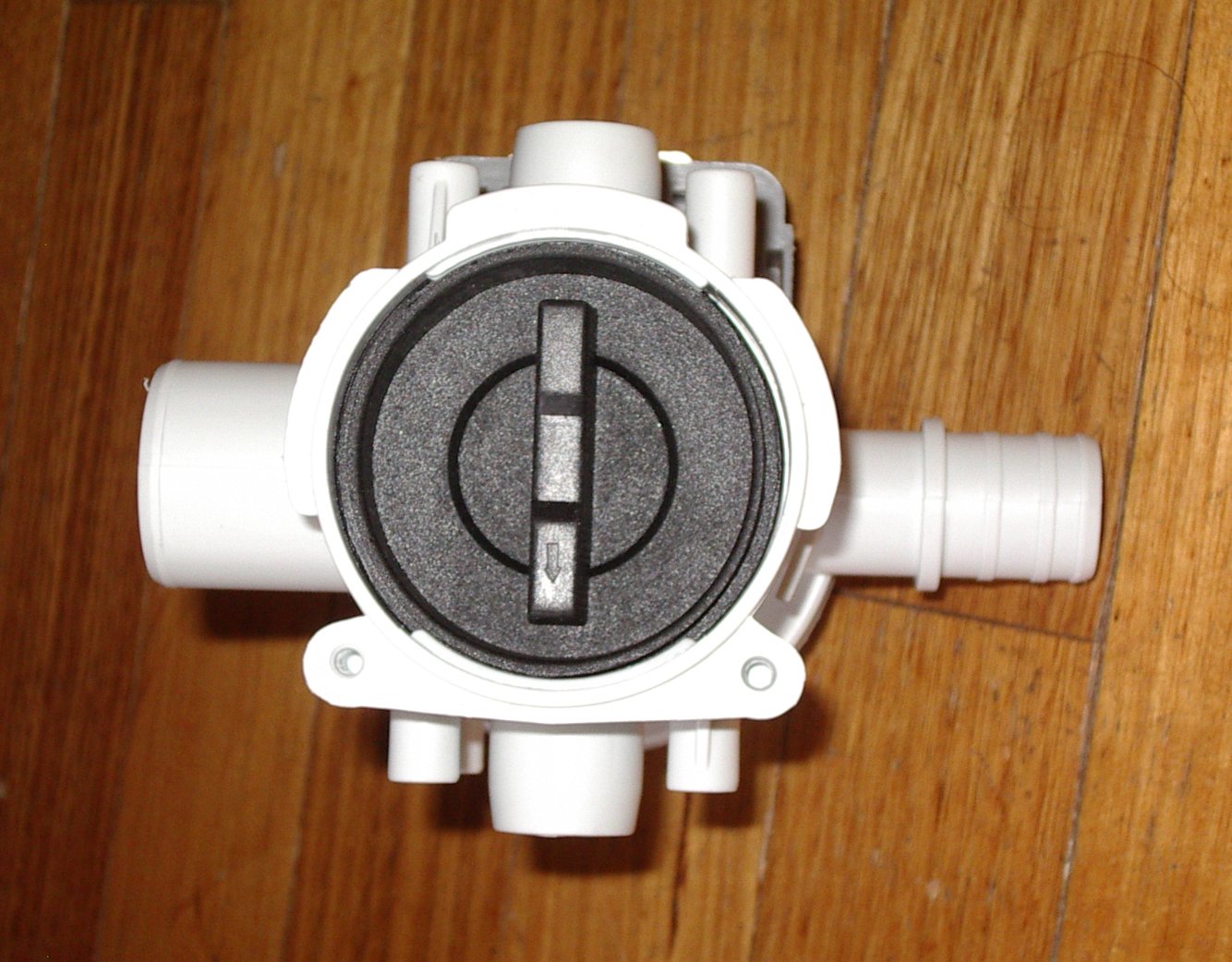

This is a universal electric pump for front - load washing machines with a button trap. Part number is UNI279. It's a magnetic pump that fits many front - loader models. The inlet and outlet are 180 degrees apart, with an inlet diameter of 32mm and an outlet diameter of 22mm. There's also a 20mm diameter drain tube connection at 90 degrees to the inlet. The button trap has a 62mm diameter and there are two mounting holes 53mm apart. It features 6.4mm spade terminals, operates at 240VAC, 50Hz, 30 watts, 0.2A, and has a flow rate of 20 liters per minute. It may be suitable for some Chinese brands and certain Samsung models. It's easy to install and comes with a full guarantee. We've been supplying appliance parts for trade and retail for over 25 years, so you can buy with confidence.

Using this front - loader pump is quite straightforward. First, make sure your washing machine is unplugged. Then, locate the old pump and remove it carefully. Place the new pump in the same position and connect the inlet and outlet pipes according to the diameter specifications (32mm for inlet and 22mm for outlet). Connect the 20mm drain tube at the 90 - degree connection. Attach the pump using the two mounting holes that are 53mm apart. Finally, connect the 6.4mm spade terminals. When using the washing machine, ensure it's running on 240VAC, 50Hz power supply. As for maintenance, check the button trap regularly for any blockages. If you notice a decrease in water flow, it might be time to clean the pump. And remember, since it comes with a full guarantee, if you encounter any issues, you can always rely on our support.
