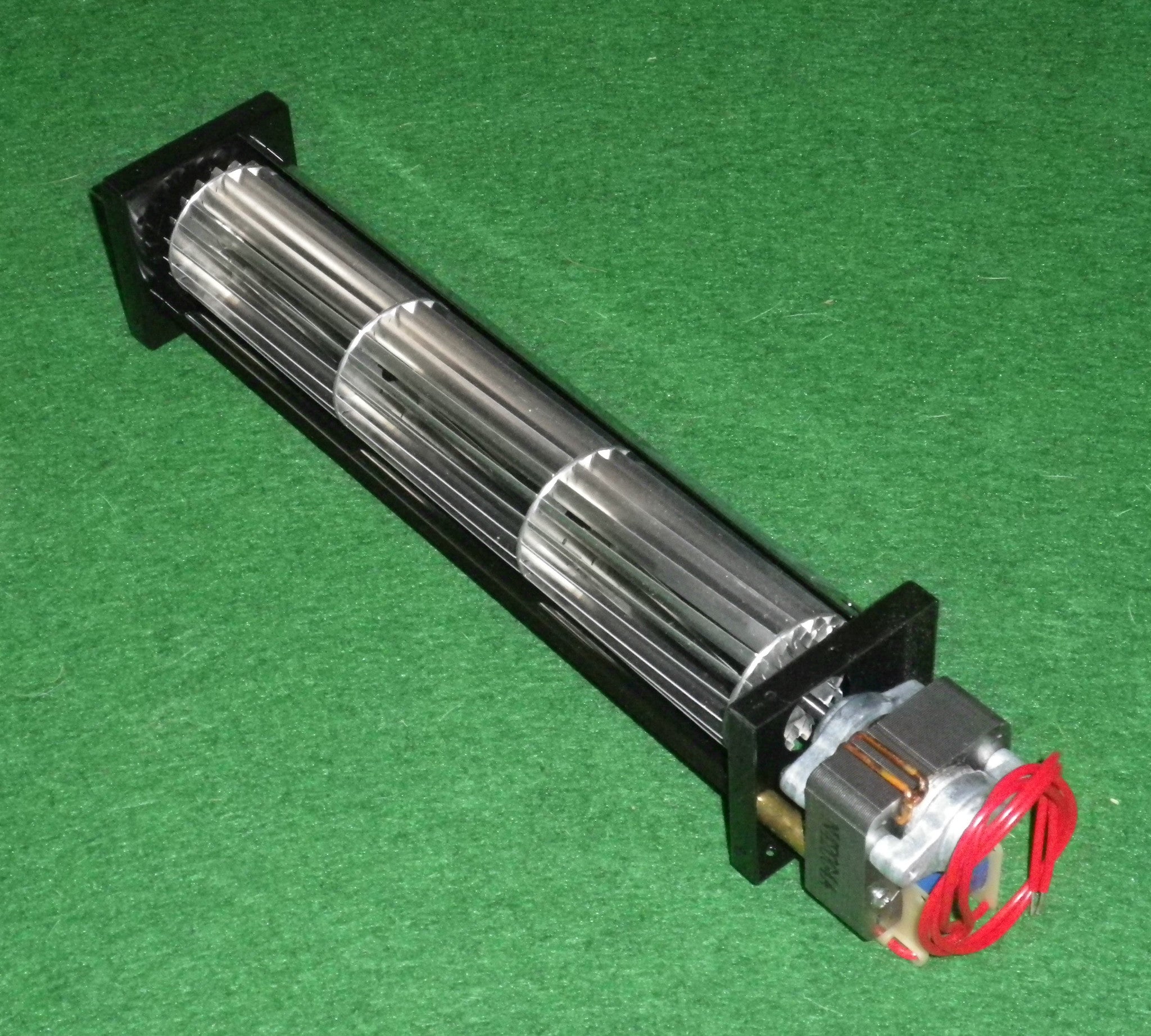

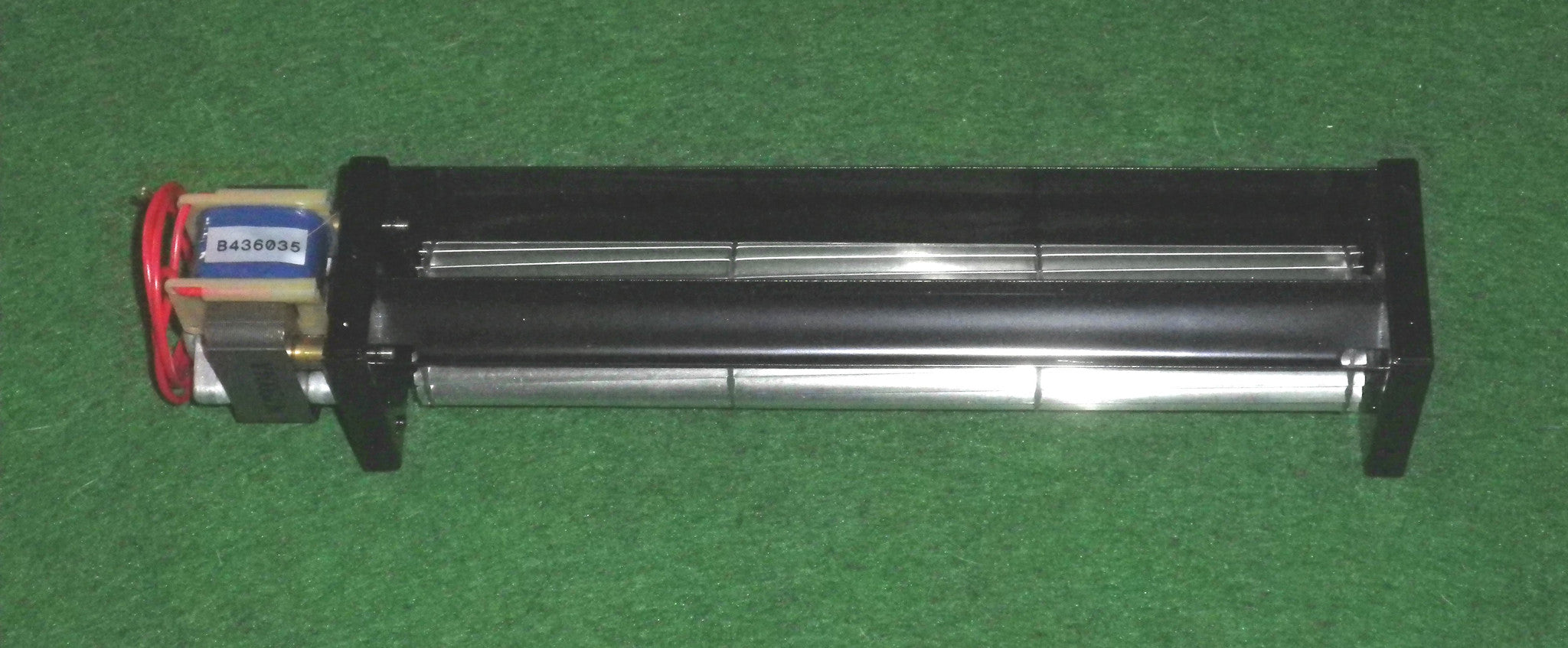

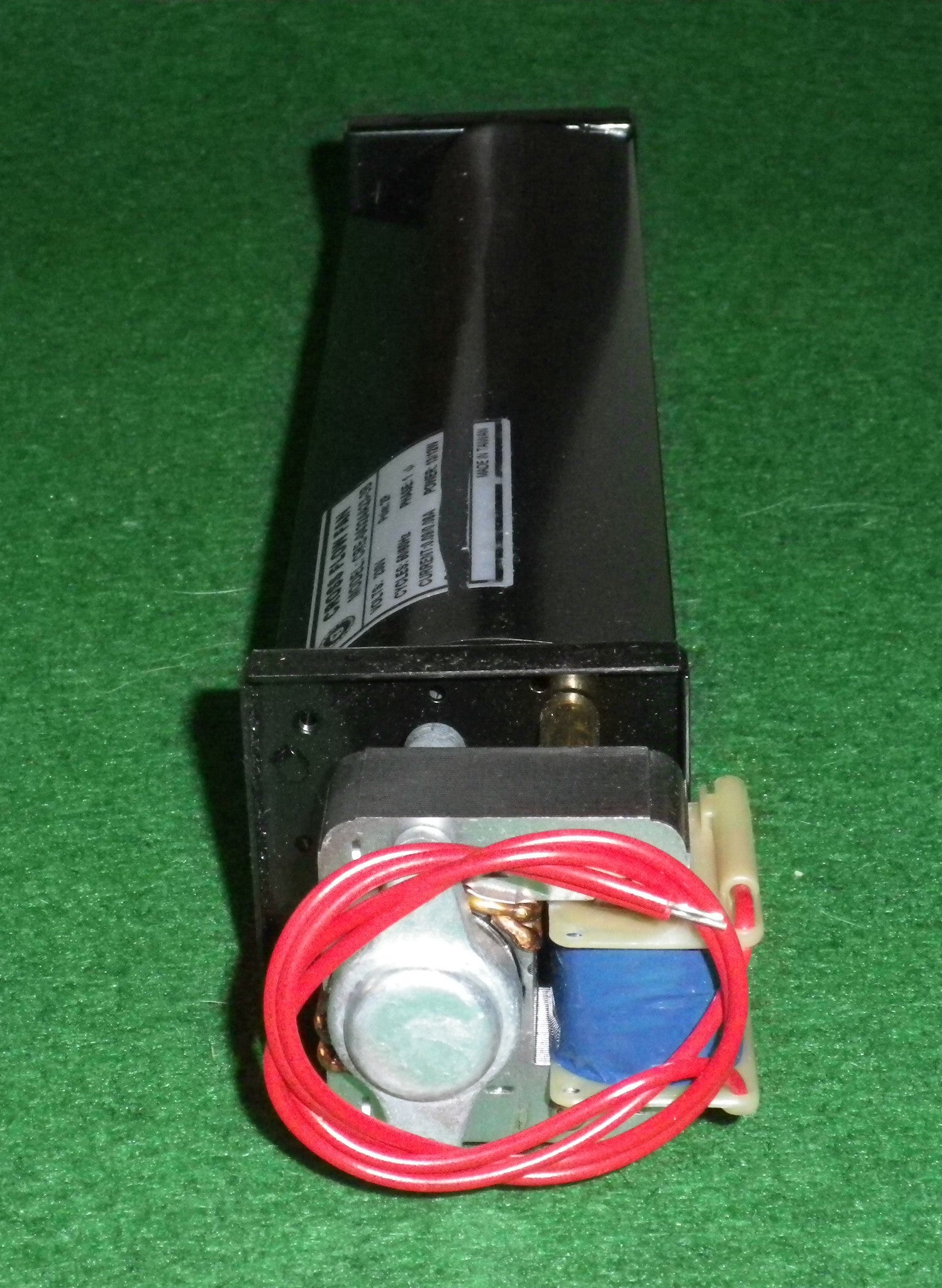

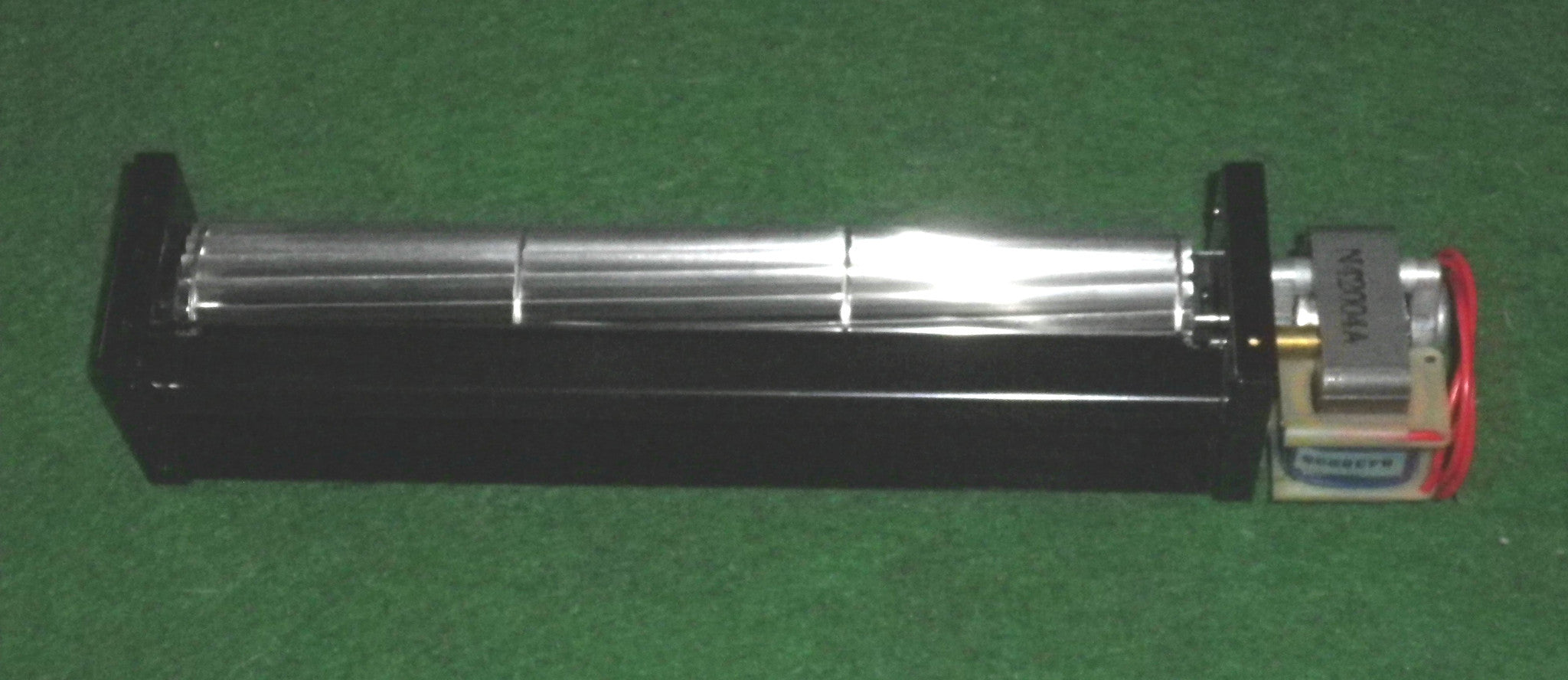

Righthand 240mm Heating or Cooling Drum Fan Motor - Part # SE205A

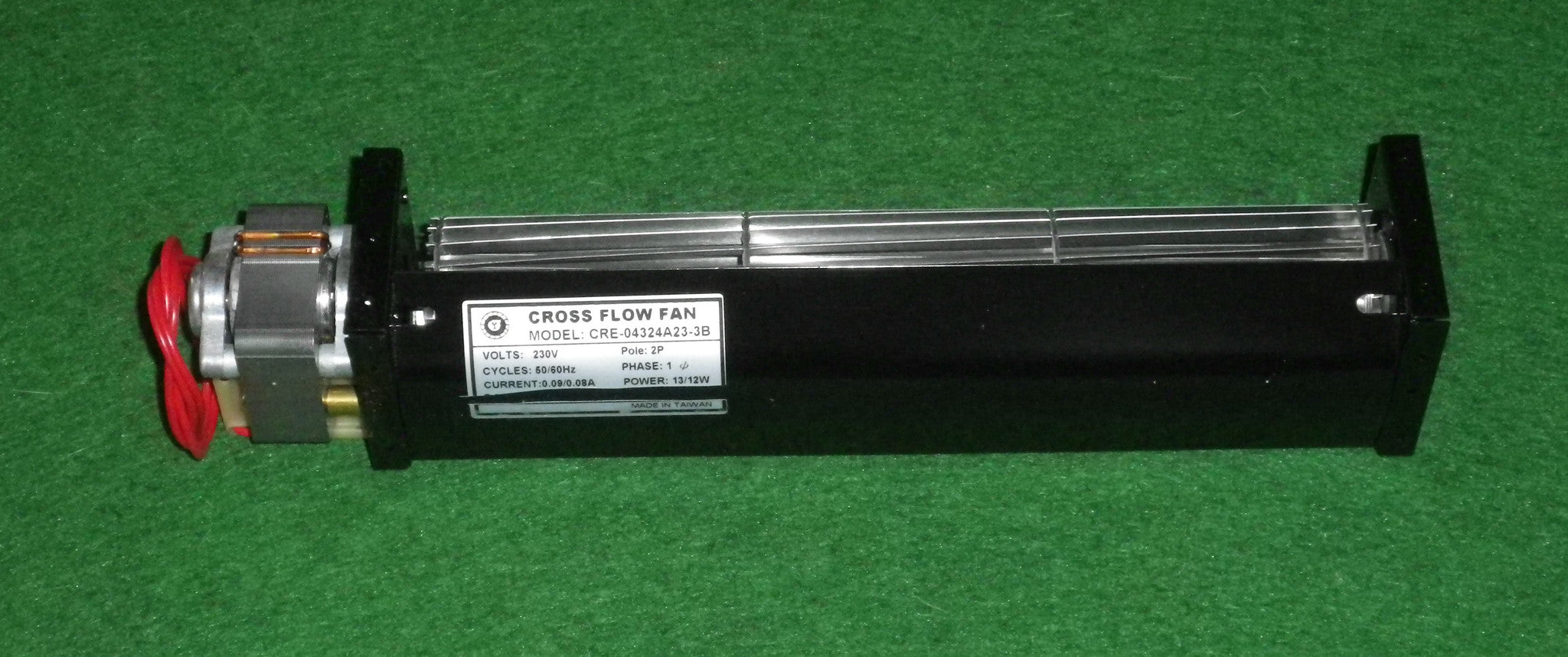

This 240mm right - handed heating or cooling fan motor is a great fit for many ovens and heaters. Its part number is SE205A, and the model number is CRE - 04324A23 - 3B. There are also other numbers on the motor: B436035 and N42004A. It runs on 230VAC and has a power of 13 watts. It comes with 2 X 30cm flyleads for easy connection. The motor features 6 mounting holes at the top and bottom, spaced 20mm + 15mm apart, and 6 mounting holes at the front and back, 20mm + 20mm apart. The drum is 240mm long with a 40mm diameter. The overall depth is 65mm, height is 60mm, and the overall length including the motor is 315mm. We've been supplying appliance parts to both the trade and retail sectors for over 25 years, so you can buy with confidence.

Using this 240mm right - handed heating or cooling drum fan motor is quite simple. First, make sure the power is off before installation. Connect the 2 X 30cm flyleads to the appropriate power source carefully. The motor has specific mounting holes at the top, bottom, front, and back. Use these holes to securely mount the motor in your oven or heater. When using, ensure the voltage is 230VAC to avoid any damage. Keep an eye on the motor's power consumption of 13 watts. For maintenance, it's a good idea to check the mounting periodically to make sure it's still secure. Also, clean the motor gently to remove any dust or debris. Don't use any harsh chemicals when cleaning. If you notice any unusual noises or performance issues, turn off the power immediately and contact our support team.
