Heating or Cooling Dual Ended 2 x 200mm Drum Fan Motor - Part # SE201

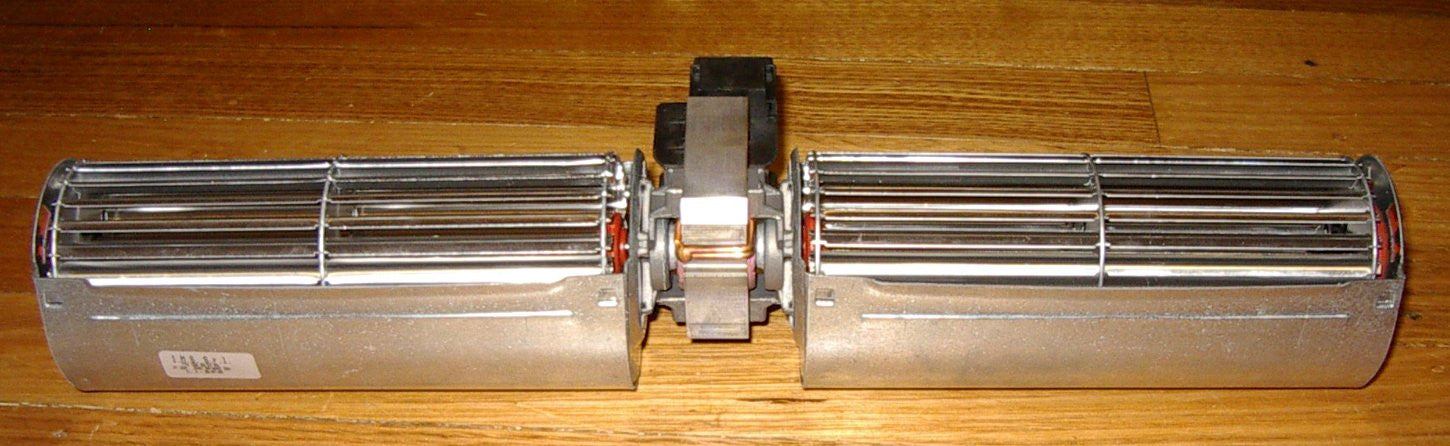

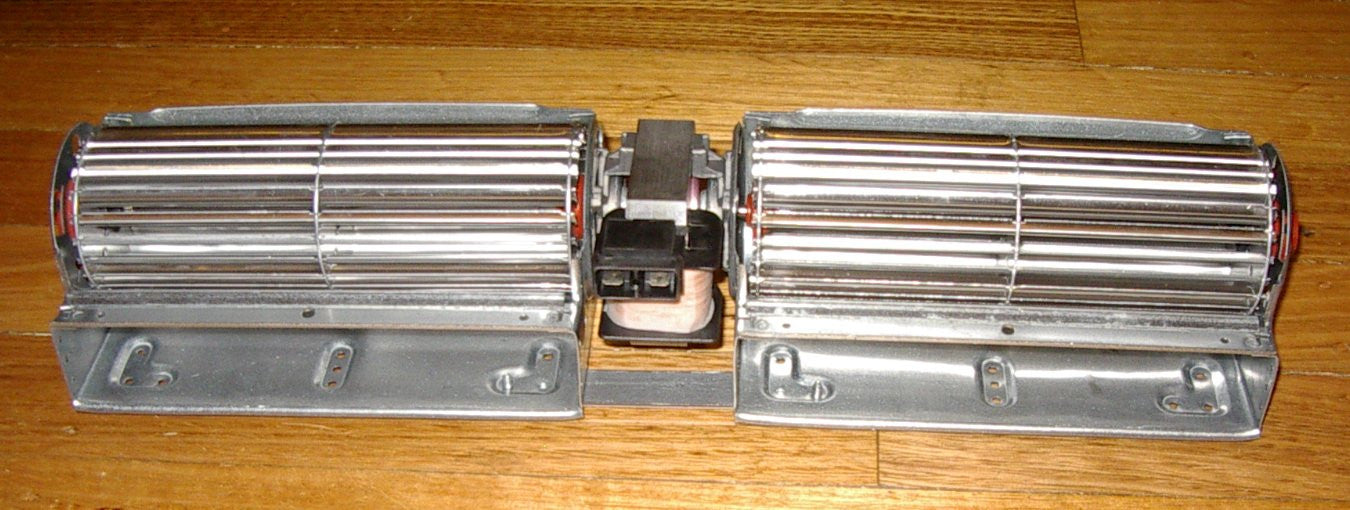

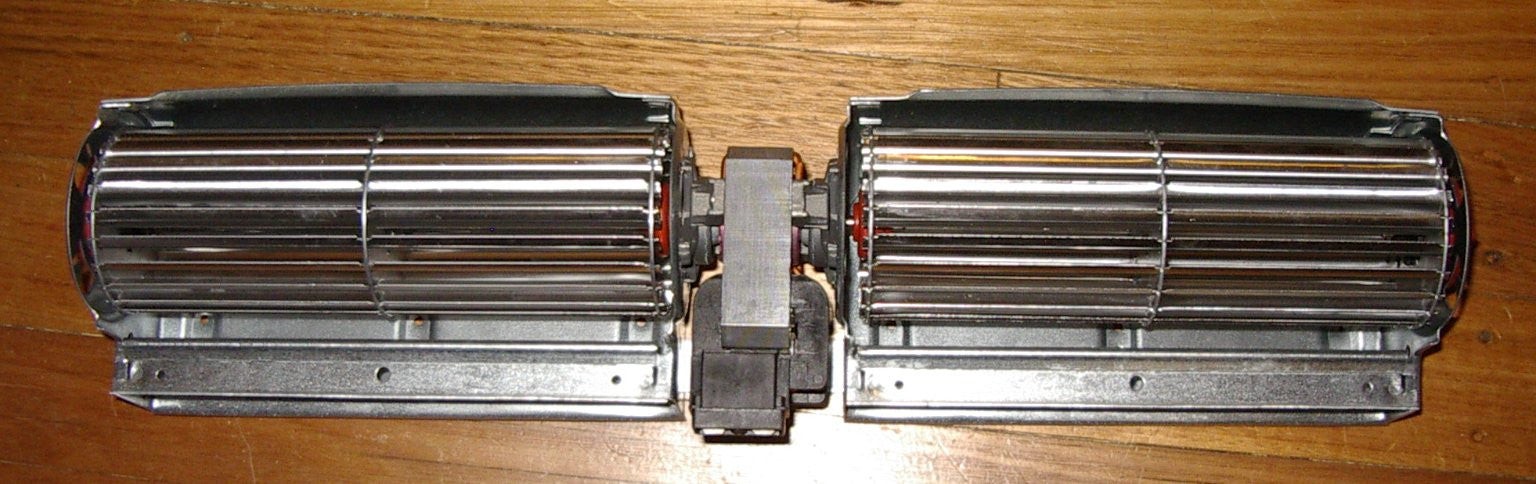

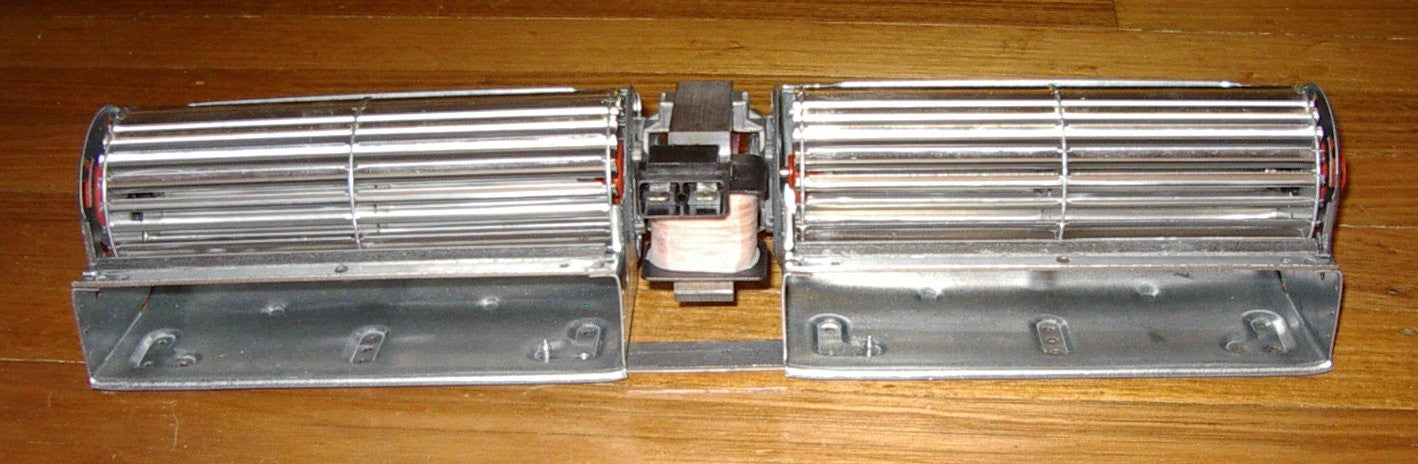

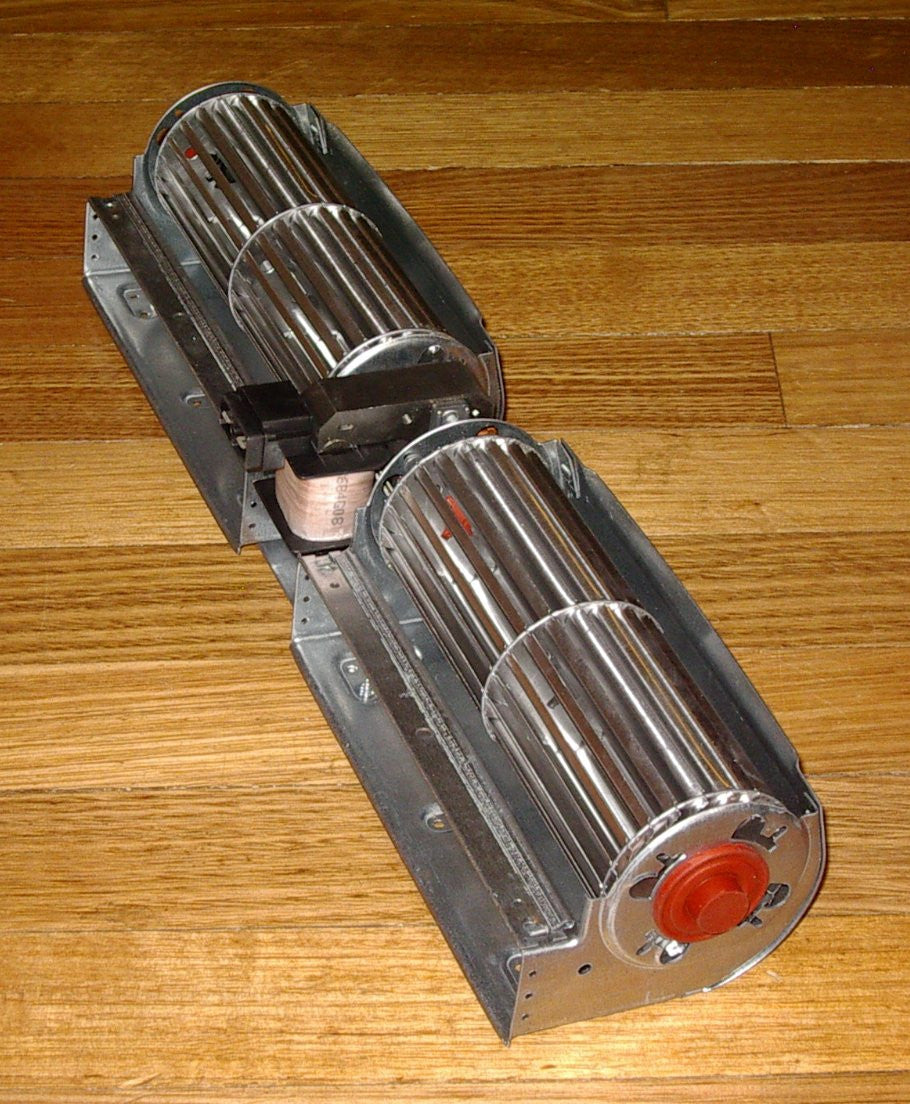

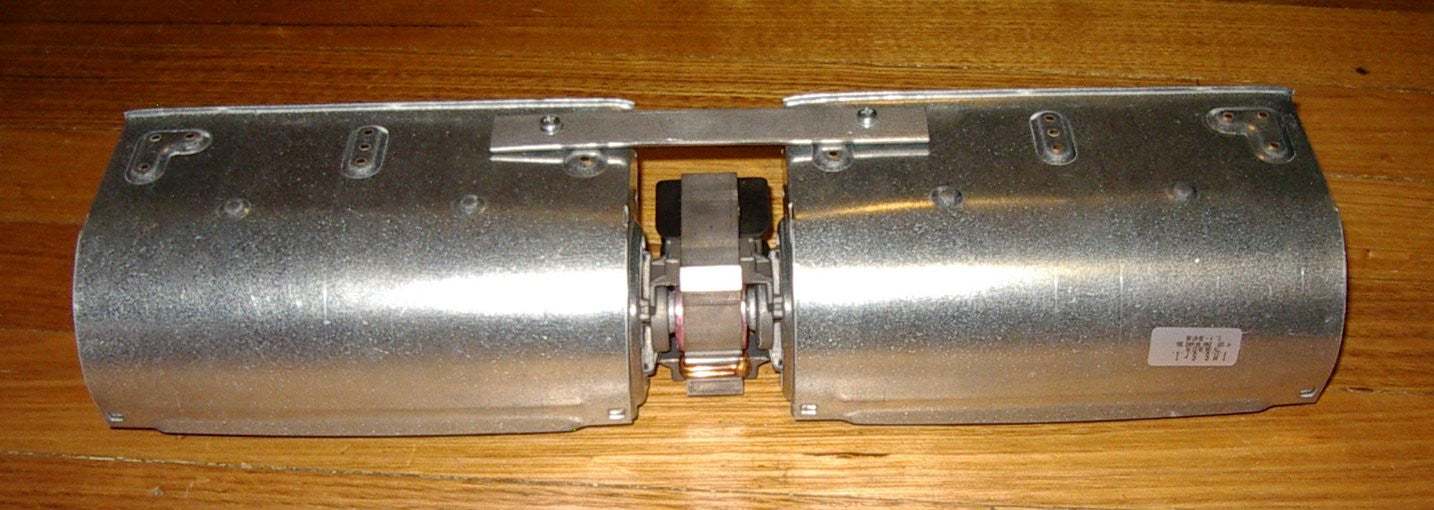

This dual-ended 200mm fan motor is perfect for heating or cooling in many ovens and heaters. With part numbers SE201 and YJF 61 - 25, it operates on 220 - 240VAC and has a 30 - watt power. It comes with 3 x 6.4mm spade terminals for easy connection and earthing. The bottom has holes for mounting using self - tapping screws. Measuring 450 mm in length, 105mm in depth, and 82mm in height, each fan is 195mm long. This fan is a great fit for wood, oil, and gas space heaters. We've been in the appliance parts business for over 25 years, so you can buy with confidence.

Using this fan motor is quite simple. First, make sure your power supply is within the 220 - 240VAC range. Connect the 3 x 6.4mm spade terminals to the appropriate connections and don't forget to do the earthing for safety. You can use self - tapping screws to mount it through the holes on the bottom. When using it, keep it away from any liquids to prevent short - circuits. For maintenance, you can clean the fan blades gently with a dry cloth every few months to keep it running smoothly. If you notice any unusual noises or problems, stop using it and check the connections first. If the issue persists, feel free to contact us.
