Right Hand 180mm Heating or Cooling Drum Fan Motor - Part # SG100-CS

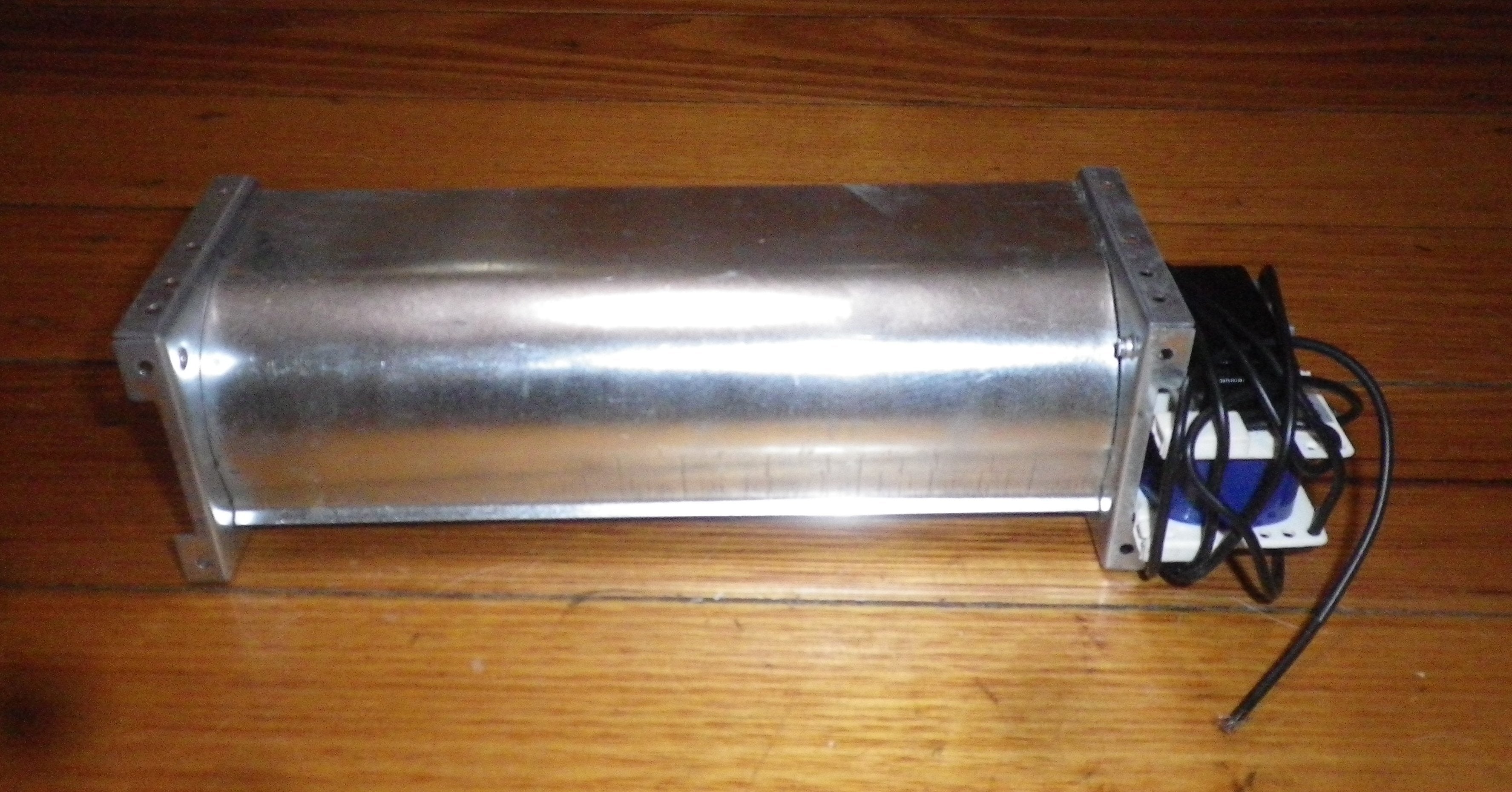

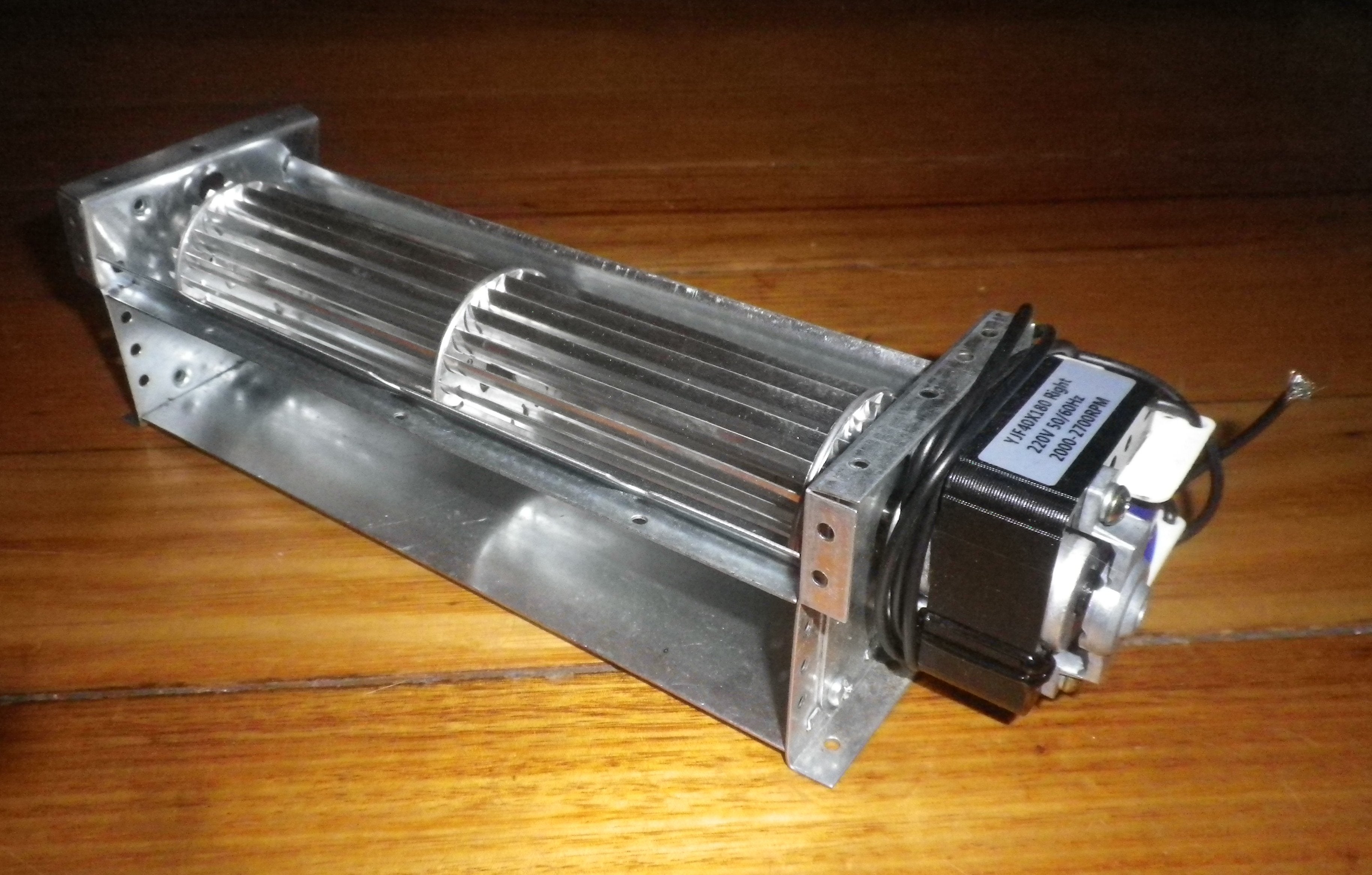

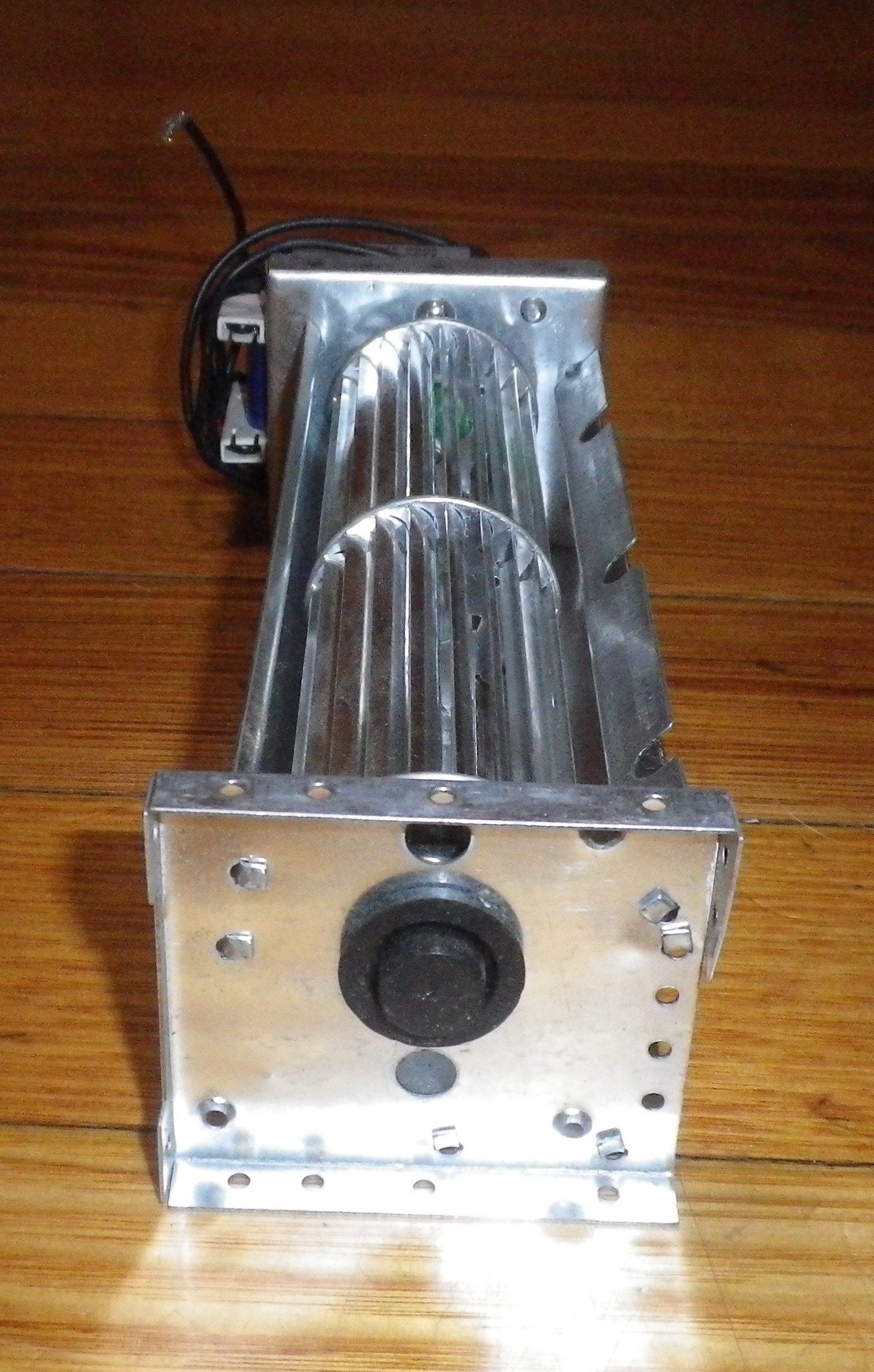

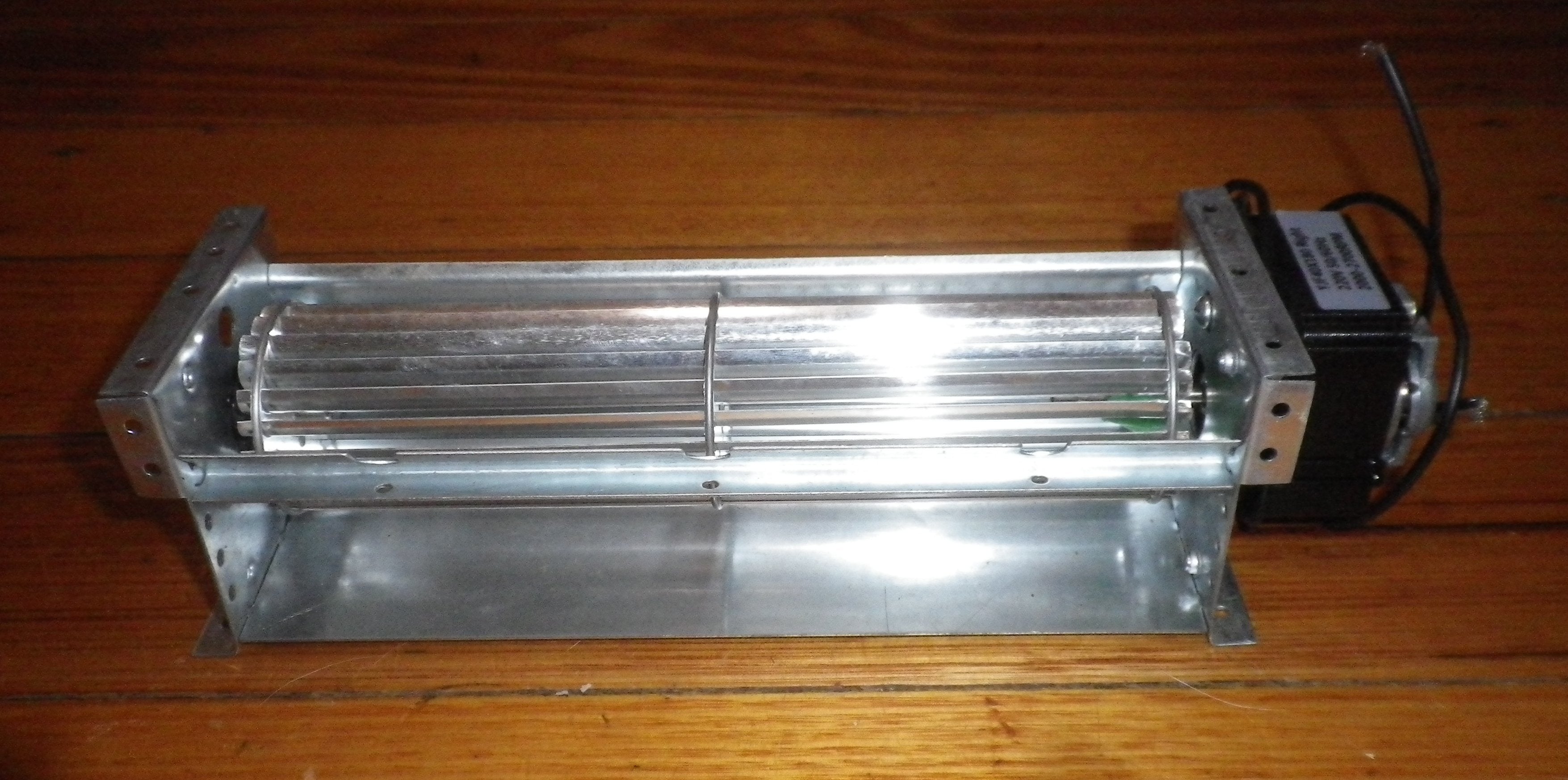

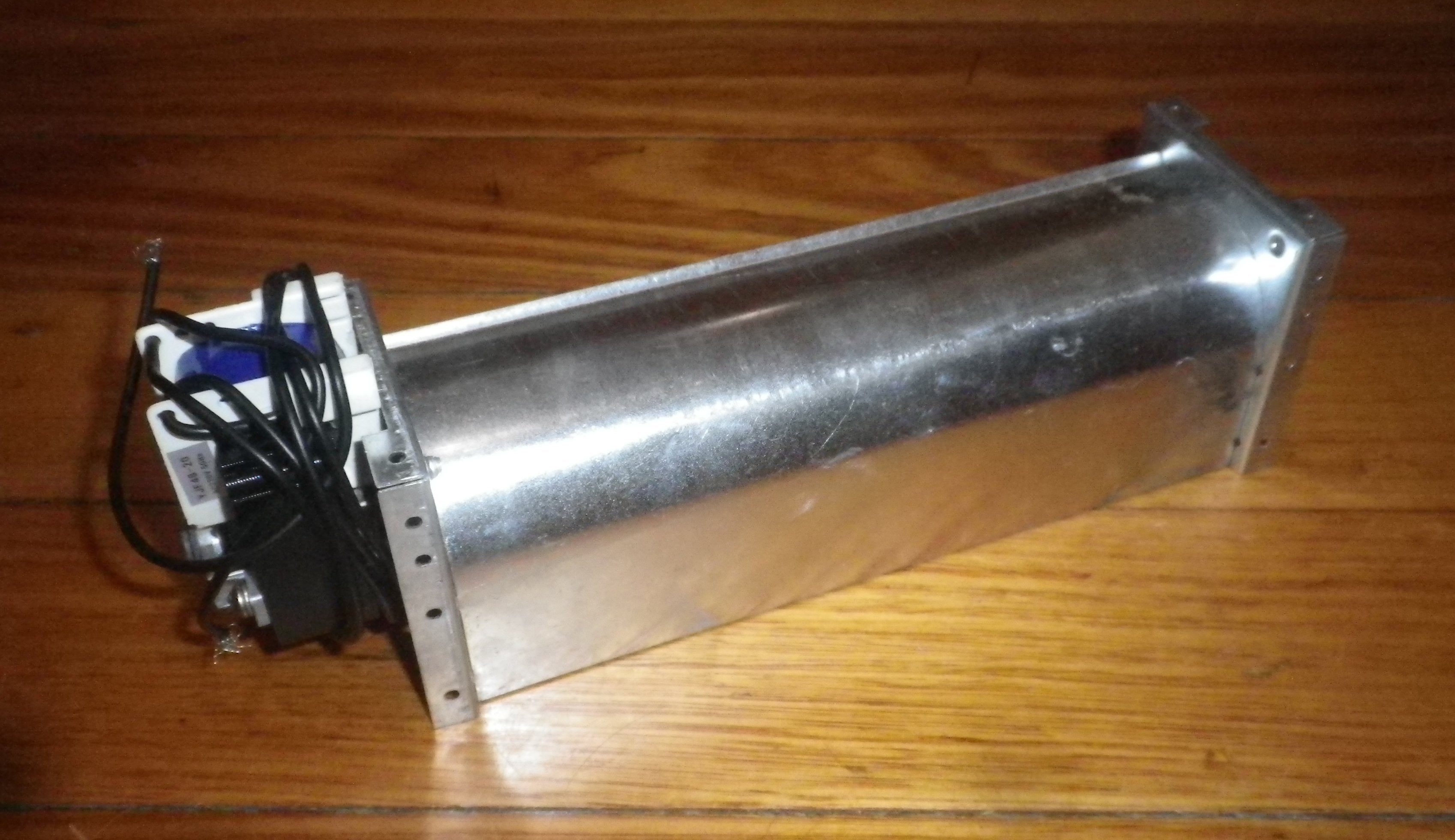

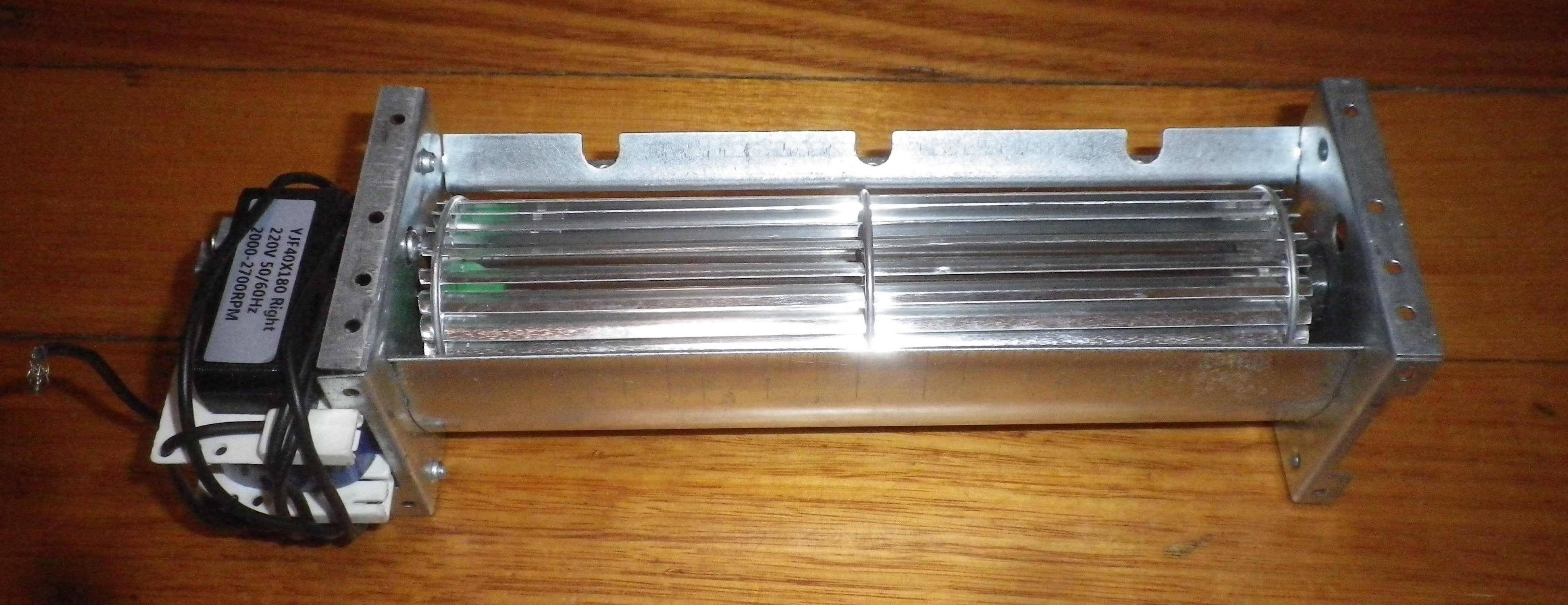

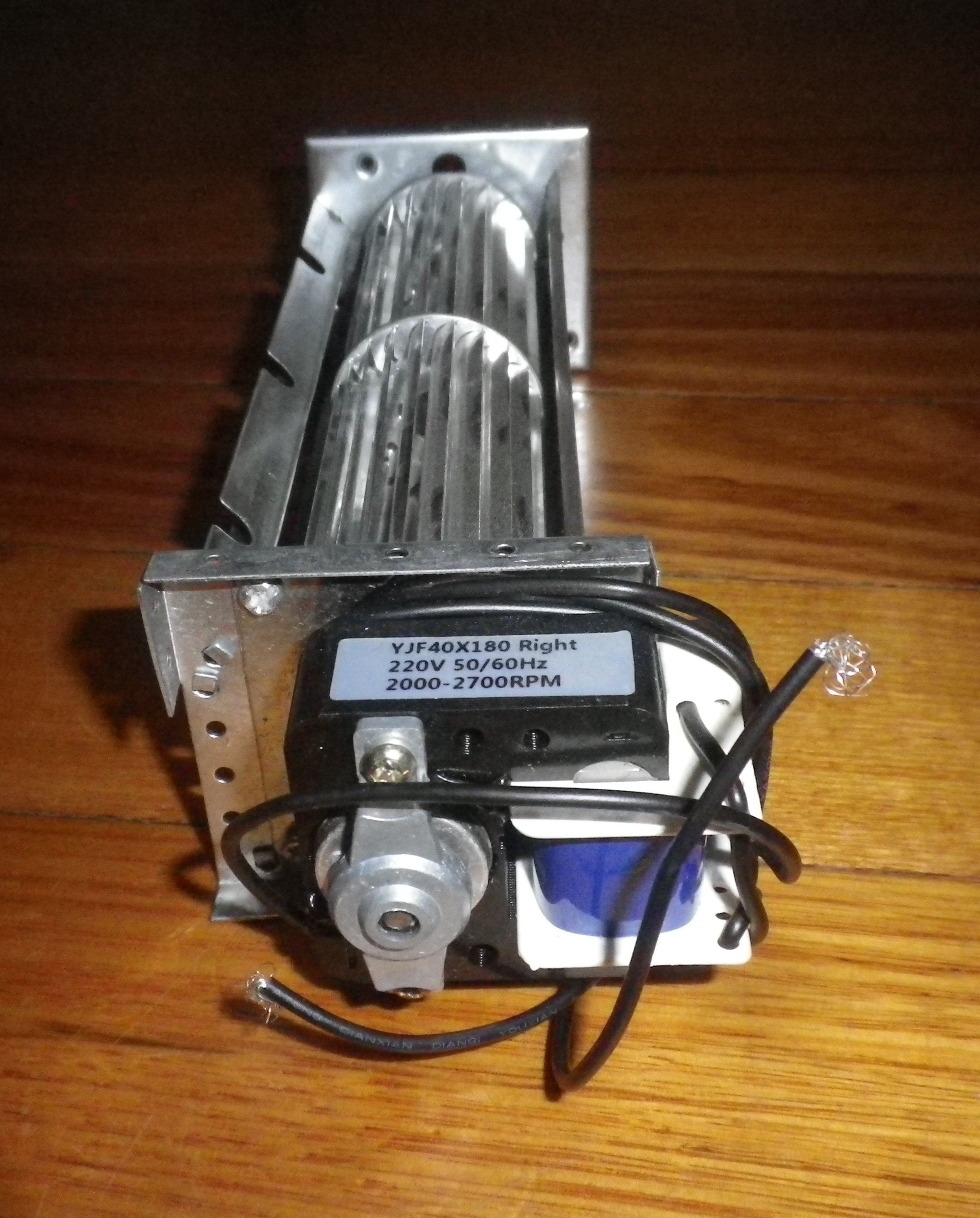

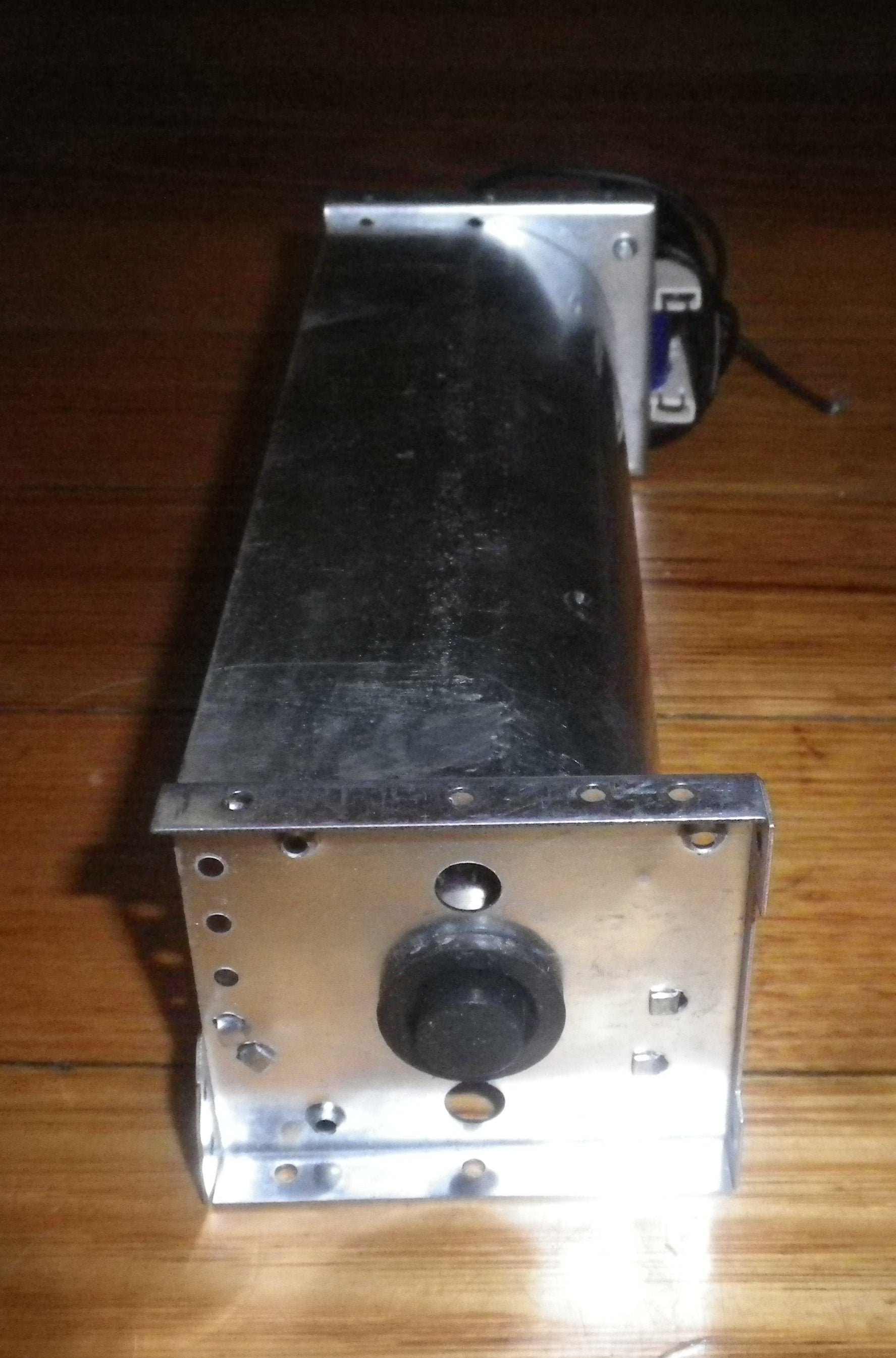

This 180mm non-reversible heating or cooling fan motor is a perfect fit for many ovens and heaters. Part No. SG100-CS, Type VJF40X180 Right. It runs on 240VAC and comes with 500mm bare end flyleads for easy connection. The top and bottom mounting holes are 198mm apart end to end, with 25mm + 15mm + 10mm spacing front to back. The front mounting holes are 198mm end to end and 10mm apart, while the back mounting holes are 198mm end to end and 50mm apart. The drum is 180mm long with a 40mm diameter, and the drum housing measures 209mm x 69mm x 64mm. The overall length including the motor is 248mm. With over 25 years of experience supplying appliance parts to both trade and retail, you can buy with confidence.

Using this fan motor is quite straightforward. First, make sure to connect the 500mm bare end flyleads to the appropriate power source of 240VAC. When installing, align the motor using the top, bottom, front, and back mounting holes as described in the product details. As for precautions, always turn off the power before any installation or maintenance work to avoid electric shock. When it comes to maintenance, regularly check the motor for any signs of wear or damage. You can also clean the drum and housing with a soft, dry cloth to keep it in good working condition. If you notice any unusual noises or performance issues, it's best to consult a professional.
