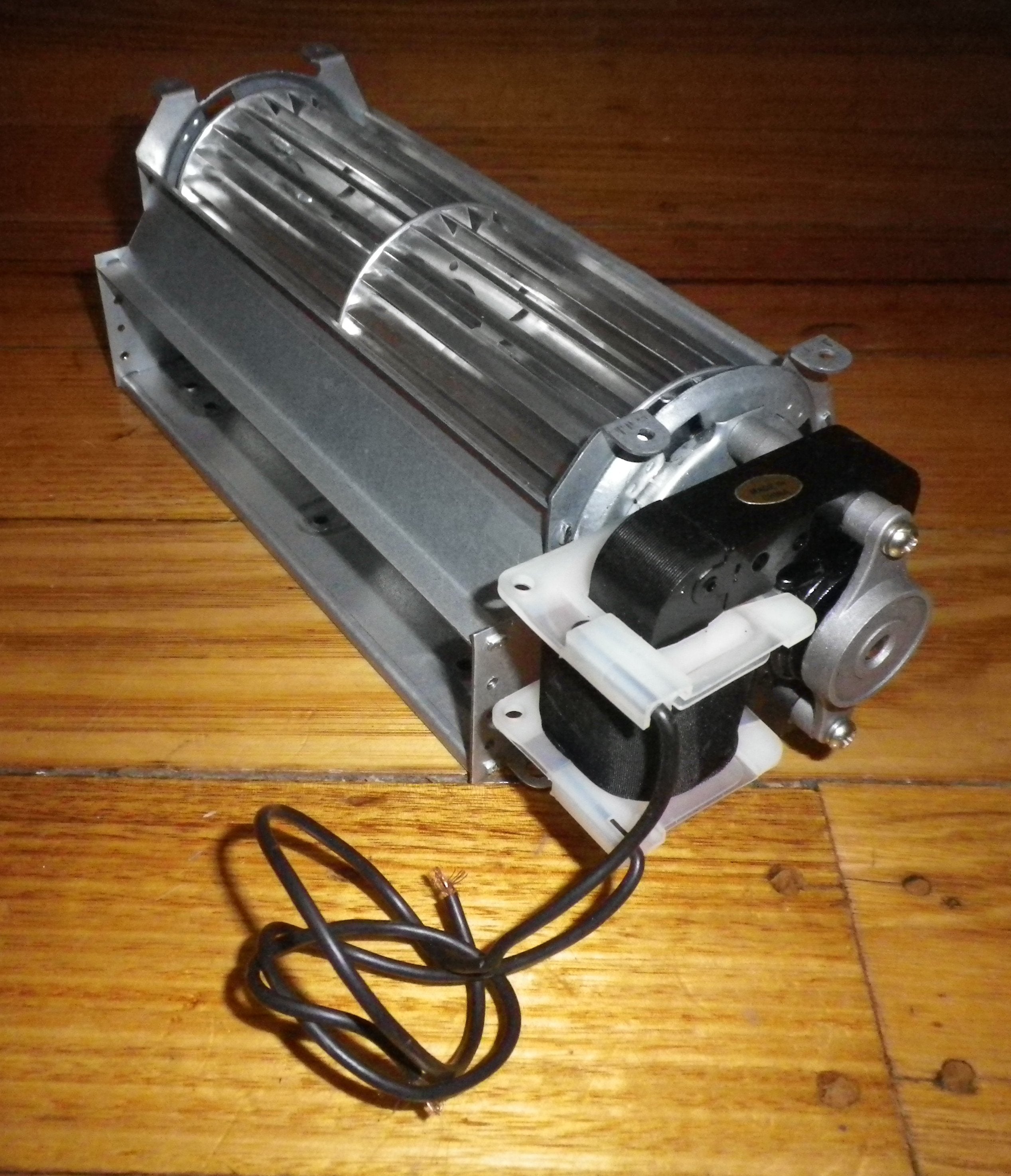

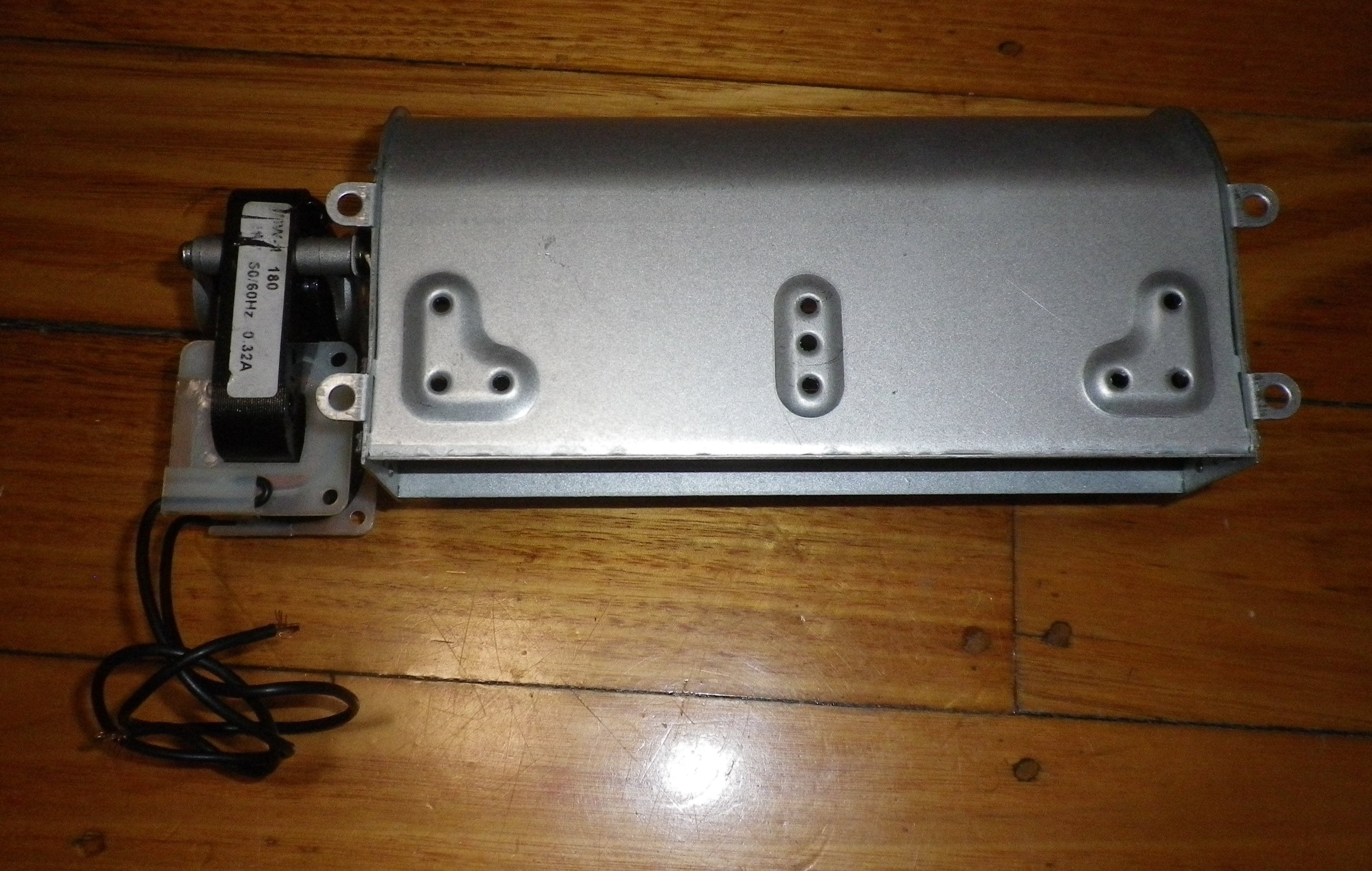

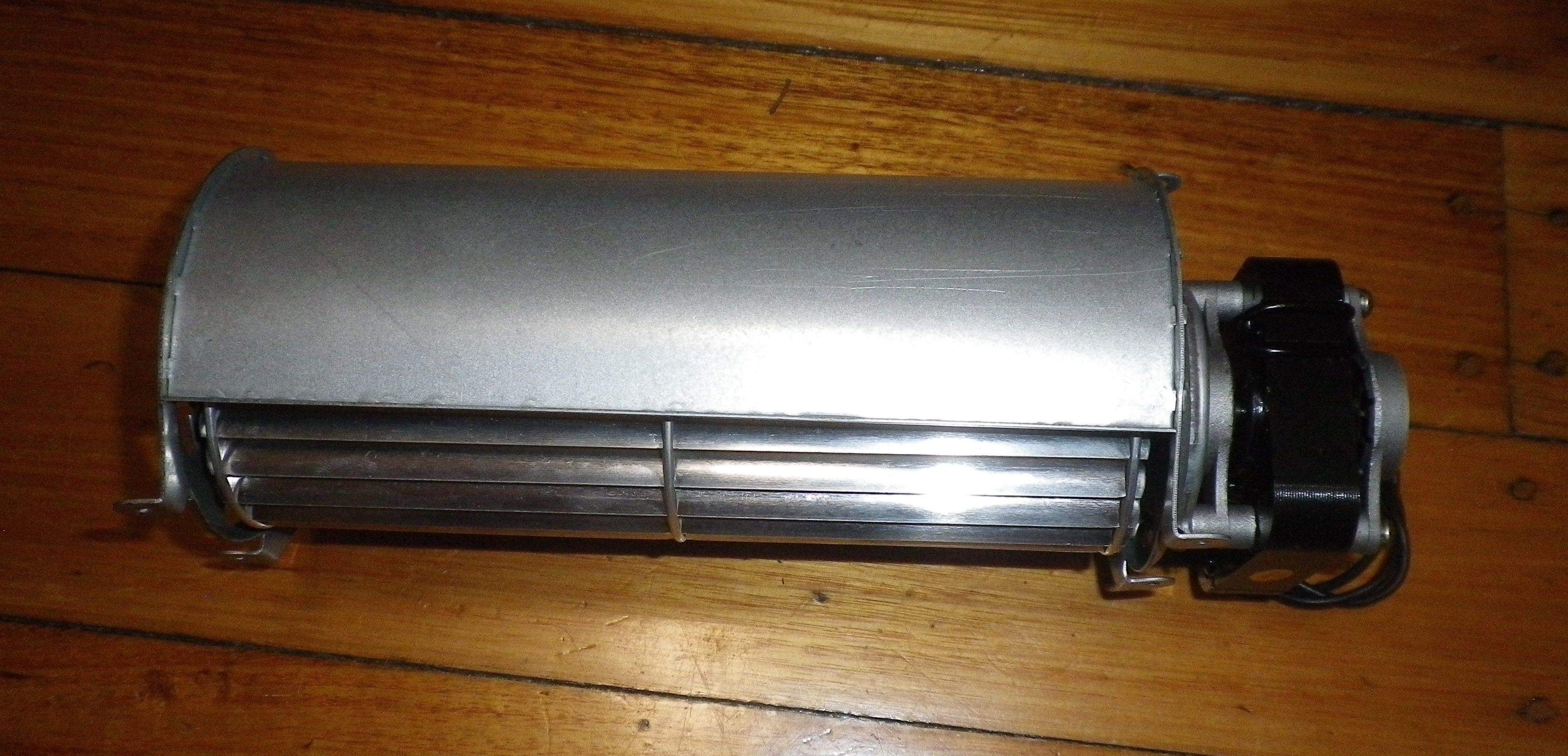

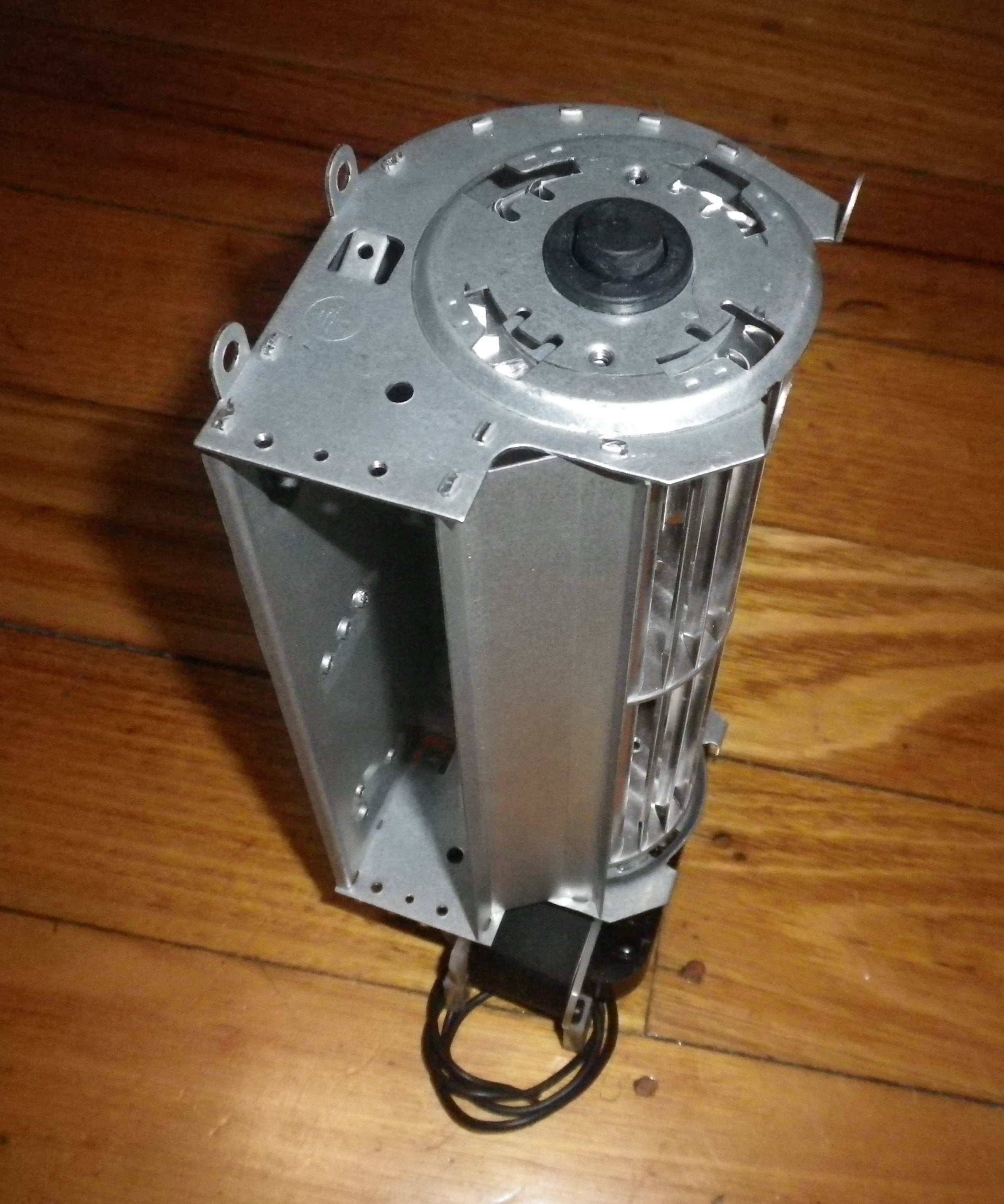

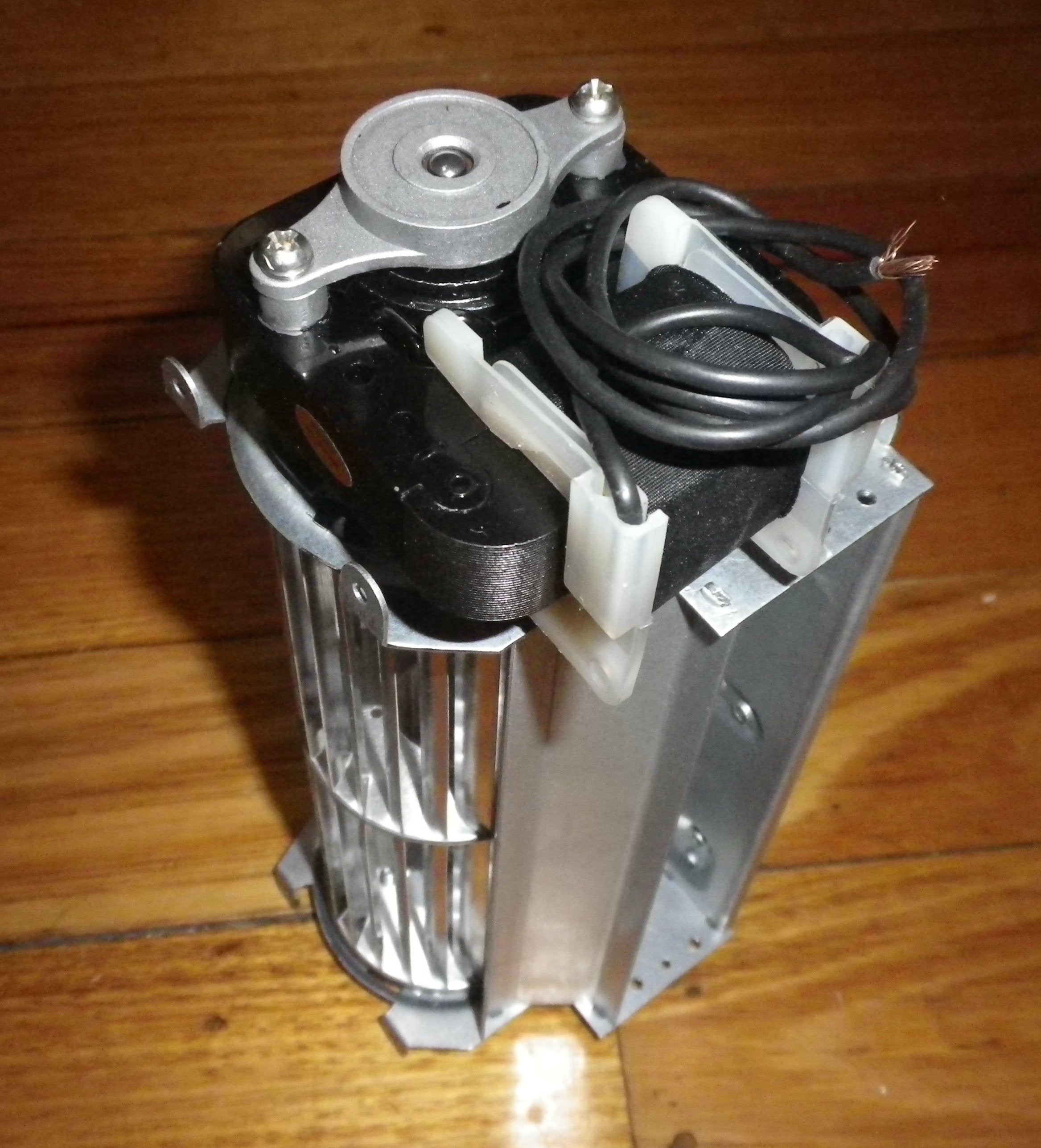

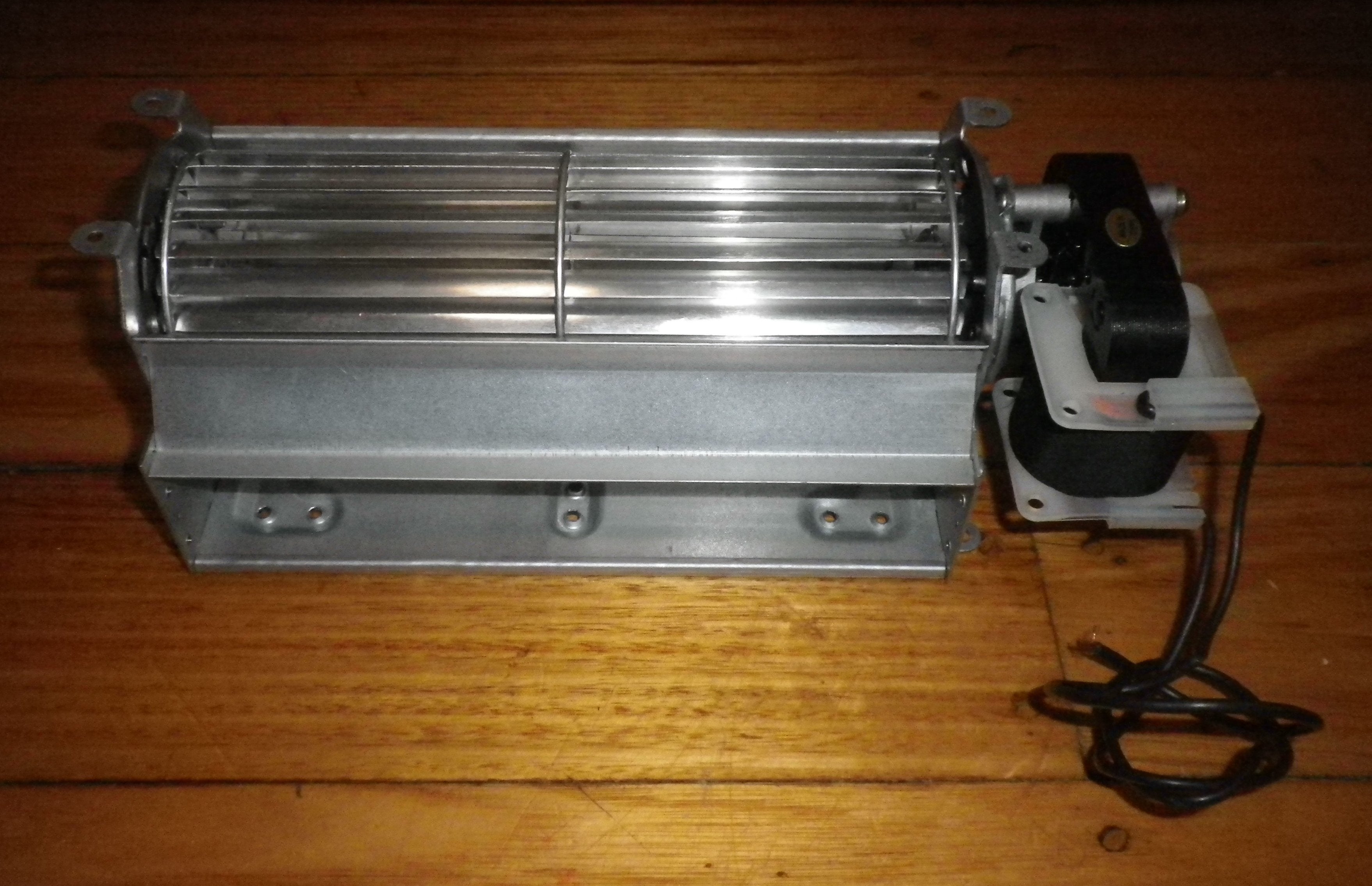

This 200mm reversible fan motor is a perfect fit for many ovens and heaters. With the part number SE204, it replaces a variety of old models such as RF039LHS, 112600, RF039RHS, 112800, SE203, CK410, 1333, and 3051100. Operating at 240VAC, it comes with 2 X 47cm flyleads for easy connection and 6.4mm spade terminals at both ends for earthing. The motor has 4 mounting holes on the top, 45mm X 200mm apart, and on the bottom, 42.5mm X 200mm apart. There are also additional holes on the bottom for mounting with self - tapping screws. The drum measures 195mm in length, 98mm in depth, and 83mm in height. The overall length including the motor is 250mm. Normally, the motor is on the right - hand side, but it can be reversed to the left - hand side. Just let us know when you purchase, and we'll change it before shipping. With over 25 years of experience supplying appliance parts to both the trade and retail sectors, you can buy with confidence.
Using this fan motor is quite straightforward. First, make sure your oven or heater is turned off and unplugged for safety. Connect the 2 X 47cm flyleads to the appropriate electrical connections in your appliance. Use the 6.4mm spade terminals for earthing to ensure proper safety. Then, use the mounting holes either on the top or bottom to secure the motor in place. You can use self - tapping screws for the additional holes on the bottom. When it comes to the motor side, if you need a left - handed configuration, remember to tell us when you order. As for maintenance, regularly check the connections to make sure they are tight and free of corrosion. Keep the motor clean from dust and debris. If you notice any strange noises or performance issues, it's best to stop using the motor and contact a professional for inspection.
