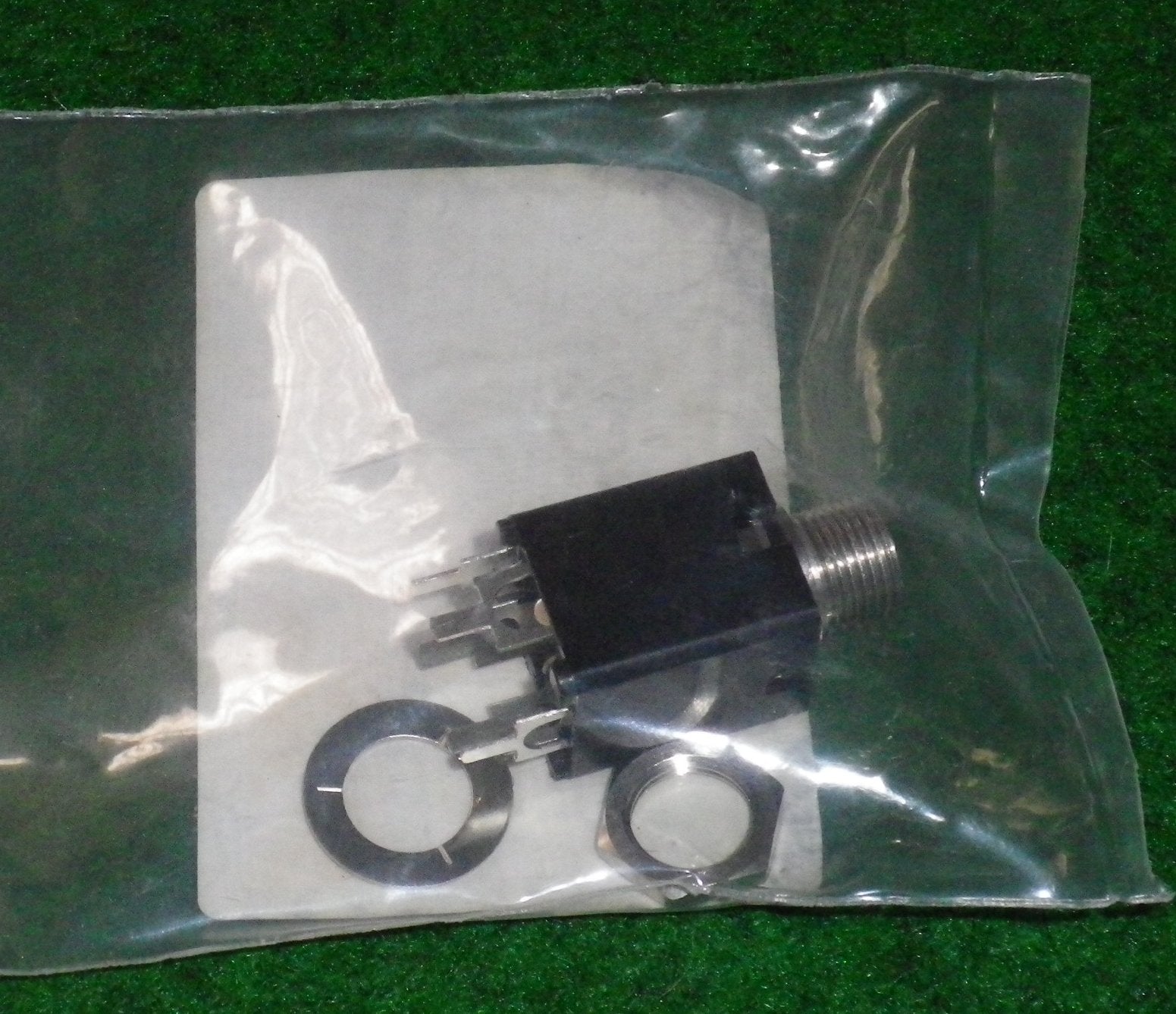

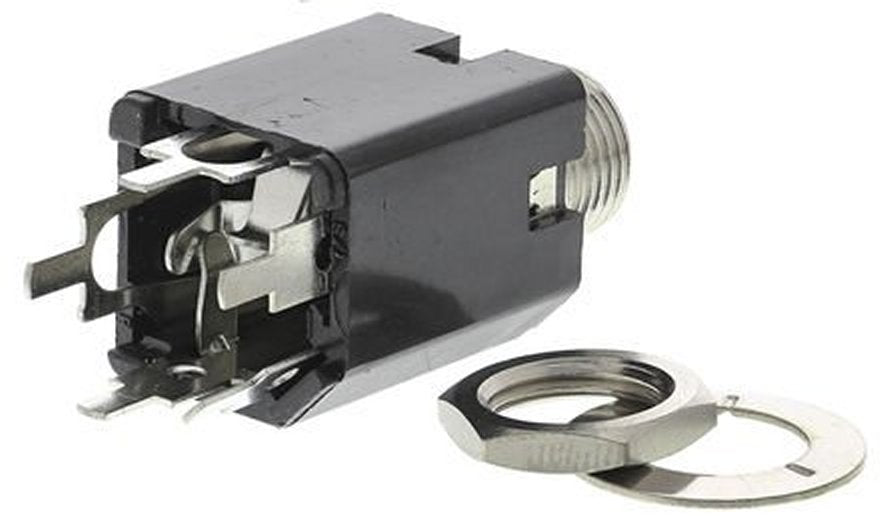

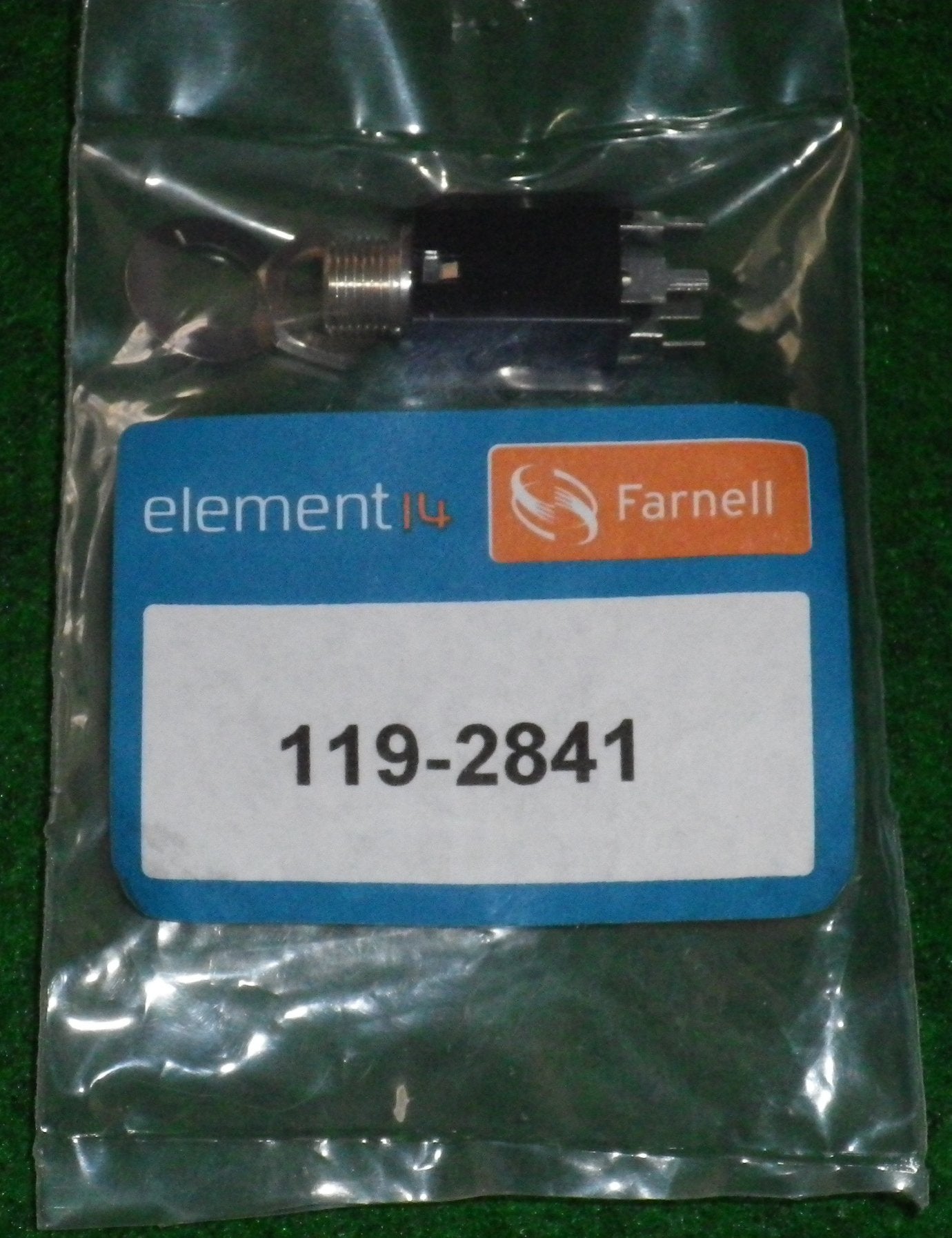

Introducing the Switchcraft Professional 6.3mm Stereo Phone Socket designed for PCB mounting. With part numbers 114BPCX and 1192841, this socket offers professional - grade quality. It comes with normally closed switching on both ring and tip connections, ensuring stable and reliable signal transmission. There are 5 PCB tag connections, making it easy to install. Ideal for a wide range of applications such as headphone jacks, balanced and switched signal inputs and outputs for sound mixers, guitar amplifiers, etc. You can view the datasheet here. We've been in the appliance parts supply business for over 25 years, so you can buy with confidence.
Using this Switchcraft 6.3mm stereo phone socket is easy. First, make sure your PCB is ready and clean. Then, connect the 5 PCB tag connections carefully according to your device's wiring diagram. For headphone jacks, simply plug in your headphones and enjoy high - quality sound. When using it with sound mixers or guitar amplifiers, connect the signal inputs and outputs as needed. As for maintenance, keep the socket clean and free from dust. Avoid excessive force when plugging and unplugging devices to prevent damage. If you notice any issues, refer to the datasheet for troubleshooting. Remember, this socket is designed for long - term use, so take good care of it and it will serve you well.
