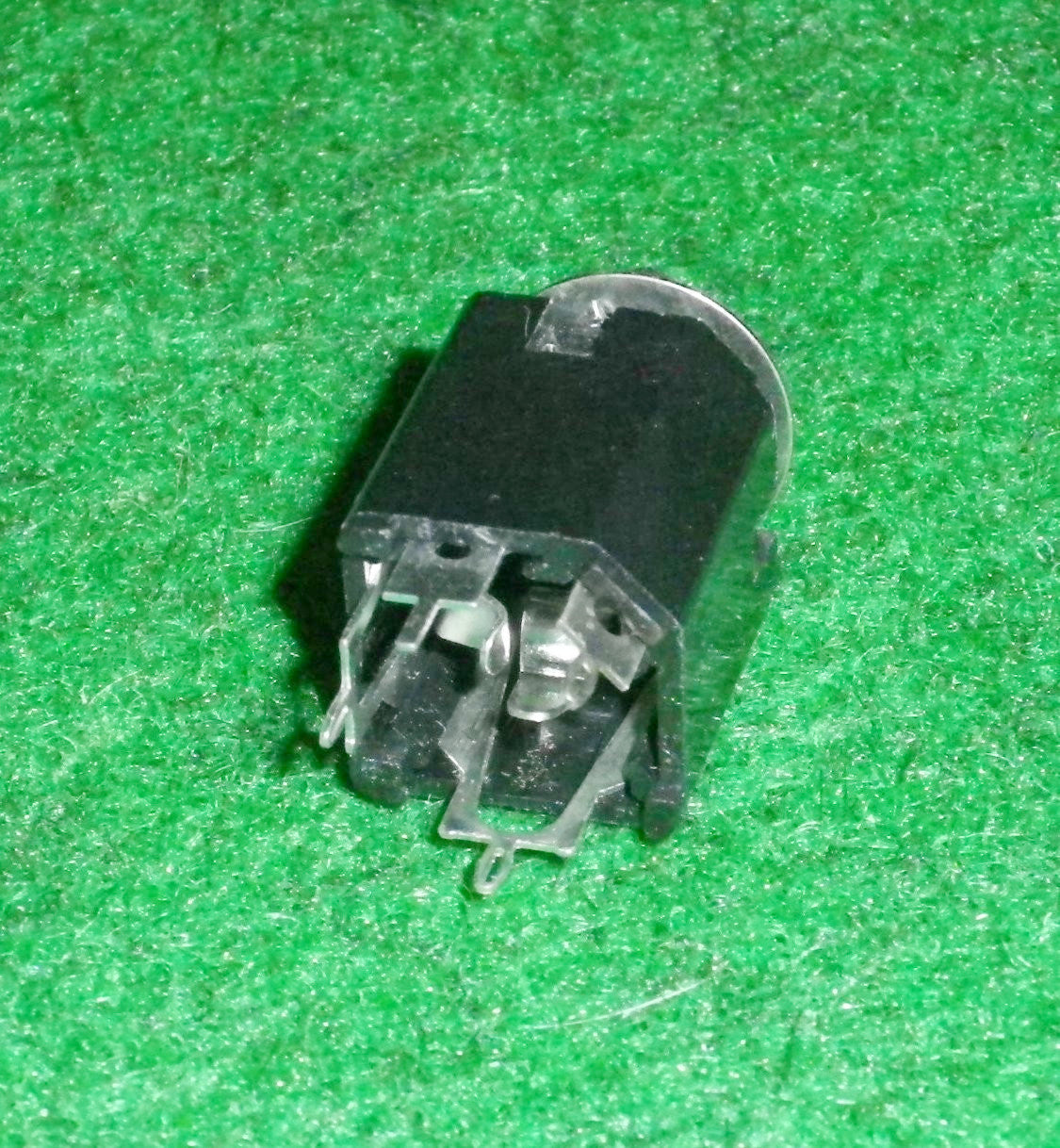

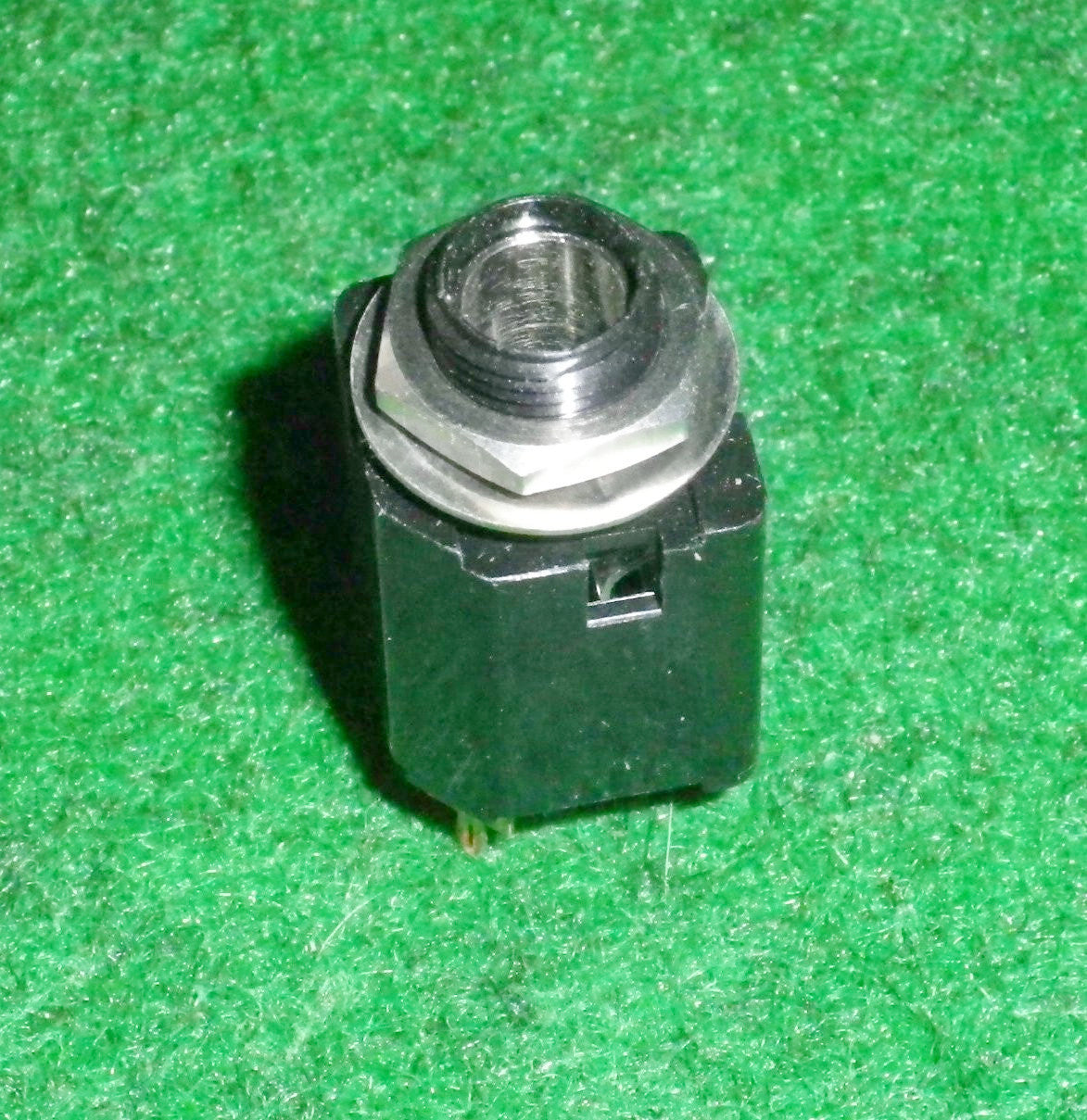

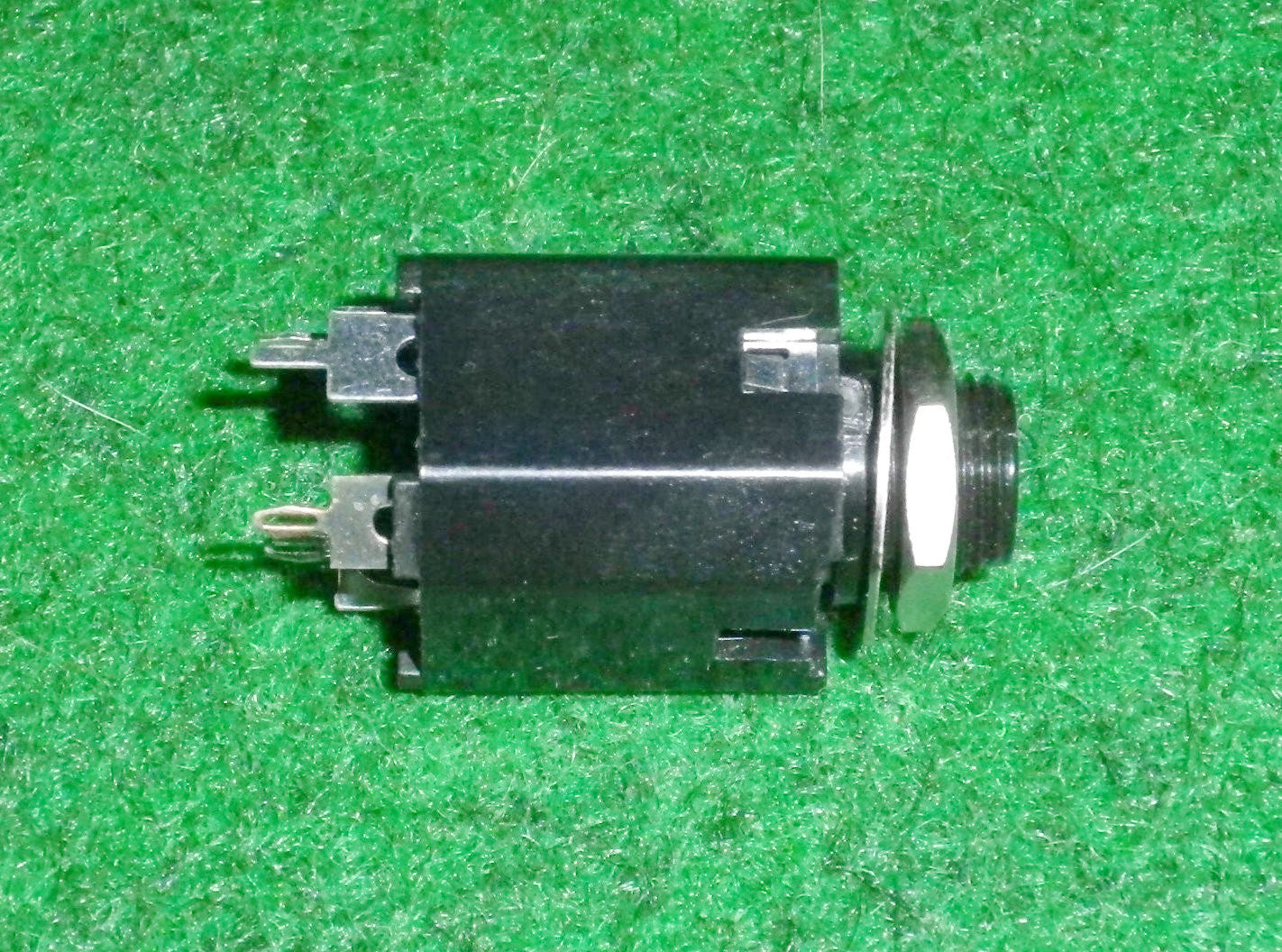

This is a high - quality Switchcraft professional 6.3mm stereo phone socket designed for PCB mounting. It has a part number of N113BPCSX or 502 - N113BPCSX. This socket features normally closed switching on the tip connection and insulated mounting. It comes with 4 PCB tag connections. It's perfect for headphone jacks, and can handle balanced and switched signal inputs and outputs in sound mixers, guitar amplifiers, etc. You can view the datasheet here. With over 25 years of experience supplying appliance parts to both trade and retail, you can buy with confidence.
Using this Switchcraft 6.3mm stereo phone socket is easy. First, make sure your device is turned off. Then, carefully connect the 4 PCB tag connections to the appropriate places on your PCB. You can use it as a headphone jack or for signal inputs and outputs in your sound mixer or guitar amplifier. When it comes to maintenance, keep it clean and dry. Avoid exposing it to extreme temperatures or moisture. If you notice any issues with the switching function, check the tip connection. Remember, if you need more technical details, you can always refer to the datasheet.
