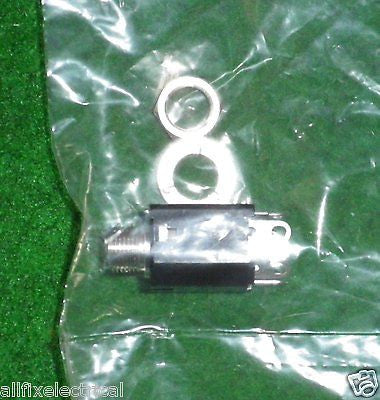

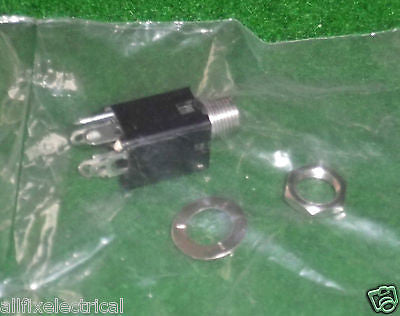

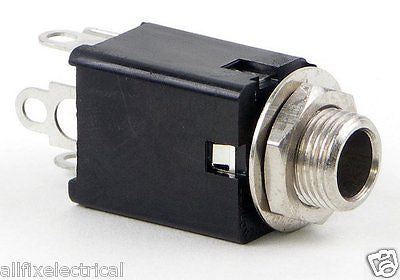

Switchcraft brings you a top - notch professional 6.3mm stereo phone socket, model number 114BX, 1298186. This socket offers professional - grade quality. It features normally closed switching on both the ring and tip connections, which is great for maintaining signal integrity. With 5 solder tag connections, it provides a reliable and stable connection. Ideal for various applications like headphone jacks, balanced and switched signal inputs and outputs for sound mixers, guitar amplifiers, and more. You can view the datasheet right here. We've been in the business of supplying appliance parts to both the trade and retail sectors for over 25 years, so you can shop with complete confidence.
Using this Switchcraft 6.3mm stereo phone socket is easy. First, identify the 5 solder tag connections. You can use these to connect your device securely, such as a headphone or a sound mixer. When making the connections, ensure that the wires are properly attached to the right tags. For the ring and tip connections, remember that they have normally closed switching. This means that when you plug in a device, the circuit will change accordingly. As for maintenance, keep the socket clean from dust and debris. You can use a soft, dry cloth to gently wipe it. Avoid using any harsh chemicals or abrasive materials as they may damage the socket. If you have any problems, refer to the datasheet provided. And since we have over 25 years of experience in supplying these parts, you can trust the quality and feel free to contact us if you need further assistance.
