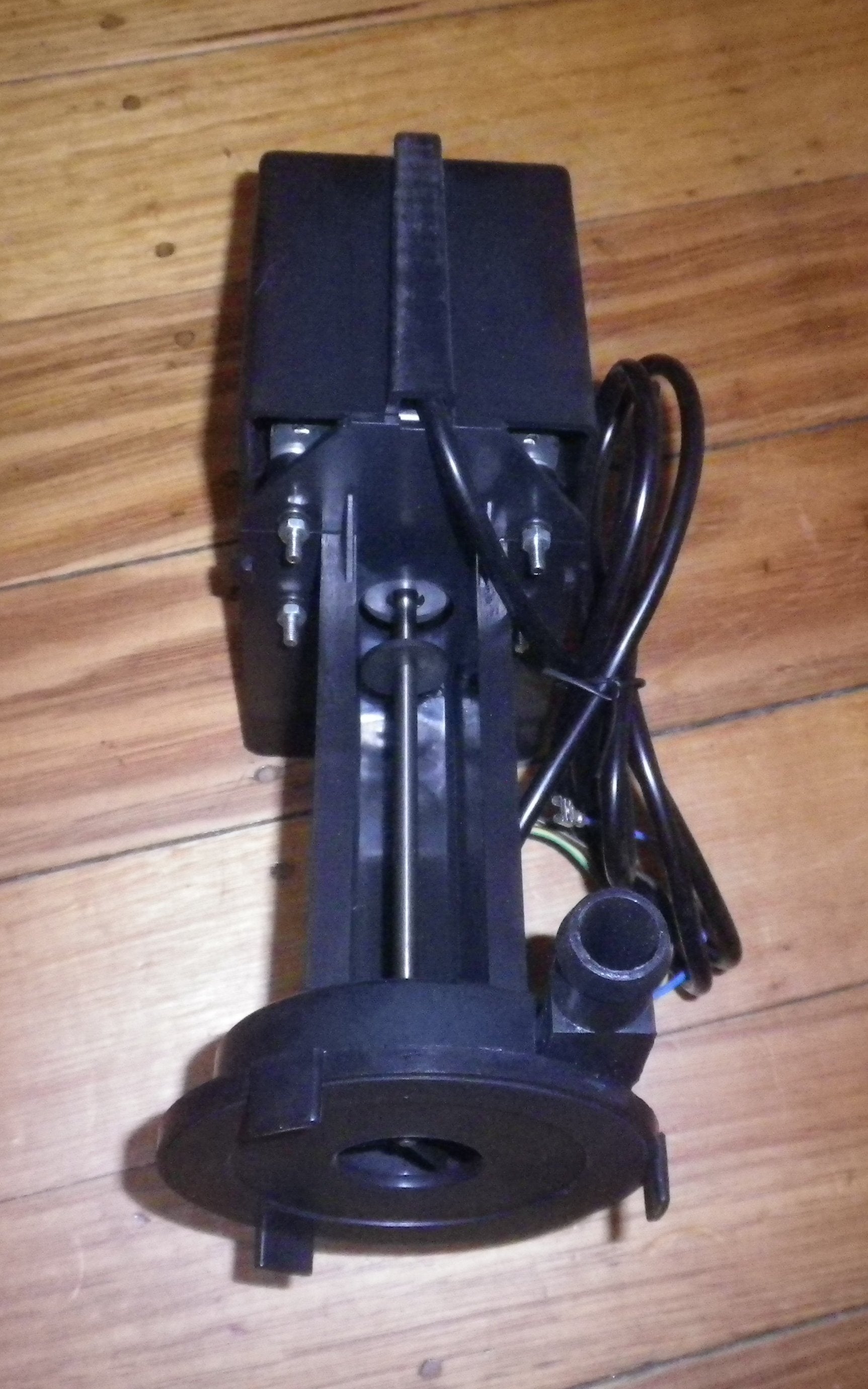

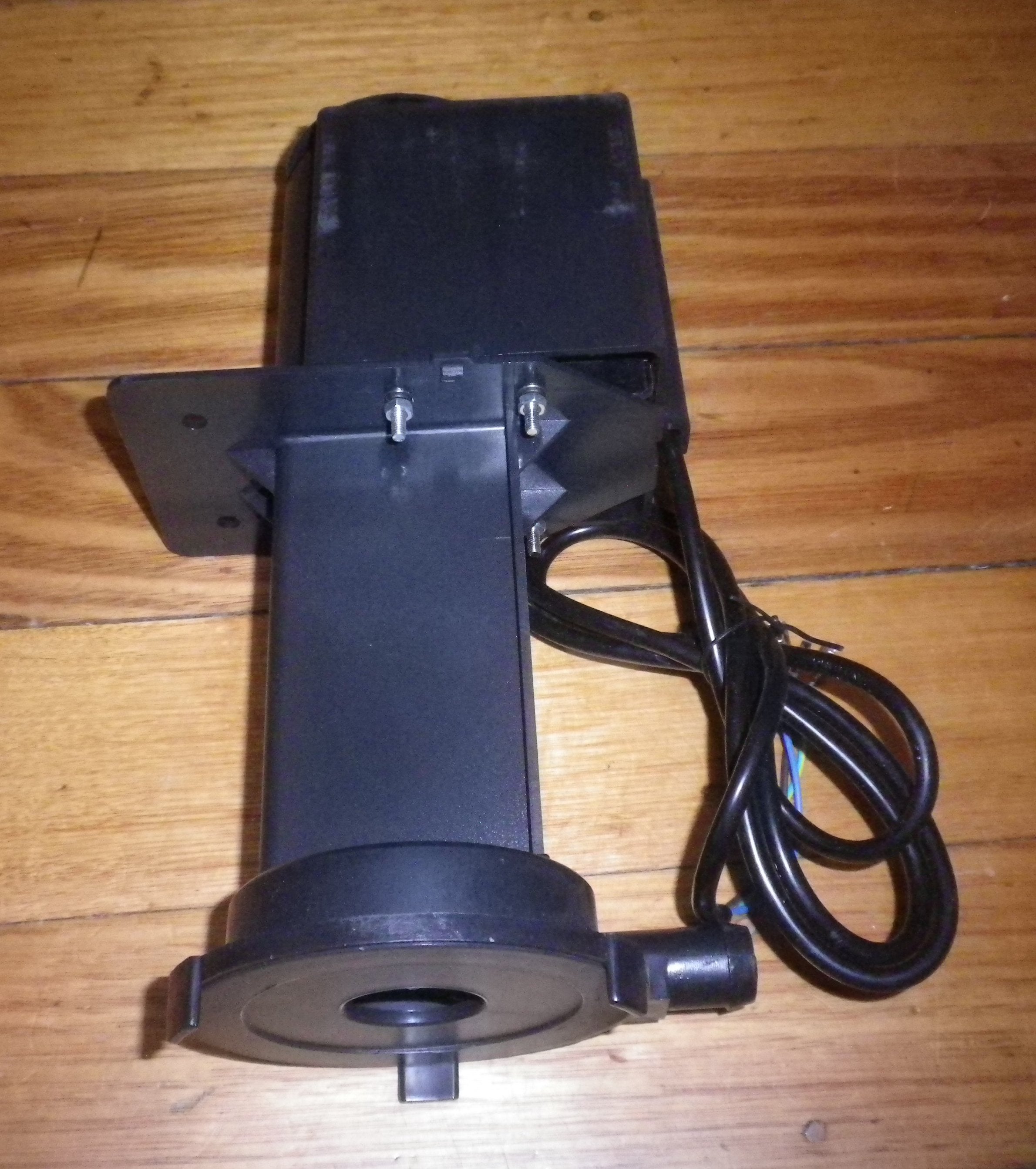

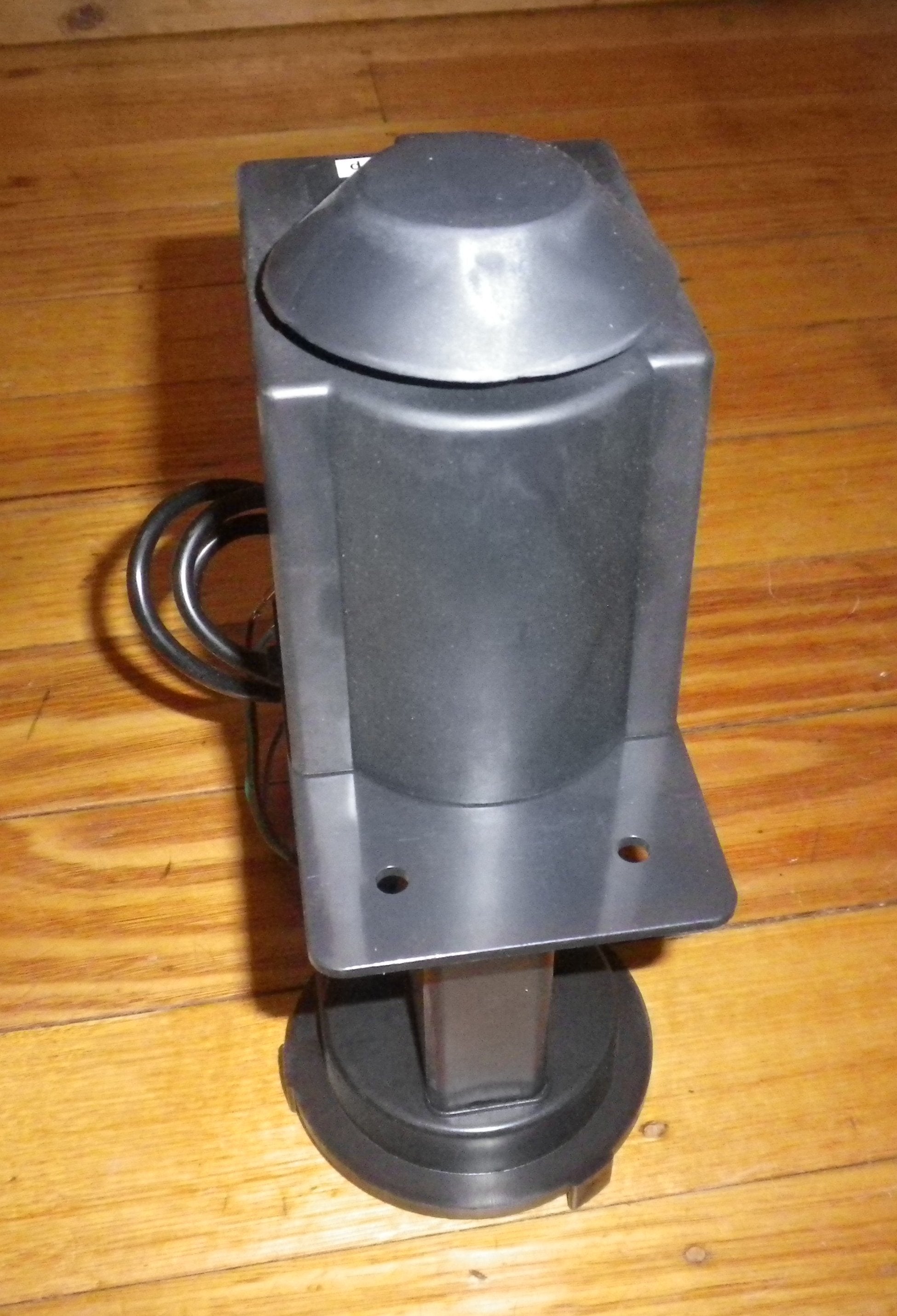

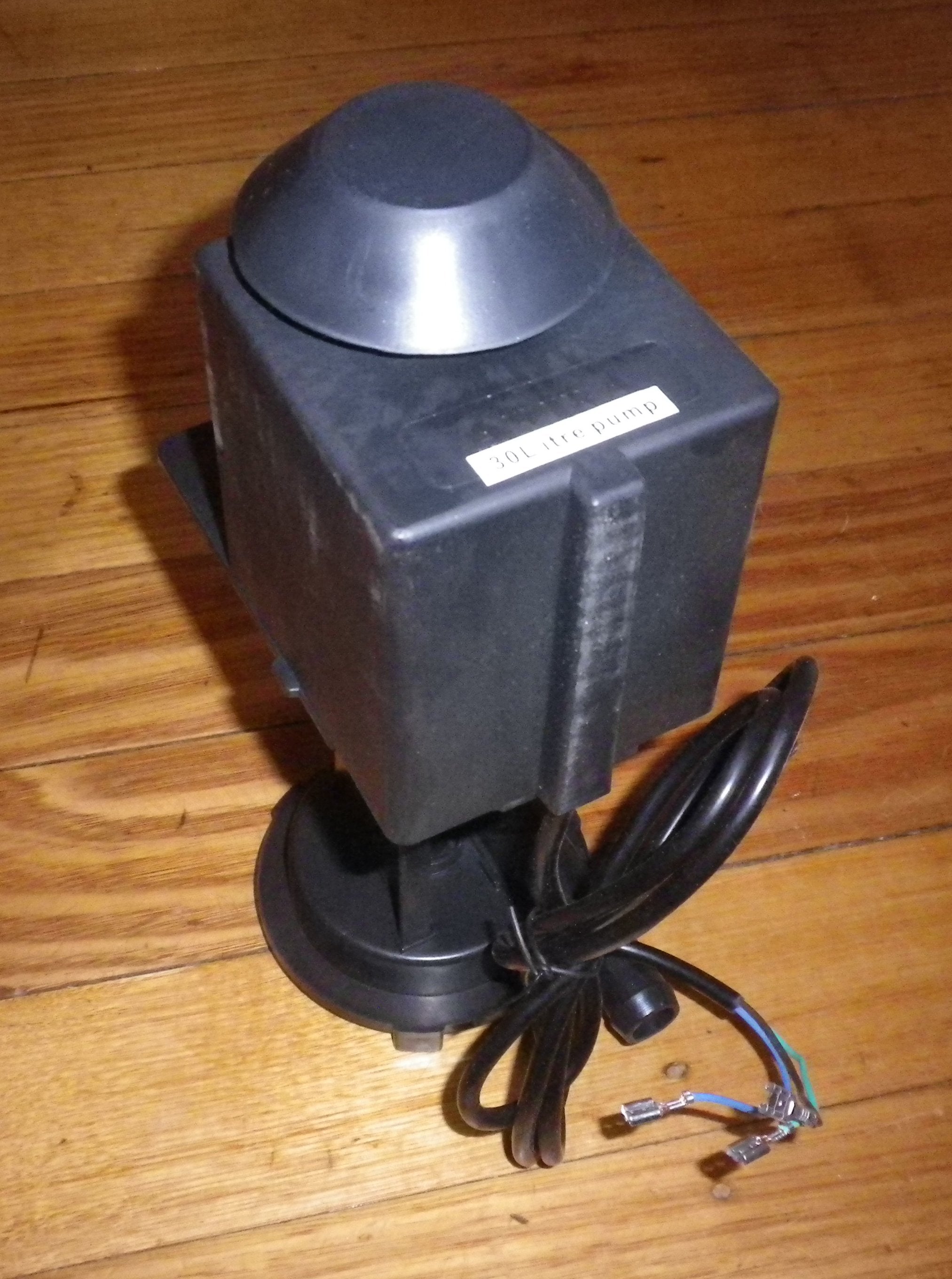

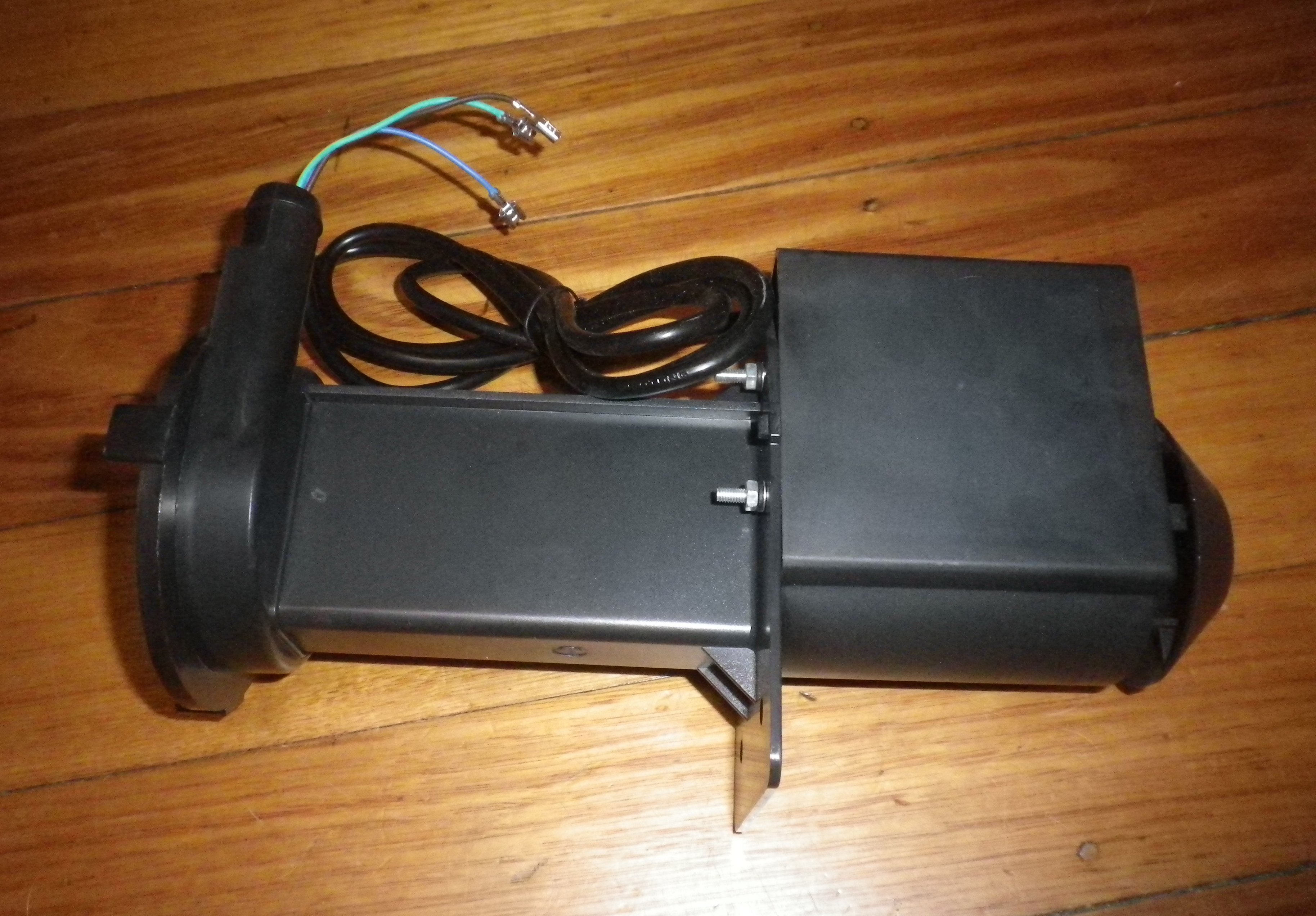

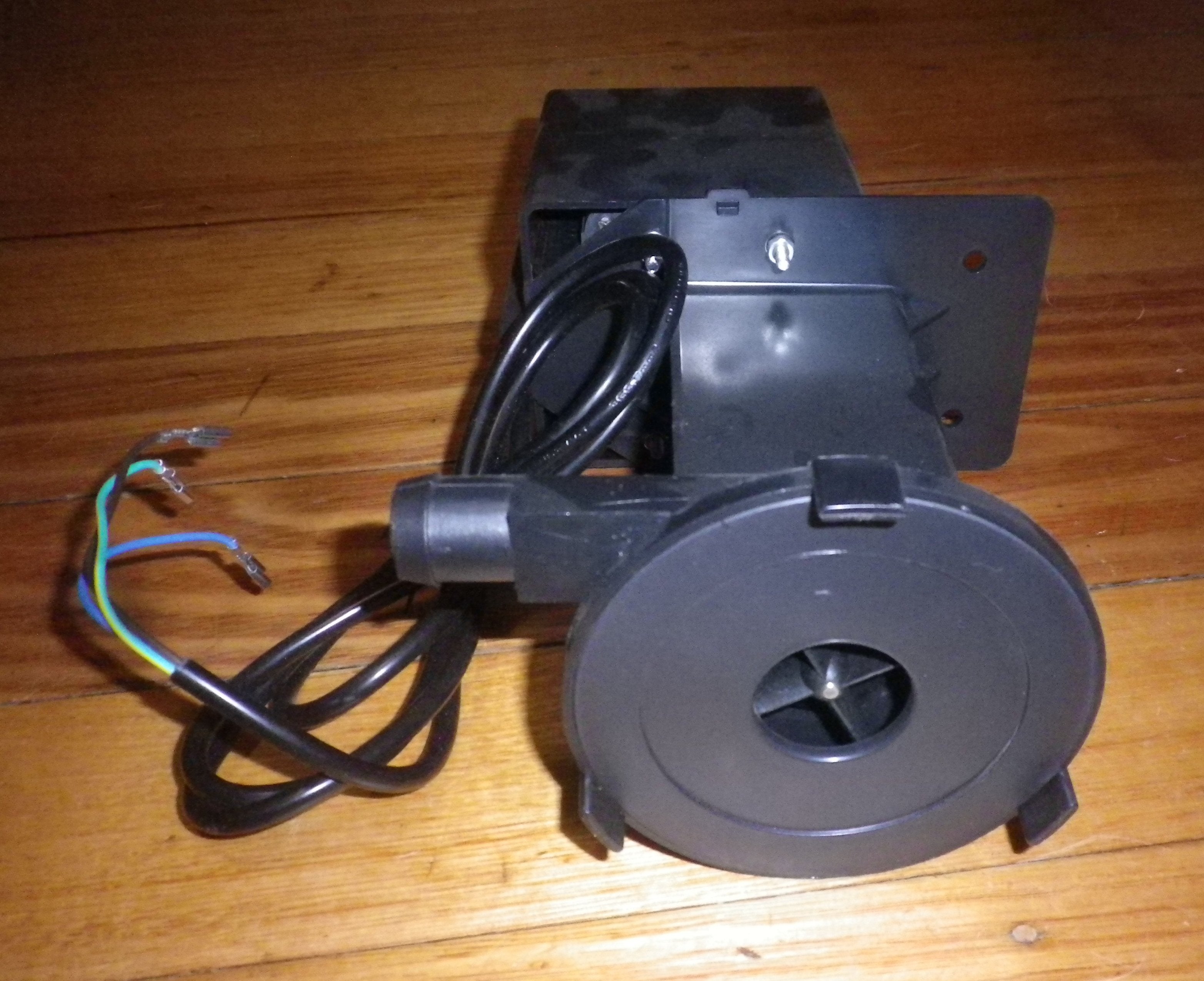

This Universal Evaporative Air Conditioner Water Circulation Pump, Part no. AC116, is a great alternative to similar parts like E/P28ST, E/P28/S, T0030L, and TE035L. It's a complete pump assembly that fits many roof - mounted and portable evaporative air conditioners. The pump motor runs on 240VAC, 50Hz and has a capacity of 30 litres per minute. It comes with a 1 - metre 3 - core lead and 6.4mm spade terminals, including an earth wire. With a total height of 28.5cm, a 15.5cm height from the bottom of the pump to the mounting bracket, 50mm - apart mounting holes, a 105mm diameter pump base, and a 21mm external outlet diameter, it offers a 30 litres/minute flow rate. It's a standard feature on many Bonaire and Coolair evaporative coolers. Easy to install, it comes with a 1 - year manufacturer warranty. Australian - designed and made in China. We've been in the appliance parts business for over 25 years, so you can buy with confidence.
Using this water circulation pump is easy. First, make sure the pump is properly installed in your evaporative air conditioner following the mounting instructions. Connect the 1 - metre 3 - core lead with the 6.4mm spade terminals to the appropriate power source, ensuring the earth wire is connected for safety. Once connected, switch on the power, and the pump will start circulating water at a rate of 30 litres per minute. When using, keep in mind that the pump is designed to work with 240VAC, 50Hz power. Don't expose it to water other than the normal water circulation in the air - conditioner system. For maintenance, regularly check the pump for any signs of wear or blockages. If you notice any problems, refer to the 1 - year manufacturer warranty. If you have any questions, our experienced team, with over 25 years in the appliance parts business, is here to help.
