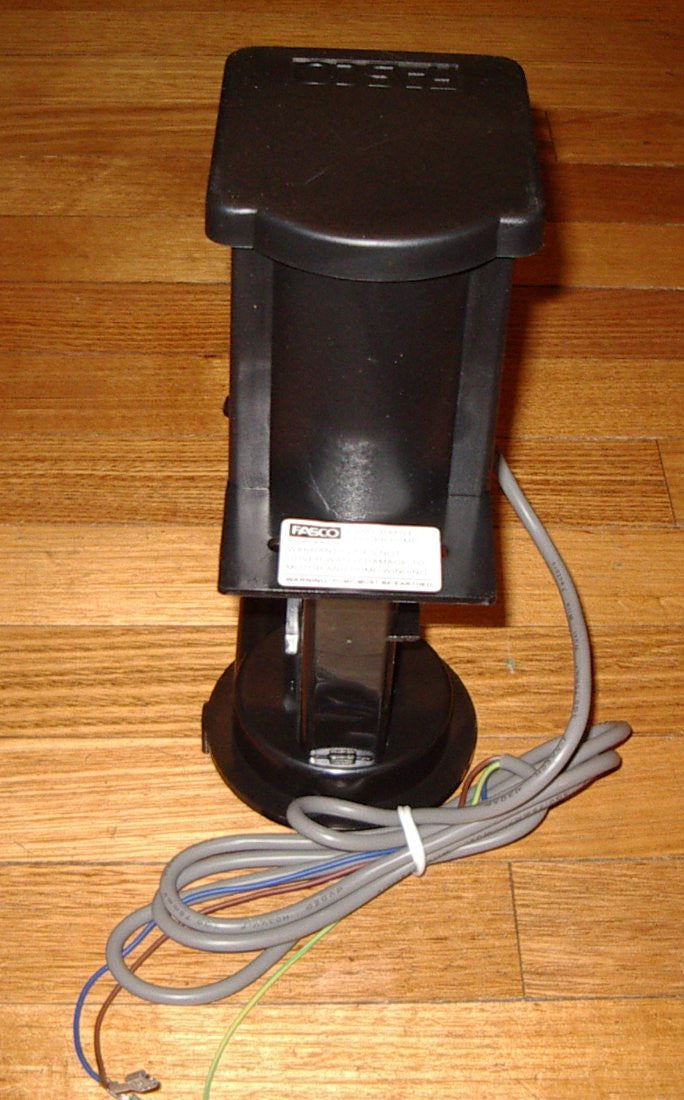

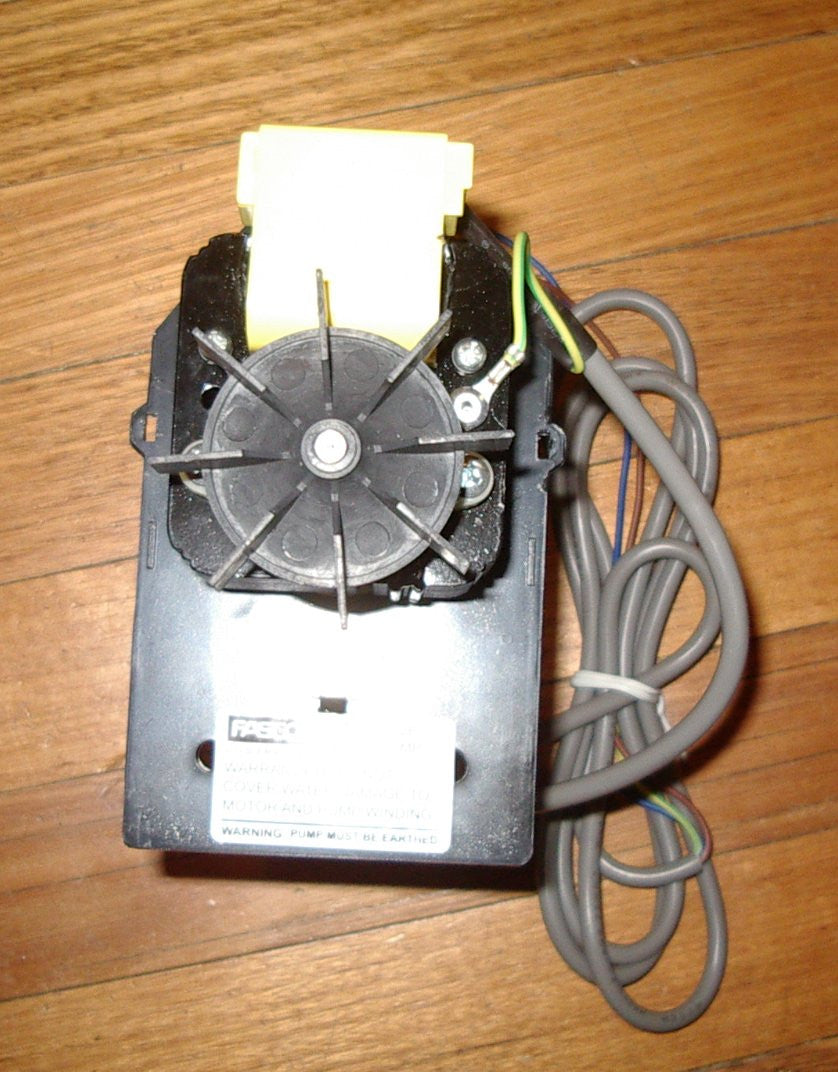

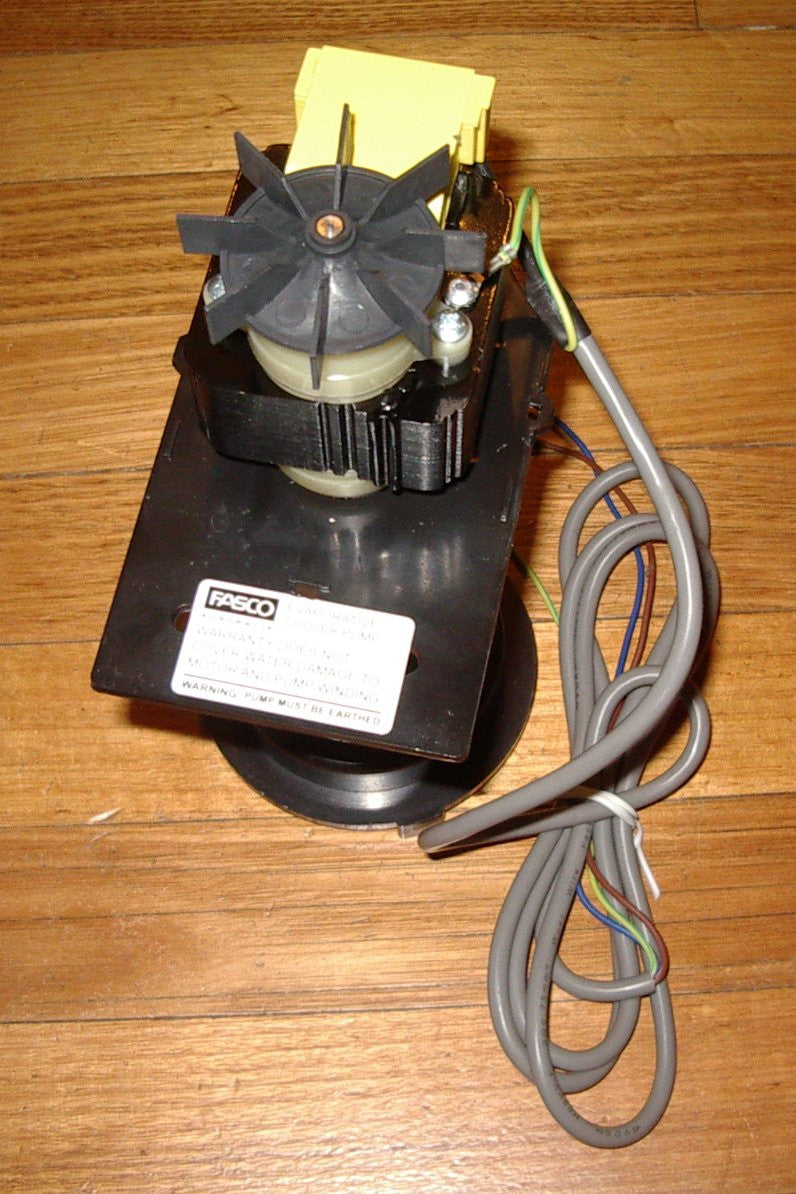

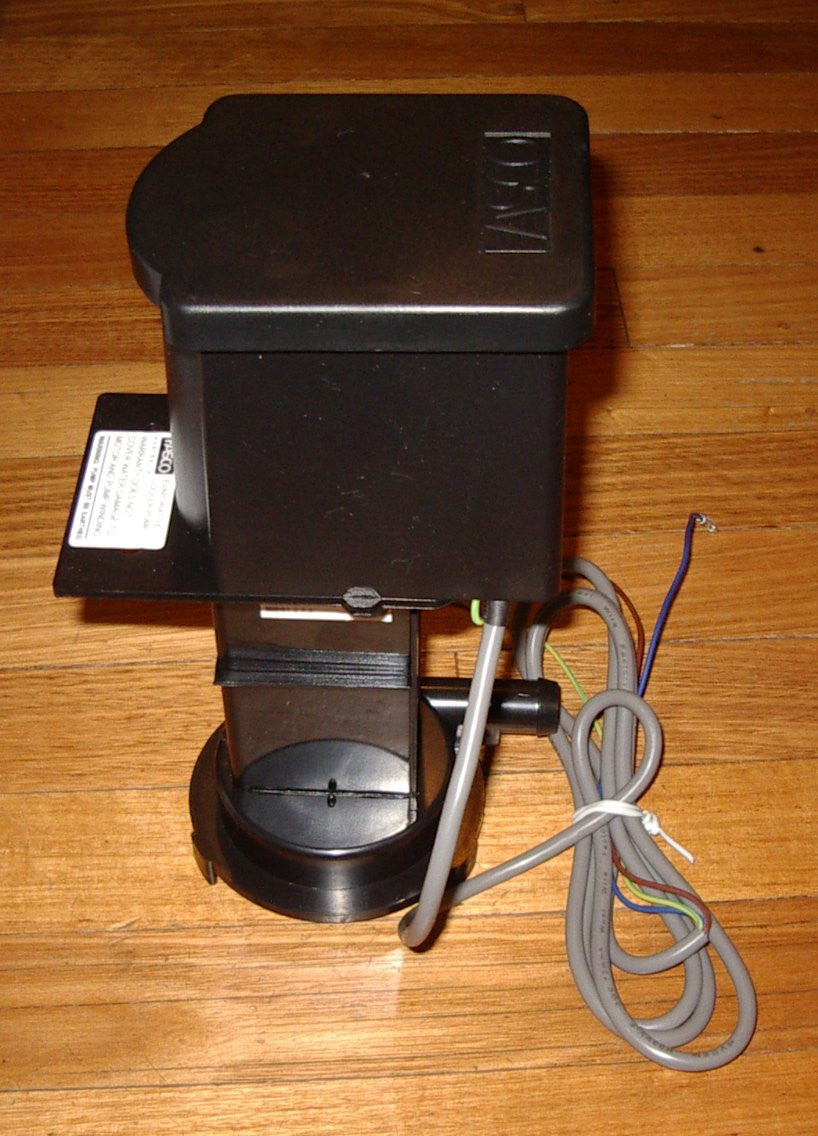

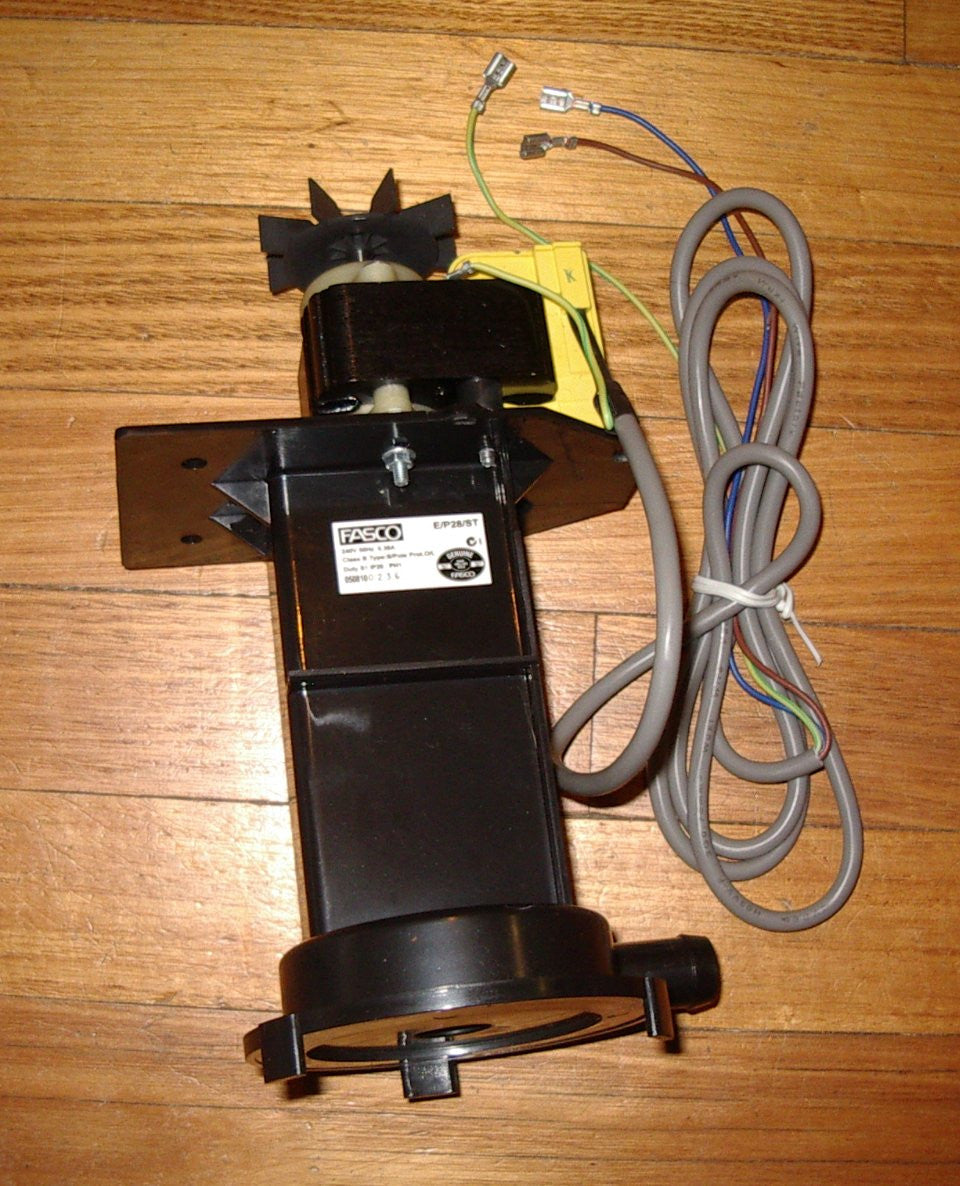

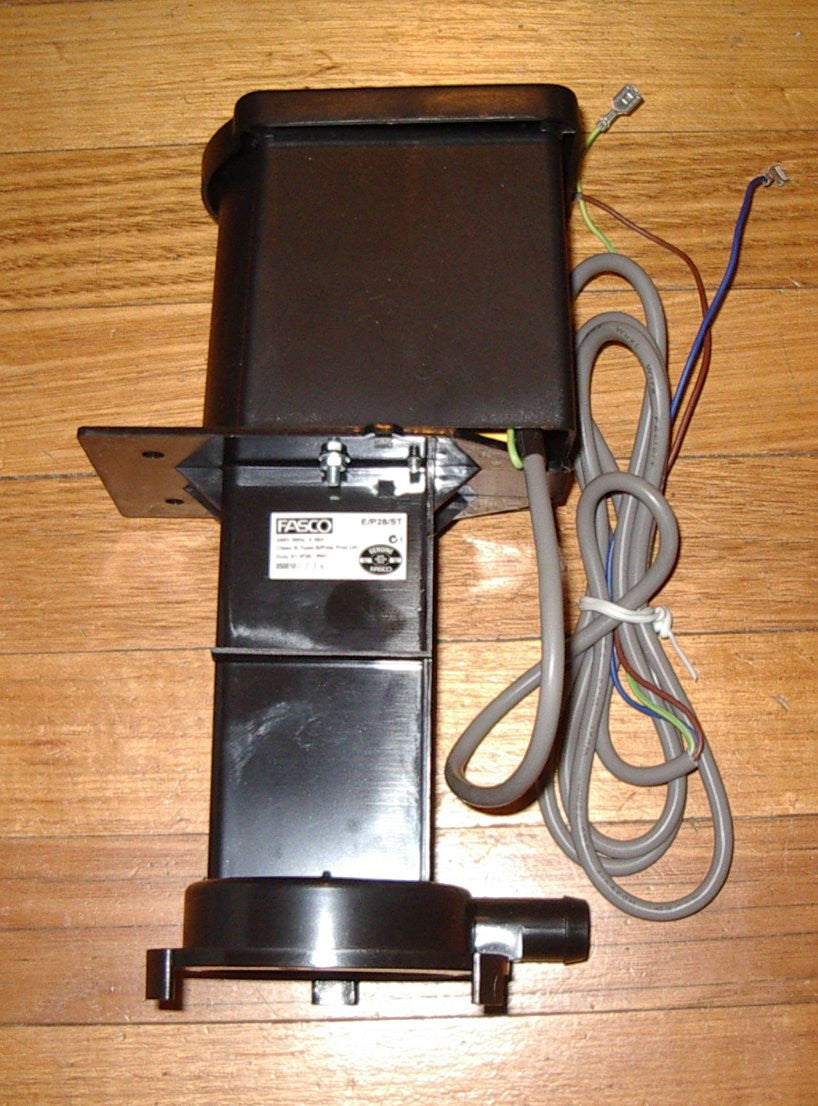

This is a universal evaporative air conditioner water circulation pump from Fasco. It's part number E/P28ST (also similar to E/P28/S, AC163, T0030L, and TE035L). This complete pump assembly by JRM Fasco is a great fit for many roof - mounted and portable evaporative air conditioners. The pump motor operates on 240VAC, 0.38Amp, 50Hz and has an impressive capacity of 28 liters per minute. It comes with a 1 - meter 3 - core lead having 6.4mm spade terminals including an earth wire. The pump has a total height of 27.5cm, with a 15.5cm height from the bottom of the pump to the mounting bracket. The mounting holes are 50mm apart, the pump base diameter is 105mm, and the external diameter of the outlet is 21mm. It has a flow rate of 28 liters per minute and is used as standard equipment in many Bonaire and Coolair evaporative coolers. Installation is a breeze, and it comes with a 1 - year manufacturer warranty. It's Australian - designed and made in China. With over 25 years of experience supplying appliance parts to both the trade and retail sectors, you can buy with full confidence.
Using this Fasco water pump is easy. First, make sure the power is off. Then, connect the 1 - meter 3 - core lead to the appropriate power source using the 6.4mm spade terminals, don't forget to connect the earth wire for safety. Mount the pump using the holes that are 50mm apart on the mounting bracket. Once it's installed, turn on the power, and the pump will start circulating water at a rate of 28 liters per minute. As for maintenance, check the pump regularly for any signs of damage or leaks. Clean the pump every few months to keep it working efficiently. When it comes to safety, always turn off the power before doing any maintenance work. Also, make sure the pump is installed in a dry and well - ventilated area. If you have any issues, the 1 - year manufacturer warranty has got you covered, so you can buy and use this pump with peace of mind.
