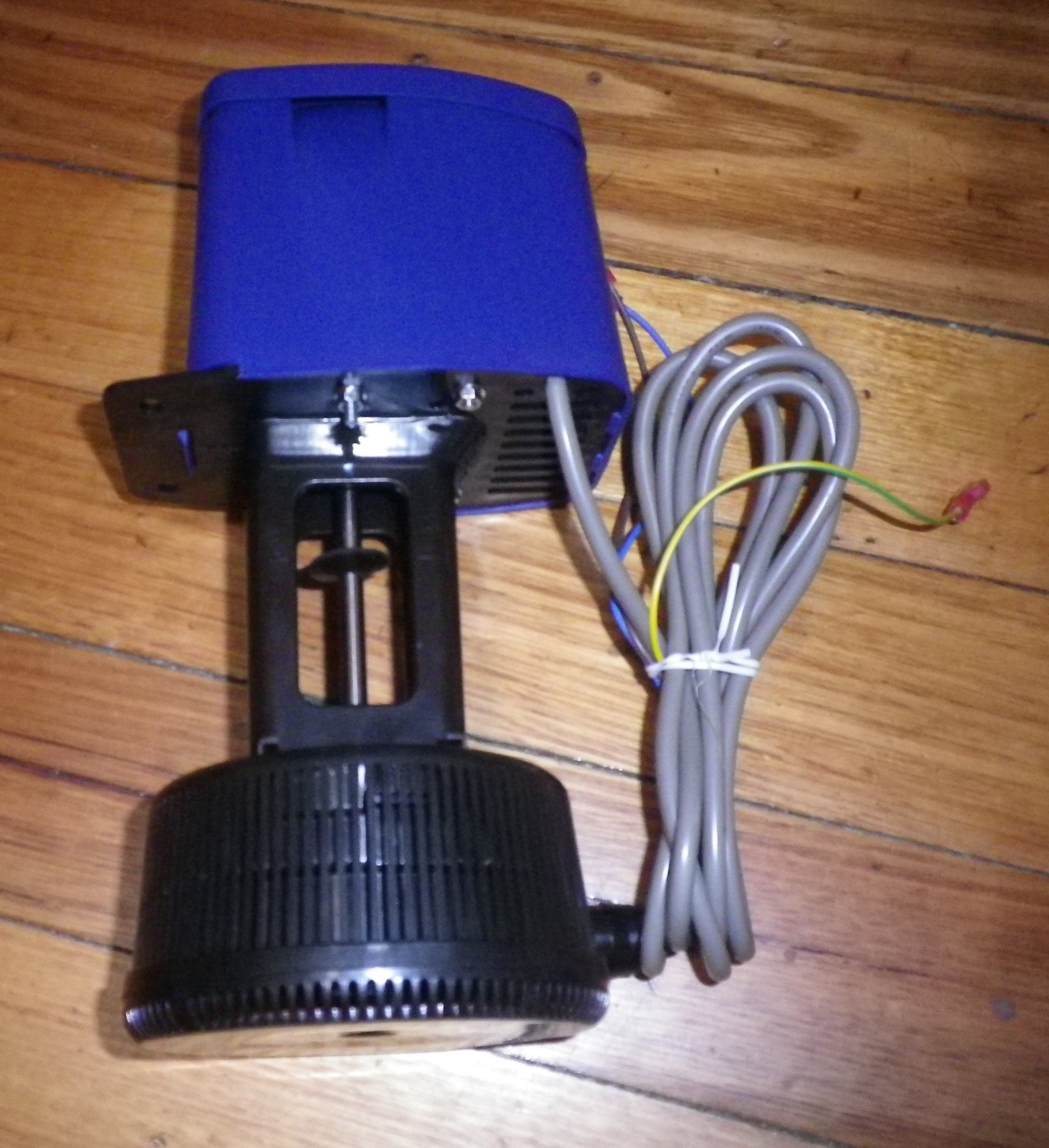

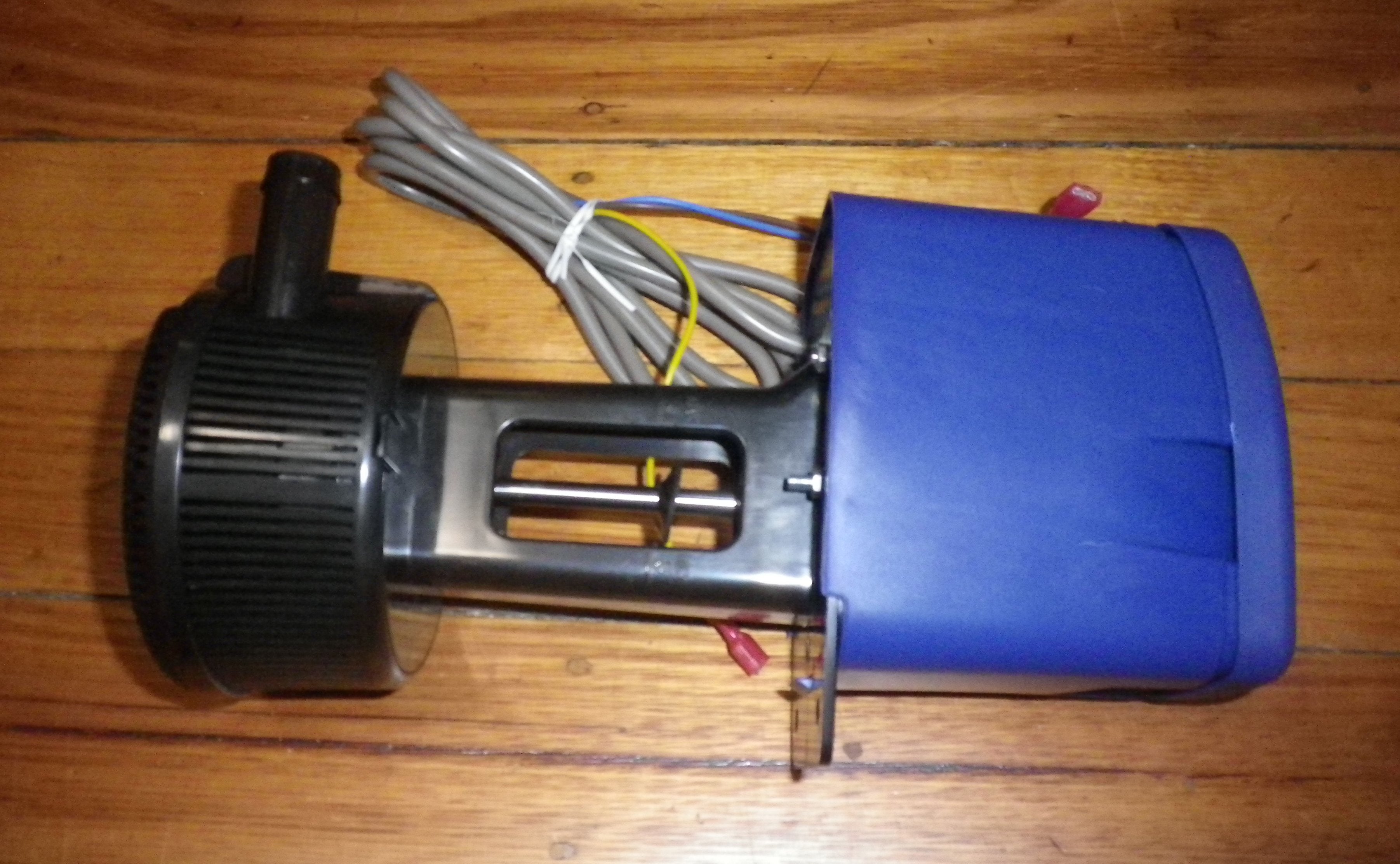

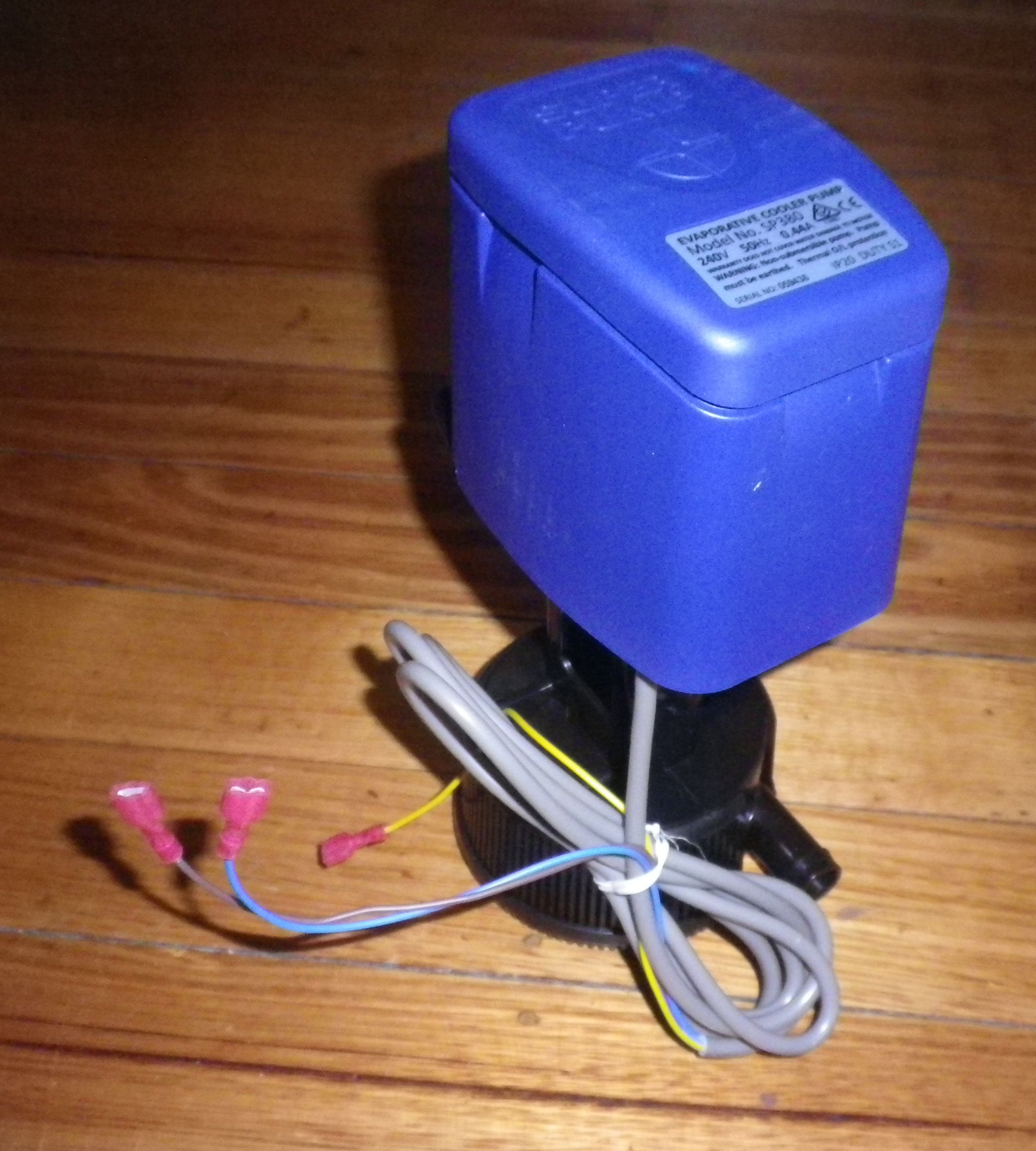

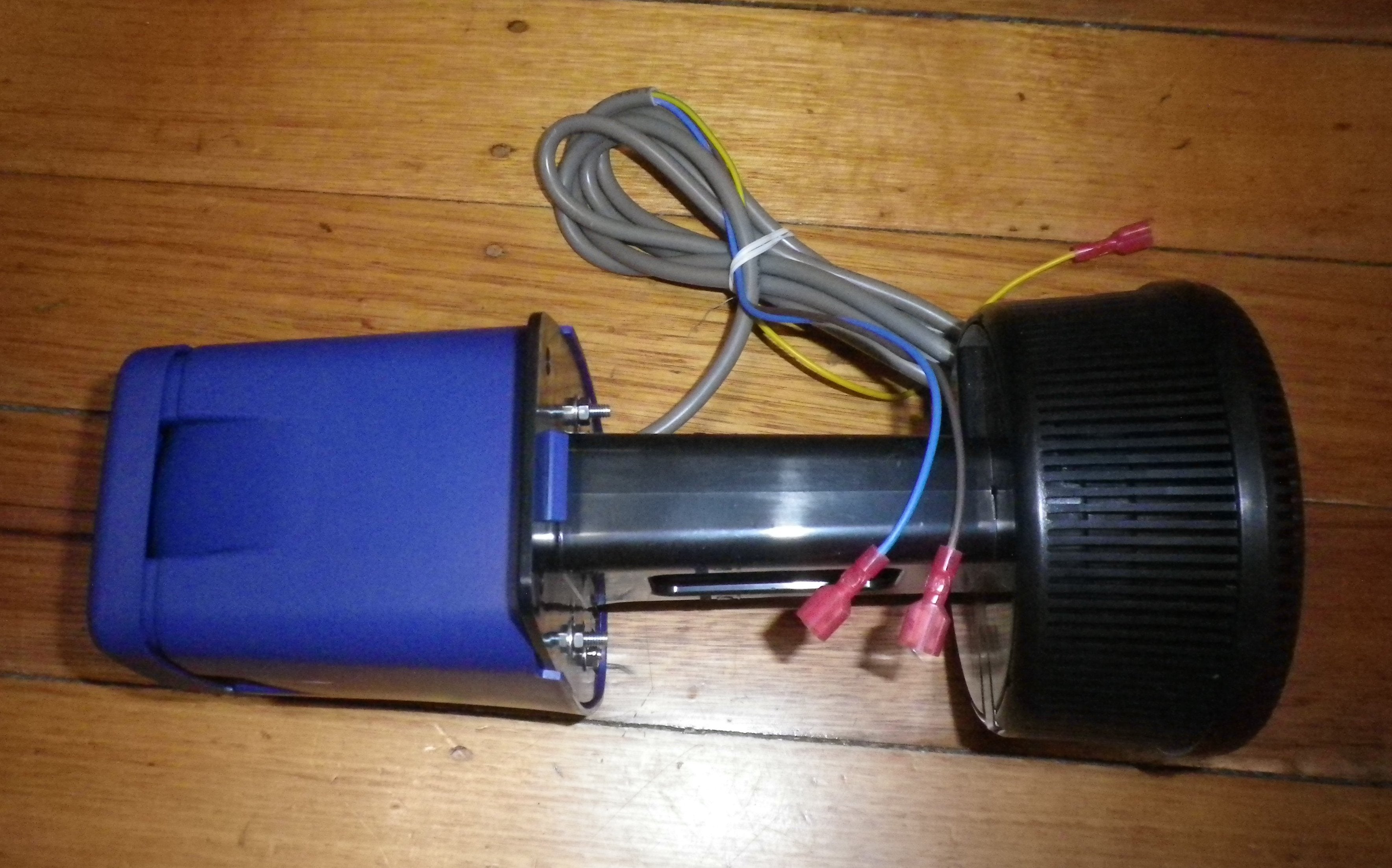

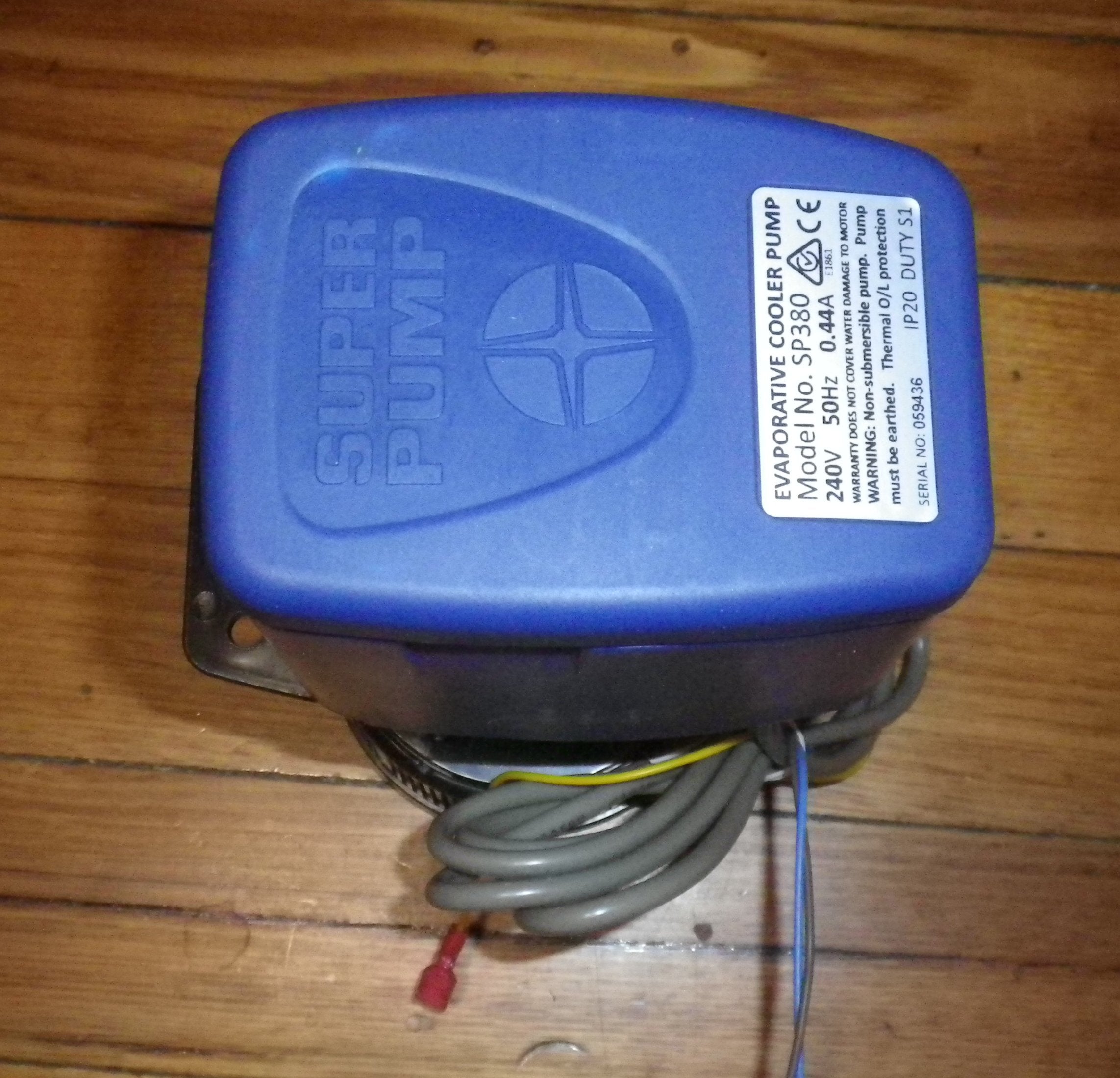

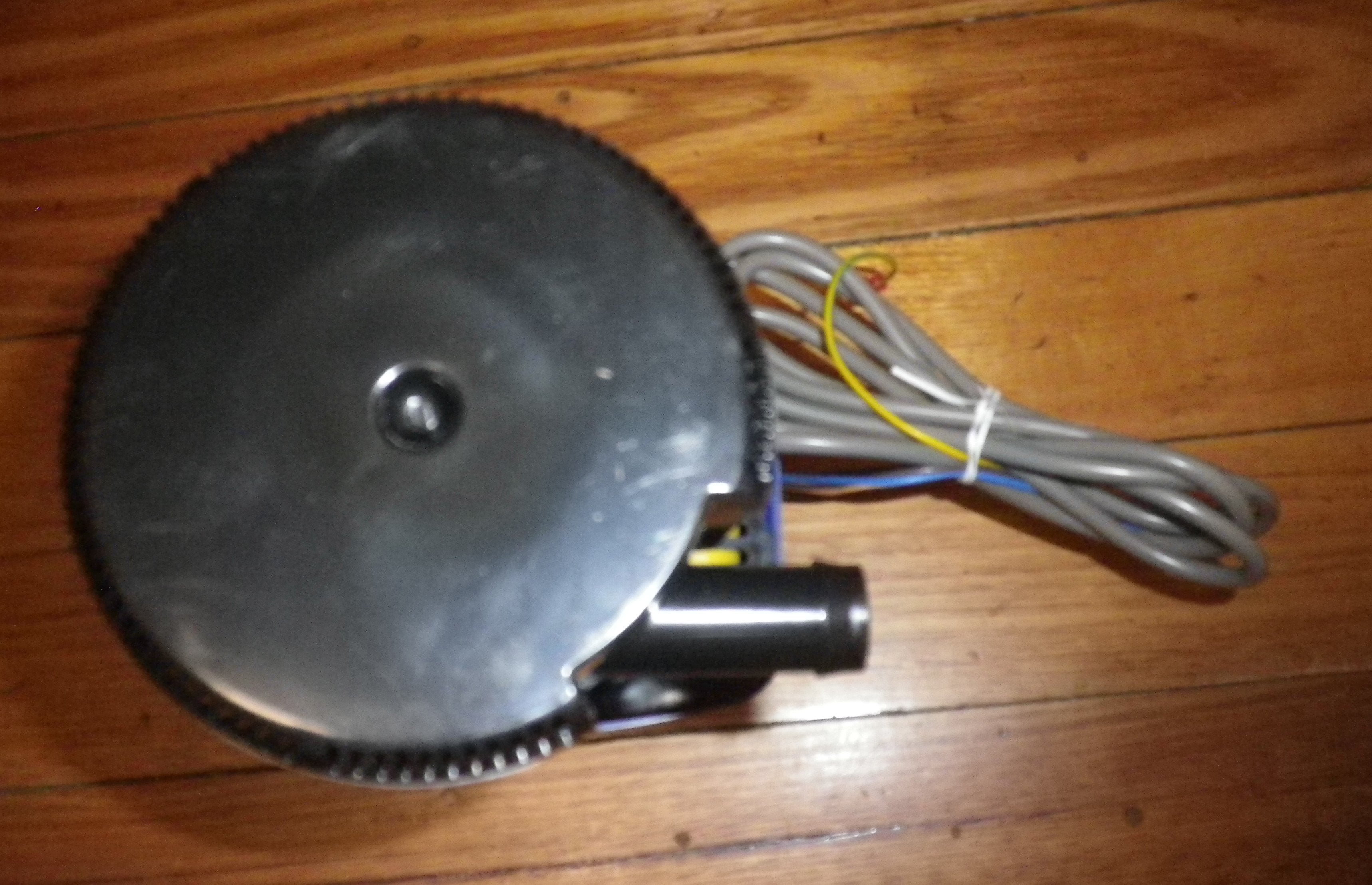

Introducing the SuperPump, a top - notch universal water circulation pump designed for evaporative air conditioners. Part number SP380, it's similar to models E/P38ST, E/P38 - ILFJ, and RF504Q. This complete pump assembly is a great fit for numerous roof - mounted and portable evaporative air conditioners. With a 240VAC pump motor, drawing 0.44 Amp at 50Hz, it has an impressive capacity of 38 litres per minute. The pump comes with a 2 - metre 3 - core lead featuring 6.4mm spade terminals and an earth wire. Measuring 27cm in total height, 16.3cm from the bottom of the pump to the mounting bracket, with mounting holes 50mm apart, a 118mm diameter pump base, and a 20.5mm external outlet diameter, it's precisely engineered. The 38 litres per minute flow rate ensures efficient water circulation. It also includes an integral filter cage to keep the water clean. Thermally protected, it's safe and reliable. Easy to install, this pump comes with a 1 - year manufacturer warranty. With over 25 years of experience supplying appliance parts to both the trade and retail sectors, you can buy with confidence.
Using the SuperPump is straightforward. First, make sure your evaporative air conditioner is turned off. Then, position the pump where it needs to be installed, taking note of the mounting holes' location and align them properly. Connect the 2 - metre 3 - core lead with 6.4mm spade terminals to the appropriate power source, ensuring the earth wire is correctly connected. Once everything is hooked up, you can turn on your air conditioner, and the pump will start circulating water at a rate of 38 litres per minute. As for maintenance, check the integral filter cage regularly. If it's clogged with debris, remove it and clean it under running water. This will keep the water clean and the pump working efficiently. When it comes to safety, always remember that the pump is thermally protected, but it's still a good idea to turn off the power before any maintenance work. And if you encounter any problems, you're covered by a 1 - year manufacturer warranty, so don't hesitate to reach out for support.
