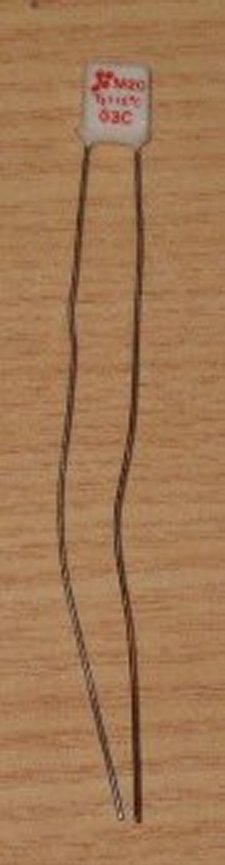

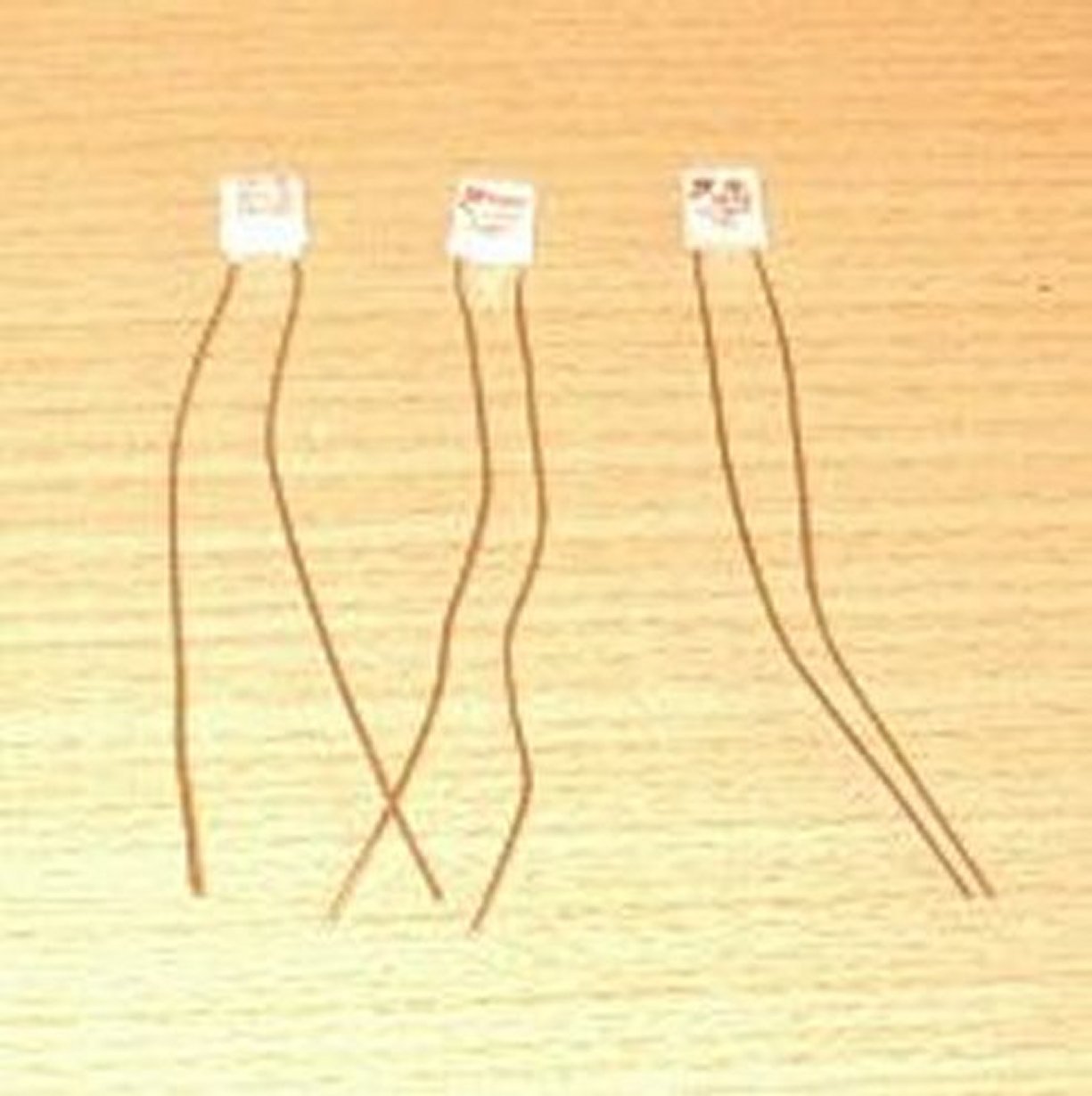

This isolated single ended thermal fuse comes with various temperature options. Part numbers are TFxxx or WTFxxx, where xxx represents the required temperature. It serves as over - temperature protection for many mains transformers and electric motors, potentially saving you from costly transformer replacements. The fuse body measures 7mm X 6mm X 2.5mm, with lead lengths ranging from 50 to 60mm. Lead length may vary slightly based on the chosen temperature, but all look similar to the picture. It has a maximum rating of 3 Amperes and 250 Volts AC. Available temperatures are 98, 102, 108, 115, 125, 130, and 150 degrees Celsius. Each listing is for one fuse. With over 25 years of experience supplying appliance parts to both trade and retail, you can buy with confidence.
Using this thermal fuse is easy. First, figure out the right temperature for your transformer or electric motor from the available options (98, 102, 108, 115, 125, 130, or 150 degrees Celsius). Make sure the maximum ratings of 3 Amperes and 250 Volts AC match your device's requirements. When installing, note that the lead length might vary a bit depending on the temperature you choose, but it's similar to the picture. Keep in mind that this fuse is designed for over - temperature protection. If you notice your device getting too hot, the fuse will cut off the power to prevent damage. As for maintenance, there's not much to do. Just check it occasionally to make sure it's in good condition. If it has blown, replace it with a new one of the same temperature rating. And remember, we've been in the appliance parts business for over 25 years, so you can trust the quality of this product.
