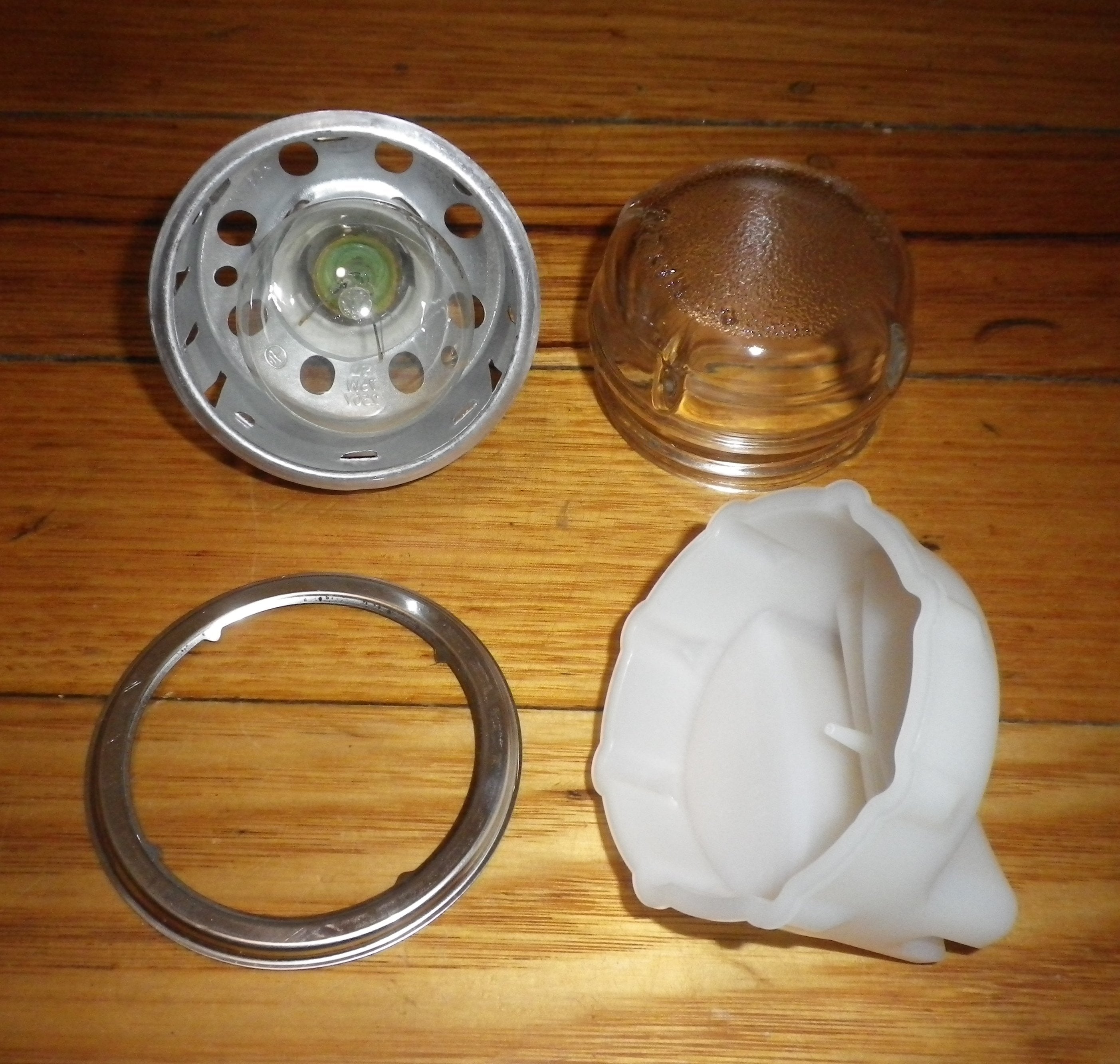

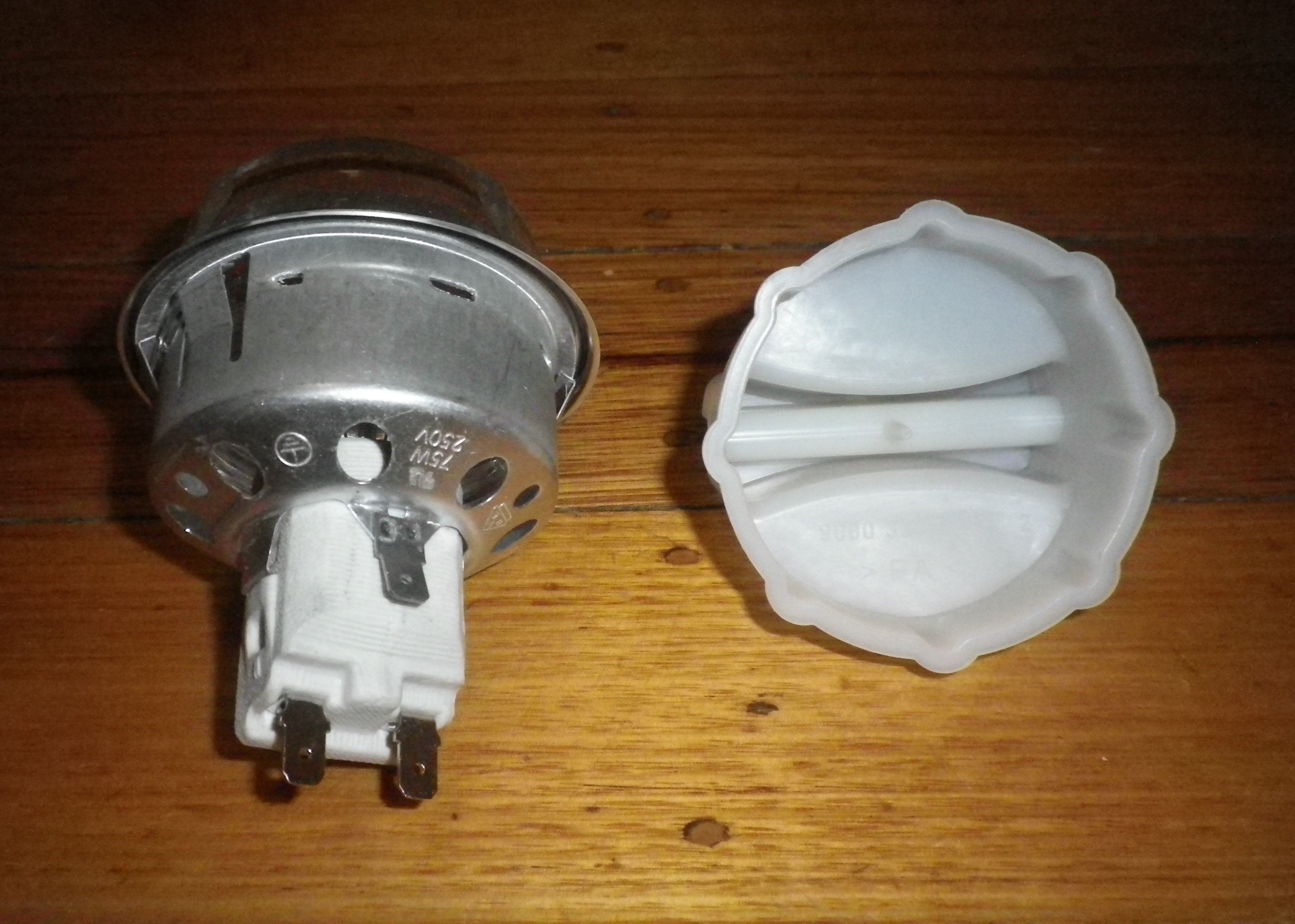

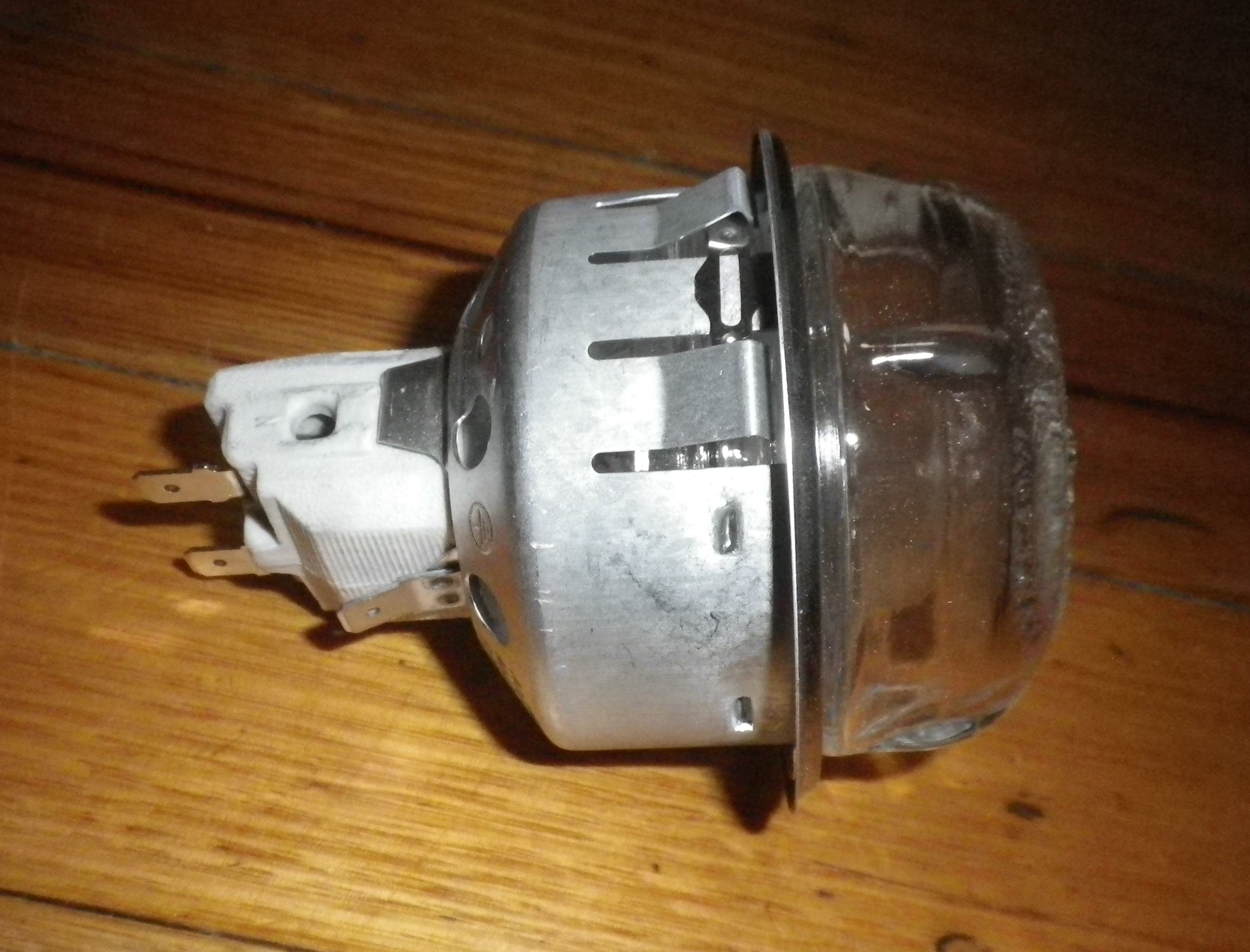

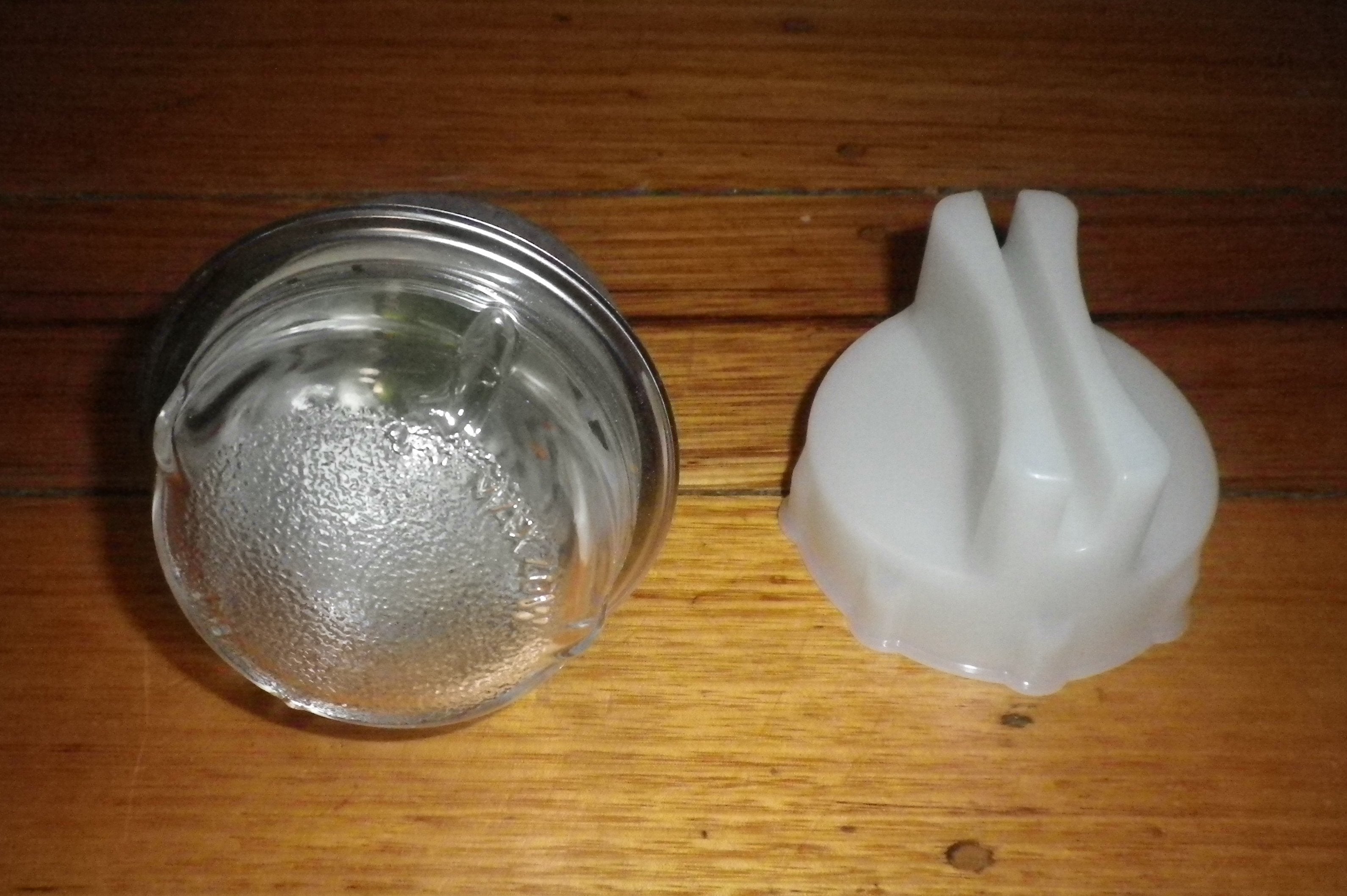

This is a complete lamp holder for Bosch ovens, including a glass cover and a globe. Part number is 420775 or 00420775, and it replaces multiple old part numbers. It fits many Bosch under - bench ovens like HBN3500/01, HBN430520A/01, HBN101250A/01. The overall diameter is 79.5mm, the rounded top diameter is 63mm, height is 104mm, glass height is 31mm, and the glass height with the threaded section is 47mm. It has 3 x 6.4mm male spade terminals. A cover removal tool with an internal diameter of 63mm and a 40 - watt globe are included. There are too many compatible models to list. If you're not sure if it fits your oven, contact us with your full model number before buying. We've been supplying appliance parts to trade and retail for over 25 years, so you can buy with confidence.
Using this Bosch oven lamp holder is easy. First, make sure your oven is turned off and cooled down. Then, use the included removal tool to take out the old lamp holder. Place the new lamp holder in its position and connect the male spade terminals. Screw on the glass cover and insert the 40 - watt globe. When using the oven, always keep the glass cover clean to ensure good illumination. If the globe burns out, replace it with a 40 - watt bulb of the same type. Don't use abrasive cleaners on the glass cover as it may scratch it. Store the removal tool in a safe place for future use. If you have any questions during installation or use, feel free to contact us.
