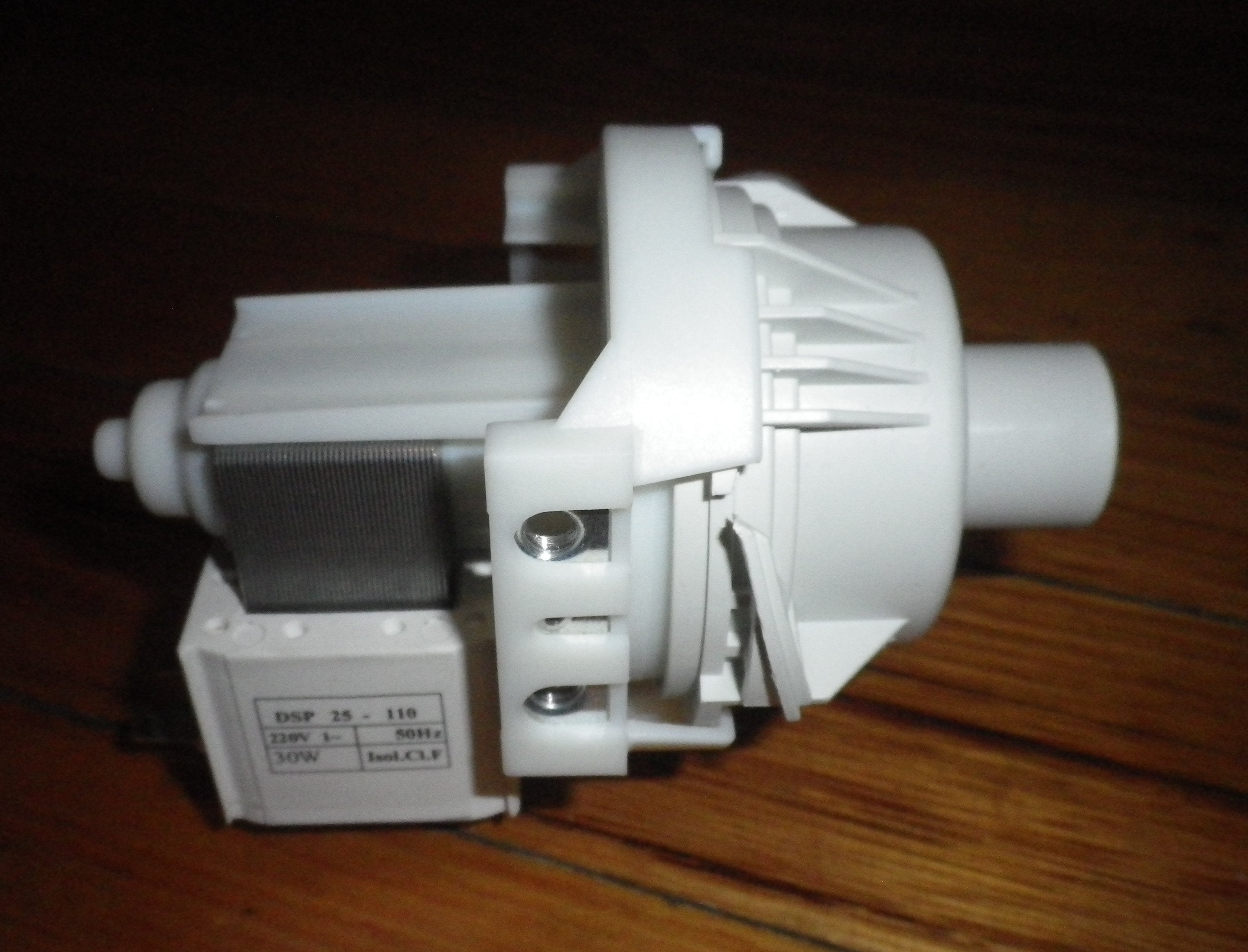

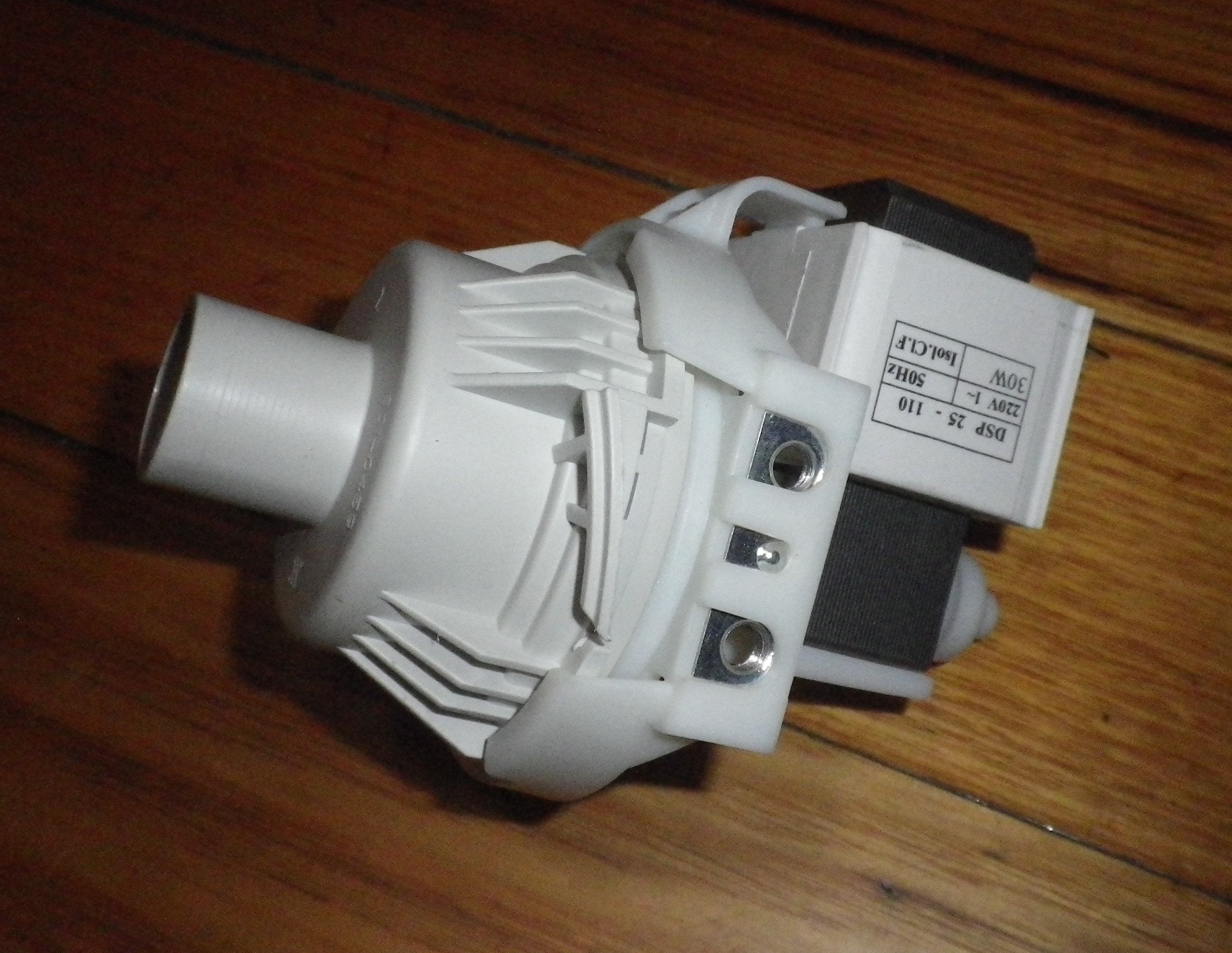

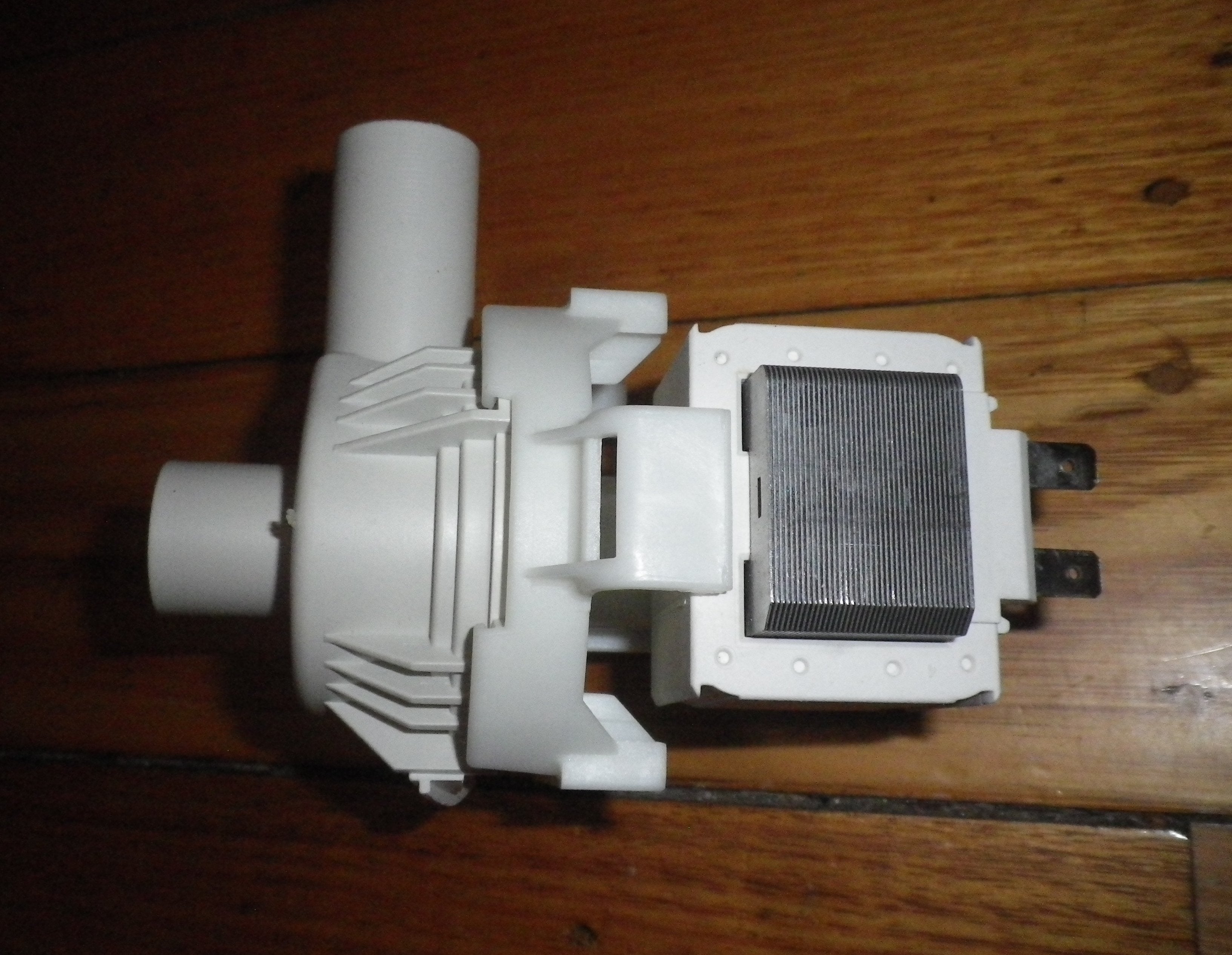

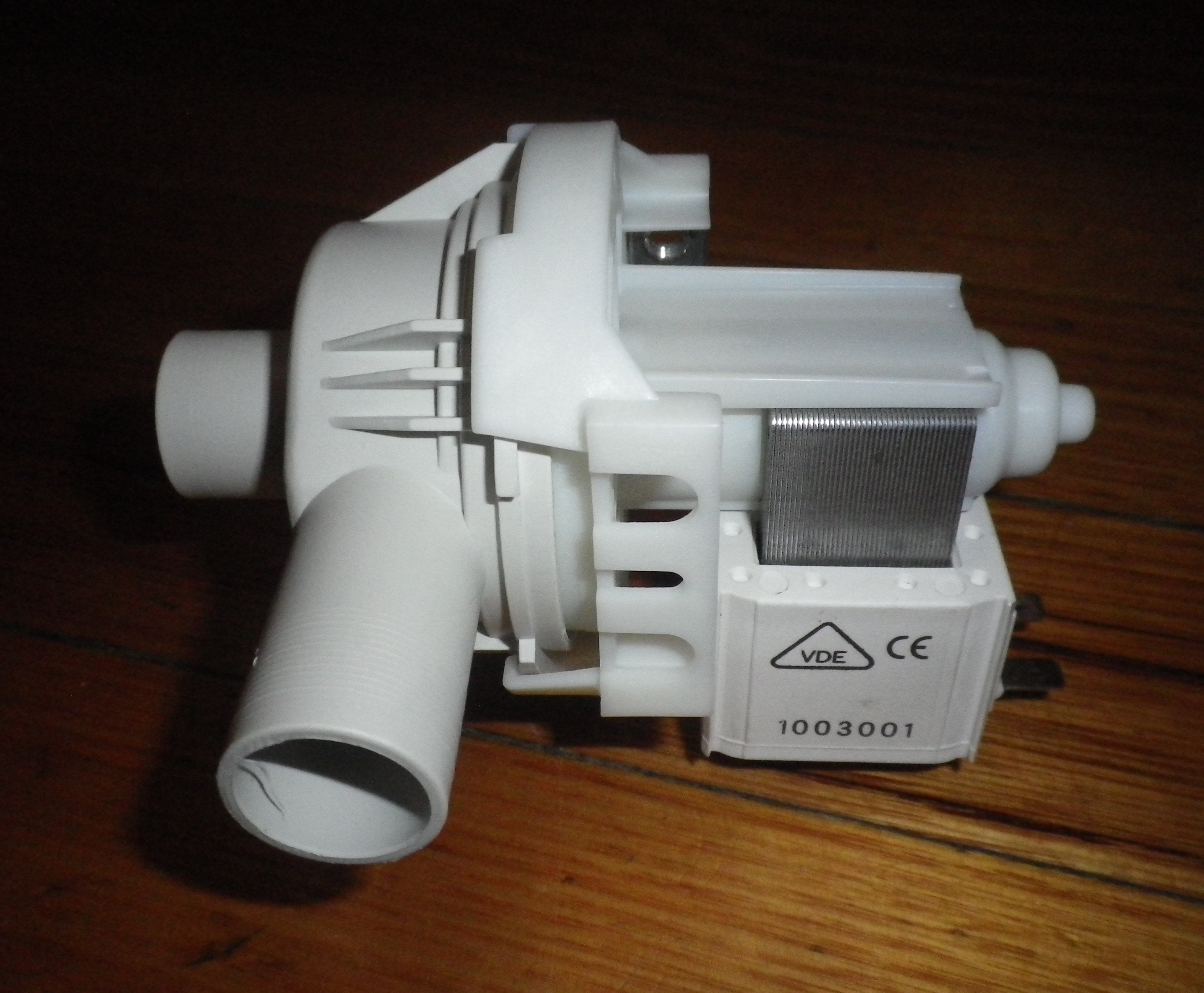

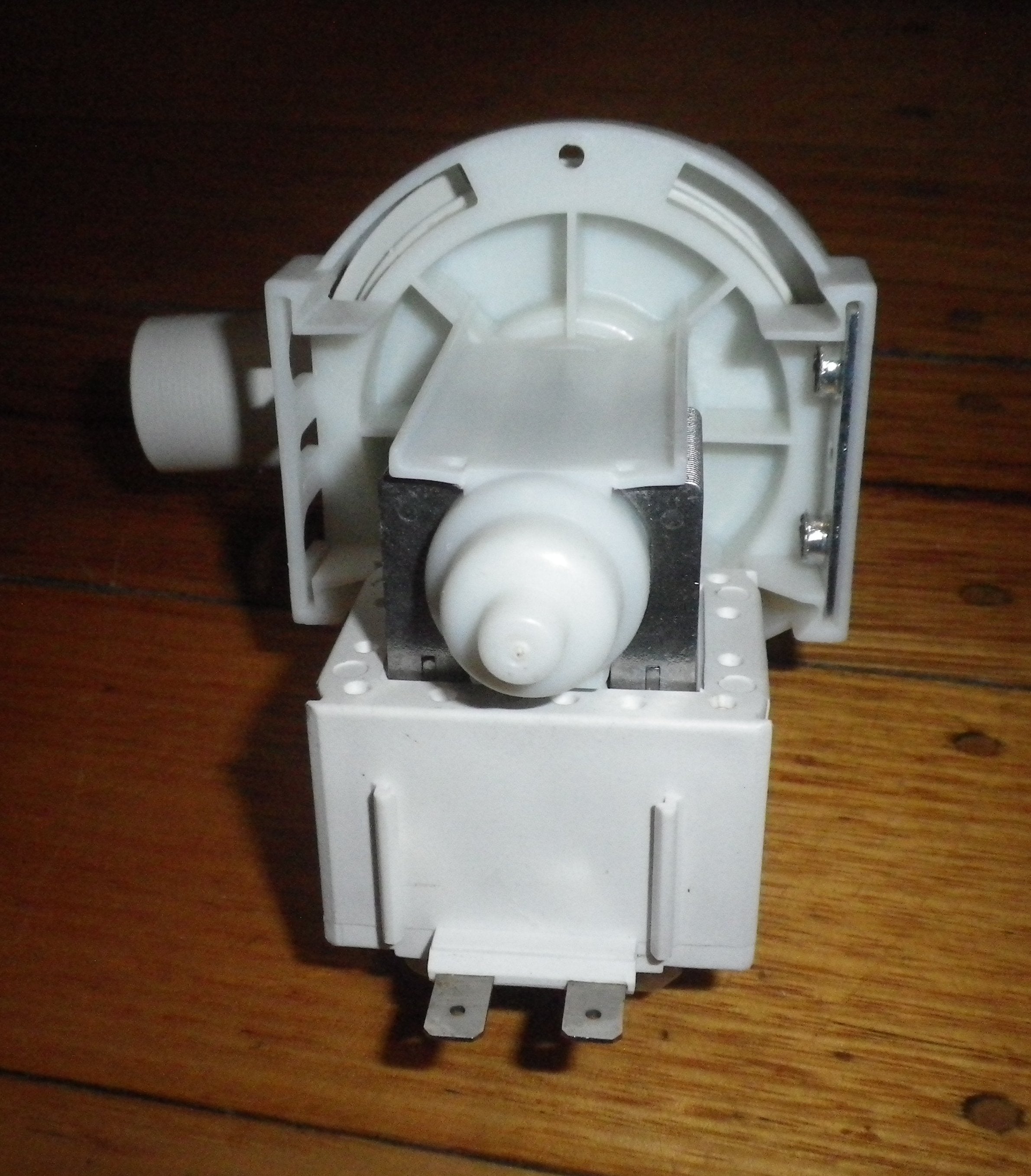

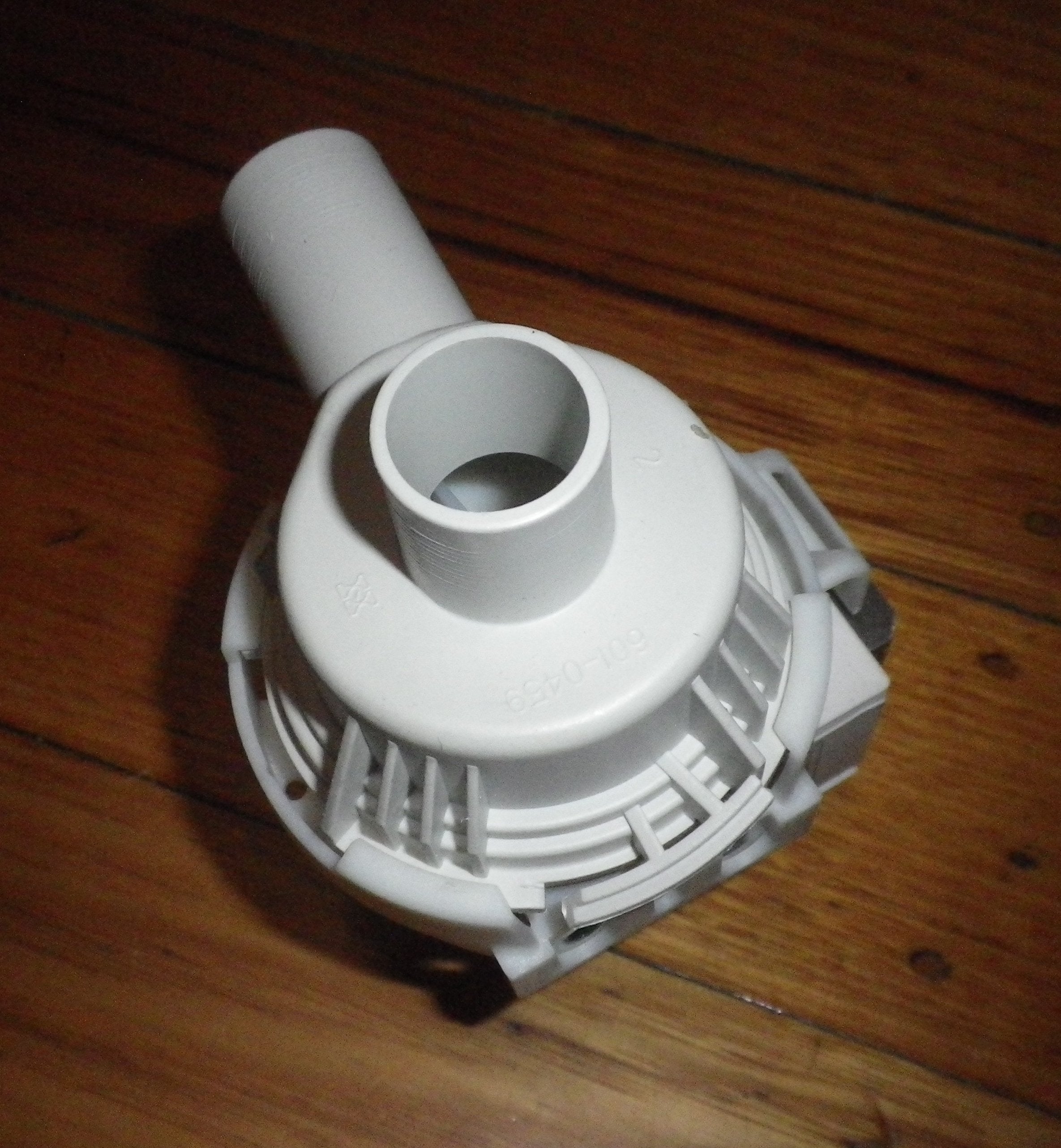

This is a top - notch magnetic pump motor, designed to be fully compatible with Simpson and Westinghouse washing machines. It follows the Hanning style. The part numbers are SP080S and DPS25 - 110. It can replace Hanning Type DPS25 030 and multiple other part numbers such as 0499200049, 160614, etc. This electric pump with a magnetic style is suitable for various early and late model washing machines. For Simpson, it works with models like Enduro, Esprit, Encore, SWT series, WWT series, and some SWF models. It also fits certain Westinghouse models. The mounting hole spacing is 25mm. Both the inlet and outlet diameters are 24mm. It features 6.4mm spade terminals and operates at 240VAC, 50Hz. It's extremely easy to install and comes with a full guarantee. If you're not sure if this product is right for your machine, just reach out to us before buying. Provide your full model number and PNC number. With over 25 years of experience in supplying appliance parts to both the trade and retail sectors, you can shop with confidence.
Using this magnetic drain pump motor is easy. First, make sure your washing machine is unplugged from the power source. Identify the old pump motor and carefully remove it. Take note of how the wires are connected. Then, install the new pump motor in its place, connecting the wires to the 6.4mm spade terminals as they were on the old motor. Ensure the mounting holes match the 25mm spacing and secure the pump properly. Once installed, plug your washing machine back in and test it. As for maintenance, keep the pump clean and free from debris. Check the inlet and outlet regularly to make sure they are not blocked. If you notice any strange noises or reduced performance, stop using the machine and contact us. When in doubt about its suitability or installation, always get in touch with us with your washing machine's full model number and PNC number.
