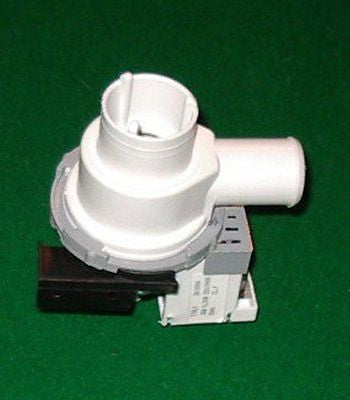

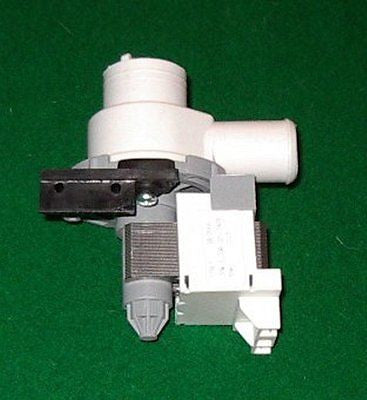

This Hoover magnetic pump motor features a small offset base and a large 40mm inlet. Part number H052, it's an electric pump that fits some late - model Hoover washing machines and also certain Admiral models. It comes with 6.4mm spade terminals and operates at 240VAC, 50Hz. The mounting hole spacing is 24mm, and the mounting bracket is offset. There are two types of this motor with different inlet sizes, and this one has a left - positioned bracket when looking at the inlet. The outlet can be placed left, right, or straight up. It's incredibly easy to install and comes with a full guarantee. With over 25 years of experience supplying appliance parts to both the trade and retail sectors, you can shop with confidence.
Using this Hoover magnetic pump motor is simple. First, make sure your washing machine is unplugged from the power source. Locate the old pump motor in your machine and carefully remove it, taking note of how the wires are connected. Connect the 6.4mm spade terminals of the new motor to the corresponding wires in your washing machine. The mounting hole spacing is 24mm, so align the motor with the mounting holes in your machine. The mounting bracket is offset, and when looking at the inlet, the bracket should be on the left. You can position the outlet left, right, or straight up according to your machine's layout. Once everything is connected and secured, plug your washing machine back in and test it. As for maintenance, keep the motor clean and free from debris. If you notice any strange noises or performance issues, turn off the machine immediately and check the connections. If the problem persists, contact a professional. Remember, this motor comes with a full guarantee, so you can have peace of mind while using it.
