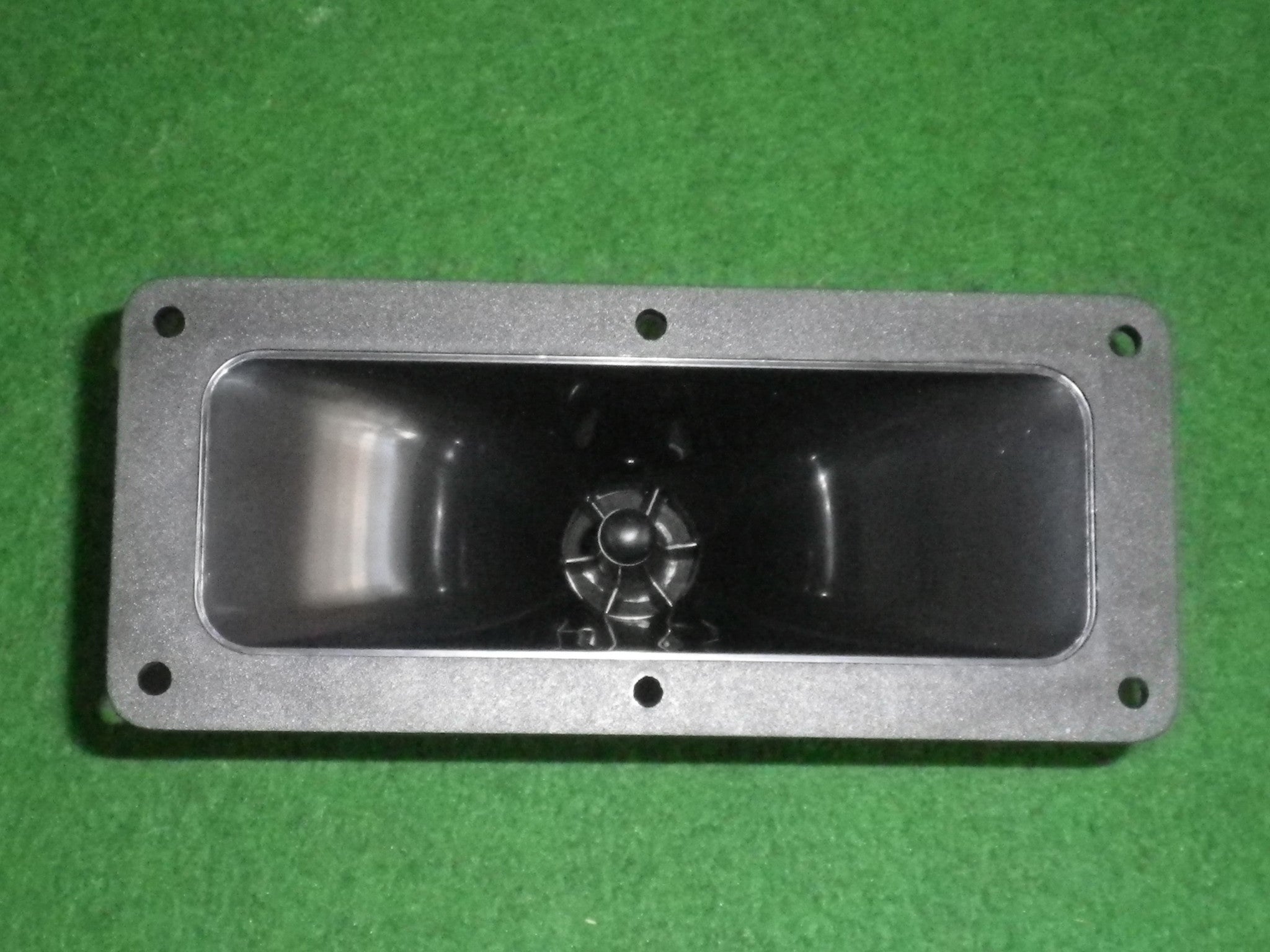

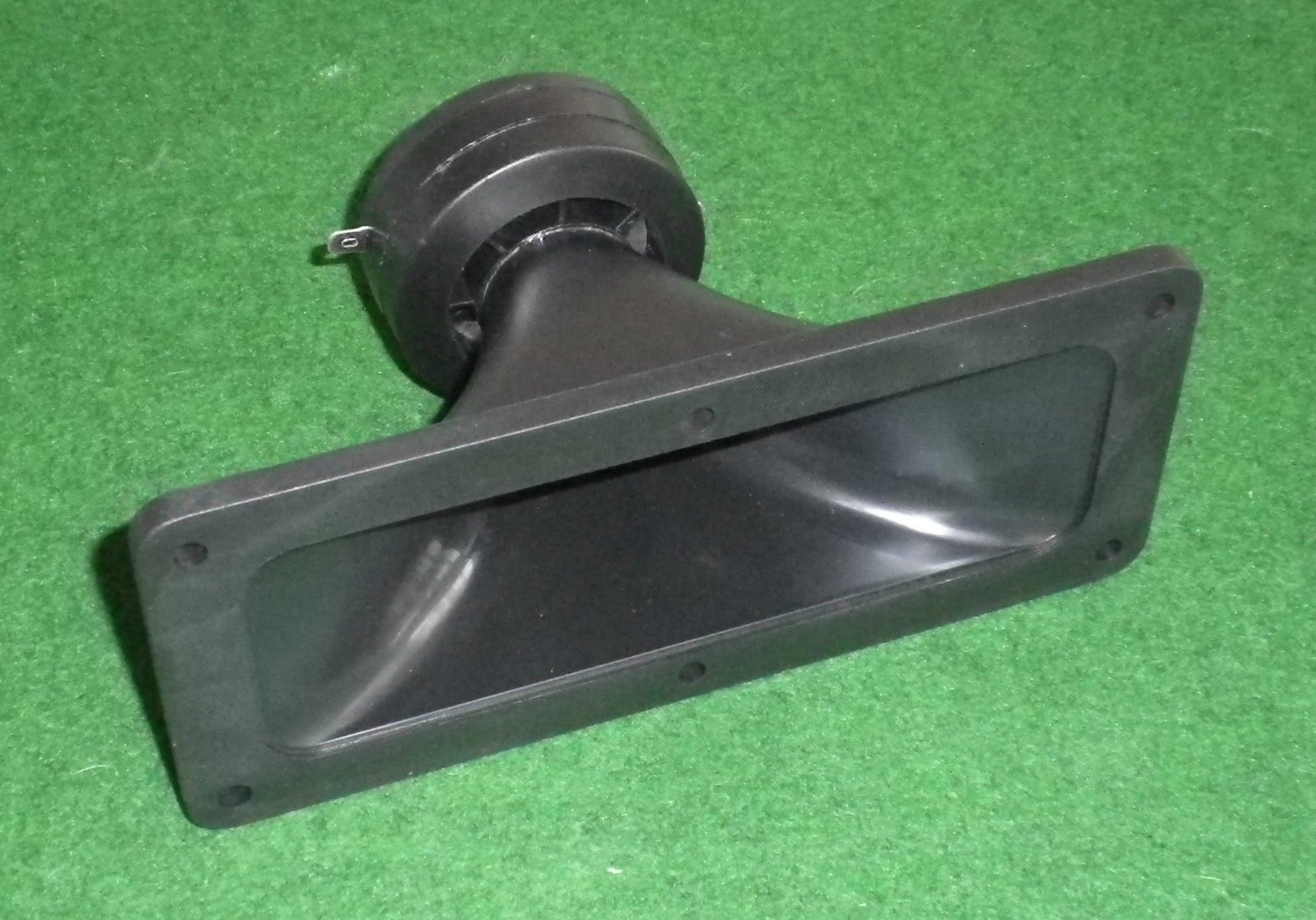

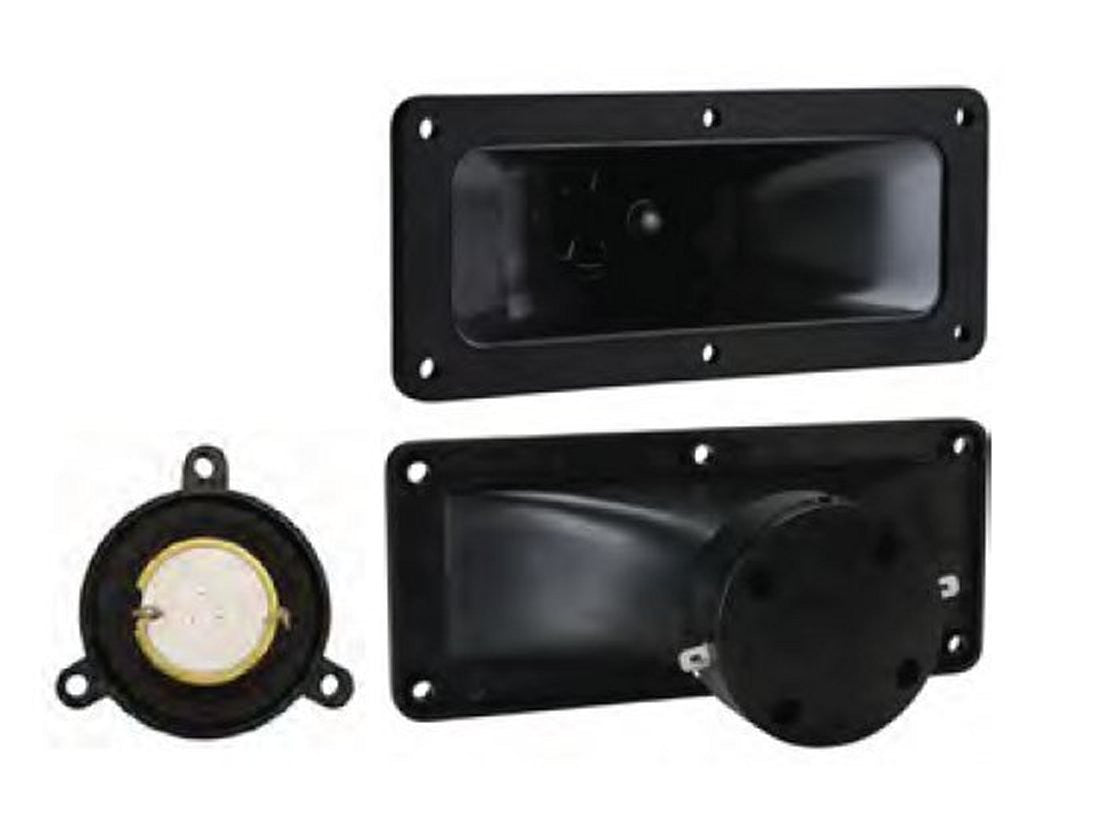

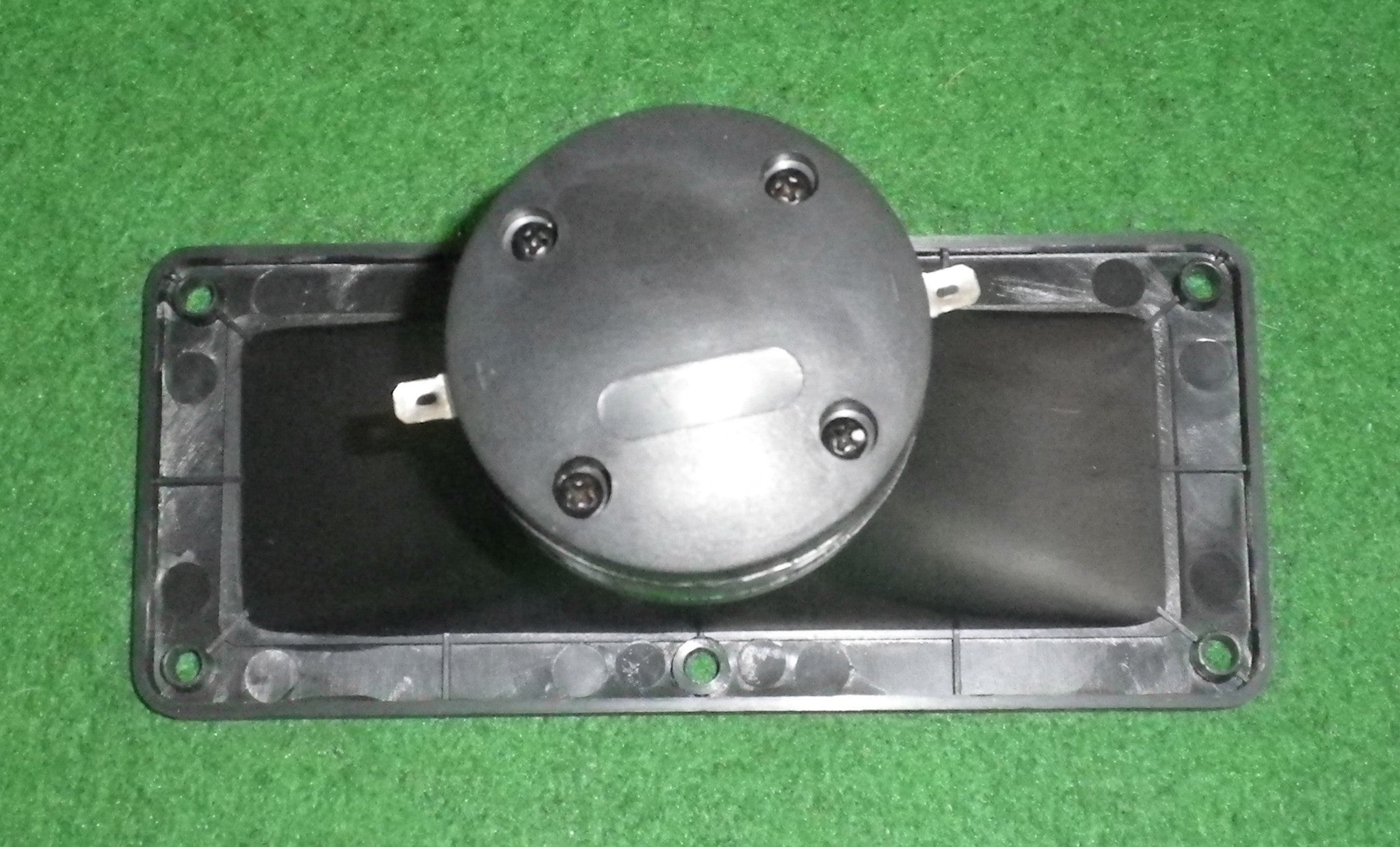

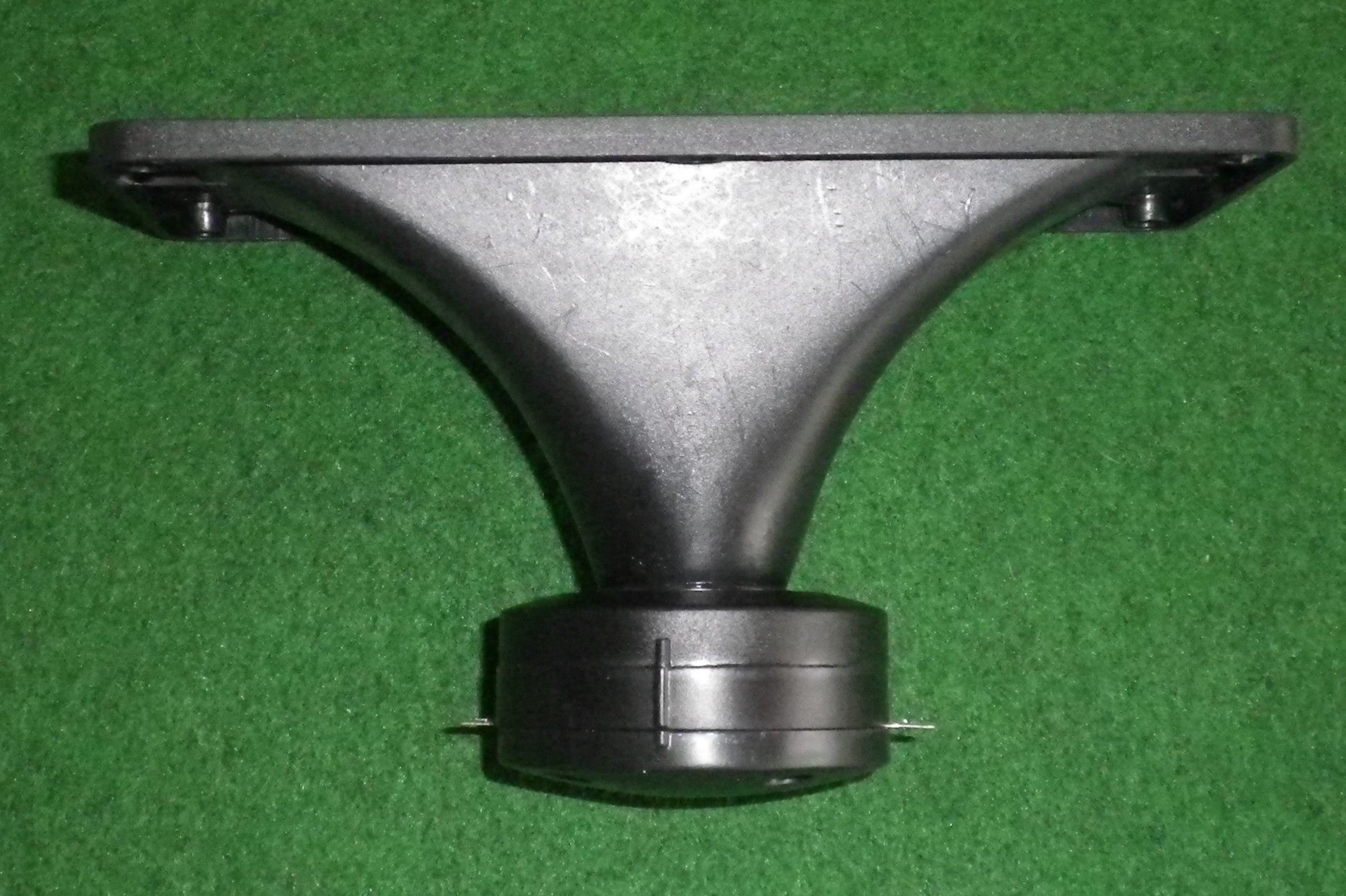

Daichi 75watt (max) Rectangular Piezo Horn Tweeter Speaker - Part # PZ1025

Discover the Daichi Rectangular Piezo Horn Tweeter Speaker, part number PZ1025. This high - performance tweeter doesn't need a crossover. It's a long - throw rectangular speaker perfect for sound reinforcement, ideal for PA systems and can be used with models like IS1200 and IS15 - 150. It can also replace the well - known Motorola KSN1025 horn driver.

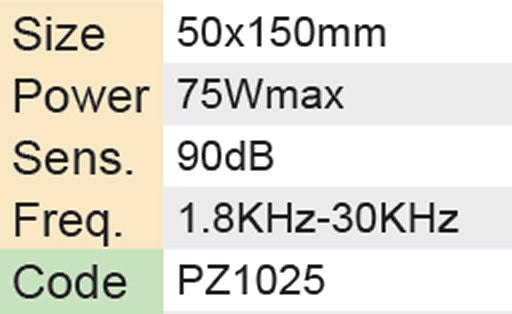

It has a power output of 50W RMS and a maximum of 75W. The frequency range is from 1.8KHz to 30KHz, and it has a sensitivity of 90dB. The mounting diagonal is 182mm, with a depth of 108mm. Its size is 188mm x 80mm.

With over 25 years of experience supplying appliance parts to both trade and retail, you can buy this product with full confidence.

Using this Daichi tweeter speaker is quite simple. First, find a suitable place for mounting. Make sure the mounting area has a diagonal of 182mm to fit the speaker properly. Connect it to your PA system or other compatible devices like IS1200 or IS15 - 150 without the need for a crossover. When using, keep in mind that the power output should not exceed the 75W maximum to avoid damaging the speaker. For maintenance, you can use a soft, dry cloth to gently wipe the surface of the speaker. Don't expose it to excessive moisture or extreme temperatures. Check the connections regularly to ensure a stable sound output.
